Microsens MS400240, MS400241, MS400249 User Manual

1

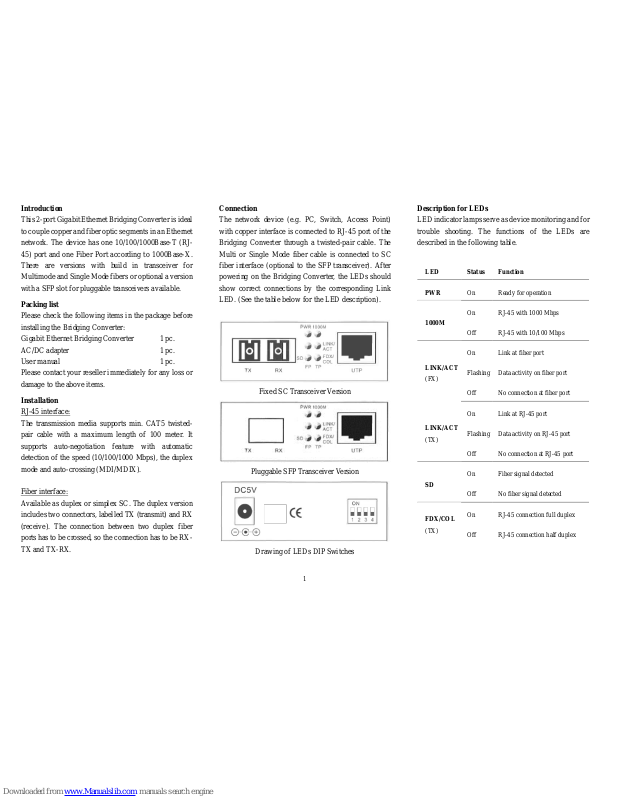

Introduction

This 2-port Gigabit Ethernet Bridging Converter is ideal
to couple copper and fiber optic segments in an Ethernet
network. The device has one 10/100/1000Base-T (RJ-

45) port and one Fiber Port according to 1000Base-X.
There are versions with build in transceiver for
Multimode and Single Mode fibers or optional a version
with a SFP slot for pluggable transceivers available.

Packing list

Please check the following items in the package before
installing the Bridging Converter:
Gigabit Ethernet Bridging Converter 1 pc.
AC/DC adapter 1 pc.
User manual 1 pc.
Please contact your reseller immediately for any loss or
damage to the above items.

Installation

RJ-45 interface:
The transmission media supports min. CAT5 twisted­pair cable with a maximum length of 100 meter. It
supports auto-negotiation feature with automatic
detection of the speed (10/100/1000 Mbps), the duplex
mode and auto-crossing (MDI/MDIX).

Fiber interface:
Available as duplex or simplex SC. The duplex version
includes two connectors, labelled TX (transmit) and RX
(receive). The connection between two duplex fiber
ports has to be crossed, so the connection has to be RX­TX and TX-RX.

Connection

The network device (e.g. PC, Switch, Access Point)
with copper interface is connected to RJ-45 port of the
Bridging Converter through a twisted-pair cable. The
Multi or Single Mode fiber cable is connected to SC
fiber interface (optional to the SFP transceiver). After
powering on the Bridging Converter, the LEDs should
show correct connections by the corresponding Link
LED. (See the table below for the LED description).

Fixed SC Transceiver Version

Pluggable SFP Transceiver Version

Drawing of LEDs DIP Switches

Description for LEDs

LED indicator lamps serve as device monitoring and for
trouble shooting. The functions of the LEDs are
described in the following table.

LED

Status

Function

PWR

On

Ready for operation

1000M

On

RJ-45 with 1000 Mbps

Off

RJ-45 with 10/100 Mbps

LINK/ACT

(FX)

On

Link at fiber port

Flashing

Data activity on fiber port

Off

No connection at fiber port

LINK/ACT

(TX)

On

Link at RJ-45 port

Flashing

Data activity on RJ-45 port

Off

No connection at RJ-45 port

SD

On

Fiber signal detected

Off

No fiber signal detected

FDX/COL

(TX)

On

RJ-45 connection full duplex

Off

RJ-45 connection half duplex

2

Technical Specifications optical transceiver simplex:

Version

Optical
wavelength
(nm)

Optical
power
(dBm)

Sensitivity
(dBm)

Distance
(km)
TP/SM simplex

1310/1550

-3..-8

<-22

20

TP/SM simplex

1310/1550

0..-5

<-24

40

TP/SM simplex

1310/1550

0..-3

<-25

60

Technical Specifications optical transceiver duplex:

Version

Optical
wavelength
(nm)

Optical
power
(dBm)

Sensitivity
(dBm)

Distance
(km)
TP/MM

850

-12..-15

<-20

0.55

TP/SM 20

1310

-3..-8

<-22

20

TP/SM 40

1310

0..-5

<-24

40

TP/SM 60

1310

0..-3

<-25

60

TP/SM 80

1550DFB

0..-1

<-25

80

DIP-Switch configuration:

Switch

Status

Function

1
On

Link Through on

Off

Link Through off

2
On

Not used

Off

Not used

3
On/Off

Copper port forced to 10Mb

On/On

10/100/1000T adaptive

4
On

Not used

Off

Not used

Main features:

• Compact Gigabit Ethernet Bridging Converter

• Compliant to IEEE 802.3, 802.3u, and 802.3x,

IEEE 802.3ab 1000BaseT, IEEE 802.3z Standards

• Integrated Link-Through function (links status forwarding)

• Automatic configuration via auto-negotiation

• Manual configuration via DIP-switches possible

• Integrated auto-crossing (MDI/MDIX) on RJ-45 port

Technical Specifications:

Type: Gigabit Ethernet Bridging Converter for coupling

of twisted-pair (10/100/1000Base-T) and fiber (1000Base-X)

Cable type: Shielded twisted-pair cable, 100 Ohm, min. Cat 5e
Fiber type: Multimode fiber 50 or 62,5/125 µm, Single Mode

fiber 9/125 µm, duplex SC-connector (optional SC simplex),
optional SFP slot for pluggable transceivers
Power supply: 5 V DC / max. 1 A via external power supply
(included at delivery)

Operating temperature: 0 °C to 50 °C
Storage temperature: -20 °C to 80 °C
Humidity: 5 % to 90 % non-condensing
Dimensions: 26 x 70 x 94 mm (H x B x T)

Products

Article-No

Description

MS400240

Gigabit Ethernet Bridge 10/100/1000Base-T
to 1000Base-SX SC, 850 nm Multimode

MS400241

Gigabit Ethernet Bridge 10/100/1000Base-T
to 1000Base-LX SC, 1310 nm Single Mode

MS400249

Gigabit Ethernet Bridge 10/100/1000Base-T
to 1000Base-X, SFP Slot

Gigabit Ethernet

Bridging Converter

User Manual

(Do not use this device until you read

this manual carefully!)

MICROSENS GmbH & Co. KG – Kueferstr. 16 - 59067 Hamm / Germany

Tel. [phone] - FAX -100 - www.microsens.com
