Gigabit Fiber to Gigabit Fiber (100/1000) Media Converter is a costeffective solution for converting 1000Base-FX to 100/1000Base-FX
cabling. It is a standalone converter unit, which allows your network
connectivity to be more flexible.
Gigabit Fiber to Gigabit Fiber (100/1000) Media Converter will allow you to
extend the cabling distance by different transceiver type and its available
connection. The Gigabit Fiber Converter provides you with one SFP
(Mini-GBIC) port for your 1000BaseFX fiber optic cable and one SFP
(Mini-GBIC) port for your 100/1000Base-FX fiber optic cable connection.
There are 3 DIP—switches to set the operation mode for Fiber ports and
link loss forwarding function.
Features
Complies with IEEE 802.3u, IEEE 802.3x, IEEE 802.3z standards
Fiber (1000) to Fiber (100/1000) Media converter
Standalone and Chassis design
Built-in Link Loss Forwarding (LLF) & Link Fault Pass-Through (LFP)
technology
Hot-Swap for chassis
External DC power adapter 9V/0.7A
1
Package Contents
Please refer to the package content list below to verify them against the
checklist.
Modular Gigabit Fiber Converter
AC-DC Power Adapter
User Guide
Compare the contents of your Modular Converter with the standard
checklist above. If any item is damaged or missing, please contact your
local dealer for service.
2
Hardware Description
Gigabit Fiber to Gigabit Fiber (100/1000) Media Converter dimensions are
119mm x 85mm x 26mm (W x D x H)
Front Panel

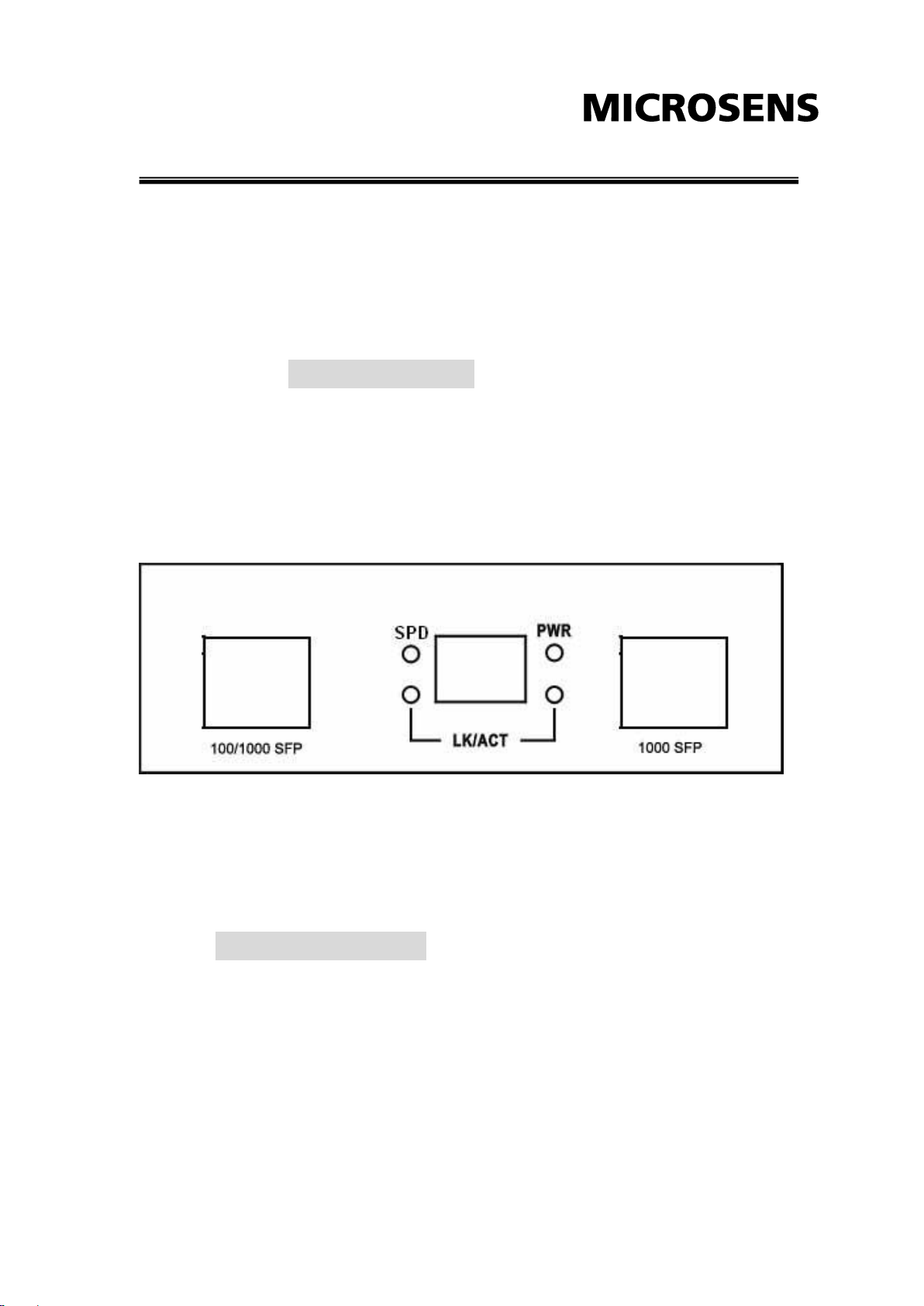

The front panel of Gigabit Fiber to Gigabit Fiber (100/1000) Media
Converter consists of two SFP (Mini-GBIC) slots and 4 LED Indicators
(SPD, LK/ACT, and PWR).
(1) Mini-GBIC slot (3) DIP-Switch
(2) LED (4) Mini-GBIC slot
Ports
Mini-GBIC slots: It supports 3.3V.The Mini-GBIC module is optional.
There are 3 LED indicators for Mini-GBIC port—LNK/ACT and SPD.
3
LED
Status
Description
PWR
Green
Power on
SPD
Green
100/1000 SFP port is operating at speed
of 1000Mbps
OFF
100/1000 SFP port is disconnected or not
operating at speed of 1000Mbps
LK/ACT
Green
Connected to network
Blinks
Networking is active
Off
Not connected to network
LED Indicators
There are 4 diagnostic LEDs located on the Front panel of converter
module. They provide real-time information of system and optional status.
The following table provides description of the LED status and their
meanings.
4

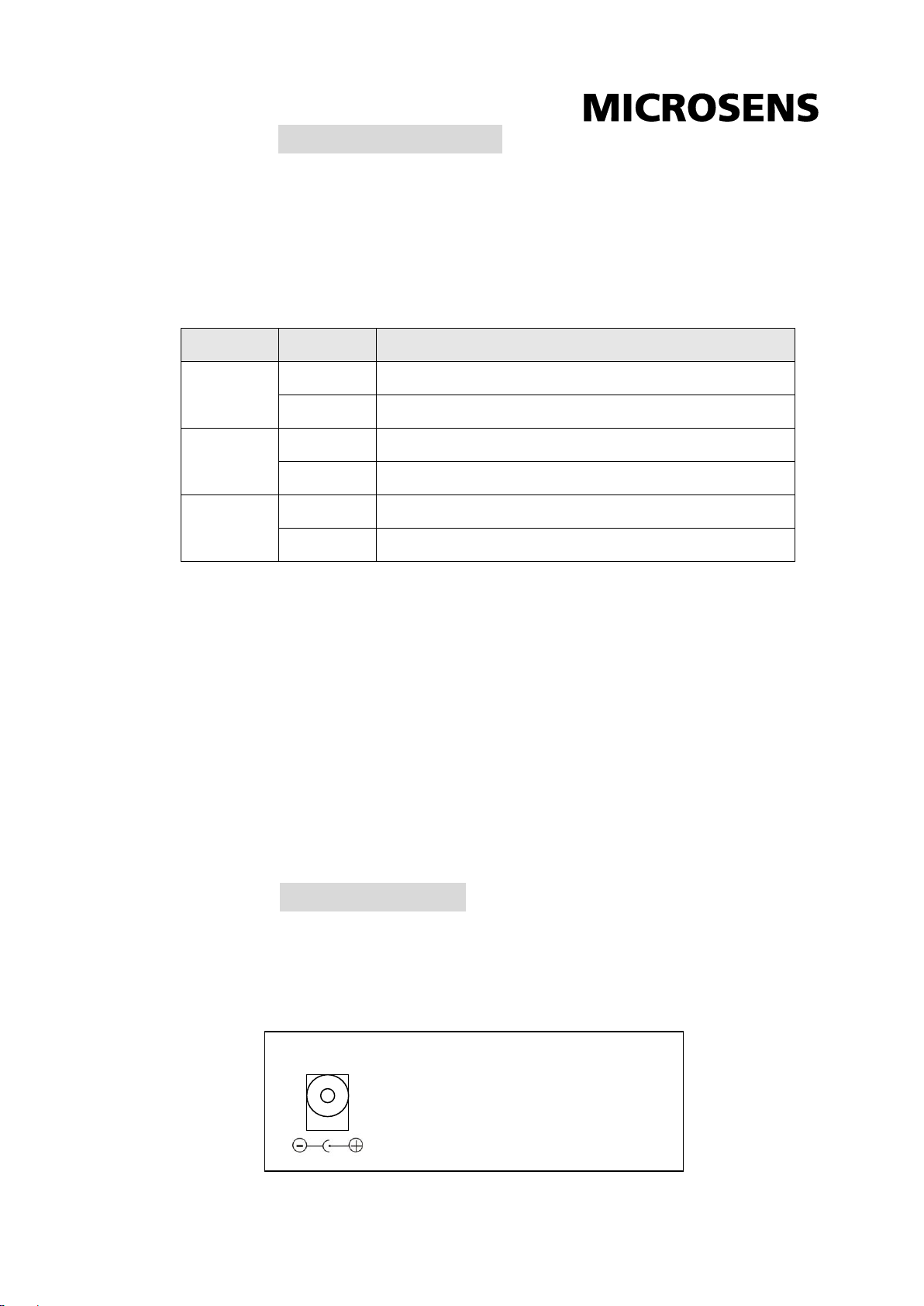

S/W No
Status
Description
1
ON
1000 SFP Force mode
OFF
1000 SFP Auto-Negotiation mode
2
ON
LLF Enable
OFF
LLF Disable
3
ON
1000 SFP Force mode
OFF
1000 SFP Auto-Negotiation mode
DC IN
DIP-switch
The DIP-switch is used to configure operation mode for LLF (Link Loss
Forwarding)/LFP (Link Fault Pass-Through) and operation mode for
Fiber ports. The default value of Dip-switch is OFF.
Link Loss Forwarding:
With LLF enabled, the system allows the link failure of one side to be
reported to the other side.
[Note]Please don’t change the DIP-switch setting when fiber port is
transmitting or receiving data. It may cause some data error. After
changing the DIP-switch setting, please power off and on the converter to
have the configuration taken effective.
Rear Panel
The rear panel contains a power socket. This power socket accepts DC9V
voltage and minimum 0.7A supplied current.
5
Cabling
Fiber segment using single-mode connector type must use9/125μm
single-mode fiber cable. The connection distance depends on the
fiber transceiver type the user has chosen.
Fiber segment using multi-mode connector type must use 50/125 or
62.5/125μm multi-mode fiber cable. The connection distance
depends on the fiber transceiver type the user has chosen.
6
Troubles shooting
Verify that you are using the right power adapter (DC 9V, 0.7A).
Please don’t use the power adapter with DC output higher than 9V, or
it might burn this converter down.
Check the configuration of the DIP-switch. It must be set in the same
operation mode with the link partner.
Select the proper Fiber cable to construct your network. The
single-mode converter must use single-mode fiber cable. Please
check that you are using the right cable.
7
Standard
IEEE802.3u
IEEE 802.3z 1000Base-SX/LX standards
IEEE802.3x Flow Control
If 100/1000 SFP port link down, then converter
will force 1000 SFP port to link down
If 1000 SFP port link down, the media converter
will force SFP 100/1000 SFP port to link down.
DIP Switch
DIP Switch 1: Auto-Nego/Force mode for
100/1000 SFP port
DIP Switch 2: LLF (Link Loss Forwarding) or LFP
(Link Fault Pass-Through) Disable/Enable
DIP Switch 3: Auto-Nego/Force mode for 1000
SFP port
Technical Specification
Gigabit Fiber to Gigabit Fiber (100/1000) Media Converter technical
specification is shown as below.
