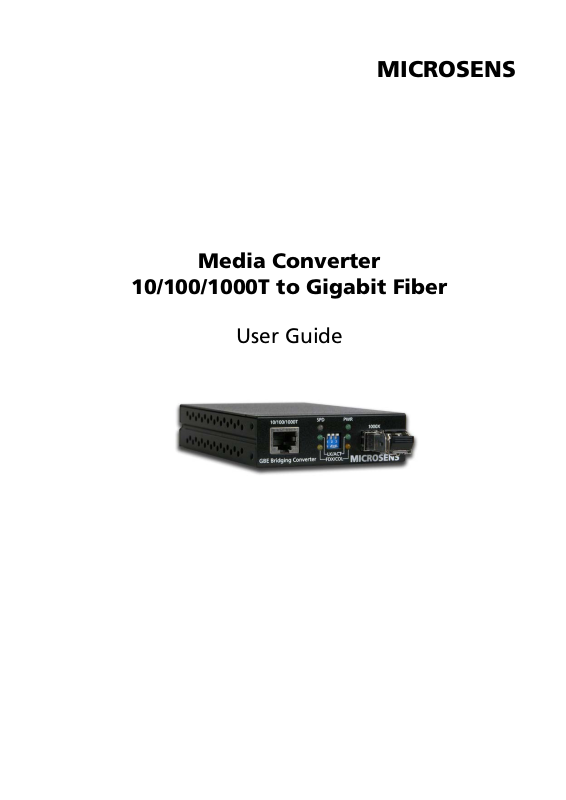

MICROSENS
Media Converter
10/100/1000T to Gigabit Fiber
User Guide
10/100/100 TX to Gigabit Fiber Media Converter Page 2/7
Package Contents
Please refer to the package content list below to verify them against the checklist.
Modular Giga Fiber Converter
AC-DC Power Adapter
User Guide
Compare the contents of your Modular Converter with the standard checklist above. If
any item is damaged or missing, please contact your local dealer for service.
Description
10/100/1000T to Giga Fiber Media Converter is a cost- effective solution for the
converting 10/100/1000Base-T (Auto MDI/MDIX) to 1000Base-FX cabling. It is a
standalone converter unit, which allows your network connectivity to be more flexible.
10/100/1000T to Giga Fiber Media Converter will allow you to extend the cabling
distance of your 10/100/1000Base-T(Auto MDI/MDIX) by different transceiver type and
its available connection. The Giga Fiber Converters provides you with one Mini Giga
Fiber connector for your fiber optic cable and one Ethernet RJ-45 port (Auto MDI/MDIX)
for your 10/100/1000BaseT copper cable connection. There are 3 DIP- switches to set the
operation mode for UTP, Fiber ports and link loss forwarding function.
Features
Comply with IEEE 802.3, 802.3u, and 802.3x,
IEEE 802.3ab 1000BaseT, IEEE 802.3z standards
UTP to Fiber (SFP/MINI GBIC) Media converter
Standalone and Chassis design
Build in Link Lose Forwarding Technology
Auto Negotiation Speed, Half/Full Duplex
UTP port support Auto MDI/MDI-X
External DC power adapter 9V/0.7A.
MICROSENS GmbH & Co. KG · Kueferstraße 16 · 59067 Hamm / Germany · Tel. +49 (0) 23 81/94 52-0 · FAX -100 · www.microsens.com
10/100/100 TX to Gigabit Fiber Media Converter Page 3/7
1) 3) 4)
2)
Hardware Description
The 10/100/1000Tto Giga Fiber Media Converter has the dimensions (L x W x H):
119 mm x 85 mm x 26 mm
Front Panel
The Front Panel of the 10/100/1000Tto Giga Fiber Media Converter consists of one Mini
GBIC slot, one RJ-45 Port (Auto MDI/MDIX), and 6 LED Indicators (SPD, LK/ACT, FDX,
Fiber LK/ACT, FDX/COL, and PWR).
(1) RJ-45 Port (3) DIP-Switch
(2) LED (4) MINI GBIC slot
Ports
RJ-45 Port (Auto MDI/MDIX): the Ethernet RJ-45 will auto-sense for
10Base-T, 100Base-TX, or 1000Base-X connections. Auto MDI/MDIX means that
you can connect to another Switch or workstation without changing noncrossover or crossover cabling.
Mini GBIC slot: It supports 3.3 V.The MINI GBIC module is optional. There are
2 LED indicators for Mini GBIC port – LNK /ACT and FDX.
MICROSENS GmbH & Co. KG · Kueferstraße 16 · 59067 Hamm / Germany · Tel. +49 (0) 23 81/94 52-0 · FAX -100 · www.microsens.com
10/100/100 TX to Gigabit Fiber Media Converter Page 4/7
Orange
100 Mbps UTP Speed
LED Indicators
There are 6 diagnostic LEDs located on the Front panel of converter module. They
provide real-time information of system and optional status. The following table
provides description of the LED status and their meanings.
LED Status Description
PWR
SPD
LNK/ACT
(UTP)
FDX (UTP)
LNK/ACT
(Fiber)
Green Power on
Green 1000 Mbps UTP Speed
OFF 10 Mbps UTP Speed
Green The unit is linking with its link partner.
Blinks The unit is transmitting or receiving
packets from UTP devices.
Off No device attached
Orange The UTP port is operating in full-duplex
mode.
Off Half-duplex mode or no device attached
Green The unit is linking with its link partner.
FDX (Fiber)
MICROSENS GmbH & Co. KG · Kueferstraße 16 · 59067 Hamm / Germany · Tel. +49 (0) 23 81/94 52-0 · FAX -100 · www.microsens.com
Blinks The unit is receiving packets from FX
devices.
Off No device attached
Orange The fiber port is operating in full-duplex
mode.
Off Half-duplex mode or no device attached
10/100/100 TX to Gigabit Fiber Media Converter Page 5/7
Description
DIP-switch
The DIP-switch is used to configure operation mode for LLF (Link Lost Forwarding)
and operation mode for UTP/Fiber port. The default value of Dipswitch is OFF.
S/W No Status
ON LLF Enable
1
OFF LLF Disable
ON Pure converter mode
2
OFF Switch converter mode
ON reserved
3
OFF reserved
Link Lost Forwarding): When LLF is enable, allow UTP link failures to be reported to
the fiber side and also allow Fiber link failure to be reported to the UTP side. Therefore,
A link loss forward feature is provided in both UTP and Fiber side.
[Note] Please don’t change the DIP-switch setting when UTP or fiber port is
transmitting or receiving data. It may cause some data error.
Rear Panel
The rear panel contains a power socket. This power socket accepts DC9V voltage and
minimum 0.7A supplied current.
DC IN
MICROSENS GmbH & Co. KG · Kueferstraße 16 · 59067 Hamm / Germany · Tel. +49 (0) 23 81/94 52-0 · FAX -100 · www.microsens.com
10/100/100 TX to Gigabit Fiber Media Converter Page 6/7
Cabling
Using four twisted-pair, Category 5 cabling for RJ-45 port connection. The
cable between the converter and the link partner (switch, hub, workstation,
etc.) must be less than 100 meters (328 ft.) long.
Fiber segment using single mode connector type must use 9/125 μm single
mode fiber cable. You can connect two devices in the full duplex operation or
half-duplex operation, and the connection distance will depends on the fiber
transceiver type the user has chosen.
Fiber segment using multimode connector type must use 50 or 62.5/125 μm
multimode fiber cable. You can connect two devices up to 550 m distances.
Trouble Shooting
Verify that you are using the right power adapter (DC 9 V, 0.7 A). Please don’t
use the power adapter with DC output bigger than 9 V, or it will burn this
converter down.
Check the configuration DIP-switch. It must be setting in the same operation
mode with the link partner.
Select the proper UTP/Fiber cable to construct your network. The single mode
converter must use single mode fiber cable. Please check that you are using
the right cable.
Don’t both use multimode and single mode.
MICROSENS GmbH & Co. KG · Kueferstraße 16 · 59067 Hamm / Germany · Tel. +49 (0) 23 81/94 52-0 · FAX -100 · www.microsens.com
10/100/100 TX to Gigabit Fiber Media Converter Page 7/7
Technnical Specifications
Standard
Connector RJ-45 Socket: CAT-5 (10/100/1000 Mbps) Twisted Pair
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX standards
IEEE802.3x Flow Control and Back pressure
cable Auto MDI/MDI-X and Auto-Negotiation Function
Support
Fiber: MINI GBIC 3.3 V
Switch architecture
Fiber parameters
Transparent packet
Link Lost Forward
DIP Switch
Store and Forward
Fiber Core: Multimode (62.5/125 μm, 50/125 μm),
Single mode (9/125 μm)
Wavelength: 850 nm (Multimode),
1310 nm (Single mode)
Fiber Distance: Depend on the transceiver type
64 to 1536 Bytes for Ethernet packet
UTPFiber: If TX port link down, then converter will
forced fiber to link down
Fiber UTP: If Fiber port link down, the media con
verter will force TX port to link down.
DIP Switch 1: LLF enable/disable
DIP Switch 2: Converter mode selection
DIP Switch 3: reserved
LED
Module: Power, TX (100/1000 Mbps, LK/ACT, FDX),
Fiber (LK/ACT, FDX)
Power
Dimension
EMI & safety
Stand-alone (external adapter): DC 9 V / 0.7 A
119 mm x 85 mm x 26 mm
CE
