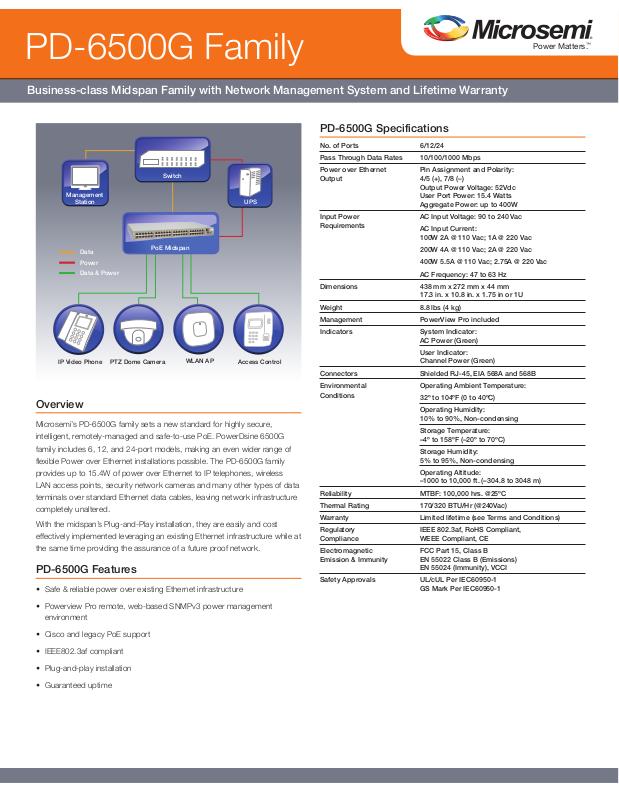

PD-6500G Family

Business-class Midspan Family with Network Management System and Lifetime Warranty

Power Matters.

™

Management

Station

Switch

UPS

Data

Power

Data & Power

IP Video Phone Access Control

PTZ Dome Camera

PoE Midspan

WLAN AP

Overview

Microsemi’s PD-6500G family sets a new standard for highly secure,

intelligent, remotely-managed and safe-to-use PoE. PowerDsine 6500G

family includes 6, 12, and 24-port models, making an even wider range of

flexible Power over Ethernet installations possible. The PD-6500G family

provides up to 15.4W of power over Ethernet to IP telephones, wireless

LAN access points, security network cameras and many other types of data

terminals over standard Ethernet data cables, leaving network infrastructure

completely unaltered.

With the midspan’s Plug-and-Play installation, they are easily and cost

effectively implemented leveraging an existing Ethernet infrastructure while at

the same time providing the assurance of a future proof network.

PD-6500G Features

• Safe & reliable power over existing Ethernet infrastructure

• Powerview Pro remote, web-based SNMPv3 power management

environment

• Cisco and legacy PoE support

• IEEE802.3af compliant

• Plug-and-play installation

• Guaranteed uptime

PD-6500G Specifications

No. of Ports 6/12/24

Pass Through Data Rates 10/100/1000 Mbps

Power over Ethernet Pin Assignment and Polarity: Output 4/5 (+), 7/8 (–)

Input Power AC Input Voltage: 90 to 240 Vac Requirements

200W 4A @ 110 Vac; 2A @ 220 Vac

400W 5.5A @ 110 Vac; 2.75A @ 220 Vac

AC Frequency: 47 to 63 Hz

Dimensions 438 mm x 272 mm x 44 mm

Weight 8.8 lbs (4 kg)

Management PowerView Pro included

Indicators System Indicator:

Connectors Shielded RJ-45, EIA 568A and 568B

Environmental Operating Ambient Temperature: Conditions

Reliability MTBF: 100,000 hrs. @25ºC

Thermal Rating 170/320 BTU/Hr (@240Vac)

Warranty Limited lifetime (see Terms and Conditions)

Regulatory IEEE 802.3af, RoHS Compliant, Compliance WEEE Compliant, CE

Electromagnetic FCC Part 15, Class B Emission & Immunity EN 55022 Class B (Emissions)

Safety Approvals UL/cUL Per IEC60950-1

AC Input Current:

32º to 104ºF (0 to 40ºC)

Output Power Voltage: 52Vdc User Port Power: 15.4 Watts Aggregate Power: up to 400W

100W 2A @ 110 Vac; 1A @ 220 Vac

17.3 in. x 10.8 in. x 1.75 in or 1U

AC Power (Green)

User Indicator: Channel Power (Green)

Operating Humidity: 10% to 90%, Non-condensing

Storage Temperature: –4º to 158ºF (–20º to 70ºC)

Storage Humidity: 5% to 95%, Non-condensing

Operating Altitude: –1000 to 10,000 ft. (–304.8 to 3048 m)

EN 55024 (Immunity), VCCI

GS Mark Per IEC60950-1

PD-6500G Midspan Family

Ordering Information

Part Number Name Ports

PD-6506G/AC/M Microsemi PD-6506G 6-port, 100W total power

PD-6512G/AC/M Microsemi PD-6512G 12-port, 200W total power

PD-6524G/AC/M Microsemi PD-6524G 24-port, 200W total power

PD-6524G/AC/M/F Microsemi PD-6524G 24-port, 400W total power
