Microscan HE40T Quick Start Manual

HE40T Quickstart Guide

Rev 2.0.0, Jan 2009

EM-20952-1V200

Copyright and Disclaimer

Copyright ©2009 by Microscan Systems, Inc.
1201 S.W. 7th Street, Renton, WA, U.S.A. 98057
[phone] FAX: [phone]

All rights reserved. The information contained herein is proprietary and is provided
solely for the purpose of allowing customers to operate and/or service Microscan
manufactured equipment and is not to be released, reproduced, or used for any other
purpose without written permission of Microscan.

Throughout this manual, trademarked names might be used. Rather than place a
trademark (™) symbol at every occurrence of a trademarked name, we state herein
that we are using the names only in an editorial fashion, and to the bene fit of the
trademark owner, with no intention of infringement.

Disclaimer

The information and specifications described in this ma nual are subject to change
without notice.

Latest Manual Version

For the latest version of this manual, see the Download Center on our web site at:
www .microscan.com.

Technical Support

For technical support, email: [e-mail].
Microscan Systems, Inc.

1201 S.W. 7th Street
Renton, WA 98057
U.S.A.
Tel: [phone]
Fax: [phone]
[e-mail]

Microscan Europe

Tel: [phone]
Fax: [phone]

Microscan Asia Pacific

R.O. Tel: [phone]
Fax: [phone]

Microscan Limited Warranty Statement and Exclusions

What Is Covered?

Microscan Systems Inc. warrants to the original purchaser that products
manufactured by it will be free from defects in material and workmanship under
normal use and service for a period of one year from the date of shipment. This
warranty is specifically limited to, at Microscan’s sole option, repair or replacement
with a functionally equivalent unit and return without charge for service or return
freight.

What Is Excluded?

This limited warranty specifically excludes the following: (1) Any products or parts
that have been subject to misuse, neglect, accident, unauthorized repair, improper
installation, or abnormal conditions or operations; (2) Any products or parts that have
been transferred by the original purchaser; (3) Customer mis-adjustment of settings
contrary to the procedure described in the Microscan Systems Inc. owners manual;
(4) Upgrading software versions at customer request unless required to meet
specifications in effect at the time of purchase; (5) Units returned and found to have
no failure will be excluded; (6) Claims for damage in transit are to be dire cted to the
freight carrier upon receipt. Any use of the product is at purchaser’s own risk. This
limited warranty is the only warranty provided by Microscan Systems Inc. regarding
the product. Except for the limited warranty above, the product is provided “as is.” T o
the maximum extent permitted by law, this express warranty excludes all other
warranties, express or implied, including but not limited to, implied warranties of
merchantability and. Technical support questions may be directed to:
[e-mail] Register your product with Microscan:
www.microscan.com/register fitness for a particular purpose. Microscan Systems
Inc. does not warrant that the functions contained in the product will meet any
requirements or needs purchaser may have, or that the product will operate error free,
or in an uninterrupted fashion, or that any defects or errors in the product will be
corrected, or that the product is compatible with any partic ula r ma chinery.

Limitation of Liability

In no event shall Microscan Systems Inc. be liable to you or any third party for any
special, incidental, or consequential damages (including, without limitation, indirect,
special, punitive, or exemplary damages for loss of business, loss of profits, business
interruption, or loss of business information), whether in contract, tort, or otherwise,
even if Microscan Systems Inc. has been advised of the possibility of such damages.
Microscan Systems Inc.’ s aggregate liability with r espect to its obl igations u nder this
warranty or otherwise with respect to the product and documentation or otherwise
shall not exceed the amount paid by you for the product and documentation. Some
jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on an implied warranty, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which may vary from state to state.

Tel: [phone] | Fax: [phone] | [e-mail]

Contents

PREFACE Welcome vii

Purpose of This Ma nual vii
Laser Safety vii
Manual Conventions viii

CHAPTER 1

Getting Started 1

Attaching the H2 Cabled Handle 2
Attaching the BH1/BH2 Battery Handle 4
HE40T Wireless 6

Connecting With A QuickConnect Code 6
HE40T Wireless Setup 6
Radio Range and Transferring Data 7

HE40T Cables 8

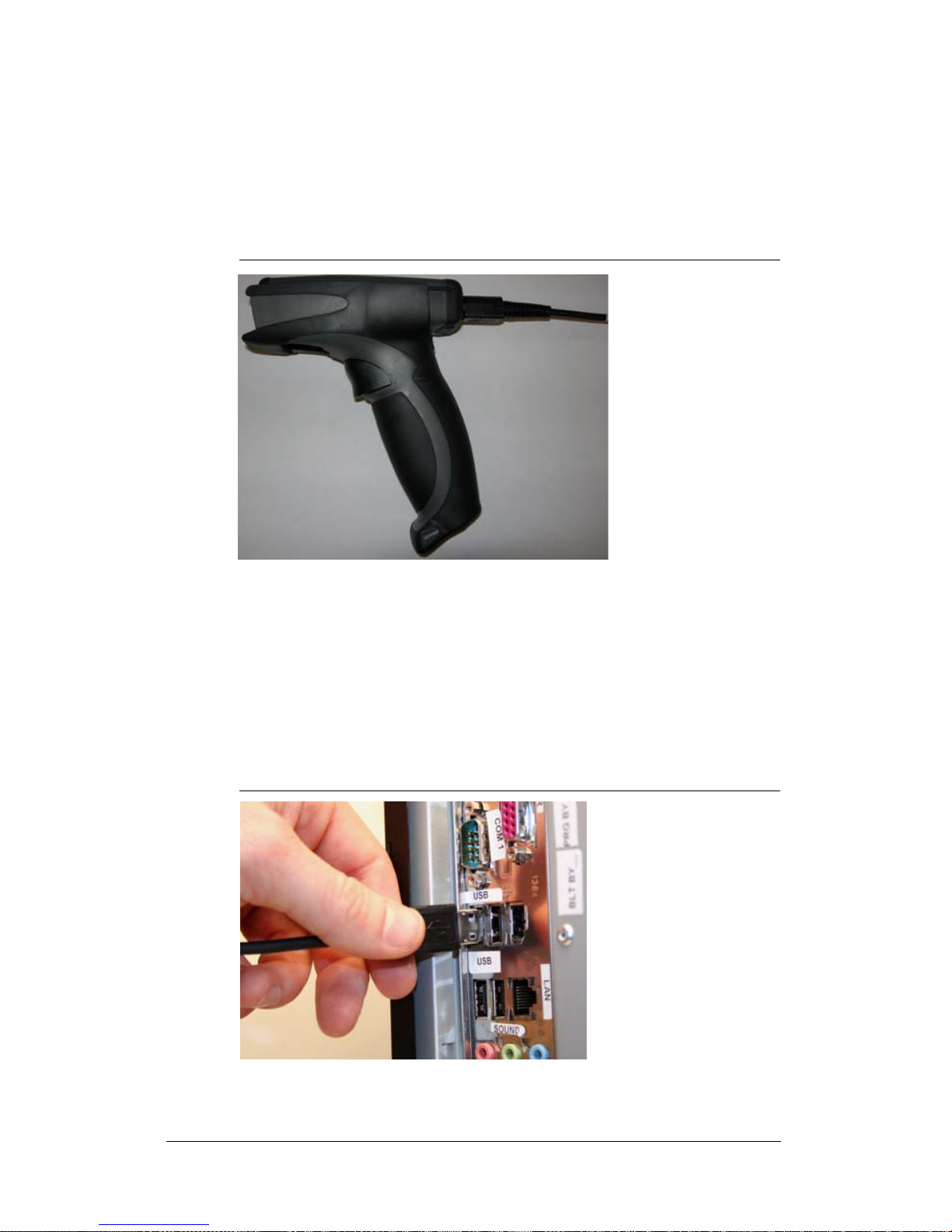

USB Cable Connection 9
PS2 Cable Connection 10
RS-232 Cable Connection 11
USB Cable Settin gs 11
PS2 Cable Settings 11
RS-232 Cable Settings 12
Baud Rates 12
Save Settings 13

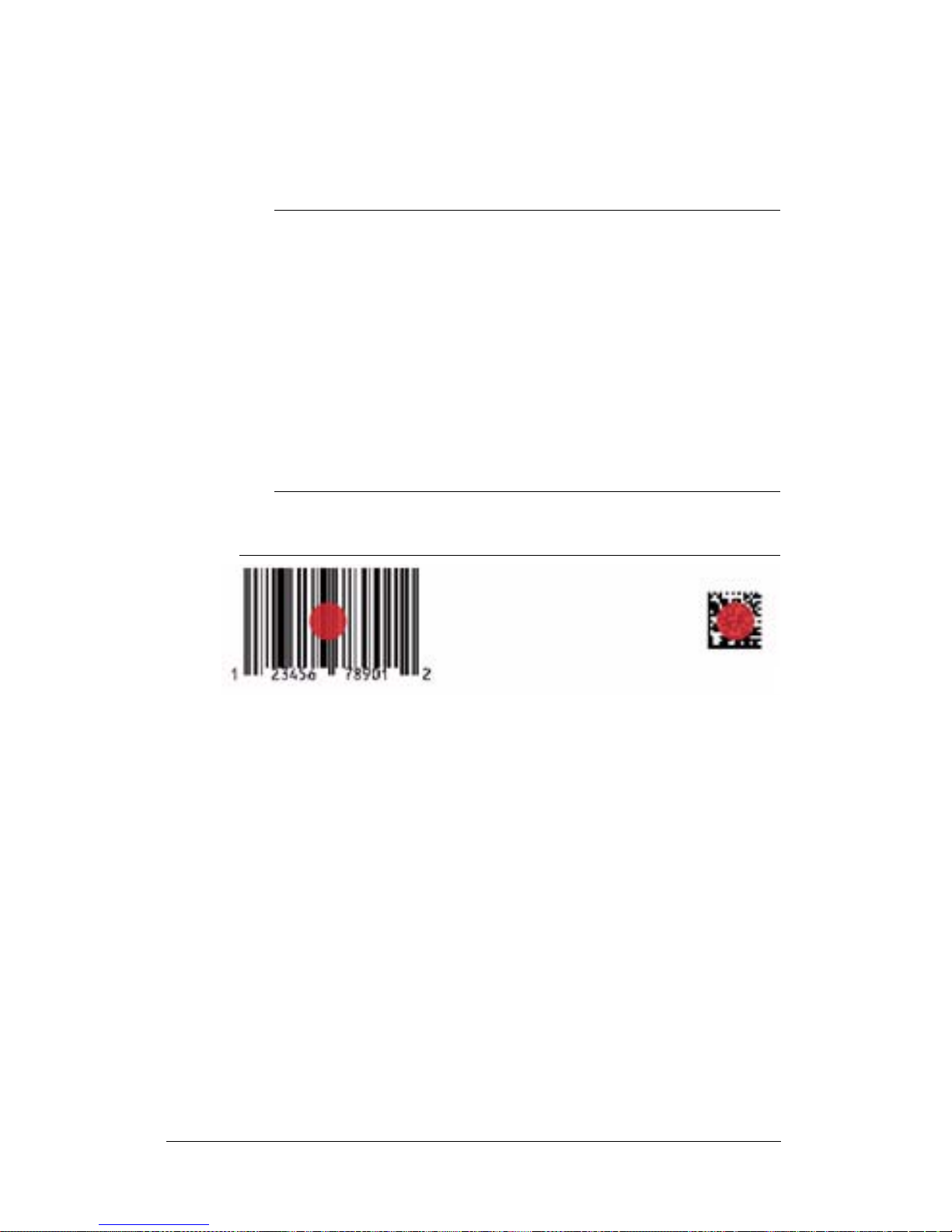

Targeting and Reading Techniques 13

Reading Symbols with the HE40T 14

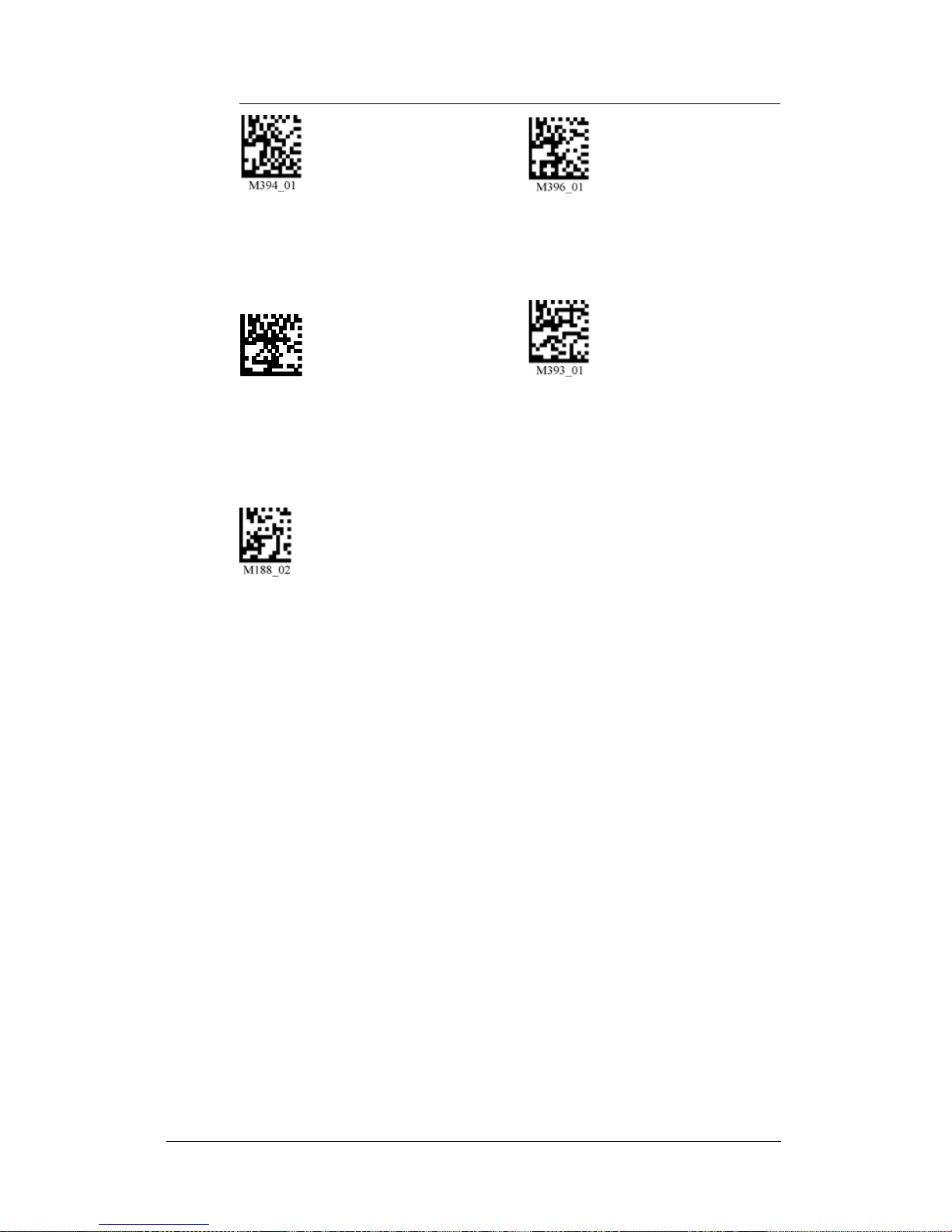

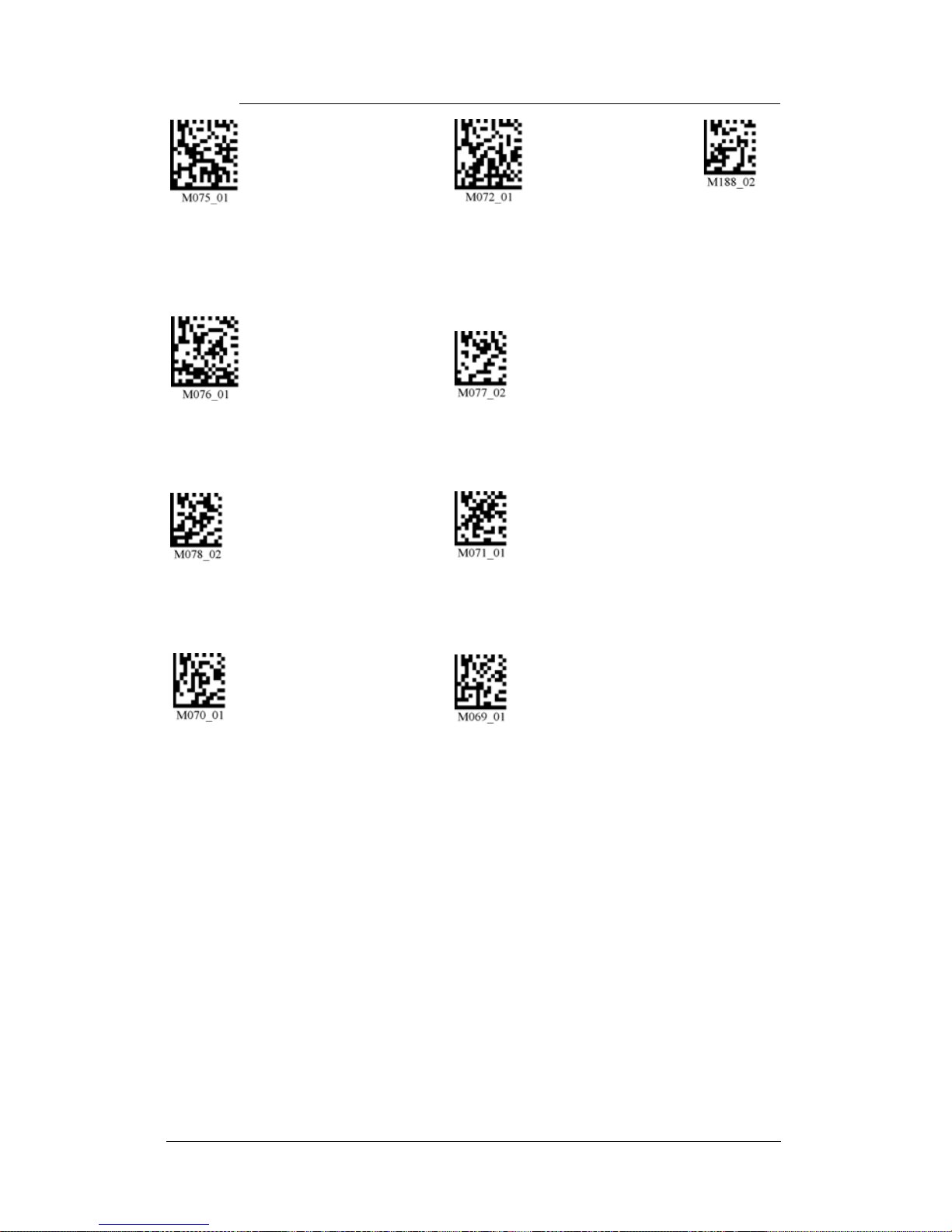

Programming Codes 15

Symbology Settings 15
DoD UID Settings 17
Batch Mode 18
Auto Transfer Buffer Memory 18
Trigger Programming 20

Left Trigger 20

Right Trigger 20

Handle Trigger 21
Turbo Dot P een Mode 21

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide v

Miscellaneous Programming Code s 22

Prefix Settings 22
Suffix Settings 23
Volume and Vibration Settings 25

Minimum Requirements 25

vi HE40T Quickstart Guide Rev 2.0.0, Jan 2009

PREFACE Welcome

Caution

Laser in the HE40T

LASER RADIATION - AVOID LONG TERM VIEWING
OF DIRECT LASER RADIATION - LASER CLASS 2M

Wavelength 630 nm - Maximum radiant power: < 1mW

EN 60825-1:2003

Purpose of This Manual

The purpose of the manual is to get you up and running quickly and
confidently with your HE40T reader.

Laser Safety

Note: LED Lighting

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide vii

Light Emitting Diode Class 1 according to EN 60825-1:2003

Manual Conventions

The following typographical conventions are used throughout this
manual:

• Items emphasizing important information are bolded.

• Menu selections, menu items and entries in screen images are

indicated as: Operation, Configure, etc.

viii HE40T Quickstart Guide Rev 2.0.0, Jan 2009

CHAPTER 1 Getting Started

The HE40T is a revolutionary new low cost bar code reader that
employs Microscan’s industry leading Direct Part Mark (DPM)
reading technology. Developed to be the first universal reader, no
other single device performs as many functions. With a cost of
ownership far less than comparable systems, the HE40T
incorporates a unique dual path optical system, a 1.3 million pixel
CMOS sensor, and a 400 MHz processor. This combination has
created a reading system that supports:

• DPM applications

• Department of Defense Unique Iden tification (DoD UID)

• High density matrix codes and larger low density linear
barcodes

• Superior working range

• High-speed omni-directional decoding

• Cordless and cabled interfaces

• Unsurpassed data rat es

The HE40T features a variety of accessories including ruggedized
handles. For more information or for technical support, see the
Preface of the HE40T User Manual.

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 1

Attaching the H2 Cabled Handle

Flexib le Connector

The HE40T uses the battery compartment to “snap to” the handle.
Figure 1–1 shows the H2 handle with flexible connector.
Figure 1–2 shows the battery blank.

FIGURE 1–1. H2 Handle with Flexible Connector

FIGURE 1–2. H2 Handle with Battery Blank

To attach the handle to the reader:

1. Push the 8-pin DIN connector at the end of the reader into the

flexible connector at the end of the handle, as shown in
Figure 1–3.

2 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

FIGURE 1–3. Attaching the H2 Handle

Flexible
Connector

2. Insert the tab on the back of the handle into the reader

(Figure 1–3).

3. Snap the reader onto the handle, matching the battery

compartment to the battery connectors, visible inside the
handle, as shown in Figure 1–3.

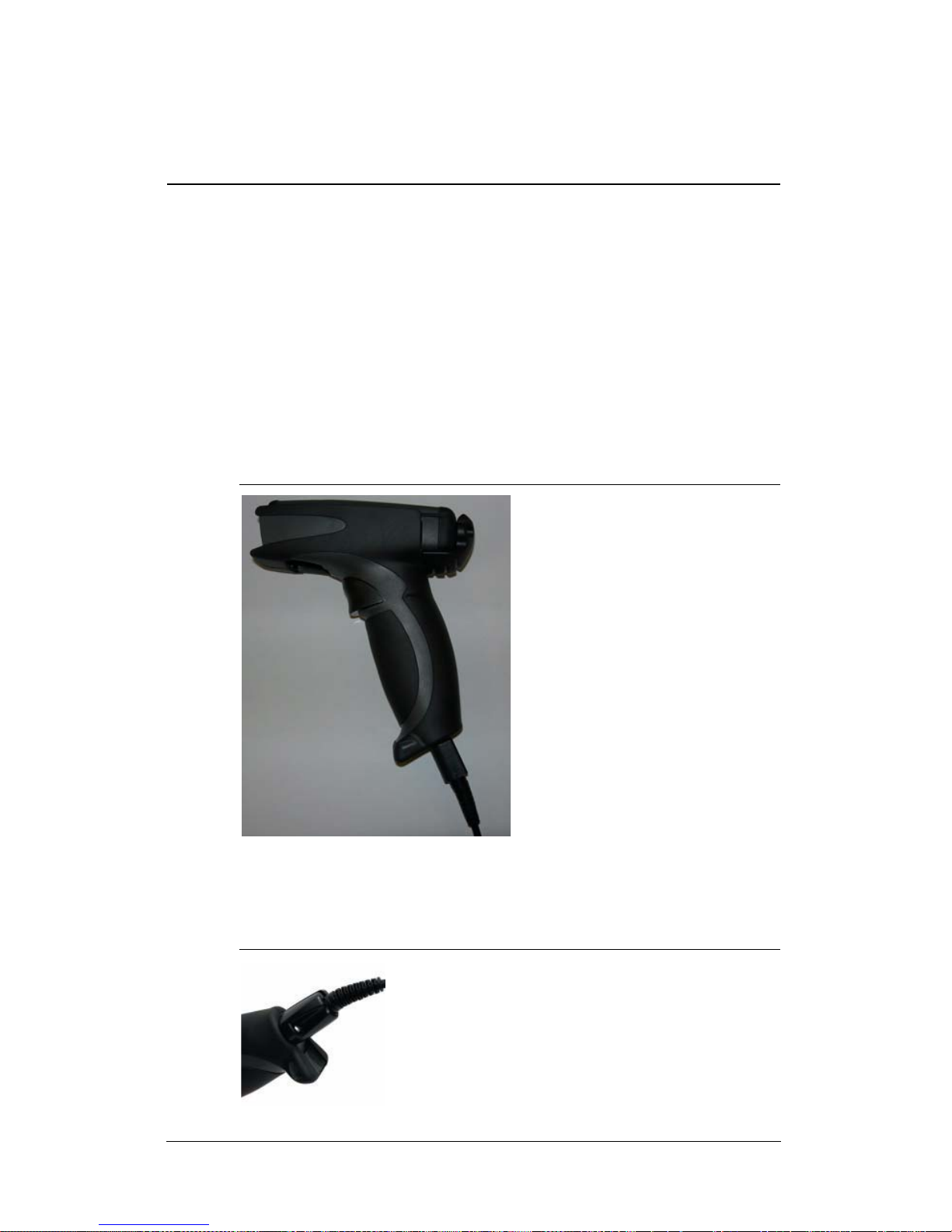

The HE40T can be secured further with threaded screws on the
under side of the handle, and on the end of the flexible connector, as
shown in Figure 1–4.

FIGURE 1–4. Location of Threaded Screws

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 3

Attaching the BH1/BH2 Battery Handle

The HE40T uses the battery compartment to “snap to” the handle.

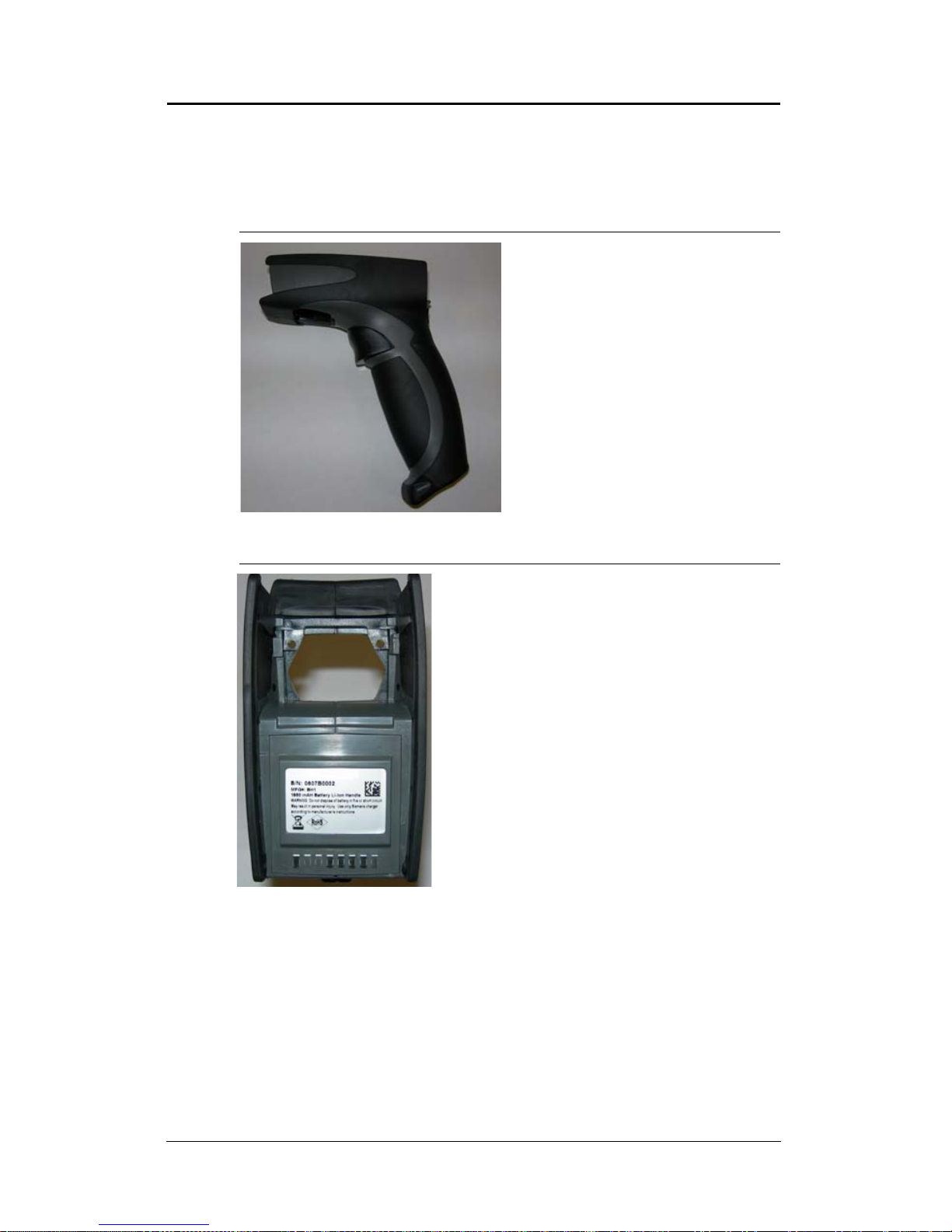

The BH1/BH2 handle is shown in Figure 1–5. The handle with
battery is shown in Figure 1–6.

FIGURE 1–5. BH1/BH2 Handle

FIGURE 1–6. BH1/BH2 Handle with Battery

To attach the handle to the reader:

1. Insert the tab on the back of the handle into the reader, as

shown in Figure 1–7.

2. Snap the reader onto the handle, matching the battery

compartment to the battery connectors, visible inside the
handle, as shown in Figure 1–7.

4 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

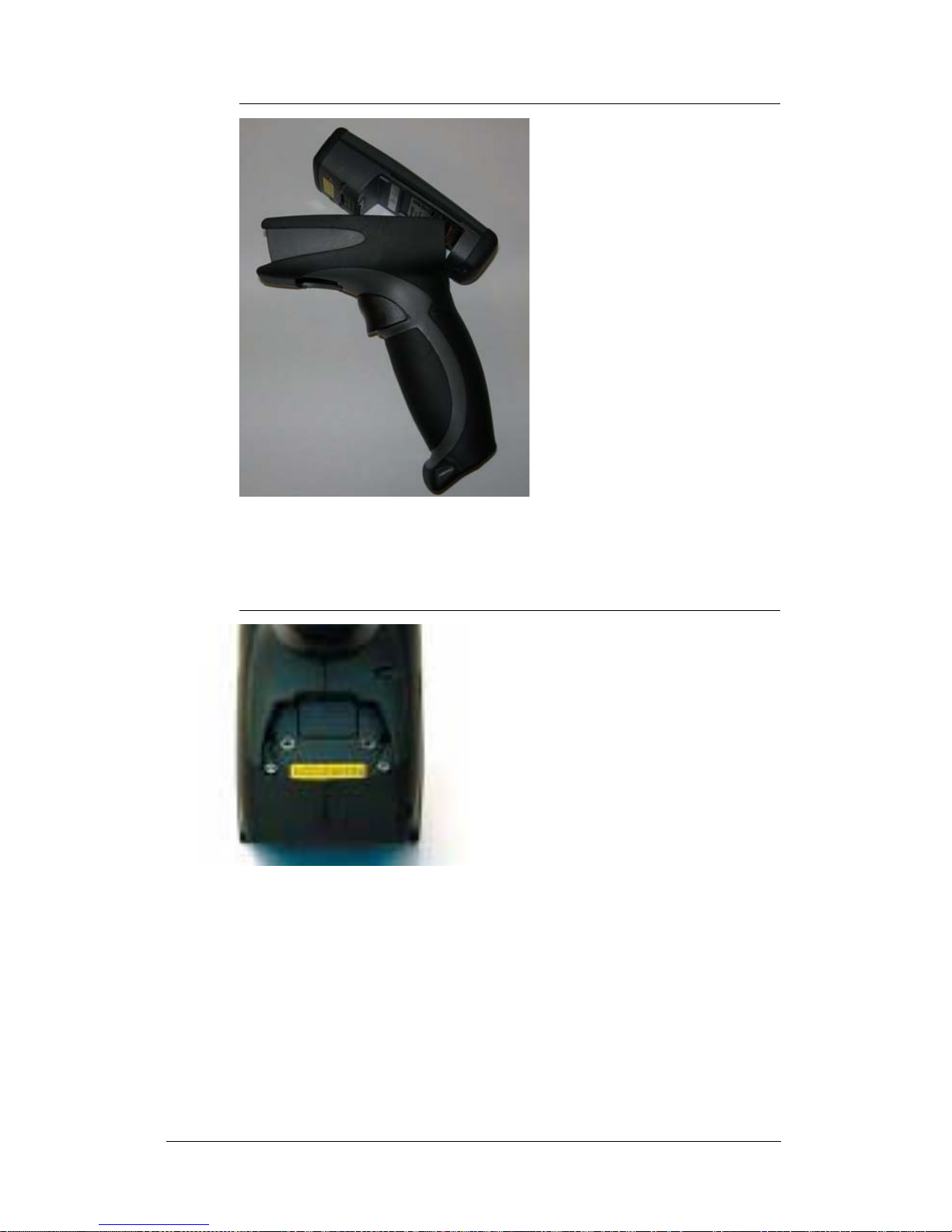

FIGURE 1–7. Attaching the BH1/BH2 Handle

The HE40T can be secured further with threaded screws on the
under side of the handle, as shown in Figure 1–8.

FIGURE 1–8. Location of Threaded Screws

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 5

HE40T Wireless

Sample Code

This HE40T features a Bluetooth® wireless radio. The radio allows
for point to point wireless communication with other Bluetooth
devices that support serial port protocol (SPP). The following
information will give you general instructions on connecting your
HE40T to a desktop or laptop computer with a Bluetooth radio.

Connecting With A QuickConnect Code

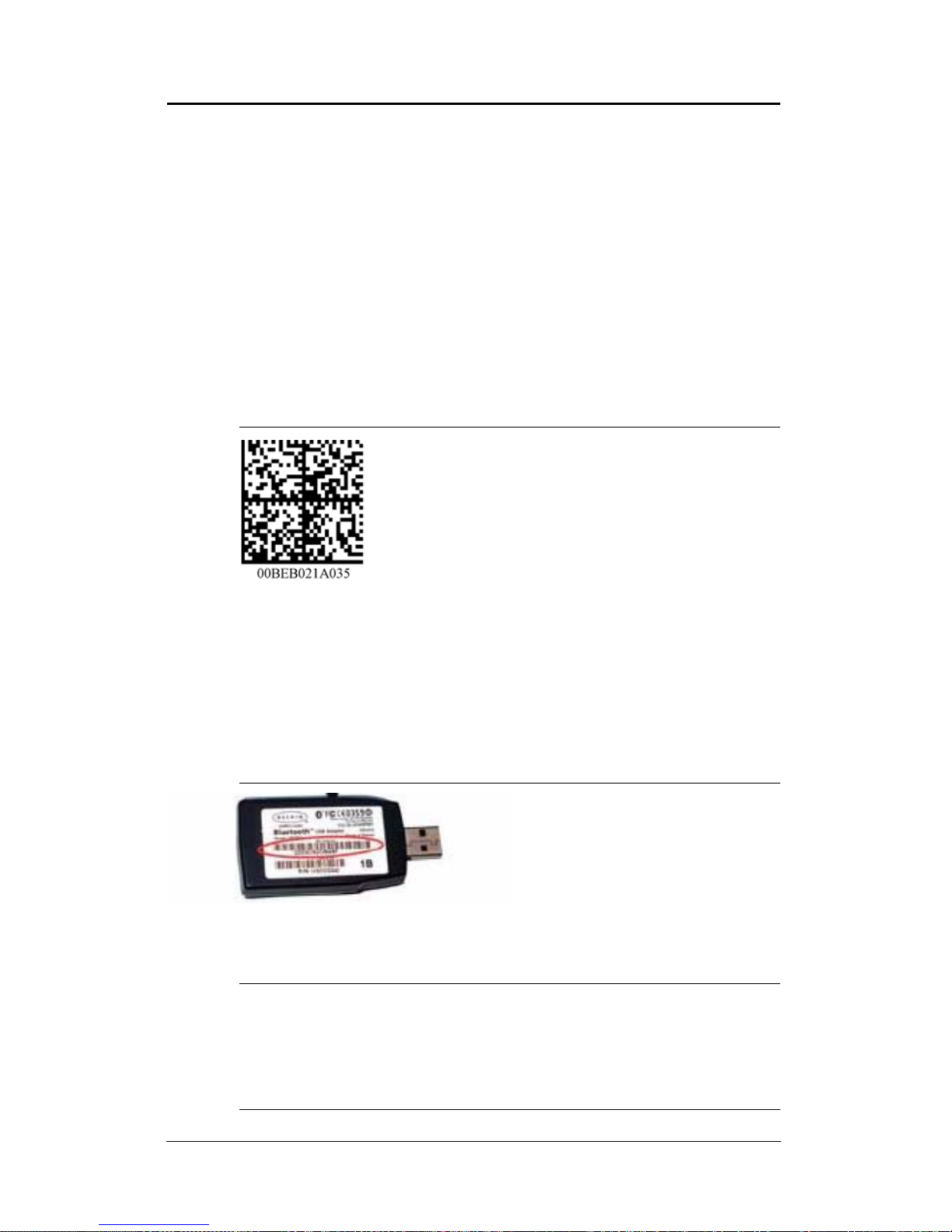

If you purchased a CodeXML Bluetooth Modem or a Belkin®
Bluetooth adapter from Microscan or from an authorized
distributor, a QuickConnect code was included, as shown in
Figure 1–9.

FIGURE 1–9. Sample QuickConnect Code

The QuickConnect code has the information of the Bluetooth
address (often a reference to go to the BD_ADDR) of that device.
You can usually find the 12-character Bluetooth address
somewhere on the device near the device’s serial number
(Figure 1–10). This code will link your HE40T directly to the
desired Bluetooth device.

FIGURE 1–10. Locating the Bluetooth Address

HE40T Wireless Setup

Note: While installing the Bluetooth Configuration Manager
software that was included with your Bluetooth adapter, make sure
to note the Virtual COM Port number the software assigned for the
adapter (e.g., COM 10). This is the COM Port your HE40T will
connect through.

6 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

To connect your reader:

Reset to RF
Factory Defaults

QuickConnect (Sample)
Scan the QuickConnect code
that matches the Bluetooth
address of your device

Save Settings

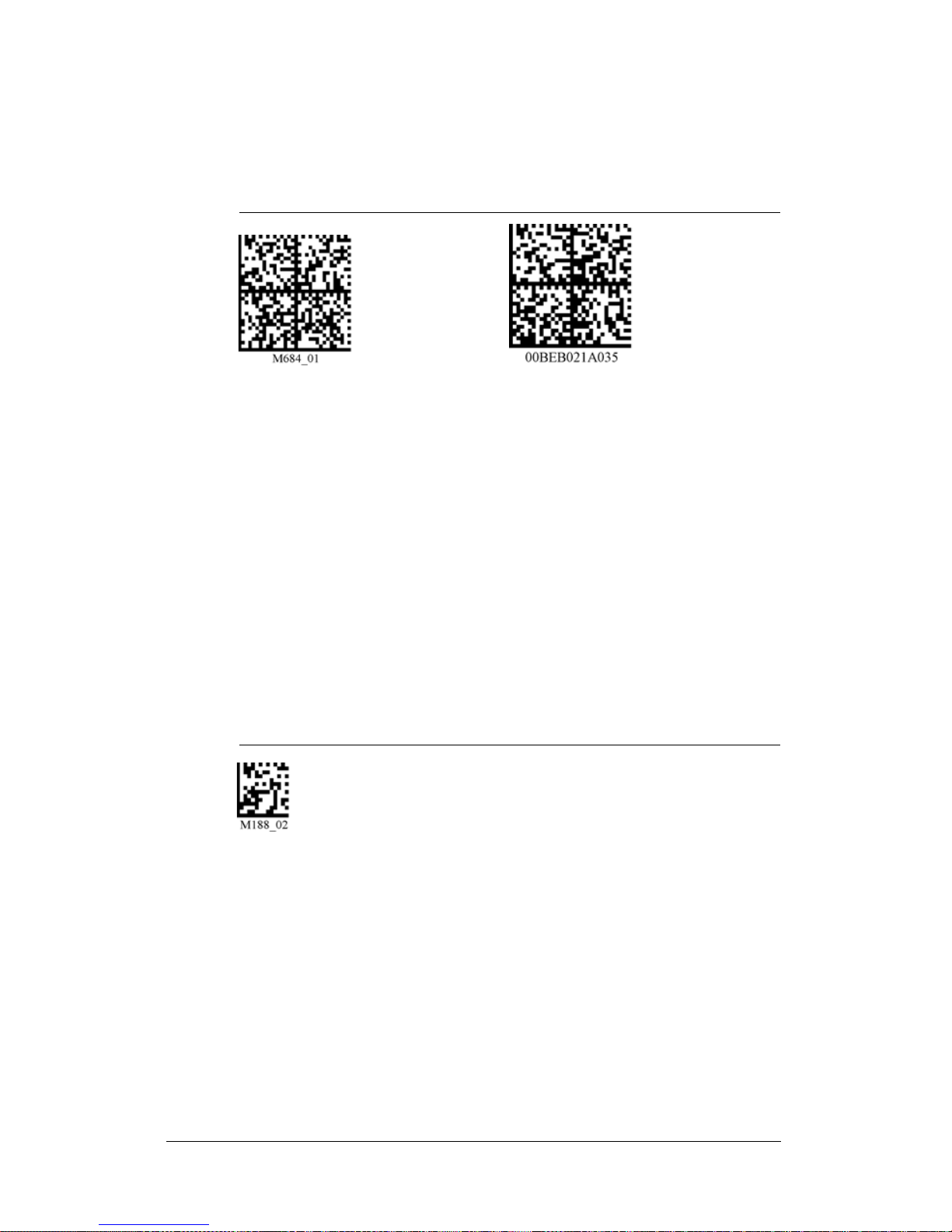

1. Scan the Reset to RF Factory Defaults code shown in

Figure 1–11.

FIGURE 1–11. Reset to RF Factory Defaults Code

2. Scan the QuickConnect code you received.

3. The HE40T will automatically connect. By default, the HE40T

will beep once after it connects and beep three times in a row if
it did not connect.

4. Scan the Save Settings code (Figure 1–12) to the right if you

want to save the wireless connection settings to the HE40T so
that the HE40T will automatically try to connect wirelessly the
next time it is powered on.

FIGURE 1–12. Save Settings Code

Radio Range and Transferring Data

The HE40T radio is a Class 1 device. If connected to another Class
1 device, the unit has roughly a 300 foot line of sight operating
range. If connecting to a Class 2 or Class 3 device, the operating
range may drop to match the lower range. Once a unit is connected,
the application software on the host must be open to receive data.

When the HE40T detects the radio is out of range, the HE40T will
store data on the reader’s non-volatile memory.

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 7

For more information about setting up and using the HE40T with a
wireless Bluetooth configuration, consult the HE40T User Manual.

HE40T Cables

The HE40T is available with USB, RS-232 and PS2 cables. All of
the cables are connected to the HE40T with a 8-pin DIN connector.
Different cables may be required for different hosts.

• HE40T wit h H2 Cabled Handle — The 8-pin DIN connection
is at the bottom of the handle. Firmly push the 8-pin connector
into the bottom of the handle. The cable has a locking
mechanism that will firmly hold the cable in place
(Figure 1–13). To detach the cable from the reader, you must
pinch the plastic on the 8-pin DIN (Figure 1–13) and pull back
to disengage the connector.

FIGURE 1–13. Handle with Cable Attached

Install the optional cable clip to further secure the cable to the
handle with two threaded screws, as shown in Figure 1–14.

FIGURE 1–14. Securing Cable Clip with Two Threaded Screws

8 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

• HE40T wit h BH1/BH2 Battery Handle — Firmly push the
8-pin connector into the back end of the reader, as shown in
Figure 1–15. The cable has a locking mechanism that will
firmly hold the cable in place. To detach the cable from the
reader, you must pinch the plastic on the 8-pin DIN and pull
back to disengage the connector.

FIGURE 1–15. Handle with Cable Attached

USB Cable Connection

1. Attach the USB cable to the HE40T.

2. Connect the USB cable to the host in any available USB host

port, as shown in Figure 1–16. Y ou DO NOT need to power off
your host computer.

FIGURE 1–16. Connecting the USB Cable

3. Once properly connected to the host computer, the HE40T will

power on and beep. The reader is shipped pre-configured.

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 9

PS2 Cable Connection

1. Power off the host computer. This process requires shutting

down your computer. If you disconnect your computer
keyboard while it is running, your computer will lock up.

2. Attach the PS2 cable to the HE40T.

3. If you have a cabled keyboard, detach the keyboard cable from

your computer and connect that same connector to the female
connection on the HE40T PS2 cable, as shown in Figure 1–17.

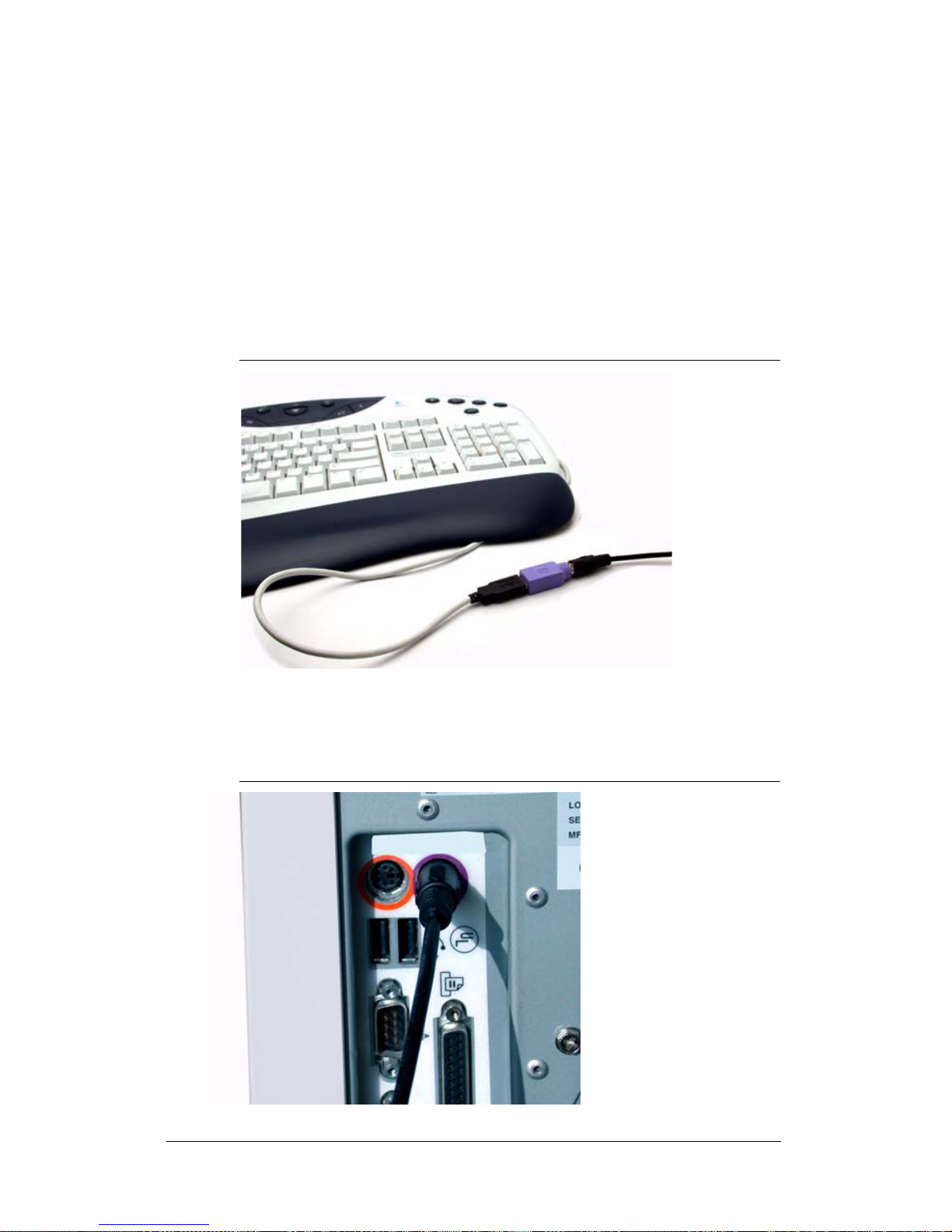

FIGURE 1–17. Connecting the Keyboard Cable

4. Now, connect the male HE40T PS2 connector into the

keyboard port on your computer, as shown in Figure 1–18.

FIGURE 1–18. Connecting the PS2 Connector to Your Computer

10 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

The HE40T is powered by the PS2 port and does not require a

USB Keyboard

USB Downloader

Reset to USB
Factory Defaults

power supply . Once properly connected, the HE40T will power on.
The reader is shipped pre-configured.

RS-232 Cable Connection

1. Attach the RS-232 cable to the HE40T.

2. Connect the RS-232 cable to your host computer.

3. The RS-232 interface has an optional power supply. If you

have a power supply, plug the power supply adapter into the
RS-232 cable and then plug the power adapter into a wall
socket. HE40T will power on once connected.

4. If battery power (no power adapter) is being used, press one of

the red buttons for one second to power on the reader. The
reader is shipped pre-configured.

USB Cable Settings

• USB Keyboard Mode — Data is sent from the reader and
interpreted by the host computer as if a US keyboard was being
used to enter data.

• USB Down loader — Communication method used to upgrade
firmware.

FIGURE 1–19. USB Codes

All other USB settings (including Virtual COM settings) may be
found in the HE40T User Manual. For further instructions
regarding upgrading firmware, please consult your Microscan
representative.

PS2 Cable Settings

PS2 Mode — Data is sent from the Reader and interpreted by the
host just as if a US keyboard was being used to enter data.

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 11

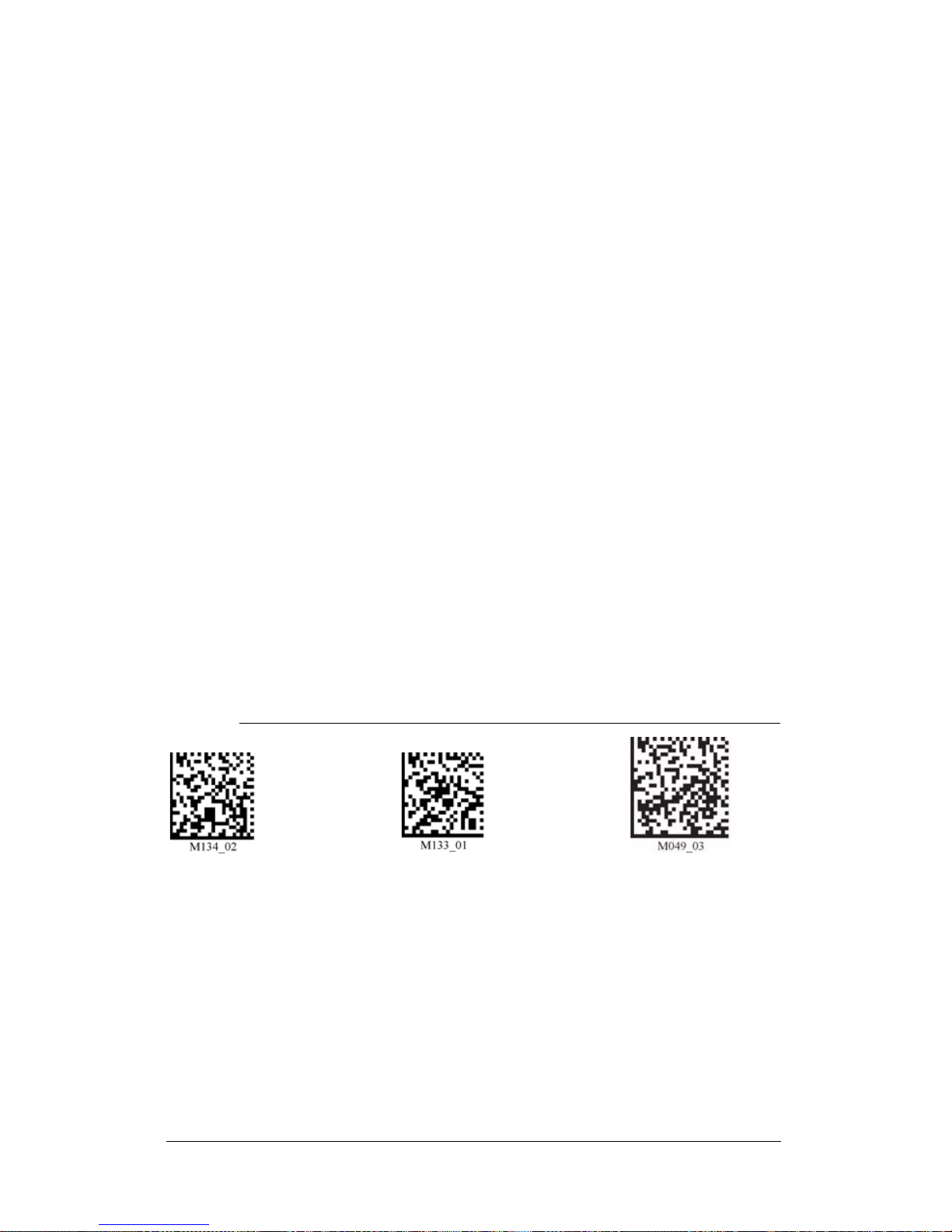

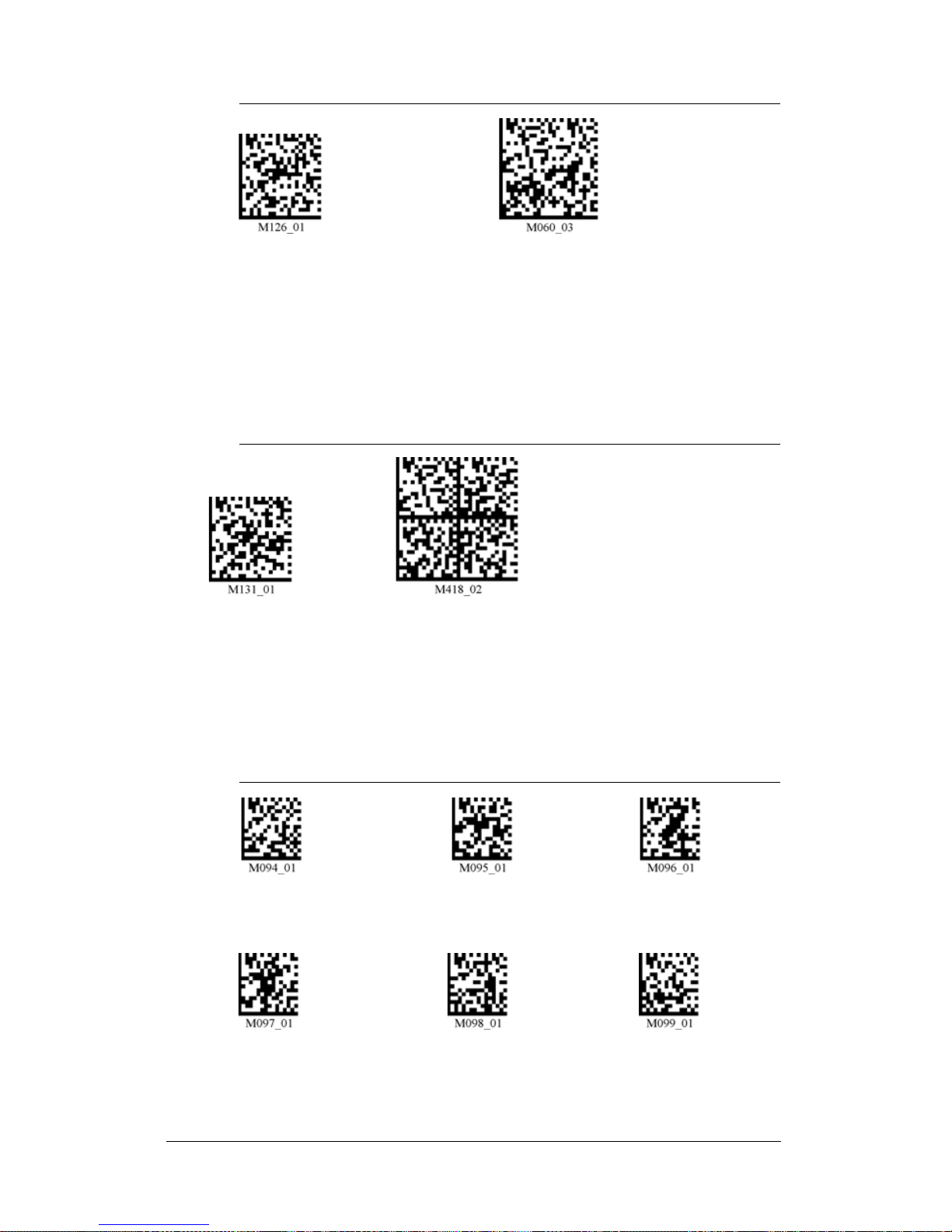

FIGURE 1–20. PS2 Codes

PS2 Mode

Reset to PS2

Factory Defaults

RS-232 One
Way Mode

Reset to RS-232
Factory Defaults

RS-232 Default Settings
Mode: RS-232 One Way

Mode Max Range
Baud Rate: 57600
Stop Bits: 1
Data Bits: 8
Parity: None

4800

9600

19200

38400 57600

Default

115200

RS-232 Cable Settings

RS-232 One Way Mode — Data is sent from the Reader as serial
data through the RS-232 port.

FIGURE 1–21. RS-232 Codes

Baud Rates

Scan the codes in Figure 1–22 to set the baud rate:

FIGURE 1–22. Baud Rate Codes

12 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

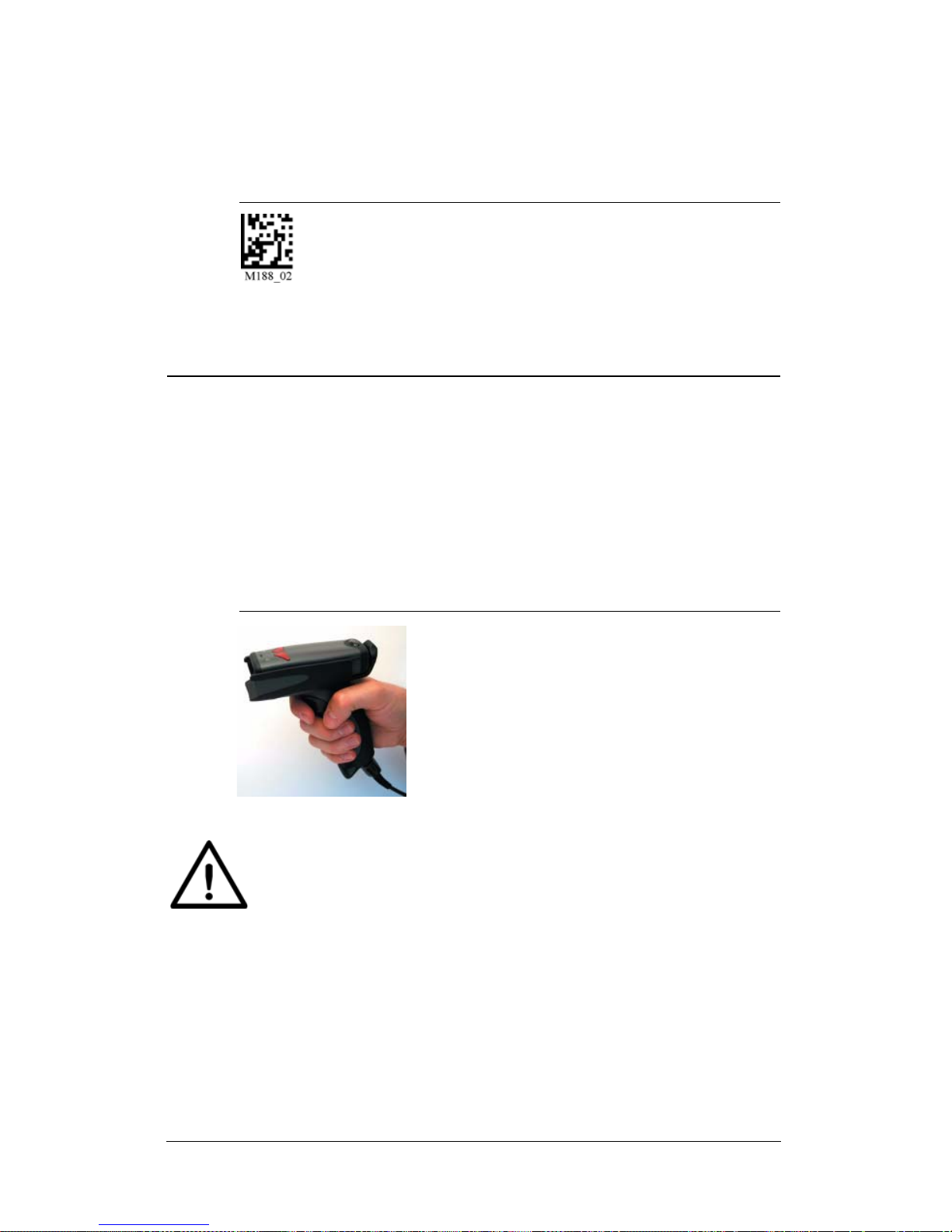

Save Settings

Save Settings

Caution

Laser in the HE40T

LASER RADIATION - AVOID LONG TERM
VIEWING OF DIRECT LASER RADIATION ­LASER CLASS 2M

Wavelength 630 nm - Maximum radiant pow er: < 1m W

EN 60825-1:2003

Save changes made to the HE40T configuration by scanning the
codes in Figure 1–23:

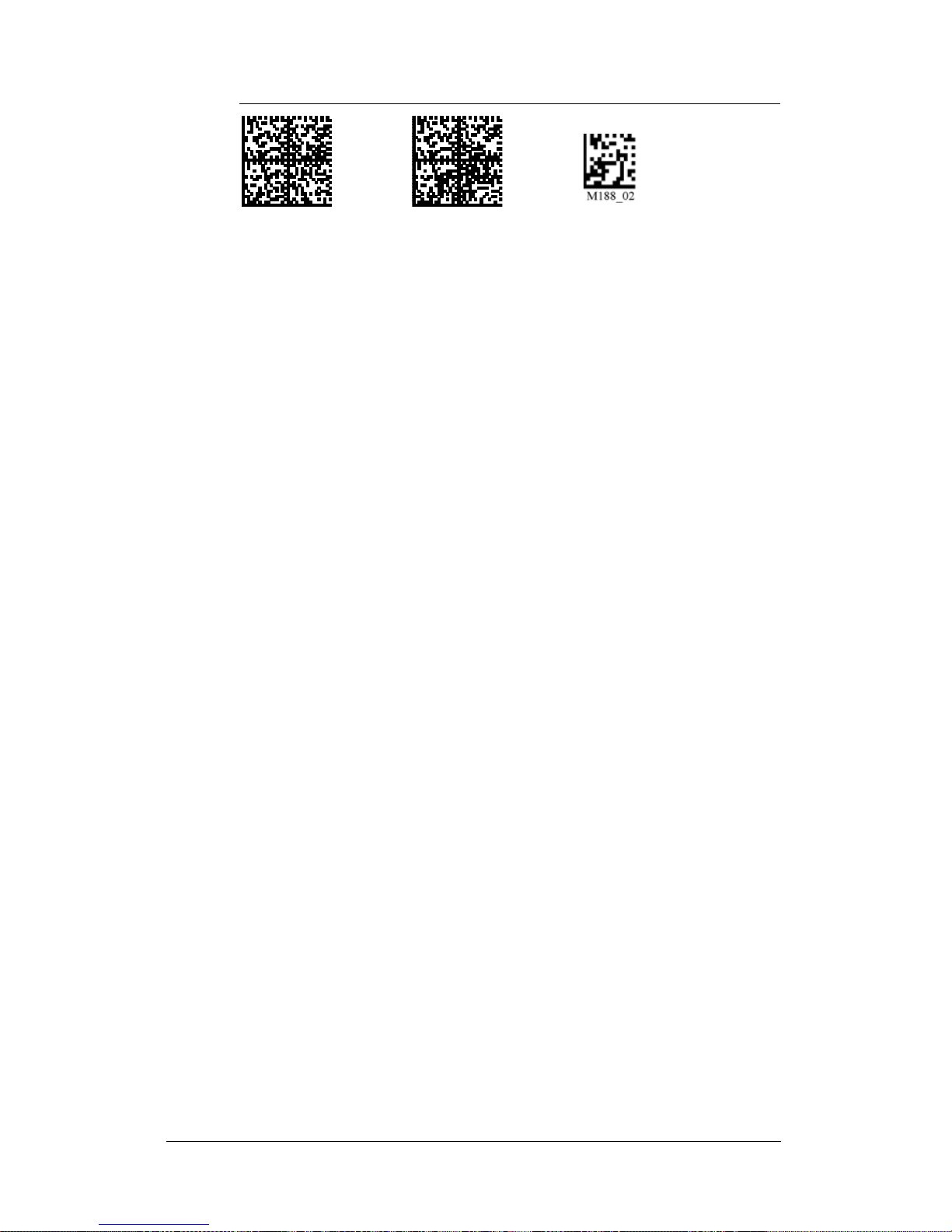

FIGURE 1–23. Save Settings

Targeting and Reading Techniques

The HE40T utilizes digital camera technology to take a picture of a
symbol. Once an image is captured, the HE40T utilizes
Microscan’s industry leading decoder to extract data from the
captured image.

The H2 Cabled Handle and BH1/BH2 Battery Handle each feature
a trigger on the handle, as shown in Figure 1–24. The two triggers
on the top of the unit also work when the handle is attached.

FIGURE 1–24. Handle with Trigger

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 13

Reading Symbols with the HE40T

1. The HE40T features omnidirectional decoding. Center the

symbol in any orientation within the laser dot aiming pattern,
as shown in Figure 1–25.

Note: The HE40T can read a symbol that is not centered;
however, the HE40T performs best when a code is centered.

The HE40T features omnidirectional decoding. Aiming the
targeting laser at the center of the symbol ensures the best
performance for decoding. The HE40T can read a symbol that
is not centered and, under certain circumstances if multiple
symbols are within the field of view, the user must take care of
which symbol is read. The decoder will start from the center,
but if the center symbol is not decodable, it may decode
another symbol, if multiple symbol s are present within the
field of view.

FIGURE 1–25. Centering Symbol Within the Laser Dot

2. The HE40T was developed to decode both very small 2-D

symbols and larger 1-D symbols. The unit features two imagers
to create an innovative dual decode zone. The HE40T features
a high speed processor and decodes both zones simultaneously
by default. The unit has one imager focused on a near-field for
smaller codes (optimal focal point is 4 inches) and one imager
focused on a far-field for larger codes (optimal focal point 9
inches). To read smaller symbols, move the HE40T closer to
the symbol. T o read lar ger symbols, move the unit farther away
from the symbol. The entire HE40T decode zone varies
between two (2”) and twenty (20+”) or more inches.

14 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

3. Hold the HE40T Reader still - DO NOT SWIPE OR MOVE

THE READER. Press the trigger until the HE40T beeps,
indicating the bar code has been successfully decoded.

Programming Codes

A programming code symbol encodes special messages used to
program the HE40T.

Symbology Settings

Symbology Defaults
Data Matrix ON Interleaved 2 of 5OFF
Codabar OFF UPC OFF
Code 128 OFF QR/Micro QR OFF
Code 93 OFF PDF417 OFF
Code 39 OFF

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 15

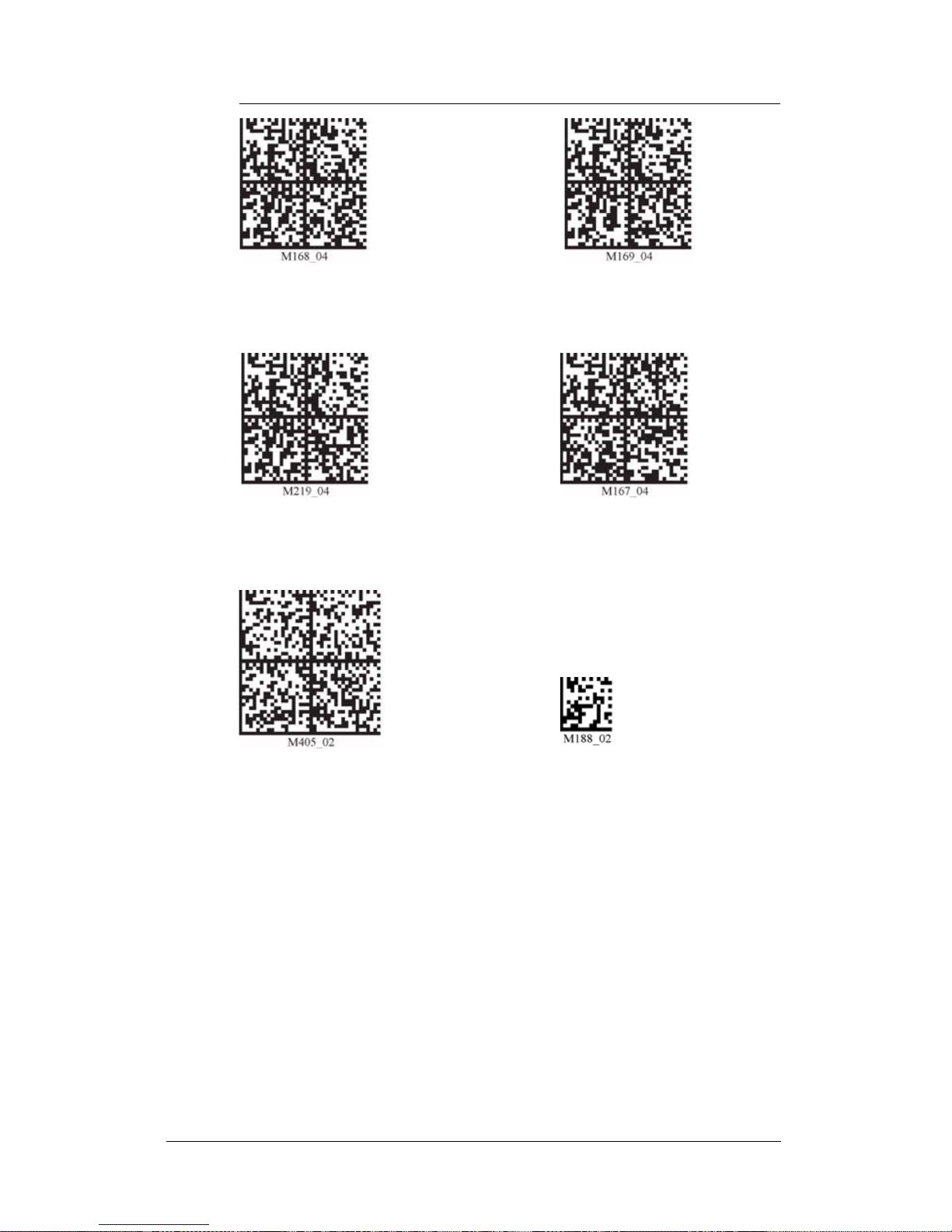

FIGURE 1–26. Symbology Programming Codes

Codabar On Codabar Off

Code 128 On

Code 128 Off Code 93 On Code 93 Off

Code 39 On Code 39 Off

I 2 of 5 On

I 2 of 5 Off

UPC On

UPC Off

UPC Extension On UPC Extension Off

QR/Micro QR On

QR/Micro QR Off

PDF417 On

PDF417 Off

Save Settings

16 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

FIGURE 1–27. Symbology Programming Codes (Continued)

Save Settings

All 1D On

All 1D Off

DoD UID Settings

The HE40T unit complies with MIL-STD-130, ISO 15434, and
ISO 15418 to construct a Unique Items Identifier (UII), Current
Port Number (CPN), and Lot/Batch Number (LBN).

The following UID data output options are applicable to Data
Matrix only and have no effect on other symbologies:

• UII/CPN DM On — The HE40T is configured to construct
Unique Item Identifier (UII), Current Part Number (CPN), and
Lot/Batch Number (LBN). If there is a valid UII/CPN/LBN, a
UII/CPN/LBN string is outputted. For decoded Data Matrix
with invalid UII/CPN/LBN, HE40T stops image acquisition
without an output string.

• UII/CPN DM with Data Fields — The HE40T is configured to
construct UII/CPN/LBN with all the data fields.UII DM with
Data Field — The HE40T is configured to construct UII and
output additional data fields.

The following options apply to all symbologies:

• UII/CPN On for All Symbologies — The HE40T is configured
to construct UII/CPN/LBN for all symbologies. For decoded
symbologies without valid UII/CPN/LBN, the HE40T stops
image acquisition without an output string.

• UII/CPN Off — The HE40T is back to normal decoder
behavior without constructing UII/CPN/LBN.

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 17

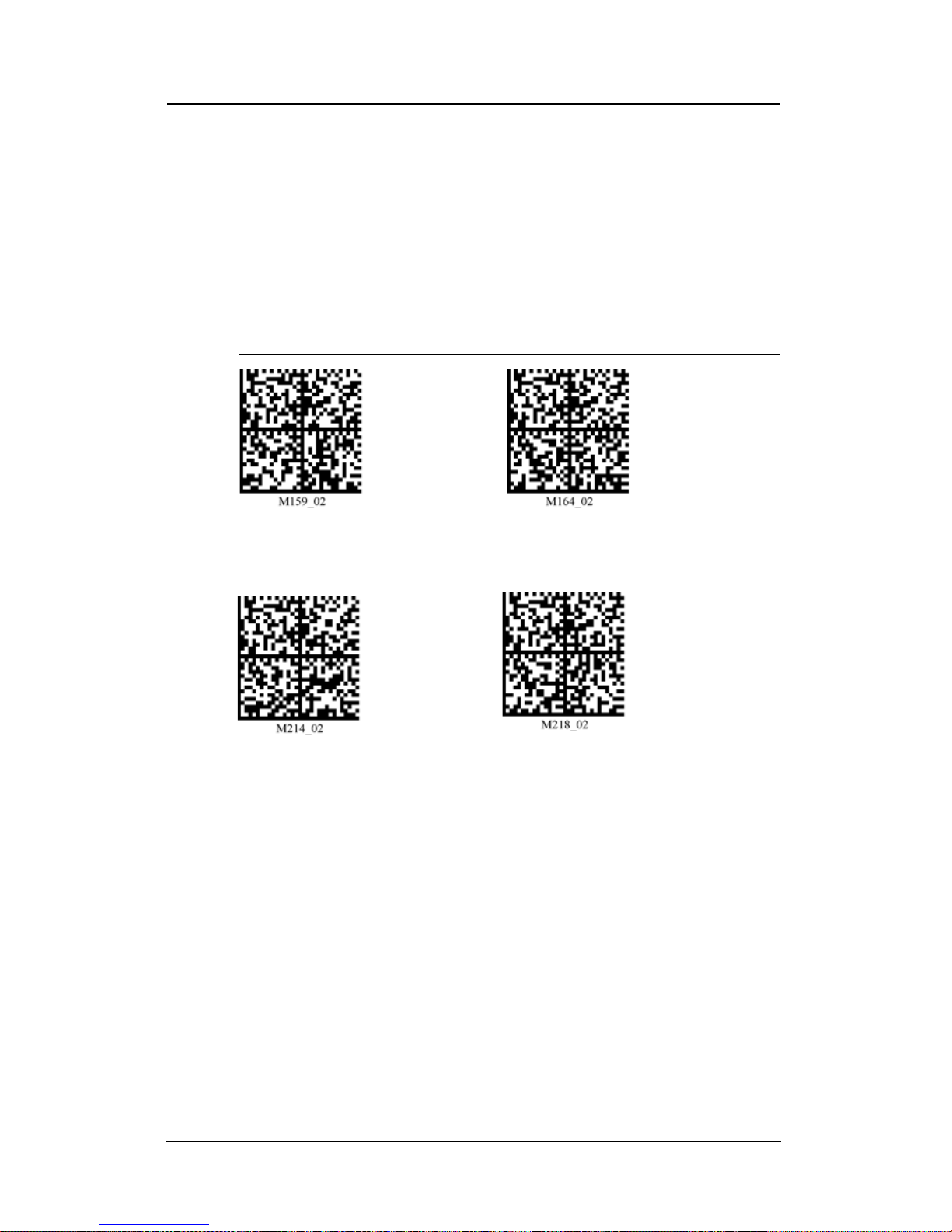

FIGURE 1–28. UII Codes

UII/CPM DM On

UII DM with Data Field

Save Settings

UII On for all Symbologies UII/CPM Off

Batch Mode

The HE40T unit features a batch mode for applications requiring a
portable reader. Batch mode allows a user to store scanned data to
the reader’s non-volatile memory. You may transfer the data to a
host computer when needed. T o utilize batch functionality, you will
need to use the BH1/BH2 battery handle.

The HE40T dedicated batch memory is a minimum of 1MB. To
determine the number of reads that may be stored, divide the
average bytes of a scan into the total minimum memory.

Auto Transfer Buffer Memory

By default, when reconnected, the HE40T will automatically
transfer any data in memory once a connection to a host is
established. If your application is not ready, the reader will send the
data anyway and the data could be lost. If you do not wish for the
reader to immediately send data upon connection, please scan the
Disable Auto Transfer Buf fer Memory.

18 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

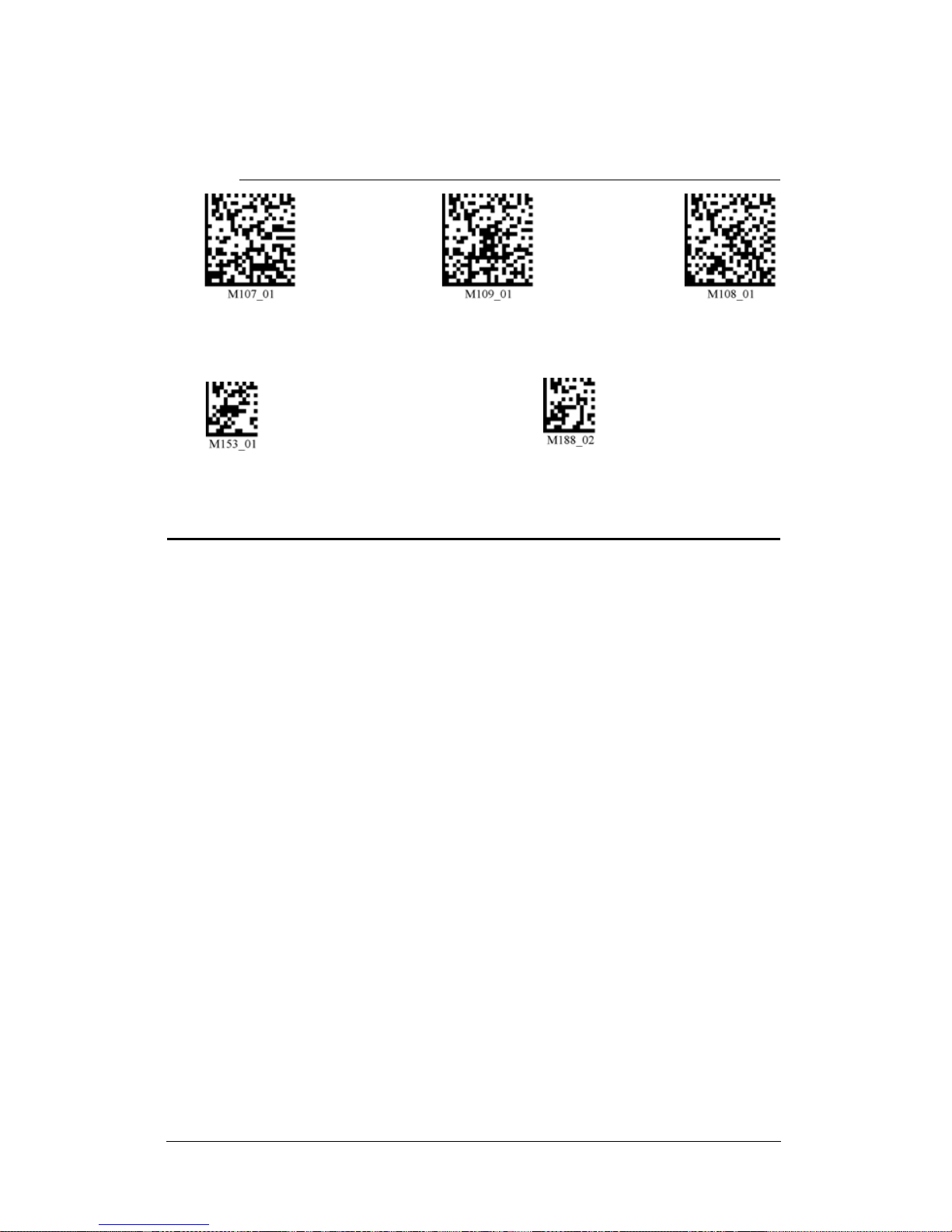

FIGURE 1–29. Auto Transfer Buffer Memory Codes

Send & Buffer Mo de
(Default)

Log Only Mode

Send & Log Mode

Transfer All Data Memory

Transfer Only Unsent Data Delete Scanned Data From Memory

Enable Auto Transfer
Buffer Memory (Default)

Disable Auto Transfer
Buffer Memory

Save
Settings

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 19

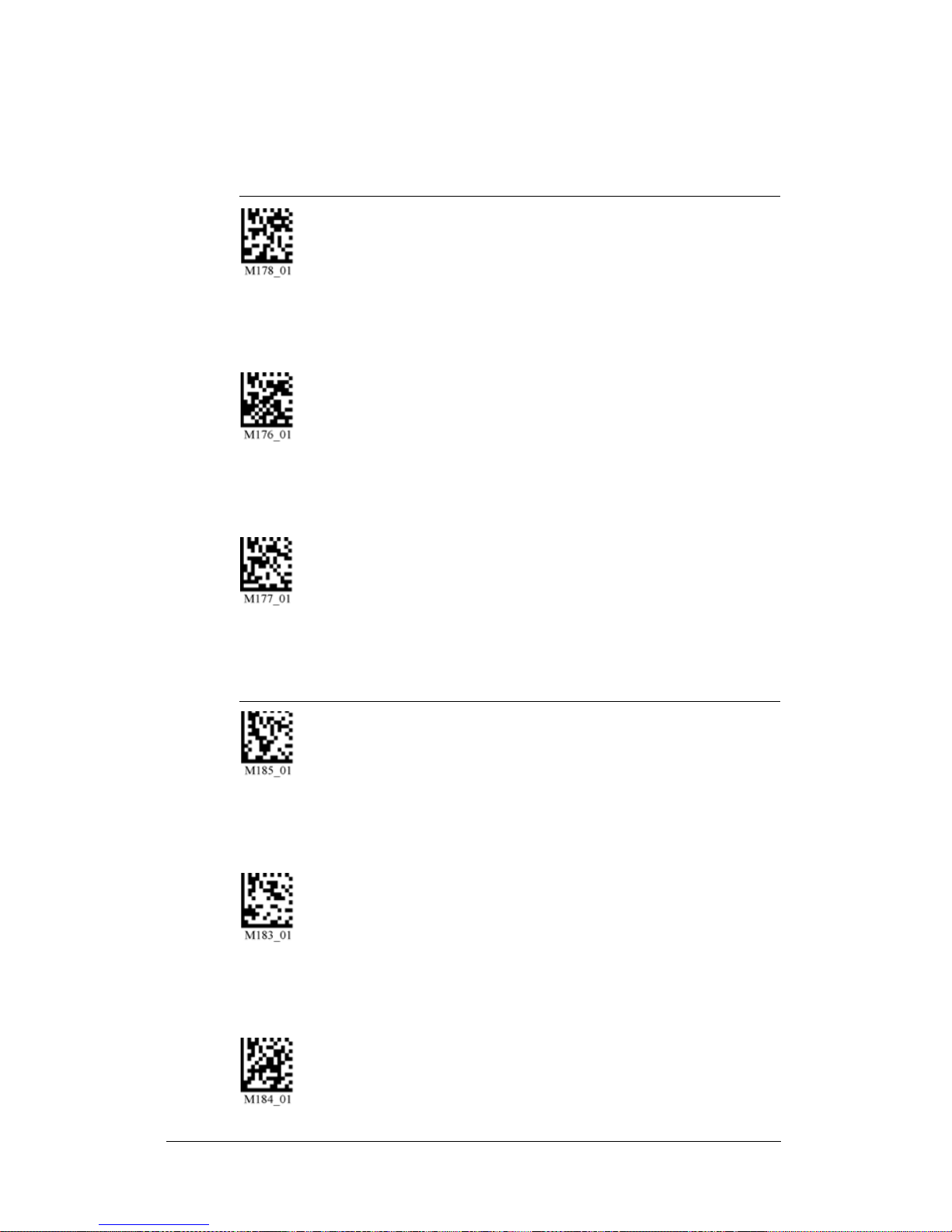

Trigger Programming

Read With Both Imagers (Default)

Read With Far-Field Imager

Read With Near-Field Imager

Read With Both Imagers (Default)

Read With Far-Field Imager

Read With Near-Field Imager

Left Trigger

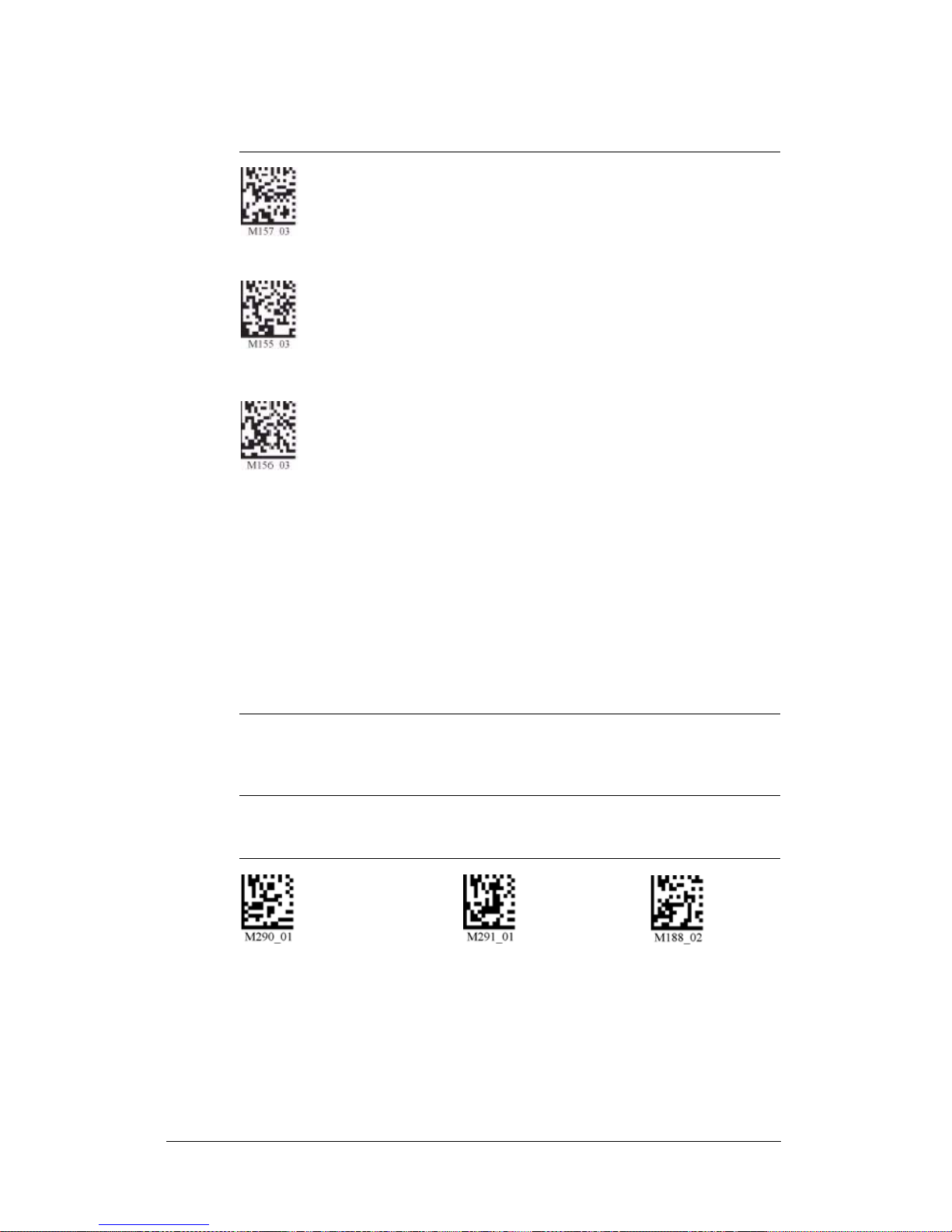

FIGURE 1–30. Left Trigger Programming Codes

Right Trigger

FIGURE 1–31. Right Trigger Programming Codes

20 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

Handle Trigger

Read With Both Imagers (Default)

Read With Far-Field Imager

Read With Near-Field Imager

On

Off

Save Settings

FIGURE 1–32. Handle Trigger Programming Codes

Turbo Dot Peen Mode

The HE40T with the default settings offers the best overall
performance for Data Matrix DPM reading. For reading dot peen
marks with cell size larger than 15 mils or 0.015 inches, it is often
possible to improve the reading performance by enabling the T urbo
Dot Peen mode. It is also recommended that you use Read With
Near Field Only mode with the Turbo Dot Peen On mode to
achieve the best reading response.

Note: Turbo Dot Peen mode should not be used for reading small
marks (dot peen or others) as it may increase the processing time
and reduce the robustness of reading small marks.

FIGURE 1–33. Turbo Dot Peen Mode Codes

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 21

Miscellaneous Programming Codes

Prefix - Comma Prefix - Space

Prefix - Carriage Return
Line Feed ( RS-232)

Prefix - Tab
(RS-232)

Prefix Settings

If you scan the following codes, you may lose your current settings.
Save settings on your reader before scanning the prefi x codes. If
you scan more than one prefix, you will receive each scanned prefix
in your scanned data (i.e., if you scan comma prefix twice, you will
get two comma prefixes). Scan the codes in Figure 1–34 and
Figure 1–35 to set the appropriate prefix:

FIGURE 1–34. Prefix Settings

22 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

FIGURE 1–35. Prefix Settings (Continued)

Prefix - Tab
(USB/PS2)

Prefix - Erase
This code will erase
all prefix data

Save Settings

Suffix - Space

Suffix - Comma

Suffix - Enter
(USB/PS2)

Suffix - Carriage Return
Line Feed (RS-232)

Suffix Settings

If you scan the codes in Figure 1–36 and Figure 1–37, you may lose
your current settings. Save settings on your reader before scanning
the Suffix codes. If you scan more than one suffix, you will receive
each scanned suffix in your scanned data (i.e., if you scan comma
suffix twice, you will get two comma suffixes). Scan the codes in
Figure 1–36 and Figure 1–37 to set the appropriate suffix:

FIGURE 1–36. Suffix Settings

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 23

FIGURE 1–37. Suffix Settings (Continued)

Suffix - Line Feed
(RS-232)

Suffix - Tab
(RS-232)

Suffix - Tab
(USB/PS2)

Suffix - Erase/None
This code will eras
all suffix data

Save Settings

Suffix - Carriage Return
(RS-232)

24 HE40T Quickstart Guide Rev 2.0.0, Jan 2009

Volume and Vibration Settings

Vibrate On
Beep On

Vibrate On
Beep Off

Vibrate Off
Beep On

Reader ID & Firmware Version

Save Settings

Scan the codes in Figure 1–38 to set volume and vibrations settings:

FIGURE 1–38. Volume & Vibration Settings Codes

Minimum Requirements

Operating Systems: Windows© 2000, XP
Interfaces: USB, RS-232, and PS2
Bluetooth™: HE40T only supports Bluetooth serial profile

Rev 2.0.0, Jan 2009 HE40T Quickstart Guide 25

26 HE40T Quickstart Guide Rev 2.0.0, Jan 2009
