Micronics W6-LI User Manual

W6-LI Pentium Pro

PCI/ISA

System Board Manual

Document Number: 06-00288-03, Rev. 1B

May 1997

45365 Northport Loop West, Fremont, CA 94538

Copyright Notices

Copyright  1996, 1997 Micronics Computers, Inc. The information
contained in the W6-LI PCI/ISA Dual Pentium Pro Processor system

2

board manual has been carefully checked and is believed to be
accurate. Micronics assumes no responsibility for any inaccuracies
that may be contained in this document. Micronics makes no commit­ments to update or to keep the information in this manual at a current
level when changes are made to the product.

Micronics reserves the right to make improvements to this document
and/or product at any time and without notice. All Rights Reserved.
No part of this document may be photocopied, reproduced, trans­lated, or reduced to any medium or machine form without prior,
written consent from Micronics.

Portions of the Manual

Portions of this manual were copied (with permission) from Phoenix
Technologies, Ltd., Adaptec, Inc. and Micro Computer Systems, Inc.
All rights reserved.

Trademarks

IBM is a registered trademark of International Business Machines.
Microsoft and Windows are registered trademarks of Microsoft Cor­poration. Intel and PCI are registered trademarks of Intel Corpora­tion. All other product names mentioned herein are used for identi­fication purposes only and may be the trademarks of their respective
companies.

W6-LI System Board Manual

Table of Contents

Introduction 5

Features 6
Software Compatibility 7
Before You Begin 8

Chapter 1 - Quick Installation 9

Installing the W6-LI 9

Chapter 2 - Configuring the W6-LI 11

Static Electricity 11
Office Environment 11
W6-LI System Board 12
W6-LI Back Panel Connections 12
Jumper Settings 13

Chapter 3 - Installing the W6-LI 17

Introduction 17
System Memory Support 17
Installing the W6-LI 18

Tools Required 18
Equipment Required 18

System Memory 19

DIMMs Supported 19

Adding Memory 19
Memory Configurations 21
Installing the DIMMs 25

Removing DIMMs 25
Installing a CPU 26
Installing a PCI Peripheral Card 27
Installing a ISA Peripheral Card 28

W6-LI System Board Manual

1

Installing a CD-ROM Drive 29
The W6-LI Sound Option 30

Connecting Sound Devices 30
Connecting the Telephony Option 31

Connecting the SCSI Option 32

Chapter 4 - The BIOS Setup Utility 33

Configuration 33
Initial Bootup 33
Setup 33
Running the Setup Procedure 35
Setting the Main Screen 35

Setting the Advanced Screen 40
Security Screen 43
Power Screen 46
Boot Screen 48
Exit Screen 49

Chapter 5 - Installing Device Drivers 51

About Device Drivers 51
Installing the Sound Drivers 51
Installing the SCSI Drivers 52

Appendix A - Technical Information 53

Specifications 53
Environmental Specifications 54

Temperature Range 54

Relative Humidity 54
Battery Disposal 55
Support and Information Services 56

Technical Support 56

2

W6-LI System Board Manual

Appendix B - Post Messages 59

Appendix C - Beep and POST Codes 61

Appendix D - Hard Disk Drive Types 65

Appendix E - Updating the System BIOS 67

Appendix F - Warranties and Notices 69

Limited Warranty 69
FCC Statement 71
Declaration of Conformity 72

Glossary 73

Index 77

W6-LI System Board Manual

3

List of Figures

Figure 1.1: Power-Up Screen 10
Figure 2.1: W6-LI System Board 12
Figure 2.2: W6-LI Back Panel Connections 12
Figure 3.1: Installing a 168-Pin DIMM 25
Figure 3.2: Installing a PCI Card 27
Figure 3.3: Installing an ISA Peripheral Card 28
Figure 3.4: Connecting External Sound Devices 30
Figure 4.1: Power-Up Screen 34
Figure 4.2: CMOS Main Screen 35
Figure 4.3: IDE Device Submenu 38
Figure 4.4: Advanced Screen 40
Figure 4.5: Security Screen 43
Figure 4.6: Supervisor Password Submenu 44
Figure 4.7: Power Screen 46
Figure 4.8: Boot Screen 48
Figure 4.9: Exit Screen 49

List of Tables

Table 2.1: CPU Speed Selection 13
Table 2.2: CPU Voltage Selection 13
Table 2.3: ISA Bus Clock Selection 14
Table 2.4: System Power Supply Setting 14
Table 2.5: Clear CMOS Settings 14
Table 2.6: Onboard Sound Selection 14
Table 2.7: Pipelining Mode Settings 15
Table 2.8: Onboard SCSI Selection 15
Table 2.9: Case and Peripheral Connections 15
Table 3.1: Memory Configurations 21
Table A.1: Support and Information Services 57

4

W6-LI System Board Manual

Introduction

Introduction

Thank you for choosing the W6-LI system board. The
W6-LI is the highest performing advanced dual processor
solution for the industry's most demanding workstation
and server applications.

Based on the Intel 440FX PCIset, the W6-LI supports the
most advanced processor architecture, the Pentium Pro
which provides the speed and performance necessary to
address the most intensive computational applications.
Integrated Ultra Wide SCSI (up to 40MBytes/sec trans­fer rate), PCI and ISA slots, up to 512K of Level 2 cache
on each CPU and support of Universal Serial Bus (USB),
make this board powerful and feature rich.

The USB interface has a maximum bandwidth of 12Mbps
and can connect as many as 127 devices to a host system.
USB supports both standard devices that operate at the
full 12Mbps rate and low-end devices that use only a

1.5Mbps subchannel.

,

Designed to fit into the most modern ATX form factor,
the flexible W6-LI also features support for Fast Page
Mode (FPM) and Extended Data Out (EDO) DRAM
advanced memory, and Error Checking and Correction
(ECC). The ATX form factor allows critical components
such as floppy drive connectors, chassis fan, CPU and
memory to be strategically located so that full length
cards can be used in all slots.

Micronics builds all products to exacting standards, using
the highest quality components available. We are proud
to provide this system board and believe you will be
pleased with your purchase.

W6-LI System Board Manual

5

Introduction

Features

The W6-LI includes the following features:
▲ Dual ZIF Socket 8



Intel Pentium

Pro 150, 166, 180 and 200MHz processors
One integrated VRM and one VRM header to supply
CPU-specific voltages

▲ Intel 440FX PCIset

Intel PIIX 3
SMC FDC37C93X Ultra I/O chip

▲ Four 32-bit PCI slots

Two 16-bit ISA slots
(One is a shared PCI/ISA slot)

▲ Maximum memory - 512MB

Four 3.3V buffered 168-pin DIMM sockets

▲ Supports FPM and EDO DRAM memory

ECC support via chipset when using parity DIMMs

▲ Fast SCSI Bus Mastering controller, 50 pin SCSI

connector, 68 pin SCSI connector (Ultra Wide),
EZ-SCSI Drivers (optional)

▲ Creative Labs VIBRA 16CL Sound (optional)
▲ Two Universal Serial Bus (USB) ports for desktop periph-

eral expansion (optional)

W6-LI System Board Manual6

Introduction

Software Compatibility

The W6-LI system board has been thoroughly tested for
compatibility with a variety of operating systems and envi­ronments, including:

▲ Microsoft

DOS 5.0
DOS 6.2
Windows 95
Windows NT 3.51
Windows NT 4.0

▲ IBM

OS/2 Warp 3.0
OS/2 Warp 4.0

▲ SCO

UNIXWare 2.1.1
Open Server 5.02
UNIX 3.2, 4.2

▲ Novell NetWare 3.12

Novell NetWare 4.11

W6-LI System Board Manual

7

Introduction

This manual will familiarize you with the features, installa­tion and use of your W6-LI. There are several symbols and
conventions used throughout this manual to help draw your
attention to a feature or to focus on important information:

Common Names

DIMM Dual Inline Memory Module
DRAM Dynamic Random Access Memory
ECC Error Checking and Correction
EDO Extended Data Out
FPM Fast Page Mode
IDE Integrated Drive Electronics
PCI Peripheral Component Interconnect
USB Universal Serial Bus
VRM Voltage Regulator Module

Before You Begin

When you see the Magnifying Glass, it refers
to something you should take a closer look at
before proceeding further.

When you see the Exclamation Mark, it gives
important information on avoiding damage.

8

W6-LI System Board Manual

Chapter

1

STATIC!

Before
handling the
W6-LI, be
properly
grounded by
using a
special wrist
or ankle
strap, or
touch a
safely
grounded
object.

Chapter 1: Quick Installation

Quick Installation

We know that many experienced people prefer to read as
little of the documentation as possible. If this sounds like
you, here’s the short form to get up and running quickly.

Installing the W6-LI

1. Make backup copies of your installation and configu­ration diskettes.

2. Ground yourself to prevent damaging static dis­charge, then remove the W6-LI from its packaging.

3. Configure and verify the system board’s jumper set­tings (refer to Jumper Settings in Chapter 2).

4. Install the CPU and the system memory (refer to
Chapter 3).

5. Install the system board into the chassis and make all
necessary case connections.

6. Install any ISA and/or PCI add-on peripherals (refer to
Chapter 3).

7. Now you can connect any optional devices (refer to
Chapter 3).

8. Turn the computer on and press the <F2> key
when you see the screen in Figure 1.1.

W6-LI System Board Manual

9

Chapter 1: Quick Installation

Figure 1-1: Power-Up Screen

9. Set the time and date. Adjust the BIOS settings to
match your configuration. If installing an IDE drive,
select the IDE device you wish to configure. Press
ENTER with Autotype Fixed Disk selected and the
BIOS will automatically configure the drive for you
(refer to Chapter 4).

10. After you have configured the Main Setup menu,
make any desired setting configurations in the Ad­vanced and Security menu. When finished, go to the
exit screen, select “Save Changes and Exit” and you
are finished with the BIOS configuration (see Chap­ter 4).

11. Install your IDE CD-ROM drive and its device
drivers (optional). Refer to Chapter 3.

12. Install the sound controller device drivers (optional).
Refer to Chapter 5.

13. Install the SCSI device drivers (optional). Refer to
Chapter 5.

10

W6-LI System Board Manual

Chapter 2: Configuring the W6-LI

Chapter

2

Configuring the W6-LI

Although the W6-LI system board is packaged in protec­tive materials, it is important to use care while unpack­ing and setting up.

Static Electricity

The W6-LI is shipped from the factory in an antistatic
bag. To reduce the possibility of damage, it is important
to neutralize any accumulated static charges on your
body before handling the board. The best way to do this
is to ground yourself using a special wrist or ankle strap.
If you do not have a strap, you should touch both of your
hands to a safely grounded object. After you have
grounded yourself, ground the W6-LI via the solder pads
surrounding one of its mounting holes.

Once the W6-LI is removed from its packaging, place it
on top of the antistatic bag. Carefully inspect the board
for damage which may have occurred during shipment.

Environment Considerations

Make sure the finished computer system is in an area with
good ventilation. The system should not be in direct
sunlight, near heaters, or exposed to moisture, dust or
dirt.

W6-LI System Board Manual

11

Chapter 2: Configuring the W6-LI

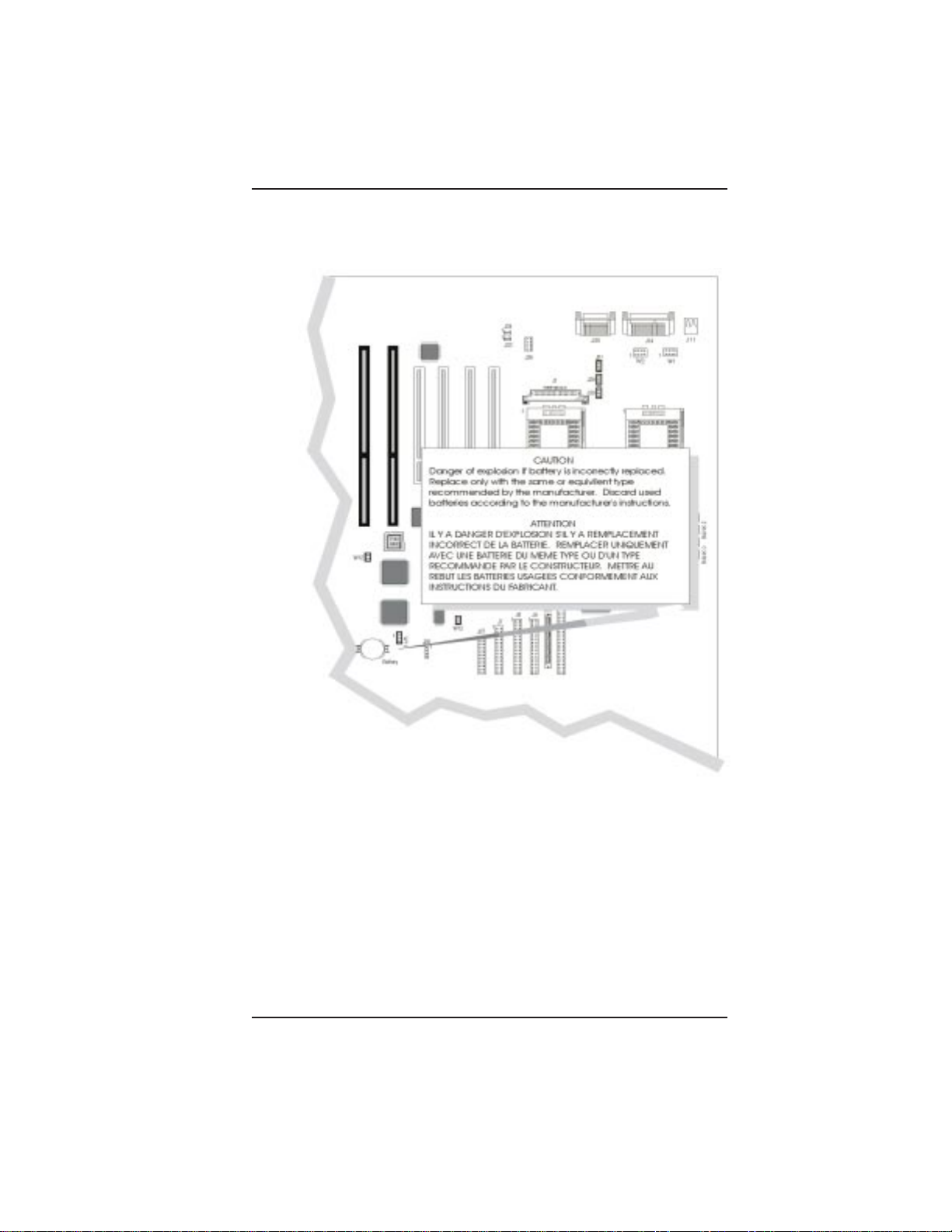

W6-LI System Board

Figure 2-1: W6-LI System Board

W6-LI Back Panel Connections

Figure 2-2: W6-LI Back Panel

12

W6-LI System Board Manual

Chapter 2: Configuring the W6-LI

Jumper Settings

This chapter gives you the jumper settings used for the W6-LI system
board.

Table 2-1 lists the jumper settings to select the CPU frequency. These
settings apply to both CPUs. NOTE: Before making your selection, verify that

jumper W12 is closed.

CPU

Speed

Bus

Speed

W4 W5 W6 W7 W8 W9

150 MHz 60 x 2.5 Close Open Close Close Close Open
166 MHz 66 x 2.5 Open Close Close Close Close Open
180 MHz 60 x 3.0 Close Open Close Close Open Close
200 MHz 66 x 3.0 Open Close Close Close Open Close

Table 2-1: CPU Speed Selections

Table 2-2 lists the jumper settings for the CPU Voltage Identification
(VID). The power regulators on the system board (one for each CPU) are
capable of generating different voltages. VID is a hardware mechanism
used by each CPU to tell its power regulator what voltage to set.

NOTE: If the CPU supports VID, all jumpers on W1 and/or W2 must be
removed or damage may occur. W1 is for the Primary CPU and W2 is for
the secondary CPU.

CPU Voltage Jumpers

W1 and W2

1-2 3-4 5-6 7-8

VID-Enabled (default) Open Open Open Open

Non-VID 2.9V Close Open Open Close
Non-VID 3.1V Close Open Close Close
Non-VID 3.3V Close Close Open Close

Table 2-2: CPU Voltage Selection

W6-LI System Board Manual

13

Chapter 2: Configuring the W6-LI

Table 2-3 lists the jumper settings for the ISA Bus clock frequency.

Jumper Host Bus Speed ISA Bus Speed Setting

W12 60MHz (default)

66MHz (default)

Table 2-3: ISA BUS Clock Settings

7.50MHz

8.25MHz

Close
Close

Table 2-4 lists the jumper settings to enable or disable the system power
supply.

Jumper Function Settings

W13 Normal (default)

Reserved

Table 2-4: System Power Supply Setting

Table 2-5 lists the jumper settings to clear the CMOS settings. With your
computer's power off, close pins 2-3, wait ten seconds and place the
jumper back on pins 1-2. (The jumper must be placed back on pins
1-2 for the system to function properly.)

NOTE: This will reset all BIOS default settings. Any changes you have made
will be lost.

Open
Close

Jumper Function Settings

W11 Normal (default)

Clear CMOS

Table 2-5: Clear CMOS Settings

1-2
2-3

Table 2-6 lists the jumper settings to select the optional onboard sound.

Jumper Function Settings

14

W14 Enable Sound (default)

Disable Sound

Table 2-6: Onboard Sound Selection

W6-LI System Board Manual

Close
Open

Chapter 2: Configuring the W6-LI

Table 2-7 lists the jumper settings for the Host Bus Agents pipelining
mode. Host Bus Agents are devices connected to the CPU local bus,
which include the CPUs and the 440FX chipset. Host Bus Agents can
generate, up to eight at a time, multiple overlapped (or pipelined) bus
transactions (or bus cycles).

Jumper Function Settings

W10 Normal (default)

Reserved

Table 2-7: Pipelining Mode Settings

Open
Close

Table 2-8 lists the jumper settings to select the optional onboard SCSI.

Jumper Function Settings

W15 Enable SCSI (default)

Disable SCSI

Table 2-8: Onboard SCSI Selection

Close
Open

Table 2-9 lists the jumpers for the case and peripheral connections.

Connector Function Notes

J1 Voltage Regulator Module For Secondary CPU

J3-J6 DRAM (168-pin DIMM

sockets)
J7 Floppy Drive Connector Supports up to two floppy drives
J8 Primary IDE Port Connector Supports up to two IDE devices
J9 Secondary IDE Port Connector Supports up to two IDE devices

J10 PS/2 Keyboard Connector

PS/2 Mouse Connector

J11 USB Connector (optional) Lower Level: USB Port 1

J12 Serial Port A Connector
J13 Serial Port B Connector
J14 Parallel Port Connector Upper Level

J15-J18 PCI Bus Expansion Slots

3.3 Volt Only. Buffered DIMMs
Supported

Lower Level
Upper Level

Upper Level: USB Port 0

Table 2-9A: Case & P eripheral Connections

W6-LI System Board Manual

15

Chapter 2: Configuring the W6-LI

Connector Function Notes

J19-J20 ISA Bus Expansion Slots

J23 Power Supply Connector ATX Standard
J27 Front I/O Connector

" System Power On/Off 1 - Power; 2 - Ground
" Reset Switch 23 - Reset; 22 - Ground
" PC Speaker

Note: Jumper pins 26 and 27

to use the onboard speaker
" Power-On LED 20 - Positive; 18 - Ground
" IDE LED

Note: IDE and SCSI functions

share the same LED
" Infrared 6 - +5V DC; 8 - Receive Data;

" Speaker (Buzzer)

Note: Jumper pins 26 and 27

to use the onboard speaker

J28 Infrared Port Connector (Note:

Do not connect IR devices to

J27 & J28 simultaneously)

J29, J30 CPU Fan

(J29 - Primary)

(J30 - Secondary)

J31 Chassis Fan 1 - 12+V Power; 2 - Ground;

J33 CD-ROM Audio Input 1 - Ground; 2 - CD-In Left Channel;

J34 Modem/Telephony 1 - No Connect; 2 - MIC Out;

J35 Game Port/MIDI

MIC In

Line In

Line Out

J36 Wavetable Upgrade 1 - Right Channel Input; 2 - Ground;

J37 SCSI 50-pin Cable Connector Fast SCSI (optional)
J38 SCSI 68-pin Cable Connector Ultra Wide SCSI (optional)

U1 Primary P6 CPU Socket 8 (387-pin)
U2 Secondary P6 CPU Socket 8 (387-pin)

U25 System BIOS

27 - Speaker; 24 - +5V DC

13 or 16 - Positive; 15 - Negative

9 - Ground; 10 - Transmit Data
Enabled (default)

1 - Receive Data; 2 - Ground;
3 - Transmit Data; 4 - +5V Power

1 - 12+V Power; 2 - Ground;
3 - Status (Running or Stopped)

3 - Status (Running or Stopped)

3 - Ground; 4 - CD-In Right Channel

3 - Ground; 4 - Speaker Input
Upper Level

Lower Level
Lower Level
Lower Level

3 - Left Channel Input; 4 - Ground;
5 - No Connect; 6 - Ground;
7- Ground; 8 - Ground

16

Table 2-9B: Case & P eripheral Connections (cont.)

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Chapter

3

Installing the W6-LI

Introduction

This chapter explains how to install the W6-LI system
board, memory, CPU and peripherals.

WARNING: Before installing or removing any peripherals
or components, make sure you have a clear work space and
that you adhere to all anti-static precautions described in
Chapter 1. Micronics recommends only trained technicians
install and configure the system board.

Damage which occurs to the board while adding or removing
peripherals or components may void the warranty. If prob­lems arise while installing peripherals, contact the computer
dealer where you purchased the peripheral or Micronics’
Technical Support Department.

System Memory Support

The flexibility of the W6-LI is augmented by its support
for Error Checking and Correction (ECC), Extended
Data Out (EDO) and Fast Page Mode (FPM) DRAM
memory. The W6-LI supports Error Checking and Cor­rection (with 72-bit DIMMs only) via the chipset.

EDO memory is designed to keep data available to the
processor for an extended period of time. The EDO
memory support extends the performance of conven­tional DRAM memory. The result is an improvement in
memory-access performance on the W6-LI system board.

W6-LI System Board Manual

17

Chapter 3: Installing the W6-LI

Installing the W6-LI

Installation of the W6-LI system board depends on the type
of case you use. The W6-LI is designed for the standard
ATX form factor and must be installed in an ATX chassis.

NOTE: If you are unfamiliar with installing a system board,
Micronics highly recommends that you read the computer
user’s manual or contact your dealer’s technical support
department.

Tools Required

Micronics recommends using the following tools to in­stall the W6-LI:

❏ Small Phillips screwdriver
❏ Tweezers or a pair of needle-nose pliers
❏ Tray (to hold loose screws)

Equipment Required

Micronics recommends using the following equipment with
the W6-LI for a typical configuration:

❏ ATX chassis with standard hardware.
❏ A high-quality ATX power supply capable of providing

continuous power within a 3 volt range. A power filter
may be used with a noisy AC power source.

❏ PS/2 mouse and compatible keyboard.
❏ Eight ohm speaker.
❏ Standard ribbon cables for internal connections.
❏ Standard power cord (grounded).
❏ Heat sink with cooling fan for each CPU (required).

18

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

System Memory

System memory is necessary to operate the W6-LI system
board. The W6-LI uses DIMMs, which provide a wider
data path than SIMMs, to carry more data.

The W6-LI has four 168-pin DIMM sockets for a maximum
of 512 Megabytes of RAM. Support is provided for EDO
DRAM memory and FPM DRAM memory. This chapter
will explain the type of DIMMs supported, list the rules for
adding memory to the W6-LI, give some examples of com­mon memory configurations and show how to physically
install the new DIMMs.

DIMMs Supported

For long
term
reliability,
Micronics
recom­mends using
DIMMs with
gold-plated
contacts.
The use of
tin-plated
contacts
may conflict
with the gold
alloy on the
DIMM
socket.

The W6-LI supports the following types of 60 or 70ns
DIMMs:

8MB (1Mx64/72)
16MB (2Mx64/72)
32MB (4Mx64/72)
64MB (8Mx64/72)*
128MB (16Mx64/72)*

*Subject to availability

Adding Memory

The following is a list of rules to follow when upgrading
DIMMs. If you follow these rules, your upgrade should be
trouble-free:

❏ Use 70ns or faster DIMMs.
❏ There are three (3) types of DIMM wiring configura-

tions: Non-parity - 64 bits wide, Parity and Error
Checking and Correction - 72-bits wide.

❏ All three types of DIMM configurations may be used

on the W6-LI, but not simultaneously.

W6-LI System Board Manual

19

Chapter 3: Installing the W6-LI

❏ Upgrade DIMMs one bank at a time. Start with Bank

0, then work your way up (one DIMM per bank),
adding memory from the smallest to the largest size.

❏ Install the two types of memory in separate banks. The

memory will default to the speed of the slowest RAM
installed.

20

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Memory Configurations

There is no
need to set
any jumpers.
When you
reboot, the
size and
type of
memory are
automatically
detected.

The following tables list the most common memory configu­rations. The memory available depends on the number of
DIMMs installed.

Memory Bank 0 Bank 1 Bank 2 Bank 3

8MB 1MBx64/72
16MB 2MBx64/72
16MB 1MBx64/72 1MBx64/72
24MB 2MBx64/72 1MBx64/72
24MB 1MBx64/72 1MBx64/72 1MBx64/72
32MB 2MBx64/72 2MBx64/72
32MB 2MBx64/72 1MBx64/72 1MBx64/72
32MB 4MBx64/72
32MB 1MBx64/72 1MBx64/72 1MBx64/72 1MBx64/72
40MB 2MBx64/72 2MBx64/72 1MBx64/72
40MB 2MBx64/72 1MBx64/72 1MBx64/72 1MBx64/72
40MB 4MBx64/72 1MBx64/72
48MB 2MBx64/72 2MBx64/72 2MBx64/72
48MB 2MBx64/72 2MBx64/72 1MBx64/72 1MBx64/72
48MB 4MBx64/72 2MBx64/72
48MB 4MBx64/72 1MBx64/72 1MBx64/72
56MB 2MBx64/72 2MBx64/72 2MBx64/72 1MBx64/72
56MB 4MBx64/72 2MBx64/72 1MBx64/72
56MB 4MBx64/72 1MBx64/72 1MBx64/72 1MBx64/72

T ab le 3-1: Memory Configurations

W6-LI System Board Manual

21

Chapter 3: Installing the W6-LI

Memory Bank 0 Bank 1 Bank 2 Bank 3

64MB 2MBx64/72 2MBx64/72 2MBx64/72 2MBx64/72
64MB 4MBx64/72 2MBx64/72 2MBx64/72
64MB 4MBx64/72 2MBx64/72 1MBx64/72 1MBx64/72
64MB 4MBx64/72 4MBx64/72
64MB 8MBx64/72
80MB 4MBx64/72 2MBx64/72 2MBx64/72 2MBx64/72
80MB 4MBx64/72 4MBx64/72 2MBx64/72
80MB 4MBx64/72 4MBx64/72 1MBx64/72 1MBx64/72
80MB 8MBx64/72 2MBx64/72
80MB 8MBx64/72 1MBx64/72 1MBx64/72
96MB 4MBx64/72 4MBx64/72 2MBx64/72 2MBx64/72
96MB 4MBx64/72 4MBx64/72 4MBx64/72
96MB 8MBx64/72 2MBx64/72 2MBx64/72
96MB 8MBx64/72 2MBx64/72 1MBx64/72 1MBx64/72

96MB 8MBx64/72 4MBx64/72
112MB 4MBx64/72 4MBx64/72 4MBx64/72 2MBx64/72
112MB 8MBx64/72 2MBx64/72 2MBx64/72 2MBx64/72
112MB 8MBx64/72 4MBx64/72 2MBx64/72
112MB 8MBx64/72 4MBx64/72 1MBx64/72 1MBx64/72

T able 3-1: Memory Configurations

22

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Memory Bank 0 Bank 1 Bank 2 Bank 3

128MB 16MBx64/72
128MB 4MBx64/72 4MBx64/72 4MBx64/72 4MBx64/72
128MB 8MBx64/72 4MBx64/72 2MBx64/72 2MBx64/72
128MB 8MBx64/72 4MBx64/72 4MBx64/72
128MB 8MBx64/72 8MBx64/72
160MB 16MBx64/72 2MBx64/72 2MBx64/72
160MB 16MBx64/72 2MBx64/72 1MBx64/72 1MBx64/72
160MB 16MBx64/72 4MBx64/72
160MB 8MBx64/72 4MBx64/72 4MBx64/72 4MBx64/72
160MB 8MBx64/72 8MBx64/72 2MBx64/72 2MBx64/72
160MB 8MBx64/72 8MBx64/72 4MBx64/72
192MB 16MBx64/72 4MBx64/72 2MBx64/72 2MBx64/72
192MB 16MBx64/72 4MBx64/72 4MBx64/72
192MB 16MBx64/72 8MBx64/72
192MB 8MBx64/72 8MBx64/72 4MBx64/72 4MBx64/72
192MB 8MBx64/72 8MBx64/72 8MBx64/72
224MB 16MBx64/72 4MBx64/72 4MBx64/72 4MBx64/72
224MB 16MBx64/72 8MBx64/72 2MBx64/72 2MBx64/72
224MB 16MBx64/72 8MBx64/72 4MBx64/72
224MB 8MBx64/72 8MBx64/72 8MBx64/72 4MBx64/72

T ab le 3-1: Memory Configurations

W6-LI System Board Manual

23

Chapter 3: Installing the W6-LI

Memory Bank 0 Bank 1 Bank 2 Bank 3

256MB 16MBx64/72 16MBx64/72
256MB 16MBx64/72 8MBx64/72 4MBx64/72 4MBx64/72
256MB 16MBx64/72 8MBx64/72 8MBx64/72
256MB 8MBx64/72 8MBx64/72 8MBx64/72 8MBx64/72
288MB 16MBx64/72 16MBx64/72 2MBx64/72 2MBx64/72
288MB 16MBx64/72 16MBx64/72 4MBx64/72
288MB 16MBx64/72 8MBx64/72 8MBx64/72 4MBx64/72
320MB 16MBx64/72 16MBx64/72 4MBx64/72 4MBx64/72
320MB 16MBx64/72 16MBx64/72 8MBx64/72
320MB 16MBx64/72 8MBx64/72 8MBx64/72 8MBx64/72
384MB 16MBx64/72 16MBx64/72 16MBx64/72
384MB 16MBx64/72 16MBx64/72 8MBx64/72 8MBx64/72
448MB 16MBx64/72 16MBx64/72 16MBx64/72 8MBx64/72
512MB 16MBx64/72 16MBx64/72 16MBx64/72 16MBx64/72

T able 3-1: Memory Configurations

24

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Installing the DIMMs

To install the DIMMs, locate the memory banks on the
system board and perform the following steps:

1. Hold the DIMM so that the notched edge is aligned
with the notch on the DIMM socket (Figure 3-1).

2. Insert the DIMM at a 90 degree angle.

3. Gently push the DIMM straight down until it locks
into place (past the release tabs).

Figure 3-1: Installing a 168-Pin DIMM

Removing DIMMs

To remove DIMMs, follow the steps below:

1. With both thumbs (or fingers), press the release tabs
away from the socket.

2. With the DIMM free from the release tabs, lift the
module up and place in an anti-static bag or package.

W6-LI System Board Manual

25

Chapter 3: Installing the W6-LI

Installing a CPU

The W6-LI is designed to support dual Pentium Pro
processors. Follow the steps below to install the main or
second processor:

1. Turn off the computer and remove its cover.

2. Locate the ZIF socket illustrated in Figure 2-1.

3. Lift the lever of the socket.

4. Locate pin 1 on the processor and pin 1 on the socket
(refer to Figure 2-1). Gently place the processor into
the socket, making sure pin 1 on the processor and
pin 1 on the socket are aligned.

5. Push the lever down until it locks into place.

6. Make sure the speed and the voltage selection
jumpers are set correctly (refer to Chapter 2 - Jumper
Settings).

7. If you are installing a second processor, you do not
need to change any jumpers or BIOS settings. The
system will automatically recognize the new proces­sor.

When installing a second processor, a VRM module
must be installed into header J1. In addition, the
second processor must have the same speed rating
and cache amount as the main processor.

WARNING: Pentium Pro processors require a heat-sink
with a cooling fan. Failure to provide adequate cooling of the
processor may seriously affect system performance or cause
permanent damage to the processor.

NOTE: If your operating system supports dual processors,
you may need to reconfigure or reinstall your operating
system. Refer to your software documentation for more
information.

26

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Installing a PCI Peripheral Card

Micronics PCI slots accommodate all PCI peripherals
that meet the PCI 2.1 specifications. Follow the steps
below to install a PCI card:

1. Turn the computer system off and remove its cover.

2. Choose an unused PCI slot and remove the slot
cover.

3. Insert the card with the bottom edge level to the slot.

NOTE: Never insert the card at an angle.

4. Carefully push the card straight down, making sure
the card is fully inserted.

5. Replace the screw which holds the card into place.

6. Replace the computer cover.

7. Refer to the PCI card’s documentation additional
instructions regarding installation and software
drivers.

Figure 3-2: Installing a PCI Card

W6-LI System Board Manual

27

Chapter 3: Installing the W6-LI

Installing an ISA Peripheral Card

Micronics ISA slots accommodate all standard ISA
peripherals. Follow the steps below to install a PCI card:

1. Turn the computer system off and remove its cover.

2. Choose an unused ISA slot and remove the slot
cover.

3. Insert the card with the bottom edge level to the slot.

NOTE: Never insert the card at an angle.

4. Carefully push the card straight down, making sure
the card is inserted fully.

5. Replace the screw that holds the card into place.

6. Replace the computer cover.

7. Refer to the ISA card’s documentation for addi­tional instructions regarding installation and soft­ware drivers.

28

Figure 3-3: Installing an ISA Card

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Installing a CD-ROM Drive

If you are installing a CD-ROM drive, Micronics recom­mends the installation of an IDE CD-ROM drive. The

instructions below will help you with the installation, but also
refer to the documentation that accompanied your CD-ROM
drive.

Before starting the setup and installation, make sure your
computer is off and the power cord is disconnected from
the wall outlet. Your CD-ROM drive kit should contain
the following items for a successful installation:

❏ CD-ROM Drive with installation hardware
❏ Interface Cable
❏ CD Audio Cable

1. Connect the ribbon cable as described in the CD­ROM’s documentation, making sure the red stripe
on the cable is aligned with pin 1 of the connectors.

2. Connect the audio cable to the CD-ROM drive's
audio connector.

3. Connect the other end of the audio cable to the
MPC-2 compatible CD-ROM audio connector on
the W6-LI system board (see Figures 2.1 and 2.2).

4. Connect the power supply cable to the CD-ROM
drive's power connector.

5. Install the CD-ROM device drivers. CD-ROM drives
require device drivers to access the drive and are
generally provided by the manufacturer of the CD­ROM drive. Usually one device driver is added to the
CONFIG.SYS file and one to the AUTOEXEC.BAT
file.

6. If you are using the CD-ROM drive in an MS-DOS
environment, the utility MSCDEX.EXE must also be
added to the AUTOEXEC.BAT file. Consult your
DOS manual for more information.

W6-LI System Board Manual

29

Chapter 3: Installing the W6-LI

The W6-LI Sound Option

You can connect external sound devices to your W6-LI
system board to take advantage of the optional sound
support (refer to Figure 2.2). The sound option includes
16-bit stereo sound, a game and MIDI port and a
telephony header. See Chapter 5 for information on
installing sound device drivers.

Connecting Sound Devices

30

Figure 3-4: Connecting External Sound Devices

W6-LI System Board Manual

Chapter 3: Installing the W6-LI

Game Port

You can use the Game Port connector to connect an IBM
PC compatible joystick or MIDI instrument.

Line Out

The Line Out jack allows you to connect the audio
output of the audio controller to your home stereo, VCR,
or amplified speakers.

Line In

You may connect an external mono or stereo audio
source to the audio controller, such as a tape player or
radio. Use the appropriate converter cable to interface to
your external equipment.

MIC IN

The MIC IN jack will accommodate a 300-600 ohm
microphone.

Connecting the Telephony Option

The W6-LI system board can be upgraded to include a
header for computer telephony (pronounced teh - leh' ­fuh - nee) support. Telephony allows you to increase your
communications productivity. You can integrate fac­simile technology, sound and desktop video conferencing.
The telephony option is enabled by connecting your
modem cable to header J34.

W6-LI System Board Manual

31

Chapter 3: Installing the W6-LI

Connecting the SCSI Option

The W6-LI can be upgraded to include integrated Ultra
Wide SCSI PCI throughput (up to 40MBytes/sec data
rate). Connectors are provided for Normal (Fast) SCSI
(50-pin connector) and Wide (Ultra Wide) SCSI
(68-pin connector). The Wide SCSI configuration al­lows up to 15 SCSI peripherals to be connected. The
W6-LI SCSI interface is Plug and Play compliant and is
fully compatible with the PCI 2.0 specification.

Refer to the "Adaptec AHA-2940Ultra/2940Ultra Wide
User's Guide" for information on installing and connect­ing SCSI devices.

32

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Chapter

4

The BIOS Setup Utility

Configuration

After the W6-LI system board and all hardware is in­stalled, the system is ready for configuration. Before
turning on the computer, make sure all cables are cor­rectly connected and all jumpers are correctly set.

It is recommended you keep the computer cover off the
first time you boot the system. This will make it easier to
correct any difficulties that might arise.

Initial Boot Up

Power up the W6-LI. If the system does not properly
boot, check all your cables and peripherals for bad
connections. You may also get beep codes or error
messages. If this occurs, consult Appendices B and/or C
for a guide to possible solutions.

After the system properly boots, it is ready to be config­ured. The following information explains the proper
procedures for BIOS configuration.

Setup

The Setup program is used to configure the computer’s
BIOS (Basic Input/Output System). The computer’s
BIOS is responsible for configuring the system board and
providing hardware information to the operating system.
In order for the computer to run properly, run the Setup
procedure after first installing the system board and
whenever you make a hardware change to the system.

W6-LI System Board Manual

33

Chapter 4: The BIOS Setup Utility

After the system is turned on and goes through a memory
test, the Power-Up screen (Figure 4-1) will appear on
your monitor:

Figure 4-1: Power-Up Screen

When “Press <F2> to enter SETUP” appears at the
bottom of the screen, press the <F2> key to begin the
Setup procedure. The CMOS Main Screen (Figure 4-2)
should appear and the prompt should be on the time
line. The Setup procedure can only be activated during
the boot sequence.

34

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Running the Setup Procedure

The W6-LI system board has six primary CMOS configura­tion screens: Main Screen, Advanced Screen,
Security Screen, Power Screen, Boot Screen and Exit
Screen. To toggle between the screens, press the right
arrow <→> and the left arrow < ←> keys.

Setting the Main Screen

The CMOS Main screen (Figure 4-2) is used to set the time
and date, to set the floppy drive types, to configure IDE
hard disks and to configure the video. This chapter ex­plains how to configure each of these categories. To move
between the categories, use the up and down arrow <↑/↓>
keys.

Figure 4-2: CMOS Main Screen

W6-LI System Board Manual

35

Chapter 4: The BIOS Setup Utility

System Time and Date

To set the time, use the <-> key to decrease the number
and the <+> key to increase the number. To move the
prompt forward, use the <Tab> key; to move the
prompt backward, use the <Shift-Tab> key. To set the
date, use the up and down arrows<↑/↓> to highlight the
System Date and follow the same procedure used to set
the time.

Diskette A or B

To configure a floppy drive added to or removed from
your computer, use the up and down arrow keys <↑/↓>
to select the desired drive. Use the <+/-> keys to
change the setting until it matches the floppy drive you
installed. The BIOS supports 2.88MB, 1.44MB, 1.2MB,
720KB, and 360KB floppy drives.

Numlock

Setting this to ON activates Numlock upon boot. Setting
this to Auto (default) activates Numlock if the BIOS
detects a numeric keyboard. It may also be set to OFF.

External Cache

This selection allows you to enable the external memory
cache. For optimal performance, select Enabled.

Video BIOS

The Video BIOS category allows you to Shadow or Shadow
& Cache the video BIOS. Choosing Shadowed & Cached
(default) caches the shadowed video BIOS for even higher
performance. Choosing Shadowed copies the video BIOS
into RAM for faster execution. To disable the Video BIOS
category, select Disabled.

36

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

System BIOS

The System BIOS category allows you to Shadow or Shadow
& Cache the system BIOS. Choosing Shadowed & Cached
(default) caches the shadowed system BIOS for even higher
performance. Choosing Shadowed copies the system BIOS
into RAM for faster execution. To disable the System BIOS
category, select Disabled.

System Memory

The System Memory category identifies the size of the base
memory. It cannot be changed.

Extended Memory

The Extended Memory category automatically detects the
amount of memory installed above the amount in the
System Memory category. Because the BIOS automati­cally calculates the amount of memory installed in your
system, you cannot change this category without adding or
removing memory.

W6-LI System Board Manual

37

Chapter 4: The BIOS Setup Utility

Figure 4-3: IDE Device Submenu

Type

This category selects the drive type installed in the system.
The options are Auto (default), 1-39, User and None. If
Autotype Fixed Disk does not find your drive’s param­eters, fill this information in manually under the User
category. This information may be in the manual which
came with your system. If not, contact your dealer or the
hard drive manufacturer to fill in this category. If you are
using a SCSI hard drive, select None and refer to the
documentation which came with the SCSI adapter.

Multiple-Sector Transfers

This category determines the number of sectors per block
for multiple sector transfers. The options are Disabled
(default), 2 Sectors, 4 Sectors, 8 Sectors and 16 Sectors.

38

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

LBA Mode Control

Enabling this selection causes LBA (Logical Block Ad­dressing) to be used in place of Cylinders, Heads and
Sectors. The default setting is Disabled.

32-Bit I/O

This category allows you to enable the 32-bit I/O function
of the PCI IDE controller. Select Disabled if your drive will
not run at this speed. The default setting is Disabled.

Transfer Mode

This category sets the transfer speeds for IDE devices. The
Standard option is the default setting. The Fast PIO 1, Fast
PIO 2, Fast PIO 3 and Fast PIO 4 options are for higher
speed devices.

Smart Monitoring

This feature will monitor your hard drive and report any
problems detected. The default setting cannot be changed.

W6-LI System Board Manual

39

Chapter 4: The BIOS Setup Utility

Setting the Advanced Screen

To move to the Advanced screen, use the left and right
arrow keys <←/→> keys until you see the screen below.

Figure 4-4: Advanced Screen

Serial Port A

Serial Port A may be configured using the following op­tions: Disabled (No configuration), Enabled (User con­figuration), Auto (BIOS configuration) and PnP
O/S (O/S configuration).

Serial Port B

Serial Port B may be configured using the following options:
Disabled (No configuration), Enabled (User configura­tion), Auto (BIOS configuration) and PnP
O/S (O/S configuration).

40

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Parallel Port

The parallel port may be configured using the following
options: Disabled (No configuration), Enabled (User con­figuration), Auto (BIOS configuration) and PnP
O/S (O/S configuration).

Floppy Disk Controller

The selection allows you to enable or disable the floppy disk
controller.

Integrated PCI IDE

Enables or disables the integrated Local Bus IDE adapter.
The IDE controller may be set for Primary, Both (default)
or Disabled.

Integrated SCSI

Enable or disable the integrated PCI SCSI interface. The
default setting is Enabled.

Integrated Sound

Enables or disables the integrated sound interface. The
default setting is Enabled.

Use MP Specification

This selection allows you to select the 1.1 (default) or 1.4
multiprocessor specification.

Plug & Play O/S

This selection, when set to Yes, allows the system to work
with a Plug and Play operating system such as Windows 95.
The default setting is No.

W6-LI System Board Manual

41

Chapter 4: The BIOS Setup Utility

Reset Configuration Data

Select Yes to reset Extended System Configuration Data
(ESCD) when you exit Setup. This selection allows the PnP
BIOS to detect your PCI and ISA PnP devices and reallo­cate resources to them. The default setting is No.

PCI Configuration

Use this selection for additional setup menus to configure
PCI devices.

PS/2 Mouse

When disabled, this selection prevents the PS/2 mouse
from functioning and frees up IRQ12. Selecting Enabled
(default) allows the operating system to determine whether
to enable or disable the mouse.

Secured Setup Configuration

Select Yes if you want the system settings to be secured
from change by a Plug and Play operating system. The
default setting is No.

Large Disk Access Mode

If you are using a DOS operating system (MS-DOS, Novell
DOS or PC-DOS), set to DOS (default). If you are using
anything else, set to OTHER.

DRAM Type

The DRAM type can be set for Non-Parity (default),
Parity or ECC. Selecting ECC will detect the parity error
and allow the system to correct the error.

42

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Security Screen

The Security screen controls access to the computer. The
security screen allows for settings of two passwords. The
Supervisor Password allows access to the system and Setup.
The User Password allows access to the system, but not to
all Setup features.

Figure 4-5: Security Setup Screen

Set Supervisor Password

This selection controls access to the Setup utility. Press the
ENTER key to enter the Supervisor Password submenu.
The screen on the following page appears.

W6-LI System Board Manual

43

Chapter 4: The BIOS Setup Utility

Figure 4-6: Supervisor Password Submenu

Type the password and press the ENTER key. Retype
the password and press the ENTER key again. Write
down the password somewhere safe so it will not be
forgotten. The password may be disabled by setting the
new password to nothing (pressing the ENTER key
without first typing a password).

WARNING: If you forget the Supervisor Password, it can­not be disabled without discharging the CMOS.

Set User Password

This selection controls access to the Setup utility. Fol­low the same procedure used to set the Supervisor
Password.

NOTE: After a password is entered, it is saved immediately.
All other changes may still be discarded (see Exit Screen).

44

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Password on Boot

When enabled, the system requires a password upon
power up. Either the Supervisor or User Password may be
entered.

Fixed Disk Boot Sector

This selection allows the boot sector of the fixed disk to be
write protected. The default setting is Normal. When set
for Write Protected, it serves as a form of virus protection.
If the passwords are enabled, this option may only be
changed by the supervisor.

Diskette Access

This selection allows floppy disk access with an option of
the supervisor or user. Selecting Supervisor (default) gives
floppy disk access to the supervisor only. Selecting User
gives floppy disk access to both the user and the supervisor.
If the passwords are enabled, this option may only be
changed by the supervisor.

W6-LI System Board Manual

45

Chapter 4: The BIOS Setup Utility

Power Screen

The Power Screen controls the power management func­tions of the system. To move to the Power Screen, use the
left and right arrow <←/→> keys until it appears (Figure
4-7). To move between the categories, use the up and
down arrow keys <↑/↓>.

Figure 4-7: P o wer Screen

Power Management

This selection allows you to change the system power
management settings. Maximum Power Savings conserves
the greatest amount of system power. Maximum Perfor­mance conserves power but allows greatest system perfor­mance. To alter these settings, choose Customize. To turn
off power management, choose Disabled (default).

46

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Standby Timeout

The Standby Timeout selection sets the amount of time
that elapses for the system to enter Standby Mode. Standby
Mode turns off various devices in the system, including the
display screen, until you start using the system again. The
options are Off (default), 1 min., 2 min., 4 min., 6 min., 80
min., 12 min. or 16 min.

Auto Suspend Timeout

The Standby Timeout selection sets the amount of time
that elapses for the system to enter Suspend Mode. The
options are Off (default), 5 min., 10 min., 15 min., 20 min.,
30 min., 40 min. or 60 min. Before making changes, "Cus­tomized" must be selected in the Power Management
Mode selection.

W6-LI System Board Manual

47

Chapter 4: The BIOS Setup Utility

Boot Screen

The Boot screen allows you to configure the power up
system configuration settings.

Figure 4-8: Boot Screen

Hard Drive Boot Order

This selection will read the diskette drive (default) and
the hard drive in sequence on boot.

Setup Prompt

If this selection is enabled, the message "Press F2 to enter
Setup" is displayed on boot. The default setting is Enabled.

POST Errors

If this selection is enabled (default) and an error occurs on
boot, the BIOS will display a SETUP entry or resume
prompt. If this selection is disabled, the system will always
attempt to boot.

48

W6-LI System Board Manual

Chapter 4: The BIOS Setup Utility

Floppy Check

This selection checks for the existence of a floppy drive. The
default setting is Enabled.

Exit Screen

After you complete configuring the BIOS, select the Exit
screen.

Figure 4-9: Exit Screen

Choose “Save Changes and Exit” and reboot the computer.
Your computer is ready for use.

W6-LI System Board Manual

49

Chapter 4: The BIOS Setup Utility

50

W6-LI System Board Manual

Chapter 5: Installing Device Drivers

Chapter

5

Installing Device Drivers

This chapter explains how to install the software device
drivers and utilities necessary to utilize the optional
sound and SCSI support. Other drivers and utilities are
available through our online services.

About Device Drivers

Device drivers are necessary for the computer system to
communicate with devices such as CD-ROM drives,
sound controllers, graphics adapters or devices that are
not natively supported by the system BIOS. Once started,
device drivers remain active in the background of the
computer system. Usually a device driver is added to the
CONFIG.SYS file, the AUTOEXEC.BAT file or both.

Installing the Sound Drivers

Once you have connected your external sound devices, you
can install the sound drivers. NOTE: If you are installing a
CD-ROM drive, it is recommended you install it before
setting up the sound devices. See Installing a CD-ROM
Drive in Chapter 3.

1. Follow the instructions in Chapter 3 on connecting ex­ternal sound devices.

2. If you previously installed another sound card, remove
it and all associated files from your AUTOEXEC.BAT
and CONFIG.SYS files. If you are using Windows 3.1x,
you must also remove all associated files from the
WIN.INI and SYSTEM.INI files. (For more infor­mation, please contact the sound driver manufacturer.)

3. Start your computer system.

W6-LI System Board Manual

51

Chapter 5: Installing Device Drivers

4. Insert the sound driver disk into your floppy drive.

5. If you are using Windows 3.1x, go to the Program Man­ager File menu, click on Run and type A:\SETUP.

6. If you are using Windows 95, refer to the Windows 95
user’s manual for instructions on how to install sound
drivers.

7. If you are using OS/2, refer to the README file on
the OS/2 disk for instructions on how to install sound
drivers.

8. Once the software is copied, the install program
automatically updates the system files.

Installing the SCSI Drivers

Refer to the "Adaptec 7800 Family Manager Set User's
Guide" for information on installing and configuring
drivers for your operating system.

52

W6-LI System Board Manual

Appendix A: Technical Information

Appendix

A

Specifications

Part Number: 09-00288

Processor: Dual ZIF socket 8

Intel Pentium
200MHz processors.
One integrated VRM and one
VRM header to supply CPU-specific
voltages.

Chipset: Intel 440FX PCIset with PIIX 3

SMC FDC37C93X Ultra I/O chip

CPU Clock Select: Frequency synthesizer chip

Support for 60 and 66MHz CPU bus

Form Factor: ATX extended footprint

Expansion: Four 32-bit PCI slots

Two 16-bit ISA slots
(One shared PCI/ISA slot)



Pro 150, 166, 180 and

BIOS: Phoenix 4.0X Plug and Play BIOS on

1MB Flash.
Auto-detection of memory size
Auto-detection and display of ECC
and EDO memory.
Auto-configuration of IDE hard disk
types.

RAM Capacity: Maximum memory - 512MB

Four buffered 168-pin DIMM sockets
Supports FPM and EDO DRAM
memory.
ECC supported via chipset when
using parity.

Keyboard/Mouse: PS/2 compatible

W6-LI System Board Manual

53

Appendix A: Technical Information

Onboard Sound: Creative Labs VIBRA 16CL (optional)

Fast SCSI: Adaptec 7880 Fast SCSI Bus Mastering controller
(optional) Resident 50-pin SCSI connector

Resident 68-pin SCSI connector (Ultra Wide
SCSI).

Cache: 16K Level 1 Write Back on CPU chip

256K/512K Level 2 cache in CPU package

I/O Ports: Two high speed serial ports (16550 compatible)

Enhanced Parallel Port with ECP and EPP support
Two USB connectors (optional)

Floppy Port: Auto-detection and support of two floppy drives

(2.88MB, 1.44MB, 1.2MB, 720K, 360K).

PCI IDE Ports: Mode 4 IDE

Two resident 40-pin IDE connector
Multiple sector transfer support
Auto detection of add-in IDE board

Environmental Specifications

The environment in which the W6-LI is located is critical. Micronics
recommends the following environmental specifications:

Temperature Range

Operating: 50 to 104 degrees Fahrenheit (10 to 40 degrees Celsius).
Non -Operating: 50 to 140 degrees Fahrenheit (10 to 60 degrees
Celsius). Shipping: -22 to 140 degrees Fahrenheit (-30 to 60 degrees
Celsius).

Relative Humidity

Operating: 20% to 80%.
Non-Operating: 5% to 90%.

54

W6-LI System Board Manual

Appendix A: Technical Information

Battery Disposal

WARNING:

Please do not open battery, dispose of in fire, recharge, put in backwards
or mix with used or other battery types. The battery may explode or leak
and cause personal injury.

W6-LI System Board Manual

55

Appendix A: Technical Information

Support and Information Services

Micronics offers a variety of support and information services
to help you get the most from your product. The following
services are available:

▲ Technical Support
▲ Electronic Bulletin Board Service (BBS)
▲ Return Materials Authorization (RMA)
▲ Fax-On-Demand
▲ World Wide Web
▲ Customer Service

Refer to Table A-1 for details on these services.

Technical Support

If you need technical assistance, our Technical Support
Engineers will be glad to help you. You can contact us via
telephone, fax or BBS. Before calling Technical Support
please have the following information ready:

❏ The model name and 09 part number of your Micronics

product.

❏ Your computer information such as CPU type, operating

system, amount of installed memory and other peripherals
installed in your computer.

❏ Try to call from the location of your computer.

NOTE: For Return Material Authorization purposes, please
keep a copy of your product receipt.

56

W6-LI System Board Manual

Appendix A: Technical Information

Ser vic e Hours Country Telephone Number

Technical Suppo rt - Live phone help
from Technical Suppo rt Enginee rs

Electronic Bulletin Board Service
(BBS) - Information on software
upgrades, new releases and other
helpful information

RMA (Return Materials Authorization)

- Return products for repair

Fax-On-Demand - Automated system
for product literature, technical
bulletins and other helpf ul in formati on

World Wide Web - Product
information, technical support, press
releases and other helpful information

Customer Service - Order Micronics
and Orchid products

M-F: 7:00am to

5:00pm (PST)

24 hours a day

7 days a week

"

M-F: 8:00am to

4:45pm (PST)

24 hours a day

7 days a week

24 hours a day

7 days a week

"

M-F: 8:00am to

5:00pm (PST)

USA

[phone]
[phone] (Fax)

France

Europe

France

Germany

Taiwan

[phone]
[phone] (Fax)

UK

[phone]
[phone] (Fax)

USAUK(510) 651-6837

14400 baud rate, Parity=N,
Data Bits=8, Stop Bits=1
YMODE M and ZMOD EM
(recommended file transfer
protocols)
[phone]

USA [phone]

[phone] (Fax)

USA [phone]

USA

http://www.micronics.com

http://www.mcrni.com

USA

[phone]
[phone] (Fax)
[phone]
[phone] (Fax)

UK

[phone]
[phone] (Fax)
[phone]
[phone] (Fax)
[phone]
[phone] (Fax)

T ab le A-1: Support and Information Services

W6-LI System Board Manual

57

Appendix A: Technical Information

58

W6-LI System Board Manual

Appendix B: POST Messages

Appendix

B

POST Messages

The following table lists the Power On Self Test (POST)
messages, possible causes and solutions.

Message Possible Cause Solution

DISKETTE DRIVE A
FAILURE

DISKETTE DRIVE B
FAILURE

EXTENDED RAM
FAILED AT
OFFSET: nnnn

FAILING BITS: nnnn

FIXED DISK X
FAILURE (where X
=0 or 1)

FIXED DISK
CONTROLLER
FAILURE

INCORRECT DRIVE
A TYPE

INCORRECT DRIVE
B TYPE

INVAL ID NV R A M
MEDIA TYPE

KEYBOARD
ERRO R, or
KEYBOARD
CONTROLLER
ERROR

KEYBOARD
ERROR nn

KEYBOARD
LOCKED

Drive A failed or is
missing.

Drive B failed or is
missing.

Extend ed m em ory not
working or configured
properly.

Memory fail ur e in
System, Extended, or
Shadow memory.

The hard disk is n ot
confi gured or working
properly.

The controller card has
failed.

Floppy drive A: not set
correctly in Setup.

Floppy drive A: not set
correctly in Setup.

NVRAM chip is bad. Requires repair of system

The keybo ard or
keyboard controller
failed.

A key is jammed or was
held down during boot.

Keyswitch on the f ront of
the case is locked.

Check Setup and cable
connections.

Check Setup and cable
connections.

Replac e defective
memory.

Replac e defective
memory.

Rerun SETUP and check
connections, o r replace
hard disk.

Check configurat ion and
connections, o r replace
contro ller card.

Run Setup.

Run Setup.

board.
Check connections. You

may have to replace the
keyboard or controller.

Make sure the keys are
not jam m e d or di rt y .

Unlock the keyswitch.

W6-LI System Board Manual

59

Appendix B: POST Messages

Message Possible Cause Solution

MONI TOR TYPE
DOES NOT M ATCH
CMOS

OPERATING
SYSTEM NOT
FOUND

Monitor type not
correctly identified in
Setup.

Operating system
cannot be located on
Drive C: or Dri ve A:

Run Setup and enter
correct monitor type.

Check Se tu p to se e if
Drive A: an d C: are
properl y configured, o r
put a boota bl e disk in
Drive A:

PARITY CHECK 1
nnnn

PARITY CHECK 2
nnnn

PREVIOUS BOO T
INCOMP LETE ­DEFAULT
CONFIGURATIO N
USED

REAL TIME CLOCK
ERROR

SHADOW RAM
FAILED AT OFFSET

SYSTEM BATTERY
IS DEAD

SYSTE M CACHE
ERROR - CA CHE
DISABLED

SYSTEM CMOS
CHECKSUM BAD ­RUN SETUP

Parity err or found in the
system bu s.

Parity err or found in the
I/O bus.

Previous POST did not
complete su ccessfully.

Real-time clock failed
BIOS test.

Shadow RAM failed. May require repair of

System battery died. Replac e the system

External (L2) cache
failed BIOS test.

System CMOS has been
corrupt ed or m odified
incorrectly.

Check Setup. Board
repair may be required.

Check Setup. Board
repair may be required.

Run Setup, load default
BIOS settings, make any
necess ary adjustment s,
and save the changes

May require battery
replacem ent or board
repair.

system board.

battery and run Setup to
reconfigure the syste m .

System wi ll st i l l run, but
slower. Replace cache
at co nvenience.

Run Setu p and
reconfigure the syste m .

SYSTEM RAM
FAILED AT
OFFSET: nn nn

SYSTEM TIMER
ERROR

60

System RAM fail ed . Replace defe ctive RAM.

Timer test failed. Requires repair of system

board.

W6-LI System Board Manual

Appendix C: Beep and POST Codes

Appendix

C

Beep and POST Codes

Beep codes are a series of beeps sent through the
speaker which indicate a problem during the Power On
Self Test (POST). If text appears on the video screen,
the W6-LI has completed POST; any other tone from
the speaker indicates something other than a POST
error. These tones are not described in the tables on the
following pages.

The beep error codes are a series of beeps. The duration
of the beep tones are constant, but the length of the
pauses between the beeps varies. For example: a 1-3­3 beep code will sound like one beep, a pause; three
beeps consecutively, another pause and then three
more beeps.

One beep code is often misunderstood. If a video card
is not installed or is failing, the system board will
generate a long-short-long-short beep code. This is
often interpreted as a 1-2-1 beep code. But POST
errors always vary in the length of the pause and not the
duration of the beep tone.

Another way of identifying a POST error is to use a
device called a POST card. This peripheral card is
inserted into one of the ISA slots and has an LED (or
LCD) read out showing the contents of port 80h.

The following tables list all beep codes and POST
routines.

W6-LI System Board Manual

61

Appendix C: Beep and POST Codes

Code Beeps POST Routine Descriptio n

02 Verify Real Mode.
04 Get CPU type.
06 Initialize system hardware.
08 Initialize chipset registers with initial POST values.
09 Get in POST Reg.

0A Initialize CPU registers.

0C Initialize cache initial POST values.
OE Initialize I/O.
OF Initialize the localbus IDE.

10 Initialize Power Management.

11 Load alternate registers with initial POST values.

12 Jump to UserPatch0.

14 Initiali ze keyboa rd c ontrol ler .

16 2-2-3 BIOS ROM checksum.

18 8254 timer initialization.

1A 8237 DMA controller initialization.

1C Reset Programmable Interrupt Controller.

20 3-1-1 Test DRAM refresh.

22 3-1-3 Test 8742 Keyboard Controller.

24 Set ES segment register to 4 GB.

28 Autosize DRAM.

2A Clear 512K base RAM.

2C 3-4-1 Test 512K base address lines.

2E 3-4-3 Test 512K base memory.

32 Test CPU bus-clock frequency.

34 Test CMOS RAM.

35 Initialize alternate chipset registers.

37 Reinitialize the chipset (MB only).

38 Shadow system BIOS ROM.

39 Reini tiali ze the cac he (MB only) .

3A Autosize cache.

3C Configure advanced chipset registers.

3D Load alternate registers with CMOS values.

40 Set initial CPU speed.

42 Initialize interrupt vectors.

44 Initialize BIOS interrupts.

46 2-1-2-3 Check ROM copyright notice.

47 Initial ize man ager f or PCI Option RO Ms.

48 Check video confi gur ation agai nst CMOS .

49 Initial ize PCI bus and devices .

62

W6-LI System Board Manual

Appendix C: Beep and POST Codes

Code Beeps POST Routine Description

4A Initialize all video adapters in system.
4C Shadow video BIOS ROM.
4E Display copyright notice.

50 Display CPU type and speed.
51 Initialize EISA board.
52 Test keyboard.
54 Set key click if enabled.
56 Enable keyboard.

58 2-2-3-1 Test for unexpected interrupt s.
5A Display prompt “Press F2 to enter SETUP”.
5C Test RAM between 512 and 640k.

60 Test extended memory.

62 Test extended memory address lines.

64 Jump to UserPatch1.

66 Configure advanced cache registers.

68 Enable external and CPU caches.
6A Display external cache size.
6C Display shadow message.
6E Display non-disposable segments.

70 Display error messages.

72 Check for configuration errors.

74 Test real-time clock.

76 Check for keyboard errors.
7C Set up hardware interrupt vectors.
7E Test coprocessor if present.

80 Disable onboard I/O ports.

82 Detect and install external RS232 ports.

84 Detect and install external parallel ports.

86 Re-initialize on-board I/O ports.

88 Initialize BIOSData Area.
8A Initialize Extended BIOS Data Area.
8C Initialize floppy controller.

90 Initialize hard-disk controller.

91 Initialize localbu s hard-disk controll er .

92 Jump to UserPatch2.

93 Build MPTABLE for multi-processor boards.

94 Disable A20 address line.

96 Clear huge ES segment register.

98 Search for option ROMs.
9A Shadow option ROMs.

W6-LI System Board Manual

63

Appendix C: Beep and POST Codes

Code Beeps POST Routine Description

9C Set up Power Management.
9E Enable hardware interrupts.
A0 Set time of day.
A2 Check ke y lock.
A4 Initialize typematic rate.
A8 Erase F2 prompt.
AA Scan for F2 keystroke.
AC Enter SETUP.
AE Clear in-POST flag.
B0 Check for errors.
B2 POST done - prepare to boot operating system.
B4 One beep.
B6 Check password (optional).
B8 Clear global descriptor table.
BC Clear parity checkers.
BE Clear scr een (optional) .
BF Check virus and backup reminders.
C0 Try to boot with INT 19.
D0 Interrupt handler error.
D2 Unknown interrupt error.
D4 Pending Interrupt.
D6 Initialize option ROM er ror.
D8 Shutdown error.
DA Ex tended Block Move.

DC Shutdown 10 error.

The following are for boot block in Flash ROM:
E2 Initialize the chipset.
E3 Initialize refresh counter.
E4 Check for Forced Flash.
E5 Check HW status of ROM.
E6 BIOS ROM is OK.
E7 Do a complete RAM test.
E8 Do OEM initialization.
E9 Initialize interrupt controller.

EA Read in the bootstrap code.
EB Initialize all vectors.
EC Boot the Flash program.
ED Initialize the boot device.
EE Boot code was read OK.

64

W6-LI System Board Manual

Appendix D: Hard Disk Drive Types

Appendix

D

Hard Disk Drive Types

The following table lists the IDE hard disk types sup­ported by the W6-LI.

Type C ylinders Heads Write

Precomp

1 306 4 128 17 10
2 615 4 300 17 21
3 615 6 300 17 32
4 940 8 512 17 65
5 940 6 512 17 99
6 615 4 none 17 21
7 462 8 256 17 32
8 733 5 none 17 31

9 900 15 none 17 117
10 820 3 none 17 21
11 855 5 none 17 37
12 855 7 none 17 52
13 306 8 128 17 21
14 733 7 none 17 44
15 N/A N/A N/A N/A N/A
16 612 4 0 17 21
17 977 5 300 17 42
18 977 7 none 17 59
19 1024 7 512 17 62
20 733 5 300 17 31
21 733 7 300 17 94
22 733 5 300 17 31
23 306 4 0 17 10
24 612 4 305 17 21
25 612 2 300 17 10
26 614 4 none 17 21
27 820 6 none 17 42
28 977 5 none 17 42
29 1218 15 none 36 336
30 1224 15 none 17 159

Sectors Size

W6-LI System Board Manual

65

Appendix D: Hard Disk Drive Types

Type C ylinders Heads Write

Precomp

31 823 10 512 17 71
32 809 6 128 17 42
33 830 7 none 17 50
34 830 10 none 17 72
35 1024 5 none 17 44
36 1024 8 none 17 71
37 615 8 128 17 42
38 1024 8 none 26 109
39 925 9 none 17 72

Sectors Size

66

W6-LI System Board Manual

Appendix E: Updating the System BIOS

Appendix

E

If you
encounter
any
problems
during this
process, or
if you have
questions
about the
procedure,
please call
Technical
Support.

Updating the System BIOS

The Micronics system boards are designed so that the
BIOS can be reprogrammed using a BIOS file. You can
easily FLASH a BIOS by following the steps below:

1) After downloading the appropriate BIOS file from our
BBS or Website, extract it to a bootable MS-DOS 6.X
diskette.

2) Reboot your system with the MS-DOS 6.X diskette
in the A: drive. To make sure a clean DOS environ­ment is loaded, press the F5 key while “Starting MS­DOS” is displayed. After the system has rebooted,
the cursor will appear at the A:> prompt.

3) Now you can run the FLASH utility. The filename
should be “PHLASH.EXE.” Type this filename at
the A:> prompt (but don’t include its extension),
followed by a space and the BIOS ROM image’s
filename. This file will be included in the download
and has a file length of about 131K or 262K. For
example, to update the W6-LI to BIOS version 01,
you would type:

PHLASH W6LI_01.ROM [ENTER]

4) After the update process has completed and the
system reboots, verify that the new BIOS version
appears on-screen. If you have problems during this
process, or if you have questions about the proce­dure, please call Technical Support.

NOTE: If the BIOS is somehow erased or does not seem to
accept the upgrade, you can purchase a new BIOS from
MicroNiche Information Systems (800-733-9188). There
is a $30.00 fee plus shipping charges for this service. (Price
and availability subject to change.)

If you prefer to send your system board in for the upgrade,
the RMA department offers this service free of charge if
your system board is under warranty.

W6-LI System Board Manual

67

Appendix E: Updating the System BIOS

68

W6-LI System Board Manual

Appendix F: Warranties and Notices

Appendix

F

Limited Warranty

Except as described below, Micronics warrants the prod­ucts to be free from defects in material and workmanship
in normal use for a period of one (1) year from date of
purchase. Should any product fail to perform according to
this warranty at any time during the warranty period,
except as provided below, Micronics or its authorized
service centers will, at Micronics’ option, repair or re­place the product at no additional charge.

The warranty does not cover loss or damage which occurs
in shipment or which is due to: (1) improper installation
or maintenance, misuse, neglect or any cause other than
ordinary commercial application, including without limi­tation, accidents or acts of God; (2) adjustment, repair,
or modification by other than a Micronics authorized
service center; (3) improper environment, excessive or
inadequate heating or air conditioning, or electrical
power failures, surges or other irregularities; (4) any
statement about the product other than those set forth in
this warranty; or (5) nonconformity to models or samples
shown to the purchaser. Any models or samples were for
the sole purpose of suggesting the character of the
product and are not intended to form the basis of the
bargain.

A receipt or copy of the invoice with the date of purchase
from a Micronics reseller is required before any warranty
service can be rendered. Service can be obtained by
calling Micronics for a Return Merchandise Authoriza­tion (RMA) Number.

The RMA Number should be prominently displayed on
the outside of the shipping carton of the returned prod­uct. Returned product should be shipped prepaid or hand
carried to Micronics. The purchaser assumes risk of loss
or damage in transit, and unless otherwise agreed to in
writing by Micronics, will pay inbound shipping charges.

W6-LI System Board Manual

69

Appendix F: Warranties and Notices

The exclusive remedy of the purchaser under this warranty
above will be repair or replace at Micronics’ option, but if for
any reason that remedy should fail of its essential purpose,
the exclusive remedy of the purchaser shall then be actual
damages up to amounts paid for the defective product by
the purchaser. This limited warranty shall be deemed to
“fail of its essential purpose” if, after repeated efforts,
Micronics is unable to make the product operate as war­ranted. Micronics’ liability for damages to the purchaser for
any cause whatsoever; regardless of the form of action and
whether in contract or in tort, shall be limited to the
purchase price in effect when the cause of action arose for
the product that is the basis of the claim.

Micronics will not be liable for any lost profits or any
indirect, special incidental or consequential damages in
connection with the product, even if Micronics has been
advised of the possibility of such damages.

Micronics makes no warranties or representations as to
performance of products or as to service to distributor or
to any person, except as set forth in Micronics; limited
warranty accompanying delivery of product.

Micronics disclaims all other warranties whether oral,
written, expressed, or implied, including without limita­tion, the warranties of design, merchantability, or fitness
for a particular purpose, if applicable, or arising from a
course of dealing, usage or trade practice.

Non-Warranty Service

After the one year warranty service is no longer in effect,
repair service is still available for Micronics products. For
more information, contact Micronics’ RMA department
at [phone]. The RMA department is open between
8:30 A.M. and 4:45P.M. Pacific Standard Time.

70

W6-LI System Board Manual

Appendix F: Warranties and Notices

FCC Statement

This equipment has been tested and found to comply
within the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful inter­ference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not used in accordance with the instructions, may
cause harmful interference to radio communications.
Interference to radio or television reception can be
determined by turning the equipment off and on. You are
encouraged to try to correct the interference by one or
more of the following measures:

▲ Reorient the receiving antenna.
▲ Increase the separation between the equipment and

the receiver.

▲ Connect the equipment into an outlet on a circuit

different from that to which the receiver is con­nected.

▲ Consult your dealer or an experienced radio/TV

technician for help.

To meet FCC requirements, shielded cables are required.

NOTE: Changes or modifications not expressly approved by
Micronics could void your authority to operate the equipment.

W6-LI System Board Manual

71

Appendix F: Warranties and Notices

Declaration of Conformity

Application of Council Directives 89/336/EEC. Standards to which
the conformity is declared:

EN55022 EN50082-1

Manufacturer's Name: Micronics Computers, Inc.

Manufacturers Address: 221 Warren Avenue

Fremont, California 94539
USA
Telephone: [phone]
Fax: [phone]

Type of Equipment: Dual Pentium Pro Motherboard

(ATX Form Factor)
Full Tower Personal Computer

Model Name: W6-LI

Tested by: Micronics Computers, Inc.

221 Warren Avenue
Fremont, California 94539

Rockford Engineering Services, Inc.
9959 Calaveras Road, P.O. Box 543
Sunol, CA 94586-0543
Telephone: [phone]
Fax: [phone]

Test Engineers Peter Lam/Micronics (EN55022)

Joel Secoquian/RES (EN50082-1)

I, the undersigned, hereby declare that the specified equipment
conforms to the directives and standards listed above.

Thomas Lui
Compliance Engineering Manager
August 15, 1996

72

W6-LI System Board Manual

Glossary

Glossary

16550 UART - A high speed chip for
controlling serial ports. Although un­necessary for a mouse, it is required
for modems that are 14,400 baud or
faster.

ATX - A system board size measuring
approximately 12” x 9.6”.

Asynchronous - Operations that do
not require the clocks of communi­cating devices to be coordinated. See
Synchronous.

Bidirectional Parallel Port - A type of
parallel port that can send and receive
information.

BIOS - An Acronym for Basic Input/
Output System. Configures the sys­tem board and provides hardware in­formation to the operating system.

Bit - A contraction of Binary digit.
The smallest unit of information in a
binary number system. A bit repre­sents a choice between either zero or
one.

Boot - To start up the computer and
load the operating system software.
See cold boot and warm boot.

Byte - A group of adjacent bits treated
as a unit. Eight bits are typically con­sidered one byte. Also called a char­acter.

Cache - A process where information
is copied from the slower memory
(DRAM) to the faster memory
(SRAM). Information that is likely to
be read or edited is stored in the cache
providing significant performance in­creases.

Cache Hit - The percentage of re­quest for data from memory that can
be served from the cache.

Cache Miss - A memory access which
cannot be supplied from cache.

Cold Boot - Starting the computer by
turning on the power or pressing the
RESET button. A cold boot makes the
processor execute all of the diagnos­tics. See boot and warm boot.

CPU - An acronym for Central Pro­cessing Unit. A CPU performs arith­metic calculations, makes logical
decisions, and directs the operation of
the computer in conjunction with the
operating system.

Bus - A group of electronic paths used
to send data between parts of the sys­tem. On a system board, the bus con­nects the peripheral cards with the
microprocessor via the expansion
slots.

Bus Mastering - The ability of a
peripheral card to control the bus
without requiring intervention of the
CPU.

W6-LI System Board Manual

DIMM - An acronym for Dual Inline
Memory Module. A small printed cir­cuit board containing memory chips.

Disk Drive - A hardware device
which provides for the storage of data
on diskettes or hard metal disks that
have a magnetic coating. A disk drive
functions by spinning at high speed
while moving a device called the

73

Glossary

read/write head across the disk’s sur­face in order to read or write data in
magnetic code.

DRAM - An acronym for Dynamic
Random Access Memory. A type of
memory chip that only keeps its
memory if supplied with regular clock
pulses and a chance to regularly re­fresh its data. It is slower and more
cost effective than SRAM. See
SRAM.

ECC - An acronym for Error Check­ing and Correction. ECC enables par­ity checking and can detect and cor­rect memory errors on the system
board.

ECP - An acronym for Expanded
Capabilities Port. A standard set by
Hewlett Packard and Microsoft Cor­poration to expand the capabilities of
the parallel port.

EDO Memory - An acronym for Ex­tended Data Out. A type of DRAM
with built-in cache for enhanced per­formance.

EISA - An acronym for Extended In­dustry Standard Architecture. EISA
is a bus design standard which is fully
backward compatible with the ISA
bus. Although it is a 32-bit bus, it only
runs at 8MHz. See PCI, VESA Local

Bus and ISA.

type of ROM chip that can be pro­grammed with relatively simple tools
that will retain its data until erased. It
can only be erased by exposing the cir­cuitry in the chip to ultraviolet light.
See also Flash ROM.

Fast SCSI - A SCSI data transfer rate
standard that allows a rate of up to
10MBytes/sec on an 8-bit SCSI bus
and up to 20MBytes/sec on a 16-bit
(Wide) SCSI bus.

Flash ROM - A type of ROM chip
that will retain its data until erased. It
can be erased or reprogrammed by
supplying it with +12V of voltage. See
ROM and EPROM.

Gigabyte - A disk storage capacity
measurement. Approximately one
thousand megabytes or 1,073,741,824
bytes.

IDE - An acronym for Integrated
Device Electronics. A standard for
communicating between a hard drive
and a computer.

Internal Cache - Cache which is built
into the CPU. See Cache.

ISA - An acronym for Industry Stan­dard Architecture. A well-established
bus standard that originated with the
IBM AT. See PCI, VESA Local Bus

and EISA.

EPP - An acronym for Enhanced Par­allel Port. A standard which increases
the capabilities of the parallel port.

EPROM - Acronym for Erasable Pro­grammable Read Only Memory. A

74

W6-LI System Board Manual

Parallel - A form of data transmission
in which the data is sent one byte at a
time over several wires that each carry
one byte. In parallel transmission, all

Glossary

the bytes arrive simultaneously, as op­posed to serial transmission in which
bits arrive one by one.

Parallel Port - A connection for a
printer or similar peripheral. Gener­ally, parallel ports are output only. See
Bidirectional Parallel Port and ECP.

PCI - An acronym for Peripheral
Component Interconnect. A high per­formance 32-bit or 64-bit bus devel­oped by Intel Corporation. PCI is
designed to be independent of the
hardware architecture to ensure com­patibility with future computer sys­tems. See EISA, VESA Local Bus and

ISA.

Pentium - A high performance 64-bit
CISC processor designed and manu­factured by Intel Corporation.

Plug and Play - A standard developed
to ensure easy installation of periph­erals. Theoretically, a newly installed
card will automatically configure itself
and work properly without requiring
jumper configuration or device driv­ers.

POST - An acronym for Power On
Self Test. A diagnostic program that
is run whenever the system is cold
booted.

RAM - An acronym for Random
Access Memory. A type of memory
that is used as the “working memory”
of a computer system. See DRAM and
SRAM.

ROM - An acronym for Read Only
Memory. A type of memory that re­tains its data without requiring power.
Once written, it cannot be modified.
See EPROM and Flash ROM.

SCSI - Small computer system inter­face. A bus interface standard that
defines physical and electrical char­acteristics for hardware devices. SCSI
provides a standard interface that en­ables many different kinds of devices,
such as disk drives and CD-ROM
drives to interface with the host com­puter.

Serial - A type of data transmission
in which the data is sent one bit at a
time over a single wire. See Parallel.

Serial Port - A communications port
used to connect peripherals such as
modems and mice.

Setup - A program that allows you to
make changes to the system configu­ration.

Shadow RAM - A technique used to
load a duplicate copy of BIOS from
slower ROM into faster RAM. This
enhances system performance be­cause it provides higher access speed
to the BIOS.

Small Computer System Interface ­See SCSI.

SRAM - An acronym for Static Ran­dom Access Memory. A type of
memory that can retain data without
requiring a regular clock signal.

W6-LI System Board Manual

75

Glossary

Although they are faster than DRAM,
they hold less data and are more ex­pensive.

Synchronous - Protocols that require
the clocks of communicating ma­chines or devices to be coordinated.

Synchronous Cache - A type of cache
that uses a clock signal to latch the
inputs and the data output. This struc­ture spreads the cache access across
two or three cycles while maintaining
a bandwidth of one access per cycle.
Improves performance by 5-10%.

Terabyte ­storage capacity. One Terabyte is equiva­lent one-thousand gigabytes, one-million
megabytes, or 1,099,511,627,766 bytes.

VESA - An acronym for Video Elec­tronics and Standards Association.

VESA Local Bus (VL-Bus) - A high
performance bus designed by VESA.
A 32-bit version of the ISA bus which
operates at the speed of the
computer’s CPU. See PCI, EISA and

ISA.

A measurement for very large

Wide SCSI - A SCSI-2 enhancement
that allows data to be transferred 16
or 32 bits at a time on the SCSI bus
instead of 8 bits at a time.

Write-Back Cache - Upon a cache
hit, the cache is updated and the main
memory is not affected. Upon a cache
miss, only the main memory is up­dated.

Write-Through Cache - Upon a
cache hit, the cache and the main
memory are updated. Upon a cache
miss, only the main memory is up­dated.

VID - Voltage Identification. A hard­ware mechanism used by the CPU to
tell its power regulator what voltage
to set.

VRM - Voltage Regulator Module.
Supplies CPU specific voltages for the
Secondary CPU.

Warm Boot - Restarting the system
by simultaneously pressing the
<Ctrl>, <Alt> and <Delete> keys.

76

W6-LI System Board Manual

Index

A

ATX

Chassis - 18
Form Factor - 5
Power Supply - 18

B

Back Panel Connections - 12
Battery Disposal - 55
Beep and POST Codes - 61
BIOS

Configuration - 33
Setup - 33

Bulletin Board System (BBS) - 55

Index

C

Configuring the W6-LI - 11
Connecting

SCSI Option - 32
Sound Option - 30
Telephony Option - 31

D

Diagram (W6-LI) - 12

E

Extended Data Out (EDO) Memory - 17, 19

W6-LI System Board Manual

77

Index

Environmental Specifications - 54
Error Checking (ECC) - 17

F

Fast Page Mode (FPM) Memory - 17, 19

H

Hard Disk Drive Types - 65
Help

Bulletin Board System (BBS) - 57
Telephone Numbers - 57
Troubleshooting - 61

I

Installation

CD-ROM Drive - 29
CPU - 26
Installing your W6-LI - 17
ISA Peripheral Card - 28
PCI Peripheral Card - 27
Quick Installation - 9
SCSI Drivers - 52
Sound Drivers - 51

J

Jumper Settings - 13

78

W6-LI System Board Manual

M

W6-LI Back Panel Connections - 12
W6-LI System Board Diagram - 12
Memory

Configurations - 21
Adding Memory - 19
Installing - 25
Removing - 25
Supported - 17, 19

O

Online Services - 57

P

POST Messages - 61

Index

S

SCSI Option - 32
Sound Option - 30
Specifications - 53
System BIOS - 67

T

Technical Specifications - 53
Technical Support - 56
Telephony Option - 31
Troubleshooting - 61

W6-LI System Board Manual

79

Index

U

Updating the System BIOS - 67
Utility Programs

Advanced Screen - 40
BIOS Setup - 33
Boot Screen - 48
Exit Screen - 49
IDE Device Submenu - 44
Main Screen - 35
Power Screen - 46
Security Screen - 43

W

World Wide Web - 55

80

W6-LI System Board Manual
