Issue 1.5 Feb 17 Page 1
U1000-U
Ultrasonic Flowmeter
(Universal)
User Manual
Micronics Ltd, Knaves Beech Business Centre, Davies Way, Loudwater,
High Wycombe, Bucks HP10 9QR
Telephone: +44(0)1628 810456 Facsimile: +44(0)1628 531540 E-mail: sales@micronicsltd.co.uk
www.micronicsflowmeters.com
Issue 1.5 Feb 17 Page 2
Table of Contents
1 General Description ..................................................................................................................................................... 3
2 Quick start procedure .................................................................................................................................................. 4
3 How does it work? ....................................................................................................................................................... 5
4 User interface ............................................................................................................................................................... 6
4.1 Key switches ........................................................................................................................................................ 6
5 Installing the U1000-U ................................................................................................................................................. 7
5.1 Preparation.......................................................................................................................................................... 8
5.2 Sensor separation ................................................................................................................................................ 8
5.3 Adaptors for small pipes ................................................................................................................................... 10
5.4 Attaching the U1000 to the pipe ....................................................................................................................... 11
5.5 U1000-U interface cable ................................................................................................................................... 12
5.6 Connecting the U1000-U to the Supply ............................................................................................................. 12
5.7 Pulse Output connection ................................................................................................................................... 13
5.8 Current Output (If fitted) .................................................................................................................................. 13
5.9 Cable Screen ...................................................................................................................................................... 13
6 Powering up for the first time .................................................................................................................................... 14
6.1 How to enter the Pipe ID ................................................................................................................................... 15
6.2 Pulse output ...................................................................................................................................................... 16
6.2.1 Volumetric mode ...................................................................................................................................... 16
6.2.2 Frequency mode ....................................................................................................................................... 16
6.2.3 Low Flow Alarm ........................................................................................................................................ 16
6.2.4 Loss of Flow Reading Alarm ...................................................................................................................... 16
6.3 4-20mA Current output (If fitted) ..................................................................................................................... 17
7 Subsequent Power-ON Sequence .............................................................................................................................. 17
8 Password Controlled Menus ...................................................................................................................................... 17
8.1 General procedure for changing menu settings ................................................................................................ 18
8.1.1 Selection menus ....................................................................................................................................... 18
8.1.2 Data entry menus ..................................................................................................................................... 18
8.2 User Password controlled menu structure ....................................................................................................... 19
9 Diagnostics Menu ....................................................................................................................................................... 24
10 Relocation of guide rail .......................................................................................................................................... 25
11 Appendix I – U1000-U Specification ...................................................................................................................... 26
12 Appendix II – Default values .................................................................................................................................. 27
13 Appendix III – Error and Warning Messages .......................................................................................................... 28
13 Declaration of Conformity ………………………………………………………………………………………………………………..………………….29
Issue 1.5 Feb 17 Page 3
1 General Description
Fixed installation, clamp-on flowmeter
Easy to install
Requires the minimum of information to be entered by the user
Both the electronics and guide rail housings form an integral unit
Simple attachment to the pipe using the supplied jubilee clips.
Power to the unit is provided by an external 12 - 24V ac/dc power supply (7VA minimum).
Operates on steel, copper and plastic pipes with ID’s in the range 20mm (0.8”) to 110mm
(4.3”) and a maximum wall thickness of 9mm for metal pipes and 10.5mm for plastic.
Compact, rugged and reliable, the U1000-U has been designed to provide sustained
performance in industrial environments.
U1000-U standard features include:
2 line x 16 character LCD with backlight
4-key keypad
Isolated pulse output
Simplified guide rail and transducer assembly
Two sets of self- adhesive Gel pad acoustic couplant
Continuous signal monitoring
Password protected menu operation for secure use
Operates from external 12 to 24Vac or dc power supplies
Small pipe adaptors
Optional features
4-20mA current output
Typical applications
Hot water metering and flow measurement
Flow measurement for Heat Metering
Chilled water metering and flow measurement
Potable water metering and flow measurement
Process water metering and flow measurement
Ultra-pure water metering and flow measurement.
Issue 1.5 Feb 17 Page 4

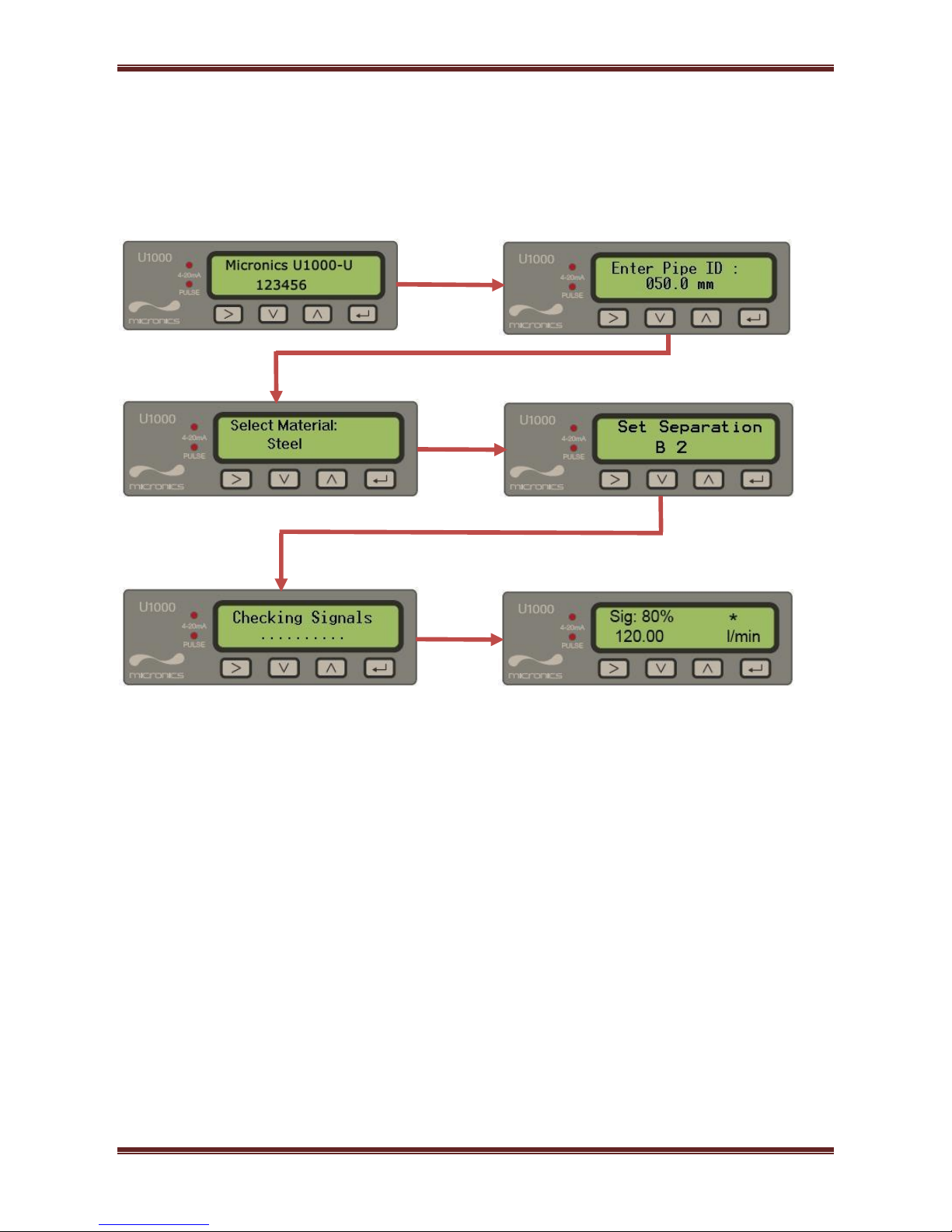

2 Quick start procedure
The following procedure details the steps required to set up the heat meter. See the sections referred to
if you are unsure about how to install the instrument.
1. Establish a suitable location for the flow meter on a straight length of pipe clear of bends and valves
or similar obstructions.(See Sections 5 and 5.1)
2. Determine the pipe internal diameter and material.
3. Either use the table in the manual, or power up the instrument to determine the correct separation
code. (See Sections 5.2 or 6)
4. Set the sensors to the correct separation by adjusting the sensor holding screws so the sensor can
slide in the slot. (See Section 5.2)
5. Select any adaptors needed for pipes with an outside diameter of less than 60mm, inside diameter
will typically be less than 50mm. (See Section 5.3)
6. Apply the Gel pads or couplant to the sensors and mount the guide rail on the pipe using the banding
provided, then remove the sensor holding screws. (See Section 5.4)
7. Wire the electronics up to a 12 to 24V ac or dc power supply (7VA minimum per instrument) via the
Blue and Brown wires. (See Section 5.6)
8. Plug in the flow sensors and DO NOT clip the electronics assembly on to the guide rail at this stage.
9. Power up the instrument and check that flow readings can be obtained(See Sections 6 and 7)
10. Once good readings have been obtained any further changes, such as selecting different units, can be
made via the User Menu. (See Section 8)
11. When happy with set up and readings, clip the electronic assembly to the guide rail.
Issue 1.5 Feb 17 Page 5
3 How does it work?
The U1000-U is a clamp-on, ultrasonic flowmeter that uses a multiple slope transit time algorithm to
provide accurate flow measurements.
An ultrasonic beam of a given frequency is generated by applying a repetitive voltage pulse to the
transducer crystals. This transmission goes first from the Downstream (blue) transducer to the
Upstream transducer (red) as shown in the upper half of Figure 1. The transmission is then made in
the reverse direction, being sent from the Upstream transducer (red) to the Downstream transducer
(blue) as shown in the lower half of Figure 1. The speed at which the ultrasound is transmitted through
the liquid is accelerated slightly by the velocity of the liquid through the pipe. The subsequent time
difference T1 – T2 is directly proportional to the liquid flow velocity.
Figure 1 Principle of Transit-Time operation
Issue 1.5 Feb 17 Page 6
4 User interface
Figure 2 illustrates the U1000-U user interface comprising:-
One 2 line x 16 character LCD with backlight
Four tactile key switches
Two LED’s
4.1 Key switches
4-20mA LED is illuminated when the 4-20mA output is ON
Pulse LED is illuminated when the Pulse output or Frequency output are enabled, and
then flashes to indicated active pulse activity. It is also illuminated if an alarm is enabled
and active.
Figure 2 U1000-U User Interface
Selection key. Allows the user to select between options on the
display.
Used to increment the value of each digit in numeric entry fields.
Used to decrement the value of each digit in numeric entry fields.
Used to enter the selection displayed or terminate the data entry.
Pressing this key will take the user to another menu or to the Flow
Reading screen.
V
Λ
Issue 1.5 Feb 17 Page 7
5 Installing the U1000-U
Figure 3 Location of Transducers
In many applications an even flow velocity profile over a full 360° is unattainable due, for example, to
the presence of air turbulence at the top of the flow and also possibly sludge at the bottom of the pipe.
Experience has shown that the most consistently accurate results are achieved when the transducer
guide rails are mounted at 45°with respect to the top of the pipe.
The U1000-U equipment expects a uniform flow profile as a distorted flow will produce unpredictable
measurement errors. Flow profile distortions can result from upstream disturbance such as bends,
tees, valves, pumps and other similar obstructions. To ensure a uniform profile the transducers must
be mounted far enough away from any cause of distortion such that it no longer has an effect.
To obtain the most accurate results the condition of both the liquid and the pipe must be suitable to
allow ultrasound transmission along the predetermined path. It is important that liquid flows uniformly
within the length of pipe being monitored, and that the flow profile is not distorted by any upstream or
downstream obstructions. This is best achieved by ensuring there is a straight length of pipe upstream
of the transducers of at least 20 times the pipe diameter, and 10 times the pipe diameter on the
downstream side, as shown in Figure 3. Flow Measurements can be made on shorter lengths of
straight pipe, down to 10 diameters upstream and 5 diameters downstream, but when the transducers
are mounted this close to any obstruction the resulting errors can be unpredictable.
Key Point: Do not expect to obtain accurate results if the transducers are positioned close to any
obstruction that distorts the uniformity of the flow profile.
Micronics Ltd accepts no responsibility or liability if product has not been installed in accordance with
the installation instructions applicable to the product.
Possible Air
Possible
sludge
Guide
rail
Uniform Flow Profile
Distorted Flow Profile
Flow
Flow
Valid transducer location
20 x Diameter
10 x Diameter
45°
Issue 1.5 Feb 17 Page 8
5.1 Preparation
1. Before attaching the transducers first ensure that the proposed location satisfies the distance
requirements shown in Figure 3 otherwise the resulting accuracy of the flow readings may be affected.
2. Prepare the pipe by degreasing it and removing any loose material or flaking paint in order to obtain
the best possible surface. A smooth contact between pipe surface and the face of the transducers is
an important factor in achieving a good ultrasound signal strength and therefore maximum accuracy.
5.2 Sensor separation
The sensor must be positioned at the correct distance for the pipe size and type they will be used on.
The table below gives the typical separation code for a given pipe material and inside diameter, based
on a 4mm wall thickness. If the wall thickness is significantly different from this value then the
separation may need to be one code higher or lower. The instrument displays the required separation
after the pipe internal diameter and material are entered.
Pipe ID range
Pipe material
Separation
Plastic and
Copper
Steel
B1
20-24
---
A2
25-30
20-22
C1
31-36
23-28
B2
37-42
29-34
A3
43-48
35-40
C2
49-54
41-46
B3
55-60
47-52
D2
61-65
53-58
C3
66-71
59-64
B4
72-77
65-70
D3
78-83
71-76
C4
84-89
77-82
E3
90-95
83-88
D4
96-101
89-94
F3
102-107
95-100
E4
108-110
101-106
D5
---
107-110
Figure 4 Separation Table
Issue 1.5 Feb 17 Page 9
The diagram below shows how to adjust the separation of the sensors
Figure 5 Separation Setting
NOTE. When the sensors have been moved to the correct setting and the guide rail is attached to
the pipe REMOVE the sensor holding screws, which will allow the spring loaded transducers to
make contact with the pipe.
Issue 1.5 Feb 17 Page 10
5.3 Adaptors for small pipes

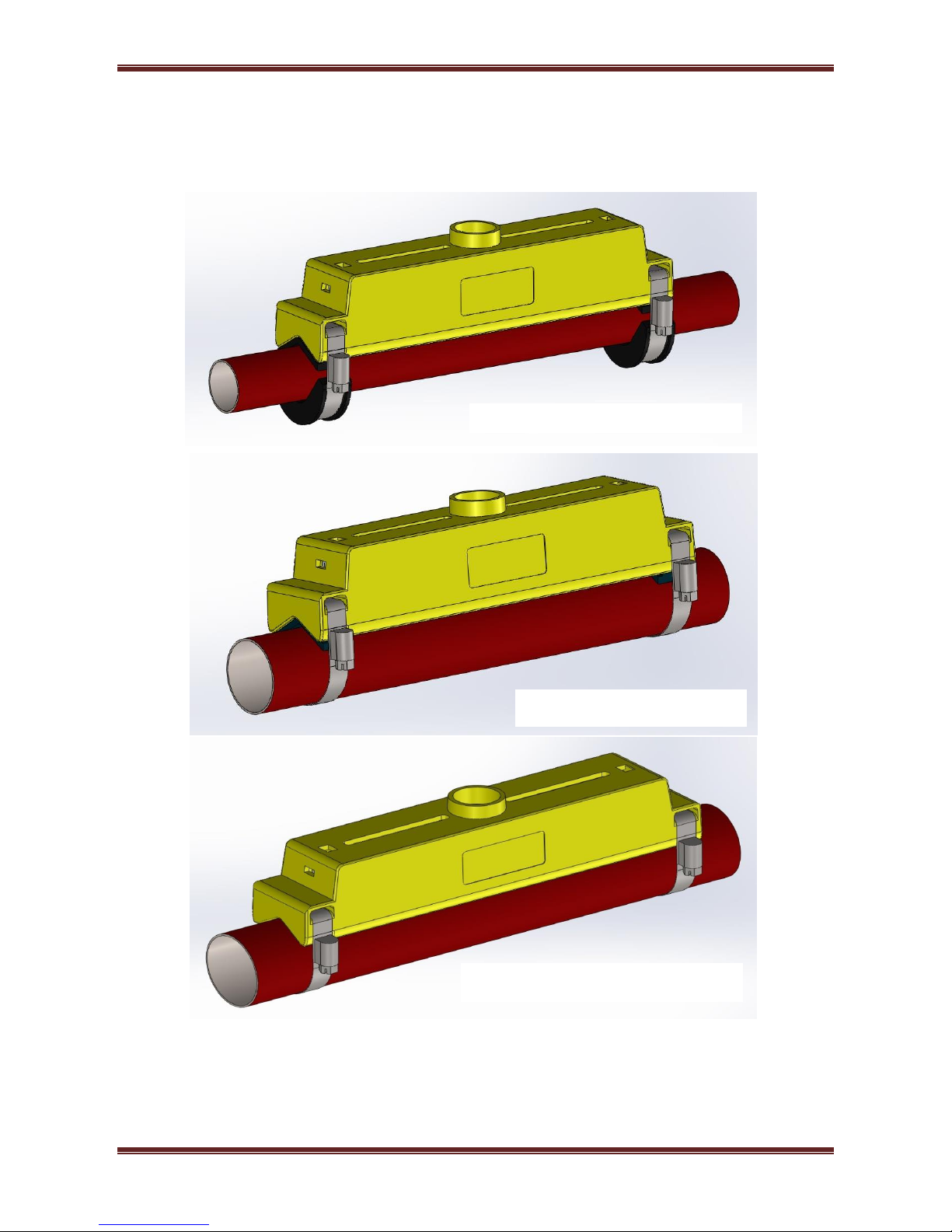

Figure 6 Pipe Adaptors
Adaptors are supplied for use on small pipes. The diagrams above show how these are fitted around the pipe.
The top pipe adaptor clips into the ends of the guide rail.
Less than 40mm outside diameter
40 to 60mm outside diameter
Greater than 60mm outside diameter
Issue 1.5 Feb 17 Page 11
5.4 Attaching the U1000 to the pipe
After applying the Gel pads centrally on the sensors, then follow the four steps shown in Figure 7 below to
attach the U1000-U to the pipe

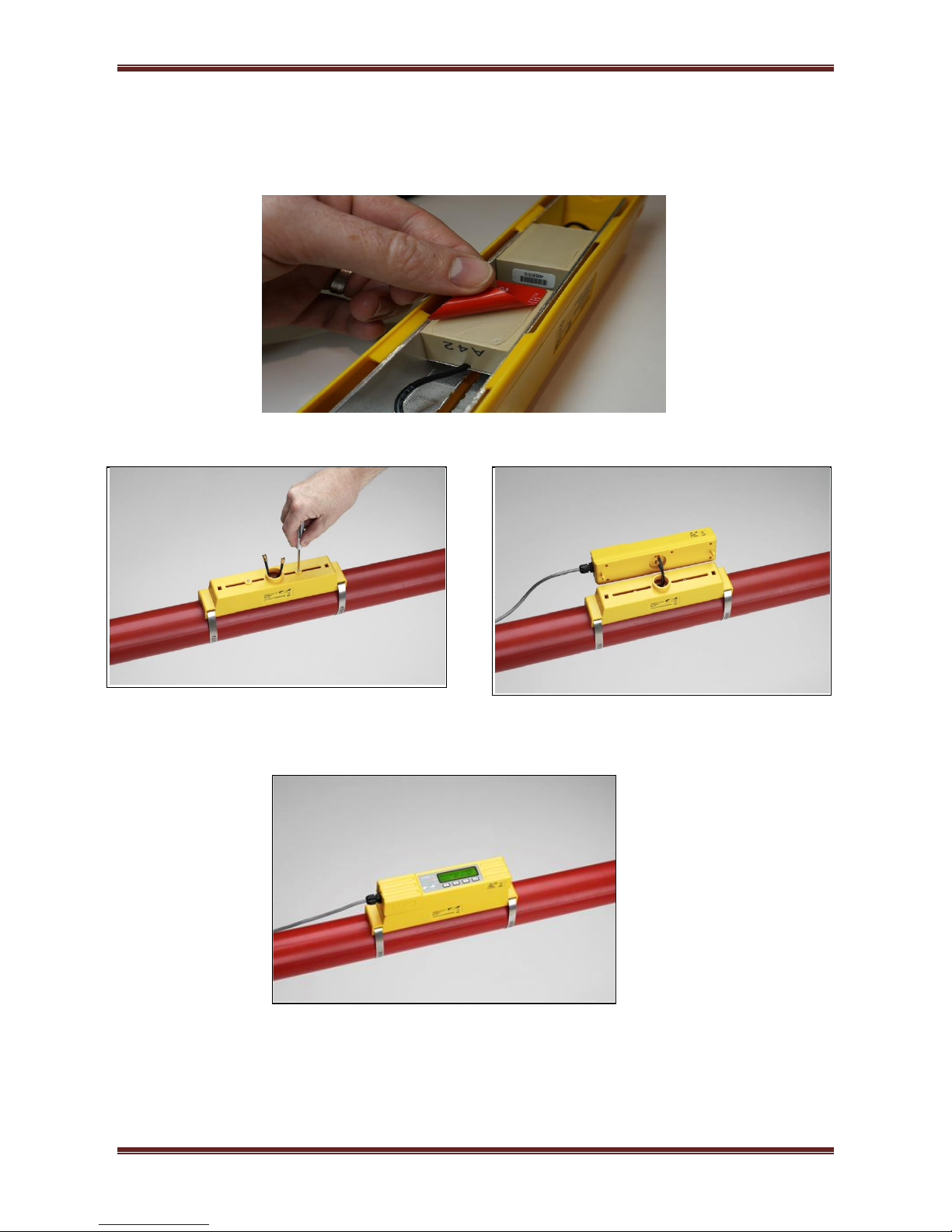

Figure 7 simple steps to attaching the U1000 on the pipe
Remove the RED protective overlay from the Gel pads.
Ensure there are no air bubbles between pad and sensor.
Clamp guide rail and sensor assembly to pipe,
using the supplied banding, release and remove
sensor locking screws.
Connect power and sensors to the electronics
assembly. Sensor leads can be connected either
way round.
Confirm the unit is working correctly before attaching
the electronic assembly onto guide rail assembly
Issue 1.5 Feb 17 Page 12
The locking screws and washers should be kept in case it is necessary to change the location of the guide rail
and sensors. See the relocation section for the procedure to do this.

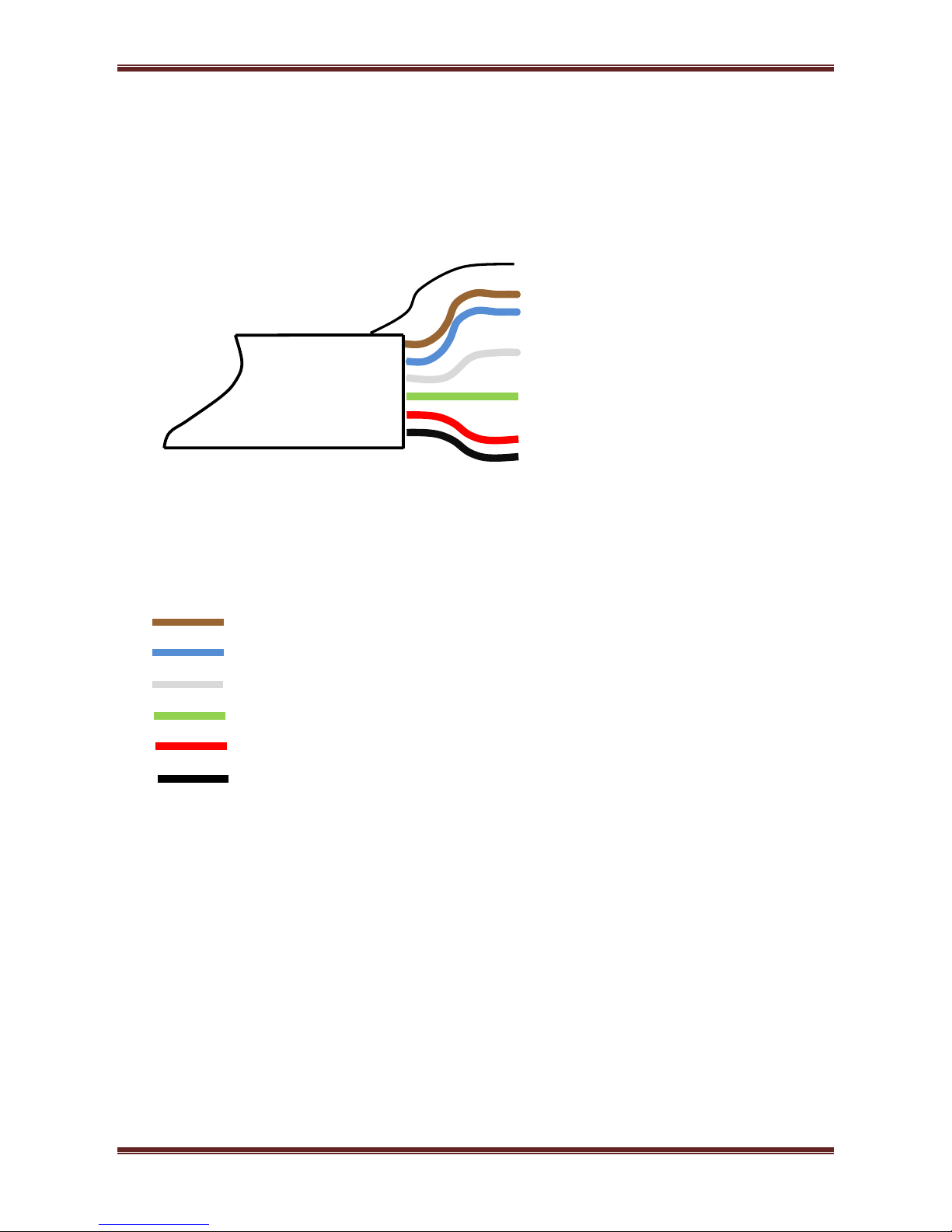

5.5 U1000-U interface cable
The U1000-U interface cable supplied is a 6-core cable and is shown in Figure 8.
The polarity of the wires is as follows:
The un-insulated wire is the connection to the screen of the cable and should be earthed for full immunity to
electrical noise.
5.6 Connecting the U1000-U to the Supply
The U1000-U will operate within the voltage range 12 - 24V ac/dc. Supply to have a minimum rating
of 7VA. Connect the external power supply to the Brown and Blue wires of the six core cable. For full
compliance with EMC regulation a 12V supply is recommended for domestic and light industrial
applications.
Power
Pulse
4-20mA (If fitted)
Figure 8. U1000-U Interface Cable
12/24V Input
12/24V Return
Pulse Output
Pulse Return
4-20mA Output (+)
4-20mA Return (-)
Un-insulated screen
(If fitted)
(If fitted)
Issue 1.5 Feb 17 Page 13
5.7 Pulse Output connection
The isolated pulse output is provided by a SPNO MOSFET Relay which has a maximum load current
of 500mA and maximum load voltage of 48V AC. The relay also provides 2500V isolation.
The pulse output is available at the White and Green wires. Electrically this is a volt free contact
closure.
5.8 Current Output (If fitted)
The isolated 4-20mA is a current source and can drive into a maximum load of 620Ω.
The 4-20mA current output is available at the Red and Black wires. The polarities are shown in Figure
8.
The alarm current due to a flow outside the range specified or due to a loss of signal is set at 3.5mA.
5.9 Cable Screen
For full immunity to electrical interference the screen of the cable should be connected to Earth.
Issue 1.5 Feb 17 Page 14
6 Powering up for the first time

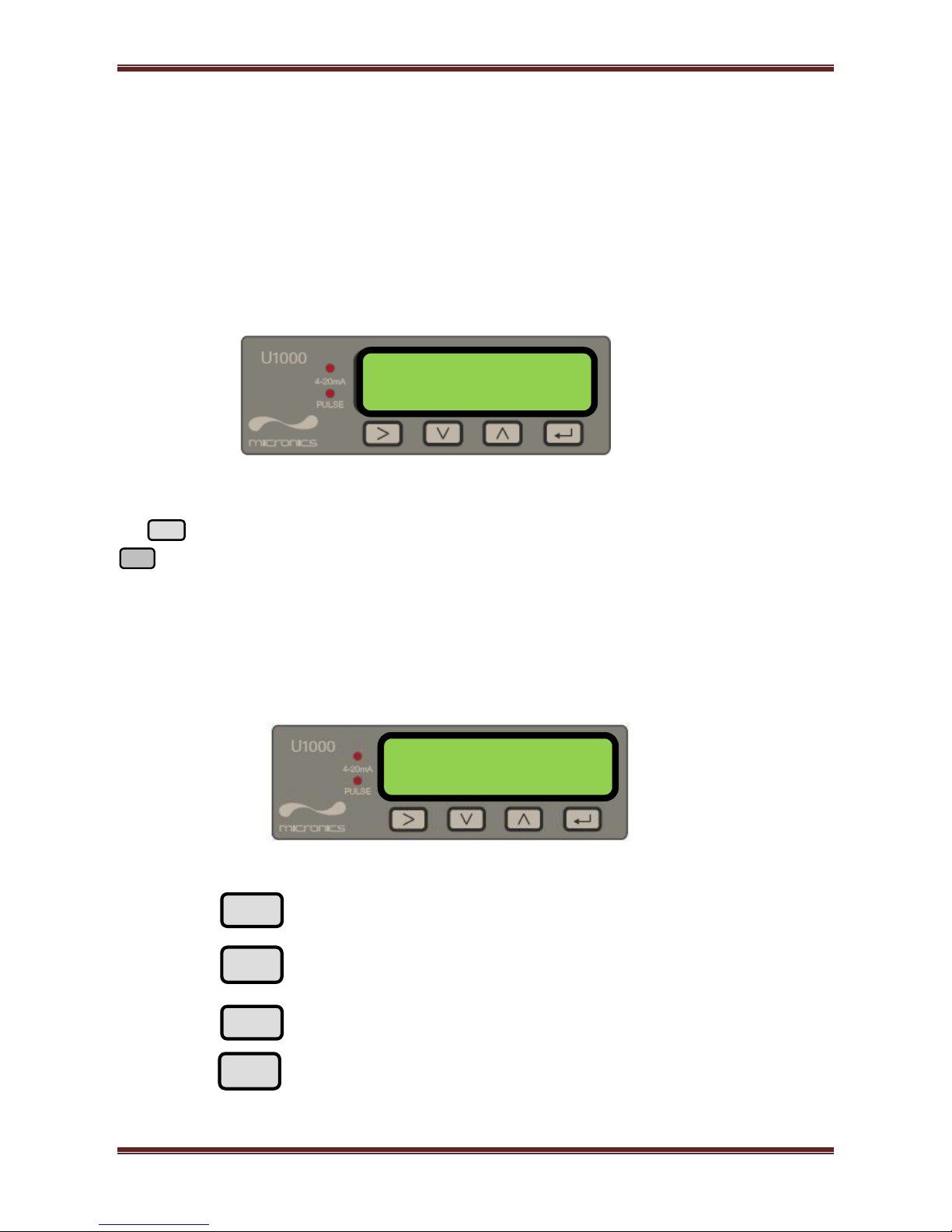

Powering up for the first time will initiate the sequence shown in Figure 9:
Figure 9 Initial power up screens
1. The start-up screen is displayed for 5 seconds
2. The user enters the pipe ID and then the material by scrolling through the available list. (Refer to
section 5.2)
3. The U1000-U checks for a valid signal
4. If a valid signal is found, signal strength and flow magnitude are displayed. The signal strength
should be at least 40% for reliable operation. The direction of flow when powered up will be set as
that for positive flow. The current output and pulse output will relate to the flow in this direction. If the
flow is reversed then the flow rate will still be displayed but the activity indication will change from an
asterisk to an exclamation mark. No pulses will be generated, and the current will go to the 3.5mA
alarm state if the flow is reversed.
If the flow value is displayed as “-----“ this indicates that there is no usable signal from the sensors.
The cause of this could be incorrect pipe data, no Gel pad on the sensors, sensor not in contact with
the pipe or very poor surface conditions on the inside of the pipe.
Issue 1.5 Feb 17 Page 15
6.1 How to enter the Pipe ID

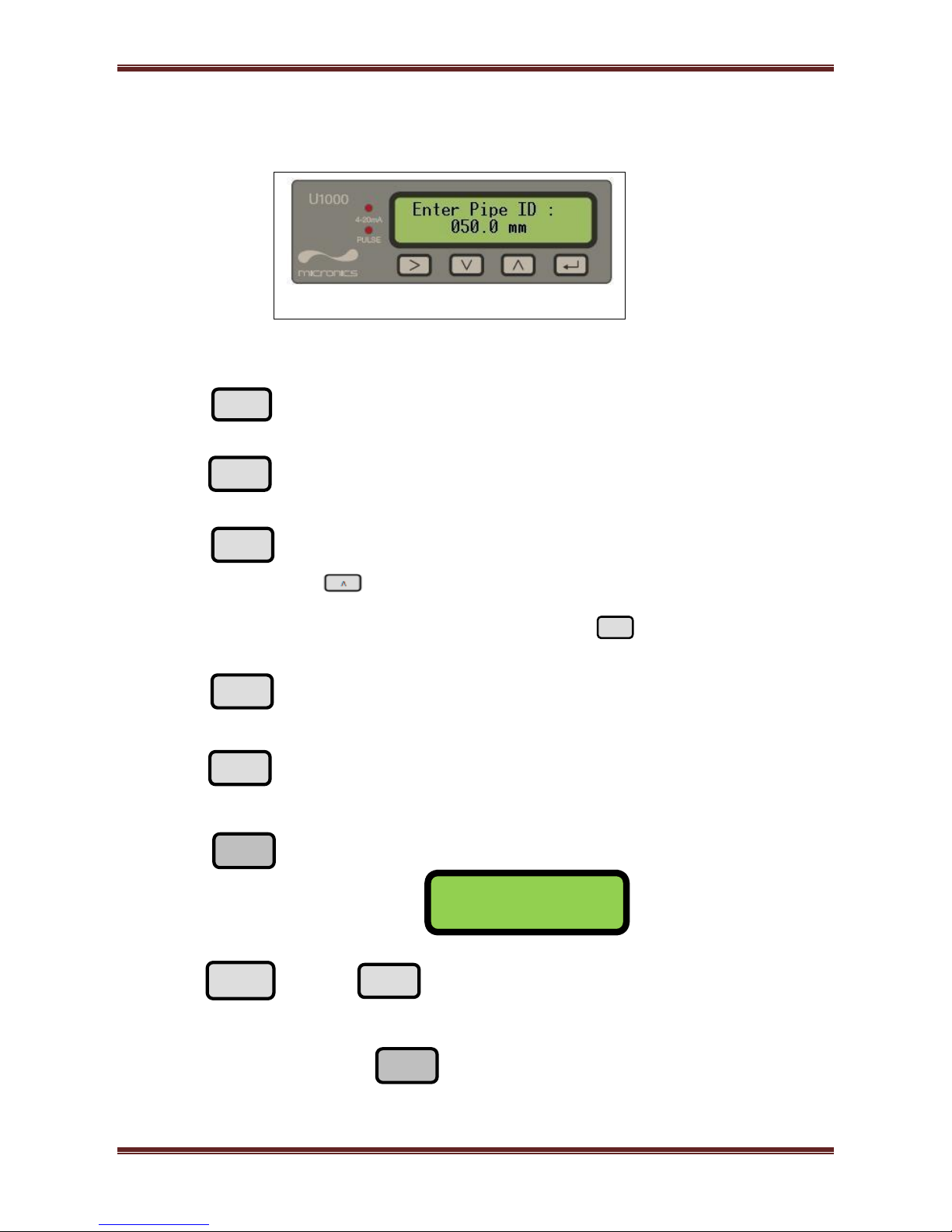

Figure 10 shows the Enter Pipe ID screen after an initial power up.
Initially, the hundreds unit (050.0) will blink.
Press the
key to increment the hundreds digit (050.0) in the sequence 0, 1. Press
once to increment digit, or hold key down to automatically toggle
between 0 and 1.
Press the
key to decrement the hundreds digit in the sequence 1, 0. Press once
to decrement digit, or hold key down to automatically toggle between
1 and 0.
Press the
key to move to the tens digit (050.0). The tens digit should now blink.
Increment the tens digit in the sequence 0,1,2,3,4,5,6,7,8,9,0 using
the key. Press once to increment digit or hold down to scroll
through the numeric sequence. Decrement the tens digit in the
sequence 9,8,7,6,5,4,3,2,1,0,9 using the key. Press once to
increment digit or hold down to scroll through the numeric sequence.
Press the
key to move to the units digit (050.0). The units digit should now blink.
Increment or decrement the units digit in an identical manner to the
tens digit described above.
Press the
key to move to the decimal digit (050.0). The decimal digit should now
blink. Increment or decrement the decimal digit in an identical manner
to the tens digit described above.
Press the
Use
key to enter the Pipe ID numerical value, and move to the next screen
and
keys to scroll through the pipe materials and
then press
To select the material and complete the setup
procedure.
V
Figure 10 Enter Pipe ID Screen (Metric)
V
Pipe material
Steel
V
Issue 1.5 Feb 17 Page 16
If any of the parameters need to be changed from the default values, for example different units are
required, and then the menu system must be activated via the password (see section 8).
6.2 Pulse output
Pulse output can be set up to operate one of four modes, namely volumetric, frequency, Low Flow
Alarm and Loss of Flow (Signal) Alarm. The Alarm function allows the user to set the alarm to Normally
Open or Normally Closed.
6.2.1 Volumetric mode
In Volumetric mode, each pulse output represents a measured volume of 10 litres (default value). In
Volumetric mode, with the Vol per Pulse set to 1 and the pulse width set to 25ms, the maximum
number of pulses that can be output (without storage) is 1/(0.025*2) = 20 pulses per second. If the
flow rate in the pipe is such that more than 20 pulses per second are generated, a Pulse Overflow
error may eventually occur if the stored number of pulses exceeds 1000. To avoid this, set the Vol
per Pulse to 10 litres.
6.2.2 Frequency mode
In Frequency mode, the pulse output frequency is proportional to the flow rate within a specified
frequency range of 0 – 200Hz. The units of the flow rate are fixed as litres per second.
6.2.3 Low Flow Alarm
It is possible to use the pulse output as an alarm. The user can set a range between 0 and 9999 (no
decimal places), in the same units being used to measure flow. The Pulse LED will indicate the state
of the alarm. The default setting is normally open, but the user can select between N/O and N/C.
There is a 10% hysteresis on the switching of the output. Once turned on the flow rate must rise by
10% more than the set value to turn it on/off again.
If N/O and alarm not triggered -> Keypad LED off and contact open
If N/O and alarm triggered -> Keypad LED on and contact closed
If N/C and alarm not triggered -> Keypad LED on and contact closed
If N/C and alarm triggered -> Keypad LED off and contact open
6.2.4 Loss of Flow (Signal) Reading Alarm
If the flow reading (Signal) is lost, as indicated by the flow rate being displayed as “-----“, the alarm
will be triggered. The Pulse LED will indicate the state of the alarm. The default setting is normally
open, but the user can select between N/O and N/C.
If N/O and alarm not triggered -> Keypad LED off and contact open
If N/O and alarm triggered -> Keypad LED on and contact closed
Issue 1.5 Feb 17 Page 17
If N/C and alarm not triggered -> Keypad LED on and contact closed
If N/C and alarm triggered -> Keypad LED off and contact open
6.3 4-20mA Current output (If fitted)
The default 4-20mA output setting is ON, and the 4-20mA LED on the keypad will be illuminated. The
default flow for 20mA output will be automatically set depending on the pipe size. The default flow for
4mA is 0. This can be changed, see section 8.
If the flow reading is greater than that set as the 20mA value, or there is negative flow, or no flow
signal can be detected, then an alarm current of 3.5mA will generated.
Note: The 4-20mA current output is factory calibrated.
7 Subsequent Power-ON Sequence
If the power supply is cycled OFF/ON after the unit is in the flow reading screen all subsequent startups will use the same configuration as was previously entered. If the configuration needs to be
changed for any reason, the user can make use of the password-controlled menu as described in
section 8.
8 Password Controlled Menus
The password controlled menu allows the user some flexibility to change the default settings:
User Password (71360):
Change the dimensions from mm to inches or vice-versa.
Change from Flow to Velocity Measurement
Change the system units litres/m3 or Impgal/USgal
Change the flow units l/s, l/min or gal/s, gal/min or USgals/s, USgals/min
Change the default value for Flow at Maximum Current
Change the default setting for Flow at Minimum Current
Change the Pulse Output type
Change the Pulse output parameters
Press the key to get to the screen prompting for the password, which is entered using the method
shown in 8.1.2. To exit the password controlled menu navigate to the Exit screen and press the
key. If you wish to abandon entering the password then wait until the display returns to the flow reading
screen.
Issue 1.5 Feb 17 Page 18
8.1 General procedure for changing menu settings
8.1.1 Selection menus
When a password controlled menu is selected the procedure for changing the default setting is the
same for all menus. For example, consider the Flow Units menu shown in Figure 11.
The default value ‘l/min’ will blink to indicate that this is the current setting. To change to ‘l/s’, press
the key. Now the ‘l/s’ units will blink to indicate that this is now the selected units. Press the
key to confirm the change.
8.1.2 Data entry menus
Menus containing a numeric value can be altered using the following procedure. For example,
consider changing the Flow at maximum current from the default setting 1000 litres as indicated in
Figure 12 to 1258 litres.
Press the
key twice to select the hundreds unit (1000.0) which will now blink
Press the
Press the key twice to increment the hundreds unit from 0 to 2
(1200.0)
Press the
key once to select the tens unit (1200.0) which will now blink
Press the
key five times to increment the hundreds unit from 0 to 5 (1250.0)
Figure 11 Flow Units menu
Flow Units:
l/min | l/s
Figure 12 Example of a Data entry screen
Flow @ 20mA:
1000.0
Issue 1.5 Feb 17 Page 19
Press the
key once to select units (1250.0) which will now blink
Press the
key twice to decrement the units from 0 to 8 (1258.0)
Press the
key to confirm the change
All numeric data menus can be changed in this way.
8.2 User Password controlled menu structure
Ensure that the instrument is in Flow Reading mode then press the key to go to the user
password menu. Enter 71360 using the procedure explained in section 8.1.2 to enter the password.
The flow chart shown in Figure 13 shows the user password menu structure. To skip over any menu
item that should remain unchanged, simply press the key.
V
Issue 1.5 Feb 17 Page 20

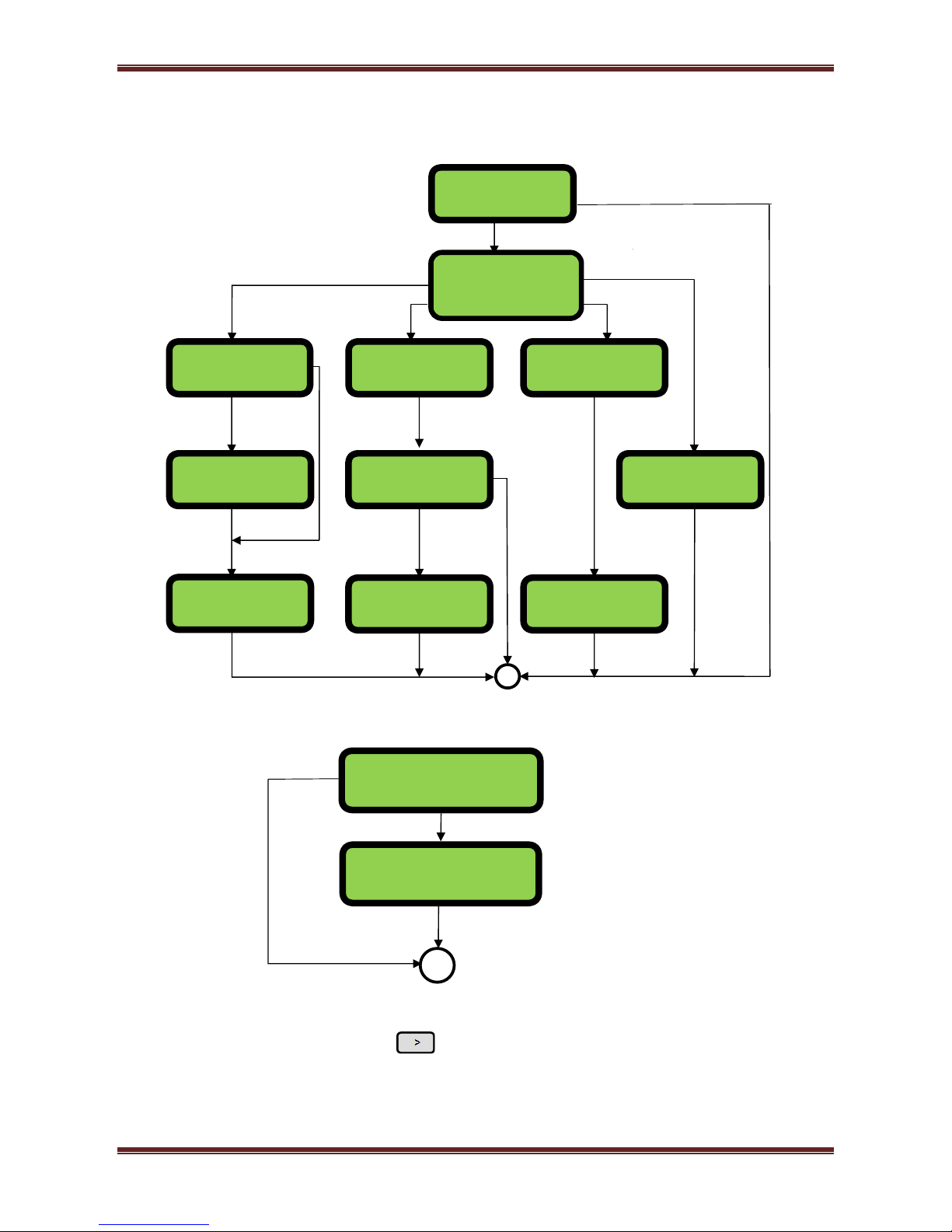

Figure 13 Main Menu
Enter Password:
*****
71360 MENU
Invalid & OR No
input for 10 seconds
User Menu:
Pulse Output
User Menu:
Current Output
User Menu:
Calibration
User Menu:
Setup
User Menu:
Totaliser
Checking Signals
******
Sig: 87% *
246.3 l/min
Setup Menu
Totaliser Menu
Pulse Output Menu
Current Output Menu
User Menu:
Exit
v v
v
v
v
Calibration Menu
v
Sig: 87% *
246.3 l/min
Issue 1.5 Feb 17 Page 21
Figure 14 Setup Menu
Select Dims:
mm | inches
Enter Pipe ID:
050.0 mm
Enter Pipe ID:
2.000 inches
Select Reading:
Flow | Vel
Select Reading:
Flow | Vel
System Units:
litres | m3
System Units:
Impgal | USgal
Flow Units:
m3/min | m3/hr
Flow Units:
l/min | l/s
Flow Units:
gal/min | gal/hr
Flow Units:
USgal/min | USgal/hr
Range 20 – 110mm
050.0 mm
SETUP MENU
Inches &
Invalid
&
mm &
Invalid &
Valid &
Valid &
Vel & (m/s)
m3 &
Flow &
Litres &
Valid &
Flow &
Impgal &
USgal &
Vel &
(ft/s)
Range 0.79 – 4.33
2.000 inches
Pipe material
Steel/Plastic/Copper
Set Separation
B 2
Issue 1.5 Feb 17 Page 22
Figure 15 Pulse Output & Totaliser Menus
If the Total is turned on then the display will alternate between the flow reading and the total. Either display
can be held for 30seconds by pressing the key.
PULSE OUTPUT MENU
Max Flow @ Freq:
09999.0 Units
Pulse Type:
Volume/Low Flow Alarm/
Signal Loss/Frequency
Select Pulse:
OFF | ON
Test mode, press V or
Λ to generate a 20ms
Off &
On &
Low Flow Alarm:
00.00 Units
Valid &
Volume &
Valid &
Valid &
Invalid &
Freq &
Invalid &
Signal Loss
&
Max Pulse Freq:
200
Pulse Width
50 ms
Range 3 - 99
50 ms
Range 1 – 200
200
Alarm Status:
N/Closed │ N/Open
Low Flow &
Alarm Status:
N/Closed │ N/Open
Select &
Volume per Pulse:
010.000 Units
Valid &
Select Totals
ON|OFF
On &
Reset + Total
NO |YES
Off &
TOTALISER MENU
Issue 1.5 Feb 17 Page 23
Figure 16 Current Output & Calibration Menus
Select 4-20mA:
ON | OFF
Flow @ 20mA
1000.0
Flow @ 4mA
0000.0
OFF &
ON &
CURRENT OUTPUT MENU
Valid &
Valid &
CALIBRATION MENU
Zero Offset:
0.000 l/min
^ To Clear
Zero Offset:
Averaging…9
Done
v To Set
Zero Cut-off:
0.10 m/s
Valid &
Range 0.00 – 0.50
0.10 m/s
Invalid &
Damping Time [s]
20
Range 0.500–1.500
1.000
Invalid &
Calibrat. Factor:
1.000
Valid &
Issue 1.5 Feb 17 Page 24
9 Diagnostics Menu
The diagnostics menu provides some additional information about the flowmeter and its setup. The menu can
be accessed by pressing the key from the main flow-reading screen. The menu shown below describes
the various diagnostics items.
DIAGNOSTICS MENU
V
The Estimated TA (Time of Arrival) and Actual TA show the
theoretical and measured transit times. These values should
be as close as possible to each other. If more than 5 apart
check installation and pipe diameter. If the actual value is
displayed as 9999.99 then a usable signal could not be
detected.
The gain on line one is an indicator of the signal strength. A
good signal should have a gain of between 600 and 970. The
number in parentheses is the switch setting and should be x1
or x10. Gains of X100 show that the received signal is too
small to be used.
The second line shows the current time differential between
the upstream and downstream signals.
The unit’s software version is shown on line 1.
Line 2 shows the unit’s serial number.
If the Frequency pulse option is enabled this screen displays
the current pulse output frequency. This is proportional to the
flow rate.
Press
To exit the Diagnostics menu
N. B. The key board is less responsive in the
Diagnostics Menu and longer key presses are
required.
Sig: 87% *
246.3 l/min
Est.TA 85.64
Act .TA 86.77
Gain 845 (x1)
DT 125 ns
Rev: 11.00.004
S/N: 112547
Pulse Frequency
124
Pipe Material
Steel
The Selected pipe material
Figure 17 Diagnostics Menu
The required sensor separation
Set Separation
B 2
Issue 1.5 Feb 17 Page 25
10 Relocation of guide rail
If it is necessary to relocated the guide rail and sensor assembly use the following procedure
1. Remove complete assembly from the pipe
2. Insert a small screwdriver in the hole at the end of the guide rail moulding and lever up the
clip holding the electronics assembly by pressing down on the screwdriver as shown below.
3. Repeat 2 on the other end and then pull off the electronics unit.
4. Disconnect the sensors
5. Remove the original Gel pads from the sensors
6. Push the sensor blocks into the guide rail so that the washers and locking screws can be
refitted.
7. Place replacement Gel pads down the centre of the sensor block.
8. Follow the procedure in section 5 for re-installing the guide rail on the pipe.
Issue 1.5 Feb 17 Page 26
11 Appendix I – U1000-U Specification
Table 1 lists the U1000-U Product Specification.
General
Measuring Technique
Transit time
Measurement channels
1
Timing Resolution
±50ps
Turn down ratio
200:1
Flow velocity range
0.1 to 10m/s
Applicable Fluid types
Clean water with < 3% by volume of particulate content.
Accuracy
±3% of flow reading for flow rate >0.3m/s
Repeatability
±0.5% of measured value
Selectable units for metric (mm)
Velocity: m/s,
Flow Rate: l/s, l/min, m3/min, m3/hr
Volume: litres, m3,
Selectable units for Imperial (inches)
Velocity: ft/s
Flow rate: Imp.gal/sec, Imp.gal/min, USgal/s, USgal/min
Volume: ft3, Imp.gals, USgals
Totaliser
14 digits with roll over to zero
Languages supported
English only
Power input
12 – 24V ac or dc
Power consumption
7VA maximum
Cable
5m screened 6 core
Pulse Output
Output
Opto-isolated MOSFET volt free contact (NO/NC).
Isolation
2500V
Pulse width
Default value 50ms; programmable range 3 – 99ms
Pulse repetition rate
Up to 166 pulses/sec (depending on pulse width)
Frequency mode
200 Hz maximum (Range 1-200)
Maximum load voltage/current
48V AC / 500mA
Current Output (If fitted)
Output
4 – 20mA
Resolution
0.1% of full scale
Maximum load
620Ω
Isolation
1500V opto-isolated
Alarm current
3.5mA
Enclosure
Material
Plastic Polycarbonate
Fixing
Pipe mountable
Degree of Protection
IP54
Flammability Rating
UL94 V-0
Dimensions
250mm x 48mm x 90mm (electronics + guide rail)
Weight
0.5kg
Environmental
Maximum Pipe temperature
0°C to 85°C
Operating temperature (Electronics)
0°C to 50°C
Storage temperature
-10°C to 60°C
Humidity
90% RH at 50°C Max
Issue 1.5 Feb 17 Page 27
Display
LCD
2 line x 16 characters
Viewing angle
Min 30°, Max 40°
Active area
83mm (W) x 18.6mm(H)
Keypad
Format
4 key tactile feedback membrane keypad
12 Appendix II – Default values
The settings will be configured at the factory for either metric or imperial units. Table 2 lists the metric
default values.
Table 2 System Default Values
Parameter
Default Value
Dimensions
mm
Flow Rate
l/min
Pipe size
50 (mm)
4-20mA
On, 4-20mA selected
Flow at Max Current
Equivalent to 2m/s
Flow at Min Current
0
Pulse Output
On
Volume per Pulse
10 litres
Pulse Width
50ms
Damping
20 seconds
Calibration Factor
1.000
Zero Cut-off
0.10m/s
Zero Offset
0.000l/min
Table 3 lists the default values when Imperial dimensions are selected.
Table 3 System Default Values
Parameter
Default Value
Dimensions
inches
Flow Rate
USgal/min
Pipe size
1.969 (inches)
4-20mA
On, 4-20mA selected
Flow at Max Current
Equivalent to 2m/s
Flow at Min Current
0
Pulse Output
On
Volume per Pulse
10 US gallons
Pulse Width
50ms
Damping
20 seconds
Calibration Factor
1.000
Zero Cut-off
0.10m/s
Zero Offset
0.000gal/min
Issue 1.5 Feb 17 Page 28
13 Appendix III – Error and Warning Messages
System errors
There are three possible ‘System Error’ messages that can be displayed. These are:
1. Poor Signal displayed as “-----“. The unit is unable to detect a signal from one or both
transducers. If this message persists the sensors will need to be relocated.
2. Pulse Overflow. The value for the ‘Vol per pulse’ is set too low. Increase the Vol per Pulse
setting in the password-controlled menu.
3. “No BBME”: This indicates a unit failure. Reset the unit by turning the power on and off.
Contact your supplier if the problem persists.
Flow warnings
A signal strength of less than 40% indicates poor set up of the instrument, and the installation should
be checked or possibly moved to a different site. A negative flow is indicated by an”!” being displayed
on the top line instead of a “*”.
Warnings
These generally advise the user that the data entered is out of the specified range.
1. When an invalid Pipe ID is entered, the warning message shown below is displayed, prompting the
user to enter a value between 20 and 110mm.
2. When the 4-20mA current output is turned ON, the Flow at Maximum and Minimum current can be
changed under password control. The valid range is 0 – 99999.0 If an invalid value is entered the
following warning message is displayed:
3. When programming a Frequency Pulse output the frequency is limited to the range 1 to 200 Hz. If
an invalid value is entered then the following warning message is displayed.
4. When programming a Volume Pulse output the pulse width is limited to the range 3 to 99ms. If an
invalid value is entered then the following warning message is displayed.
Range 20 – 110mm
0.000 mm
Range 0 - 99999
0000.0
Range 1 - 200
200
Range 3 - 99
0000.0
Issue 1.5 Feb 17 Page 29
5. When programming the Zero Cut-off this is limited to the range 0.000 to 0.500. If an invalid value
is entered then the following warning message is displayed.
6. When programming the Calibration Factor this is limited to the range 0.5 to 1.5. If an invalid value
is entered then the following warning message is displayed.
Manual Updates Feb 17
1. Introduce selectable NO/NC alarm option.
2. Pulse Width default now 50ms.
3. Increased the number of digits on the totaliser to 14.
Range 0.00 – 0.500
0000.0
Range 0.500 – 1.500
0000.0
Issue 1.5 Feb 17 Page 30
Loading...
