Micronics Stingray User Manual

Stingray Pentium II

PCI/ISA

System Board Manual

Document Number: 06-00311-01, Rev. 1B

May 1997

45365 Northport Loop West, Fremont, CA 94538-6417

Copyright Notices

Copyright  1997 Micronics Computers, Inc. The information con-
tained in the Stingray PCI/ISA Pentium Processor system board

2

manual has been carefully checked and is believed to be accurate.
Micronics assumes no responsibility for any inaccuracies that may be
contained in this document. Micronics makes no commitments to
update or to keep the information in this manual at a current level when
changes are made to the product.

Micronics reserves the right to make improvements to this document
and/or product at any time and without notice. All Rights Reserved. No
part of this document may be photocopied, reproduced, translated, or
reduced to any medium or machine form without prior, written consent
from Micronics.

Portions of the Manual

Portions of this manual were copied (with permission) from Award
Software Inc. All rights reserved.

Trademarks

Award Modular BIOS is a registered trademark of Award Software
Inc. IBM is a registered trademark of International Business Ma­chines. Microsoft and Windows are registered trademarks of Mi­crosoft Corporation. Intel and PCI are registered trademarks of Intel
Corporation. All other product names mentioned herein are used for
identification purposes only and may be the trademarks of their
respective companies.

Stingray System Board Manual

Table of Contents

Introduction 5
Features 6
Software Compatibility 7
Before You Begin 8

Chapter 1 - Quick Installation 9

Installing the Stingray 9

Chapter 2 - Configuring the Stingray 13

Static Electricity 13
Environment Considerations 13
Stingray System Board 14
Jumper Settings 15

Chapter 3 - Installing the Stingray 17

Introduction 17
System Memory Support 17
Installing the Stingray 18

Tools Required 18
Equipment Required 19

System Memory 19

Adding Memory 19

Memory Usage 20

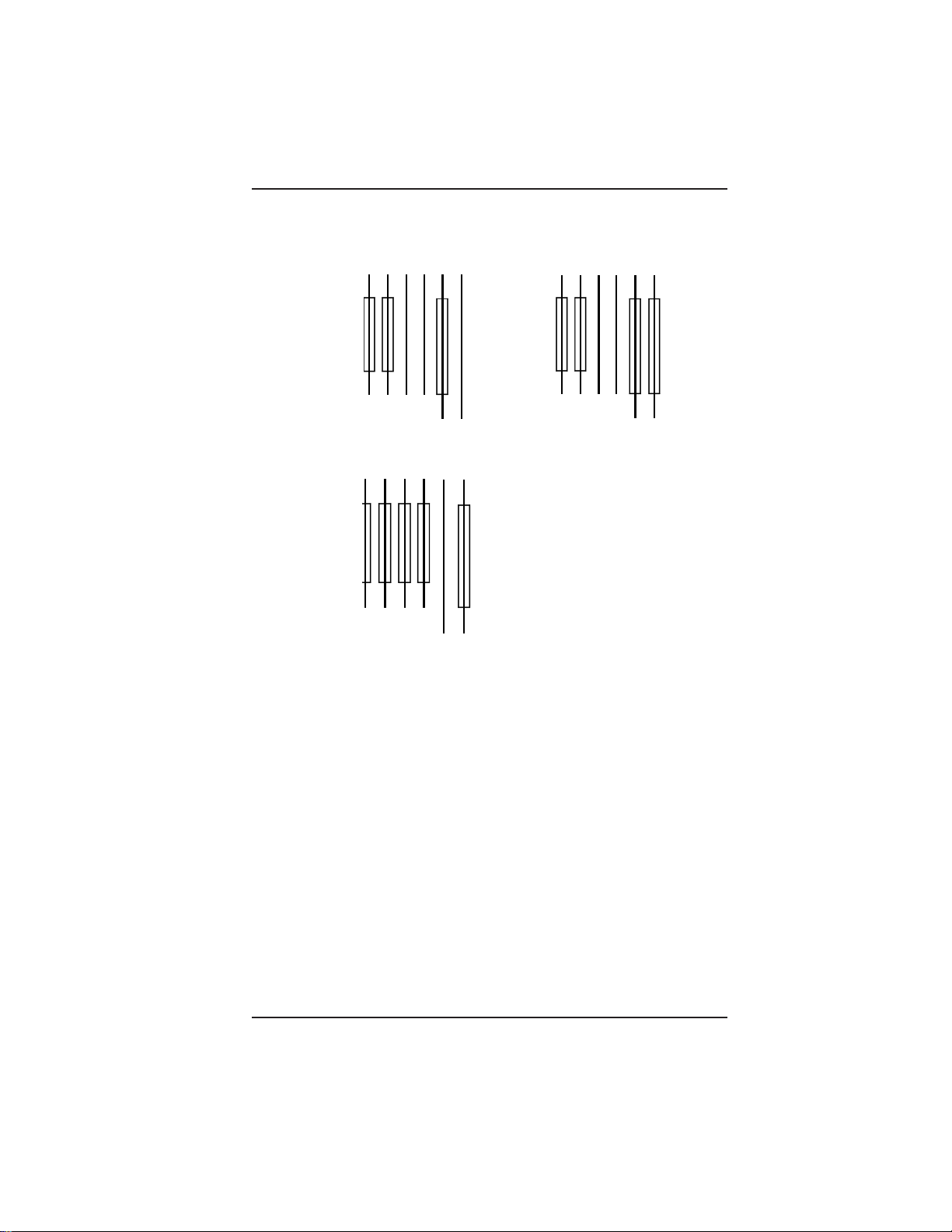

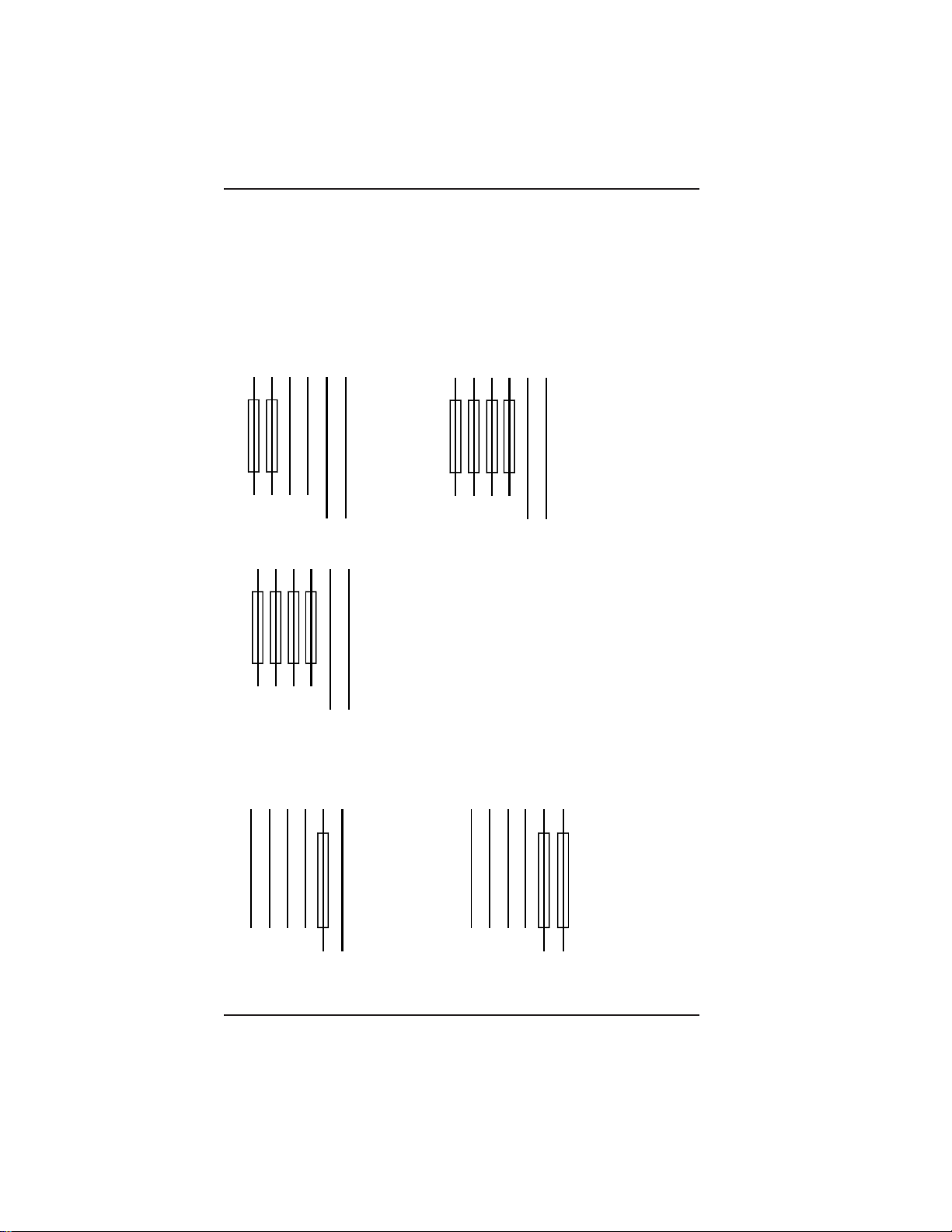

Memory Configurations 22
Installing DIMMs 26

Removing DIMMs 26
Installing SIMMs 27

Removing SIMMs 27
CPU Installation 28
CPU Installation Overview 31

Stingray System Board Manual

1

CPU Installation (Box version) 32
Installing a PCI Peripheral Card 33
Installing an ISA Peripheral Card 34

Chapter 4 - The BIOS Setup Utility 35

Configuration 35
Initial Bootup 35
Setup 35
Running the Setup Procedure 37
Standard CMOS Setup 38

BIOS Features Setup 40
Chipset Features Setup 43
Power Management Setup 48
PnP/PCI Configuration Setup 51
Load BIOS Defaults 53
Load Setup Defaults 53
Integrated Peripherals 54
Supervisor Password 57
User Password 57
IDE HDD Auto Detection 58
HDD Low Level Format 59
Save and Exit Setup 60
Exit Without Saving 60

Appendix A - Technical Information 61

Specifications 61
Environmental Specifications 62
Temperature Range 62

Relative Humidity 62
Battery Disposal 63
Support and Information Services 64

Technical Support 64

2

Stingray System Board Manual

Appendix B - Post Messages 67

Appendix C - Updating the System BIOS 71

Appendix D - Warranties and Notices 73

Non-Warranty Service 73
FCC Statement 75

Glossary 76

Index 80

Stingray System Board Manual

3

List of Figures

Figure 1.1: Power-Up Screen 10

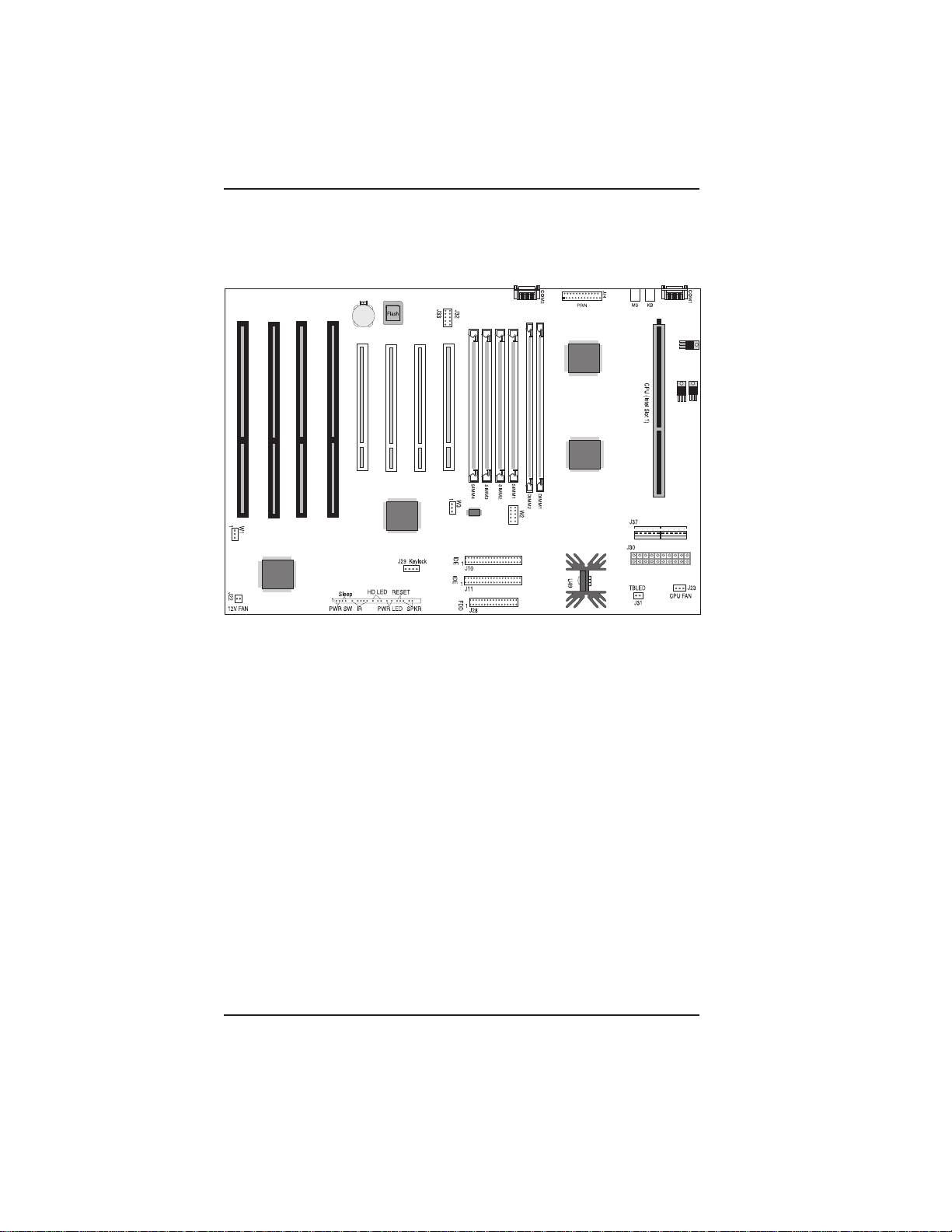

Figure 2.1: Stingray System Board 14

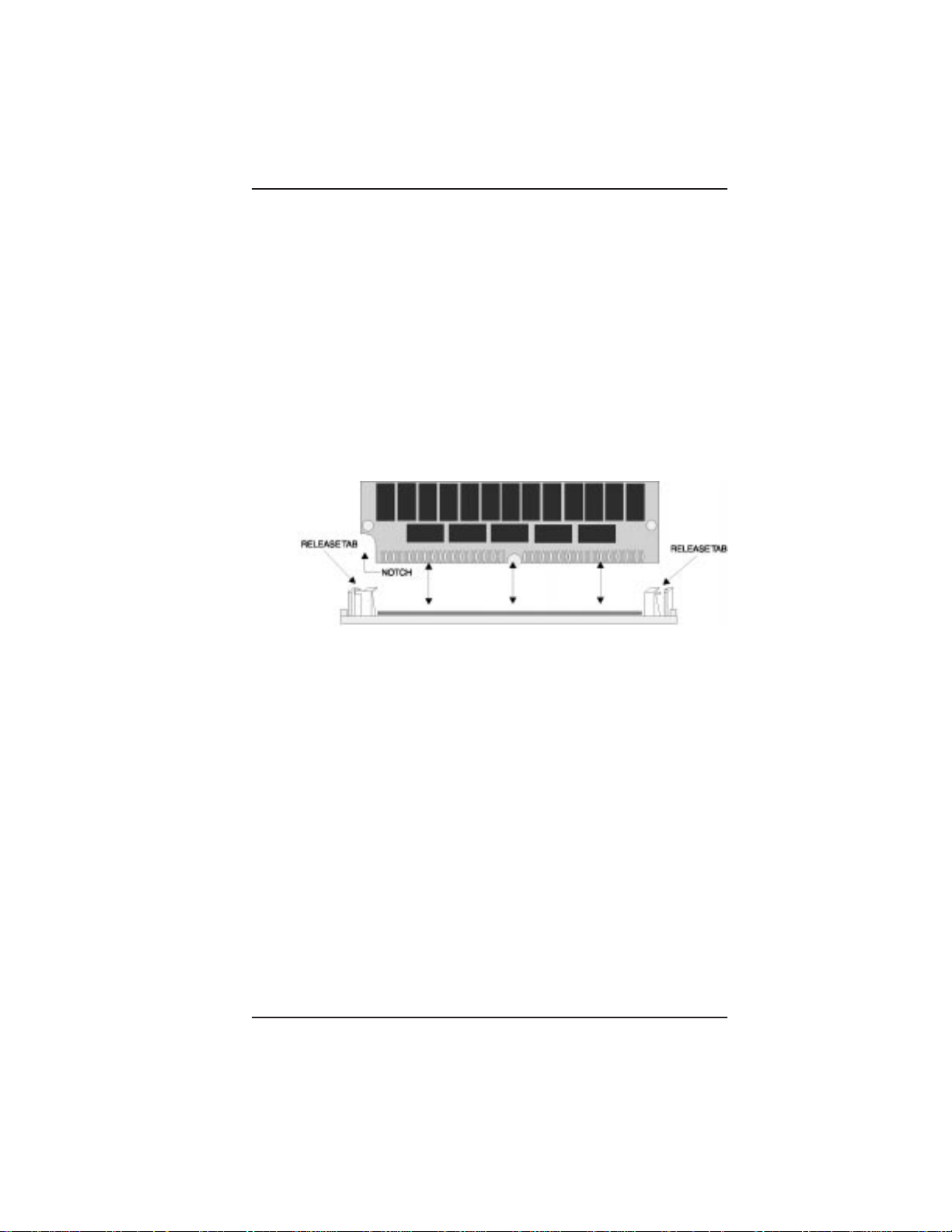

Figure 3.1: Installing a 168-pin DIMM 26
Figure 3.2: Installing a 72-Pin SIMM 27
Figure 3.3: CPU Installation Overview 31
Figure 3.4: CPU Installation (Boxed version) 32

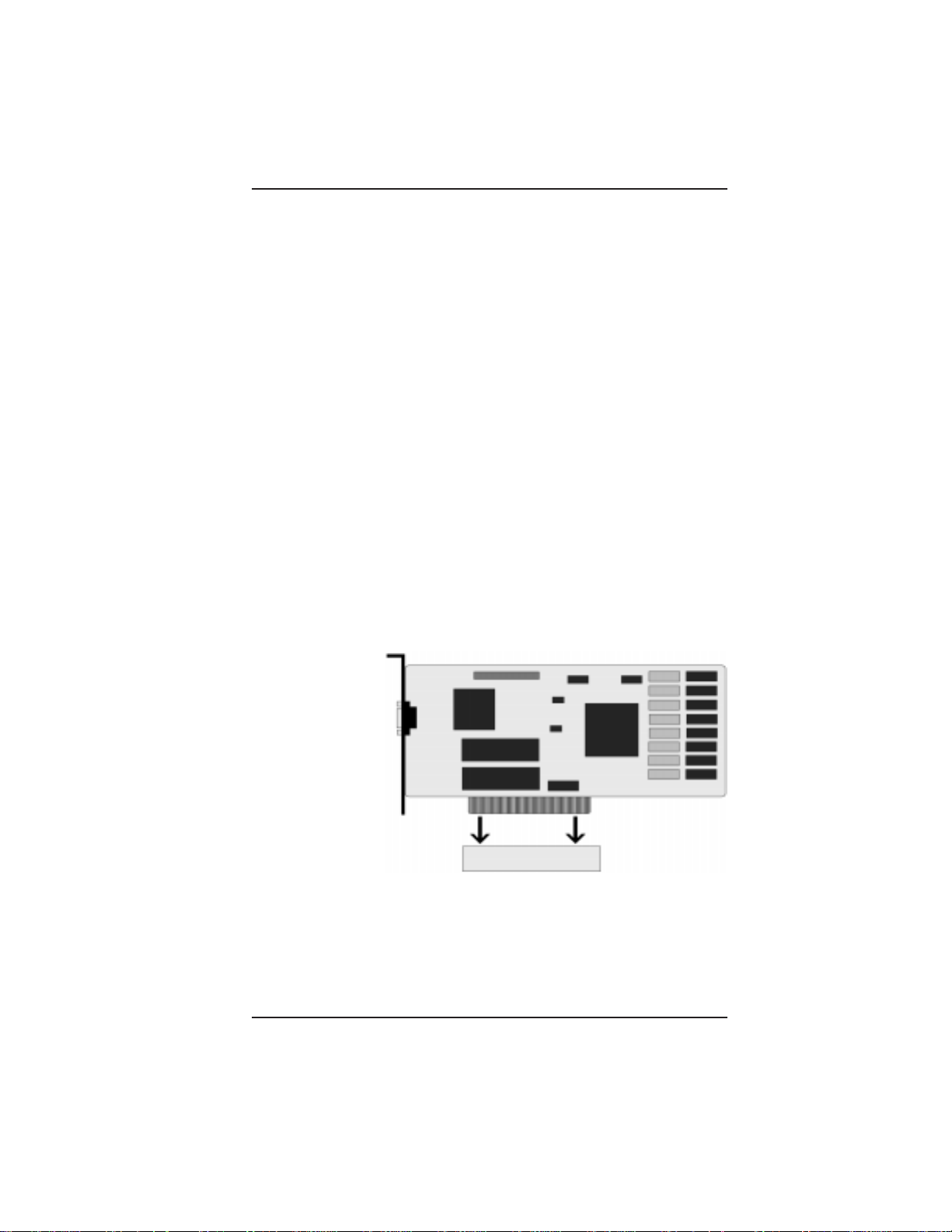

Figure 3.5: Installing a PCI Peripheral Card 33

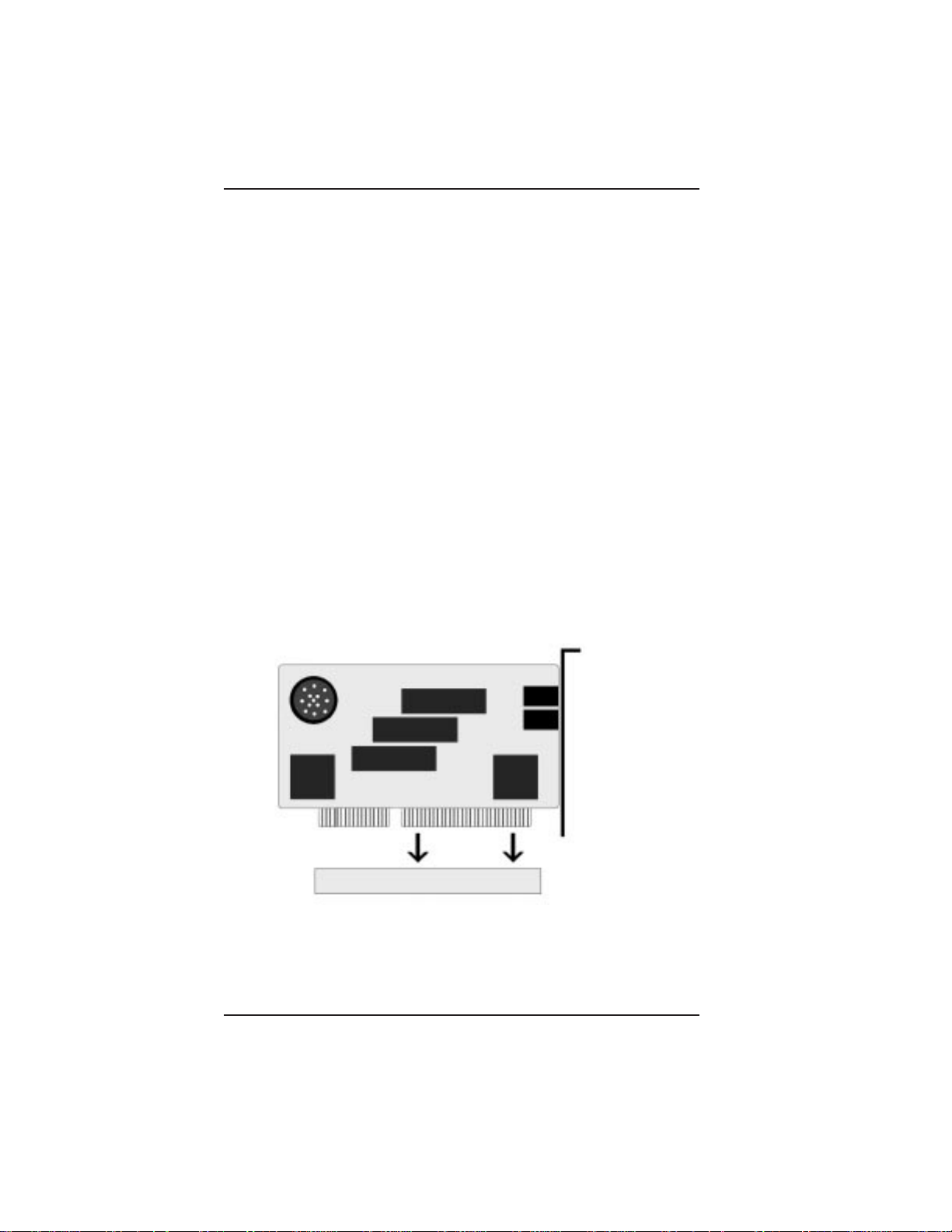

Figure 3.6: Installing an ISA Peripheral Card 34
Figure 4.1: Power-Up Screen 36

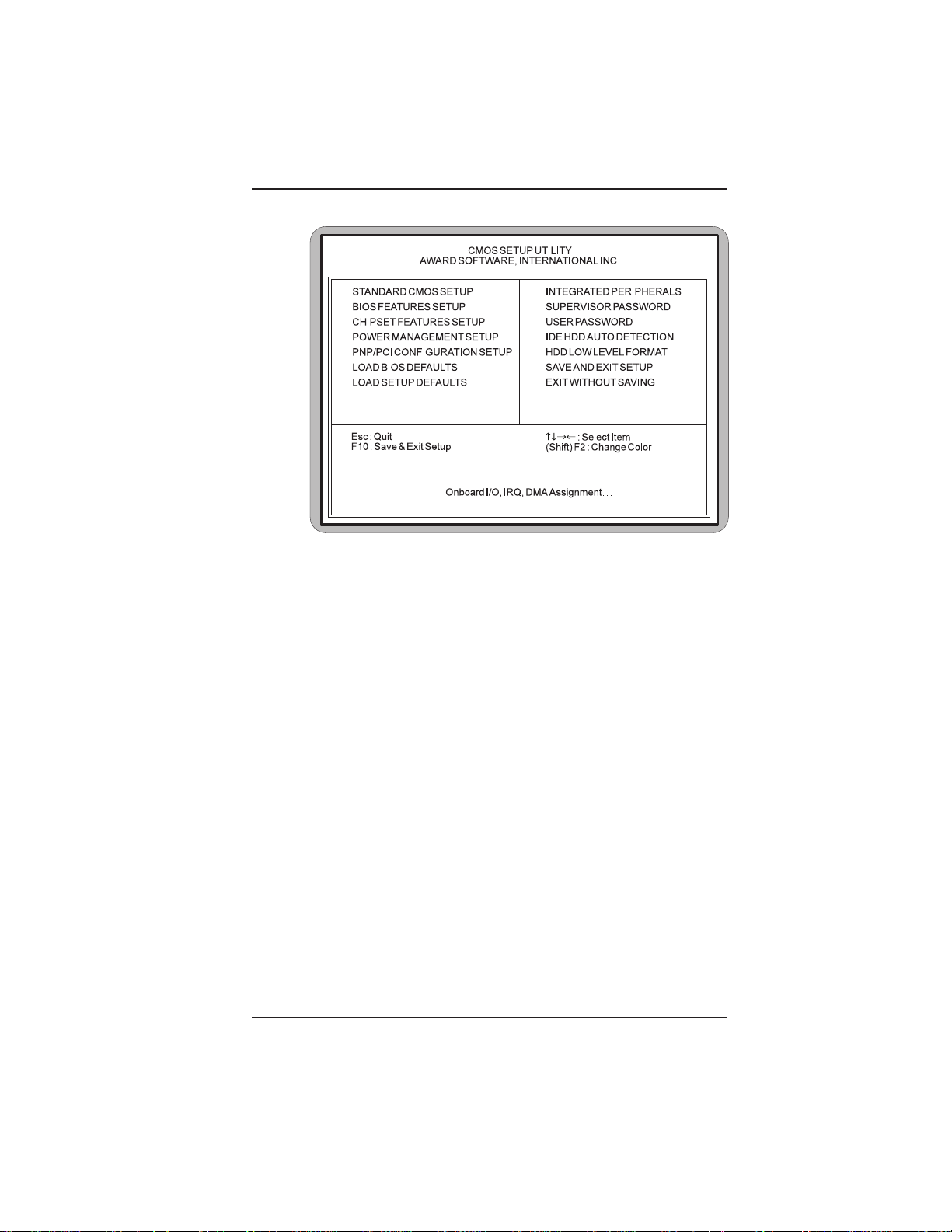

Figure 4.2: Main CMOS Setup Screen 37

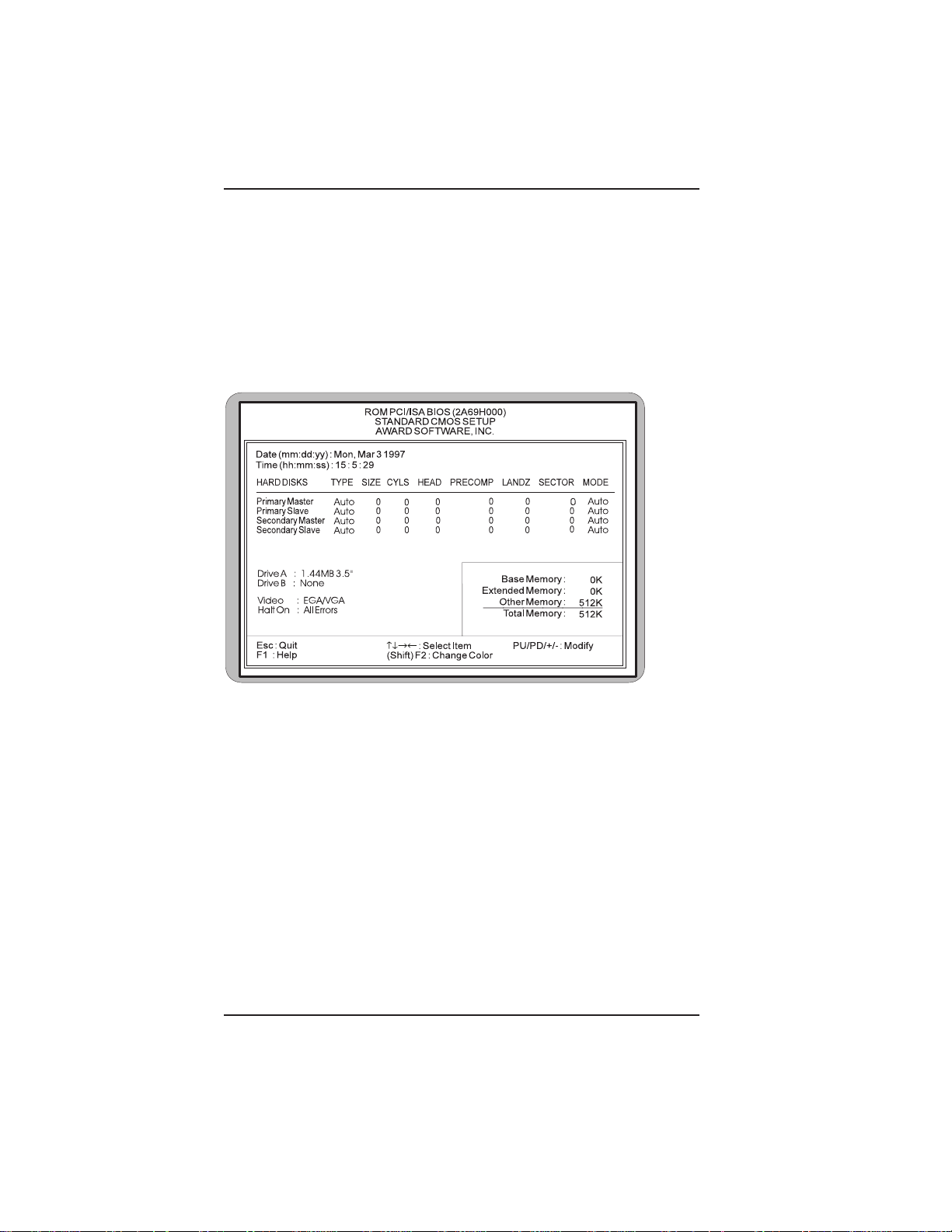

Figure 4.3: Standard CMOS Setup Screen 38

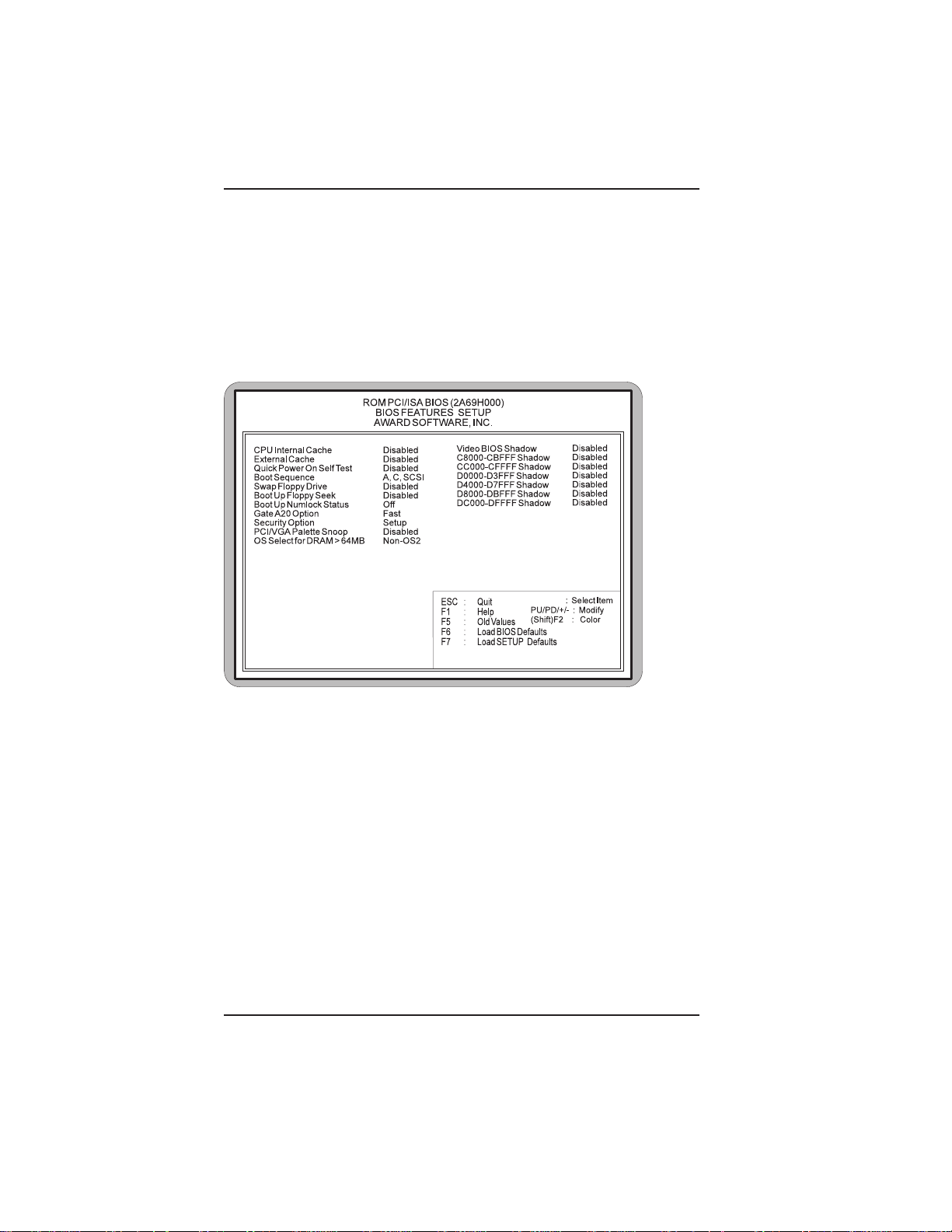

Figure 4.4: BIOS Features Setup Screen 40

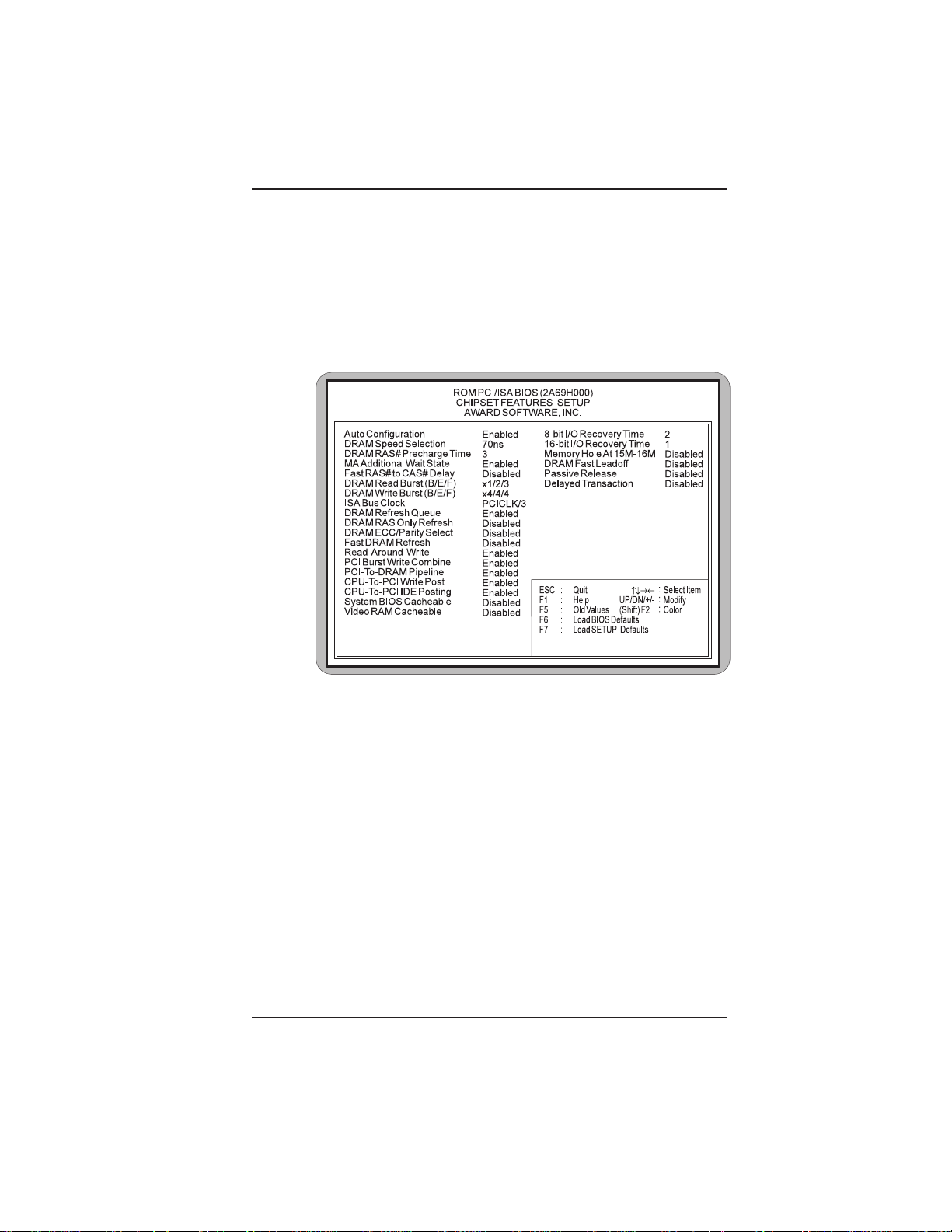

Figure 4.5: Chipset Features Setup Screen 43
Figure 4.6: Power Management Screen 48
Figure 4.7: PnP/PCI Configuration Screen 51
Figure 4.8: Integrated Peripherals Screen 54
Figure 4.9: IDE HDD Auto Detection Screen 58

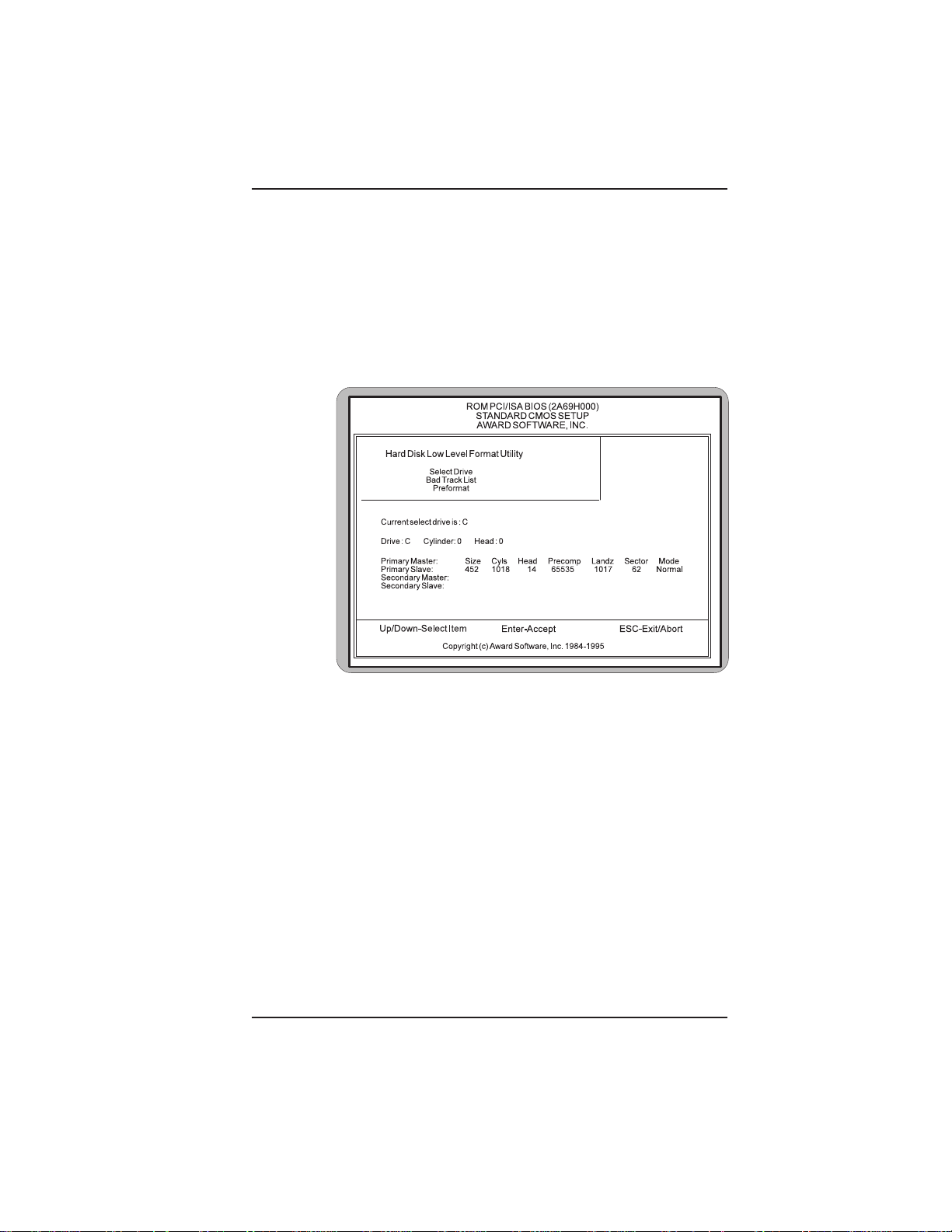

Figure 4.10: HDD Low Level Format Screen 59

List of Tables

Table 2.1: CPU Speed Selection 15
Table 2.2: Clear CMOS Memory Selection 15
Table 2.3: Connector Settings and Functions 16
Table A.1: Support and Information Services 65

4

Stingray System Board Manual

Introduction

Introduction

Thank you for choosing the Stingray system board. The
Stingray is a high performance Pentium processor
solution for the industry's most demanding workstation
applications.

Based on the Intel 440FX PCIset, the Stingray supports
the latest advanced processor architecture, the Pentium
II (processor-on-a-cartridge), which provides the speed
and performance necessary to address the most intensive
computational applications. Integrated MMX tech­nology, maximum memory of 1 GByte and up to 512K of
Level 2 cache on the CPU make this board powerful and
feature rich.

The Stingray provides features such as Extended Data
Out (EDO) memory, Error Checking and Correction
(ECC), pipelined-burst level 2 cache, the Award Plug
and Play BIOS and Universal Serial Bus (USB) support.
The USB interface has a maximum bandwidth of 12Mbps
and can connect as many as 127 devices to a host system.
USB supports both standard devices that operate at the
full 12Mbps rate and low-end devices that use only a

1.5Mbps subchannel.

In addition, the Stingray is designed to fit into the most
modern ATX form factor, which allows critical compo­nents such as floppy drive connectors, chassis fan, CPU
and memory to be strategically located so that full length
cards can be installed in all slots.

Micronics builds all products to exacting standards, using
the highest quality components available. We are proud
to provide this system board and believe you will be
pleased with your purchase.

Stingray System Board Manual

5

Introduction

Features

The Stingray includes the following features:
▲ Single Intel Slot 1



Intel Pentium II chip - 233/266/300MHz

Integrated Voltage Regulator Module

▲ Intel 440FX PCIset

Intel PIIX 3

SMC FDC37C93x Ultra I/O chip

▲ 256 or 512K Pipelined Burst Level 2 in CPU package
▲ Four 32-bit PCI slots

Four 16-bit ISA slots

(One is a shared PCI/ISA slot)

▲ Maximum memory - 1 GByte

Two 3.3V unbuffered 168-pin DIMM sockets

Four 72-pin SIMM sockets

Supports FPM and EDO DRAM memory

ECC support via chipset when using parity DIMMs and

SIMMs

▲ Two Universal Serial Bus (USB) ports for desktop periph-

eral expansion

▲ Mini-ATX form factor

Stingray System Board Manual6

Introduction

Software Compatibility

The Stingray system board has been thoroughly tested for
compatibility with a variety of operating systems and envi­ronments, including:

▲ Microsoft

DOS 5.0
DOS 6.2x
Windows 95
Windows NT 3.5x
Windows NT 4.0

▲ IBM

OS/2 Warp 3.0
OS/2 Warp 4.0

▲ SCO

UNIXWare 2.1.1
Open Server 5.02
UNIX 3.2.4.2

▲ Novell Netware

Stingray System Board Manual

7

Introduction

This manual will familiarize you with the features, installa­tion and use of your Stingray. There are several symbols and
conventions used throughout this manual to help draw your
attention to a feature or to focus on important information:

Common Names

DIMM Dual Inline Memory Module
DRAM Dynamic Random Access Memory
ECC Error Checking and Correction
EDO Extended Data Out
FPM Fast Page Mode
IDE Integrated Drive Electronics
PCI Peripheral Component Interconnect
SIMM Single Inline Memory Module
USB Universal Serial Bus
VRM Voltage Regulator Module

Before You Begin

When you see the Magnifying Glass, it refers
to something you should take a closer look at
before proceeding further.

When you see the Exclamation Mark, it gives
important information on avoiding damage.

8

Stingray System Board Manual

Chapter

1

Chapter 1: Quick Installation

Quick Installation

We know that many experienced people prefer to read as
little of the documentation as possible. If this sounds like
you, here’s the short form to get up and running quickly.

Installing the Stingray

1. Make backup copies of your installation and configu­ration diskettes.

2. Ground yourself to prevent damaging static dis­charge by using an anti-static wrist or ankle strap, or
touch a safely grounded metal object.

3. Remove the Stingray from its packaging.

4. Configure and verify the system board’s jumper set­tings (refer to Jumper Settings in Chapter 2).

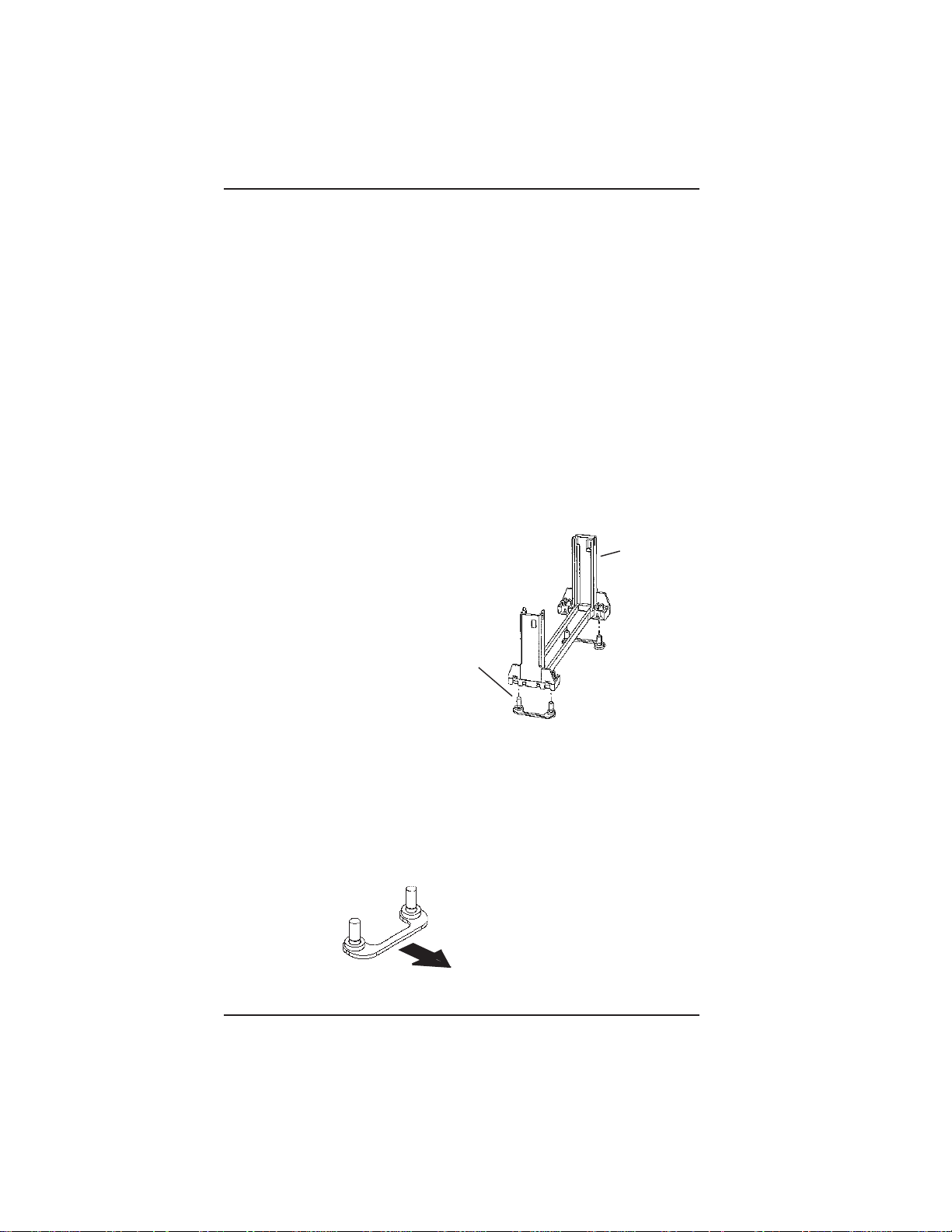

5. Install the CPU and the system memory. Be sure to
attach the Retention Mechanism as described in Chap­ter 2.

6. Install the system board in the chassis and make all
necessary case connections. NOTE: You may use
either an AT or ATX power supply.

7. Install any ISA and/or PCI add-on peripherals.

8. Connect any optional devices.

9. Turn the computer on and press the <DEL> key
when you see the screen shown in Figure 1.1.

Stingray System Board Manual

9

Chapter 1: Quick Installation

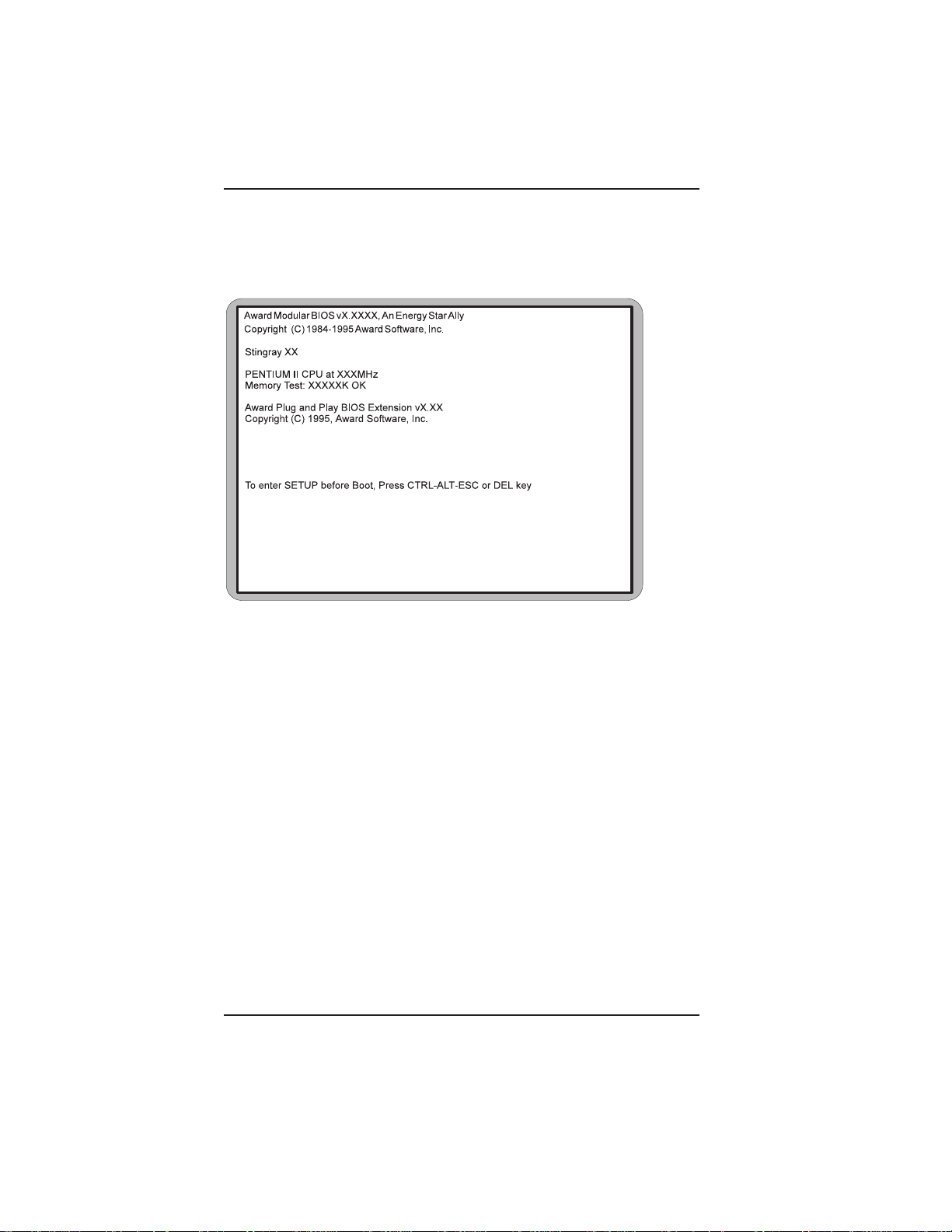

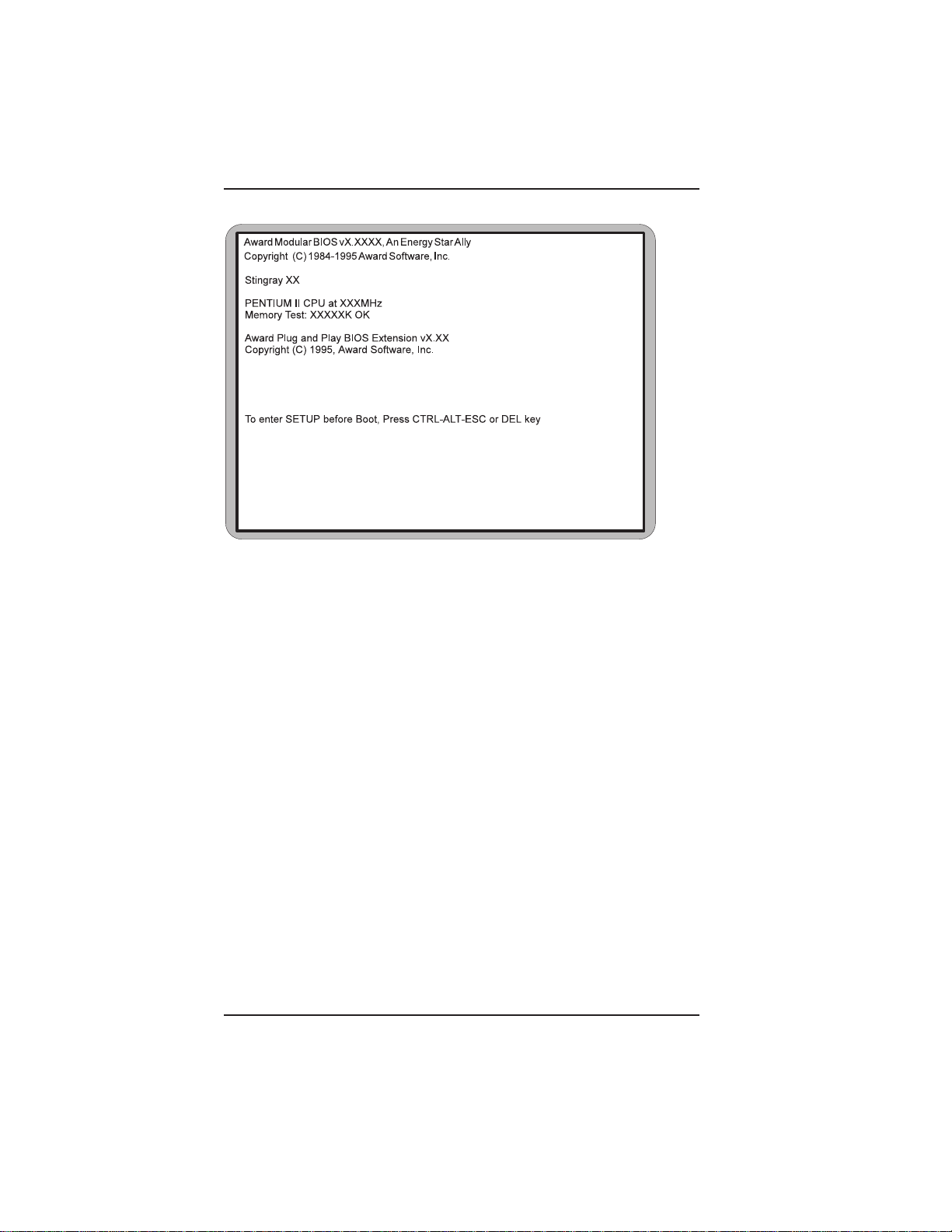

Figure 1.1: Power-Up Screen

10. If necessary, use the arrow keys to move the highlight to
STANDARD CMOS SETUP and press <Enter>.

11. Set the time and date.

12. If necessary, adjust the settings for the floppy drive(s)
and hard drive(s) to match your configuration. If you
are installing one or more IDE drives, the BIOS auto­matically configures your drive(s) for you when the
setting in the Type column is Auto. See Chapter 4 for
additional information and additional instructions.

13. Verify that the floppy drive type(s) shown for Drive A
(and Drive B, if installed) are correct. If necessary
change the setting(s) for the floppy drive(s) using the
<Pg Up> and/or <Pg Dn> keys or the <+> and
<–> keys.

14. Verify that the amounts of memory shown in the Stan­dard CMOS Setup screen correctly reflect the amount
of RAM installed in your system.

10

Stingray System Board Manual

Chapter 1: Quick Installation

15. Press <ESC> to return to the main setup menu.

16. Use the arrow keys to move the highlight to any of the
other setup options in the main menu that contain
settings you want to review or change (for information
on the various setup options in the main menu, see
Chapter 4). When you are finished, press <F10> to
select Save & Exit Setup. You are now finished with
the BIOS configuration.

Stingray System Board Manual

11

Chapter 1: Quick Installation

12

Stingray System Board Manual

Chapter 2: Configuring the Stingray

Chapter

2

Configuring the Stingray

Although the Stingray system board is packaged in mate­rials that are designed to protect it from physical damage
and static electricity, it is important to use care while
unpacking the board and setting it up.

Static Electricity

The Stingray is shipped from the factory in an anti-static
bag. To reduce the possibility of damage from static
discharge, it is important to neutralize any static charges
your body may have accumulated before handling the
board.

The best way to do this is to ground yourself using a
special anti-static wrist or ankle strap. If you do not have
an anti-static strap available, touch both of your hands
to a safely grounded object, such as the power supply or
chassis of a computer that is connected to the power
socket. After you have grounded yourself, ground the
Stingray board via one of the solder pads that surround
its mounting holes. When you remove the Stingray from
its packaging, place it on top of the anti-static bag, and
carefully inspect the board for damage which might have
occurred during shipment.

Environment Considerations

Make sure the finished computer system is in an area with
good ventilation. The system should not be in direct
sunlight, near heaters, or exposed to moisture, dust, or
dirt.

Stingray System Board Manual

13

Chapter 2: Configuring the Stingray

Stingray System Board

14

Figure 2-1. Stingray System Board Diagram

Stingray System Board Manual

Chapter 2: Configuring the Stingray

Jumper Settings

This section provides the jumper settings for the Stingray system board.

Table 2-1 lists the jumper settings to select the system speed settings.

CPU Speed Bus Speed W2 W3

1-2 3-4 5-6 7-8 1-2
233MHz 66 x 3.5 Close Open Open Close 1-2
266MHz 66 x 4.0 Close Close Close Open 1-2
300MHz 66 x 4.5 Close Open Close Open 1-2
333MHz 66 x 5.0 Close Close Open Open 1-2

T a ble 2-1: System Speed Selection

Table 2-2 lists the settings to clear the CMOS settings. With your
computer's power off, close pins 2-3, wait ten seconds and place the
jumper back on pins 1-2. (The jumper must be placed back on pins 1­2 for the system to function properly.)

NOTE: This will reset all BIOS default settings. Any changes you have made
will be lost.

Jumper Function Settings

W1 Normal

Clear CMOS

Table 2-2: Clear CMOS Settings

Stingray System Board Manual

1-2
2-3

15

Chapter 2: Configuring the Stingray

Table 2-3 lists all of the connectors and their functions.

Connector Function Notes

J10 Primary IDE Port
J11 Secondary IDE Port
J22 Chassis Fan 12V
J23 CPU Fan 1 - +12V Power; 2 - Ground
J24 Parallel Port Connector Can be disabled at the CMOS

J28 Floppy Drive Connector
J30 ATX Power Connector
J31 Turbo LED
J32 USB Connector Port 0
J33 USB Connector Port 1
J37 AT Power Connector

COM 1 Serial Port (COM 1) Can be disabled at the CMOS

COM 2 Serial Port (COM 2) Can be disabled at the CMOS

CPU Intel Slot 1

Mouse/KB PS/2 Keyboard & Mouse

Connector

HD LED Hard Drive LED 1 - IDE; 2 - Positive

PWR SW Soft Power Switch 1 -FPPwr; 2,3 - Switch On

Sleep Sleep Switch 3 - Sleep_REQ; 4 -

IR Infrared (IR) 6 - +5V; 7 - Key; 8 - Receive

HD LED HD LED 13 - +5V; 14 - Key; 15 - HDD

PWR LED Power LED 18 - Ground; 19 - Key; 20 -

Reset Reset Switch 22 - Ground; 23 - FP_Reset

SPKR Speaker 24 - +5V; 25 - Key; 26 -

Keylock Keylock Switch 1 - Power; 2 - No Connect;

configuration screen

configuration screen

configuration screen

FPSleep_Pwr

Data; 9 - Ground; 10 - Transmit

Data; 11 - No connect

Active; 16 - +5V

Power_DRV

Speaker Data Connect; 27 - PC

Speaker Output

3 - Ground; 4 - Keyboard Lock;

5 - Ground

16

T a ble 2-3: Connector Settings and Functions

Stingray System Board Manual

Chapter 3: Installing the Stingray

Chapter

3

Installing the Stingray

Introduction

This chapter explains how to install the Stingray system
board, memory, CPU and peripherals.

WARNING: Before installing or removing any peripherals
or components, make sure you have a clear work space and
that you adhere to all anti-static precautions described in
Chapter 1. Micronics recommends that only trained techni­cians install and configure the system board.

Damage which occurs to the board while adding or removing
peripherals or components may void the warranty. If prob­lems arise while installing peripherals, contact the computer
dealer where you purchased the peripheral or Micronics’
Technical Support Department.

System Memory Support

The flexibility of the Stingray is augmented by its sup­port for EDO, BEDO and FPM DRAM memory and
ECC. The Stingray supports ECC (with 72-bit DIMMs
or 36-bit SIMMs) via the chipset.

EDO memory is designed to keep data available to the
processor for an extended period of time. The EDO
memory support extends the performance of conven­tional DRAM memory. The result is an improvement in
memory-access performance on the Stingray system
board.

Stingray System Board Manual

17

Chapter 3: Installing the Stingray

Installing the Stingray

Installation of the Stingray system board depends on the
type of case you use. The Stingray is designed for the mini
ATX form factor and must be installed in an ATX chassis.

NOTE: If you are unfamiliar with installing a system board,
Micronics highly recommends that you read the computer user’s
manual or contact your dealer’s technical support department.

Tools Required

Micronics recommends using the following tools to install
the Stingray:

❏ Small Phillips screwdriver
❏ Tweezers or a pair of needle-nose pliers
❏ Tray (to hold loose screws)

Equipment Required

Micronics recommends using the following equipment
with the Stingray for a typical configuration:

❏ ATX chassis with standard hardware.
❏ A high-quality ATX power supply capable of provid-

ing continuous power within a 3 volt range. A power
filter may be used with a noisy AC power source.

❏ PS/2 mouse and compatible keyboard.
❏ Eight ohm speaker.
❏ Standard ribbon cables for internal connections.
❏ Standard power cord (grounded).

18

Stingray System Board Manual

Chapter 3: Installing the Stingray

System Memory

System memory is necessary to operate the Stingray
system board. The Stingray supports DIMM modules
and/or SIMM modules for a maximum of 1 GByte of
memory. There are two 168-pin 3.3V unbuffered DIMM
sockets. Each DIMM socket provides a 72-bit wide data
path. There are four 72-pin SIMM sockets. Each SIMM
socket provides a 36-bit wide data path.

Support is provided for EDO, BEDO and FPM DRAM
memory. This section list the rules for adding memory to
the Stingray, give some examples of common memory
configurations and show how to physically install the
memory.

Adding Memory

The following is a list of rules to follow when installing
DIMMs and SIMMs. If you follow these rules, your upgrade
should be trouble-free:

❏ Use 70ns or faster DIMMs and SIMMs.

NOTE: For long term reliability, Micronics recommends
using DIMMs with gold-plated contacts and SIMMs with
tin-plated contacts.

❏ SIMM memory modules support FPM and EDO DRAM

memory types. DIMM memory modules support FPM
and EDO (unbuffered) memory types.

❏ Singled-sided and double-sided memory modules are

supported.

❏ The same type and size of memory for every bank

recommended. Different memory types and sizes in
separate banks will cause the performance of the
memory to run at the speed of the slowest RAM
installed.

Stingray System Board Manual

19

Chapter 3: Installing the Stingray

Memory Usage

The following information lists sample configurations for
utilizing both SIMM and DIMM memory modules:

SIMM Configurations

D2D1

S1 S2 S3

S4

D1 D2

DIMM Configurations

or

or

S1 S2 S3S4S1 S2 S3S4

D1 D2

or

S1 S2 S3S4

20

D1 D2

S1 S2 S3

S4

Stingray System Board Manual

D1 D2

Chapter 3: Installing the Stingray

SIMM and DIMM Configurations

oror

S1 S2 S3 S4

S1 S2 S3

S4

D1 D2

D2D1

S1 S2 S3 S4

D1 D2

S = SIMM
D = DIMM

NOTE:

DIMM socket 1 is a shared socket with SIMM sockets 3
and 4. A shared socket means that either SIMMs or
DIMMs may occupy, but not together. Therefore, if you
are using a DIMM in DIMM socket 1, you may not use
SIMM sockets 3 and 4 at the same time.

Stingray System Board Manual

21

Chapter 3: Installing the Stingray

Memory Configurations

The following table lists the most common memory con­figurations. The memory available depends on the number
of DIMMs and/or SIMMs installed.

Memory

Size

8MB 1Mx32 1Mx32 - - - ­16MB 2Mx32 2Mx32 - - - ­16MB 1Mx32 1Mx32 1Mx32 1Mx32 - ­24MB 1Mx32 1Mx32 2Mx32 2Mx32 - ­32MB 4Mx32 4Mx32 - - - ­32MB 2Mx32 2Mx32 2Mx32 2Mx32 - ­40MB 1Mx32 1Mx32 4Mx32 4Mx32 - ­48MB 2Mx32 2Mx32 4Mx32 4Mx32 - ­64MB 8Mx32 8Mx32 - - - ­64MB 4Mx32 4Mx32 4Mx32 4Mx32 - ­72MB 1Mx32 1Mx32 8Mx32 8Mx32 - ­80MB 2Mx32 2Mx32 8Mx32 8Mx32 -- -­96MB 4Mx32 4Mx32 8Mx32 8Mx32 - -

128MB 16Mx32 16Mx32 - - - -

SIMM 1 SIMM 2 SIMM 3 SIMM 4 DIMM 1 DIMM 2

128MB 8Mx32 8Mx32 8Mx32 8Mx32 - ­136MB 1Mx32 1Mx32 16Mx32 16Mx32 - ­144MB 2Mx32 2Mx32 16Mx32 16Mx32 - ­160MB 4Mx32 4Mx32 16Mx32 16Mx32 - ­256MB 32Mx32 32Mx32 - - - -

T a ble 3-1: Memory Configurations (SIMMs Only)

22

Stingray System Board Manual

Chapter 3: Installing the Stingray

Memory

SIMM 1 SIMM 2 SIMM 3 SIMM 4 DIMM 1 DIMM 2

Size

24MB 1Mx32 1Mx32 1Mx32 1Mx32 - ­32MB 1Mx32 1Mx32 1Mx32 1Mx32 - ­48MB 1Mx32 1Mx32 1Mx32 1Mx32 - ­48MB 2Mx32 2Mx32 2Mx32 2Mx32 - ­64MB 2Mx32 2Mx32 2Mx32 2Mx32 - ­80MB 1Mx32 1Mx32 1Mx32 1Mx32 - ­96MB 2Mx32 2Mx32 2Mx32 2Mx32 - -

96MB 4Mx32 4Mx32 4Mx32 4Mx32 - ­128MB 4Mx32 4Mx32 4Mx32 4Mx32 - ­144MB 1Mx32 1Mx32 1Mx32 1Mx32 - ­160MB 2Mx32 2Mx32 2Mx32 2Mx32 - ­192MB 8Mx32 8Mx32 16Mx32 16Mx32 - ­192MB 4Mx32 4Mx32 4Mx32 4Mx32 - ­192MB 8Mx32 8Mx32 8Mx32 8Mx32 - ­256MB 16Mx32 16Mx32 16Mx32 16Mx32 - ­256MB 8Mx32 8Mx32 8Mx32 8Mx32 - -

T a ble 3-2: Memory Configurations (SIMMs Only)

Stingray System Board Manual

23

Chapter 3: Installing the Stingray

Memory

SIMM 1 SIMM 2 SIMM 3 SIMM 4 DIMM 1 DIMM 2

Size

8MB - - - - 1Mx64 ­16MB - - - - 2Mx64 ­16MB - - - - 1Mx64 1Mx64
24MB - - - - 1Mx64 2Mx64
32MB - - - - 4Mx64 ­32MB - - - - 2Mx64 2Mx64
40MB - - - - 1Mx64 4Mx64
48MB - - - - 2Mx64 4Mx64
64MB - - - - 8Mx64 ­64MB - - - - 4Mx64 4Mx64
72MB - - - - 1Mx64 8Mx64
80MB - - - - 2Mx64 8Mx64
96MB - - - - 4Mx64 8Mx64

128MB - - - - 8Mx64 8Mx64
256MB - - - - 16Mx64 16Mx64

T a ble 3-3: Memory Configurations (DIMMs Only)

24

Stingray System Board Manual

Chapter 3: Installing the Stingray

Bank 0 Bank 1

Memory

Size

8MB

to

256MB

SIMM 1 SIMM 2 SIMM 3 SIMM 4 DIMM 1 DIMM 2

- - 1Mx64 -

- - 2Mx64 -

- - 4Mx64 -

1Mx32 1Mx32

to

16Mx32 16Mx32

in any

combination

- - 8Mx64 -

- - 1Mx64 1Mx64

- - 1Mx64 2Mx64

- - 1Mx64 4Mx64

- - 1Mx64 8MBx64

- - 2Mx64 2Mx64

- - 2Mx64 4Mx64

- - 2Mx64 8Mx64

- - 4Mx64 4Mx64

- - 4Mx64 8Mx64

- - 8Mx64 8Mx64

24MB

to

256MB

Table 3-4: Memory Configurations (SIMMs & DIMMs)

1Mx32 1Mx32

to

16Mx32 16Mx32

in any

combination

- 1Mx64

- 2Mx64

- 4Mx64

- 16Mx64

NOTE:

❏ Use the same type and size of memory for every bank.
❏ When mixing different memory types, the memory will default

to the speed of the slowest RAM installed.

Stingray System Board Manual

25

Chapter 3: Installing the Stingray

Installing DIMMs

To install the DIMMs, locate the memory banks on the
system board and perform the following steps:

1. Hold the DIMM so that the notched edge is aligned
with the notch on the DIMM socket (Figure 3-2).

2. Insert the DIMM at a 90 degree angle.

3. Gently push the DIMM straight down until it locks into
place (past the release tabs).

Figure 3-1: Installing a 168-Pin DIMM

Removing DIMMs

To remove DIMMs, follow the steps below:

1. With both thumbs (or fingers), press the release tabs
away from the socket.

2. With the DIMM free from the release tabs, lift the
module up and place in an anti-static bag or package.

26

Stingray System Board Manual

Chapter 3: Installing the Stingray

Installing SIMMs

To install the SIMMs, locate the memory banks on the
system board and perform the following steps:

1. Hold the SIMM so that the notched edge is aligned
with the notch on the SIMM socket (Figure 3-1).

2. Insert the SIMM at a 45 degree angle.

3. Gently push the SIMM into an upright position until it
locks into place (past the release tabs).

Figure 3-2: Installing a 72-Pin SIMM

Removing SIMMs

To remove SIMMs, follow the steps below:

1. With both thumbs (or fingers), press the release tabs
away from the socket.

2. With the SIMM free from the release tabs, lift the
module up and place in an anti-static bag or package.

Stingray System Board Manual

27

Chapter 3: Installing the Stingray

CPU Installation

The Stingray is designed to support Pentium II processors.
The Pentium II processor comes installed in a Single Edge
Contact (SEC) cartridge that connects into "Slot 1" on
the system board.

A Retention Mechanism is supplied to anchor the proces­sor to the system board. Attach the Retention Mechanism
before inserting the processor.

Installing the CPU Retention Mechanism

Before you begin, verify that your Retention Mechanism
Kit contains the following items:

❏ Retention Base (black plastic module)
❏ Support Bridges with Studs (plastic

mounts).

Support Bridge
with Studs

Follow the steps below to install the kit:

1. Locate the four Retention Base holes (near each end
of the Slot 1 socket). Insert the two Support Bridges
with studs (plastic mounts) from the bottom side of
the Stingray toward the component side until they
snap into place.

(Orient the loops toward
the outer edges of the
system board)

Retention
Base

28

Stingray System Board Manual

Chapter 3: Installing the Stingray

2. Place the Retention Base over the Slot 1 connector
and insert it down into the Support Bridges with studs.
Note the “Keyed” location of both Slot 1 and the
Retention Base.

Keyed

Retention Base

3. Using a screwdriver, tighten all four
sides of the Retention Base.

Installing a CPU

Follow the steps below to install the Pentium II processor:

1. Locate the Slot 1 connector (refer to Figure 2-1).

2. If you are installing the boxed version of the Pentium
II processor, follow the instructions in the section
“CPU Installation (Boxed version).”

3. If you are installing the optional Heat Sink Support,
continue to step 4; if not, go to step 5.

Stingray System Board Manual

29

Chapter 3: Installing the Stingray

4. The Heatsink components consist of a top bar, base
and two pins. Gently insert the Heatsink base into the
holes next to the DIMM 1 socket. Push down until the
base snaps into place.

Top Bar

Pin

Base

Pin

5. Gently insert the processor cartridge down into the
Retention Module, making sure the connector on the
processor cartridge and the connector on the Slot 1
connector are aligned (refer to the keyed location on
the previous page).

6. Push the processor cartridge down until it snaps into
place.

7. Lock the processor cartridge into place by pushing
outward on the tabs located on both sides of the
processor cartridge. The processor cartridge is locked
when the tabs snap into the holes on the side of the
Bridge.

8. After the processor cartridge is locked into place,
connect the Heatsink’s top bar to the base.

9. Lock the base into place by inserting a pin down into
the base on both sides.

10. Make sure the speed selection jumpers are set cor­rectly (refer to Chapter 2 - Jumper Settings).

30

Stingray System Board Manual

Chapter 3: Installing the Stingray

CPU Installation Overview

CPU Installation

1. Mount the Retention
Mechanism for the
CPU.

2. Mount the (optional)
heatsink support base
onto the system board.

Overview

3

3. Slide the CPU into the
Retention Mecha­nism.

4

4. Lock the CPU into the
Retention mechanism
using the tabs.

5. Slide in the Heat Sink
Top Bar, then insert
the pins to lock it in
place.

1

2

5

Figure 3-4: Installing a CPU

Stingray System Board Manual

31

Chapter 3: Installing the Stingray

CPU Installation (Boxed version)

A boxed version of the CPU is offered through Intel. This
packaging uses an active cooling fan. The mounting hard­ware is described below. For detailed instructions, please
refer to the documentation that is supplied with your
CPU.

NOTE: Make sure the speed selection jumpers are set
correctly (refer to Chapter 2 - Jumper Settings).

3

32

4

3

1

2

Install to
system board

Figure 3-3: Installing a CPU (Boxed version)

Stingray System Board Manual

Chapter 3: Installing the Stingray

Installing a PCI Peripheral Card

Micronics PCI slots accommodate all PCI peripherals that
meet the PCI 2.1 specifications. Follow the steps below to
install a PCI card:

1. Turn the computer system off and remove its cover.

2. Choose an unused PCI slot and remove the slot cover.

3. Insert the card with the bottom edge level to the slot.

Never insert the card at an angle.

4. Carefully push the card straight down, making sure
the card is fully inserted.

5. Replace the screw which holds the card in place.

6. Replace the computer cover.

7. Refer to the PCI card’s documentation additional
instructions regarding installation and software driv­ers.

Figure 3-4: Installing a PCI Card

Stingray System Board Manual

33

Chapter 3: Installing the Stingray

Installing an ISA Peripheral Card

Micronics ISA slots accommodate all standard ISA pe­ripherals. Follow the steps below to install a PCI card:

1. Turn the computer system off and remove its cover.

2. Choose an unused ISA slot and remove the slot cover.

3. Insert the card with the bottom edge level to the slot.

Never insert the card at an angle.

4. Carefully push the card straight down, making sure
the card is inserted fully.

5. Replace the screw that holds the card in place.

6. Replace the computer cover.

7. Refer to the ISA card’s documentation for additional
instructions regarding installation and software driv­ers.

34

Figure 3-5: Installing an ISA P eripheral Card

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

Chapter

4

The BIOS Setup Utility

Configuration

After the Stingray system board and all hardware is in­stalled, the system is ready for configuration. Before turn­ing on the computer, make sure all cables are correctly
connected and all jumpers are correctly set.

We recommend that you keep the computer cover off the
first time you boot the system. This makes it faster and
easier to correct any difficulties that might arise.

Initial Boot Up

Power up the Stingray. If the system does not properly boot,
check all your cables and peripherals for bad connections.
You may also get beep codes or error messages. If this
occurs, consult Appendix B for a guide to possible solu­tions.

After the system properly boots, it is ready to be config­ured. The following information explains the proper
procedures for BIOS configuration.

Setup

The Setup program is used to configure the computer’s
BIOS (Basic Input/Output System). The computer’s
BIOS is responsible for configuring the system board and
providing hardware information to the operating system.
In order for the computer to run properly, run the Setup
procedure after first installing the system board and
whenever you make a hardware change to the system.

Stingray System Board Manual

35

Chapter 4: The BIOS Setup Utility

When the system is turned on, it performs a memory test,
and a BIOS identification and system information screen
is displayed on your monitor, as shown in Figure 4-1.

Figure 4-1: P ower-Up Screen

When “To enter Setup before boot, press CTRL-ALT­ESC or DEL key” appears at the bottom of the screen,
press the <DEL> key to start the Setup program. The
main CMOS Setup utility screen (Figure 4-2) appears.
Note that the Setup program can only be activated
during the boot sequence.

36

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

Figure 4-2: Main CMOS Setup Screen

Running the Setup Program

The Stingray system board has six primary CMOS con­figuration screens: main setup menu, Standard CMOS
Setup, BIOS Features Setup, Chipset Features Setup,
PNP/PCI Configuration and Integrated Peripherals screen.

In addition, there are four screens containing options that
do not have to be set unless you want to: the Power
Management Setup screen, the Supervisor Password, the
User Password and the IDE HDD Auto Detection screen.
The main menu screen also contains the following op­tions: Load BIOS Defaults, Load Setup Defaults, HDD
Low Level Format, Save & Exit Setup and the Exit
Without Saving.

To select any of these screens or options, use the arrow
keys (<↑←↓→>) to move the highlight to the desired
item and press <Enter>. NOTE: A brief description of

each highlighted selection appears at the bottom of the screen.

Stingray System Board Manual

37

Chapter 4: The BIOS Setup Utility

Standard CMOS Setup

The STANDARD CMOS SETUP allows checking or
modification of general configuration information. To
access the STANDARD CMOS SETUP screen, high­light this option on the main menu screen and press
<Enter>.

Figure 4-3. Standard CMOS Setup Screen

Date and Time

To set the date, use <→/←↑/↓> arrow keys to highlight
the date and follow the same procedure to set the time.

Hard Disks Setup

The BIOS supports up to four IDE drives. You can specify
the physical and electronic properties of the disk drives
installed. Relevant specifications include the type, num­ber of cylinders (CYLS), heads (HEAD), write pre-

38

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

compensation time (PRECOMP), read/write head land­ing zone (LANDZ), number of sectors per track
(SECTOR), and HDD mode (MODE). NOTE: We rec-

ommend that you select type Auto for all drives.

Diskette A or B

To configure a floppy drive added to or removed from
your computer, use <→/←↑/↓> arrow keys to select the
desired drive. Use the <PU/PD/+/-> arrow keys to
change the setting until it matches the floppy drive you
installed. The BIOS supports 2.88MB, 1.44MB, 1.2MB,
720KB and 360KB floppy drives.

Video

Select the type of video card installed into your system.
The default setting is EGA/VGA.

Halt On

During the Power-On Self-Test (POST), the system
stops if the BIOS detects a hardware error. The default
setting is All Errors.

Base/Extended/Other Memory

A small section in the lower right corner of the screen
displays important information about your system that
includes the base, extended and other memory sizes.
They are updated automatically by the Setup program
according to the status detected by the BIOS self-test.

Stingray System Board Manual

39

Chapter 4: The BIOS Setup Utility

BIOS Features Setup

This feature allows you to set the Award enhanced BIOS
options of your choice, such as External Cache and boot
operations. To access the BIOS FEATURES SETUP screen,
highlight this option on the main menu screen and press
<Enter>.

Figure 4-4: BIOS Features Setup Screen

CPU Internal Cache

This selection enables the internal cache of the Intel
Pentium II CPU. The default setting is Disabled.

External Cache

The External Cache selection enables or disables the
external (L2) cache and the onboard secondary cache.
The default setting is Disabled.

40

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

Quick Power-On Self-Test

When enabled, this selection will reduce the amount of
time required to run the Power-On Self-Test (POST). A
quick POST skips certain steps. We recommend that you
disable quick POST. The default setting is Disabled.

Boot Sequence

Boot Sequence selects the order in which the system
searches for a boot disk. The default setting is A, C, SCSI.

Swap Floppy Drive

This selection can be set to remap the floppy drives.
When set to Disabled (default), drive A: becomes drive
B: and drive B: becomes drive A:.

Boot Up Floppy Seek

When set to Disabled (default), the BIOS tests (seeks)
floppy drives to determine whether they have 40 or 80
tracks. Drives with 720KB, 1.2MB and 1.44MB capacity
all have 80 tracks. The default setting is Disabled.

Boot Up Numlock Status

Toggle between On and Off to control the state of the
Numlock key when the system boots. When toggled On,
the numeric keypad generates numbers instead of control­ling cursor operations. The default setting is Off.

Gate A20 Option

Gate A20 refers to the way the system addresses memory
above 1MB (extended memory). When set to Fast
(default), the system chipset controls Gate A20. When set
to Normal, a pin in the keyboard controller controls Gate

Stingray System Board Manual

41

Chapter 4: The BIOS Setup Utility

A20. Setting Gate A20 to Fast improves system speed,
particularly with OS/2 and Windows.

Security Option

This selection determines whether the password will be
asked for at every system boot or only when entering into
the Setup (default) program.

PCI/VGA Palette Snoop

Alters the VGA palette setting while graphic signals pass
through the feature connector of the VGA card and are
processed by the MPEG card. Enable this option only if you
have MPEG connections through the VGA feature con­nector; this means you can adjust PCI/VGA palettes. The
default setting is Disabled.

OS Select for DRAM>64MB

This selection allows you to select the amount of memory
installed for your operating system. Select NON-OS2 (de­fault) if your operating system has less than 64MB of
memory or if running a non-OS/2 operating system. If your
operating system has more than 64MB of memory installed,
select the OS2 setting.

Video BIOS Shadow

Enabling this selection allows you to shadow the BIOS on
the video card for faster video performance. Some video
cards do not support video BIOS shadowing. Disable this
option if problems occur.

42

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

Chipset Features Setup

The Chipset Features Setup allows you to program the
Intel 440FX PCI chipset features. To access the CHIPSET
FEATURES SETUP screen, highlight this option on the
main menu screen and press <Enter>.

Figure 4-5: Chipset Features Setup Screen

Auto Configuration

Auto Configuration selects predetermined optimal values
of the chipset parameters. When Disabled, chipset param­eters revert to setup information stored in CMOS. Many
fields in this screen are not available when Auto Configu­ration is Enabled.

DRAM Speed Selection

The value in this field must correspond to the speed of the
DRAM installed in your system. Before changing this selec-

Stingray System Board Manual

43

Chapter 4: The BIOS Setup Utility

tion, verify the speed of the DRAM currently installed. This
value is access speed, so a lower value means a faster
system.

DRAM RAS# Precharge Time

The precharge time is the number of cycles it takes for the
RAS to accumulate its charge before DRAM refresh. If
insufficient time is allowed, refresh may be incomplete and
the DRAM may fail to retain data.

MA Additional Wait State

Selecting Enabled inserts an additional wait state before
the beginning of a memory read. The setting of this param­eter depends on the system board design. Do not change
from the manufacturer’s default setting unless you are
getting memory addressing errors.

Fast RAS# to CAS# Delay

This selection allows you to insert a timing delay between
the CAS and RAS strobe signals, used when DRAM is
written to, read from, or refreshed. Disabled gives faster
performance; and Enabled gives more stable performance.

DRAM Read Burst (B/E/F)

Set the timing for burst-mode reads from DRAM. The
lower the timing numbers, the faster the system addresses
memory

DRAM Write Burst (B/E/F)

Set the timing for burst-mode writes from DRAM. The
lower the timing numbers, the faster the system addresses
memory.

44

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

ISA Bus Clock

You can set the speed of the AT bus here. The settings are
tied to the speed of the PCI bus. If the PCI bus operates at
33 MHz, a setting of PCICLK/4 (default) would yield an
ISA bus speed of approximately 8 MHz, the standard speed
of the ISA bus. While most devices operate at higher ISA
bus speeds, try a slower bus speed if your ISA device does
not function properly at a high bus speed.

DRAM Refresh Queue

When Enabled, you can queue up to four DRAM refresh
requests, so DRAM can refresh at optimal times.
Disabled makes all refreshes priority requests.

DRAM RAS Only Refresh

An alternate to CAS-before-RAS refresh. Leave
Disabled (default) unless your DRAM requires this older
method of refresh generation.

DRAM ECC/Parity Select

Select Parity, ECC or Disabled, depending on the type of
DRAM installed in your system.

Fast DRAM Refresh

The cache DRAM controller offers two refresh modes,
Normal and Hidden. In both modes, CAS takes place
before RAS but the Normal mode requires a CPU cycle for
each. Alternately, a cycle is eliminated by “hiding” the
CAS refresh in Hidden mode. Not only is the Hidden
mode faster and more efficient, but it also allows the CPU
to maintain the status of the cache even if the system goes
into a power management “suspend” mode.

Stingray System Board Manual

45

Chapter 4: The BIOS Setup Utility

Read-Around-Write

DRAM optimization feature. If a memory read is addressed
to a location whose latest write is being held in a buffer
before being written to memory, the read is satisfied through
the buffer contents and is not sent to the DRAM.

PCI Burst Write Combine

When this selection is Enabled, the chipset assembles long
PCI bursts from the data held in these buffers.

PCI-To-DRAM Pipeline

DRAM optimization feature. When Enabled, full PCI-to­DRAM write pipelining is enabled. Buffers in the chipset
store data written from the PCI bus to memory. When
Disabled, PCI writes to DRAM are limited to a single
transfer per write cycle.

CPU-To-PCI Write Post

When this field is Enabled, writes from the CPU to the PCI
bus are buffered to compensate for the speed differences
between the CPU and the PCI bus. When Disabled, the
writes are not buffered and the CPU must wait until the
write is complete before starting another write cycle.

CPU-To-PCI IDE Posting

Select Enabled to post write cycles from the CPU to the PCI
IDE interface. IDE accesses are posted in the CPU to PCI
buffers, for cycle optimization.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM
at F0000h-FFFFFh, resulting in better system performance.
However, if any program writes to this memory area, a
system error may result.

46

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

Video RAM Cacheable

Selecting Enabled allows caching of the video BIOS ROM
at C0000h to C7FFFh, resulting in better video perfor­mance. However, if any program writes to this memory
area, a system error may result.

8-Bit/16-Bit I/O Recovery Time

The I/O recovery mechanism adds bus clock cycles be­tween PCI-originated I/O cycles to the ISA bus. This delay
takes place because the PCI bus is much faster than the
ISA bus. These two fields let you add recovery time (in bus
clock cycles) for 16-bit and 8-bit I/O.

Memory Hole at 15M-16M

You can reserve this area of system memory for the ISA
adapter ROM. When this area is reserved, it cannot be
cached.

DRAM Fast Leadoff

Select Enabled to shorten the leadoff cycles and optimize
performance.

Passive Release

This selection will enable or disable the CPU to PCI bus
accesses during passive release. When disabled, the arbi­ter only accepts another PCI master access to local DRAM.

Delayed Transaction

When enabled, this selection turns on compliance with
the PCI specification version 2.1 in regards to embedded
32-bit posted write buffer to support delay transaction
cycles. The default setting is Disabled.

Stingray System Board Manual

47

Chapter 4: The BIOS Setup Utility

Power Management Setup

The Power Management Setup option controls the power
management functions of the system. To access the
POWER MANAGEMENT SETUP screen, highlight this
option on the main menu screen and press <Enter>.

Figure 4-6: Po wer Management Screen

Power Management

This selection allows you to select the type (or degree) of
power saving for Doze, Standby and Suspend modes. See
the section PM Timers for a brief description of each mode.
The following table describes each power management
mode:

Max Saving Maximum power savings. Inactivity period is

User Define Set each mode individually. Select time-out

Min Saving Minimum power savings. Inactivity period is

48

1 minute in each mode.

periods in the PM Timers section.

1 hour in each mode (except the hard drive).

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

PM Control By APM

When enabled, power management is controlled by the
Advanced Power Management (APM) feature, which gives
better power savings. The default setting is Yes.

Video OFF Method

This selection defines the video off method in standby
mode. The following table describes each option:

SYNC+Blank System turns off vertical and horizontal

DPMS Support Select this option if your monitor supports the

Blank Screen System only writes blanks to the video buffer.

synchronization ports and writes blanks to the
video buffer.

Display Power Management Signaling
(DPMS) standard of the Video Electronics
Standards Association (VESA). Use the
software supplied for your video subsystem to
select video power management values.

Modem Use IRQ

Name the interrupt request (IRQ) line assigned to the
modem (if any) on your system. Activity of the selected
IRQ always awakens the system.

PM Timers

The following modes are Green PC power saving functions.
They are user-configurable only during User Defined Power
Management mode:

Sleep Mode

After the selected period of system inactivity (1 minute to
1 hour), the CPU clock runs at slower speed while all other
devices still operate at full speed.

Stingray System Board Manual

49

Chapter 4: The BIOS Setup Utility

Standby Mode

After the selected period of system inactivity (1 minute to
1 hour), the fixed disk drive and the video shut off while all
other devices still operate at full speed.

Suspend Mode

After the selected period of system inactivity (1 minute to
1 hour), all devices except the CPU shut off.

HDD Power Down

After the selected period of drive inactivity (1 to 15
minutes), the hard disk drive powers down while all other
devices remain active.

Wake-Up Events

You can turn On or Off monitoring of four commonly used
interrupt requests so they do not awaken the system from,
or reset activity timers for, Doze and Standby modes.

For example, if you have a modem on IRQ3, you can turn
On IRQ3 as a wake-up event, so an interrupt from the
modem can wake up the system. Or you may wish to turn
Off IRQ12 (the PS/2) mouse as a wake-up event, so
accidentally brushing the mouse does not awaken the
system. The default wake-up event is keyboard activity.

Power Down and Resume Events

You can disable monitoring of common interrupt requests
so they do not awaken the system from, or reset activity
timers for Suspend mode.

50

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

PnP/PCI Configuration Setup

The PnP/PCI Configuration Setup option sets the various
system functions and internal addresses of PnP and PCI
devices and onboard PCI IDE controller. To access the
PnP/PCI CONFIGURATION SETUP screen, highlight
this option on the main menu screen and press <Enter>.

Figure 4-7: PnP/PCI Configuration Screen

PnP OS Installed

When set to Yes, this selection allows the system to work
with a Plug and Play (PnP) operating system such as
Windows 95. The PnP BIOS will configure only PCI and
ISA Plug and Play cards needed to boot the system, and
allow the operating system or device drivers to configure
the remaining cards. The default setting is No.

Resources Controlled By

The Stingray Plug and Play BIOS can automatically con­figure all the boot and Plug and Play-compatible devices.
If you select Auto, all the interrupt request (IRQ) and

Stingray System Board Manual

51

Chapter 4: The BIOS Setup Utility

DMA assignment fields disappear, as the BIOS automati­cally assigns them.

Reset Configuration Data

Select Enabled to reset Extended System Configuration
Data (ESCD) when you exit Setup. This selection allows
the PnP BIOS to detect your PCI and ISA PnP devices and
reallocate resources to them. The default setting is Dis­abled.

IRQ n Assigned To

When resources are controlled manually, assign each sys­tem interrupt as one of the following types, depending on
the type of device using the interrupt:

Legacy ISA Devices compliant with the original PC AT

bus specification, requiring a specific inter­rupt (such as IRQ4 for COM 1) or older
ISA cards that use jumpers to adjust re­sources.

PCI/ISA PnP Devices compliant with the Plug and Play

standard, whether designed for PCI or ISA
bus architecture.

DMA n Assigned To

When resources are controlled manually, assign each sys­tem DMA channel as one of the following types, depending
on the type of device using the interrupt:

Legacy ISA Devices compliant with the original PC AT

bus specification, requiring a specific DMA
channel or older ISA cards that use jump­ers to adjust resources.

PCI/ISA PnP Devices compliant with the Plug and Play

standard, whether designed for PCI or ISA
bus architecture.

52

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

Load BIOS Defaults

This selection loads the BIOS default values that would
allow safe booting of the system in the event of a BIOS
configuration memory loss. To select LOAD BIOS
DEFAULTS, highlight this option on the main menu screen
and press <Enter>. Press <Y> or <N> when the pro­gram prompts you with the Load BIOS Defaults question.

Load Setup Defaults

This selection allows automatic configuration of all the
options in the Standard CMOS Setup, BIOS Features
Setup and Chipset Features Setup with the setup defaults.
If problems are encountered after loading the setup de­faults, reboot the system and load the BIOS defaults. To
select LOAD SETUP DEFAULTS, highlight this option on
the main menu screen and press <Enter>. Press <Y> or
<N> when the program prompts you with the Load Setup
Defaults question.

Stingray System Board Manual

53

Chapter 4: The BIOS Setup Utility

Integrated Peripherals

This option sets the addresses of I/O subsystems that
depend on the integrated peripherals controller in your
system. To access the INTEGRATED PERIPHERALS
screen, highlight this option on the main menu screen and
press <Enter>.

Figure 4-8: Integrated P eripherals Configuration Screen

IDE HDD Block Mode

Block mode is also called block transfer, multiple com­mands, or multiple sector read/write. If your IDE hard
drive supports block mode (most new drives do), select
Enabled (default) for automatic detection of the optimal
number of block read/writes per sector the drive can
support.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields
allow you to set a PIO mode (0-4) for each of the four IDE

54

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In
Auto (default) mode, the system automatically deter­mines the best mode for each device.

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE in­terface with support for two IDE channels. Select Enabled
to activate each channel separately.

PCI Slot IDE 2nd Channel

You may separately disable the second channel on an IDE
interface installed in a PCI expansion slot.

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller
installed on the system board and you wish to use it. If you
install an add-in controller or the system has no floppy
drive, select Disabled (default).

Onboard Serial Port 1/Serial Port 2

Select a logical COM port name and matching address for
the first and second serial ports.

Onboard Parallel Port

Select an address and interrupt for the physical parallel
(printer) port.

Parallel Port Mode/Type

Select an operating mode for the onboard parallel (printer)
port. Select Normal (default) unless your hardware and
software require one of the other modes offered in this
field.

Stingray System Board Manual

55

Chapter 4: The BIOS Setup Utility

ECP Mode Use DMA

Select a DMA channel for the parallel port when using
ECP (Expanded Capabilities Port) mode.

Infrared Duplex Type

Select the value required by the IR device connected to
the IR port. Full Duplex Mode (default) permits simulta­neous two-direction transmission. Half Duplex Mode per­mits transmission in one direction at a time.

USB Support

Select Enabled (default) if your system contains a Univer­sal Serial Bus (USB) controller and you have USB periph­erals.

Stingray System Board Manual56

Chapter 4: The BIOS Setup Utility

Supervisor Password

The Supervisor Password utility allows you to setup, change
or disable the password stored in the BIOS. The Supervisor
Password allows access to the system and Setup. To setup
or change a password, highlight the SUPERVISOR PASS­WORD option on the main menu screen and press <En­ter>.

The password can be no more than eight characters long.
The program will prompt you to confirm the new password
before exiting and enabling the utility. To disable the
password, press <Enter> when the program prompts you
to enter the new password.

WARNING: If you forget the Supervisor Password, it cannot be
disabled without resetting the CMOS.

User Password

The User Password utility allows you to setup, change or
disable the password stored in the BIOS. Follow the same
procedure used to setup the Supervisor Password. The
User Password allows access to the system, but will not
allow you to modify the CMOS settings.

Stingray System Board Manual

57

Chapter 4: The BIOS Setup Utility

IDE HDD Auto Detection

The IDE HDD Auto Detection option provides auto
configuration of the hard drive installed in your system. To
access the IDE HDD Auto Detection screen, highlight
this option on the main menu screen and press <Enter>.

Figure 4-9: IDE HDD Auto Detection Screen

The IDE HDD Auto Detection option provides auto
configuration of the hard drive installed in your system. It
supports LBA, Large and Normal modes.

If your hard disk drive’s capacity is under 528MB, select
Normal mode. NOTE: It is recommended that you select
Normal mode for your hard disk drive if you will be using
UNIX. If the system’s hard disk drive has a capacity of over
528MB and supports LBA functions, you may enable either
the LBA mode or the Large Mode.

58

Stingray System Board Manual

Chapter 4: The BIOS Setup Utility

HDD Low Level Format

Micronics recommends that only trained technicians use this
utility. This selection allows you to perform a low level

format of your hard disk drive. To select the HDD LOW
LEVEL FORMAT option, highlight this option on the main
menu screen and press <Enter>.

Figure 4:10: HDD Low Level Format Screen

The selections available are: Low Level Format Utility,
Select Drive Bad Track List and Preformat.

Stingray System Board Manual

59

Chapter 4: The BIOS Setup Utility

Save and Exit Setup

This selection saves the changes you have made in the
setup program, then exits and reboots the system. After
making all modifications in the setup program, exit to the
main menu screen. Highlight the SAVE AND EXIT SETUP
option and press <Enter>. Press <Y> to confirm the
changes made and <N> or <ESC> if additional modifi­cations are needed before exiting the setup program.

Exit Without Saving

This selection abandons all previous settings, then exits
and reboots the system. From the main menu screen
highlight the EXIT WITHOUT SAVING option and press
<Enter>. Press <Y> and the system will exit the setup
program, then reboot without saving any of the changes
made.

60

Stingray System Board Manual

Appendix A: Technical Information

Appendix

A

Specifications

Part Number: 09-00311

Processor: Single Intel Slot 1

Intel Pentium
Integrated Voltage Regulator Module

Chipset: Intel 440FX PCI chipset

Intel PIIX 3
SMC FDC37C932 Ultra I/O chip

CPU Clock Select: Support for 66MHz CPU bus speed

configurations.

Form Factor: ATX form factor

Expansion: Four 32-bit PCI slots

Four 16-bit ISA slots
One is a shared PCI/ISA slot

BIOS: Award BIOS w/ 1MB Flash

PCI auto configuration
APM 1.2
Auto-detection of memory size
Auto-detection and display of ECC
and EDO memory.
Auto-configuration of IDE disk drives
Soft Power Down
Multi-boot II
DMI





II - 233/266/300MHz

Memory : Maximum Memory - 1 GByte

Four 72-pin SIMM sockets
Two 3.3V unbuffered 168-pin
DIMM sockets.
Supports FPM and EDO memory
ECC supported via chipset

Stingray System Board Manual

61

Appendix A: Technical Information

Keyboard/Mouse: PS/2 style keyboard and mouse connectors

Cache: 256 or 512K Pipelined Burst Level 2 cache in

CPU package.

I/O Ports: Two high speed serial ports (16550 compatible)

Enhanced 25-pin parallel port w/ EPP and ECP
IrDA compliant IR header
Two USB ports via cable w/ bracket

Floppy Port: Supports two floppy drives

(2.88MB, 1.44MB, 1.2MB, 720KB, 360KB).

PCI IDE Ports: Two 40-pin IDE connectors

(Primary and Secondary IDE).
Multiple sector transfer support
Auto detection of add-in IDE board

Environmental Specifications

The environment in which the Stingray is located is critical.
Micronics recommends the following environmental specifications:

Temperature Range

Operating: 50 to 104 degrees Fahrenheit (10 to 40 degrees Celsius).
Non -Operating: 50 to 140 degrees Fahrenheit (10 to 60 degrees
Celsius). Shipping: -22 to 140 degrees Fahrenheit (-30 to 60 degrees
Celsius).

Relative Humidity

Operating: 20% to 80%.
Non-Operating: 5% to 90%.

62

Stingray System Board Manual

Appendix A: Technical Information

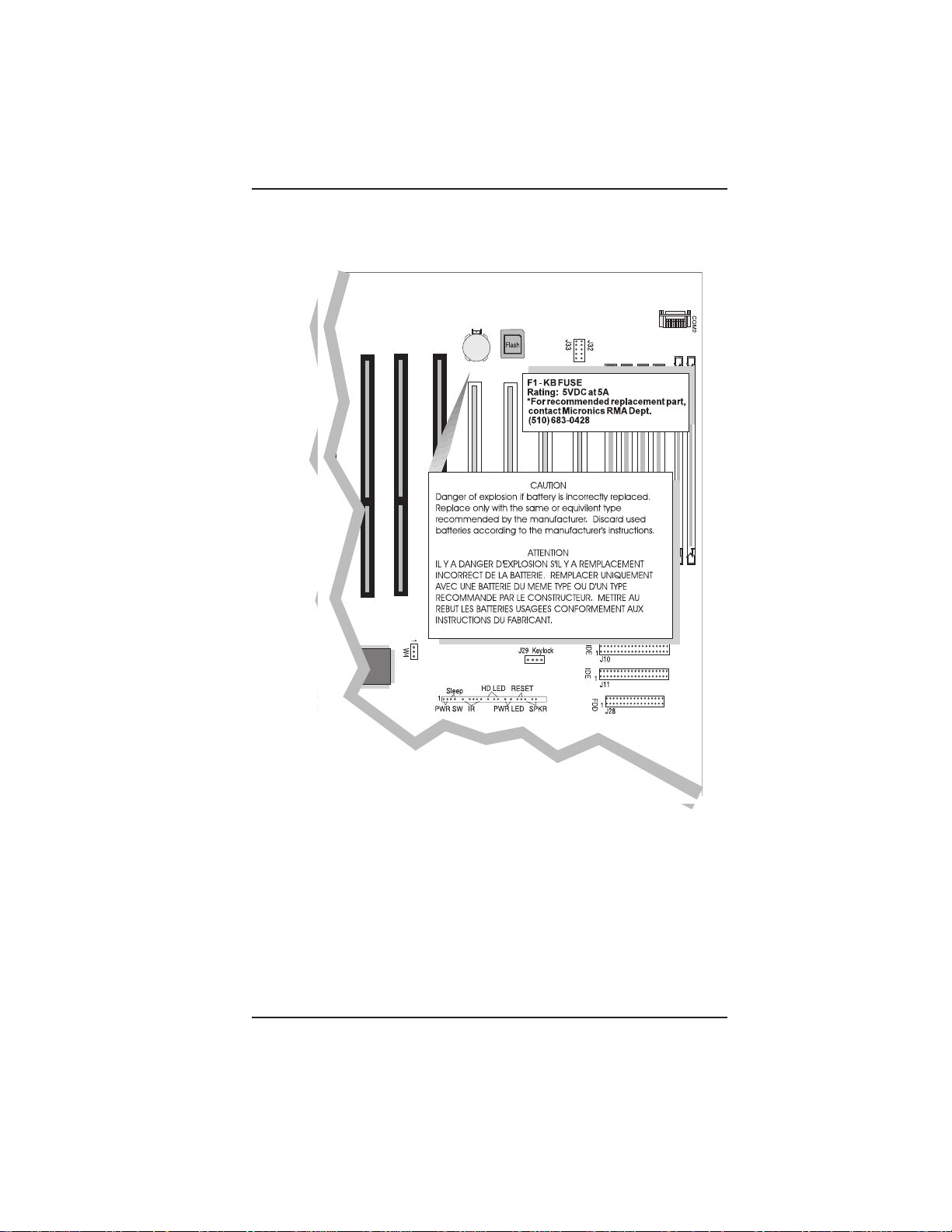

Battery Disposal

WARNING:

Please do not open battery, dispose of in fire, recharge, put in
backwards or mix with used or other battery types. The battery may
explode or leak and cause personal injury.

Stingray System Board Manual

63

Appendix A: Technical Information

Support and Information Services

Micronics offers a variety of support and information services
to help you get the most from your product. The following
services are available:

▲ Technical Support
▲ Electronic Bulletin Board Service (BBS)
▲ Return Materials Authorization (RMA)
▲ Fax-On-Demand
▲ World Wide Web
▲ Customer Service

Refer to Table A-1 for details on these services.

Technical Support

If you need technical assistance, our Technical Support
Engineers will be glad to help you. You can contact us via
telephone, fax or BBS. Before calling Technical Support
please have the following information ready:

❏ The model name and 09 part number of your Micronics

product, which is silk screened on the face of the Stingray
system board.

❏ Your computer information such as CPU type, operat-

ing system, amount of installed memory and other
peripherals installed in your computer.

❏ Try to call from the location of your computer.

NOTE: For Return Material Authorization purposes, please
keep a copy of your product receipt.

64

Stingray System Board Manual

Appendix A: Technical Information

Service Hours Country Telephone Number

Technical Support - Live phone help
from Technical Support Engineers

Electronic Bulletin Board Service
(BBS) - Information on software
upgrades, new releases and other
helpful information

RMA (Return Materials Authorization)

- Return products for repair

Fax-On-Demand - Automated system
for product literature, technical
bulleti ns and oth er hel pful in formation

World Wide Web - Product
information, technical support, press
releases and other helpful information

Customer Service - Order Micronics
and Orchid products

M-F: 7:00am to

5:00pm (PST)

24 hours a day

7 days a week

"

M-F: 8:00am to

4:45pm (PST)

24 hours a day

7 days a week

24 hours a day

7 days a week

"

M-F: 8:00am to

5:00pm (PST)

USA

France

USAUK(510) 651-6837

USA [phone]

USA [phone]

USA

Europe

USA

France

Germany

Taiwan

[phone]
[phone] (Fax)
[phone]
[phone] (Fax)

UK

[phone]
[phone] (Fax)

14400 baud rate, Parity=N,
Data Bits=8, Stop Bits=1
YMODEM and ZMODEM
(recommended file transfer
protocols)
[phone]

[phone] (Fax)

http://www.micronics.com

http://www.mcrni.com
[phone]

[phone] (Fax)
[phone]
[phone] (Fax)

UK

[phone]
[phone] (Fax)
[phone]
[phone] (Fax)
[phone]
[phone] (Fax)

T a ble A-1: Support and Information Services

Stingray System Board Manual

65

Appendix A: Technical Information

66

Stingray System Board Manual

Appendix B: POST Messages

,

y

q

y

y

,

y

y

y

y

y

g

y

g

g

g

y

j

g

y

y

g

g

y

Appendix

B

POST Messages

During the Power-On Self Test (POST), the BIOS either
sounds a beep code or displays a message when it detects
a correctable error. Currently the only beep code indi­cates that a video error has occurred and the BIOS
cannot initialize the video screen to display any addi­tional information. The beep code consists of a single
long beep followed by two short beeps.

Message Possible Cause Solution

BIOS ROM
CHECKSUM ERROR

- SYSTEM HAL TED

CMOS BATTERY
FAILED

CMOS CHECKSUM
ERROR-DEFAULTS
LOADED

DISKETTE DRIVES
OR TYPES
MISMATCH ERROR

DISPLAY SWITCH I S
SET INCORRECTLY

KEYBOARD ERROR
OR NO KEYBOARD
PRESENT

The checksum of the
BIOS code in the BIOS
chip is incorrect
indicating the BIOS code
ma

have become

corrupt .
CMOS batter

longe r functional.
Checksum of CMOS is

incorrect
loads the default
equip m ent conf iguration.

Type of diskette drive
installed in the s
different from the CMOS
configuration.

The display switch on
the s
set to either
monochrome or co l or .
This messa
the switch is set to a
different settin
indicated i n Setup.

Cannot init ialize the
keyboard.

is no

so the system

stem i s

stem board can be

e indicates

than

uires a BIOS

Re
replacement.

Requires a batter
replacement.

This error ma
been caused b
weak batter
the batter
if necessary.

Run Se tup to
reconfi
type correctly.

Determine which
settin
either turn off the
s

ste m and change the

umper, or enter Setup
and chan
selection.

Make sure the
ke

board is attac hed
correctl
are pressed durin
POST. Check the Halt
On confi
Setup. Ma
replacem ent of
keyboard.

have

. Check

and replace

ure the drive

is correct. Then

e the Video

and no keys

urati on in

require

a

Stingray System Board Manual

67

Appendix B: POST Messages

y

y

g

j

)

y

y

,

y

,

)

y

g

g

g

y

y

y

y

y

y

y

y

y

y

y

y

Message Possible Cause Solution

KEYBO AR D IS
LOCKED OUT ­UNLOCK THE KEY

FLOPPY D I SK(s
FAILED

HARD DISK INSTALL
FAILURE

HARD DISK(s
DIAGNOSTICS
FAILED

PRIMARY MASTER
HARD DISK FAILED

PRIMARY SLAVE
HARD DISK FAILED

SECONDARY
MASTER HARD
DISK FA ILED

SECONDARY
MASTER HARD
DISK FA ILED

This message usuall
indicates that one or
more ke
pressed durin
keyboard tests.

Cannot find or initialize
the flopp
controller or the drive.

Cannot find or initialize
the hard drive controller
or the drive.

The s
specific disk dia
routines. This messa
appears if one or more
hard disks return an
error when runnin
diagnostics.

POST detects an error
in the primar
IDE hard drive.

POST detects an error
in the secondar
IDE hard drive.

POST detects an error
in the primar
hard drive.

POST detects an error
in the secondar
IDE hard drive.

s have been

the

drive

stem may run

nostic

master

master

slave IDE

slave

Be sure no ob
resting on the keyboard.

Make sure the cont rol l er
is installed correctly. If
no flopp
installed
Diskett e D ri ve se l ection
in Setup is set to None
or Auto.

Make sure the cont rol l er
is installed correctl
no hard drives are
installed
Hard Drive selection in
Setup is set to None.

Rerun Setup and check
connections. Ma

e

require a hard disk
replacement.

the

Ma
replaceme nt of the
primar
disk.

Ma
replaceme nt of the
secondar
disk.

Ma
replaceme nt of the
primary hard disk.

Ma
replaceme nt of the
secondar
disk.

ects are

drives are

be sure the

. If

be sure the

require a

master hard

require a

master hard

require a

require a

slave hard

68

Stingray System Board Manual

Appendix B: POST Messages

g

y

g

y

y

y

y

y

,

y

g

g

,

g

,

Message Possible Cause Solution

MEMORY TEST
FAILE D

MEMORY PARITY

ERROR AT........

PRESS F1 TO
DISABLE NMI
REBOOT

OVERRIDE
ENABLED ­DEFAULTS LOADED

F2 TO

If POST detects an
error durin
testing, additional
information appears

iving specifics about
the t
the memory error.

Indicates a memor
parity error at a specific
location.

The BI OS de tect ed a
nonmaskable Interrupt
condition during boot.

If the system cannot
boot usin
CMOS confi
the BIOS can override
the current
configuration.

memor

pe and location of

the current

uration

Ma
of defective memory.

You c a n use t his
loca tion alo ng with the
memor
s
replace the defective
memory chips.

Reboot the s
the NMI enabled.

The BIOS contains a set
of defaults desi
the most stable
minimal-performance
system operations.

require replacement

map for your

stem to find and

stem with

ned for

Stingray System Board Manual

69

Appendix B: POST Messages

70

Stingray System Board Manual

Appendix C: Updating the System BIOS

Appendix

C

Updating the System BIOS

The Micronics system boards are designed so that the
BIOS can be reprogrammed using a BIOS file. You can
easily FLASH a BIOS by following the steps below:

1) After downloading the appropriate BIOS file from
our BBS or Website, extract it to a bootable MS­DOS 6.X or Windows 95 diskette.

2) If you are using MS-DOS 6.X, reboot your system
with the bootable diskette in the A: drive. To make
sure a clean DOS environment is loaded, press the
F5 key while "Starting MS-DOS" is displayed. After
the system has rebooted, the cursor will appear at
the A:\> prompt.

3) If you are using Windows 95, press F8 when you see
"Starting MS Windows 95." Select the option "Safe
Mode Command Prompt."

4) Now you can run the FLASH utility from the A:\>
prompt. For example, to update the Stingray to
BIOS version XX, you would type:

If you
encounter
any
problems
during this
process, or
if you have
questions
about the
procedure,
please call
Technical
Support.

A:\>AWDFLASH STNGRYXX.BIN [ENTER]

5) After the FLASH screen appears, select [Y]es to save
the current BIOS or [N]o if you do not want to save
the current BIOS. NOTE: It is recommended that
you save the current BIOS.

6) When prompted, select [Y]es to reprogram the
BIOS.

7) After the update process has completed, you will be
prompted to power off or reset your system. Once
the system reboots, verify that the new BIOS version
appears on the screen. NOTE: After reprogram­ming the BIOS, you may need to enter Setup and
reset your settings.

Stingray System Board Manual

71

Appendix C: Updating the System BIOS

NOTE: If the BIOS is somehow erased or does not seem to
accept the upgrade, you can purchase a new BIOS from
MicroNiche Information Systems (800-733-9188). There is
a $30.00 fee plus shipping charges for this service. (Price and
availability subject to change.)

If you prefer to send your system board in for the upgrade,
the Micronics RMA department offers this service free of
charge if your system board is under warranty.

72

Stingray System Board Manual

Appendix D: Warranties and Notices

Appendix

D

Limited Warranty

Except as described below, Micronics warrants the prod­ucts to be free from defects in material and workmanship in
normal use for a period of one (1) year from date of pur­chase. Should any product fail to perform according to this
warranty at any time during the warranty period, except as
provided below, Micronics or its authorized service centers
will, at Micronics’ option, repair or replace the product at no
additional charge.

The warranty does not cover loss or damage which occurs
in shipment or which is due to: (1) improper installation
or maintenance, misuse, neglect or any cause other than
ordinary commercial application, including without limi­tation, accidents or acts of God; (2) adjustment, repair, or
modification by other than a Micronics authorized service
center; (3) improper environment, excessive or inad­equate heating or air conditioning, or electrical power
failures, surges or other irregularities; (4) any statement
about the product other than those set forth in this
warranty; or (5) nonconformity to models or samples
shown to the purchaser. Any models or samples were for
the sole purpose of suggesting the character of the product
and are not intended to form the basis of the bargain.

A receipt or copy of the invoice with the date of purchase
from a Micronics reseller is required before any warranty
service can be rendered. Service can be obtained by
calling Micronics for a Return Merchandise Authoriza­tion (RMA) Number.

The RMA Number should be prominently displayed on
the outside of the shipping carton of the returned product.
Returned product should be shipped prepaid or hand
carried to Micronics. The purchaser assumes risk of loss or
damage in transit, and unless otherwise agreed to in
writing by Micronics, will pay inbound shipping charges.

The exclusive remedy of the purchaser under this war­ranty above will be repair or replace at Micronics’ option,

Stingray System Board Manual

73

Appendix D: Warranties and Notices

but if for any reason that remedy should fail of its essential
purpose, the exclusive remedy of the purchaser shall then be
actual damages up to amounts paid for the defective prod­uct by the purchaser. This limited warranty shall be deemed
to “fail of its essential purpose” if, after repeated efforts,
Micronics is unable to make the product operate as war­ranted. Micronics’ liability for damages to the purchaser for
any cause whatsoever; regardless of the form of action and
whether in contract or in tort, shall be limited to the
purchase price in effect when the cause of action arose for
the product that is the basis of the claim.

Micronics will not be liable for any lost profits or any indirect,
special incidental or consequential damages in connection
with the product, even if Micronics has been advised of the
possibility of such damages.

Micronics makes no warranties or representations as to
performance of products or as to service to distributor or
to any person, except as set forth in Micronics; limited
warranty accompanying delivery of product.

Micronics disclaims all other warranties whether oral,
written, expressed, or implied, including without limita­tion, the warranties of design, merchantability, or fitness
for a particular purpose, if applicable, or arising from a
course of dealing, usage or trade practice.

Non-Warranty Service

After the one year warranty service is no longer in effect,
repair service is still available for Micronics products. For
more information, contact Micronics’ RMA department
at [phone]. The RMA department is open between
8:30 A.M. and 4:45P.M. Pacific Standard Time.

74

Stingray System Board Manual

Appendix D: Warranties and Notices

FCC Statement

This equipment has been tested and found to comply
within the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer­ence in a residential installation. This equipment gener­ates, uses and can radiate radio frequency energy and, if
not used in accordance with the instructions, may cause
harmful interference to radio communications. Interfer­ence to radio or television reception can be determined by
turning the equipment off and on. You are encouraged to
try to correct the interference by one or more of the
following measures:

▲ Reorient the receiving antenna.
▲ Increase the separation between the equipment and

the receiver.

▲ Connect the equipment into an outlet on a circuit

different from that to which the receiver is con­nected.

▲ Consult your dealer or an experienced radio/TV

technician for help.

To meet FCC requirements, shielded cables are required.

NOTE: Changes or modifications not expressly approved by
Micronics could void your authority to operate the equipment.

Stingray System Board Manual

75

Glossary

Glossary

16550 UART - A high speed chip for
controlling serial ports. Although un­necessary for a mouse, it is required for
modems that are 14,400 baud or faster.

APM - An acronym for Advanced
Power Management.

The APM speci­fication defines a layer of software
that supports power management
in computers with power manage­able hardware.

Asynchronous - Operations that do
not require the clocks of communicat­ing devices to be coordinated. See Syn­chronous.

ATX - A system board size measuring
approximately 12” x 9.6”.

Bidirectional Parallel Port - A type of
parallel port that can send and receive
information.

BIOS - An Acronym for Basic Input/
Output System. Configures the system
board and provides hardware informa­tion to the operating system.

Bit - A contraction of Binary digit.
The smallest unit of information in a
binary number system. A bit repre­sents a choice between either zero or
one.

Boot - To start up the computer and
load the operating system software. See
cold boot and warm boot.

Buffered DIMMs - The 168-pin buff­ered DIMM modules use buffer logic
chips on their control lines to reduce
loading on the system board. This buff-

ering action increases the maximum
number of modules on the same sys­tem board. The buffered DIMMs come
with standard DRAM chips for either
5V or 3.3V operation.

Bus - A group of electronic paths used
to send data between parts of the sys­tem. On a system board, the bus con­nects the peripheral cards with the
microprocessor via the expansion slots.

Bus Mastering - The ability of a
peripheral card to control the bus
without requiring intervention of the
CPU.

Byte - A group of adjacent bits treated
as a unit. Eight bits are typically con­sidered one byte. Also called a char­acter.

Cache - A process where information
is copied from the slower memory
(DRAM) to the faster memory
(SRAM). Information that is likely to
be read or edited is stored in the cache
providing significant performance in­creases.

Cache Hit - The percentage of request
for data from memory that can be
served from the cache.

Cache Miss - A memory access which
cannot be supplied from cache.

Cold Boot - Starting the computer by
turning on the power or pressing the
RESET button. A cold boot makes the
processor execute all of the diagnos­tics. See boot and warm boot.

76

Stingray System Board Manual

Glossary

CPU - An acronym for Central Pro­cessing Unit. A CPU performs arith­metic calculations, makes logical
decisions, and directs the operation of
the computer in conjunction with the
operating system.

DIMM - An acronym for Dual Inline
Memory Module. A small printed cir­cuit board containing memory chips.

Disk Drive - A hardware device which
provides for the storage of data on dis­kettes or hard metal disks that have a
magnetic coating. A disk drive func­tions by spinning at high speed while
moving a device called the read/write
head across the disk’s surface in order
to read or write data in magnetic code.

DMI - An acronym for Desktop Man­agement Interface. DMI makes hard­ware inventory easier. It defines a for­mat of a management agent for desk­top systems. Its layered-model architec­ture allows a wide range of software and
hardware components to pass informa­tion about themselves to an asset man­agement system.

DRAM - An acronym for Dynamic
Random Access Memory. A type of
memory chip that only keeps its
memory if supplied with regular clock
pulses and a chance to regularly refresh
its data. It is slower and more cost ef­fective than SRAM. See SRAM.

ECC - An acronym for Error Check­ing and Correction. ECC is logic de­signed to correct memory errors. The
number of errors that can be corrected
depends upon the algorithms used, and
the number of error correction bits
(non-data bits) present.

ECP - An acronym for Expanded
Capabilities Port. A standard set by
Hewlett Packard and Microsoft Corpo­ration to expand the capabilities of the
parallel port.

EDO Memory - An acronym for Ex­tended Data Out. A DRAM perfor­mance feature that permits multiple bit
of data in a single row to be accessed
quickly.

EPP - An acronym for Enhanced Par­allel Port. A standard which increases
the capabilities of the parallel port.

EPROM - Acronym for Erasable Pro­grammable Read Only Memory. A
type of ROM chip that can be pro­grammed with relatively simple tools
that will retain its data until erased. It
can only be erased by exposing the cir­cuitry in the chip to ultraviolet light.
See also Flash ROM.

Flash ROM - A type of ROM chip that
will retain its data until erased. It can
be erased or reprogrammed by supply­ing it with +12V of voltage. See ROM
and EPROM.

FPM - An acronym for Fast Page
Mode. A timing option that permits
several bits of data in a single row on a
DRAM to accessed at an accelerated
rate.

Gigabyte - A disk storage capacity
measurement. Approximately one
thousand megabytes or 1,073,741,824
bytes.

Stingray System Board Manual

77

Glossary

IDE - An acronym for Integrated
Device Electronics. A standard for
communicating between a hard drive
and a computer.

Internal Cache - Cache which is built
into the CPU. See Cache.

ISA - An acronym for Industry Stan­dard Architecture. A well-established
bus standard that originated with the
IBM AT. See PCI and VESA Local Bus.

NS - An acronym for Nanosecond.
One billionth of a second. Measure of
the access time of RAM.

Parallel - A form of data transmission
in which the data is sent one byte at a
time over several wires that each carry
one byte. In parallel transmission, all
the bytes arrive simultaneously, as op­posed to serial transmission in which
bits arrive one by one.

Parallel Port - A connection for a
printer or similar peripheral. Generally,
parallel ports are output only. See Bi­directional Parallel Port and ECP.

Parity - Logic that detects the presence
of an error in memory. Generally, a
single parity bit is used for each byte
(8 bits) of data. The most commonly
used forms of parity are even parity,
odd parity and checksums.

PCI - An acronym for Peripheral Com­ponent Interconnect. A high perfor­mance 32-bit or 64-bit bus developed
by Intel Corporation. PCI is
designed to be independent of the

hardware architecture to ensure com­patibility with future computer sys­tems. See VESA Local Bus and ISA.

Pentium - A high performance 64-bit
CISC processor designed and manufac­tured by Intel Corporation.

Pipeline - In DRAMs and SRAMs, a
method for increasing the performance
using multistage circuitry to stack or
save data while new data is being ac­cessed.

Plug and Play - A standard developed
to ensure easy installation of peripher­als. Theoretically, a newly installed
card will automatically configure itself
and work properly without requiring
jumper configuration or device drivers.

POST - An acronym for Power On Self
Test. A diagnostic program that is run
whenever the system is cold booted.

RAM - An acronym for Random
Access Memory. A type of memory
that is used as the “working memory”
of a computer system. See DRAM and
SRAM.

ROM - An acronym for Read Only
Memory. A type of memory that re­tains its data without requiring power.
Once written, it cannot be modified.
See EPROM and Flash ROM.

Serial Port - A communications port
used to connect peripherals such as
modems and mice.

Setup - A program that allows you to
make changes to the system configura­tion.

78

Stingray System Board Manual

Glossary

Shadow RAM - A technique used to
load a duplicate copy of BIOS from
slower ROM into faster RAM. This
enhances system performance because
it provides higher access speed to the
BIOS.

SIMM - An acronym for Standard
Inline Memory Module. A small
printed circuit board containing
memory chips.

SRAM - An acronym for Static Ran­dom Access Memory. A type of
memory that can retain data without
requiring a regular clock signal.
Although they are faster than DRAM,
they hold less data and are more ex­pensive.

Synchronous Cache - A type of cache
that uses a clock signal to latch the
inputs and the data output. This struc­ture spreads the cache access across
two or three cycles while maintaining
a bandwidth of one access per cycle.
Improves performance by 5-10%.

jumper cables, software drivers, IRQ set­tings, DMA channels and I/O addresses.
With USB, you can attach and detach
peripherals without opening the com­puter or even shutting it down.

VESA - An acronym for Video Elec­tronics and Standards Association.

VESA Local Bus (VL-Bus) - A high
performance bus designed by VESA. A
32-bit version of the ISA bus which op­erates at the speed of the computer’s
CPU. See PCI and ISA.

VRM - Voltage Regulator Module.
Supplies CPU specific voltages for the
Secondary CPU.

Warm Boot - Restarting the system by
simultaneously pressing the <Ctrl>,
<Alt> and <Delete> keys.

Write-Back Cache - Upon a cache hit,
the cache is updated and the main
memory is not affected. Upon a cache
miss, only the main memory is updated.

Unbuffered DIMMs - The unbuffered
DIMM modules do not use any buffer
logic chips, thus achieving faster op­eration due to the elimination of the
propagation delay of the logic buffer.
This increase in speed comes at the
cost of reducing the maximum number
of modules on the same system board.

USB - An acronym for Universal Se­rial Bus. The simple and flexible way
to connect devices to your desktop or
notebook PC. USB allows virtually un­limited PC expansion with no more
hassles over add-in cards, dip switches,

Stingray System Board Manual

79

Index

Index

B

Battery Disposal - 63
POST Messages - 67
BIOS

Configuration - 35
Setup - 35

Bulletin Board System (BBS) - 65

C

Configuring the Stingray - 13

D

Diagram (Stingray) - 14

80

E

Extended Data Out (EDO) Memory - 17, 19
Environmental Specifications - 62
Error Checking (ECC) - 17, 19

F

Fast Page Mode (FPM) Memory - 17, 19

H

Help

Bulletin Board System (BBS) - 65
Telephone Numbers - 65
Troubleshooting - 67

Stingray System Board Manual

I

Installation

CPU - 28
Installing your Stingray - 9
ISA Peripheral Card - 34
PCI Peripheral Card - 33
Quick Installation - 9

J

Jumper Settings - 15

M

Stingray System Board Diagram - 14
Memory

Configurations - 22
Installing - 26, 27
Removing - 26, 27
Supported - 19

Index

O

Online Services - 65

P

POST Messages - 67

S

Specifications - 61
System BIOS - 35, 71

Stingray System Board Manual

81

Index

T

Technical Specifications - 61
Technical Support - 64
Troubleshooting - 67

U

Updating the System BIOS - 71
Utility Programs

BIOS Features Setup - 40
Chipset Features Setup - 43
Exit Without Saving - 60
HDD Low Level Format - 59
IDE HDD Auto Detection - 58
Integrated Peripherals - 54
Load BIOS Defaults - 53
Load Setup Defaults - 53
PnP/PCI Configuration Setup - 51
Power Management Setup - 48
Save and Exit Setup - 60
Standard CMOS Setup - 38
Supervisor Password - 57
User Password - 57

82

W

World Wide Web - 65

Stingray System Board Manual
