Micronics Mpower 4 Plus User Manual

Mpower 4 plus

System Board Manual

.

Document Number: 06-00229-01, Ver. A
August 1994
Printed in the USA

Mpower 4 plus

SYSTEM BOARD

MANUAL

Document Number: 06-00229-01, Ver. A

221 Warren Ave., Fremont, CA 94539-7085

August 1994

Copyright Notices

Micronics Computers, Inc.

The information contained in the Mpower 4 plus system board manual has
been carefully checked and is believed to be accurate. Micronics assumes no
responsibility for any inaccuracies that may be contained in this document.
Micronics makes no commitments to update or to keep the information in this
manual at a current level when changes are made to the product.

Micronics reserves the right to make improvements to this document and/or
product at any time and without notice.

All Rights Reserved. No part of this document may be photocopied, repro­duced, translated, or reduced to any medium or machine form without prior,
written consent from Micronics.

COPYRIGHT (C) 1994, Micronics Computers, Inc.
232 E. Warren Ave., Fremont, California 94539-7085

Portions of the Manual

Portions of this manual were copied (with permission) from Phoenix Tech­nologies, Ltd. Copyright 1994. All rights reserved.

Trademarks

IBM is a registered trademark of International Business Machines. Microsoft,
Microsoft Word, Windows are registered trademarks of Microsoft Corpora­tion. Intel is a registered trademark of Intel Corporation. UNIX is a registered
trademark of AT&T Corporation. Lotus 1-2-3 is a registered trademark of
Lotus Development Corp. All other product names mentioned herein are used
for identification purposes only and may be the trademarks of their respective
companies.

ii

Micronics Quick Installation

We know that many experienced people prefer to read as little of the documen­tation as possible. If this sounds like you, here's the short form:

1. Ground yourself to prevent damaging static discharge, then remove the
Mpower 4 plus from its packaging.

2. Configure and verify the system board's jumper settings. (See Jumper
Settings in Chapter 2)

3. Install the CPU and the system memory. (See Chapter 3)

4. Install the system board into the system case and make all of the necessary
case connections.

5. Install any peripherals (see Chapter 3). It is best not to put the computer
cover on until you have verified the system is working properly.

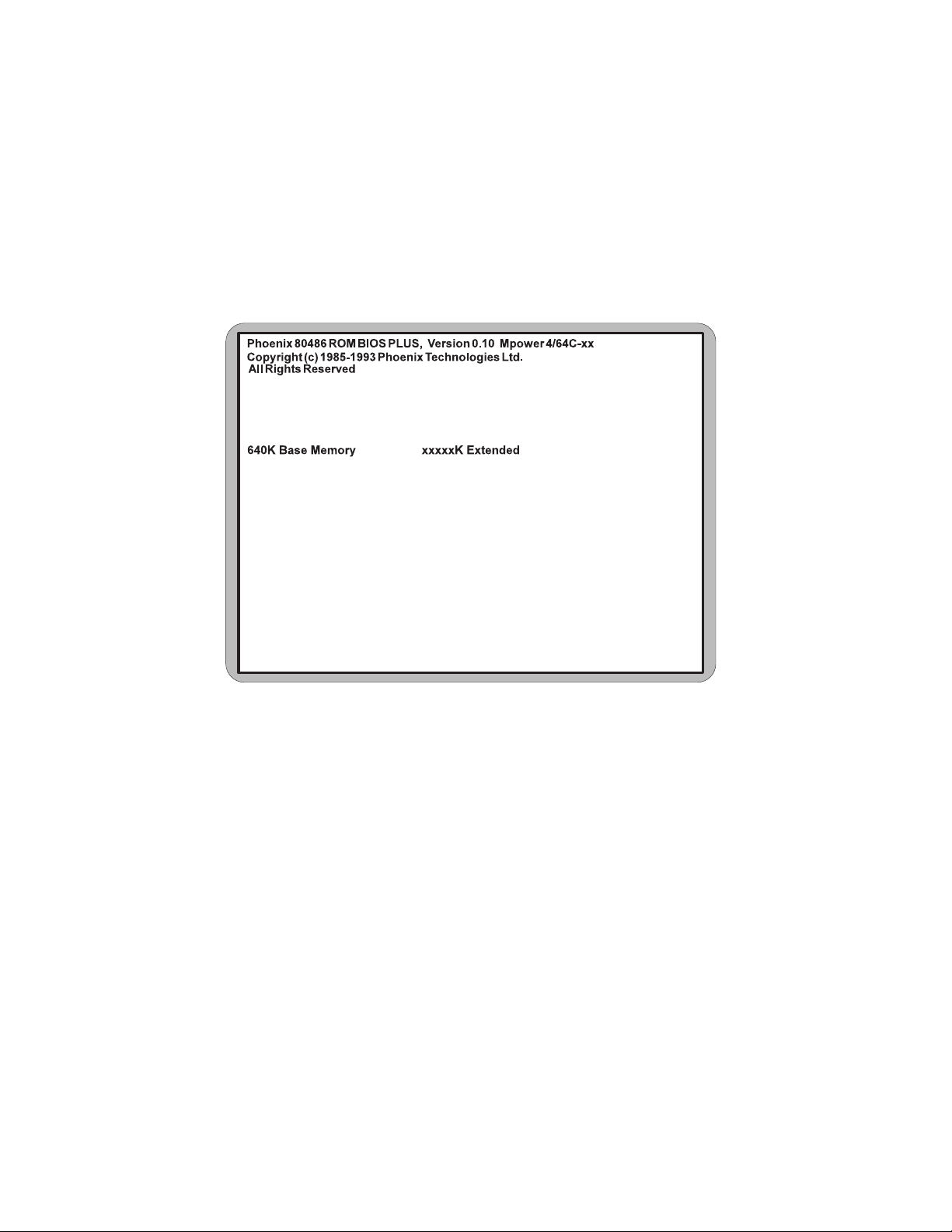

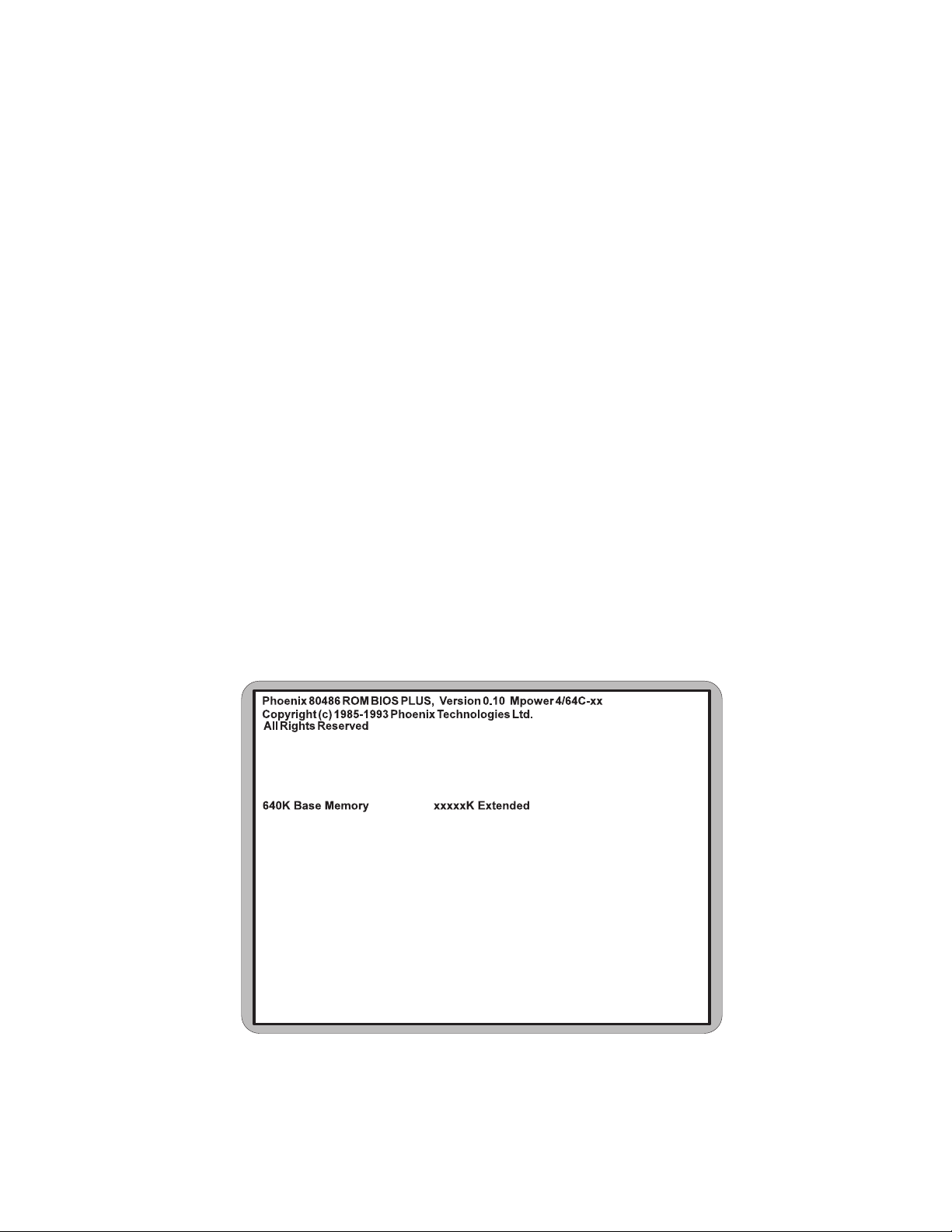

6. Turn the computer on. The computer goes through a self-test and the
following screen appears. If Setup detects any configuration errors, the
message "Press <F1> to continue (boot up) or <F2> to run the Setup
procedure" will appear. Press the <F2> key and make any necessary
configurations.

iii

If the Power-Up screen does not appear, but the DOS prompt does (ie.,
A:\ or C:\), press the <Ctrl>, <Alt>, and <Esc> keys simultaneously to
begin the Setup procedure.

7. Set the time and date. Adjust the BIOS settings to match what is installed
in your system. If installing an IDE drive, select the IDE device you wish
to configure. Select Auto Config and the BIOS will automatically
configure the drive for you. (See Chapter 4)

8. After all configurations have been made, press <Esc> to exit. Then press
<F4> to save the configuration and reboot. (See Chapter 4)

iv

Contents

Introduction ....................................................................... 1-1

Features..................................................................................... 1-2

Setting Up the Mpower 4 plus.......................................... 2-1

Static Electricity ....................................................................... 2-1

Office Environment .................................................................. 2-1

Mpower 4 plus Components..................................................... 2-2

Jumper Settings......................................................................... 2-3

Installing the Mpower 4 plus, System Memory, CPUs, and

Peripherals......................................................................... 3-1

Installation of the Mpower 4 plus............................................. 3-2

Tools Required ....................................................................................... 3-2

Equipment Required............................................................................... 3-2

System Memory........................................................................ 3-3

Memory Configuration........................................................................... 3-3

Installing the SIMMs.............................................................................. 3-4

Removing SIMMs .................................................................................. 3-4

Installing the Upgrade OverDrive CPU.................................... 3-5

Installing Cache Memory ......................................................... 3-6

64K of Level 2 Cache............................................................................. 3-6

128K of Level 2 Cache........................................................................... 3-7

256K of Level 2 Cache........................................................................... 3-8

Installing Video Memory.......................................................... 3-9

Installing a VL-Bus Riser Card .............................................. 3-10

Installing a VL-Bus Card.........................................................3-11

The BIOS Setup Utility ...................................................... 4-1

Configuration............................................................................ 4-1

Initial Boot Up.......................................................................... 4-1

Setup ......................................................................................... 4-2

Running the Setup Procedure ................................................... 4-2

Setting the CMOS Parameters .................................................. 4-3

Setting the CMOS Main Screen ............................................... 4-4

v

System Time and Date............................................................................ 4-4

Diskette A or B....................................................................................... 4-4

Hard Disk 1 or 2 (IDE Drives Only) ...................................................... 4-4

Base Memory and Extended Memory.................................................... 4-4

Video Card.............................................................................................. 4-4

Keyboard ................................................................................................ 4-4

HD1 and HD2 Block Modes (IDE Drives Only) ................................... 4-5

Beeper Option ........................................................................................ 4-5

The “Green Section” of the BIOS .......................................................... 4-5

Setting the CMOS Extended Screen......................................... 4-6

System BIOS .......................................................................................... 4-6

Video BIOS ............................................................................................ 4-6

System Speed ......................................................................................... 4-7

CPU Type ............................................................................................... 4-7

System and Setup Menu Passwords ....................................................... 4-7

System Password .................................................................................... 4-7

Setup Password ...................................................................................... 4-7

Internal Cache ........................................................................................ 4-8

External Cache ....................................................................................... 4-8

External Cache Mode ............................................................................. 4-8

Serial Port 1 ............................................................................................ 4-8

Serial Port 2 ............................................................................................ 4-8

Parallel Port ............................................................................................ 4-8

On Board Floppy.................................................................................... 4-8

On Board IDE......................................................................................... 4-8

HD1 Speed ............................................................................................. 4-9

HD2 Speed ............................................................................................. 4-9

Non-Cacheable Area #1 and #2 ............................................................. 4-9

Re-Configuring Your Computer ............................................... 4-9

Installing Graphics Accelerator Software ....................... 5-1

Preparation................................................................................ 5-1

Installation ................................................................................ 5-2

Main Menu Options ............................................................................... 5-2

System Information ................................................................................ 5-3

Quick Setup ............................................................................................ 5-3

Drivers Installation................................................................................. 5-4

Utilities Installation ................................................................................ 5-4

Diagnostics ............................................................................................. 5-5

Advanced Setup...................................................................................... 5-5

Troubleshooting ..................................................................................... 5-7

vi

Installing Video Drivers .................................................... 6-1

Installation ................................................................................ 6-1

De-Installation .......................................................................... 6-1

Microsoft Windows 3.1 ............................................................ 6-2

De-Installation Procedure....................................................................... 6-2

Installation Procedure............................................................................. 6-2

AutoCAD 386 R10/R11/R12.................................................... 6-3

IBM OS/2 Presentation Manager 2.1 ....................................... 6-4

Installation Procedure............................................................................. 6-4

De-Installation Procedure....................................................................... 6-5

Intergraph MicroStation 4.0 ..................................................... 6-6

Microsoft Windows NT............................................................ 6-6

Installation Procedure............................................................................. 6-6

De-Installation Procedure....................................................................... 6-7

Microsoft Word (for DOS) 5.x, 6.0 .......................................... 6-7

WordPerfect (for DOS) 5.x, 6.0................................................ 6-8

WordPerfect Versions 5.0 and 5.1 .......................................................... 6-8

WordPerfect Version 6.0......................................................................... 6-8

POST Messages ............................................................... A-1

Beep Codes ...................................................................... B-1

Hard Disk Drive Types ..................................................... C-1

Specifications................................................................... D-1

Environmental Specifications...................................................D-2

Temperature Range.................................................................................D-2

Relative Humidity ..................................................................................D-2

Battery Disposal .......................................................................D-3

FCC Warning Statement ........................................................... F-1

Glossary....................................................................................G-1

Limited W arranty.....................................................................W-1

Non-W arranty Service .............................................................W-2

vii

List of Figures

Figure 2-1: Mpower 4 plus Components...................................................... 2-2

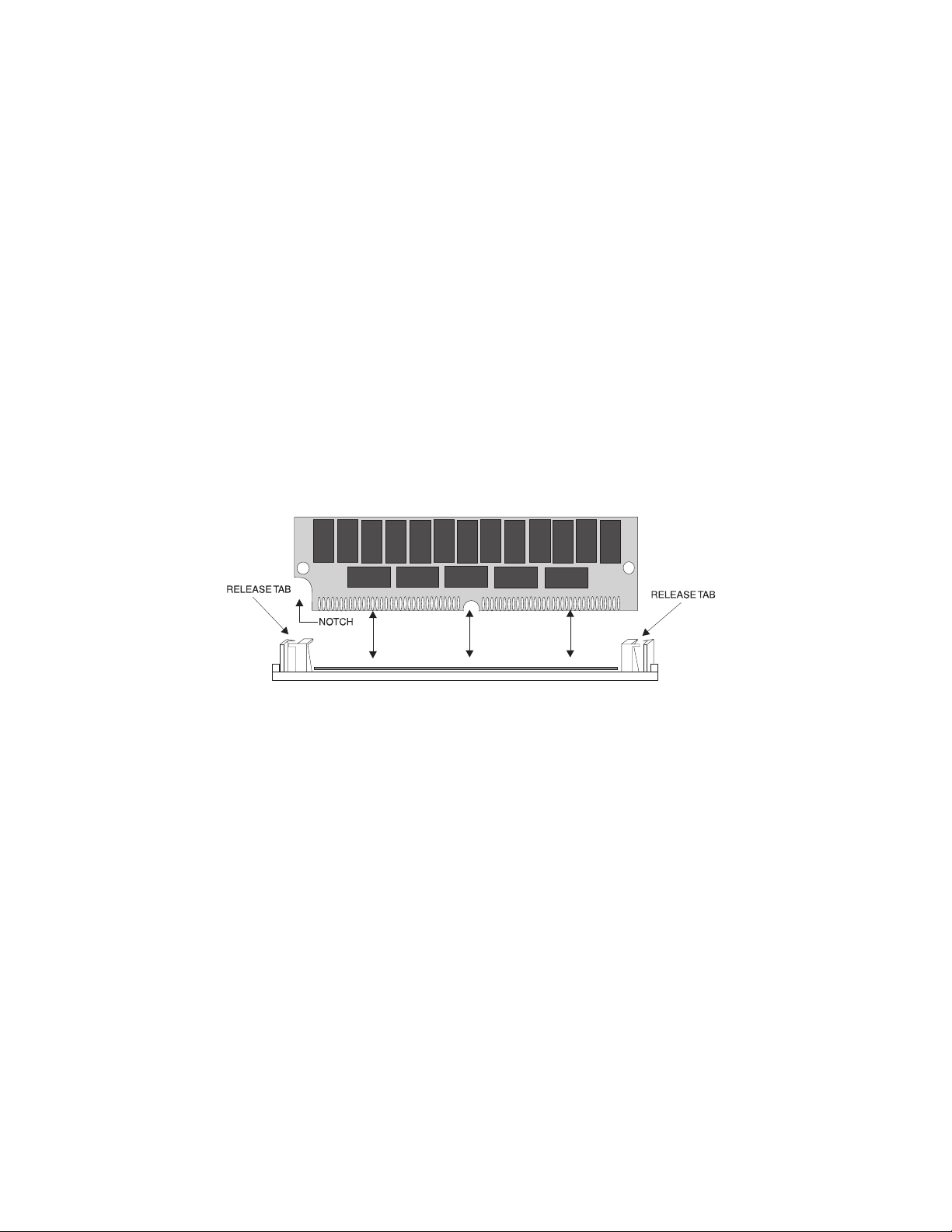

Figure 3-1: Installing a SIMM ..................................................................... 3-4

Figure 3-2: Installing a CPU ........................................................................ 3-5

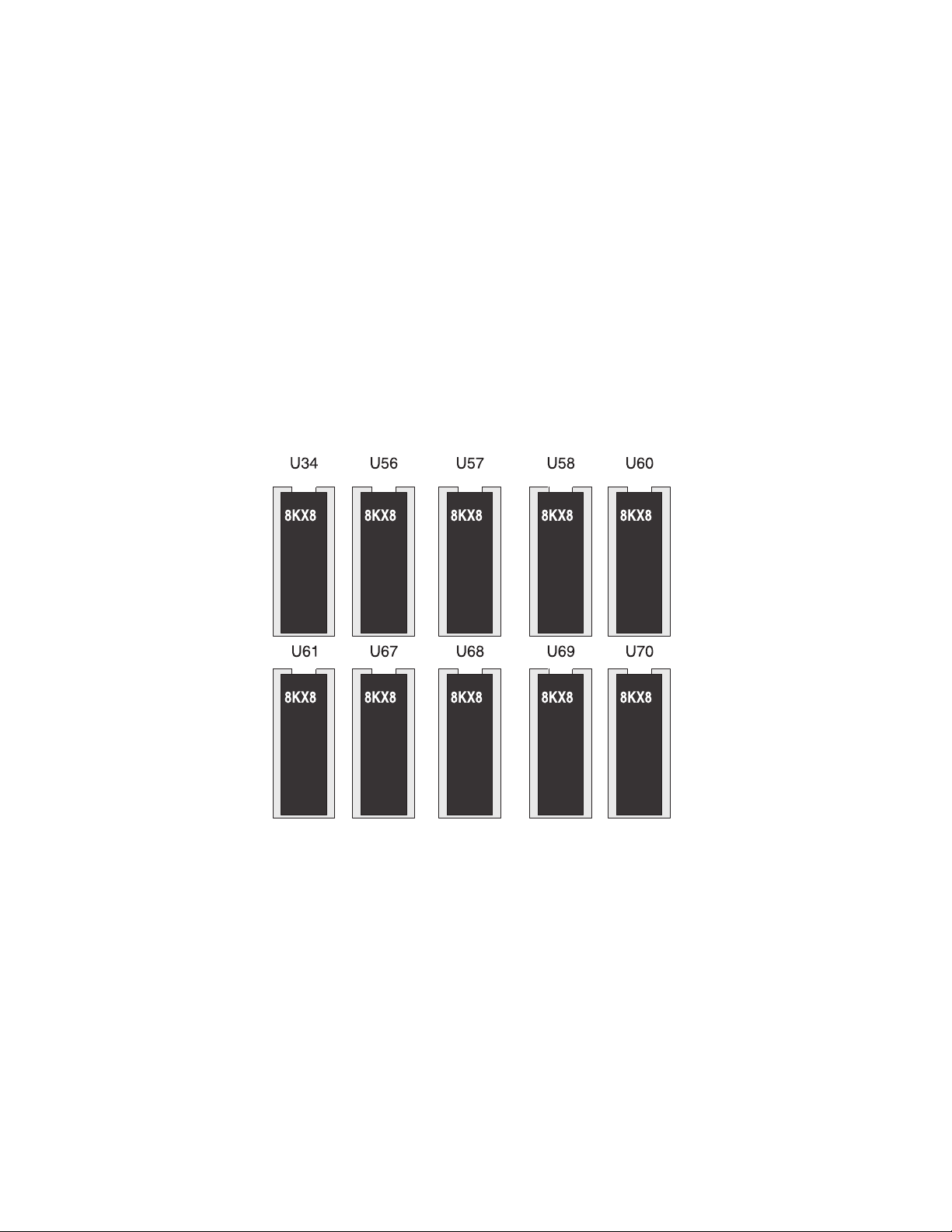

Figure 3-3: Installing 64K of Level 2 Cache................................................ 3-6

Figure 3-4: Installing 128K of Level 2 Cache.............................................. 3-7

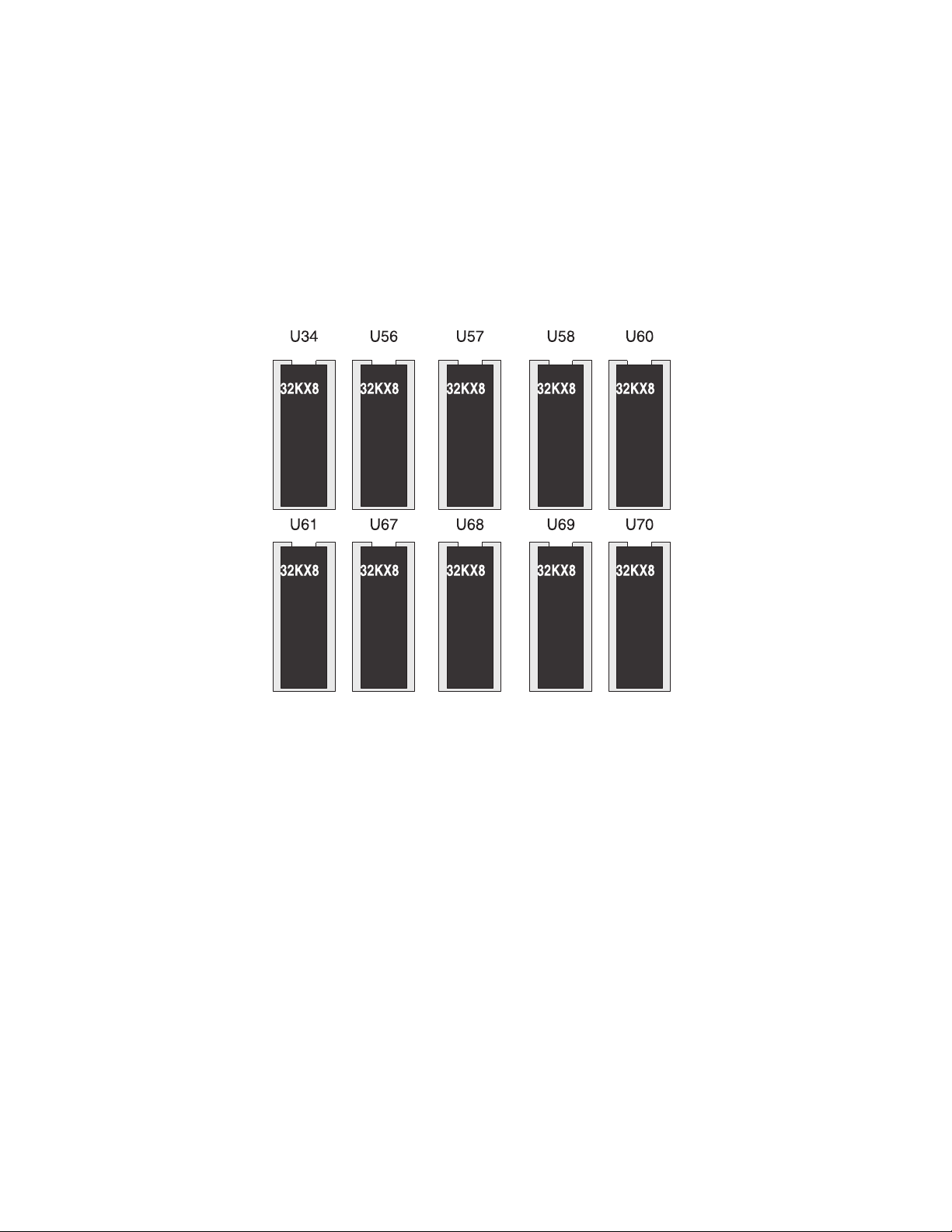

Figure 3-5: Installing 256K of Level 2 Cache.............................................. 3-8

Figure 3-6: Installing Video Memory........................................................... 3-9

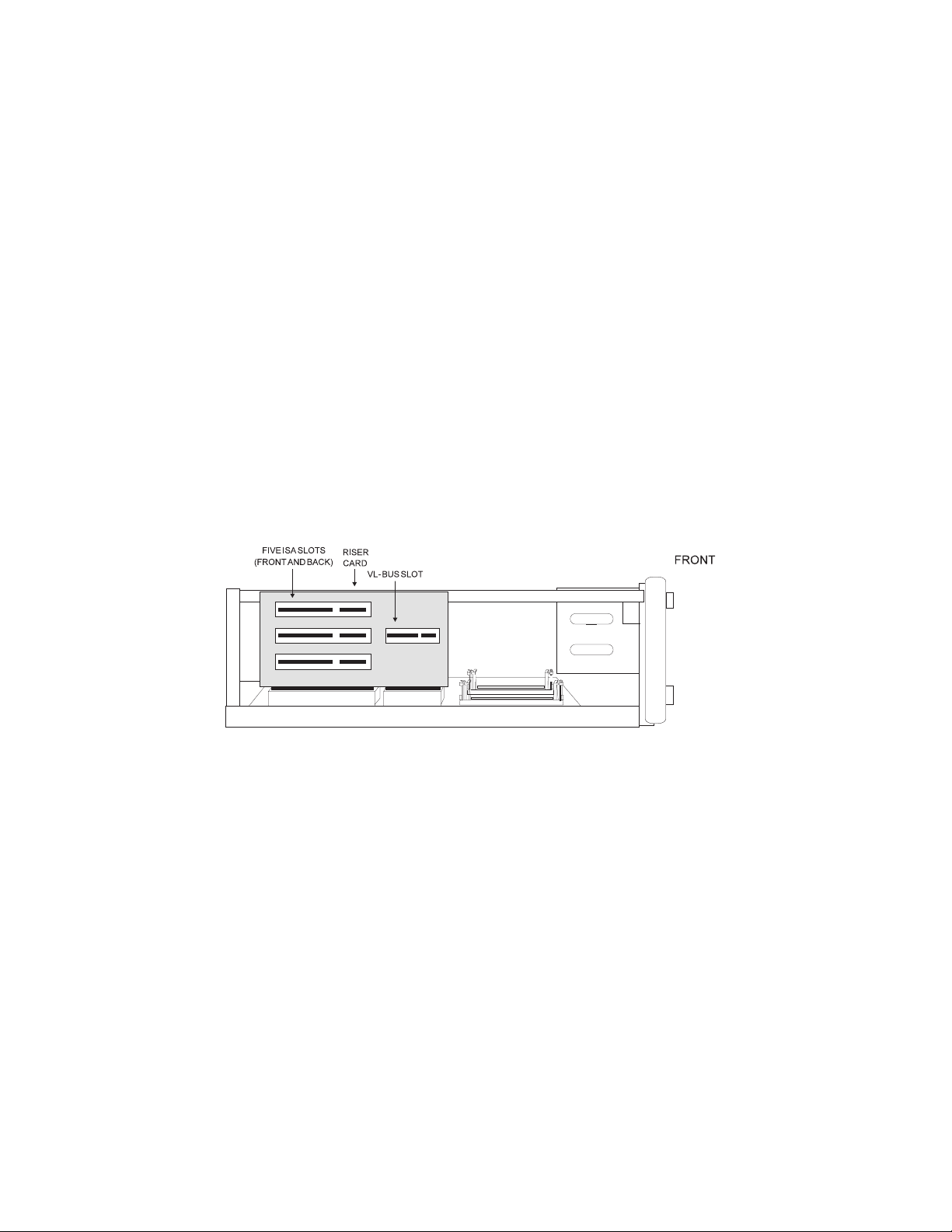

Figure 3-7: Installing a VL-Bus Riser Card ............................................... 3-10

Figure 3-8: Inserting a VESA Local Bus Card............................................3-11

Figure 4-1: Power-Up Screen....................................................................... 4-2

Figure 4-2: CMOS Main Screen .................................................................. 4-3

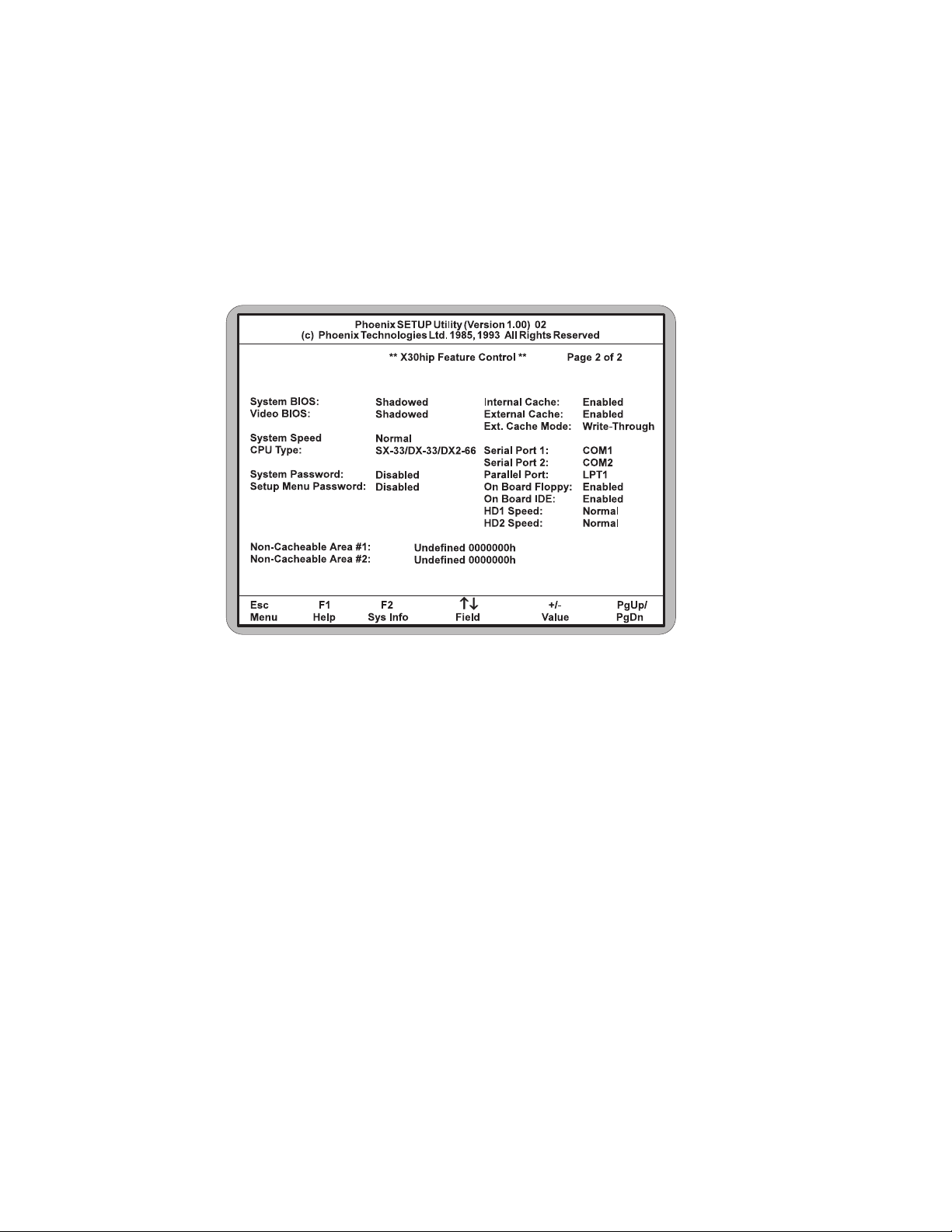

Figure 4-3: CMOS Extended Screen............................................................ 4-6

Figure 4-4: Exit Pop-Up Screen ................................................................. 4-10

Figure 5-1: Main Menu ................................................................................ 5-2

Figure 5-2: Monitor Selection Menu............................................................ 5-4

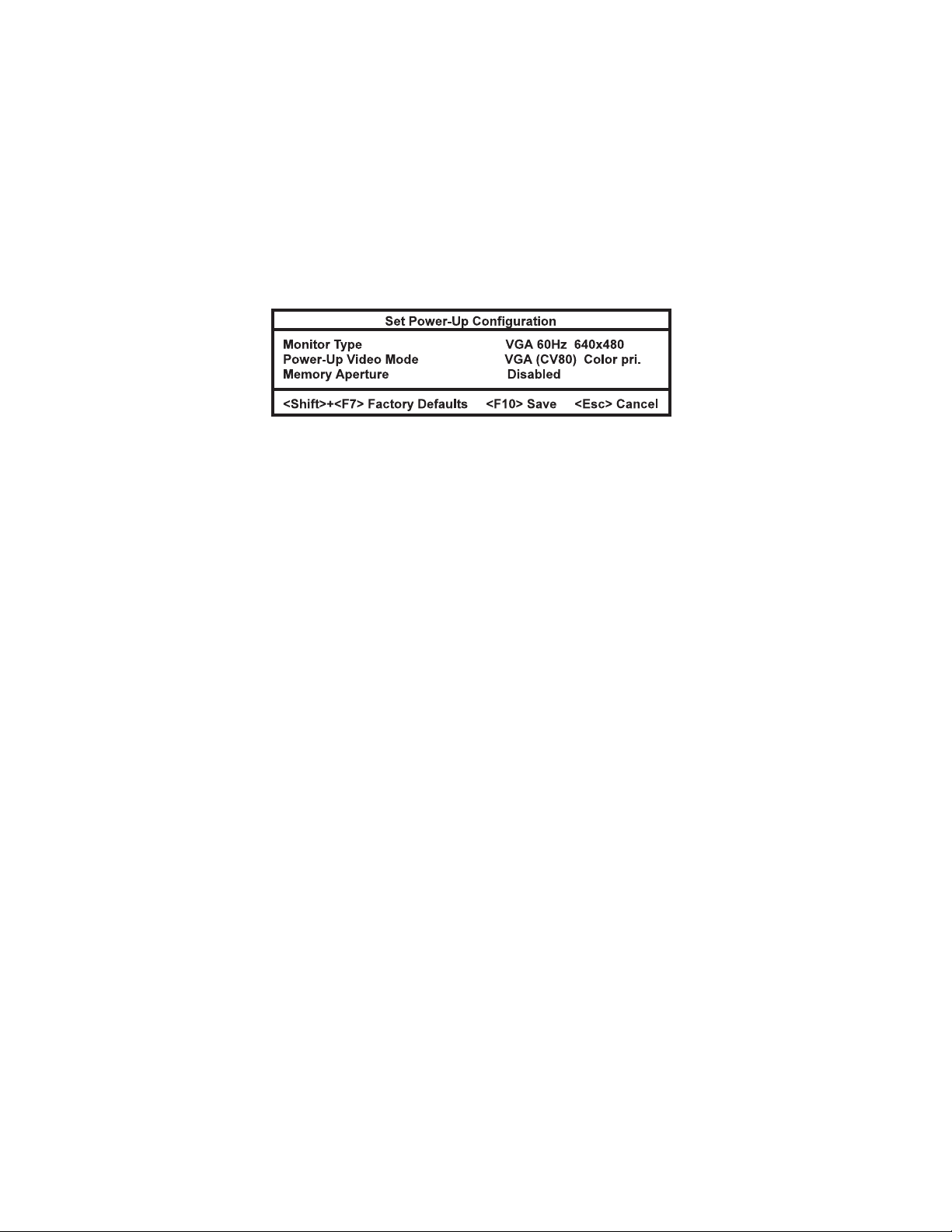

Figure 5-3: Set Power-Up Configuration Menu........................................... 5-6

List of Tables

Table 2-1: Real-Time Clock Settings ........................................................... 2-3

Table 2-2: Video Monitor Display Selection................................................ 2-3

Table 2-3: Mouse Configuration Selection .................................................. 2-3

Table 2-4: Parity Configuration Selection.................................................... 2-3

Table 2-5: Super I/O Selection..................................................................... 2 - 4

Table 2-6: BIOS Operation Selection........................................................... 2-4

Table 2-7: Write-Back Cache Selection ....................................................... 2-5

Table 2-8: CPU Selection............................................................................. 2 -5

Table 2-9: Reserved Jumpers........................................................................ 2-6

Table 2-10: Cache Size Selection................................................................. 2-6

Table 2-11: Parallel Port Selection ............................................................... 2-6

Table 2-12: Video Selection ......................................................................... 2-7

Table 2-13: Case and Peripheral Connections.............................................. 2-7

Table 2-14: DIP Switch 1 Settings ............................................................... 2-8

Table 2-15: DIP Switch 2 Settings ............................................................... 2-8

Table 3-1: Memory Configurations.............................................................. 3-3

Table 5-1: Error Codes and Messages.......................................................... 5-8

viii

Introduction

1

The Mpower 4 plus is an integrated, low-profile, LPX system board,
featuring VESA Local bus architecture, a Mode 3 IDE controller, and
64-bit graphics. The Micronics Mpower 4 plus system board represents
Micronics' third generation of VESA Local Bus system boards and
makes an excellent foundation for an advanced personal computer or
workstation.

Micronics is a forerunner in VESA Local Bus technology. The VESA
Local Bus Architecture provides high performance for Graphical User
Interfaces (GUIs) and peripherals that perform high speed data transfers,
such as disks and multimedia.

The Mpower 4 plus is also a "Green Board" which means it adheres to
the Environmental Protection Agency's strict Energy Star efficiency
guidelines. The Green features are not available when a DX4-
100MHz is installed. See Chapter 4 for information and instructions on
how to set up the "Green Section" of the BIOS.

1-1

Micronics Mpower 4 plus System Board Manual

Features

The Mpower 4 plus includes the following features:

m LPX form factor system board (13.25" X 8.5")
m Micronics' X30 chipset with an on-chip external level 2 cache controller.
m Zero Insertion Force (ZIF) socket.
m One ISA/VL-Bus slot built onto the system board.
m 100 percent VESA VL-Bus compliant.
m On-board local bus video adapter, using the ATI 88800 GX mach64 LX

video controller with an 8-bit RAMDAC.

m Local bus IDE controller with Mode 3 local bus IDE support.
m Floppy controller (Supports 2.88MB, 1.44MB, 1.2MB, 720K, and 360K

floppy drive).

m Two high speed NS16550 compatible serial ports.
m Bi-directional parallel port that is EPP and ECP compatible.
m Battery-backed real-time clock.
m Supports the following processors in the CPU ZIF socket:

- 486SX, 25 or 33MHz

- 486SX2, 50MHz

- 486DX, 33MHz

- 486DX2, 50 or 66MHz

- 486DX4, 75 or 100MHz

1-2

Setting Up the Mpower 4 plus

2

Although the Mpower 4 plus system board is packaged in protective
materials, it is important to use care while unpacking and setting it up.

Static Electricity

The Mpower 4 plus is shipped from the factory in an antistatic bag. To
reduce the possibility of damage, it is important to neutralize any
accumulated static charges on your body before handling the board.
The best way to do this is to ground yourself using a special wrist or
ankle strap. If you do not have a strap, you should touch both of your
hands to a safely grounded object (any silver part of the case should
suffice). After you have grounded yourself, ground the Mpower 4 plus
via the solder pads surrounding one of its mounting holes.

Once the Mpower 4 plus is removed from its packaging, place it on top
of the antistatic bag. Carefully inspect the board for damage which may
have occurred during shipment.

Office Environment

Make sure the finished computer system is in an area with good ventila­tion. The system should not be in direct sunlight, near heaters, or
exposed to moisture, dust, or dirt.

2-1

Micronics Mpower 4 plus System Board Manual

Mpower 4 plus Components

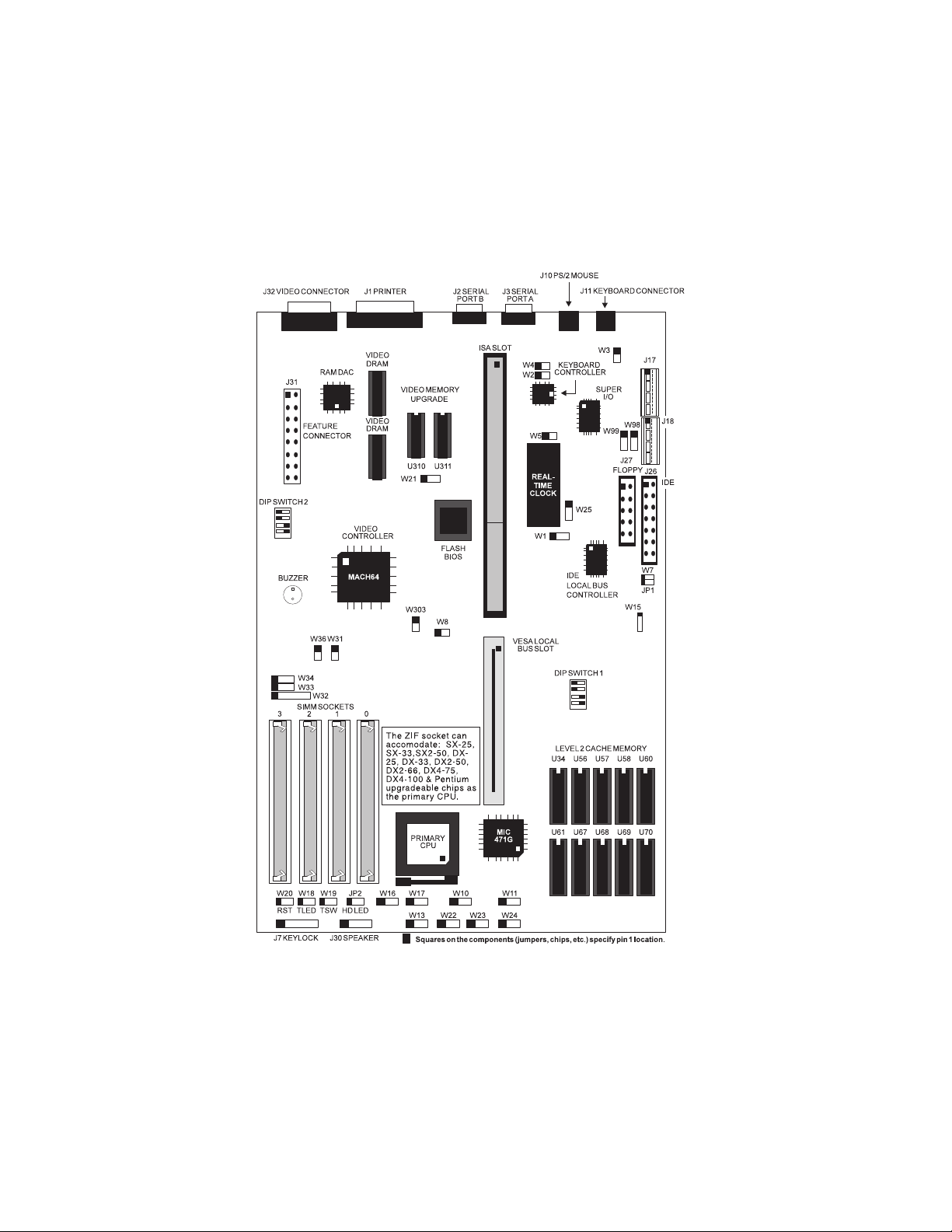

Figure 2-1 Mpower 4 plus System Board

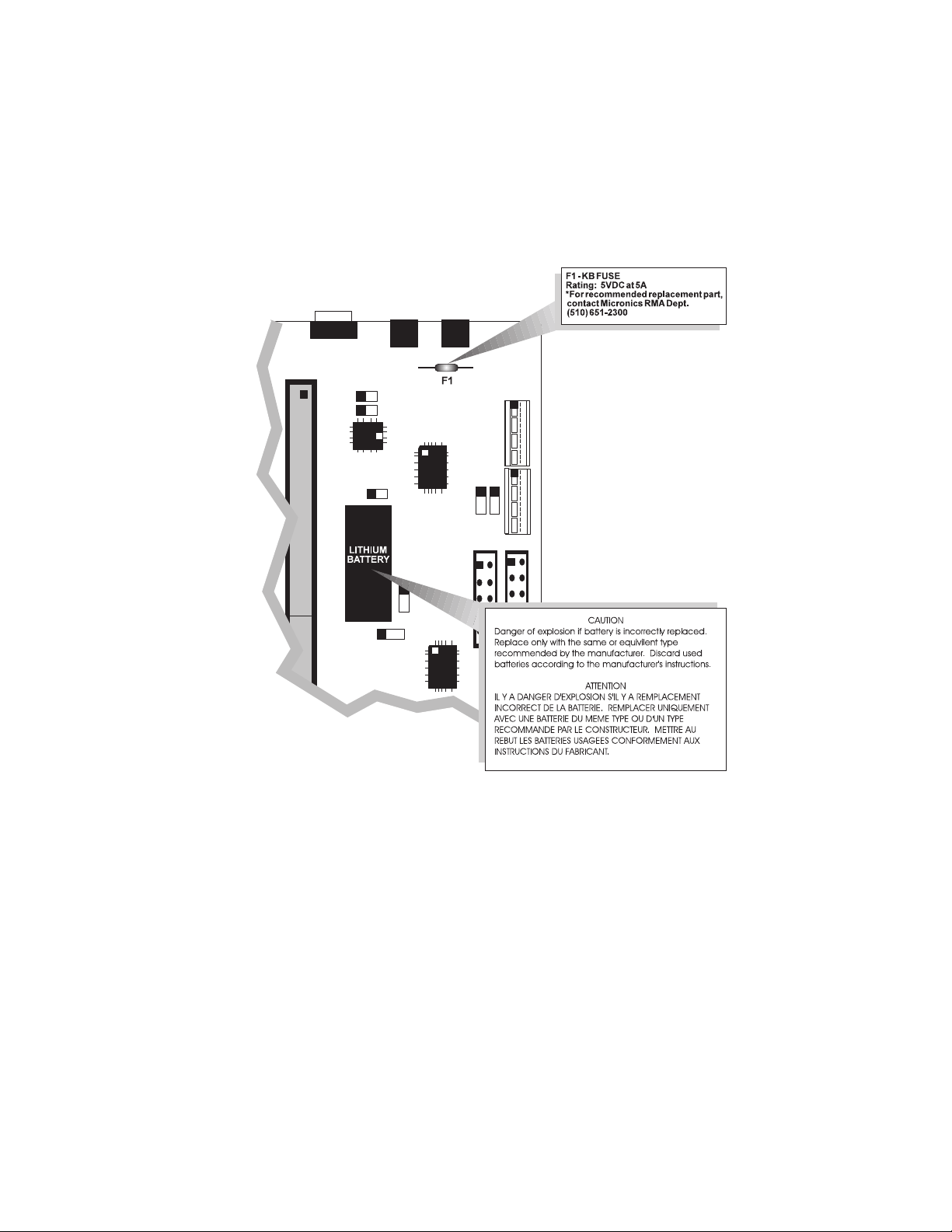

Note:
For information on battery disposal or fuse replacement, see Appendix D.

2-2

Jumper Settings

Jumper Settings

Table 2-1 lists jumper settings for the real-time clock.

Jumper Function Setting

W1 DALLAS Real-Time Clock Installed
W5 Discharge DALLAS Real-Time Clock

Normal operation

Table 2-1 Real-Time Clock Settings

Table 2-2 lists jumper settings for the type of video monitor display used with
the system board.

Jumper Function Setting

Installed
Not Installe d

W2 Color (Default)

Monochrome

Table 2-2 Video Monitor Display Selection

Installed
Not Installe d

Table 2-3 lists the jumper settings for the mouse configuration.

Jumper Function Setting

W3 IRQ12 for PS/2 Mouse (Default)

No PS/2 Mouse Supported

Table 2-3 Mouse Configuration Selection

Installed
Not Installe d

Table 2-4 lists the jumper settings for the parity configuration.

Jumper Function Setting

W4 Parity Enabled (Default)

Parity Disabled

Table 2-4 Parity Configuration Selection

Installed
Not Installe d

2-3

Micronics Mpower 4 plus System Board Manual

Table 2-5 lists the jumper settings for the Super I/O.

Jumper Function Setting

W7 Enable Super I/O

Disable Super I/O

JP1 Enable CMD IDE (Default)

Disable CMD IDE

Table 2-5 Super I/O Selection

Not Installe d
Insta lled

Not Installe d
Installted

Note:
The floppy connector, serial ports, and parallel port are disabled when the
Super I/O is disabled.

Table 2-6 lists the jumper settings for BIOS operation.

Jumper Function Setting

W8 Normal (Default)

Recovery

Not Installe d
Insta lled

W21 BIOS

Write Protect (Default)
BIOS Write Enable (Flash)

Table 2-6 BIOS Operation Selection

Open
1-2

NOTE:
Jumper W21 must be reconfigured to update (Flash) the BIOS. If problems
occur during the flash procedure, reset W8 to the BIOS Recovery Mode. A
special diskette is needed for the recovery mode. Contact your computer
dealer for the Flash Utility diskette or call Micronics’ BBS number at (510)
651-6837 to download the utility.

2-4

Jumper Settings

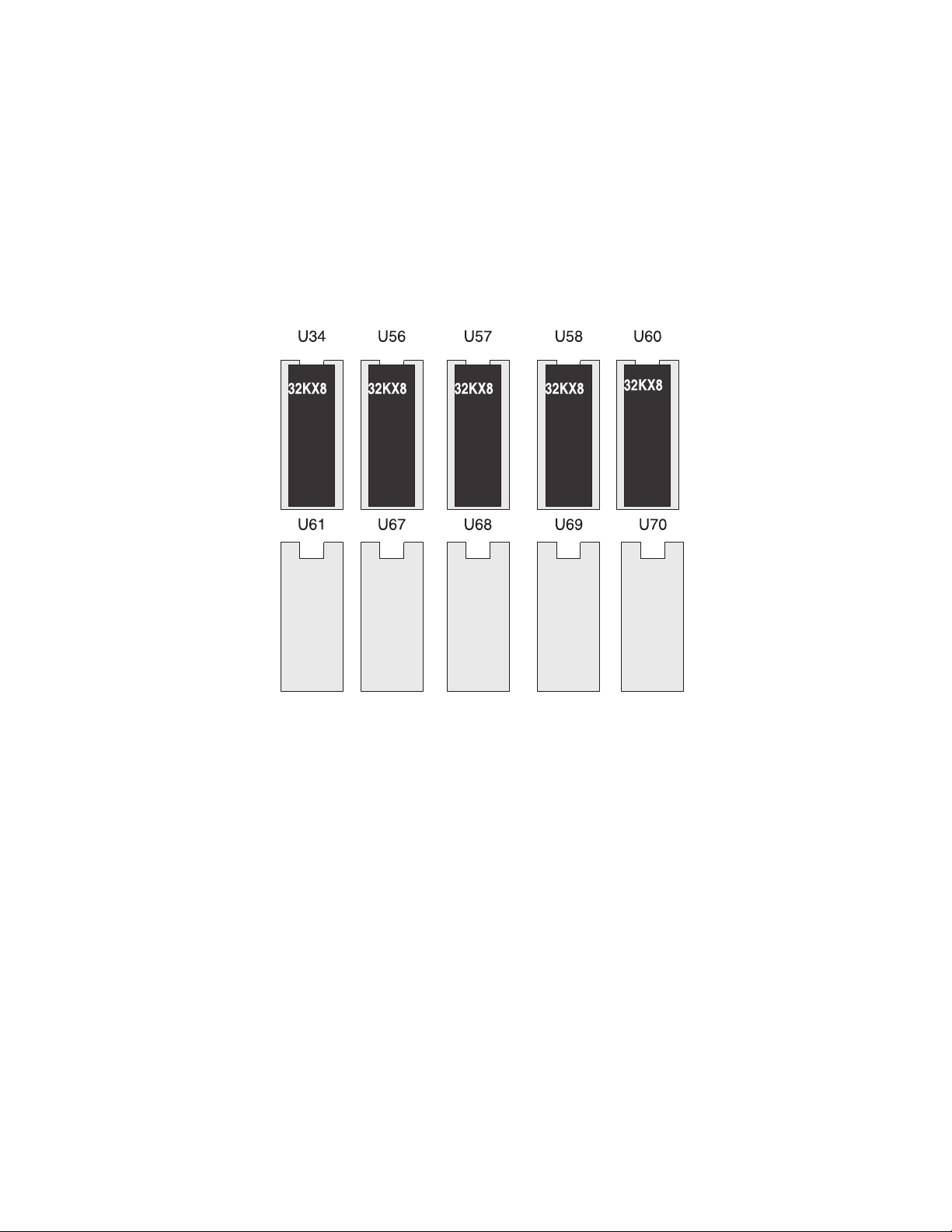

Table 2-7 lists jumper settings for external (L2) cache selection.

Jumper 64K 128K 256K

W10 (Tag) 1-2 1-2 2-3
W11 (Tag) 1-2 2-3 2-3
W22 (Data) 2-3 1-2 2-3
W23 (Data) 2-3 1-2 2-3
W24 (Data) 1-2 2-3 2-3

Table 2-7 External Cache Selection

Table 2-8 lists the jumper settings for the type of CPU used on the system
board.

Jumper Function Setting

W13 PQFP Not Installed (Default)

PQFP Disabled by

OverDrive

PQFP Manually Disabled

W32 DX4 CPU

All other CPUs

W33 486 SX, PGA

486 SX2, PGA
All other CPUs, inc luding the DX4

W34 DX4 CPU

All other CPUs

Table 2-8 CPU Selection



CPU

Not Installe d
1-2
2-3

1-2
Not Installe d

2-3
3-4
1-2 & 3-4

3-4
Not Installe d

2-5

Micronics Mpower 4 plus System Board Manual

Table 2-9 lists reserved jumpers with factory determined settings. Do not
reconfigure these jumpers.

Jumper Function Setting

W15 Reserved 1-2
W31 Reserved Not Installed

Table 2-9 Reserved Jumpers

Table 2-10 lists jumper settings for external (L2) cache size configuration.

Jumper 64K 128K 256K

W16 1-2 1-2 2-3
W17 1-2 2-3 2-3

Table 2-10 External Cache Size Selection

Table 2-11 lists the jumper settings for the parallel port selection.

Jumper Function Setting

W25 IRQ7 for Parallel Port (Default)

IRQ5 for Parallel Port

W98 DMA Channel 1 (Default)

DMA Channel 3

W99 DMA Channel 1 (Default)

DMA Channel 3

Table 2-11 Parallel Port Selection

2-6

2-3
1-2
1-2

2-3
1-2

2-3

Table 2-12 lists the jumper settings for the video selection.

Jumper Function Setting

Jumper Settings

W303 Disable VGA IRQ9 (Default)

Enable VGA IRQ9

Table 2-12 Video Selection

Not Installe d
Instal le d

Table 2-13 lists the jumper settings for case and peripheral connections.

Jumper Function Notes

W18 Turbo LED
W19 Turbo Switch
W20 Reset Switch 1-Signal; 2-Ground

J1 Parallel Port Connector
J2 Serial Port B Can be Disabled at the CMOS

configuration screen.

J3 Serial Port A Can be Disabled at the CMOS

configuration screen.

J7 Power LED/Keylock 1- Power LED; 2-N/C; 3-

Ground; 4-Keybd Lock; & 5-

Ground
J10 PS/2 Mouse Connector
J11 Keyboard Connector

J17 & 18 Power Supply Connector

J26 IDE Connector
J27 Floppy Connector
J30 Speaker Connector
J31 Video Feature Connector
J32 Video Port Connector
JP2 Hard Drive LED

Table 2-13 Case and Peripheral Connections

2-7

Micronics Mpower 4 plus System Board Manual

Table 2-14 lists the jumper settings for DIP Switch 1.

Switch Function Setting

SW 1-1 SX25MHz/DX25MHz/DX2-50MHz/DX4-75MHz

SX33MHz/DX33MHz/DX2-66MHz/DX4-100MHz

SW 1-2 Reserved ON

SW 1-3 0 Wait Write Min

1 Wait Write Min

SW 1-4 CPU Speed less than or equal to 33 MHz

CPU Speed greater than 33 MHz

Table 2-14 DIP Switch 1 Settings

Table 2-15 lists the settings for DIP Switch 2.

Switch Function Setting

SW 2-1* Disable ATI Chip

Enable ATI Chip

SW 2-2* RAMDAC at Snooping Mode

RAMDAC at Regular Mode

SW 2-3* Disable On-board VGA BIOS

Enable On-board VGA BIOS

SW 2-4** Select On-board Buzzer

Select External Speaker

OFF
ON

OFF
ON

OFF
ON

ON
OFF

ON
OFF

ON
OFF

ON
OFF

2-8

Table 2-15 DIP Switch 2 Settings

Installing the Mpower 4 plus,
System Memory, CPUs, and

3

Peripherals

This section explains how to install the Mpower 4 plus system board,
SIMMs, CPUs, and peripherals.

Warning:
Before installing or removing any peripherals or components, make
sure you have a clear work space and you adhere to all anti-static
precautions described on page 2-1. Micronics recommends only
trained technicians operate on the system board. Damage which
occurs to the board, while adding or removing peripherals or compo­nents, may void the warranty.

If problems arise while installing peripherals, contact the computer
outlet where you purchased the peripheral or Micronic's Technical
Support Department.

3-1

Micronics Mpower 4 plus System Board Manual

Installation of the Mpower 4 plus

The installation of the Mpower 4 plus system board depends on the type of
case you are using. The Mpower 4 plus is an integrated, low profile LPX
system board and should be limited to installation in a low profile chassis.

Prior to installing the Mpower 4 plus, make sure you have a clear work space
available and adhere to all anti-static precautions.

If you are unfamiliar with installing a motherboard, it is highly recommended
you read the computer user's manual or contact your dealer's technical support
department.

Tools Required

Micronics recommends using the following tools to install the Mpower 4 plus:

m Small Phillips screwdriver.

m Tweezers or a pair of needle-nose pliers.

m Tray (to hold loose screws).

Equipment Required

Micronics recommends using the following equipment with the Mpower 4
plus for a typical configuration:

m LPX or Low Profile Chassis.

m A high quality power supply capable of providing continuous power

within a 5 volt range, plus or minus 5% (eg. 4.75 to 5.25). A power
filter may be added for areas with noisy transmission.

m VGA monitor with a 15-pin connector.

m PS/2 or compatible keyboard.

m Eight ohm speaker.

m Standard ribbon cables for internal connections.

m Standard power cord (grounded).

m Heat-sink with cooling fan for each CPU (if needed).

3-2

Installing System Memory and Add-On Peripherals

System Memory

System memory devices, commonly known as SIMMs (Single Inline Memory
Modules), are necessary to operate the Mpower 4 plus system board. The
Mpower 4 plus has four banks of DRAM, which provide a maximum of
64MB using 1Mx32, 1Mx36, 4Mx32, or 4Mx36 SIMMs.

Memory Configuration

Table 3-1 lists the possible memory size configurations. The BIOS automati­cally detects the amount of memory installed.

Bank 0 Bank 1 Bank 2 Bank 3 Total

1MB 1MB
1MB 1MB 2MB
4MB 4MB
1MB 1MB 4MB 6MB
4MB 4MB 8MB
1MB 1MB 4MB 4MB 10MB
4MB 4MB 4MB 12MB
4MB 4MB 4MB 4MB 16MB

16MB 16MB

1MB 1MB 16MB 18MB
4MB 16MB 20MB
4MB 4MB 16MB 24MB

16MB 16MB 32MB

4MB 16MB 16MB 36MB

4MB 4MB 16MB 16MB 40MB
16MB 16MB 16MB 48MB
16MB 16MB 16MB 16MB 64MB

Table 3-1 Memory Configuration

3-3

Micronics Mpower 4 plus System Board Manual

Installing the SIMMs

With the SIMMs installed, memory can be increased up to 64MB. To install
the SIMMs, first locate the four memory banks on the system board. Start
with the bank marked “0”, then work your way up (0, 1, 2, 3).

Perform the following steps to install the SIMMs:

1. Hold the SIMM so that the NOTCHED edge is pointing toward the
ISA slots (refer to Figure 2-1).

2. Insert the SIMM at a 45 degree angle.

3. Gently push the SIMM to an upright position until it “snaps” into
place (past the release tabs).

The SIMM is ready to operate when it is firmly seated in the socket.

Figure 3-1 Installing a SIMM

Removing SIMMs

Perform the following steps to remove SIMMs, if necessary:

1. With both thumbs (or fingers), press the release tabs away from the
socket.

2. With the SIMM free from the release tabs, lift the module up and
place in an anti-static bag or package.

3-4

Installing System Memory and Add-On Peripherals

Installing the Upgrade

The Mpower 4 plus is specifically designed to support the Intel Clock Dou­bling 486DX2 CPU or the OverDrive processor. Perform the following steps
to install an upgrade processor:

1. Locate the ZIF socket on the board (Figure 3-2).

2. Lift the lever of the socket.

3. Insert the new processor into the socket. Make sure pin 1 on the CPU
lines up with pin 1 on the socket. Refer to Figure 3-2 for pin 1
location.

4. Push the lever down to its original position.

5. Configure the board using the tables in Chapter 2.

The new CPU is now ready to operate. The system board detects the installed
CPU after it is inserted and configured.

OverDrive

CPU

Figure 3-2 Installing a CPU

Warning:
If the new processor includes a heat sink or cooling fan, be certain to install
the device according to the manufacturer’s instructions. Failure to provide
adequate cooling of the processor may seriously affect system performance
or cause permanent damage.

3-5

Micronics Mpower 4 plus System Board Manual

Installing Cache Memory

The Mpower 4 plus supports 8K of four-way associative cache in the micro­processor. Level 2 cache is also available to provide 64K, 128K, or 256K of
direct mapped cache.

64K of Level 2 Cache

For 64K bytes of level 2 cache, install eight 8Kx8-20ns SRAMs into sockets
U56, through U58, U60, and U67 through 70. Install an 8Kx8-20ns SRAM
into U34 for Tag RAM and an 8Kx8-20ns SRAM into socket U61 for write­back cache mode. Leave U61 empty for write-through mode. After installing
the cache, refer to tables 2-7 and 2-10 for the correct jumper settings.

Figure 3-3 Installing 64K of Level 2 Cache

Note:
Make sure the notches on SRAMs match the notches on the sockets.

3-6

Installing System Memory and Add-On Peripherals

128K of Level 2 Cache

For 128K bytes of level 2 cache, install four 32Kx8-20ns SRAMs into sockets
U56 through U58 and U60. Install a 32Kx8-20ns SRAM into U34 for Tag
RAM and a 32Kx8-20ns SRAM into socket U61 for write-back mode. Leave
U61 empty for write-through mode. After installing the cache, refer to tables
2-7 and 2-10 for the correct jumper settings.

Figure 3-4 Installing 128K of Level 2 Cache

Note:
Make sure the notches on SRAMs match the notches on the sockets.

3-7

Micronics Mpower 4 plus System Board Manual

256K of Level 2 Cache

For 256K bytes of level 2 cache, install eight 32Kx8-20ns SRAMs into
sockets U56 through U58, U60, and U67 through U70. Install a 32Kx8-20ns
SRAM into U34 for Tag RAM and a 32Kx8-20ns SRAM into socket U61 for
write-back mode. Leave U61 empty for write-through mode. After installing
the level 2 cache, refer to tables 2-7 and 2-10 for the correct jumper settings.

Figure 3-5 Installing 256K of Level 2 Cache

Note:
Make sure the notches on SRAMs match the notches on the sockets.

3-8

Installing System Memory and Add-On Peripherals

Installing Video Memory

The Mpower 4 plus has 1MB of video memory installed on-board. An
additional 1MB of memory can be installed to provide faster video perfor­mance. For the additional 1MB of video memory, install two 256K x 16-60ns
video memory chips into locations U310 and U311.

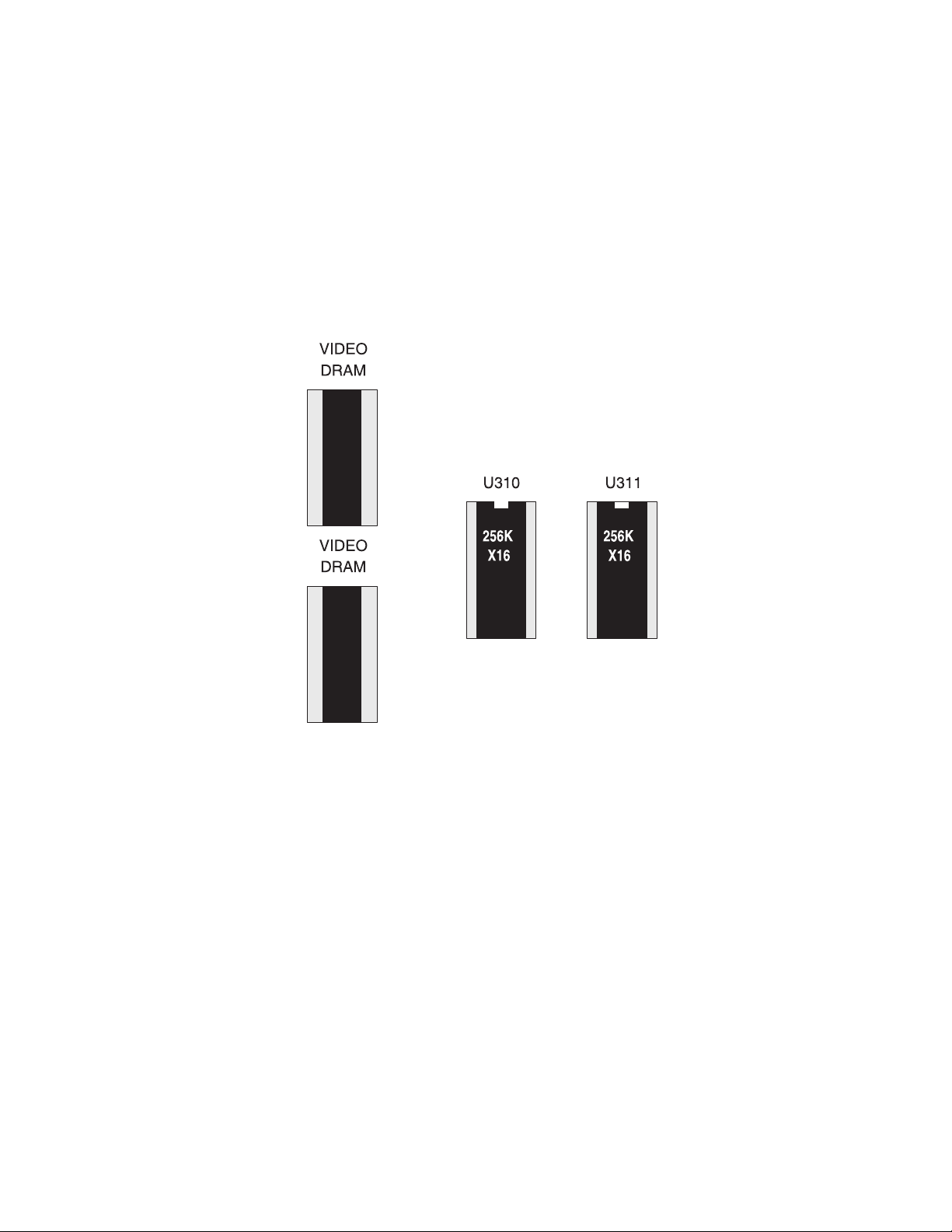

Figure 3-6 Installing Video Memory

Note:
Make sure the notches on the video memory match the notches on the sockets.

3-9

Micronics Mpower 4 plus System Board Manual

Installing a VL-Bus Riser Card

The Mpower 4 plus may include a riser card if the board is installed in a
chassis. If the system board is not installed in a chassis, perform the following
steps to install the riser card:

1. Locate the unused VL-Bus slot and ISA slot (refer to Figure 2-1).

2. Make sure no peripherals are installed on the riser card.

3. Insert the card with the bottom edge level. Never insert the card at

an angle.

4. Holding the card at the center of the top edge, gently push straight in.
Do not force the card. If it does not fit, take it out and try again.

5. Make sure the card is fully inserted.

3-10

Figure 3-7 Inserting a VL-Bus Riser Card

Installing System Memory and Add-On Peripherals

Installing a VL-Bus Card

Micronics VL-Bus slot accommodates most VESA-approved Local Bus cards.
The VL-Bus video card is installed onto the riser. Perform the following steps
to install a VL-Bus Card

1. Power off the computer system and remove the computer cover.

2. Choose an unused VL-Bus slot on the riser card.

3. Insert the card with the bottom edge level. Never insert the card at

an angle.

4. Holding the card at the center of the top edge, gently push the card
straight down. Do not force the card in place. If it does not fit, take
it out and try again.

5. Make sure the card is fully inserted.

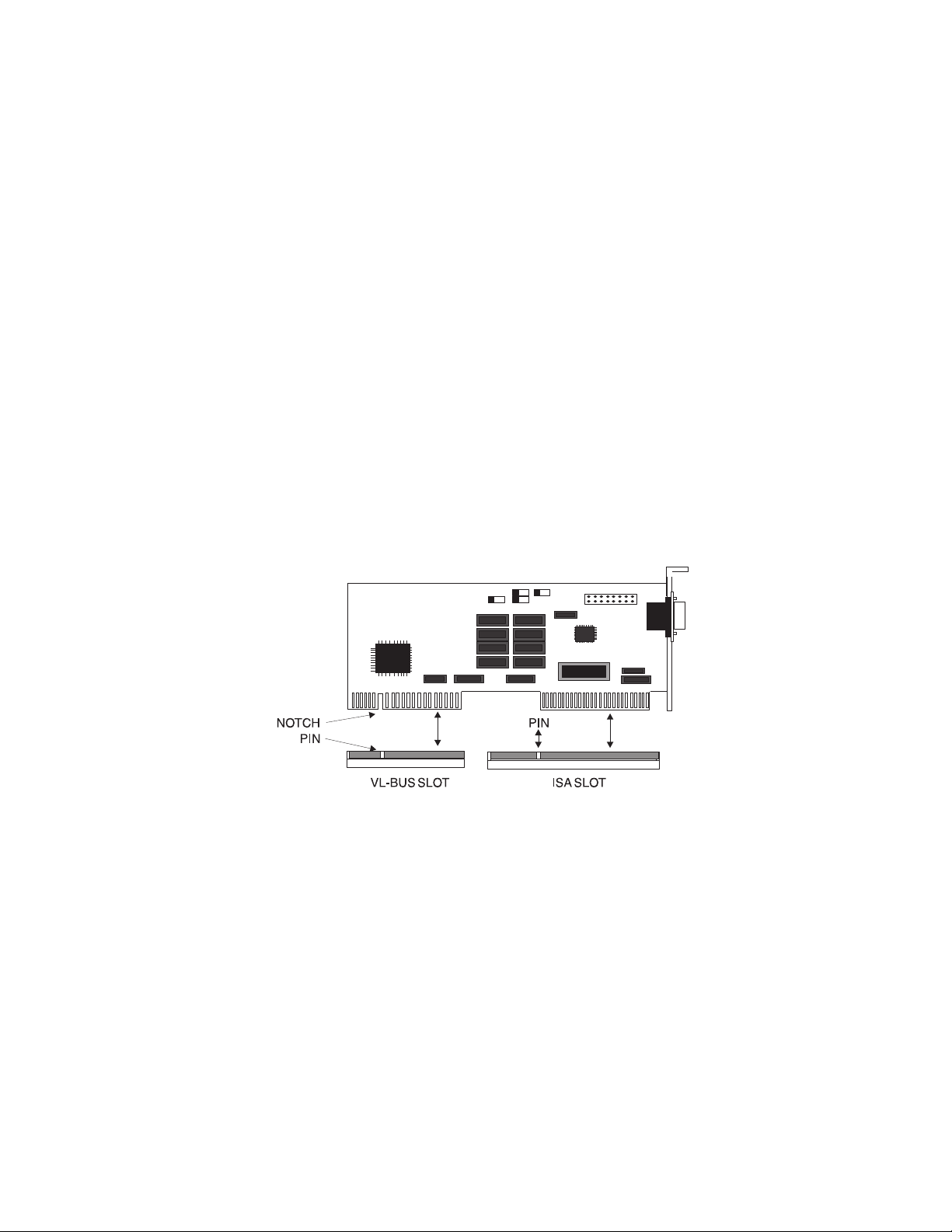

Figure 3-2 Inserting a VESA Local Bus Card

Note:
Always refer to the computer user guide for additional instructions concerning
installation. Make sure the VESA Local Bus card is configured to accommo­date the computer.

3-11

Micronics Mpower 4 plus System Board Manual

3-12

4The BIOS Setup Utility

Configuration

After the Mpower 4 plus system board and all hardware is installed, the
system is ready for configuration. Before turning on the computer,
make sure all cables are correctly connected and all jumpers are cor­rectly set.

It is recommended you keep the computer cover off the first time you
boot the system. If you have any difficulties, they will be easier to
correct.

Initial Boot Up

Power up the Mpower 4 plus. If the system doesn't properly boot, check
all your cables and peripherals for bad connections. You may also get
beep codes or error messages. If this occurs, consult Appendices A and/
or B for a guide to possible solutions.

After the system properly boots, it is ready to be configured. The
following pages explain the proper procedures for BIOS configuration.

4-1

Micronics Mpower 4 plus System Board Manual

Setup

The Setup procedure is built into the system. Setup begins after the completed
system is powered up. Once the system is powered up and goes through a
memory test, the following screen appears on your monitor:

Figure 4-1 Power-Up Screen

If the systems detects a configuration error, it displays an error message. After
the error message, another message displays indicating the choice to press
<F1> to continue (boot up), or <F2> to run the Setup procedure. Normally,
you will press <CTRL>, <ALT>, and <ESC> simultaneously to begin the
Setup procedure.

Running the Setup Procedure

Upon pressing <F2>, the CMOS Main Screen (Figure 4-2) should appear and
the prompt should be on the time line. If the Power-Up Screen does not
appear but a DOS prompt does (i.e., A:\ or C:\), press the <Ctrl>, <Alt>, and
<Esc> keys simultaneously to begin the Setup procedure.

4-2

The BIOS Setup Utility

The Mpower 4 plus system board has two CMOS configuration screens: the
Main Screen (Figure 4-2) and the Extended Screen (Figure 4-3). To toggle
between the screens, press the PgUp/PgDn keys.

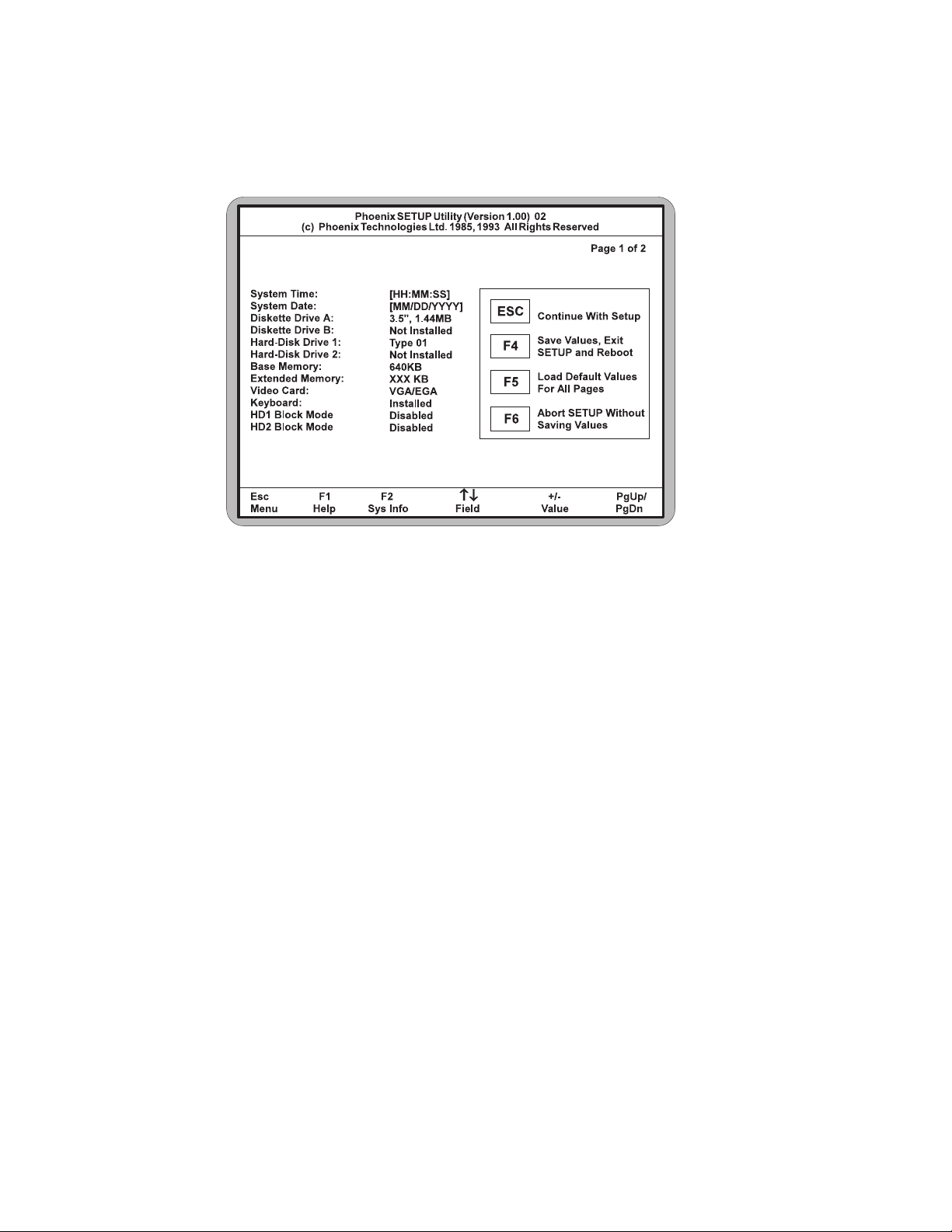

Figure 4-2 CMOS Main Screen

Now, configure the parameters to match your specific requirements. See the
following pages for procedures on how to set the computer’s parameters.

To return to the CMOS configuration screens at any time to change or view
any of these parameters, press <Ctrl>, <Alt>, and <Esc> simultaneously.

Setting the CMOS Parameters

Before running the computer, certain parameters on the CMOS configuration
screens must be set so the computer properly operates. First, set the param­eters on the CMOS Main Screen, then press the PgUp/PgDn key and set the
parameters on the CMOS Extended Screen.

4-3

Micronics Mpower 4 plus System Board Manual

Note:
Some of the parameters are already set and need not be changed. Only
change the settings if necessary.

Setting the CMOS Main Screen

System Time and Date

To set the time, use the minus <-> key to decrease the number and the plus
<+> key to increase the number. To move the prompt forward, use the right
arrow <→> key; to move the prompt backward, use the left arrow < ←> key.
Follow the same procedure for the date.

Diskette A or B

This allows you to configure a diskette drive added or removed from your
computer. Use the <+/-> keys to toggle between the options.

Hard Disk 1 or 2 (IDE Drives Only)

This selection allows you to configure a hard disk installed in your system.
Use the <+/-> keys to toggle between the options. See Appendix C for a
complete listing of all possible hard drive types.

To install most SCSI hard drives, select NOT INSTALLED. To install ESDI
or RLL hard drives, select TYPE 1. To manually configure the hard drive,
select USER CONFIG. Press the down arrow <↓> key and type in the
appropriate parameters. To automatically configure an IDE hard drive, select
AUTO CONFIG. Drives that can be Auto-Configured report parameters to the
BIOS.

Base Memory and Extended Memory

Both of these memory settings are automatically configured. Press the down
arrow <↓> key to move to the next selection.

Video Card

This sets the type of monitor required for your computer. The display periph­eral supports VGA/EGA, Monochrome (MONO), or no monitor at all. Use
the <+/-> keys to toggle between the options.

Keyboard

The keyboard function is set to INSTALLED for keyboard error reporting. To
turn off keyboard error reporting, use the left/right arrow keys to toggle the
keyboard NOT INSTALLED.

4-4

The BIOS Setup Utility

HD1 and HD2 Block Modes (IDE Drives Only)

The Block Modes (HD1 and HD2) are designed to improve the data transfer
performance in AT IDE drives. This reduces the number of data transfer
interrupts and generates an interrupt on every block (block size of 8 sectors),
instead of generating an interrupt on every sector transfer. Use the <+/-> keys
to select ENABLED to activate this feature. This option may not work with
older or slower IDE drives. Check with your drive manufacturer to see if your
drive can perform this function.

Beeper Option

This option allows you to select the type of Beeper for the system. You can
select the beeper to be DISABLED, as well.

The “Green Section” of the BIOS

The "Green Section" of the BIOS conserves energy by putting components
parts of the computer into "sleep modes." When a component is in a sleep
mode, it consumes less energy.

The computer puts components into sleep mode if a specified time elapses and
no keystrokes have been performed on the keyboard. These selections will not
recognize any mouse movement; only activity involving the keyboard. For
each selection, use the <+/-> keys to toggle between the numbers. Use the
directional arrow keys to move to the next selection.

CPU Standby Timer: This selection can be set to one minute or in increments
of five minutes (up to 70 minutes). After the allotted time, the CPU will
reduce its speed to 8MHz. The CPU Standby Timer must be DISABLED if
a DX4-100MHz is installed. The Scroll Lock light will flash to indicate
reduced speed. To return to full processing speed, press any key.

Hard Disk Off Timer: When set to ENABLED, the hard drive spins down
after 15 minutes to conserve energy and remains spun down until accessed.

Note:
Only a certain number of hard drives support the “green” features of the
BIOS. Consult Micronics’ Technical Support department for information on
which peripherals support these features.

4-5

Micronics Mpower 4 plus System Board Manual

Setting the CMOS Extended Screen

Refer to Figure 4-3. CMOS Extended Screen. You can toggle between the
Main and Extended screens using the PgUp and PgDn key.

Figure 4-3 CMOS Extended Screen

System BIOS

The System BIOS Option allows you to Shadow, Shadow & Cache, or Disable
the BIOS Shadow on the system board. Choosing SHADOWED copies the
system BIOS into RAM for faster execution. Choosing SHADOWED &
CACHED caches the shadowed system BIOS for even higher performance.
This allows you to take advantage of the high-speed 32-bit bus and the 70
nanosecond RAM. Use the <+/-> key to toggle between the options.

Video BIOS

The Video BIOS Option allows you to Shadow, Shadow & Cache, or Disable
the BIOS Shadow on the system board. Choosing SHADOWED copies the
system’s video BIOS into RAM for faster execution. Choosing SHADOWED
& CACHED caches the shadowed video BIOS for even higher performance.
Use the <+/-> key to toggle between the options. The System BIOS Shadow
option must be set to SHADOW or SHADOW & CACHE before enabling the
Video BIOS Shadow options.

4-6

The BIOS Setup Utility

System Speed

This parameter selects two speeds on the computer. When set to NORMAL,
the system operates at full speed. For example, at 33MHz when the Turbo
switch is on, the system has a Landmark 2.0 rating of 111.77 MHz. When set
to SLOW, the system has a Landmark 2.0 rating of 55.5 MHz.

CPU Type

This option selects the CPU installed and has auto detection with correspond­ing jumper settings on board. You must choose the correct CPU selection with
the corresponding CPU. This selection is for user-upgradeable CPUs.

System and Setup Menu Passwords

These parameters allow you to limit access to the system. The selections
require a user-selected password be entered before allowing the system to boot
or to allow entry into the setup screens.

The two passwords may or may not be the same. The passwords may be up to
seven characters in length, include special characters, and are case sensitive.
For example: PSWD$2, Pswd$2, psWD$2, and pswd$2 are all valid and are
all different, even though they have the exact same characters.

After a password is entered and the system is rebooted, you are given three
opportunities to enter the correct password. If an incorrect password is
entered three times, the system no longer functions. The keyboard locks out
and you need to press the reset button or turn the system off then on to restart
the computer.

System Password

When enabled, the computer requires a password at boot. After entering the
password, the system asks: “Do you want to change your password (Y/N)?”
Press <Y> to change the password and <N> to keep it.

If no password has been entered or the CMOS memory has been cleared, the
following message appears at boot up: “Password values are invalid. Do you
want a password (Y/N)?”

Setup Password

If ENABLED, a password is required to enter Setup. If the password is lost or
forgotten, the CMOS must be cleared.

4-7

Micronics Mpower 4 plus System Board Manual

Note:
After changing the setup menu and password to ENABLED, save the CMOS
settings by pressing <Esc> followed by <F4>. After the system reboots,
immediately press <Ctrl>, <Alt>, and <Esc> simultaneously. You will not be
asked to enter a password until you attempt to enter the CMOS screen.

Internal Cache

The Mpower 4 plus has the option of activating or deactivating the internal
8K-byte cache of the 486 microprocessor. Choose ENABLED to activate the
Internal Cache, or choose DISABLED to deactivate the on-chip cache. The
Internal Cache must be ENABLED to activate the External Cache.

External Cache

The Mpower 4 plus has the option of either 64K, 128K or 256K of external
cache memory. Choose ENABLED to activate the external cache memory.

External Cache Mode

This selection sets the secondary cache scheme. Setting the scheme to
WRITE-BACK and placing jumper blocks on W16 and W17 will improve
performance up to 4%. Refer to Tables 2-7 and 2-10 for cache jumper
configuration.

Serial Port 1

The Serial Port 1 can be selected as COM1 or COM3. Be sure this setting
does not conflict with any add-on peripherals. The Serial Port 1 can also be
set to DISABLED if the on-board port is not used.

Serial Port 2

The Serial Port 2 can only be selected as COM2. The on-board ATI local bus
video uses the I/O address normally used by COM4. Serial Port 2 can also be
set to DISABLED if the on-board port is not used.

Parallel Port

The Parallel Port selection can be selected as LPT1 or LPT2. The Parallel Port
can also be set to DISABLED, if the on-board port is not used. Be sure this
setting does not conflict with any add-on peripherals.

On Board Floppy

The On Board Floppy controller can be set to ENABLED or DISABLED.

On Board IDE

The On Board IDE controller can be set to ENABLED or DISABLED.

4-8

The BIOS Setup Utility

HD1 Speed

The speed of Hard Disk 1 can be set for NORMAL, MEDIUM, or FAST. To
improve the performance of your system, see the manufacturer's specifications
to determine the optimal setting. The default setting is NORMAL.

HD2 Speed

The speed of Hard Disk 2 can be set for NORMAL, MEDIUM, or FAST. To
improve the performance of your system, see the manufacturer's specifications
to determine the optimal setting. The default setting is NORMAL.

Non-Cacheable Area #1 and #2

These two parameters allow a block of 32-bit memory to be set as NON­CACHEABLE. The size and address can be selected. The sizes include: 64K,
128K, 256K, 512K, 1M, 2M, and 4M.

To select the memory to be Non-Cacheable, use the <+/-> keys to change the
first three zeros to the appropriate address (only these zeros can be changed).
Area #1 must start from 0000000h to 0FF0000h (15.94MB), and area #2 must
start from 0000000h to 3FF0000h (63.94MB). The default setting for both
selections is UNDEFINED.

Re-Configuring Your Computer

Press the <Esc> key to reach the Exit Pop-Up Screen. Now select <F4> to
save and initialize the new Setup.

4-9

Micronics Mpower 4 plus System Board Manual

Figure 4-4 Exit Pop-up Screen

4-10

Installing Graphics

5

Accelerator Software

The Mpower 4 plus comes standard with the ATI mach64 video chip on
board. The mach64 chip is a 64-bit graphics accelerator offering
superior video performance. Certain utilities must be run before using
the mach64. For optimal performance, install the utilities completely.

Preparation

Make sure that no hardware (internal modems, Fax cards, or LAN cards)
are using addresses between the range of 2E0 to 2EF, such as COM 4
(2E8). If they are occupied, change the device(s) to a different range
outside of 2E0 through 2EF.

Make sure LAN cards, scanner cards and other adapters are not using
memory addresses between C0000 and C7FFF. Check and record the
amount of memory installed on the system board.

Review the CONFIG.SYS file to determine if a Memory Manager
Device driver is loaded. Memory Manager Device drivers (for example;
EMM386, QEMM, and 386MAX) may interfere with the mach64
installation. Install the Memory Manager after the mach64 is com­pletely loaded.

5-1

Micronics Mpower 4 plus System Manual

Installation

Perform the following steps to install mach64 graphic utilities:

1. Turn on the monitor and then the computer. (This allows mach64 to
read the monitor type from the monitor during power-up for proper
card operation).

2. From the DOS prompt, insert Disk 1 of the utilities into the
appropriate floppy drive.

3. From the drive where the utilities diskette is located, type INSTALL
and press <Enter>.

4. After the INSTALL program is initialized and loaded, the Main Menu
appears (see Figure 5-1).

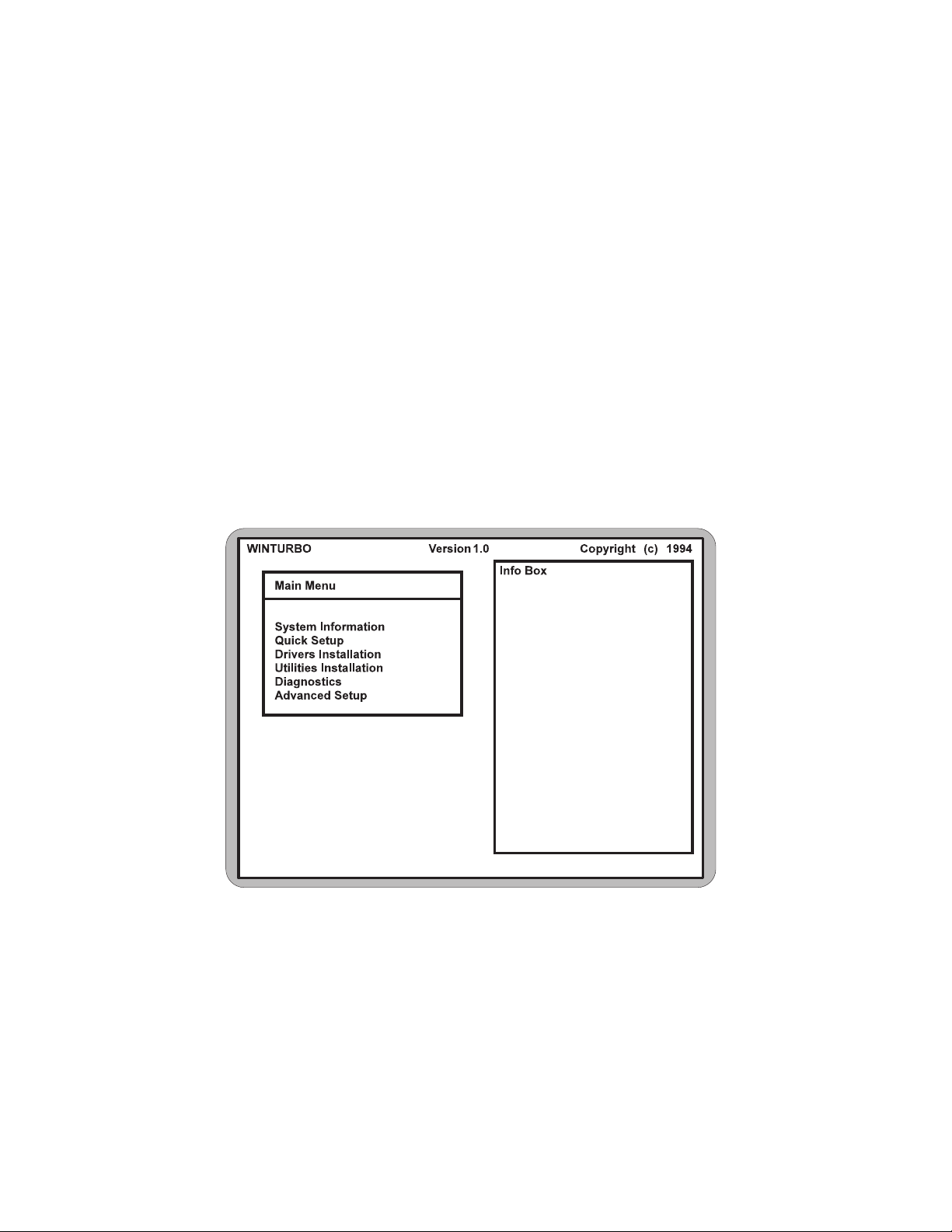

Figure 5-1 Main Menu

Main Menu Options

System Information-Checks your system configuration, displays detailed
information, including boot-up files and any possible conflicts, based on your
current system configuration and the card you are installing.

5-2

Installing Graphics Accelerator Software

Quick Setup-Sets the card to an optimal configuration using the information
acquired during system checking.

Drivers Installation-Installs enhanced graphics and multimedia drivers for
popular operating system checking.

Diagnostics-Tests the proper functioning of your card in both VGA and
accelerated display modes.

Advanced Setup-Should only be attempted by experienced computer users.
Although some settings may improve the performance of your card, they may
not be fully compatible with your system or specific software applications.

System Information

This program checks the system for possible conflicts and displays the card
configuration in the INFO BOX. If a conflict exists, it issues a warning and
suggests possible corrective actions. Perform the following steps to check
your system:

1. From the Main Menu, select SYSTEM INFORMATION by

highlighting the selection and pressing <Enter>.

2. Review the information in the INFO BOX and take any necessary
action as directed.

Quick Setup

You must specify a monitor in QUICK SETUP. Proper monitor selection is
necessary for correct resolution and refresh rate operation. Information on
display modes supported by the highlighted monitor are displayed in the INFO
BOX. Perform the following steps to install the monitor type:

1. Select QUICK SETUP from the Main Menu by highlighting the
selection and pressing <Enter>. A Monitor Selection Menu will
appear (see Figure 5-2).

2. Using the <↑/↓> keys, scroll the monitor list to highlight your
monitor. If found, press <Enter> to select. If your monitor is not
listed, follow step a) or b) described below:

a) If a VESA Display Information Format file (VDIF) is available
for your monitor, INSTALL can read it and get the necessary
parameters to set up the card for optimal monitor operation. To
do so, insert the disk containing the VDIF file into your floppy
drive. Select READ VDIF... from the Monitor Selection Menu.

5-3

Micronics Mpower 4 plus System Board Manual

Change the DOS directory prompt to the drive containing the
disk. INSTALL will read the file and configure mach64 to
support your monitor.

b) Select CUSTOM... to set up the card to any supported monitor
specifications. You will need to manually test and configure
each display mode separately. To do so, select CUSTOM... and
press <Enter>. Select a resolution and press <Enter>. Pick a
refresh rate that matches the specification of your monitor and
press <Enter> to bring up the Adjustment Screen. If the monitor
does not display a proper Adjustment Screen at the lowest
refresh rate, set the resolution to Not Supported.

Warning:
Do not exceed the monitor specifications. Using a refresh rate (i.e., vertical
frequency) that is higher than specified may damage your monitor.

A scrambled screen indicates your monitor is not capable of the selected
display mode. In which case, immediately press <Esc> to exit.

Figure 5-2 Monitor Selection Menu

Drivers Installation

Selecting this option brings up the INSTALL ENHANCED DRIVERS menu
for installing ATI enhanced drivers. See Chapter 6 for detailed instructions.

Utilities Installation

This procedure is for copying the utilities and the INSTALL program to your
hard drive. The boot files can be modified automatically so you can run these
programs from any directory. Perform the following steps to run the UTILI­TIES INSTALLATION program:

5-4

Installing Graphics Accelerator Software

Note:
It is recommended that you accept the defaults suggested during installation.

1. Select UTILITIES INSTALLATION from the Main Menu by using
your arrow keys to highlight it and pressing <Enter>.

2. Enter the destination drive and directory and press <Enter>.

3. Enter the source drive and press <Enter>.

4. Utilities are in the root directory of the Install Disk #1. Accept the
prompt for the root directory and press <Enter> to start copying.

5. When prompted for the boot drive, enter your boot drive (i.e., C) and
press <Enter>.

6. To run the INSTALL program from any directory (in DOS), you must
add the location of the utilities to the PATH statement in the
AUTOEXEC.BAT file. The default directory name used by this
installation is C:\MACH64.

7. When finished, press <Esc> and exit from the Main Menu.

8. Changes made to the boot files (CONFIG.SYS and
AUTOEXEC.BAT) are active only if you reboot the computer. If you
encounter errors or suspect the hard disk is full, refer to the
Troubleshooting section in this chapter or your DOS manual for
information.

Diagnostics

From this menu, you can test the various operations and circuitry of the
mach64. The diagnostics screen can be displayed at any supported resolution
and color depth for testing. These tests support mouse and keyboard opera­tions and directions are displayed on the screen. Errors found by testing are
discussed in the Troubleshooting section of this chapter.

Advanced Setup

The number of options in the Set Power-Up Configuration menu (see Figure
5-3) depends on the card type (i.e., ISA, VLB, or PCI). To set up these
options, use the arrow keys to highlight ADVANCED SETUP and press
<Enter>, then set the options to match your monitor and system type. If you
need help, press <F1>.

5-5

Micronics Mpower 4 plus System Board Manual

Warning:
The Advanced Configuration option allows you to use certain features may
add additional performance to your card; however, these options may not be
compatible with your system. If problems occur after an advanced option is
changed, return the card to factory defaults to correct them.

Figure 5-3 Set Power-Up Configuration Menu

Advanced Setup Options

Monitor Type-Lets you specify a monitor type as you did in QUICK SETUP.

Power-Up Video Mode-This card can be configured to power up in VGA color

or VGA monochrome.

M Auto Select-This option automatically chooses a suitable mode for

your system.

M 16-bit-All coprocessor accesses are 16-bit wide. Certain computer

systems may lock up when in this mode. If this happens, select 8-bit
Host.

M 8-bit Host-Only data transfers between the host bus and graphics

memory are 8-bit; otherwise, coprocessor operations are 16-bit. If
your computer has compatibility problems with this setting, select
8-bit.

M 8-bit Host-I/O operations are 8-bit.

Memory Aperture This option controls usage of memory aperture.

The card can be reset to factory defaults by pressing <Shift><F7>. Once you
have finished configuring the necessary parameters described above, save
them to the card by pressing <F10>. If you choose not to save the current
configuration changes, press <Esc> and choose Discard when prompted. The
card then reverts to the previously saved settings in EPROM (or to factory
defaults if the card had never been configured).

5-6

Installing Graphics Accelerator Software

Troubleshooting

Listed below are several checks you can make to help determine the cause of
any problems:

System Lockup

M If you are using a memory manager such as QEMM or 386MAX, you

need to modify the command line in the CONFIG.SYS file so the
address of the graphics card video BIOS, C0000-C7FFF, is excluded.
For example, add “X=C000-C7FF” to the command line

M Remove all unnecessary boards.

M Disable shadow RAM.

M Ensure the board is seated correctly and the card has been installed

using proper utilities.

M Try the card in a different system and reset to factory defaults using

the INSTALL program. If the card works in another system, the
problem is likely due to incorrect configuration.

Test Patterns OK; Applications Do Not Sync

M The wrong monitor type has been selected. Change the settings in the

INSTALL program.

Window Driver Not Installing Properly

M Windows must be running in 386 Enhanced Mode. Incompatible

commands or options within CONFIG.SYS may prevent Windows
from starting in enhanced mode. If this occurs, remove the offending
driver or reinstall the memory manager software.

AutoCAD Driver Not Installing Properly

M If using a 386, ensure AutoCAD has been configured for the

appropriate ADI driver. The protected mode driver requires extended
memory.

5-7

Micronics Mpower 4 plus System Board Manual

Error Codes and Messages

Table 5-1 lists problems and solutions for some common errors found by the
test program.

Problem Solution

EPROM BIOS
failure

Memory aperture
test failure ,
diagnostics program
locks, or reboots
during test (ISA
card only)

Desired resolution is
disabled and
displays in gray

Menu item is
disabled and
displays in gray

Try reinstalling or run the diagnostics using
the /F switch. This returns the card to
factory settings:

M64D IAG /F <Enter

>.

If you receive an error message indicating
the memory aperture location is conflicting
with y our sys tem memory, restart t he
INSTALL program as follows

APMP <Enter

>. Now when you enable

: INSTALL

Memory Aperture, you must select a
location

above but not overlapping

System
Memory (S), BIOS (B), or Reserved (R)
locations. If the problem is due to address
limitations inherent with the ISA bus
architecture (i.e., aperture + system RAM
exceeds 16MB, disable aperture).

A mode displayed in gray means the BIOS
is told this mode is not available, based on
the card configuration. Reinstall using
custom monitor selection.

The test program has determined the mode
or test is not available under current
configuration. Aperture tests are not
available if the aperture is disabled, and
CRT mode and pixel depth are determined
by current installation, DAC type, and
memory size and type.

5-8

Table 5-1 Error Codes and Messages

Installing Graphics Accelerator Software

Problem Solution

Adapter not
detected

This message should only occur when a

mach64

ASIC is not detected. If this

message occurs and a

mach64

board is
present, it may indicate an I/O conflict exists
between Extended Memory Manager (EMM
and Video ROM). Try removing all other
boards from the system and booting from a
plain DOS disk. Try excluding the video
BIOS address (C0000-C7FFF) from the
memory manager. Refer to the
documentation furnished with the memory
manager software for information.

Any FIFO test error The effects of a bad command FIFO should

be visible (e.g., the screen does not come
up, or it displays garbage.)

Quick memory test
error

Detailed memory
test erro r

Run Detailed RAM Test to confirm the error
and identify address of the error.

Run Detailed RAM Test several times to
confirm the error and take notes of any
messages and error codes.

DAC LUT test
failure

An error has occurred while testing the DAC
LookUp Table. The problem should be
visible on the top color bar of any 8bpp
mode.

ROM checksum

An error has been detected in the ROM.

error
Draw sequence

failure

An error has occurred in the draw eng ine. If
the error is intermittent, it might indicate a
marginal RAM failure. The effects of this
failure may not be immediately apparent.

Table 5-1 Error Codes and Messages (Cont'd)

The information provided in this user guide enables you to solve most
problems. For further assistance, please contact your vendor.

5-9

Micronics Mpower 4 plus System Board Manual

The following error message may appear when the INSTALL program is
programming the EPROM:

Selected Memory Aperture Configuration May Conflict...

Ignore this message if the system has 12MB or more system memory and the
Memory Aperture feature is disabled. If the system CMOS configuration has
Video BIOS Shadowing enabled, reboot the system once the programming of
the EPROM has been completed. If this message does not appear, continue
the installation procedure.

5-10

6Installing Video Drivers

A README file is provided for each application driver in the mach64
installation disks. These files summarize the latest product revisions,
contain directions for installation, and use of enhanced drivers. For
added convenience, you can load and print README files using any
word processor after their corresponding drivers have been installed.

README files for AutoCAD and MicroStation drivers are automati­cally displayed as you install the drivers. If you install the driver for
Microsoft Windows, a README icon will be installed and placed in a
program group called “mach64 DeskTop.” Click on this icon for feature
and usage information about the driver.

Installation

Applications use video device drivers to display data on the screen. The
mach64 drivers give you more screen resolutions and color depths than
standard device drivers. Furthermore, mach64 supports IBM standard
VGA and VESA drivers that normally come with most major software
packages. To fully utilize the enhanced speed, resolution, color depth,
and other features of this chip, you should use mach64 drivers.

Note:
To conserve hard disk space, install only the drivers you use. You may
require application software disks during driver installation.

De-Installation

This installation program allows you to effortlessly de-install some
mach64 drivers and return your application or operating environment to
VGA support. This feature is available for Windows 3.1 and OS/2
Manager. Details are given in the respective sections.

6-1

Micronics Mpower 4 plus System Board Manual

Microsoft Windows 3.1

The mach64 driver for Windows delivers increased performance at high
resolutions and color depths. You need to install this driver using the steps
outlined below.

The DRIVERS INSTALLATION option in the Main Menu sets FlexDesk+
and WinSwitch automatically. FlexDesk+ customizes the operational/display
settings of the driver. WinSwitch adds the capability of switching screen
resolution and/or colors with a key.

De-Installation Procedure

Skip this section if you have not previously installed any mach64 window
driver. The program removes all existing driver from your hard disk and
cleans up all associated Windows and MVA files.

Perform the following steps to de-install driver using Microsoft Windows 3.1:

1. Record the location of the Windows application.

2. Run the mach64 installation program and SELECT DRIVERS
INSTALLATION from the Main Menu.

3. From the list of applications:

a) Select Microsoft Windows
b) De-Install Windows 3.1 driver
c) Follow screen instructions to completion.

Installation Procedure

Perform the following steps to install drivers using Microsoft Windows 3.1:

1. Ensure your card has been installed and configured as described
in Chapter 5 before continuing with this procedure.

2. Start Microsoft Windows to ensure it is properly installed, then quit
Windows.

3. Run the mach64 installation program and SELECT DRIVERS
INSTALLATION from the Main Menu.

4. From the list of applications:

6-2

Installing Video Drivers

a) Select MICROSOFT WINDOWS.
b) Select INSTALL WINDOWS 3.1 DRIVER and note the
messages.
c) Follow screen instructions to completion.

5. After copying is done, record the Windows setup instructions, then
press <Esc> to exit.

6. Exit the INSTALL program and restart Windows.

7. The ATI DeskTop icon is created automatically during driver
installation. Select it to customize the look-and-feel of Windows.

A utoCAD 386 R10/R11/R12

Perform the following steps to install driver using AutoCAD 386:

1. Run AutoCAD 386 (protected mode) to ensure it is properly installed
on your system. Note the directory location of the AutoCAD
program files before you start the mach64 installation program. You
will need this information later.

2. Run the mach64 installation program and SELECT DRIVERS
INSTALLATION from the Main Menu.

3. From the list of applications, select AutoCAD. When asked for
source drive and directory, type in the information and insert
requested diskettes.

4. Follow instructions on the screen to install the DLXpress driver.

5. When driver installation is completed, exit the installation program.
Run ADIACAD.BAT to set the necessary driver parameters for the
DOS environment as follows:

ADIACAD <Enter>

ADIACAD.BAT was created by the mach64 installation program for
your convenience. The parameters it sets must be in the environment
before you start AutoCAD.

6-3

Micronics Mpower 4 plus System Board Manual

TIP: If you are using a batch file to start AutoCAD, consider
adding ADIACAD to your batch file.

6. Start AutoCAD and reconfigure it to use the enhanced display list
driver. For example, if you start AutoCAD using a batch file called
ACADR12.BAT, type:

ACADR1 -R <Enter>

The “-R” parameter is supported only by AutoCAD release. For
other releases, refer to your AutoCAD manuals.

Documentation for the DLXpress driver is provided on the
installation diskette. See the README.DLX file for details.

IBM OS/2 Presentation Manager 2.1

Installation Procedure

Perform the following steps to install driver using the IBM OS/2:

1. Start OS/2 2.1 to ensure that it uses the Video Graphics Array (VGA)
driver before continuing with this procedure.

2. Insert the mach64 installation disk #1 into a floppy drive.

3. Open the DOS Full Screen icon.

The mach64 installation program does not run in a DOS window.
The DOS Box must be Full Screen for successful operation.

Do not switch out of Full Screen to run Diagnostic Tests. Doing so
will result in a corrupted display.

4. Type: A:\INSTALL <Enter> (For drive B, substitute B: for A:)

5. Select DRIVERS INSTALLATION from the Main Menu.

6. This will copy the mach64 driver to the MACH_OS2 directory.

7. Open an OS/2 Window or OS/2 Full Screen icon and type:
DPINSTL <Enter>.

6-4

Installing Video Drivers

8. When the Display Driver Install panel appears, select Primary
Display and choose OK to bring up the selection list.

9. Select ATI Technologies mach64 from the list and choose OK.

10. When the source directory panel appears, choose Change. Select the
drive and directory where the mach64 driver resides (e.g.,
C:\MACH_OS2) then choose Set and Install.

11. After the driver is installed, do a shut down, then restart OS/2.

12. The OS/2 driver will first come up as 640x480 in 256 colors.
Perform the following steps to change screen resolution and/or color
depth:
a) Open the “OS/2 System” icon.
b) Open the “System Setup” icon.
c) Open the “System” icon.
d) Select the “Screen” tab in the “System-Settings” window.
e) Select desired resolution and color depth from list.
f) Close the “System-Settings” window.
g) Do a shutdown of OS/2, then restart your computer.

Note:
The resolution you select for the OS/2 driver must be a supported and enabled
resolution as defined by the Monitor Type setting chosen in the mach64
installation program.

De-Installation Procedure

Perform the following steps to de-install driver using IBM OS/2:

1. Open an OS/2 Window or OS/2 Full Screen icon and type:
DPINSTL <Enter>

2. Select “Video Graphics Array (VGA)” as the Primary Display. The
Source Directory panel appears.

3. Insert the OS/2 Display Driver disk in the floppy drive. Select the
drive and directory where the VGA driver resides (typically A: or B:),
choose Set, then choose Install.

4. After the driver is installed, do a shutdown of OS/2, then restart your
computer.

6-5

Micronics Mpower 4 plus System Board Manual

Continue with the following steps if you wish to remove mach64 files from
your hard disk.

5. Open the DOS Full Screen icon.

6. Change to the mach64 directory and type: INSTALL<Enter>

7. Select DRIVERS INSTALLATION from the Main Menu.

8. Select IBM OS/2 from the list of applications.

9. Select UN-INSTALL OS/2 Driver, then follow instructions on the
screen.

Intergraph MicroStation 4.0

Perform the following steps to install driver using Intergraph MicroStation.

1. Ensure that MicroStation is properly installed on your system before
continuing with this procedure.

2. Run the mach64 installation program and SELECT DRIVERS
INSTALLATION from the Main Menu.

3. From the list of applications, select MicroStation. Enter the source
drive and directory information, then insert the disk prompted.

4. Follow the instructions on screen to complete the driver installation.

5. When driver installation is completed, press <Esc> to exit.

6. Refer to the README.USD file that has been copied to your
MicroStation directory for instructions and driver configuration
details.

Microsoft Windows NT

Installation Procedure

Perform the following steps to install driver using Microsoft Windows NT:

6-6

Installing Video Drivers

1. Run the Windows NT Setup program. It is located in the Program
Manager Main window.

2. Insert the ATI installation disk marked Windows NT Driver into your
floppy drive.

3. Select Other, and supply the Setup program with the location of the
NT files (i.e., B:\NT if using drive B). The program will install the
ATI driver.

4. Restart Windows NT.

Note:
If the NT driver resolution selected is not supported, the display reverts to
640x480 regardless of the resolution setting selected in the Presentation
Manager driver setup.

De-Installation Procedure

You may de-install the mach64 driver for Windows NT using either of the
following steps:

1. In the WINNT\SYSTEM32\DRIVERS directory, rename the
ATI.SYS file, for example, to ATI.ATI. When you restart Windows
NT, it will not find ATI.SYS, and boot up in VGA.

2. Run the Windows NT Setup program and select a non-ATI driver, for
example, a VGA-Compatible driver. When you restart Windows NT,
it boots up with the non-ATI driver you just selected.

Microsoft Word (fo r DOS) 5.x, 6.0

Mach64 drivers for Microsoft Word support 640x480, 800x600, and
1024x768 screen resolutions in 16 colors. Perform the following steps to
install driver using Microsoft Word:

1. Run Microsoft Word to ensure it is properly installed on your
system before continuing with this procedure.

2. Run the mach64 installation program and SELECT DRIVERS
INSTALLATION from the main menu.

3. From the list of applications, select Microsoft Word.

6-7

Micronics Mpower 4 plus System Board Manual

4. Select an appropriate Word program version.

5. Follow the instructions on screen to complete the driver installation.

6. When driver installation is completed, press <Esc> to exit.

7. Refer to the README file that has been copied into your Word
directory for instructions and driver configuration details.

WordPerfect (for DOS) 5.x, 6.0

WordPerfect Versions 5.0 and 5.1

The mach64 drivers for WordPerfect 5.x support 800x600 and 1024x768
screen resolutions in 16 colors. Perform the following steps to install driver
using WordPerfect Versions 5.0 and 5.1:

1. Run WordPerfect to ensure that it is properly installed on your system
before continuing with this procedure.

2. Run the mach64 installation program and SELECT DRIVERS
INSTALLATION from the Main Menu.

3. From the list of applications, select WordPerfect.

4. When prompted, insert the disk and enter the source drive and
directory information of the disk.

5. When asked, enter the directory where WordPerfect is installed.
Press <Enter> to copy the necessary driver files to that directory.

6. When driver installation is completed, press <Esc> to exit.

7. Run the WordPerfect Setup program to select this enhanced driver, as
follows:

a) Run WordPerfect, press <Shift><F1> for the Setup option.
b) Press <D> for Display.
c) Press <G> for Graphics Screen Type.
d) Select the mach64 driver and press <Enter>.

6-8

Installing Video Drivers

WordPe rfect Version 6.0

This chip supports the VESA SVGA BIOS Extension which supports several
high resolution display modes. Perform the following steps to install driver
using WordPerfect Version 6.0:

1. The mach64 accelerator must be set up for the resolution intended to
use.

2. Run the WordPerfect Setup program to select a VESA display mode
as follows:

a) Run WordPerfect, press <Shift><F1> for the Setup option.
b) Press <D> for Display.
c) Press <G> for Graphics Screen Type.
d) Press <S> for Screen Type.
e) Select VESA VBE (VESA BIOS Extension) and press <S>.
f) Select one of the displayed modes and press <S>. A Driver
Warning dialog may appear; if so, consult the WordPerfect
documentation for information.
g) Press <Enter> as prompted. When you exit the Setup program,
you should be in the selected mode. If not, repeat Step1 to check if
the card is correctly configured for this resolution.

6-9

Micronics Mpower 4 plus System Board Manual

6-10

A

POST Messages

The following table lists the Power On Self Test (POST) messages,
possible causes, and solutions.

Message Possible Cause Solution

NO DISKETTE
CONTROLLER
DISKETTE DRIVE
RESET FAILED

DISKETTE DRIVE A
FAILURE

DISKETTE DRIVE B
FAILURE

DISKETTE READ
FAILURE; STRIKE
F1 TO RETRY
BOOT
DISPLAY ADAPTER
FAILED USING
ALTERNATE

ERRORS FOUND;
DISK X FAILED
INITIALIZATION

ERRORS FOUND;
INCORRECT
CONFIGURATION
INFORMATION;
MEMORY SIZE
MISCOMPARE

Disk controller not
found.
Disk adapter has failed
or is improperly
configured.

Drive A failed or is
missing.

Drive B failed or is
missing.

Disk is not formatted or
is defective.

The color/monochrome
switch is not set
correctly, or the primary
video adapter failed.

Hard disk configuration
information is incorrect.

The size of the base or
the expansion memory,
does not agree with
configuration
information.

Change the
Configuration.
Check the disk adapter.

Check the A drive.

Check the B drive.

Replace the diskette with
a formatted diskette and
retry.

Change the switch to the
correct setting, or check
the primary video
adapter.

Rerun SETUP and enter
the correct hard disk
information.

Enter correct memory
size and rerun SETUP
procedure.

A-1

Micronics Mpower 4 plus System Board Manual

Message Possible Cause Solution

FIXED DISK
CONFIGURATION
FAILURE

The specified
configuration is not
supported.

Correct the hard disk
configuration.

FIXED DISK
CONTROLLER
FAILURE

FIXED DISK X
FAILURE (where X
=0 or 1)

HARD READ
FAILURE- STRIKE
F1 TO RETRY
BOOT

FDD CONTROLLER
FAILURE

FDD A IS NOT
INSTALLED

FDD B IS NOT
INSTALLED

KEYBOARD CLOCK
LINE FAILURE or
KEYBOARD DATA
LINE FAILURE

The controller card has

Replace controller card.

failed.

The hard disk crashed. Press F1 to reboot or

rerun SETUP. If this does
not work, replace hard
disk.

The hard disk failed. Press F1 to reboot or

rerun Setup. If this does
not work, replace hard
disk.

Diskette controller failed. Replace controller card.

Cannot find diskette
controller for drive A.

Cannot find diskette
controller for drive B.

Install or replace
controller card.

Install or replace
controller card.

Keyboard logic failed. Make sure the keyboard

cable is connected
correctly.

KEYBOARD STUCK
KEY FAILURE

REAL TIME CLOCK
FAILURE

TIME-OF-DAY NOT
SET- RUN SETUP
PROGRAM

BIOS XXXX ROM
BAD CHECKSUM
(where
XXXX=C8000 to
E0000)

A-2

A key is jammed or was
held down during boot.

The real-time clock logic
failed.

The real-time clock time­of-day is not running.

The optional ROM
checksum is bad.

Make sure the keys are
not jammed or dirty.

Check battery and
replace, if necessary

Run SETUP utility.

Replace add-on card.

Message Possible Cause Solution

DISKETTE READ
FAILURE, or NOT A
BOOT DISKETTE, or

Hard/floppy disk failed or
is not bootable.

Replace the diskette with
a bootable diskette and

retry.
NO BOOT DEVICE
AVAILABLE

POST Messages

DECREASING
AVAILABLE
MEMOR Y , o r
MEMORY FAILURE
AT AAAAAAAA
READ XXXX
EXPECTING YYYY
(where AAAAAAAA
= failing address,
XXXX=data read,
and YYYY=data
written)

INVALID EISA
CONFIGURA TIO N
STORAGE- PLEASE
RUN THE
CONFIGURATION
UTILITY

CONFIGURATION
ERROR FOR SLOT
NN- PLEASE RUN
THE
CONFIGURA TIO N
UTILITY

The memory data
integ r ity failed.

The EISA configuration
storage checksum is
bad.

The EISA configuration
mismatched EISA
NVRAM.

Check contact points

between memory

modules and system

board. Replace memory

modules if necessary.

Run EISA configuration

utility.

Run EISA configuration

utility and the EISA

configuration file provided

by the add-on card

dealer.

INVALID ISA
CONFIGURATION

MEMORY HAS
BEEN ADDED OR
REMOVED

The ISA configuration is
mismatched.

The memory amount
has changed.

Run SETUP utility.

Run SETUP utility.

A-3

Micronics Mpower 4 plus System Board Manual

A-4

Beep Codes

B

Beep codes are a series of beeps sent through the speaker which indicate
a problem during the Power On Self Test (POST). If text appears on the
video screen, the Mpower 4 plus has completed POST; any other tone
from the speaker indicates something other than a POST error. These
tones are not described in Table B-1.

The beep error codes are a series of three sets of beeps. The duration of
the beep tones are constant, but the length of the pauses between the
beeps varies. For example: a 1-3-3 beep code will sound like one beep,
a pause; three beeps consecutively, another pause; and then three more
beeps.

One beep code is often misunderstood. If a video card is not installed or
is failing, the system board will generate a long-short-long-short beep
code. This is often interpreted as a 1-2-1 beep code. But POST errors
always vary in the length of the pause and not the duration of the beep
tone.

Another way of identifying a POST error is to use a device called a
POST card. This peripheral card is inserted into one of the ISA slots
and has an LED (or LCD) read out showing the contents of port 80h.

The following table provides a list of all beep codes and probable
causes.

B-1

Micronics Mpower 4 plus System Board Manual

Beep code Contents

Description

Port 80h

None 01h CPU register test in progress.
1-1-3 02h CMOS read/write failure.
1-1-4 03h ROM BIOS check failure.
1-2-1 04h Programmable interval timer failure.
1-2-2 05h DMA initialization failure.
1-2-3 06h DMA page register write/read failure.
1-3-1 08h RAM refresh verification failure.
None 09h First 64K RAM test in progress.
1-3-3 0Ah First 64K RAM chip or data line failure (multi-bit).
1-3-4 0Bh First 64K RAM odd/even logic failure.
1-4-1 0Ch Address line failure first 64K RAM.
1-4-2 0Dh Parity failure first 64K RAM.
2-1-1 10h Bit 0 first 64K RAM failure.
2-1-2 11h Bit 1 first 64K RAM failure.
2-1-3 12h Bit 2 first 64K RAM failure.
2-1-4 13h Bit 3 first 64K RAM failure.
2-2-1 14h Bit 4 first 64K RAM failure.
2-2-2 15h Bit 5 first 64K RAM failure.
2-2-3 16h Bit 6 first 64K RAM failure.
2-2-4 17h Bit 7 first 64K RAM failure.
2-3-1 18h Bit 8 first 64K RAM failure.
2-3-2 19h Bit 9 first 64K RAM failure.
2-3-3 1Ah Bit 10 first 64K RAM failure.
2-2-4 1Bh Bit 11 first 64K RAM failure.
2-3-1 1Ch Bit 12 first 64K RAM failure.
2-4-2 1Dh Bit 13 first 64K RAM failure.

B-2

Beep Codes

Beep code Contents

Description

Port 80h

2-4-3 1Eh Bit 14 first 64K RAM failure.
2-4-4 1Fh Bit 15 first 64K RAM failure.
3-1-1 20h Sla ve DMA register failure.
3-1-2 21h Master DMA register failure.
3-1-3 22h Master interrupt mask register failure.
3-1-4 23h Slave interrupt mask register failure.
None 25h Interrupt vector loading in progress.
3-2-4 27h Keyboard controller test failure.
None 28h CMOS power failure and checks calculation in

progress.
None 29h CMOS configuration validation in progress.
3-3-4 2Bh Screen initialization failure.
3-4-1 2Ch Screen retrace test failure.
3-4-2 2Dh Search for video ROM in progress.
None 2Eh Screen running with video ROM.
None 30h Screen operable.
None 30h Screen running with video ROM.
None 31h Monochrome monitor operable.
None 32h Color monitor (40 column) operable.
None 33h Color monitor (80 column) operable.

B-3

Micronics Mpower 4 plus System Board Manual

B-4

CHard Disk Drive Types

y

The following table lists the hard disk types supported by Mpower 4
plus.

TypeC

1 306 4 128 305 17 10
2 980 5 -1 -1 17 40
3 980 10 -1 -1 17 81
4 872 8 -1 -1 35 119
5 1010 6 -1 -1 55 162
6 987 12 -1 -1 35 202
7 989 12 -1 -1 35 202
8 1010 9 -1 -1 55 244

9 1010 12 -1 -1 55 325
10 989 15 -1 -1 56 405
11 903 4 0 0 46 81
12 903 8 0 0 46 162
13 659 16 0 0 46 236
14 702 16 0 0 63 345
15 N/A N/A N/A N/A N/A N/A

lHdPreLzSecSize

16 987 16 0 0 63 485
17 1023 16 0 0 63 503
18 895 5 0 0 55 120
19 904 8 0 0 46 162
20 683 16 0 0 58 309
21 895 10 0 0 55 240

C-1

y

Micronics Mpower 4 plus System Board Manual

TypeC

lHdPreLzSecSize

22 904 16 0 0 46 324
23 1023 16 0 0 63 503
24 1024 12 0 0 17 102
25 1001 15 0 0 17 124
26 978 14 0 0 35 233
27 1018 14 0 0 62 431
28 1024 12 0 0 34 204
29 768 14 0 0 62 325
30 1024 16 0 0 63 504
31 1001 15 0 0 34 249
32 936 16 0 0 17 124
33 883 16 0 0 38 262
34 967 16 0 0 63 475
35 790 16 0 0 57 351
36 615 4 -1 615 17 20
37 1024 4 -1 1023 17 34
38 1024 5 -1 1023 17 42
39 989 5 0 989 17 41
40 1024 8 1024 1024 17 68
41 820 6 -1 820 17 40
42 823 10 256 824 17 68
43 615 8 128 664 17 40
44 1023 15 -1 1023 17 127
45 1024 8 -1 1024 17 68
46 925 9 -1 925 17 69
47 699 7 256 700 17 40
48 User Config.
49 Auto Config.

C-2

Specifications

D

Processor Options Intel 486 SX 25 & 33MHz, PQFP

Intel 486 DX 33MHz, PGA
Intel 486 DX2 50 & 66MHz, PGA
Intel 486DX4 75 & 100MHz
Intel 486 DX2 3.3V Support
Intel Pentium OverDrive Processor
486 OverDrive Processor

Expansion One ISA/VL slot.

Riser card allows 4 ISA and 1 ISA/VL
slot (slot configuration may vary
depending on case design).

Chip Set Micronics X30 single chip ASIC

CMD 640A Local bus IDE
SMC 665 Super I/O controller

RAM Capacity Four 72-pin (x36 type) SIMM sockets,

accommodating up to 64MB of RAM

Form Factor Baby AT footprint (8.5" x 13")

4 Layer PCB

Built-in Video ATI 68800 mach64 LX

1MB DRAM frame buffer
Resolutions Supported:
640x480 (65,536 colors)
800x600 (256 colors)
1024x768 (256 colors)
1280x1024 (16 colors)

Keyboard Standard PS/2 style keyboard and mouse

connector

BIOS Phoenix BIOS on 1MB Flash EPROM

D-1

Micronics Mpower 4 plus System Board Manual

Cache 8K of internal cache memory

Cache Upgrade Optional 64K, 128K, or 256K of

secondary cache memory (write-through
or write-back)

I/O Ports Two serial ports

One parallel port
One mouse interface
One keyboard interface

Connectors One floppy interface

One keyboard interface

Burn-in 48 hours (minimum)

Environmental Specifications

The environment in which the M54Pe is located is critical. Micronics recom­mends the following environmental specifications:

Temperature Range

Operating: 50 to 104 degrees Fahrenheit (10 to 50 degrees Celsius).

Non-Operating: 50 to 140 degrees Fahrenheit (10 to 60 degrees Celsius).

Shipping: -22 to 140 degrees Fahrenheit (-30 to 60 degrees Celsius).

Relative Humidity

Operating: 20% to 80%

Non-Operating: 5% to 90%

D-2

Battery Disposal

Warning:
DO NOT: open battery; dispose of in fire; recharge; put in backwards, mix
with used or other battery types.

May explode or leak and cause personal injury.

D-3

FCC Warning Statement

This equipment has been tested and found to comply within the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not used in accordance with the instructions, may
cause harmful interference to radio communications. Interference to radio or
television reception can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the
following measures:

M Reorient the receiving antenna.

M Increase the separation between the equipment and the receiver.

M Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

M Consult your dealer or an experienced radio/TV technician for help.

To meet FCC requirements, shielded cables and power cords are required to
connect the device to the Mpower 4 plus.

Note:
Changes or modifications not expressly approved by Micronics could void the
user's authority to operate the equipment.

F-1

Micronics Mpower 4 plus System Board Manual

F-2

Glossary

Baby Form-Factor: A small computer system board.

Battery Backup: Maintains the configuration settings (date, time, etc.) stored

in the CMOS when the main power to the computer is turned off.

BIOS: Basic Input Output System. Maintains and controls the entire func­tions of the computer.

Cache: Fast memory used to enhance the efficiency and speed of the com­puter.

CGA: Color Graphic Adaptor. Associated with the monitor.

CPU: Central Processing Unit. Essentially, the “brains” of the computer.

DIP Switches: Switches used to configure the system board according to the

needs of the user.

Disk Controller: A computer card located in the system that controls the hard
and/or floppy disk drives.

Disk Drive: A hard or floppy disk drive.

DRAM: Dynamic Random Access Memory.

EGA: Enhanced Graphic Adaptor.

EISA: Extended Industry Standard Architecture.

ISA: Industry Standard Architecture.

Jumpers: A device on the system board used to configure certain information

on the board.

Math Coprocessor: An optional processor chip used to enhance the floating
point operations of the computer.

Micro Channel: A proprietary bus architecture.

Monitor: The visual component of the computer.

G-1

Micronics Mpower 4 plus System Board Manual

Monochrome: Used to describe a single colored monitor.

POST: Power On Self Test. The computer’s self-diagnostic test, which is

executed whenever the system is booted.

Power Supply: A term used to describe electric energy, in or out, that powers
the computer.

RMA: Returned Merchandise Authorization. An authorization provided by
the department where warranty issue items are returned.

Setup: Steps used to configure the system board.

SIMM: Single In-line Memory Module. SIMMs are banks of memory used

to increase the performance of the computer.

SRAM: Static Random Access Memory.

VESA: Video Electronics Standards Association.

VGA: Video Graphics Array. Associated with the monitor.

G-2

Limited Warranty

Except as described below, Micronics warrants the products to be free from
defects in material and workmanship in normal use for a period of one (1) year
from date of purchase. Should any product fail to perform according to this
warranty at any time during the warranty period, except as provided below,
Micronics or its authorized service centers will, at Micronics’ option, repair or
replace the product at no additional charge.

The warranty does not cover loss or damage which occurs in shipment or
which is due to: (1) improper installation or maintenance, misuse, neglect or
any cause other than ordinary commercial application, including without
limitation, accidents or acts of God; (2) adjustment, repair, or modification by
other than a Micronics authorized service center; (3) improper environment,
excessive or inadequate heating or air conditioning, or electrical power
failures, surges or other irregularities; (4) any statement about the product
other than those set forth in this warranty; or (5) nonconformity to models or
samples shown to the purchaser. Any models or samples were for the sole
purpose of suggesting the character of the product and are not intended to
form the basis of the bargain.

A receipt or copy of the invoice with the date of purchase from a Micronics
reseller is required before any warranty service can be rendered. Service can
be obtained by calling Micronics for a Return Merchandise Authorization
(RMA) Number.

The RMA Number should be prominently displayed on the outside of the
shipping carton of the returned product. Returned product should be shipped
prepaid or hand carried to Micronics. The purchaser assumes risk of loss or
damage in transit, and unless otherwise agreed to in writing by Micronics, will
pay inbound shipping charges.

The exclusive remedy of the purchaser under this warranty above will be
repair or replace at Micronics' option, but if for any reason that remedy should
fail of its essential purpose, the exclusive remedy of the purchaser shall then
be actual damages up to amounts paid for the defective product by the
purchaser. This limited warranty shall be deemed to “fail of its essential
purpose” if, after repeated efforts, Micronics is unable to make the product
operate as warranted. Micronics’ liability for damages to the purchaser for
any cause whatsoever; regardless of the form of action and whether in contract
or in tort, shall be limited to the purchase price in effect when the cause of
action arose for the product that is the basis of the claim.

W-1

Micronics Mpower 4 plus System Board Manual

Micronics will not be liable for any lost profits or any indirect, special
incidental or consequential damages in connection with the product, even if
Micronics has been advised of the possibility of such damages.

Micronics makes no warranties or representations as to performance of
products or as to service to distributor or to any person, except as set forth in
Micronics; limited warranty accompanying delivery of product.

Micronics disclaims all other warranties whether oral, written, expressed, or
implied, including without limitation, the warranties of design, merchantabil­ity, or fitness for a particular purpose, if applicable, or arising from a course of
dealing, usage or trade practice.

Non-Warranty Service

After the one year warranty service is no longer in effect, repair service is still
available for Micronics products. For more information, contact Micronics’
RMA department at [phone] or [phone]. The RMA depart­ment is open between 8:30 A.M. and 5 P.M. Pacific Standard Time.

W-2
