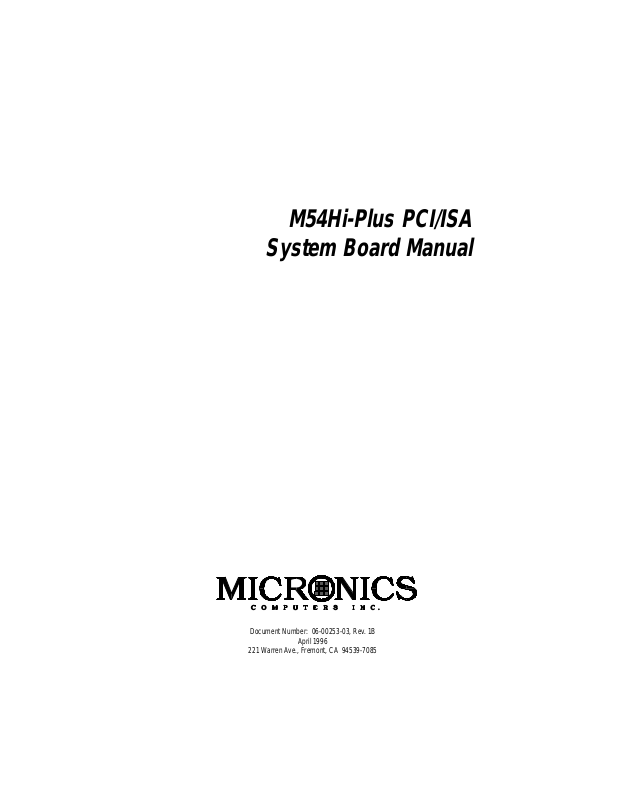

M54Hi-Plus PCI/ISA
System Board Manual
Document Number: 06-00253-03, Rev. 1B
221 Warren Ave., F remont, CA 94539-7085
April 1996
Copyright Notices
Micronics Computers, Inc.
The information contained in the M54Hi-Plus system board manual has been
carefully checked and is believed to be accurate. Micronics assumes no
responsibility for any inaccuracies that may be contained in this document.
Micronics makes no commitments to update or to keep the information in this
manual at a current level when changes are made to the product.
Micronics reserves the right to make improvements to this document and/or
product at any time and without notice.
All Rights Reserved. No part of this document may be photocopied, reproduced, translated, or reduced to any medium or machine form without prior,
written consent from Micronics.
COPYRIGHT (C) 1995, 1996 Micronics Computers, Inc.
P ortions of the Manual
Portions of this manual were copied (with permission) from Phoenix Technologies, Ltd.
Trademarks
IBM is a registered trademark of International Business Machines.
Microsoft, Microsoft Word, Windows are registered trademarks of Microsoft
Corporation. Intel and PCI are registered trademarks of Intel Corporation.
UNIX is a registered trademark of AT&T Corporation. Lotus 1-2-3 is a
registered trademark of Lotus Development Corp. All other product names
mentioned herein are used for identification purposes only and may be the
trademarks of their respective companies.
ii
Micronics Quick Installation
We know that many experienced people prefer to read as little of the documentation as possible. If this sounds like you, here’s the short form:
1. Make backup copies of your installation and configuration diskettes.
2. Ground yourself to prevent damaging static discharge, then remove the
M54Hi-Plus from its packaging.
3. Configure and verify the system board’s jumper settings. (See Jumper
Settings in Chapter 2)
4. Install the CPU and the system memory (Chapter 3).
5. Install the system board into the chassis and make all necessary
connections (Chapter 3).
6. Install the sound riser card and connect all sound devices (Chapter 3).
7. Install any peripherals (Chapter 3).
8. Turn the computer on and press the <F2> key when you see the screen
below:
iii
9. Set the time and date. Adjust the BIOS settings to match your
configuration. If installing an IDE drive, select the IDE device you wish
to configure. Press <Enter> with Autotype Fixed Disk selected and the
BIOS will automatically configure the drive for you (Chapter 4).
10. After you have configured the Main Setup menu, make any desired
setting configurations in the Advanced and Security menu. When
finished, go to the exit screen, select “Save Changes and Exit,” and you
are finished with the BIOS configuration (Chapter 4).
11. Install any CD-ROM drive and its device drivers (Chapter 5).
12. Install the sound controller device drivers (Chapter 5).
iv
Contents
Introduction........................................................................ 1-1
Features..................................................................................... 1-2
Software Compatibility ............................................................. 1-2
Configuring the M54Hi-Plus.............................................. 2-1
Static Electricity........................................................................ 2-1
Office Environment................................................................... 2-1
M54Hi-Plus Components.......................................................... 2-2
Jumper Settings......................................................................... 2-3
Installing the M54Hi-Plus, System Memory, CPUs and
Peripherals......................................................................... 3-1
Installation of the M54Hi-Plus.................................................. 3-2
Tools Required ....................................................................................... 3-2
Equipment Required .............................................................................. 3-2
System Memory ........................................................................ 3-3
SIMMs Supported .................................................................................. 3-3
Upgrading Rules .................................................................................... 3-3
Common Memory Configurations ......................................................... 3-4
Installing the SIMMs ............................................................................. 3-5
Removing SIMMs .................................................................................. 3-5
Installing a CPU ........................................................................ 3-6
Installing a Cache Module......................................................... 3-7
Installing the Sound Riser Card ................................................ 3-8
Connecting Devices to the Sound Controller............................ 3-9
External Speakers .................................................................................. 3-9
Joystick ................................................................................................. 3-10
MIDI ..................................................................................................... 3-10
Microphone .......................................................................................... 3-10
Line In .................................................................................................. 3-10
Line Out ............................................................................................... 3-10
Installing a PCI Peripheral Card...............................................3-11
Installing an ISA Peripheral Card ........................................... 3-12
v
The BIOS Setup Utility....................................................... 4-1
Configuration ............................................................................ 4-1
Initial Boot Up .......................................................................... 4-1
Setup ......................................................................................... 4-2
Running the Setup Procedure ................................................... 4-3
Setting the Main Screen ............................................................ 4-3
System Time and Date ........................................................................... 4-3
Diskette A or B....................................................................................... 4-4
IDE Adapters (Hard Disk Setup) ........................................................... 4-4
Video System.......................................................................................... 4-6
Cache Video BIOS ................................................................................. 4-6
Cache System BIOS ............................................................................... 4-6
Boot Options Submenu .......................................................................... 4-6
Cache ...................................................................................................... 4-7
System Memory...................................................................................... 4-7
Extended Memory .................................................................................. 4-7
Setting the Advanced Screen .................................................... 4-8
Integrated Peripherals Submenu............................................................ 4-9
Plug and Play O/S ................................................................................ 4-10
Reset Configuration Data..................................................................... 4-10
Large Disk Access Mode ..................................................................... 4-10
Security Screen......................................................................................4-11
Supervisor Password .............................................................................4-11
User Password .......................................................................................4-11
Set Supervisor Password .......................................................................4-11
Set User Password ................................................................................ 4-12
Password on Boot ................................................................................. 4-12
Diskette Access .................................................................................... 4-13
Fixed Disk Boot Sector ........................................................................ 4-13
Power Screen .......................................................................... 4-13
APM ..................................................................................................... 4-14
Power Management Mode ................................................................... 4-14
Standby Timeout .................................................................................. 4-14
Suspend Timeout .................................................................................. 4-14
Standby CPU Speed ............................................................................. 4-14
Fixed Disk Timeout .............................................................................. 4-14
CRT Standby ........................................................................................ 4-15
Standby Timer Reset Events ................................................................ 4-15
Standby Break Events .......................................................................... 4-15
Standby Wakeup Events ....................................................................... 4-15
Exit Screen.............................................................................. 4-16
vi
Installing a CD-ROM Drive and the Sound Contr oller Driv-
ers....................................................................................... 5-1
About Device Drivers ............................................................... 5-1
Installing a CD-ROM Drive...................................................... 5-2
Installing the Sound Controller Drivers .................................... 5-3
POST Messages................................................................ A-1
Beep and POST Codes..................................................... B-1
Hard Disk Drive T ypes ...................................................... C-1
Specifications ................................................................... D-1
Environmental Specifications....................................................D-2
Temperature Range ................................................................................ D-2
Relative Humidity ..................................................................................D-2

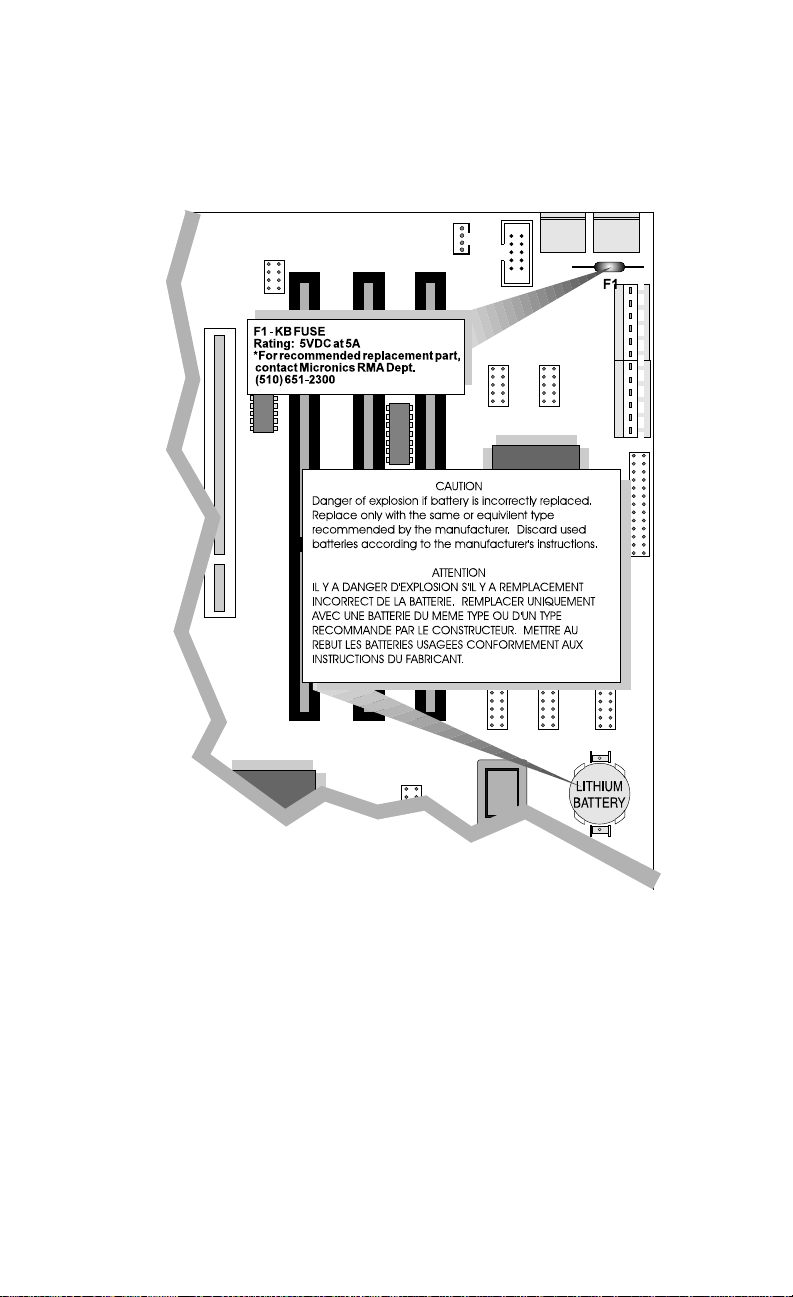

Battery Disposal........................................................................D-3
FCC Warning Statement .................................................... F-1
Glossary ............................................................................ G-1
Limited Warranty...............................................................W-1
Non-W arranty Service..............................................................W-2
vii
List of Figures
Figure 2-1: M54Hi-Plus Components.......................................................... 2-2

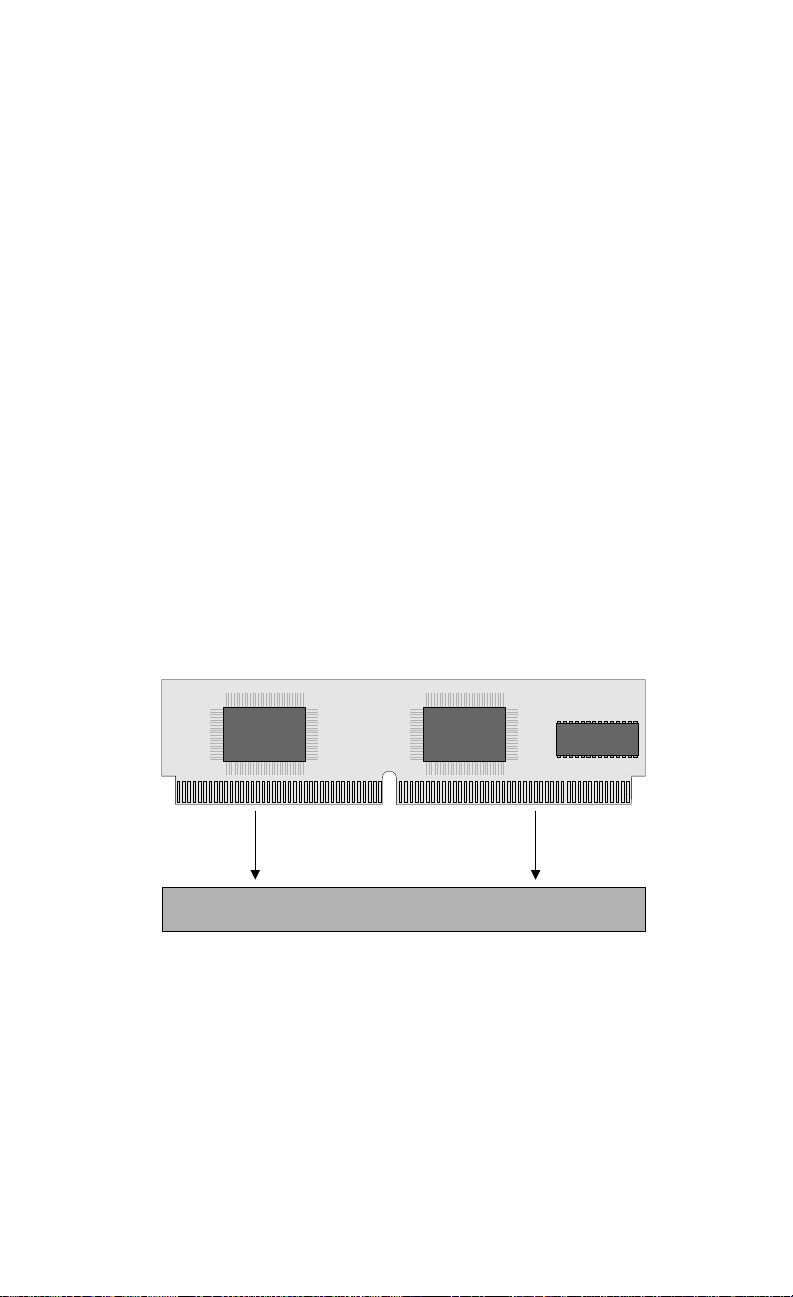

Figure 3-1: Installing a 72-Pin SIMM......................................................... 3-5
Figure 3-2: Installing a Cache Module........................................................ 3-7
Figure 3-3: Installing the Sound Riser Card ............................................... 3-8

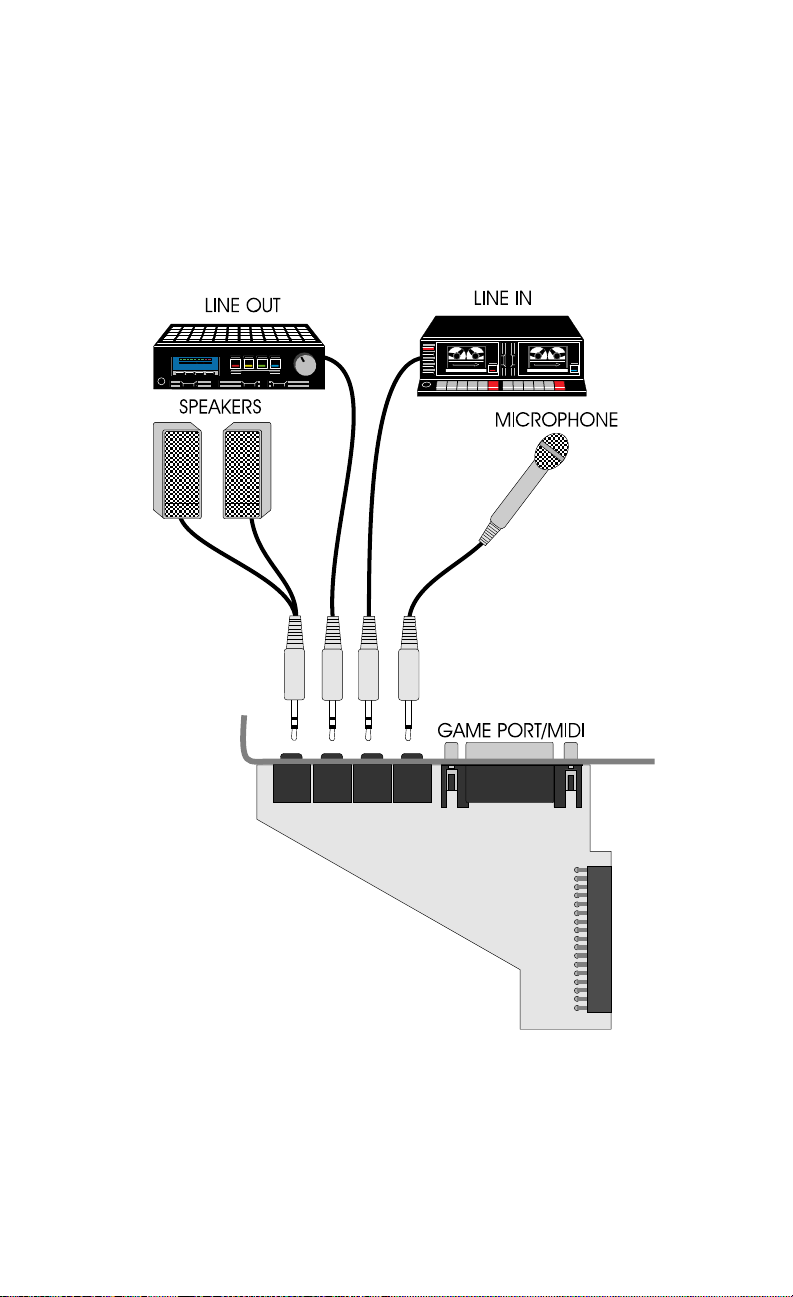

Figure 3-4: Connecting External Devices to the Sound Controller ............ 3-9

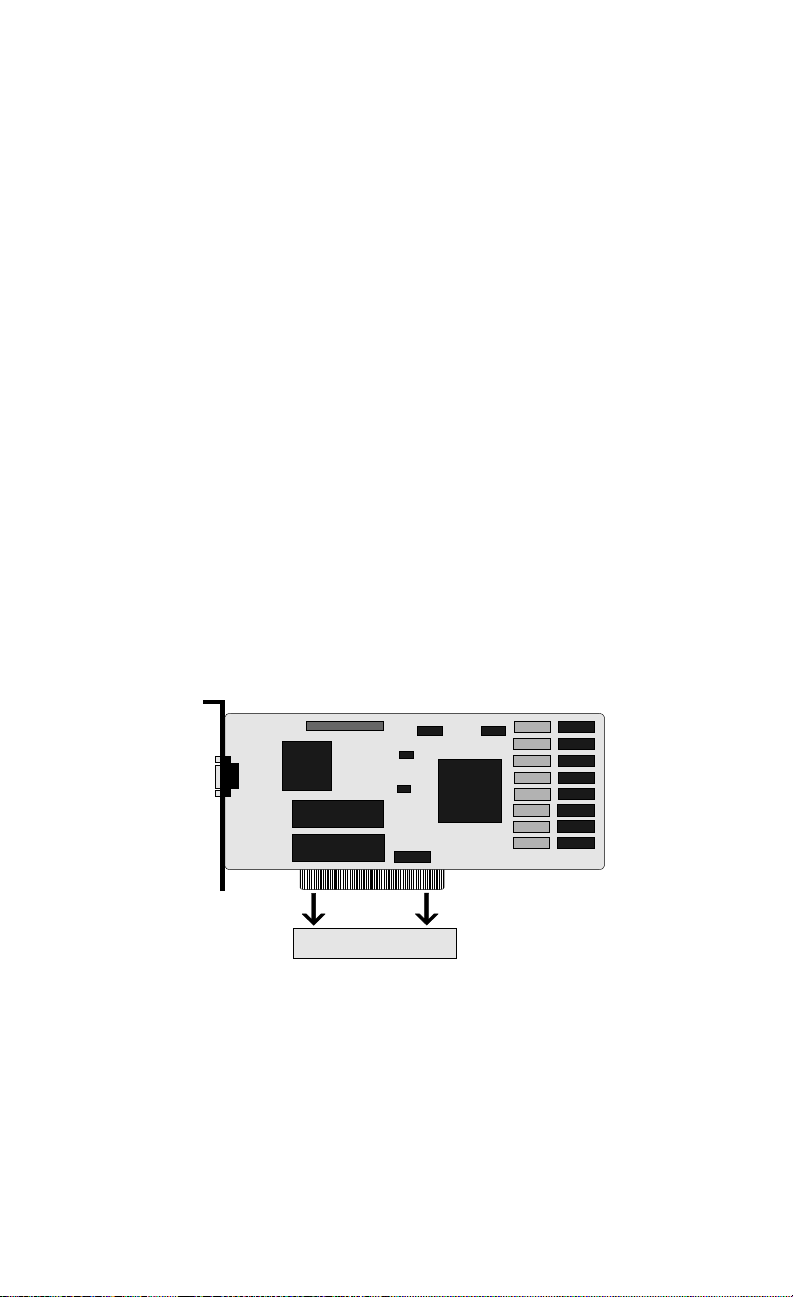

Figure 3-5: Installing an PCI Peripheral Card ........................................... 3-11
Figure 3-6: Installing an ISA Peripheral Card .......................................... 3-12
Figure 4-1: Power-Up Screen....................................................................... 4-2

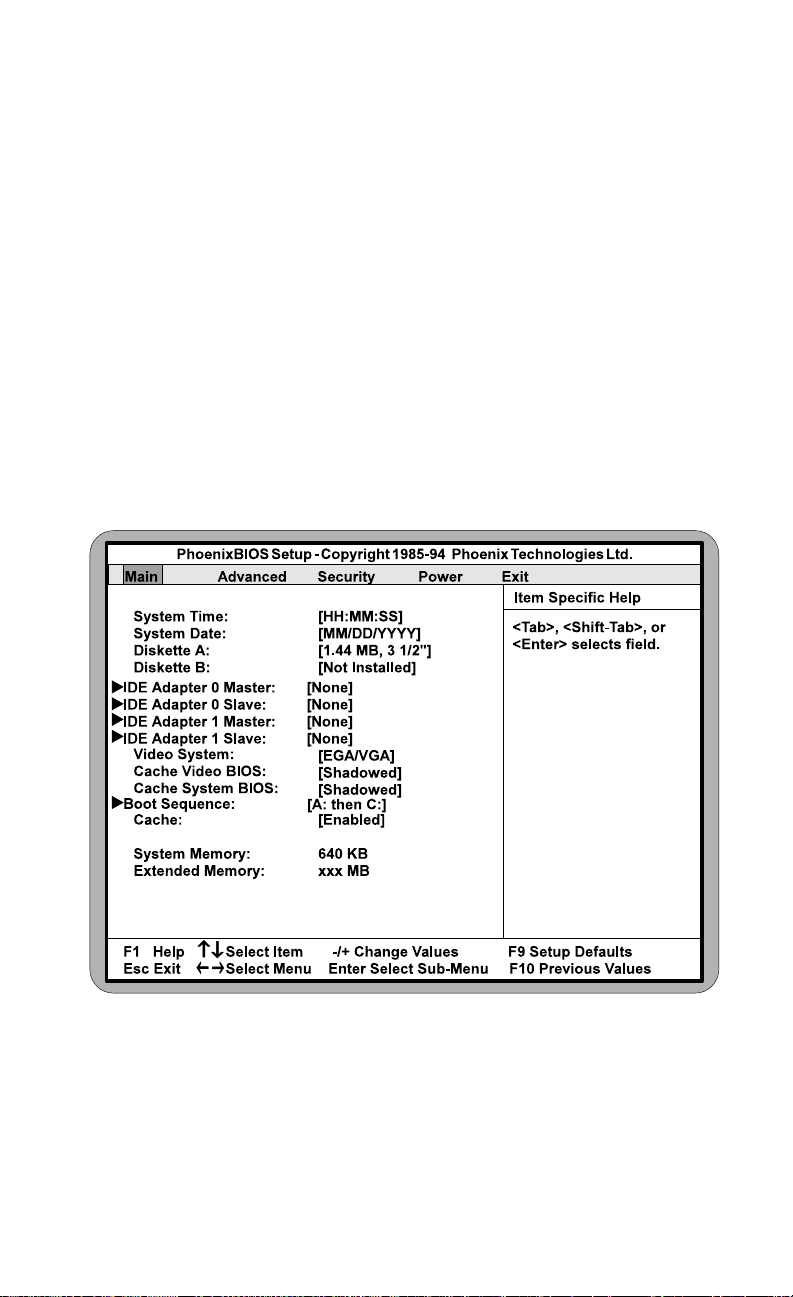

Figure 4-2: CMOS Main Screen .................................................................. 4-3

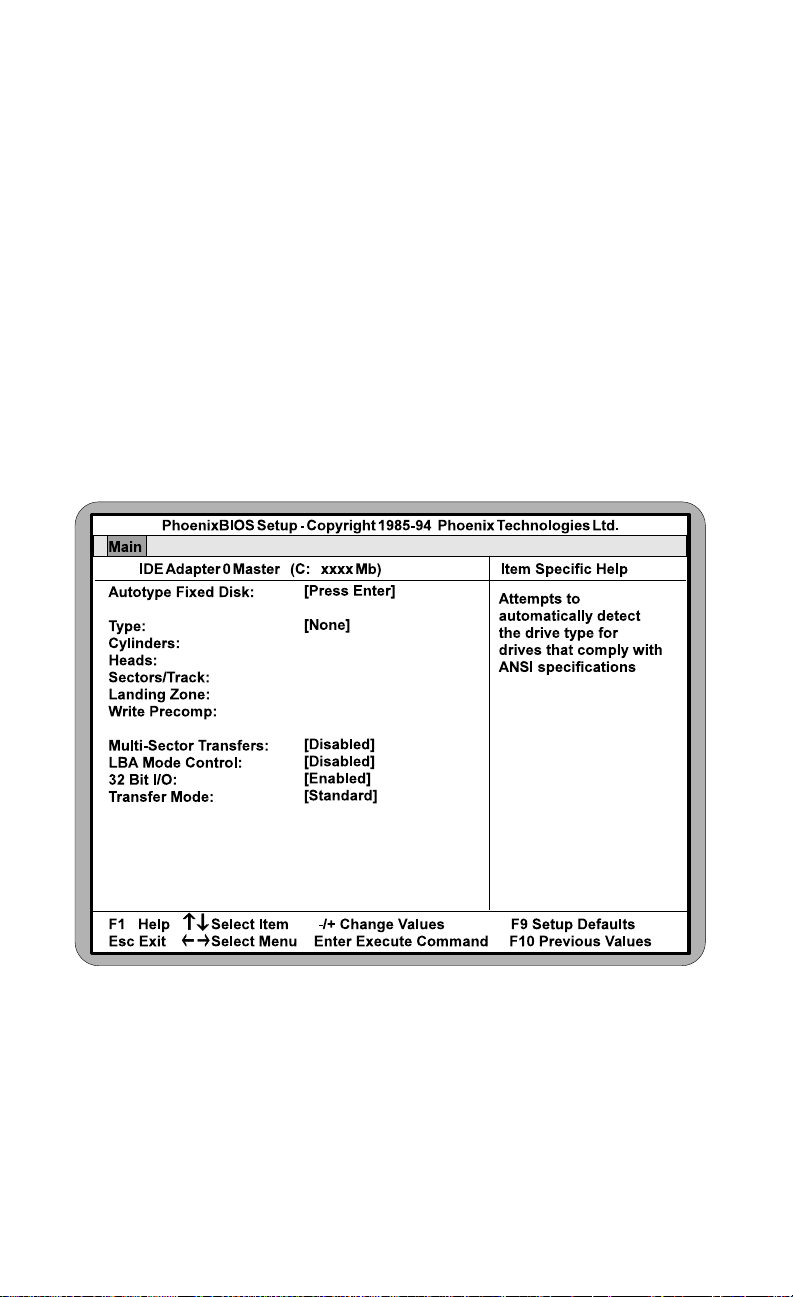

Figure 4-3: IDE Device Submenu................................................................ 4-4

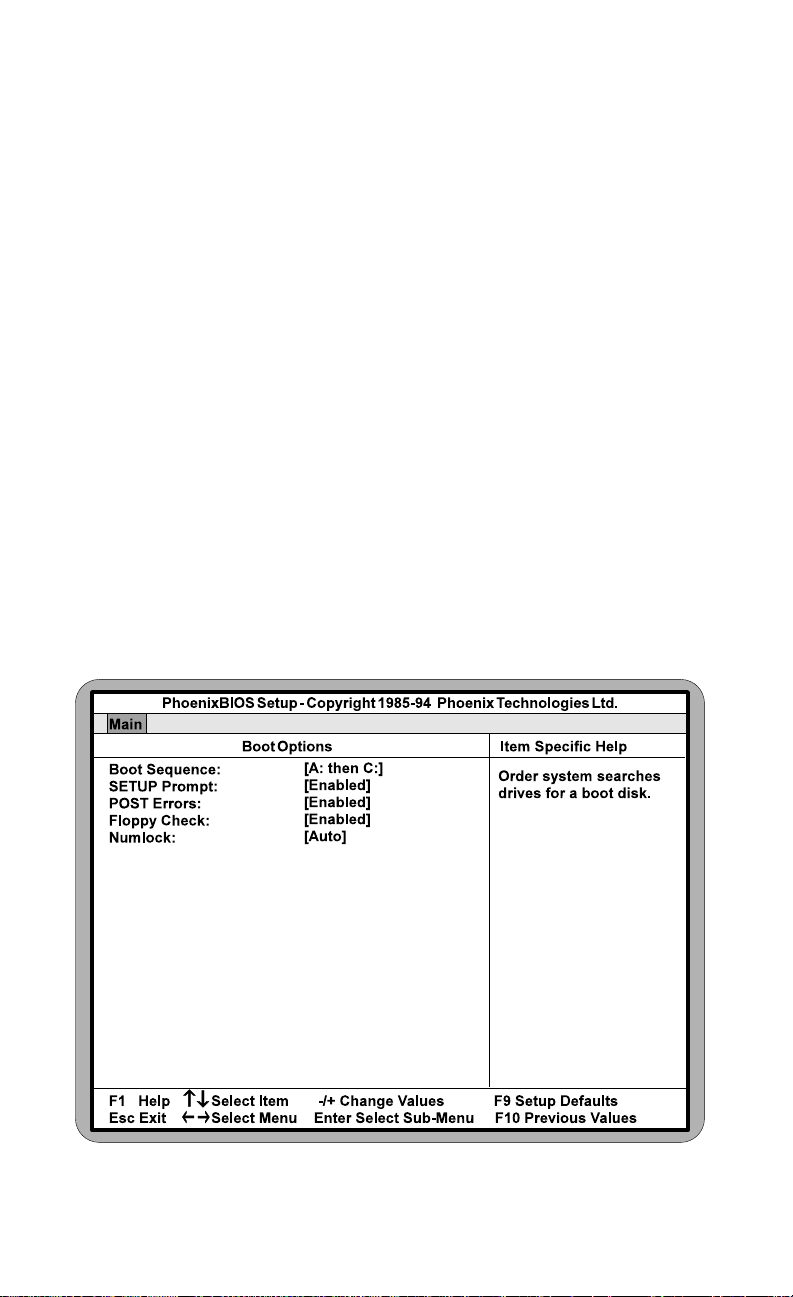

Figure 4-4: Boot Options Submenu ............................................................. 4-6

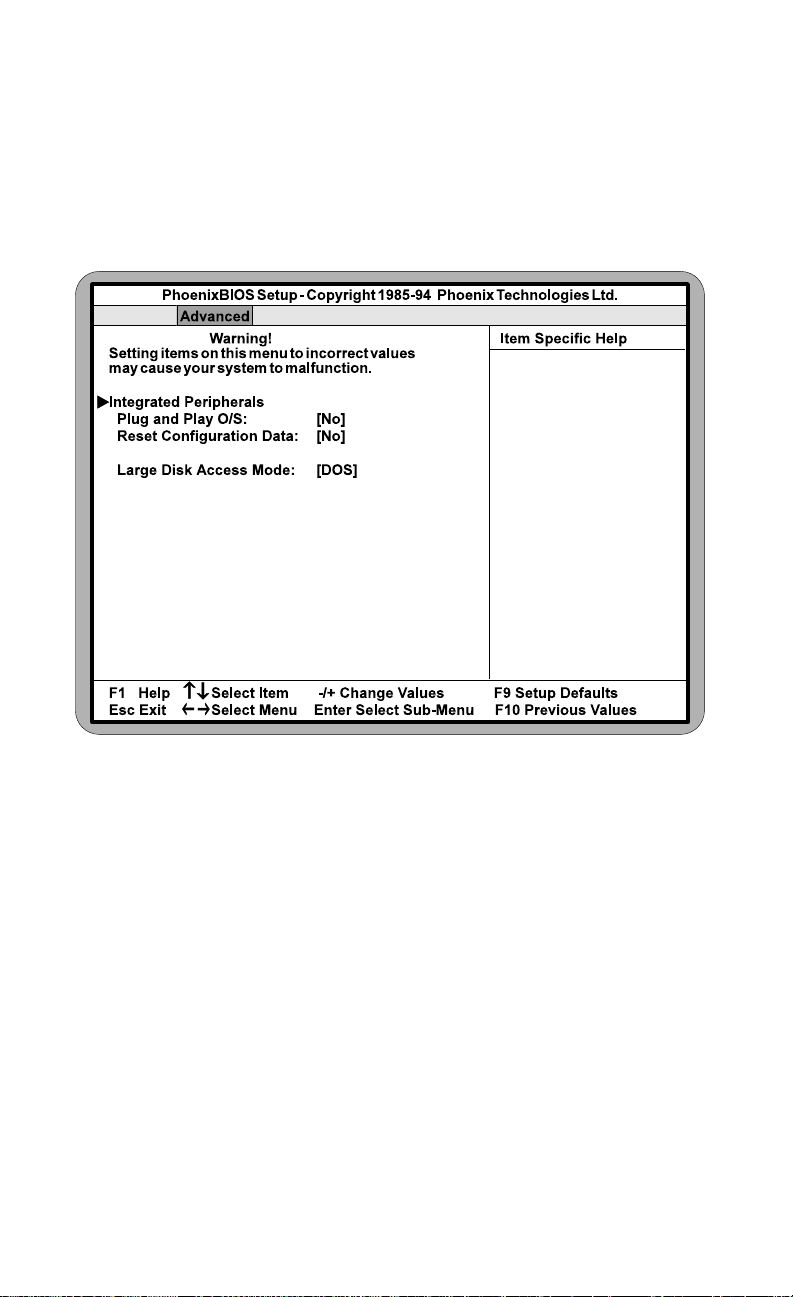

Figure 4-5: Advanced Screen....................................................................... 4-8
Figure 4-6: Integrated Peripherals Submenu............................................... 4-9

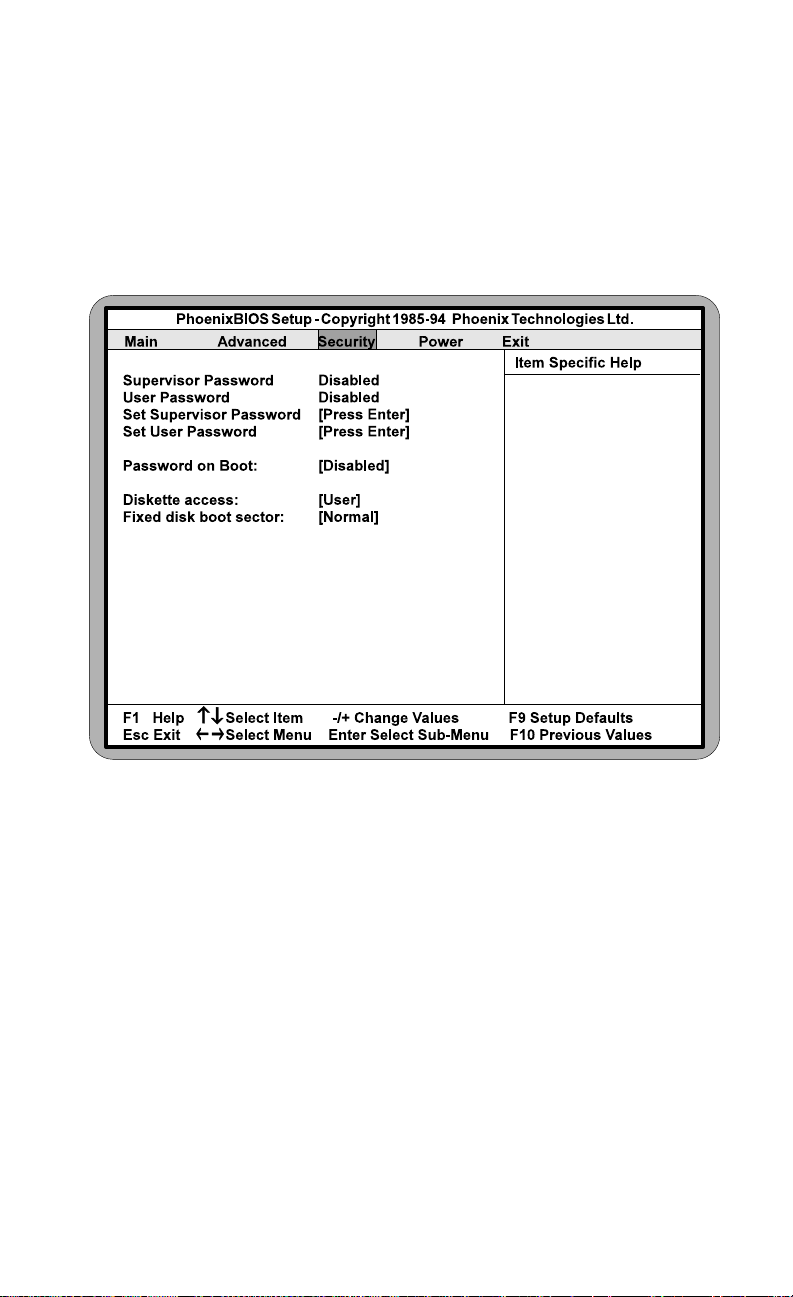

Figure 4-7: Security Setup Screen ..............................................................4-11
Figure 4-8: Supervisor Password Submenu ............................................... 4-12

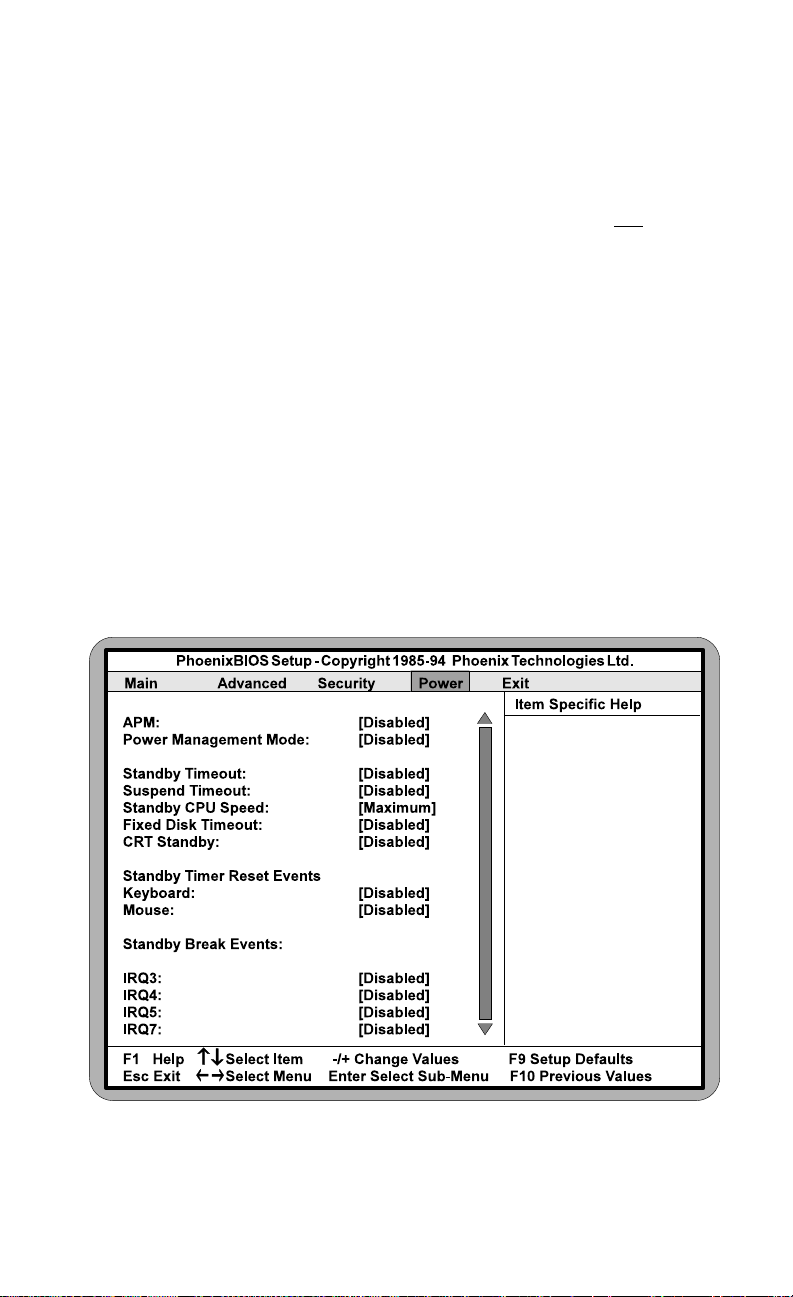

Figure 4-9: Power Screen........................................................................... 4-13

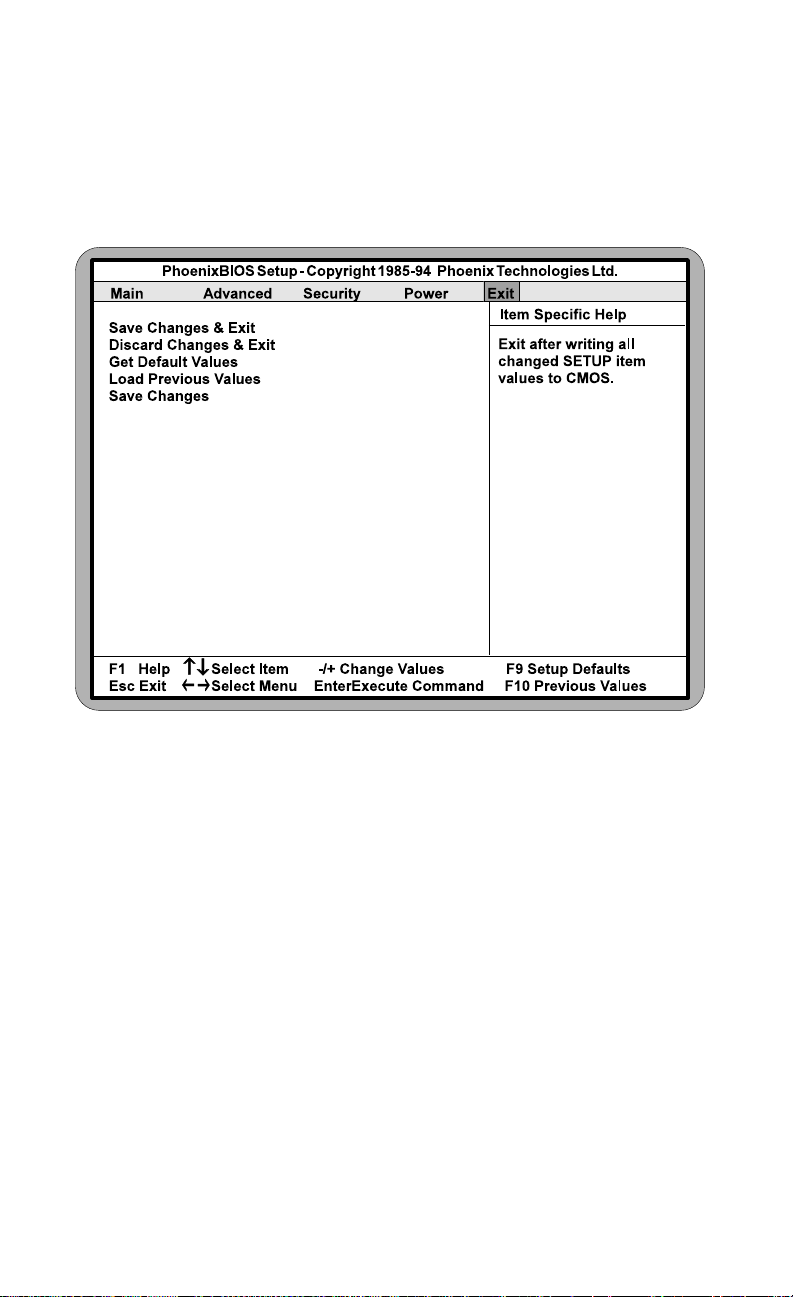

Figure 4-10: Exit Screen ............................................................................ 4-16
List of Tables
Table 2-1: CPU Speed Selection .................................................................. 2-3
Table 2-2: CPU Bus Speed Selection........................................................... 2-3
Table 2-3: CPU VRE Setting ....................................................................... 2-3
Table 2-4: BIOS Operation Selection .......................................................... 2-4
Table 2-5: Boot Block Selection................................................................... 2-4
Table 2-6: BIOS Reset Jumper..................................................................... 2-4
Table 2-7: Case and Peripheral Connections............................................... 2-5
Table 3-1: Common Memory Configurations.............................................. 3-4
viii
Introduction
1
Congratulations for choosing the Micronics M54Hi-Plus! The M54HiPlus is a high-performance system board designed to be the foundation
for advanced systems and applications.
The M54Hi-Plus is a Pentium powered system board using the new
high performance Intel 430FX PCIset. The Intel 430FX PCIset
combined with Micronics’ system board experience makes this the best
performing Pentium board on the market.
The M54Hi-Plus comes with many on-board features. These include
Mode 4 IDE support for four IDE hard drives, EDO (Extended Data
Out) memory support, pipelined burst cache support, 16-bit sound,
infrared support, the PCI bus, and Phoenix 4.0x Plug and Play BIOS.
The M54Hi-Plus also has on-board support for two floppy drives, a bidirectional parallel port, and two high speed serial ports.
Introduction
Micronics builds all products to exacting standards using the highest
quality components available. We are proud to provide this system
board and hope it brings you years of reliable service.
1-1
Micronics M54Hi-Plus System Board Manual
Features
The M54Hi-Plus includes the following features:
Intel 75MHz, 90MHz, 100MHz, 120MHz, 133MHz, 150MHz, or
166MHz Pentium processors.
Cyrix P100+ to P166+ processors.
Baby AT size system board (13.25" X 8.5").
Supports Pipelined Burst Cache or Asynchronous Level 2 cache Modules.
Supports up to 128MB of on-board system memory.
Supports EDO (Extended Data Out) memory (auto-detect).
PCI Mode 4 IDE controller (supports four drives).
Floppy controller for two floppy drives (supports 2.88MB, 1.44MB,
1.2MB, 720K, and 360K floppy drives).
Two high speed NS16550 compatible serial ports.
Bi-directional parallel port which is EPP and ECP compatible (see
Specifications).
16-bit sound controller based on the Creative Labs Vibra 16S chipset.
Built-in infrared support.
Upgradeable Flash Phoenix BIOS.
Software Compatibility
The M54Hi-Plus system board was thoroughly tested for compatibility with a
variety of operating systems and environments, including:
Windows, Windows 95, and Windows NT.
OS/2.
SCO UNIX and Open Desktop.
Novell NetWare.
MS-DOS, DR-DOS, and PC-DOS.
NeXTStep.
1-2
Jumper Settings
Configuring the M54Hi-Plus
2
Although the M54Hi-Plus system board is packaged in protective
materials, it is important to use care while unpacking and setting up.
Static Electricity
The M54Hi-Plus is shipped from the factory in an antistatic bag. To
reduce the possibility of damage, it is important to neutralize any
accumulated static charges on your body before handling the board.
The best way to neutralize these static charges is to ground yourself
using a special wrist or ankle strap. If you do not have a strap, you
should touch both of your hands to a safely grounded object. After you
have grounded yourself, ground the M54Hi-Plus via the solder pads
surrounding one of its mounting holes.
Once the M54Hi-Plus is removed from its packaging, place it on top of
the antistatic bag. Carefully inspect the board for damage which may
have occurred during shipment.
Office Environment
Make sure the finished computer system is in an area with good
ventilation. The system should not be in direct sunlight, near heaters,
or exposed to moisture, dust, or dirt.
2-1
Micronics M54Hi-Plus System Board Manual
M54Hi-Plus Components
2-2
Figure 2-1 M54Hi-Plus System Board
Jumper Settings
Table 2-1: Jumper settings to select the speed of the CPU.
Jumper Settings
Jumper
W4 W5 W8
CPU Speed
75MHz External / 50MH z Internal closed closed 1-2
90MHz External / 60MH z Internal (default) open closed 2-3
100MHz External / 66MHz Internal closed open 2-3
120MHz External / 60MHz Internal open closed 2-3
133MHz External / 66MHz Internal closed open 2-3
150MHz External / 60MHz Internal open closed 2-3
167MHz External / 66MHz Internal closed open 2-3
6
T able 2-1: CPU Speed Selection
Table 2-2: Jumper settings to set the CPU/BUS speed ratio.
Jumper
W2 W10
Speed Ratio
2/3 (1.5X) Clock (75/90/100MHz) (default) open open
1/2 (2.0X) Clock (120MHz/133MHz) closed open
2/5 (2.5X) Clock (150MHz/167MHz) closed closed
T able 2-2: CPU Bus Speed Selection
6
Table 2-3: Jumper settings to set the CPU VRE setting.
Jumper Function Settings
W14 VR (75/90MHz) (default)
VRE (100/120/133/150/166)
T able 2-3: CPU VRE Selection
Open
Close
2-3
Micronics M54Hi-Plus System Board Manual
Table 2-5 lists the jumper settings to select the BIOS boot block.
Jumper Function Setting
W6 Normal (default)
Reversed
T able 2-5 Boot Block Selection
2-3
1-2
Table 2-6 lists the jumper settings to reset the BIOS. With the computer’s
power off, short Jumper W9 for about five seconds and place the jumper back
in the open position. The jumper must be placed back into the open position
for the system to function properly.
Jumper Function Setting
W9 Normal operation (default)
Clear CMOS RAM settings
T able 2-6 BIOS Reset Jumper
open
closed
Note:
This will reset all BIOS settings to their defaults. Any changes you have
made will be lost.
2-4
Jumper Settings
Table 2-7 lists the jumper settings for case and peripheral connections.
Jumper Function Notes
J10 Primary IDE Connector Primary
J9 Secondary IDE Connector Secon dary
J11 Floppy Connector
J19 Parallel Port Connector Can be disabled at the
CMOS configuration screen.
J20 Serial Port 1(Com1) Can be disabled at the
CMOS configuration screen.
J21 Serial Port 2(Com 2) Can be disabled at the
CMOS configuration screen.
J1 Cache Module Connector
J44 Sound Riser Card
Connector
J45 Wavetable Connector
J46 CD-ROM Sound
Connector
J26 Legacy Connector
J23 Infrared Connector
J15 & J13 PS/2 Keyboard & Mouse PS/2 Version
J17 AT Keyboard AT Version
J12 Ext. Mouse AT Version
J35 Power Supply Connector
J37 3.3V Power Connector Optional
J40 Hard Disk LED 1-+5V DC, 2-Ground
J39 Reset
J43 Turbo LED 1-+5V DC, 2-Ground
J18 Keylock/Power LED 1-Power; 2-N/C; 3-Ground;
4-Keyboard Lock; 5-Ground
J41 Speaker Connector 1-Speaker; 2-5V DC;
3-N/C; 4-5V DC
J8 Debug Port
Sound Riser
J4 Speaker
J3 Line Out
J2 Line In
J5 Microphone
J1 Game Port Connector
T able 2-7 Case and Peripheral Connections
2-5
Installing System Memory and Add-On Peripherals
Installing the M54Hi-Plus,
3
System Memory, CPUs and
Peripherals
This section explains how to install the M54Hi-Plus system board,
SIMMs, CPUs, and peripherals.
Warning:
Before installing or removing any peripherals or components, make
sure you have a clear work space and adhere to all anti-static
precautions described on page 2-1. Micronics recommends only
trained technicians operate on the system board. Damage which
occurs to the board while adding or removing peripherals or components may void the warranty.
If problems arise while installing peripherals, contact the computer
outlet where you purchased the peripheral or Micronics’ Technical
Support Department.
3-1
Micronics M54Hi-Plus System Board Manual
Installation of the M54Hi-Plus
The installation of the M54Hi-Plus system board depends on the type of case
you use. The M54Hi-Plus is an integrated baby AT size system board and
may be installed into most cases.
Prior to installing the M54Hi-Plus, make sure you have a clear work space
available and adhere to all anti-static precautions.
If you are unfamiliar with installing a system board, Micronics highly
recommends you read the computer user’s manual or contact your dealer’s
technical support department.
Tools Required
Micronics recommends using the following tools to install the M54Hi-Plus:
Small Phillips screwdriver.
Tweezers or a pair of needle-nose pliers.
Tray (to hold loose screws).
Equipment Required
Micronics recommends using the following equipment with the M54Hi-Plus
for a typical configuration:
Chassis with standard hardware.
A high quality power supply capable of providing continuous power
within a 5 volt range, plus or minus 5% (eg. 4.75 to 5.25). A power
filter may be used with a noisy AC power source.
AT compatible keyboard (AT Version).
PS/2 compatible keyboard (PS/2 Version).
Eight ohm speaker.
Standard ribbon cables for internal connections.
Standard power cord (grounded).
CPU heat sink with cooling fan (strongly recommended).
3-2
Installing System Memory and Add-On Peripherals
System Memory
System memory devices, commonly known as SIMMs (Single Inline Memory
Modules), are necessary to operate the M54Hi-Plus system board. The
M54Hi-Plus has four SIMM sockets and may be upgraded to 128 Megabytes
of RAM. This section will explain the type of SIMMs supported, list the
rules of adding memory to the M54Hi-Plus, give some examples of common
memory configurations, and show how to physically install the new SIMMs.
SIMMs Supported
The M54Hi-Plus supports the following 72 pin, 60ns or 70ns SIMMs:
4MB (1Mx36)
8MB (2Mx36)
16MB (4Mx36)
32MB (8Mx36)
Note:
For long term reliability, Micronics recommends using SIMMs with tin-plated
contacts. The use of gold-plated contacts may conflict with the tin-alloy on
the SIMM socket.
Upgrading Rules
The following is a list of rules to follow when upgrading SIMMs. If you
follow these rules, your upgrade should be trouble-free:
Use 70ns or faster SIMMs.
Upgrade SIMMs one bank at a time. Each bank must contain two
SIMMs of the same size and preferably from the same manufacturer.
To add 16MB of memory to the system board, install two 8MB
SIMMs into the same bank.
When installing SIMMs, fill bank 0, then bank 1.
3-3
Micronics M54Hi-Plus System Board Manual
Common Memory Configurations
The following table (Table 3-1) lists the most common memory configurations. The M54Hi-Plus will accept any combination of SIMMs as long as the
rules in the previous section are followed.
Memory Bank 0 Bank 1
8MB (2) 1MBx36
16MB (2) 1MBx36 (2) 1MBx36
16MB (2) 2MBx36
24MB (2) 2MBx36 (2) 1MBx36
32MB (2) 4MBx36
32MB (2) 2MBx36 (2) 2MBx36
40MB (2) 4MBx36 (2) 1MBx36
48MB (2) 4MBx36 (2) 2MBx36
64MB (2) 8MBx36
64MB (2) 4MBx36 (2) 4MBx36
72MB (2) 8MBx36 (2) 1MBx36
80MB (2) 8MBx36 (2) 2MBx36
96MB (2) 8MBx36 (2) 4MBx36
128MB (2) 8MBx36 (2) 8MBx36
Table 3-1 Common Memory Configurations
3-4
Installing System Memory and Add-On Peripherals
Installing the SIMMs
To install the SIMMs, locate the memory banks on the system board and
perform the following steps:
1. Hold the SIMM so the notched edge is aligned with the notch on
the SIMM socket (Figure 3-1).
2. Insert the SIMM at a 45 degree angle.
3. Gently push the SIMM into an upright position until it locks into
place (past the release tabs).
Figure 3-1 Installing a 72-Pin SIMM
Removing SIMMs
Perform the following steps to remove SIMMs, if necessary:
1. With both thumbs (or a finger from each hand), press the release
tabs
away from the socket.
2. With the SIMM free from the release tabs, lift the module up and
place in an anti-static bag or package.
3-5
Micronics M54Hi-Plus System Board Manual
Installing a CPU
The M54Hi-Plus is designed to a variety of Pentium processors. Follow the
steps below to install a processor:
1. Turn off the computer and remove its cover.
2. Locate the ZIF socket illustrated in Figure 2-1.
3. Lift the lever of the socket.
4. Locate pin 1 on the processor and pin 1 on the socket. Gently set the
processor into the socket, making sure pin 1 on the processor and
pin
1 on the socket are aligned.
5. Push the lever down until it locks into place.
6. Make sure the speed selection jumpers are set correctly (Chapter 2).
Warning:
Pentium processors require a heat-sink with a cooling fan. Failure to
provide adequate cooling of the processor may seriously affect system
performance or cause permanent damage to the processor.
3-6
Installing System Memory and Add-On Peripherals
Installing a Cache Module
In addition to the 16K of internal (L1) cache built into the Pentium processors, the M54Hi-Plus also supports external (L2) cache. The M54Hi-Plus
supports pipelined burst cache and asynchronous cache (256K or 512K).
To install a cache module, follow these instructions:
1. Turn off the computer and remove the chassis cover.
2. Discharge any static electricity as described on page 2-1.
3. Carefully remove the cache module from its protective packaging and
inspect it for any visible damage.
4. Locate the cache module socket (Figure 2-1) and remove any currently
installed cache modules.
5. Place the cache module in the cache module socket (fits in one way) and
press straight down until it is firmly seated in the socket (Figure 3-2).
Figure 3-2 Installing a Cache Module
6. There is no need to set any jumpers. When you reboot, the size and type
of cache is automatically detected.
7. Replace the chassis cover. The cache upgrade is complete.
3-7
Micronics M54Hi-Plus System Board Manual
Installing the Sound Riser Card
To install the Sound Riser Card, follow the instructions below:
1. Turn the computer off and remove the chassis cover.
2. Remove the slot cover closest to the sound connector (far left hand side of
the system board).
3. Carefully place the Sound Riser Card on the sound connector (Figure 3-
3) and secure in place with the screw from the slot cover.
Figure 3-3 Installing the Sound Riser Card
4. Run the utilities described in Chapter 5.
3-8
Installing System Memory and Add-On Peripherals
Connecting Devices to the Sound Controller
In order to take advantage of the on-board sound controller, you may connect
external devices to the M54Hi-Plus.
Figure 3-4 Connecting External Devices to the Sound Controller
External Speakers
You may connect 4 or 8 ohm external speakers or headphones to the audio
controller. The speakers and headphones plug into the Speaker jack on the
back of the M54Hi-Plus.
3-9
Micronics M54Hi-Plus System Board Manual
Joystick
Plug the joystick into the 15-pin connector on the back of the M54Hi-Plus.
MIDI
If you purchased the optional MIDI interface kit, an additional cable was
included. This cable plugs into the 15-pin connector and provides MIDI IN
and MIDI OUT connections, in addition to a joystick connection. Connect
this cable to the joystick port and connect any MIDI devices.
Microphone
You may connect a 300-600 ohm microphone to audio controller. Plug it into
the MIC jack on the back of the M54Hi-Plus.
Line In
You may connect an external mono or stereo audio source to the audio
controller, such as a tape player or radio. Use the appropriate converter cable
to interface to your external equipment.
Line Out
The Line Out jack allows you to connect the audio output of the audio
controller to your home stereo, VCR, or amplified speakers.
3-10
Installing System Memory and Add-On Peripherals
Installing a PCI Peripheral Card
Micronics PCI slots accommodate all PCI peripherals which adhere to the
PCI 2.0 specifications. Complete the following steps to install a PCI card:
1. Turn the computer system off and remove its cover.
2. Choose an unused PCI slot and remove the slot cover.
3. Insert the card with the bottom edge level to the slot. Never insert
the card at an angle!
4. Carefully push the card straight down, making sure the card is inserted
fully.
5. Replace the screw which holds the card into place.
6. Replace the computer cover.
7. Read the card’s manual for additional instructions concerning installation and software drivers.
Figure 3-5 Installing a PCI Peripheral Card
3-11
Micronics M54Hi-Plus System Board Manual
Installing an ISA Peripheral Card
Micronics ISA slots accommodate all standard ISA peripherals. Complete
the following steps to install an ISA card:
1. Turn the computer system off and remove its cover.
2. Choose an unused ISA slot and remove the slot cover.
3. Insert the card with the bottom edge level to the slot. Never insert
the card at an angle!
4. Carefully push the card straight down, making sure the card is inserted
fully.
5. Replace the screw which holds the card into place.
6. Replace the computer cover.
7. Read the card’s manual for additional instructions concerning installation and software drivers.
3-12
Figure 3-6 Installing an ISA Peripheral Card
The BIOS Setup Utility
4The BIOS Setup Utility
Configuration
After the M54Hi-Plus system board and all hardware is installed, the
system is ready for configuration. Before turning on the computer,
make sure all cables are correctly connected and all jumpers are
correctly set.
It is recommended you keep the computer cover off the first time you
boot the system. This will make it easier to correct any difficulties that
might arise.
Initial Boot Up
Power up the M54Hi-Plus. If the system does not properly boot, check
all your cables and peripherals for bad connections. You may also get
beep codes or error messages. If this occurs, consult Appendices A
and/or B for a guide to possible solutions.
After the system properly boots, it is ready to be configured. The
following pages explain the proper procedures for BIOS configuration.
4-1
Micronics M54Hi-Plus System Board Manual
Setup
The Setup program is used to configure the computer’s BIOS (Basic Input/
Output System). The computer’s BIOS is responsible for configuring the
system board and providing hardware information to the operating system.
In order for the computer to run properly, run the Setup procedure after first
installing the system board and whenever you make a hardware change to the
system.
After the system is turned on and goes through a memory test, the Power-Up
Screen (Figure 4-1) will appear on your monitor:
Figure 4-1 Power-Up Screen
When “Press <F2> to enter SETUP” appears at the bottom of the screen,
press the <F2> key to begin the Setup procedure. The CMOS Main Screen
(Figure 4-2) should appear and the prompt should be on the time line. The
Setup procedure can only be activated during the boot sequence.
4-2
The BIOS Setup Utility
Running the Setup Procedure
The M54Hi-Plus system board has four primary CMOS configuration
screens: the Main Screen (Figure 4-2), the Advanced Screen (Figure 4-5), the
Security Screen (Figure 4-10), and the Exit Screen (Figure 4-10). To toggle
between the screens, press the right arrow <→> and the left arrow < ←>
keys.
Setting the Main Screen
The CMOS Main Screen (Figure 4-2) is used to set the time and date, to set
the floppy drive types, to configure the hard disks, and to configure the video.
This section explains how to configure each of these categories. To move
between the categories, use the up and down arrow keys <↑/↓>.
Figure 4-2 CMOS Main Screen
System Time and Date
To set the time, use the <-> key to decrease the number and the <+> key to
increase the number. To move the prompt forward, use the <Tab> key; to
move the prompt backward, use the <Shift-Tab> key. To set the date, use the
4-3
Micronics M54Hi-Plus System Board Manual
up and down arrows<↑/↓> to highlight the System Date and follow the same
procedure used to set the time.
Diskette A or B
To configure a floppy drive added to or removed from your computer, use the
up and down arrow keys <↑/↓> to select the desired drive. Use the <+/->
keys to change the setting until it matches the floppy drive you installed. The
BIOS supports 2.88MB, 1.44MB, 1.2MB, 720KB, and 360KB floppy drives.
IDE Adapters (Hard Disk Setup)
If you are setting up a SCSI hard disk, select None in the IDE Device parameters (see your SCSI card manual for more details).
To install an IDE device, select the device to configure and press <Enter>.
An IDE Device submenu will appear. (Figure 4-3).
Figure 4-3 IDE Device Submenu
Autotype Fixed Disk
The easiest way to set your IDE devices is to let the BIOS do it for you.
When the IDE Device submenu first appears, the Autotype Fixed Disk
selection is highlighted. Simply press <Enter>, and the remaining information is entered automatically.
4-4
The BIOS Setup Utility
Do not adjust the rest of the settings unless absolutely necessary. The BIOS
automatically enters the optimal settings.
Type
This category selects the drive type installed in the system. The options are
1-39, User, and none. It is doubtful you will find your drive in 1-39.
If Autotype Fixed Disk does not find your drive’s parameters, fill this
information in manually under the User category. This information may be
in the manual which came with your system. If not, contact your dealer or
the hard drive manufacturer to fill in this category.
If you are using a SCSI hard drive, select None and refer to the documentation which came with the SCSI adapter.
Multiple-Sector Transfers
This category determines the number of sectors per block for multiple sector
transfers. The options are Disabled (default), 2 Sectors, 4 Sectors, 8 Sectors,
and 16 Sectors.
LBA Mode Control
Enable LBA (Logical Block Addressing) to support IDE drives larger than
528MB in size. The default setting is Disabled.
32-Bit I/O
This category allows the user to enable the 32-bit I/O function of the PCI IDE
controller. Select Disabled if your drive will not run at this speed. The
default setting is Enabled. This option is not available on ISA IDE Adapter
1.
Transfer Mode
This category provides the transfer modes for the PCI IDE controller. The
options are Fast PIO 4, Fast PIO 3, Fast PIO 2, Fast PIO 1, and Standard
(default).
Fast PIO 4 is equivalent to Mode 4 supporting a minimum cycle time of
120ns (15.5 MB/sec.). Fast PIO 3 is equivalent to Mode 3 supporting a
minimum cycle time of 180ns (11.1 MB/sec.). Fast PIO 2 supports a minimum cycle time of 240ns (8.33 MB/sec.). Fast PIO 1 supports a minimum
cycle time of 383ns (5.22 MB/sec.). Standard supports a minimum cycle time
of 600ns (3.3 MB/sec.).
See your drive specifications before setting this category. This option is not
available on ISA IDE Adapter 1.
4-5
Micronics M54Hi-Plus System Board Manual
Video System
This sets the type of video board installed into the system. You may choose
EGA/VGA (default), CGA 80x25, MONO, or Not Installed.
Cache Video BIOS
The Cache Video BIOS category allows you to Shadow or Shadow & Cache
the video BIOS. Choosing Shadowed copies the video BIOS into RAM for
faster execution. Choosing Shadowed & Cached caches the shadowed video
BIOS for even higher performance. To disable the Cache Video BIOS
category , select Disabled.
Cache System BIOS
The Cache System BIOS Option allows you to Shadow or Shadow & Cache,
the System BIOS Shadow on the system board. Choosing Shadowed copies
the system’s BIOS into RAM for faster execution. Choosing Shadowed &
Cached caches the shadowed BIOS for even higher performance. To disable
the Cache System BIOS category, select Disabled.
Boot Options Submenu
Move the prompt to Boot Sequence and press <Enter>. The following screen
(Figure 4-4) will appear.
4-6
Figure 4-4 Boot Options Submenu
The BIOS Setup Utility
Boot Sequence
This category selects the order the system searches for a boot disk and may be
set for:
A: then C:
C: then A:
C: only
SETUP Prompt
When enabled, this category allows the system to display the “Press <F2> to
enter SETUP” message during boot.
Post Errors
When enabled, this category allows the system to display the “Press <F1> to
resume, <F2> to SETUP” and pause if errors occur during boot. If disabled,
the system ignores any errors and always attempts to boot.
Floppy Check
When enabled, this category verifies the floppy drive is installed on boot. For
faster booting, select DISABLED.
Numlock
Setting this to Enabled activates Numlock upon boot. Setting this to Auto
activates Numlock if the BIOS detects a numeric keyboard. It may also be
disabled.
Cache
This category allows you to enable the external cache. For optimal performance, select Enabled.
System Memory
The System Memory category identifies the size of the base memory. It
cannot be changed.
Extended Memory
The Extended Memory category automatically detects the amount of memory
installed above the amount in the System Memory category. Because the
BIOS automatically calculates the amount of memory installed in your
system, you cannot change this category without adding or removing memory.
4-7
Micronics M54Hi-Plus System Board Manual
Setting the Advanced Screen
To move to the Advanced Screen, use the left and right arrow keys <←/→>
keys until you see the screen below (Figure 4-5).
4-8
Figure 4-5 Advanced Screen
The BIOS Setup Utility
Integrated Peripherals Submenu
The Integrated Peripherals submenu (Figure 4-6) allows you to individually
enable or modify the drives, I/O ports, and other settings. Use the up and
down arrow keys <↑/↓> to select a category and the plus and minus keys
<+/-> to change the settings.
Figure 4-6 Integrated Peripherals Submenu
Serial Port A
Serial Port A may be set for COM1 (default), COM2, COM3, COM4, or
Disabled.
Serial Port B
Serial Port B may be set for COM1, COM2 (default), COM3, COM4, or
Disabled.
Parallel Port
The parallel port may be set for LPT1 (default), LPT2, or may be disabled.
Parallel Port Mode
The parallel port may be set for output mode (AT) (default), bidirectional
mode (PS/2), Enhanced Parallel Port (EPP), Extended Capabilities Port
(ECP), or Disabled.
4-9
Micronics M54Hi-Plus System Board Manual
Diskette Controller
The floppy disk controller may be enabled or disabled.
Integrated PCI IDE
The PCI IDE controller may be set for Primary (up to two hard disks), Both
(up to four hard disks), or it may be disabled.
UART 2 Mode
UART 2 Mode is used to configure the on-board infrared controller. It may
be set for Standard (default), IrDA, or ASKIR.
Plug and Play O/S
This category, when set to Yes, allows the system to work with a Plug and
Play operating system such as Windows 95. The default setting is No.
Reset Configuration Data
Select Yes to clear the system configuration data. The default setting is No.
Large Disk Access Mode
If you are using a DOS operating system (MS-DOS, DR-DOS, or PC-DOS),
set to DOS (default). If you are using anything else, set to OTHER.
4-10
The BIOS Setup Utility
Security Screen
The Security Screen (Figure 4-7) controls access to the computer. The
security screen allows for settings of two passwords. The Supervisor Password allows access to the system and Setup. The User Password allows
access to the system, but not to all Setup features.
Figure 4-7 Security Setup Screen
Supervisor Password
If a Supervisor Password is set up for the system, it reads Enabled. If the
password is not set up, it reads Disabled (default).
User Password
If a User Password is set up for the system, it reads Enabled. If the password
is not set up, it reads Disabled (default).
Set Supervisor Password
Press the <Enter> key to enter the Supervisor Password submenu (Figure 4-
8).
4-11
Micronics M54Hi-Plus System Board Manual
Figure 4-8 Supervisor Password Submenu
Type the password and press the <Enter> key. Retype the password and press
the <Enter> key again. Write down the password somewhere safe so it will
not be forgotten. The password may be disabled by setting the new password
to nothing (pressing the <Enter> key without first typing a password).
Warning:
If you forget the Supervisor Password, it cannot be disabled without
discharging the CMOS.
Set User Password
Follow the same procedure used to set the Supervisor Password.
Note:
After a password is entered, it is saved immediately. All other changes may
still be discarded (see Exit Screen).
Password on Boot
When enabled, the system requires a password upon boot. Either the Supervisor or User Password may be entered.
4-12
The BIOS Setup Utility
Diskette Access
This category allows floppy disk access with an option of the supervisor or
user. Selecting Supervisor gives floppy disk access to the supervisor only.
Selecting User (default) gives floppy disk access to both the user and the
supervisor. If the passwords are enabled, this option may only be changed by
the supervisor.
Fixed Disk Boot Sector
This category allows the boot sector of the fixed disk to be write protected.
The default setting is Normal. When set for Write Protect, it serves as a form
of virus protection. If the passwords are enabled, this option may only be
changed by the supervisor.
Power Screen
The Power Screen controls the power management functions or the “Green
Section” of the system. To move to the Power Screen, use the left and right
arrow keys <←/→> keys until it appears (Figure 4-9) . To move between the
categories, use the up and down arrow keys <↑/↓>.
Figure 4-9 Power Screen
4-13
Micronics M54Hi-Plus System Board Manual
APM
When enabled the power management features are active. The default setting
is Disabled. If you enable this category, you must also set the other power
management options below.
P ower Management Mode
This category may be set for Maximum power savings, Medium power
savings, Minimum power savings, Customized, or Disabled (default). If you
set this category for Maximum, Medium, or Minimum power savings, you do
not need to make any more adjustments. If you select Customized, you must
set the following five categories.
Standby Timeout
The Standby Timeout category sets the amount of time that elapses for the
system to enter the power saving mode. The options are Disabled (default), 1
min., 15 min., 30 min., 45 min., 60 min., 2 hr., 3 hr., or 4 hr.. Before making
changes, “Customized” must be selected in the Power Management Mode
category.
Suspend Timeout
The Suspend Timeout category sets the amount of time that elapses for the
system to enter the Suspend Mode. The timer starts when the Standby Mode
is activated. The options are Disabled (default), 1 min., 15 min., 30 min., 45
min., 60 min., 2 hr., 3 hr., and 4 hr.. Before making changes, “Customized”
must be selected in the Power Management Mode category.
Standby CPU Speed
This category sets the CPU speed during power saving mode. The options are
Maximum, Medium, Minimum, and Slowest (default). Before making
changes, “Customized” must be selected in the Power Management Mode
category.
Fixed Disk Timeout
This category sets the amount of time which elapses before the IDE drive
enters spin-down mode to conserve power. The options are Disabled (default), 1 min., 2 min., 5 min., 10 min., or 15 min. Before making changes,
“Customized” must be selected in the Power Management Mode category.
Note:
Do not enable this category unless your IDE drive supports spin-down mode.
4-14
The BIOS Setup Utility
CRT Standby
Selecting Enabled powers down the display while the system is in power
saving mode. The default setting is disabled. Before making changes,
“Customized” must be selected in the Power Management Mode category.
Standby Timer Reset Events
Keyboard
Setting this option to Enabled causes the standby timer to reset every time any
keyboard activity occurs.
Mouse
Setting this option to Enabled causes the standby timer to reset every time any
mouse activity occurs.
Standby Break Events
Setting an IRQ category to Enabled causes the system to “wakeup” from a
power savings mode if any activity occurs at that IRQ. For example, if you
have a modem on IRQ3 and you set IRQ3 to enabled, the system automatically wakes every time the modem gets a phone call.
Standby W akeup Events
Keyboard
Setting this category to Enabled causes the system to “wakeup” from a power
savings mode if any of the keyboard keys are pressed.
Mouse
Setting this category to Enabled causes the system to “wakeup” from a power
savings mode if the mouse is moved or a mouse button is pressed.
4-15
Micronics M54Hi-Plus System Board Manual
Exit Screen
After you complete configuring the BIOS, select the Exit Screen (Figure 4-
10).
Figure 4-10 Exit Screen
Choose “Save Changes and Exit” and reboot the computer. The computer is
ready for use.
4-16
Installing the Sound Drivers
Installing a CD-ROM Drive and
5
the Sound Controller Drivers
This chapter explains how to install a CD-ROM drive and the sound
drivers necessary to operate the sound controller on the M54Hi-Plus.
Prior to installing any drivers, follow the instructions in Chapter 3 on
how to install the sound riser card and how to connect devices to the
sound controller.
About Device Driver s
Device drivers are necessary for the computer system to communicate
with devices such as CD-ROM drives, sound controllers, graphics
adapters, or any devices which are not natively supported by the system
BIOS.
Once started, device drivers remain active in the background of the
computer system. Usually a device driver is added to the CONFIG.SYS
file, the AUTOEXEC.BAT file, or both.
5-1
Micronics M54Hi-Plus System Board Manual
Installing a CD-ROM Drive
Micronics recommends the installation of an IDE CD-ROM. If you are
installing a CD-ROM drive these instructions will help you, but also refer to
the documentation which accompanied your CD-ROM drive. Before starting
the setup and installation, make sure your computer is off and the power cord
is disconnected from the wall outlet. Your CD-ROM drive kit should contain
the following items for a successful installation:
CD ROM Drive with optional slide rails.
Interface Cable.
Audio Cable.
Install the CD-ROM hardware as recommended by the CD-ROM manufacturer. Follow the steps below for help on installing the CD-ROM audio cable.
Installing the cable:
1. Connect the ribbon cable as described in the CD-ROM’s documentation,
making sure the red stripe on the cable is aligned with pin 1 of the
connectors.
2. Connect the audio cable to the CD-ROM drive's audio connector.
3. Connect the other end of the audio cable to the MPC-2 compatible CDROM audio connector on the M54Hi-Plus system board (Figure 3-10).
4. Install the CD-ROM device drivers. CD-ROM drives require device
drivers to access the drive and are generally provided by the manufacturer of the CD-ROM drive. Usually one device driver is added to the
CONFIG.SYS file and one to the AUTOEXEC.BAT file.
5. Now, you are now ready to setup the sound controller. Follow the
“Hardware Installation” section in Chapter 3 and the “Installing the
Sound Controller Drivers” section at the end of this chapter.
5-2
Installing the Sound Drivers
Installing the Sound Controller Drivers
If you are installing a CD-ROM drive, it is recommended you install it before
setting up the sound controller. See Installing a CD-ROM Drive on the
previous page.
1. Follow the instructions in Chapter 3 on installing the sound riser card
and connecting devices.
2. If you previously installed another sound card, remove it and all associated files from your AUTOEXEC.BAT and CONFIG.SYS files.
3. Start your computer system.
4. Insert the sound controller driver disk into your floppy drive.
5. From the DOS prompt (C:\), type:
a:install
6. Follow the on-screen instructions and the install program automatically
copies the drivers to your hard drive.
7. Once the software is copied, the install program automatically updates
your CONFIG.SYS and AUTOEXEC.BAT files.
8. After the installation is complete, reboot your system and your sound
controller is ready to use.
5-3
POST Messages
A
The following table lists the Power On Self Test (POST) messages,
possible causes, and solutions.
Message Possible Cause Solution
DISKETTE DRIVE A
FAILURE
DISKETTE DRIVE B
FAILURE
EXTENDED RAM
FAILED AT
OFFSET: nnnn
FAILING BITS: nnnn
Drive A failed or is
missing.
Drive B failed or is
missing.
Extended memory not
working or configured
properly.
Memory failure in
System, Extended, or
Shadow memory.
Check Setup and cable
connections.
Check Setup and cable
connections.
Replace defective
memory.
Replace defective
memory.
POST Messages
FIXED DISK X
FAILURE (where X
=0 or 1)
FIXED DISK
CONTROLLER
FAILURE
INCORRECT DRI VE
A TYPE
INCORRECT DRI VE
B TYPE
INVAL ID NVRAM
MEDIA TYPE
KEYBOARD
ERROR, or
KEYBOARD
CONTROLLER
ERROR
KEYBOARD
ERROR nn
KEYBOARD
LOCKED
The hard disk is not
configured or working
properly.
The controller card has
failed.
Floppy drive A: not set
correctly in Setup.
Floppy drive A: not set
correctly in Setup.
NVRAM chip is bad. Requires repair o f system
The keyboard or
keyboard controller
failed.
A key is jammed or was
held down during boot.
Keyswitch on the front of
the case is locked.
Rerun SETUP and check
connections, or replace
hard disk.
Check configuration and
connections, or replace
controller card.
Run Setup.
Run Setup.
board.
Check connections. You
may have to replace the
keyboard or controller.
Make sure the keys are
not jammed or dirty.
Unlock the keyswitch.
A-1
Micronics M54Hi-Plus System Board Manual
Message Possible Cause Solution
MONITOR TYPE
DOES NOT MATCH
CMOS
Monitor type not
correctly identified in
Setup.
Run Setup and enter
correct monitor type.
OPERATING
SYSTEM NOT
FOUND
PARITY CHECK 1
nnnn
PARITY CHECK 2
nnnn
PREVIOUS BOOT
INCOMPLETE DEFAULT
CONFIGURATION
USED
REAL TIME CLOCK
ERROR
SHADOW RAM
FAILED AT OFFSET
SYSTEM BATTERY
IS DEAD
Operating system
cannot be located on
Drive C: or Drive A:
Check Setup to see if
Drive A: and C: are
properly configured, or
put a bootable disk in
Drive A:
Parity error found in the
system bus.
Parity error found in the
I/O bus.
Previous POST did not
complete successfu ll y.
Check Setup. Board
repair may be required.
Check Setup. Board
repair may be required.
Run Setup, load default
BIOS settings, make any
necessary adjustments,
and save the changes
Real-time clock failed
BIOS test.
May require battery
replacement or board
repair.
Shadow RAM failed. May require repair of
system board.
System battery died. Replace the system
battery and run Setup to
reconfigure the system.
SYSTEM CACHE
ERROR - CACHE
DISABLED
SYSTEM CMOS
CHECKSUM BAD RUN SETUP
SYSTEM RAM
FAILED AT
OFFSET: nnnn
SYSTEM TIMER
ERROR
A-2
External (L2) cache
failed BIOS test.
System will still run, but
slower. Replace cache
at convenience.
System CMOS has been
corrupted or modified
Run Setup and
reconfigure the system.
incorrectly.
System RAM failed. Replace defective RAM.
Timer test failed. Requires repair of system
board.
Beep and POST Codes
Beep and POST Codes
B
Beep codes are a series of beeps sent through the speaker which
indicate a problem during the Power On Self Test (POST). If text
appears on the video screen, the M54Hi-Plus has completed POST; any
other tone from the speaker indicates something other than a POST
error. These tones are not described in Table B-1.
The beep error codes are a series of beeps. The duration of the beep
tones are constant, but the length of the pauses between the beeps
varies. For example: a 1-3-3 beep code will sound like one beep, a
pause; three beeps consecutively, another pause; and then three more
beeps.
One beep code is often misunderstood. If a video card is not installed
or is failing, the system board will generate a long-short-long-short
beep code. This is often interpreted as a 1-2-1 beep code. But POST
errors always vary in the length of the pause and not the duration of the
beep tone.
Another way of identifying a POST error is to use a device called a
POST card. This peripheral card is inserted into one of the ISA slots
and has an LED (or LCD) read out showing the contents of port 80h.
The following table provides a list of all beep codes and POST routines..
B-1
Micronics M54Hi-Plus System Board Manual
Code Beeps POST Routine Description
02 Verify Real Mode.
04 Get CPU type.
06 Initialize system hardware.
08 Initialize chipset registers with initial POST values.
09 Get in POST Reg.
0A Initialize CPU registers.
0C Init ialize cache ini tial POST valu e s .
OE Initialize I/O.
OF Initi a lize the localbus IDE.
10 Initialize Power Management.
11 Load alternate registers with initial POST values.
12 Jump to UserPatch0.
14 Initialize keyboard controller.
16 2-2-3 BIOS ROM checksum.
18 8254 timer initialization.
1A 8237 DMA controller initialization.
1C Reset Programmable Interrupt Controller.
20 3-1-1 Test DRAM refresh.
22 3-1-3 Test 8742 Keyboard Controller.
24 Set ES segment register to 4 GB.
28 Autosize DRAM.
2A Clear 512K base RAM.
2C 3-4-1 Test 512K base address lines.
2E 3-4-3 Test 512K base memory.
32 Test CPU bus-clock frequency.
34 Test CMOS RAM.
35 Initialize alternate chipset registers.
37 Reinitialize the chipset (MB only).
38 Shadow system BIOS ROM.
39 Reinitialize the cache (MB only).
3A Autosize cache.
3C Configure advanced chipset registers.
3D Load alter nate registers with CMOS values.
40 Set initial CPU speed.
42 Initialize interrupt vectors.
44 Initialize BIOS interrupts.
46 2-1-2-3 Check ROM copyright notice.
47 Initialize manager for PCI Option ROMs.
48 Check video configuration against CMOS.
49 Initialize PCI bus and devices.
B-2
Beep and POST Codes
Code Beeps POST Routine Description
4A Initialize all video adapt ers in system.
4C Shadow video BIOS ROM.
4E Display copyright notice.
50 Display CPU type and speed.
51 Initialize EISA board.
52 Test keyboard.
54 Set key click if enabled.
56 Enable keyboard.
58 2-2-3-1 Test for unexpected interrupts.
5A Display prompt “Press F2 to enter SETUP”.
5C Test RAM between 512 and 640k.
60 Test extended memor y.
62 Test extended memor y address lines.
64 Jump to UserPatch1.
66 Configure advanced cache registers.
68 Enable external and CPU caches.
6A Display external cache size.
6C Display shadow message.
6E Display non-disposable segments.
70 Display error messages.
72 Check for confi guration errors.
74 Test real-time clock.
76 Check for keyboard errors.
7C S e t u p h a rd w a re in terrupt vec to rs.
7E Test coprocessor if present.
80 Disable onboard I/O ports.
82 Detect and install external RS232 ports.
84 Detect and install external parallel ports.
86 Re-initialize on-board I/O ports.
88 Initialize BIOSData Area.
8A I nitialize Extended BIOS Data Area.
8C Initialize floppy controller.
90 Initialize hard-disk controller.
91 Initialize localbus hard-disk controller.
92 Jump to UserPatch2.
93 Build MPTABLE for multi-processor boards.
94 Disable A20 address line.
96 Clear huge ES segment register.
98 Search for option ROMs.
9A Shadow option ROMs.
B-3
Micronics M54Hi-Plus System Board Manual
Code Beeps POST Routine Description
9C Set up Power M anagement.
9E Enable hardware interrupts.
A0 Set time of day.
A2 Check key lock.
A4 Initialize typematic rate.
A8 Erase F2 prompt.
AA Scan for F2 keystroke.
AC Enter SETUP.
AE Clear in-POST flag.
B0 Check for errors.
B2 POST done - prepare to boot operating system.
B4 One beep.
B6 Check password (optional).
B8 Clear global descriptor table.
BC Clear parity checkers.
BE Clear screen (optional).
BF Check virus and backup reminders.
C0 Try to boot with INT 19.
D0 Interrupt handler error.
D2 Unknown interrupt error.
D4 Pending Interrupt.
D6 Initialize option ROM error.
D8 Shutdown error.
DA Extended Block Move.
DC Shutdown 10 error.
The following are for boot block in Flash ROM:
E2 Initialize the chipset.
E3 Initialize refresh counter.
E4 Check for Forced Flash.
E5 Check HW status of ROM.
E6 BIOS ROM is OK.
E7 Do a complete RAM test.
E8 Do OEM initialization.
E9 Initialize interrupt controller.
EA Read in the bootstrap code.
EB Initia lize all vect o rs.
EC Boot the Flash program.
ED Initialize the boot device.
EE Boot code was read OK.
B-4
CHard Disk Drive Types
The following table lists the hard disk types supported by M54Hi-Plus.
Hard Disk Drive Types
Type Cylinders Heads Write
Precomp
1 306 4 128 17 10
2 615 4 300 17 21
3 615 6 300 17 32
4 940 8 512 17 65
5 940 6 512 17 99
6 615 4 none 17 21
7 462 8 256 17 32
8 733 5 none 17 31
9 900 15 none 17 117
10 820 3 none 17 21
11 855 5 none 17 37
12 855 7 none 17 52
13 306 8 128 17 21
14 733 7 none 17 44
15 N/A N/A N/A N/A N/A
16 612 4 0 17 21
17 977 5 300 17 42
18 977 7 none 17 59
19 1024 7 512 17 62
20 733 5 300 17 31
21 733 7 300 17 94
22 733 5 300 17 31
23 306 4 0 17 10
24 612 4 305 17 21
25 612 2 300 17 10
26 614 4 none 17 21
27 820 6 none 17 42
28 977 5 none 17 42
29 1218 15 none 36 336
30 1224 15 none 17 159
Sectors Siz e
C-1
Micronics M54Hi-Plus System Board Manual
Type Cylinders Heads Write
Sectors Size
Precomp
31 823 10 512 17 71
32 809 6 128 17 42
33 830 7 none 17 50
34 830 10 none 17 72
35 1024 5 none 17 44
36 1024 8 none 17 71
37 615 8 128 17 42
38 1024 8 none 26 109
39 925 9 none 17 72
C-2
Specifications
D
Processor 75MHz, 90MHz, 100MHz, 120MHz, 133MHz,
150MHz, or 166MHz Pentium processors.
Chipset Intel 430FX PCIset
SMC FDC37C932 Ultra I/O controller.
CPU Clock Select Frequency synthesizer chip. Jumper selectable
CPU speed.
Form Factor Baby AT footprint (8.5" x 13").
Expansion Three ISA slots and three PCI slots.
BIOS Phoenix 4.0x Plug and Play BIOS on 1MB Flash
EPROM.
Mode 4 IDE drive support.
Auto-detection of memory size.
Auto-configuration of IDE hard disk drives.
Specifications
RAM Capacity 8 MB to 128MB.
Supports EDO (Extended Data Out) memory.
Keyboard AT compatible (AT Version).
PS/2 compatible (PS/2 Version).
Internal Cache 16K on CPU.
External Cache Supports Cache Module. Cache Modules are
available in 256K or 512K Asynchronous or
Pipelined Burst Level 2 Cache.
On-board Sound 16-bit sound controller based on Creative Labs
Vibra 16S chipset.
Infrared On-board infrared support.
I/O Ports Built-in support.
D-1
Micronics M54Hi-Plus System Board Manual
Two high speed serial ports (16550 compatible).
One bi-directional parallel port.
Enhanced Parallel Port (EPP) and
Extended Capabilities Port (ECP) compatible.
Floppy Port Supports two floppy drives
(2.88MB, 1.44MB, 1.2MB, 720K, 360K).
PCI IDE Ports Supports four IDE hard disks.
Mode 4 support.
Multiple sector transfer support.
LBA support.
Environmental Specifications
The environment in which the M54Hi-Plus is located is critical. Micronics
recommends the following environmental specifications:
Temperature Range
Operating: 50 to 104 degrees Fahrenheit (10 to 40 degrees Celsius).
Non -Operating: 50 to 140 degrees Fahrenheit (10 to 60 degrees Celsius).
Shipping: -22 to 140 degrees Fahrenheit (-30 to 60 degrees Celsius).
Relative Humidity
Operating: 20% to 80%.
Non-Operating: 5% to 90%.
D-2
Battery Disposal
Specifications
W arning:
DO NOT: open battery; dispose of in fire; recharge; put in backwards, mix
with used or other battery types.
May explode or leak and cause personal injury.
D-3
FCC Statement
FCC Warning Statement
This equipment has been tested and found to comply within the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not used in accordance with the instructions, may
cause harmful interference to radio communications. Interference to radio or
television reception can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult your dealer or an experienced radio/TV technician for help.
To meet FCC requirements, shielded cables are required.
Note:
Changes or modifications not expressly approved by Micronics could void
the user’s authority to operate the equipment.
F-1
Micronics M54Hi-Plus System Board Manual
Declaration of Conformity
Application of Council Directives 89/336/EEC and 72/23/EEC.
Standards to which the conformity is declared:
EN55022 EN50082-1 EN 60950
Manufacturer's Name: Micronics Computers, Inc.
Manufacturers Address: 221 Warren Avenue
Fremont, California 94539
USA
Tel: (510) 651-2300
Fax: (510) 651-5612
Type of Equipment: 586-75/90/100/120/133/166
Tower Personal Computer
Model Name: M54Hi-Plus (ElanPlus)
Tested by: Rockford Engineering Services, Inc.
4750 Williams Wharf Road
St. Leonard, Maryland 20685
USA
Tel: (301) 855-1375
Fax: (410) 586-1460
Test Engineers Li-Ming Xu (EN55022)
Muyiwa Ogunfunmi (EN50082-1)
Bandele Adepoju (EN60950)
I, the undersigned, hereby declare that the specified equipment conforms to
the directives and standards listed above.
Ming Ming Hsu
Director of Technical Services
November 12, 1995
F-2
Declaration of Conformity
Application of Council Directives 89/336/EEC and 72/23/EEC.
Standards to which the conformity is declared:
EN55022 EN50082-1 EN 60950
Manufacturer's Name: Micronics Computers, Inc.
Manufacturers Address: 221 Warren Avenue
Fremont, California 94539
USA
Tel: (510) 651-2300
Fax: (510) 651-5612
Type of Equipment: 586-75/90/100/120/133/166
Mini-Tower Personal Computer
Model Name: M54Hi-Plus (ElanPlus)
FCC Statement
Tested by: Rockford Engineering Services, Inc.
4750 Williams Wharf Road
St. Leonard, Maryland 20685
USA
Tel: (301) 855-1375
Fax: (410) 586-1460
Test Engineers Li-Ming Xu (EN55022)
Muyiwa Ogunfunmi (EN50082-1)
Bandele Adepoju (EN60950)
I, the undersigned, hereby declare that the specified equipment conforms to
the directives and standards listed above.
Ming Ming Hsu
Director of Technical Services
November 12, 1995
F-3
Micronics M54Hi-Plus System Board Manual
Declaration of Conformity
Application of Council Directives 89/336/EEC and 72/23/EEC.
Standards to which the conformity is declared:
EN55022 EN50082-1 EN 60950
Manufacturer's Name: Micronics Computers, Inc.
Manufacturers Address: 221 Warren Avenue
Fremont, California 94539
USA
Tel: (510) 651-2300
Fax: (510) 651-5612
Type of Equipment: 586-75/90/100/120/133 /166
Desktop Personal Computer
Model Name: M54Hi-Plus (ElanPlus)
Tested by: Rockford Engineering Services, Inc.
4750 Williams Wharf Road
St. Leonard, Maryland 20685
USA
Tel: (301) 855-1375
Fax: (410) 586-1460
Test Engineers Li-Ming Xu (EN55022)
Muyiwa Ogunfunmi (EN50082-1)
Bandele Adepoju (EN60950)
I, the undersigned, hereby declare that the specified equipment conforms to
the directives and standards listed above.
Ming Ming Hsu
Director of Technical Services
November 12, 1995
F-4
Glossary
Glossary
16550 UAR T - A high speed chip for controlling
serial ports. Although unnecessary for a mouse, it
is required for modems that are 14,400 baud or
faster.
486DX - A type of 32-bit CPU with a built-in
math-coprocessor and internal cache.
486DX2 - A 486DX CPU where the internal
speed of the CPU operates at twice the external
speed.
486DX4 - A 486DX CPU where the internal
speed of the CPU operates at three times the
external speed.
486SX - A 486DX CPU with no mathcoprocessor.
Asynchronous - Operations that do not require the
clocks of communicating devices to be coordinated. See synchr onous.
Baby A T - A standard system board size
measuring approximately 13.25” x 8.5”.
Bidirectional Parallel Port - A type of parallel port
that can send and receive information.
BIOS - An Acronym for Basic Input/Output
System. Configures the system board and
provides hardware information to the operating
system.
Bit - A contraction of Binary digit. The smallest
unit of information in a binary number system. A
bit represents a choice between either zero or one.
Boot - To start up the computer and load the
operating system software. See cold boot and
warm boot.
Byte - A group of adjacent bits treated as a unit.
Eight bits are typically considered one byte. Also
called a character.
Cache - A process where information is copied
from the slower memory (DRAM) to the faster
memory (SRAM). Information which is likely to
be read or edited is stored in the cache providing
significant performance increases.
Cache hit - The percentage of request for data
from memory that can be served from the cache.
Cache miss - A memory access which cannot be
supplied from cache.
Cold Boot - Starting the computer by turning on
the power or pressing the RESET button. A cold
boot makes the processor execute all of the
diagnostics. See boot and warm boot.
CPU - An acronym for Central Processing Unit.
A CPU performs arithmetic calculations, makes
logical decisions, and directs the operation of the
computer in conjunction with the operating
system.
Disk Drive - A hardware device which provides
for the storage of data on diskettes or hard metal
disks that have a magnetic coating. A disk drive
functions by spinning at high speed while moving
a device called the read/write head across the
disk’s surface in order to read or write data in
magnetic code.
DRAM - An acronym for Dynamic Random
Access Memory. A type of memory chip that
only keeps its memory if supplied with regular
clock pulses and a chance to regularly refresh its
data. It is slower and more cost effective than
SRAM. See SRAM .
Bus - A group of electronic paths used to send
data between parts of the system. On a system
board, the bus connects the peripheral cards with
the microprocessor via the expansion slots.
Bus Mastering - The ability of an peripheral card
to control the bus without requiring intervention
of the CPU.
ECP - An acronym for Extended Capabilities
Port. A standard set by Hewlett Packard and
Microsoft Corporation to expand the capabilities
of the parallel port.
EDO Memory - An acronym for Extended Data
Out. A type of DRAM with built-in cache.
G-1
Micronics M54Hi-Plus System Board Manual
EISA - An acronym for Extended Industry
Standard Architecture. EISA is a bus design
standard which is fully backward compatible with
the ISA bus. Although it is a 32-bit bus, it only
runs at 8MHz. See PCI, VESA, and ISA.
EPP - An acronym for Enhanced Parallel Port. A
standard which increases the capabilities of the
parallel port.
EPROM - Acronym for Erasable Programmable
Read Only Memory. A type of ROM chip that
can be programmed with relatively simple tools
that will retain its data until erased. It can only be
erased by exposing the circuitry in the chip to
ultraviolet light. See also Flash ROM.
External Cache - Cache which is external to the
CPU. See Cache.
Fast SCSI - A SCSI data transfer standard which
supports a rate of up to 10MB/sec.
Fast Wide SCSI - A SCSI data transfer which
supports a rate of up to 20MB/sec.
Flash ROM - A type of ROM chip that will retain
its data until erased. It can be erased or
reprogrammed by supplying it with +12V of
voltage. See ROM and EPROM.
L1 Cache - See Internal Cache.
L2 Cache - See External Cache.
LBA - An acronym for Logical Block Addressing. Any IDE hard drive larger than 528MB.
Math coprocessor - A microprocessor designed
specifically for performing mathematical
calculations. A math coprocessor performs these
calculations faster than the CPU, and by doing so,
frees the CPU for other activities.
Megabyte (MB) - 1,024 Kilobytes or 1,048,576
bytes.
Mini A T - A standard system board size
measuring approximately 8.5" x 9.5".
Mode 1 - An IDE data transfer standard which
supports transfer rates of up to 5.22 Mbytes/sec.
Mode 2 - An IDE data transfer standard which
supports transfer rates of up to 8.33 Mbytes/sec.
Mode 3 - An IDE data transfer standard which
supports transfer rates of up to 11.1 Mbytes/sec.
Mode 4 - An IDE data transfer standard which
supports transfer rates of up to 15.5 Mbytes/sec.
Full Size - A standard system board size
measuring approximately 12" x 13.75".
Gigabyte - A disk storage capacity measurement.
Approximately one thousand megabytes or
1,073,741,824 bytes.
IDE - An acronym for Integrated Device
Electronics. A standard for communicating
between a hard drive and a computer.
Internal Cache - Cache which is built into the
CPU. See Cache.
ISA - An acronym for Industry Standard
Architecture. A well-established bus standard
originating with the IBM A T . See PCI, VESA,
and EISA.
Jumper - a small plug that fits over and shorts
pins on a circuit board. Jumpers allow the
various functions of the board to be enabled or
disabled.
Kilobyte (KB) - 1,024 bytes.
G-2
Parallel - A form of data transmission in which
the data is sent one byte at a time over several
wires that each carry one byte. In parallel
transmission, all the bytes arrive simultaneously,
as opposed to serial transmission in which bits
arrive one by one.
Parallel Port - A connection for a printer or
similar peripheral. Generally, parallel ports are
output only. See Bidir ectional Parallel Port and
ECP.
PCI - An acronym for Peripheral Component
Interconnect. A high performance 32-bit or 64bit bus developed by Intel Corporation. PCI is
designed to be independent of the hardware
architecture to ensure compatibility with future
computer systems. See VESA, EISA, and ISA.
Pentium- A high performance 64-bit CISC
processor designed and manufactured by Intel
Corporation. As of this writing, Pentium is the
highest performing X86 processor available.
Plug and Play - A standard developed to ensure
easy installation of peripherals. Theoretically, a
newly installed card automatically configures
itself and works properly without requiring
jumper configuration or device drivers.
Glossary
SRAM - An acronym for Static Random Access
Memory. A type of memory that can retain data
without requiring a regular clock signal.
Although they are faster than DRAM, they hold
less data and are more expensive.
POST - An acronym for Power On Self Test. A
diagnostic program which is run whenever the
system is cold booted.
RAM - An acronym for Random Access Memory.
A type of memory used as the “working memory”
of a computer system. See DRAM and SRAM.
ROM - An acronym for Read Only Memory . A
type of memory that retains its data without
requiring power. Once written, it cannot be
modified. See EPROM and Flash ROM.
SCSI - An acronym for Small Computer Systems
Interface. An interface standard used to interface
hard disk drives, removable cartridge drives, tape
drives, and CD-ROMs to the computer system.
SCSI allows multiple, high-performance
peripheral devices to be connected in a chain.
Each has its own address. Data and control signals
are sent along the chain and only the specifically
addressed device responds.
SCSI II - An interface standard that adds features
to the SCSI standard. These include 32-bit data
transfer, command queuing, Fast SCSI, and
support for a wider variety of peripherals.
SCSI III - A proposed standard which supports
transfer rates of up to 40MB/sec.
Serial - A type of data transmission in which the
data is sent one bit at a time over a single wire.
See parallel.
Serial Port - A communications port used to
connect peripherals such as modems and mice.
Setup - A program which allows you to make
changes to the system configuration.
Shadow RAM - A technique used to load a
duplicate copy of BIOS from slower ROM into
faster RAM. This enhances system performance
providing higher access speed to the BIOS.
Synchronous - Protocols that require the clocks
of communicating machines or devices to be
coordinated.
Synchronous Cache - A type of cache that uses a
clock signal to latch the inputs and the data
output. This structure spreads the cache access
across two or three cycles while maintaining a
bandwidth of one access per cycle. Improves
performance by 5-10%.
Terabyte - A measurement for very , very large
storage capacity. One T erabyte is equivalent
one-thousand gigabytes, one-million megabytes,
or 1,099,511,627,766 bytes.
VESA - An acronym for Video Electronics and
Standards Association.
VESA Localbus (VL-Bus) - A high performance
bus designed by VESA. A 32-bit version of the
ISA bus which operates at the speed of the
computer’s CPU. See PCI , EISA, and ISA.
VGA - An acronym for Video Graphics Array . A
standard for monitor displays.
VR - Pentium CPU voltage ranging from 3.300 -
3.465 V olts.
VRE - Pentium CPU voltage ranging from 3.400
- 3.600 V olts.
Warm Boot - Restarting the system by
simultaneously pressing the <Ctrl>, <Alt>, and
<Delete> keys.
Write-Back Cache - Upon a cache hit, the cache
is updated and the main memory is not affected.
Upon a cache miss, only the main memory is
updated.
Write-Through Cache - Upon a cache hit, the
cache and the main memory are updated. Upon a
cache miss, only the main memory is updated.
SIMM - An acronym for Standard Inline Memory
Module. A small printed circuit board containing
memory chips.
G-3
Limited W arranty
Except as described below, Micronics warrants the products to be free from
defects in material and workmanship in normal use for a period of one (1)
year from date of purchase. Should any product fail to perform according to
this warranty at any time during the warranty period, except as provided
below, Micronics or its authorized service centers will, at Micronics’ option,
repair or replace the product at no additional charge.
The warranty does not cover loss or damage which occurs in shipment or
which is due to: (1) improper installation or maintenance, misuse, neglect or
any cause other than ordinary commercial application, including without
limitation, accidents or acts of God; (2) adjustment, repair, or modification by
other than a Micronics authorized service center; (3) improper environment,
excessive or inadequate heating or air conditioning, or electrical power
failures, surges or other irregularities; (4) any statement about the product
other than those set forth in this warranty; or (5) nonconformity to models or
samples shown to the purchaser. Any models or samples were for the sole
purpose of suggesting the character of the product and are not intended to
form the basis of the bargain.
A receipt or copy of the invoice with the date of purchase from a Micronics
reseller is required before any warranty service can be rendered. Service can
be obtained by calling Micronics for a Return Merchandise Authorization
(RMA) Number.
The RMA Number should be prominently displayed on the outside of the
shipping carton of the returned product. Returned product should be shipped
prepaid or hand carried to Micronics. The purchaser assumes risk of loss or
damage in transit, and unless otherwise agreed to in writing by Micronics,
will pay inbound shipping charges.
The exclusive remedy of the purchaser under this warranty above will be
repair or replace at Micronics’ option, but if for any reason that remedy
should fail of its essential purpose, the exclusive remedy of the purchaser
shall then be actual damages up to amounts paid for the defective product by
the purchaser. This limited warranty shall be deemed to “fail of its essential
purpose” if, after repeated efforts, Micronics is unable to make the product
operate as warranted. Micronics’ liability for damages to the purchaser for
any cause whatsoever; regardless of the form of action and whether in
contract or in tort, shall be limited to the purchase price in effect when the
cause of action arose for the product that is the basis of the claim.
W-1
Micronics M54Hi-Plus System Board Manual
Micronics will not be liable for any lost profits or any indirect, special
incidental or consequential damages in connection with the product, even if
Micronics has been advised of the possibility of such damages.
Micronics makes no warranties or representations as to performance of
products or as to service to distributor or to any person, except as set forth in
Micronics; limited warranty accompanying delivery of product.
Micronics disclaims all other warranties whether oral, written, expressed, or
implied, including without limitation, the warranties of design, merchantability, or fitness for a particular purpose, if applicable, or arising from a course
of dealing, usage or trade practice.
Non-W arranty Service
After the one year warranty service is no longer in effect, repair service is
still available for Micronics products. For more information, contact
Micronics’ RMA department at (510) 683-0428 or (510) 683-0389. The
RMA department is open between 8:30 A.M. and 5 P.M. Pacific Standard
Time.
W-2
