M54E2 PCI/EISA
Dual Pentium Processor
System Board Manual
.
M54E2 PCI/EISA
Dual Pentium Processor
System Board Manual
Document Number: 06-00210-06, Rev. 2C
221 Warren Ave., Fremont, CA 94539-7085
M54E2 System Board Manual
June 1996
Copyright Notices
Copyright 1994, 1995, 1996 Micronics Computers, Inc. The information
contained in the M54E2 PCI/EISA Dual Pentium Processor system board
manual has been carefully checked and is believed to be accurate. Micronics
assumes no responsibility for any inaccuracies that may be contained in this
document. Micronics makes no commitments to update or to keep the
information in this manual at a current level when changes are made to the
product.
Micronics reserves the right to make improvements to this document and/or
product at any time and without notice. All Rights Reserved. No part of this
document may be photocopied, reproduced, translated, or reduced to any
medium or machine form without prior, written consent from Micronics.
Portions of the Manual
Portions of this manual were copied (with permission) from Phoenix Technologies, Ltd. and Micro Computer Systems, Inc. All rights reserved.
Trademarks
IBM is a registered trademark of International Business Machines. Microsoft,
Microsoft Word, Windows are registered trademarks of Microsoft Corporation. Intel and PCI are registered trademarks of Intel Corporation. UNIX is a
registered trademark of AT&T Corporation. Lotus 1-2-3 is a registered
trademark of Lotus Development Corp. MCS is a trademark of Micro
Computer Systems. All other product names mentioned herein are used for
identification purposes only and may be the trademarks of their respective
companies.
ii
M54E2 System Board Manual
Contents
Section 1: Introduction ............................................ 1-1
Features..................................................................................... 1-2
Software Compatibility ............................................................. 1-2
M54E2 Quick Installation........................................................ 1-3
Section 2: Configuring the M54E2 ......................... 2-1
Static Electricity........................................................................ 2-1
Office Environment................................................................... 2-1
M54E2 System Board............................................................... 2-2
Jumper Settings......................................................................... 2-3
Section 3: Installing the M54E2, System Memory ,
CPUs and Peripherals ............................................. 3-1
Installation of the M54E2 ......................................................... 3-2
T ools Required.................................................................... 3-2
Equipment Required ........................................................... 3-2
System Memory ........................................................................ 3-3
SIMMs Supported .............................................................. 3-3
Upgrading Rules ................................................................. 3-3
Common Memory Configurations ...................................... 3-4
Installing the SIMMs .......................................................... 3-5
Removing SIMMs............................................................... 3-5
Installing a CPU ........................................................................ 3-6
Installing Cache Memory .......................................................... 3-7
Installing a PCI Peripheral Card................................................ 3-8
Installing an EISA Peripheral Card ........................................... 3-9
Installing a Plug & Play Peripheral Card................................. 3-10
Section 4: The BIOS Setup Utility .......................... 4-1
Configuration ............................................................................ 4-1
Initial Boot Up .......................................................................... 4-1
M54E2 System Board Manual
iii
Setup ......................................................................................... 4-2
Running the Setup Procedure ................................................... 4-3
Setting the Main Screen ............................................................ 4-3
Setting the Advanced Screen .................................................... 4-7
Security Screen ........................................................................4-11
Exit Screen.............................................................................. 4-13
Section 5: EISA Utility............................................. 5-1
Introduction .............................................................................. 5-1
When Should You Run the EISA Utility?................................. 5-1
What You W ill Need ................................................................. 5-1
Starting the Utility..................................................................... 5-2
Main Menu................................................................................ 5-3
Step 1: Important EISA Configuration Information ................ 5-3
Step 2: Add or Remove Boards............................................... 5-4
Step 3: View or Edit Details .................................................... 5-6
Advanced Submenu ............................................................ 5-6
Step 4: Examine Switches or Print Report ............................... 5-8
Examine Switches ............................................................... 5-8
Print Report ........................................................................ 5-8
Step 5: Save and Exit............................................................... 5-8
Appendix A: POST Messages .................................A-1
Appendix B: Beep and POST Codes ......................B-1
Appendix C: Hard Disk Drive Types .....................C-1
Appendix D: T echnical Information.......................D-1
Specifications ............................................................................D-1
Environmental Specifications....................................................D-2
Battery Disposal........................................................................D-3
T echnical Support .....................................................................D-4
Online Services .........................................................................D-5
iv
M54E2 System Board Manual
Appendix E: Updating the System BIOS ...............E-1
FCC W arning Statement.........................................F-1
Declaration of Conformity ......................................F-2
Glossary ................................................................... G-1
Limited W arranty .................................................. W-1
Non-W arranty Service........................................... W-2
Index..........................................................................X-1
M54E2 System Board Manual
v
List of Figures
Figure 1-1: System Power-Up Screen......................................................... 1-3
Figure 2-1: M54E2 System Board .............................................................. 2-2
Figure 3-1: Installing a 72-Pin SIMM ....................................................... 3-5
Figure 3-2: Installing Cache Memory ........................................................ 3-7
Figure 3-3: Installing a PCI Card............................................................... 3-8
Figure 3-4: Installing an EISA Card .......................................................... 3-9
Figure 3-5: Installing a Plug & Play Card ............................................... 3-10
Figure 4-1: Power-Up Screen ..................................................................... 4-2
Figure 4-2: CMOS Main Screen ................................................................ 4-3
Figure 4-3: IDE Device Submenu .............................................................. 4-5
Figure 4-4: Advanced Setup Screen ........................................................... 4-7

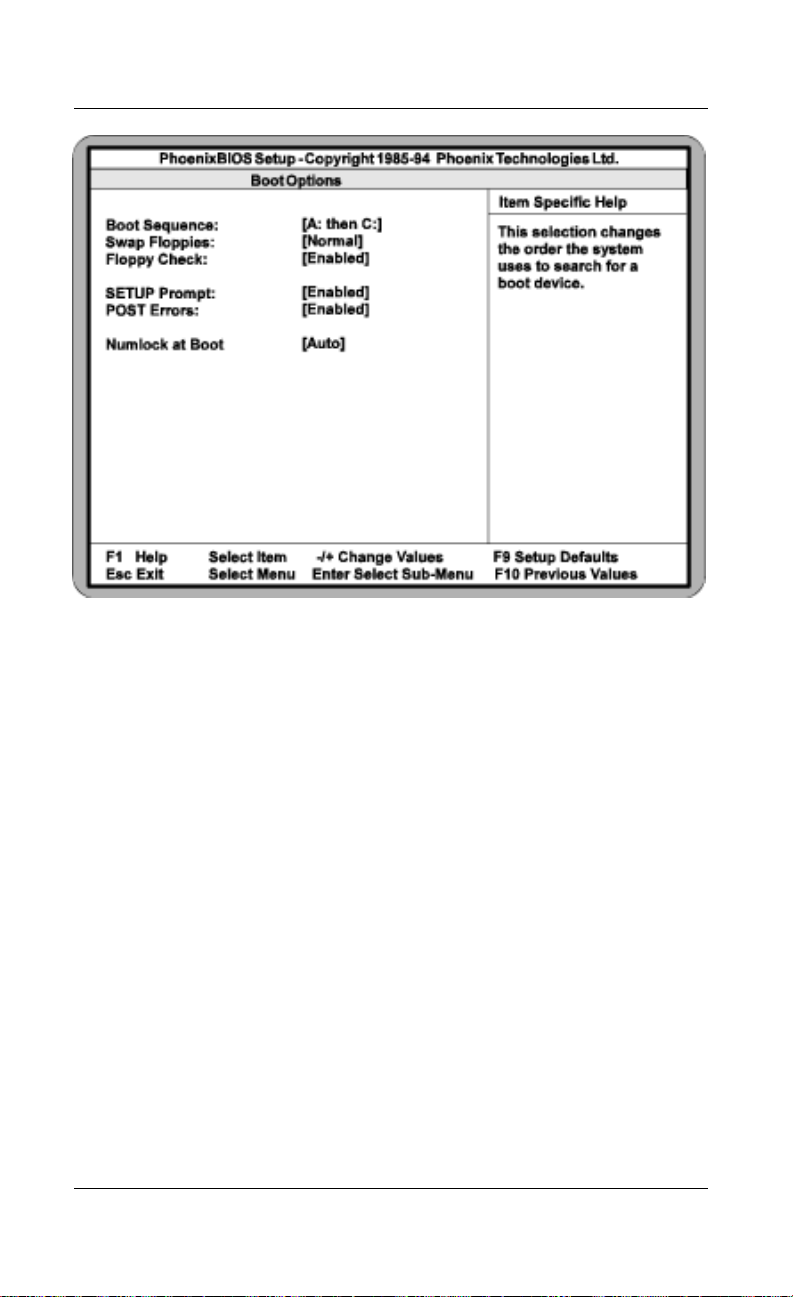

Figure 4-5: Boot Options Submenu ............................................................ 4-8
Figure 4-6: Integrated Peripherals Submenu ............................................. 4-9
Figure 4-7: Security Setup Screen .............................................................4-11
Figure 4-8: Supervisor Password Screen .................................................. 4-12
Figure 4-9: Exit Screen............................................................................. 4-13
Figure 5-1: EISA Configuration Introduction Screen ................................ 5-2
Figure 5-2: Configuration Main Menu....................................................... 5-3
Figure 5-3: Add or Remove Boards Screen ................................................ 5-4
Figure 5-4: Adding an EISA Configuration (CFG) File............................ 5-5
Figure 5-5: View or Edit Details Menu...................................................... 5-6
Figure 5-6: Advanced Submenu ................................................................. 5-7
List of Tables
Table 2-1: Cache Type Selection............................................................... 2-3
Table 2-2: Host CPU Speed Selection....................................................... 2-3
Table 2-3: External Cache Size Selection................................................. 2-3
Table 2-4: CPU VRE Selection ................................................................. 2-4
Table 2-5: Onboard IDE IRQ Selection.................................................... 2-4
Table 2-6: DRAM Parity Selection ........................................................... 2-4
Table 2-7: Super I/O Selection.................................................................. 2-4
Table 2-8: Video Selection ........................................................................ 2-5
Table 2-9: PS/2 Mouse Selection .............................................................. 2-5
Table 2-10: Recover Flash BIOS Selection................................................. 2-5
Table 2-11: Turbo Selection ........................................................................ 2-5
Table 2-12: APIC Selection ........................................................................ 2-6
Table 2-13: Case and Peripheral Connections............................................ 2-7
Table 3-1: Memory Configurations ........................................................... 3-4
vi
M54E2 System Board Manual
Section 1: Introduction
Introduction
1
Thank you for choosing the Micronics M54E2. The M54E2 is a highperformance system board designed to be a foundation for advanced
systems and applications.
The M54E2 is a dual Pentium processor board. You can operate the
M54E2 with a single Pentium processor or add a second matching
processor for increased performance.
Additional features include onboard support for two IDE hard drives,
two floppy drives, a bi-directional parallel port and two high speed
serial ports.
Micronics builds all products to exacting standards, using the highest
quality components available. We are proud to provide this system
board and believe you will be pleased with your purchase.
M54E2 System Board Manual
1.1
Section 1: Introduction
Features
The M54E2 includes the following features:
Dual Pentium processor support for 75, 90, 100, 120, 133, 150, 166 and
200MHz processors
Two 32-bit PCI slots, five 32-bit EISA slots and one shared (PCI or
EISA) slot
L2 Write-back cache support (256K or 512K)
PCI: Intel Neptune chipset
PCEB/ESC EISA Bridge
I/O: SMC 665 Super I/O controller
Support for up to 512MB of onboard system memory
ISA IDE controller (supports two drives)
Floppy controller for two floppy drives (supports 360KB, 720KB,
1.2MB, 1.44MB or 2.88MB floppy drives)
Two high speed NS16550 compatible serial ports
Standard AT keyboard connector
Bidirectional parallel port (ECP and EPP compatible)
Upgradeable Flash Phoenix BIOS on 1MB Flash
Software Compatibility
The M54E2 system board has been thoroughly tested for compatibility with a
variety of operating systems and environments, including:
Windows and Windows NT
OS/2 version 2.11 & SMP
SCO UNIX and Open Desktop
Novell Netware
MS-DOS
PC-DOS
1.2
M54E2 System Board Manual
Section 1: Introduction
M54E2 Quick Installation
We know that many experienced people prefer to read as little of the documentation as possible. If this sounds like you, here’s the short form:
1. Make backup copies of your installation and configuration diskettes.
2. Ground yourself to prevent damaging static discharge, then remove the
M54E2 from its packaging.
3. Configure and verify the system board’s jumper settings. (See Jumper
Settings in Chapter 2).
4. Install the CPU and the system memory (Chapter 3).
5. Install the motherboard into the chassis and make all necessary
case connections.
6. Install any ISA, PCI and EISA add-on peripherals (Chapter 3).
7. Turn the computer on and press the <F2> key when you see the screen
below:
Figure 1-1: Power-Up Screen
M54E2 System Board Manual
1.3
Section 1: Introduction
8. Set the time and date. Adjust the BIOS settings to match your
configuration. If installing an IDE drive, select the IDE device you wish
to configure. Press <Enter> with Autotype Fixed Disk selected and the
BIOS will automatically configure the drive for you (see Chapter 4).
9. After you have configured the Main Setup menu, make any desired
setting configurations in the Advanced and Security menu. When
finished, go to the exit screen, select “Save Changes and Exit” and you
are finished with the BIOS configuration (Chapter 4).
10. Insert the MCS EISA Configuration Utility into Drive A or Drive B and
type:
A: CF <Enter>
or
B: CF <Enter>
Follow the directions to install the necessary drivers for your EISA
peripherals (Chapter 5).
1.4
M54E2 System Board Manual
Section 2: Configuring the M54E2
Configuring the M54E2
2
Although the M54E2 system board is packaged in protective materials,
it is important to use care while unpacking and setting up.
Static Electricity
The M54E2 is shipped from the factory in an antistatic bag. To reduce
the possibility of damage, it is important to neutralize any accumulated
static charges on your body before handling the board. The best way to
do this is to ground yourself using a special wrist or ankle strap. If you
do not have a strap, you should touch both of your hands to a safely
grounded object. After you have grounded yourself, ground the M54E2
via the solder pads surrounding one of its mounting holes.
Once the M54E2 is removed from its packaging, place it on top of the
antistatic bag. Carefully inspect the board for damage which may have
occurred during shipment.
Office Environment
Make sure the finished computer system is in an area with good
ventilation. The system should not be in direct sunlight, near heaters,
or exposed to moisture, dust or dirt.
M54E2 System Board Manual
2-1
Section 2: Configuring the M54E2
M54E2 System Board
2-2
Figure 2-1: M54E2 System Board
M54E2 System Board Manual
Section 2: Configuring the M54E2
Jumper Settings
Table 2-1: Jumper settings to select between write-back and writethrough cache.
Jumper Function Settings
W1 Write-through
Write-back (default)
Table 2-1: Cache Type Selection
Table 2-2: Jumper settings to select the speed of the CPU.
Close
Open
CPU Speed
Bus Speed
Jumper
W2 Open Open Open Close Close Close Close Open
W6 2-3 1-2 2-3 1-2 2-3 1-2 2-3 2-3
W27 Open Open Open Open Open Close Close Close
W40 Close Open Open Open Open Open Open Open
75MHz
50MHz
90MHz
100MHz
60MHz
(default)
Table 2-2: CPU Speed Selection
66MHz
120MHz
60MHz
133MHz
66MHz
150MHz
60MHz
166MHz
66MHz
200MHz
66MHz
Table 2-3: Jumper settings to select the size of the external cache.
Jumper Function Setting
W5 W10 256K
512K
Table 2-3: Cache Size Selection
1-2
2-3
M54E2 System Board Manual
2-3
Section 2: Configuring the M54E2
Table 2-4: Jumper settings to set the CPU voltage regulator selection.
Jumper Function Settings
W28 VRE (Vcc3=3.6V)
VR/STD (Vcc3=3.45V) (default)
Table 2-4: CPU VRE Selection
Table 2-5: Jumper settings to set the onboard IDE IRQ.
Open
Close
Jumper Function Settings
W25 IRQ14 (default) 1-2
Table 2-5: Onboard IDE Controller Selection
Table 2-6: Jumper settings to select parity checking or non-parity
checking DRAM.
Jumper Function Settings
W41 Non-Parity DRAM
Parity DRAM (default)
Open
Close
Table 2-6: DRAM Parity Selection
Table 2-7: Jumper settings to enable or disable Super I/O.
Jumper Function Settings
2-4
W30 Enable Super I/O (default)
Disable Super I/O
Table 2-7: Super I/O Selection
M54E2 System Board Manual
Open
Close
Section 2: Configuring the M54E2
Table 2-8: Jumper settings to select the type of video installed.
Jumper Function Settings
W20 Monochrome
Color (default)
Table 2-8: Video Selection
Table 2-9: Jumper settings to enable or disable the PS2 mouse.
Open
Close
Jumper Function Settings
W21 Disable IRQ12 (PS/2 Mouse)
Enable IRQ12 (PS/2 Mouse) (default)
Table 2-9: PS/2 Mouse Selection
Table 2-10: Jumper settings to recover the flash BIOS from the boot
block.
Jumper Function Settings
W16 BIOS Code (default)
BIOS Boot Block
Table 2-10: Recover Flash BIOS Selection
1-2
2-3
Open
Close
Table 2-11: Jumper settings to enable or disable the turbo option.
Jumper Function Settings
W15 Deturbo
Turbo (default)
Table 2-11: Turbo Selection
M54E2 System Board Manual
Open
Close
2-5
Section 2: Configuring the M54E2
Table 2-12: Jumper settings to enable or disable the APIC selection for
Novell Network use. NOTE: Disable only if you are running Novell 3.12.
Jumper Function Settings
W42 APIC Enabled (default)
APIC Disabled
Table 2-12: APIC Selection
Open
Close
2-6
M54E2 System Board Manual
Section 2: Configuring the M54E2
,
d
Table 2-13: Case and peripheral connections.
Connectors Function Notes
J1 & J2 Power Supply Connector
J5 AT Keyboard
J6 & J8 PS/2 Mouse & Keyboard PS/2 Version Only
J9 Parallel Port Connector Can be disabled at the CMOS
J10 Floppy Connector
J11 Serial Port (COM 1) Can be disabled at the CMOS
J12 Serial Port (COM 2) Can be disabled at the CMOS
J13 ISA IDE Connector Secondary
J25 Reserved Not Supported
configuration screen
configuration screen
configuration screen
J26 Optional Power Supply
Connector
For specially equipped power
supplies
W12 or W31 Speaker Connector 1 - Speaker, 2 - N/C, 3 - Ground
4 - 5V DC
W13 or W32 Reset
W14 or W33 Turbo LED 1 - +5V DC, 2 - Ground
W15 or W34 Turbo Switch
W18 or W37 Keylock/Power LED 1 - Speaker, 2 - N/C, 3 - Groun
4 - Keyboard Lock, 5 - Ground
W19 External Keyboard 1 - Clock (Keybd), 2 -Data,
3 - N/C, 4 - Ground, 5 - VCC
W24 or W38 Hard Disk LED 1 - +5V DC, 2 - Ground
W35 12V Fan Connector 1 - +12V DC, 2 - Ground
W36 12V Fan Connector 1 - +12V DC, 2 - Ground
Table 2-13: Case and Peripheral Connections
M54E2 System Board Manual
2-7
Section 2: Configuring the M54E2
2-8
M54E2 System Board Manual
Section 3: Installing the M54E2
Installing the M54E2, System
3
Memory, CPUs and Peripherals
This section explains how to install the M54E2 system board, SIMMs,
CPUs and peripherals.
WARNING:
Before installing or removing any peripherals or components, make
sure you have a clear work space and that you adhere to all anti-static
precautions described on page 2-1.
Micronics recommends only trained technicians install and configure
the system board. Damage which occurs to the board while adding or
removing peripherals or components may void the warranty.
If problems arise while installing peripherals, contact the computer
dealer where you purchased the peripheral or Micronics’ Technical
Support Department.
M54E2 System Board Manual
3-1
Section 3: Installing the M54E2
Installation of the M54E2
The installation of the M54E2 system board depends on the type of case you
use. The M54E2 is a standard AT motherboard and is likely to be limited to
tower cases.
Prior to installing the M54E2, make sure you have a clear work space
available and adhere to all anti-static precautions. If you are unfamiliar with
installing a system board, Micronics highly recommends you read the
computer user’s manual or contact your dealer’s technical support department.
Tools Required
Micronics recommends using the following tools to install the M54E2:
Small Phillips screwdriver.
Tweezers or a pair of needle-nose pliers.
Tray (to hold loose screws).
Equipment Required
Micronics recommends using the following equipment with the M54E2 for a
typical configuration:
Chassis with standard hardware (tower case preferable).
A high-quality power supply capable of providing continuous
power within a 5 volt range. A power filter may be used with a noisy
AC power source.
AT-compatible keyboard (depends on model).
PS/2 or compatible keyboard (depends on model).
Eight ohm speaker.
Standard ribbon cables for internal connections.
Standard power cord (grounded).
Heat sink with cooling fan for each CPU (required).
3-2
M54E2 System Board Manual
Section 3: Installing the M54E2
System Memory
System memory devices, commonly known as SIMMs (Single Inline Memory
Modules), are necessary to operate the M54E2 system board. The M54E2 has
eight SIMM sockets and can be upgraded to 512 Megabytes of RAM. This
section will explain the type of SIMMs supported, list the rules of adding
memory to the M54E2, give some examples of common memory configurations, and show how to physically install the new SIMMs.
SIMMs Supported
The M54E2 supports 72-pin, 60 or 70ns SIMMs in the following configurations:
4MB (1MBx32/36)
8MB (2MBx32/36)
16MB (4MBx32/36)
32MB (8MBx32/36)
64MB (16MBx32/36)
NOTE: For long term reliability, Micronics recommends using SIMMs with
tin-plated contacts. The use of gold-plated contacts may conflict with the tinalloy on the SIMM socket.
Upgrading Rules
The following is a list of rules to follow when upgrading SIMMs. If you
follow these rules, your upgrade should be trouble-free:
Use 70ns or faster SIMMs.
Upgrade SIMMs one bank at a time. Each bank must contain two
SIMMs of the same size and preferably from the same manufacturer.
For example, to add 16MB of memory to the system board, install
two 8MB SIMMs into the same bank.
When installing SIMMs, start with Bank 0 and work your way up
(0,1,2,3).
M54E2 System Board Manual
3-3
Section 3: Installing the M54E2
Common Memory Configurations
The table below lists the most common memory configurations. The M54E2
will accept the following combination of SIMMs as long as the rules in the
previous section are followed.
Memory Bank 0 Bank 1 Bank 2 Bank 3
8MB (2) 1Mx36
16MB (2) 1Mx36 (2) 1Mx36
16MB (2) 2Mx36
24MB (2) 1Mx36 (2) 1Mx36 (2) 1Mx36
24MB (2) 2Mx36 (2) 1Mx36
32MB (2) 4Mx36
32MB (2) 2Mx36 (2) 2Mx36
32MB (2) 1Mx36 (2) 1Mx36 (2) 1Mx36 (2) 1Mx36
48MB (2) 2Mx36 (2) 2Mx36 (2) 2Mx36
64MB (2) 8Mx36
64MB (2) 4Mx36 (2) 4Mx36
64MB (2) 2Mx36 (2) 2Mx36 (2) 2Mx36 (2) 2Mx36
64MB (2) 4Mx36 (2) 2Mx36 (2) 2Mx36
72MB (2) 8Mx36 (2) 1Mx36
80MB (2) 8Mx36 (2) 2Mx36
80MB (2) 4Mx36 (2) 4Mx36 (2) 1Mx36 (2) 1Mx36
96MB (2) 4Mx36 (2) 4Mx36 (2) 4Mx36
96MB (2) 8Mx36 (2) 2Mx36 (2) 2Mx36
104MB (2) 8Mx36 (2) 2Mx36 (2) 2Mx36 (2) 1Mx36
104MB (2) 4Mx36 (2) 4Mx36 (2) 4Mx36 (2) 1Mx36
128MB (2) 16Mx36
128MB (2) 8Mx36 (2) 8Mx36
128MB (2) 4Mx36 (2) 4Mx36 (2) 4Mx36 (2) 4Mx36
192MB (2) 8Mx36 (2) 8Mx36 (2) 8Mx36
256MB (2) 16Mx36 (2) 16Mx36
256MB (2) 8Mx36 (2) 8Mx36 (2) 8Mx36 (2) 8Mx36
384MB (2) 16Mx36 (2) 16Mx36 (2) 16Mx36
512MB (2) 16Mx36 (2) 16Mx36 (2) 16Mx36 (2) 16Mx36
3-4
Table 3-1: Memory Configurations
M54E2 System Board Manual
Section 3: Installing the M54E2
Installing the SIMMs
To install the SIMMs, locate the memory banks on the system board and
perform the following steps:
1. Hold the SIMM so that the notched edge is aligned with the notch on
the SIMM socket (Figure 3-1).
2. Insert the SIMM at a 45 degree angle.
3. Gently push the SIMM into an upright position until it locks into
place (past the release tabs).
Figure 3-1: Installing a 72-Pin SIMM
Removing SIMMs
To remove SIMMs, follow the steps below:
1. With both thumbs (or fingers), press the release tabs away from the
socket.
2. With the SIMM free from the release tabs, lift the module up and
place in an anti-static bag or package.
M54E2 System Board Manual
3-5
Section 3: Installing the M54E2
Installing a CPU
The M54E2 is designed to support dual Pentium processors. Follow the steps
below to install the main or the second processor:
1. Turn off the computer and remove its cover.
2. Locate the ZIF socket illustrated in Figure 2-1.
3. Lift the lever of the socket.
4. Locate pin 1 on the processor and pin 1 on the socket (Figure 2-1).
Gently place the processor into the socket, making sure pin 1 on the
processor and pin 1 on the socket are aligned.
5. Push the lever down until it locks into place.
6. Make sure the speed selection jumpers are set correctly (see Chapter 2).
7. If you are only installing the upgrade processor, you do not need to
change any jumpers or BIOS settings. The system will automatically
recognize the new processor. NOTE: Make sure the APIC jumper (W42)
is set to Enabled.
NOTE: If your operating system supports dual processors, you may need to
reconfigure or reinstall your operating system. Refer to your software
documentation for more information.
WARNING:
Pentium processors require a heat-sink with a cooling fan. Failure to provide
adequate cooling of the processor may seriously affect system performance
or cause permanent damage to the processor.
3-6
M54E2 System Board Manual
Section 3: Installing the M54E2
Installing Cache Memory
In addition to the 16K of internal (L1) cache built into the Pentium processors, the M54E2 also supports external (L2) cache. The M54E2 is available
with 256K or 512K external cache.
To upgrade to 512K cache, install eight 32Kx8-15ns 3.3V SRAMs into the
open SRAM sockets (Figure 3-2). After installing the cache upgrade, refer to
Table 2-4 for the correct external cache jumper settings.
Figure 3-2: Upgrading the External Cache
M54E2 System Board Manual
3-7
Section 3: Installing the M54E2
Installing a PCI Peripheral Card
Micronics PCI slots accommodate all PCI peripherals that meet the PCI 2.0
specifications. Complete the following steps to install a PCI card:
1. Turn the computer system off and remove its cover.
2. Choose an unused PCI slot and remove the slot cover.
3. Insert the card with the bottom edge level to the slot. Never
insert the card at an angle.
4. Carefully push the card straight down, making sure the card is fully
inserted.
5. Replace the screw which holds the card into place.
6. Replace the computer cover.
7. Refer to the card’s documentation for additional instructions regarding
installation and software drivers.
3-8
Figure 3-3: Installing a PCI Card
M54E2 System Board Manual
Section 3: Installing the M54E2
Installing an EISA Peripheral Card
Micronics EISA slots accommodate all EISA peripherals that meet the EISA
standard. Complete the following steps to install an EISA card:
1. Turn the computer system off and remove its cover.
2. Choose an unused EISA slot and remove the slot cover.
3. Insert the card with the bottom edge level to the slot. Never
insert the card at an angle.
4. Carefully push the card straight down, making sure the card is fully
inserted.
5. Replace the screw which holds the card into place.
6. Replace the computer cover.
7. Refer to the card’s documentation for additional instructions regarding
installation and software drivers.
8. Run the EISA configuration utility discussed in Chapter 5.
Figure 3-4: Installing an EISA Card
M54E2 System Board Manual
3-9
Section 3: Installing the M54E2
Installing a Plug & Play Peripheral Card
Micronics EISA slots accommodate all ISA Plug & Play peripherals that
meet the Plug and Play standard. Complete the following steps to install a
Plug and Play card:
1. Turn the computer system off and remove its cover. Note the slot
number where you choose to install the Plug and Play card. You
will need this information when you run the EISA configuration
utility.
2. Choose an unused EISA slot and remove the slot cover.
3. Insert the card with the bottom edge level to the slot. Never insert
the card at an angle!
4. Carefully push the card straight down, making sure the card is fully
inserted.
5. Replace the screw which holds the card into place.
6. Replace the computer cover.
7. Refer to the card’s documentation for additional instructions regarding
installation and software drivers.
8. Run the EISA configuration utility discussed in Chapter 5.
Figure 3-5: Installing a Plug & Play Card
3-10
M54E2 System Board Manual
Section 4: BIOS Setup Utility
The BIOS Setup Utility
4
Configuration
After the M54E2 system board and all hardware is installed, the system
is ready for configuration. Before turning on the computer, make sure
all cables are correctly connected and all jumpers are correctly set.
It is recommended you keep the computer cover off the first time you
boot the system. If you have any difficulties, they will be easier to
correct.
Initial Boot Up
Power up the M54E2. If the system doesn’t properly boot, check all
your cables and peripherals for bad connections. You may also get beep
codes or error messages. If this occurs, consult Appendices A and/or B
for a guide to possible solutions.
After the system properly boots, it is ready to be configured. The
following pages explain the proper procedures for BIOS configuration.
M54E2 System Board Manual
4-1
Section 4: BIOS Setup Utility
Setup
The Setup program is used to configure the computer’s BIOS (Basic Input/
Output System). The computer’s BIOS is responsible for configuring the
motherboard and providing hardware information to the operating system. In
order for the computer to run properly, run the Setup procedure after first
installing the system board and whenever you make a hardware change to the
system.
After the system is turned on and goes through a memory test, the Power-Up
Screen (Figure 4-1) will appear on your monitor:
Figure 4-1: Power-Up Screen
When “Press <F2> to enter SETUP” appears at the bottom of the screen,
press the F2 key to begin the Setup procedure. The CMOS Main Screen
(Figure 4-2) should appear and the prompt should be on the time line. The
Setup procedure can only be activated during the boot sequence.
4-2
M54E2 System Board Manual
Section 4: BIOS Setup Utility
Running the Setup Procedure
The M54E2 system board has four primary CMOS configuration screens: the
Main Screen (Figure 4-2), the Advanced Screen (Figure 4-4), the Security
Screen (Figure 4-7), and the Exit Screen (Figure 4-9). To toggle between the
screens, press the right arrow <→> and the left arrow <←> keys.
Setting the Main Screen
The CMOS Main Screen (Figure 4-2) is used to set the time and date, to set
the floppy drive types, to configure the hard disks, and to configure the video.
This section explains how to configure each of these categories. To move
between the categories, use the up arrow <↑> and the down arrow <↓>.
Figure 4-2: CMOS Main Screen
System Time and Date
To set the time, use the <-> key to decrease the number and the <+> key to
increase the number. To move the prompt forward, use the <Tab> key; to
move the prompt backward, use the <Shift-Tab> key. To set the date, use the
M54E2 System Board Manual
4-3
Section 4: BIOS Setup Utility
up and down arrows<↑/↓> to highlight the System Date and follow the same
procedure used to set the time.
Diskette A or B
To configure a floppy drive added to or removed from your computer, use the
up and down arrow keys <↑/↓> to select the drive you wish to set. Use the
<+/-> keys to change the setting until it matches the floppy drive you have
installed. The BIOS supports 2.88MB, 1.44MB, 1.2MB, 720KB, and 360KB
floppy drives.
IDE Devices (Hard Disk Setup)
If you are setting up a SCSI hard disk, you will probably need to select [None]
in the IDE Device parameters (see your SCSI card manual for more details).
To install an IDE device, select the device you wish to configure and press
<Enter>. An IDE Device submenu will appear (Figure 4-3). The easiest way
to set your IDE devices is to let the BIOS do it for you. When the IDE Device
submenu first appears, the Autotype Fixed Disk selection will be highlighted.
Simply press <Enter> and the remaining information will automatically be
entered. Do not adjust the rest of the settings unless absolutely necessary. The
BIOS will automatically enter the optimal settings.
Video System
This sets the type of video board installed into the system. You may choose
from: VGA/SVGA (default), CGA 80x25 and Monochrome.
Video BIOS Shadow
Enabling the category allows you to “Shadow” the BIOS on the video card for
faster video performance. Some video cards do not support Video BIOS
Shadowing. Disable this option if video problems occur.
System Memory
The System Memory category identifies the size of the base memory. It
cannot be changed.
Extended Memory
The Extended Memory category automatically detects the amount of memory
installed above the amount in the System Memory category. Because the
BIOS automatically calculates the amount of memory installed in your
system, you cannot change this category without adding or removing memory.
4-4
M54E2 System Board Manual
Section 4: BIOS Setup Utility
Cache State
This category enables or disables the external (L2) cache.

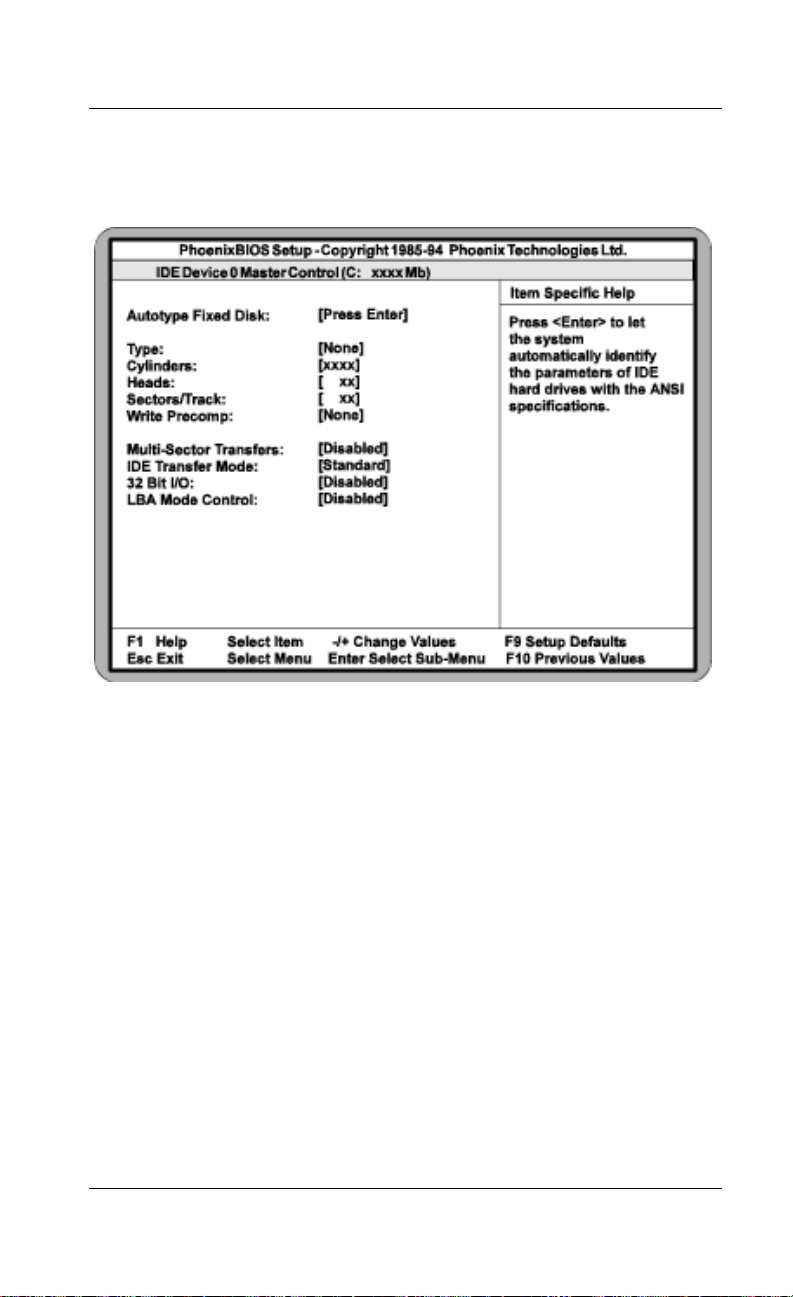

Figure 4-3: IDE Device Submenu
Autotype Fixed Disk
The easiest way to set your IDE devices is to let the BIOS do it for you. When
the IDE Device submenu first appears, the Autotype Fixed Disk selection is
highlighted. Simply press ENTER and the remaining information is entered
automatically. Do not adjust the rest of the settings unless absolutely necessary. The BIOS automatically enters the optimal settings.
Type
This category selects the drive type installed in the system. The options are 139, User, and None. It is doubtful you will find your drive in 1-39.
If Autotype Fixed Disk does not find your drive’s parameters, fill this
information in manually under the User category. This information may be in
the manual which came with your system. If not, contact your dealer or the
hard drive manufacturer to fill in this category. If you are using a SCSI hard
drive, select None and refer to the documentation which came with the SCSI
adapter.
M54E2 System Board Manual
4-5
Section 4: BIOS Setup Utility
Multiple-Sector Transfers
This category determines the number of sectors per block for multiple sector
transfers. The options are Disabled (default), 2 Sectors, 4 Sectors, 8 Sectors,
and 16 Sectors.
IDE Transfer Mode
This category provides the transfer mode for the IDE controller. The default
setting is Standard mode.
32-Bit I/O
This category allows you to enable the 32-bit I/O function of the IDE controller. Select Disabled if your drive will not run at this speed. The default setting
is Disabled.
LBA Mode Control
Enable LBA (Logical Block Addressing) to support IDE drives larger than
528MB in size. The default setting is Disabled.
4-6
M54E2 System Board Manual
Section 4: BIOS Setup Utility
Setting the Advanced Screen
The first page of the Advanced Screen (Figure 4-4) has two submenus: Boot
Options (Figure 4-5) and Integrated Peripherals (Figure 4-6).
Use the up and down arrows <↑/↓> to select a menu and press <Enter>.

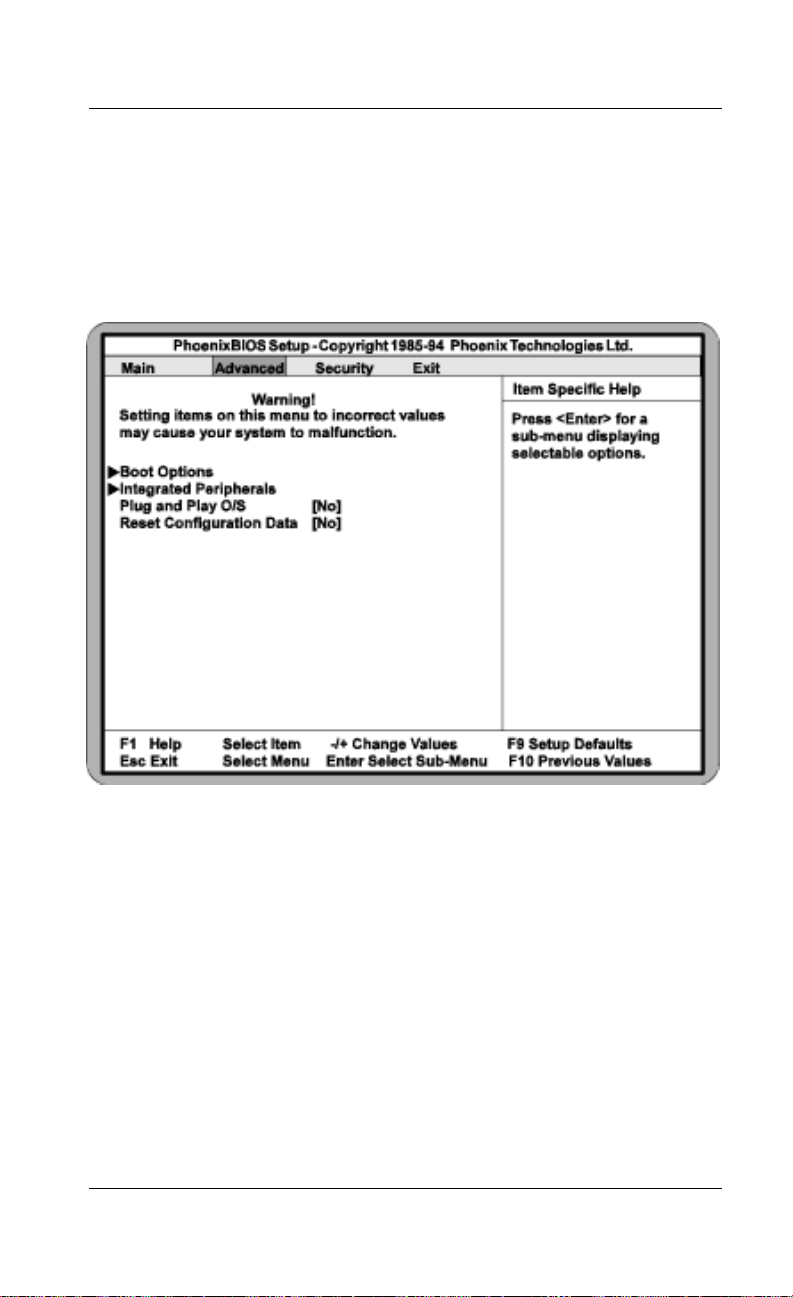

Figure 4-4: Advanced Setup Screen
Boot Options
The Boot Options Submenu (Figure 4-5) has several useful options. Use the
up and down arrow keys <↑/↓> to select a category and the plus and minus
keys <+/-> to change the settings.
M54E2 System Board Manual
4-7
Section 4: BIOS Setup Utility
Figure 4-5: Boot Options Submenu
Boot Sequence
This category selects the order the system searches for a boot disk and can be
set for: A: then C:
C: then A:
C: only
Swap Floppies
This category can be set to remap the floppy drives. It can be set for
NORMAL (default) or SWAPPED. For normal operation, Drive A: and
Drive B: work normally. When “Swapped” is selected, Drive A: becomes
Drive B:, and Drive B: becomes Drive A:.
Floppy Check
When enabled, this category verifies the floppy drive is installed on boot. For
faster booting, select DISABLED (default).
SETUP Prompt
When enabled, this category allows the system to display the “Press <F2> to
enter SETUP” message during boot.
4-8
M54E2 System Board Manual
Section 4: BIOS Setup Utility
Post Errors
When enabled, this category allows the system to display the “Press <F1> to
resume, <F2> to SETUP” and pause if errors occur during boot. If disabled,
the system will ignore any errors and will always attempt to boot.
Numlock at Boot
This selection activates Numlock upon boot. Setting this to Auto activates
Numlock if the BIOS detects a numeric keyboard. It may also be turned ON
or OFF.
Integrated Peripherals
The Integrated Peripherals submenu (Figure 4-6) allows you to individually
enable or modify the drives, I/O ports, and other settings. Use the up and
down arrow keys <↑/↓> to select a category and the plus and minus keys
<+/-> to change the settings.

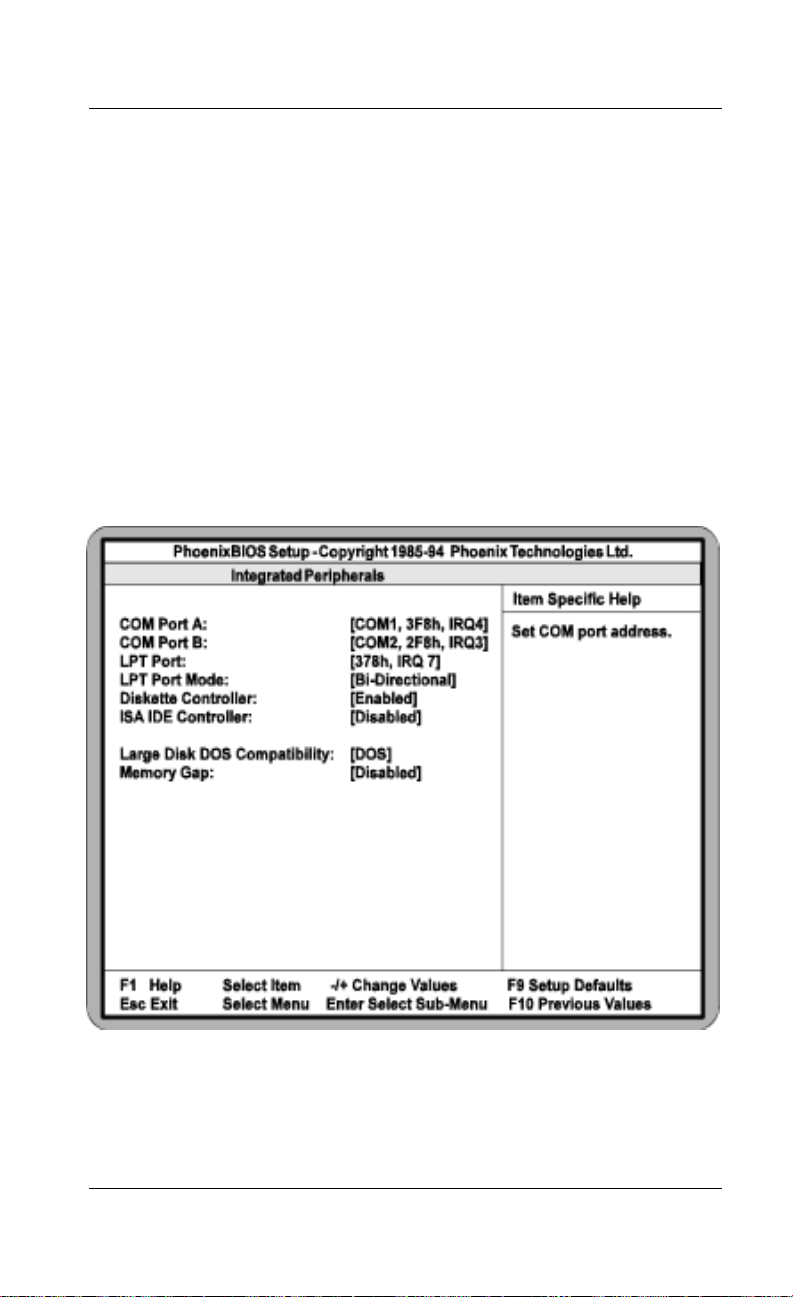

Figure 4-6: Integrated Peripherals Submenu
COM Port A
COM Port A may be set for COM1 (default), COM2, COM3, COM4 or may
be disabled.
M54E2 System Board Manual
4-9
Section 4: BIOS Setup Utility
COM Port B
COM Port B may be set for COM2 (default), COM1, COM3, COM4 or may
be disabled.
LPT Port
The parallel port may be set for 378-IRQ7, 278-IRQ7 or Disabled (default).
LPT Mode
The parallel port mode may be set for output mode bidirectional (default),
Enhanced Parallel Port (EPP), Extended Capabilities Port (ECP), or Output
Only.
Diskette Controller
The floppy disk controller may be enabled or disabled.
ISA IDE Controller
Enables the ISA IDE adapter. The ISA IDE controller may be set for Primary,
Secondary or Disabled (default).
Large Disk DOS Compatibility
If you are using a DOS operating system (MS-DOS, DR-DOS, or PC-DOS),
set to DOS (default). If you are using anything else, set to OTHER.
Memory Gap
When enabled, this category removes the memory between 15 and 16 megabytes from the system. This one megabyte hole will allow some ISA network
cards to map into this memory space. Banyon network cards require this
feature. Enable this feature only if needed. The default is Disabled.
Plug and Play O/S
This selection, when set to Yes, allows the system to work with a Plug and
Play operating system such as Windows 95. The default setting is No.
Reset Configuration Data
Select Yes to clear the system configuration data. The default setting is No.
4-10
M54E2 System Board Manual
Section 4: BIOS Setup Utility
Security Screen
The Security Screen (Figure 4-7) controls access to the computer. The
security screen allows for settings of two passwords. The Supervisor Password allows access to the system and Setup. The User Password will allow
access to the system, but not to all Setup features.

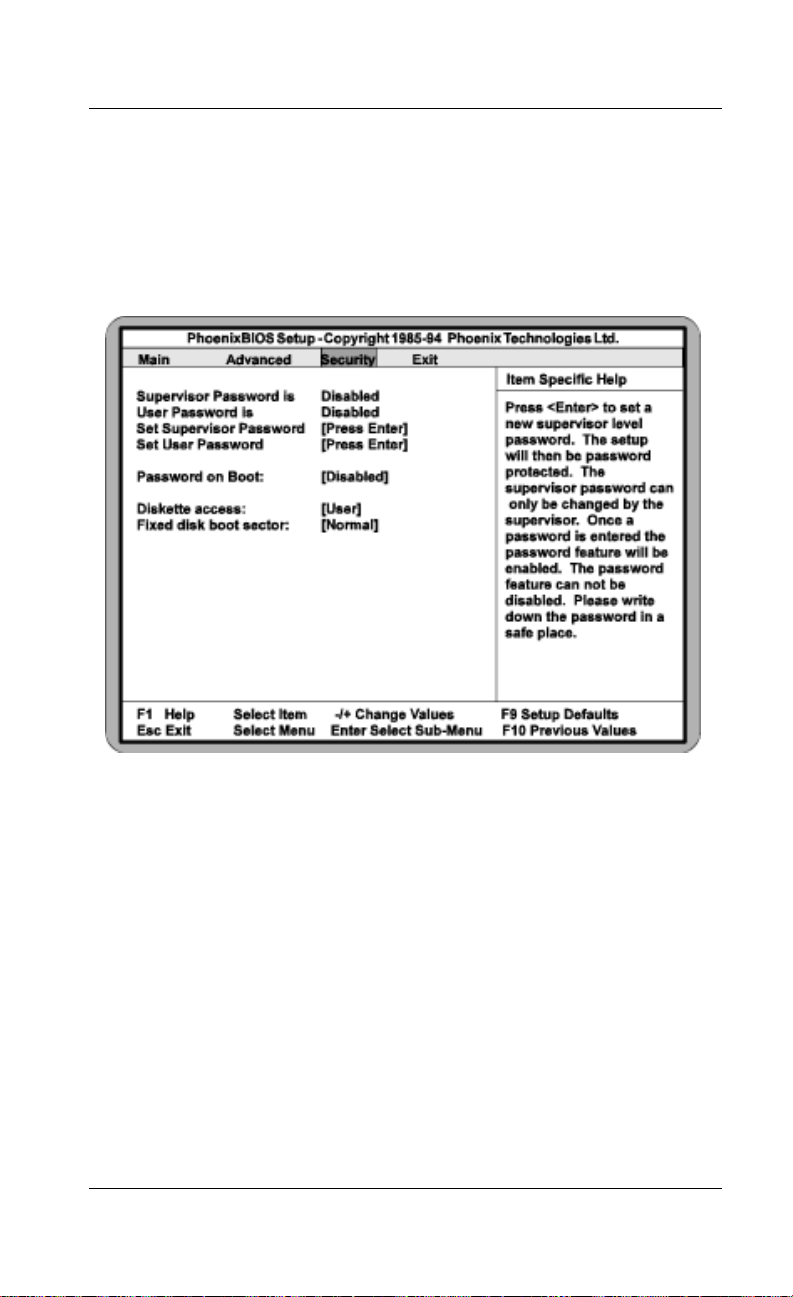

Figure 4-7 Security Setup Screen
Supervisor Password is
If a Supervisor Password has been set up for the system, it will read “Supervisor Password is ENABLED.” If the password has not been set up, it will be
disabled (default).
User Password is
If a User Password has been set up for the system, it will read “User Password
is ENABLED.” If the password has not been set up, it will be disabled
(default).
Set Supervisor Password
Press the <Enter> key to enter the Supervisor Password submenu (Figure 2-
8).
M54E2 System Board Manual
4-11
Section 4: BIOS Setup Utility

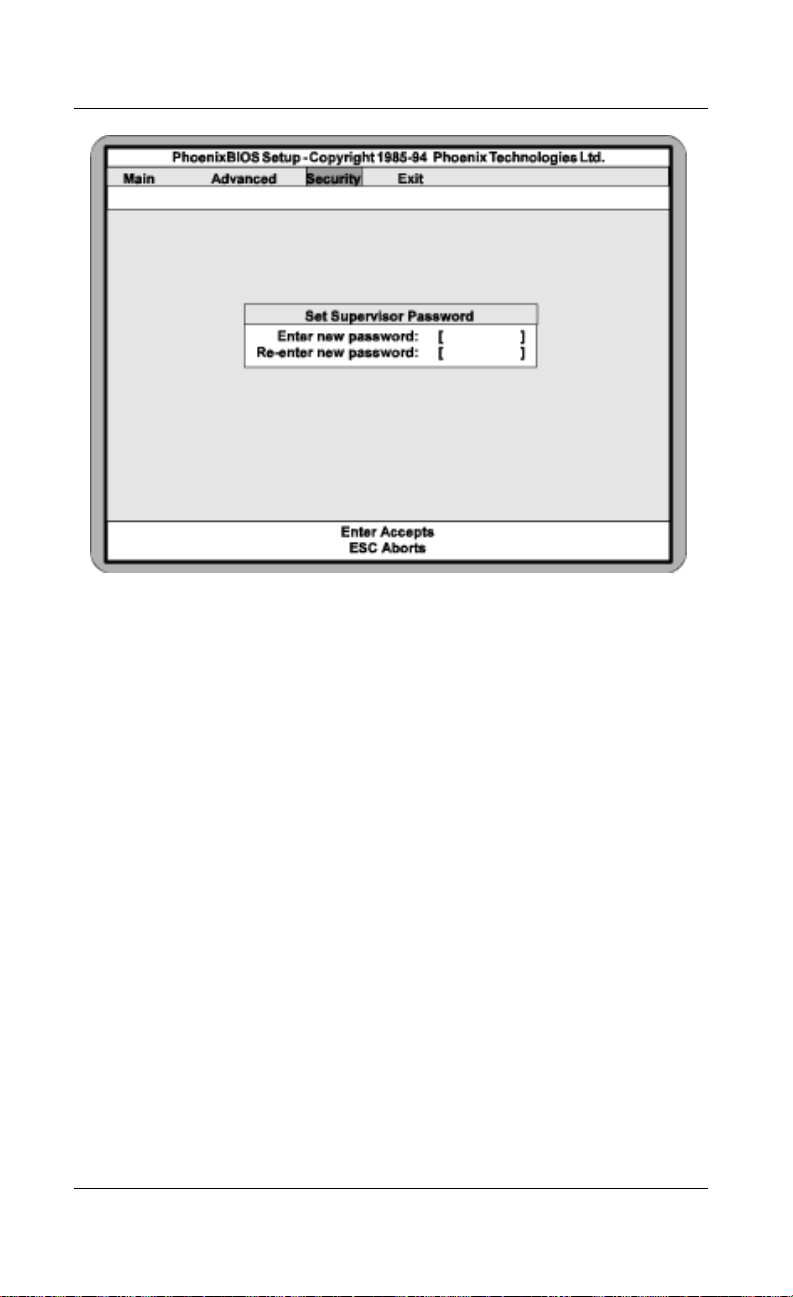

Figure 4-8 Supervisor Password Submenu
Type the password and press the <Enter> key. Retype the password and press
the <Enter> key again. Write down the password somewhere safe so it will
not be forgotten. The password may be disabled by setting the new password
to nothing (pressing the <Enter> key without first typing a password).
WARNING: If you forget the Supervisor Password, it cannot be disabled
without discharging the CMOS.
Set User Password
Follow the same procedure used to set the Supervisor Password.
NOTE: When a password has been entered, it is saved immediately. All
other changes may still be discarded (see Exit Screen).
Password on Boot
When enabled, the system will require a password to be entered upon boot.
Either the Supervisor or User Password may be entered.
Diskette Access
This category allows floppy disk access with an option of the Supervisor or
User. Selecting Supervisor gives floppy disk access to the supervisor only.
4-12
M54E2 System Board Manual
Section 4: BIOS Setup Utility
Selecting User (default) will give floppy disk access to both the user and the
supervisor. If the passwords are enabled, this option may only be changed by
the supervisor.
Fixed Disk Boot Sector
This category allows the boot sector of the fixed disk to be write protected.
The default setting is Normal. When set for Write Protect, it serves as a form
of virus protection. If the passwords are enabled, this option may only be
changed by the supervisor.
Exit Screen
After you have completed configuring the BIOS, select the Exit Screen
(Figure 4-9).
Figure 4-9 Exit Screen
Choose “Save Changes and Exit” and reboot the computer. After running the
EISA configuration utility explained in Chapter 5, the computer will be ready
for use.
M54E2 System Board Manual
4-13
Section 4: BIOS Setup Utility
4-14
M54E2 System Board Manual
Section 5: EISA Utility
EISA Utility
5
Introduction
The M54E2 is shipped with the Micro Computer System EISA Configuration Utility. The EISA Configuration Utility is a software utility
designed to configure EISA peripherals.
The MCS EISA utility is designed to optimize the performance of your
EISA peripherals and to maintain conflict-free configuration information. This is achieved through a series of initialization commands
stored in nonvolatile memory. The EISA Utility determines the
configuration, creates the initialization commands and makes sure the
configuration is correct.
NOTE: For more information on the EISA Configuration Utility,
consult the manual on the CF diskette.
When Should You Run the EISA Utility?
The EISA utility retains the configuration information in nonvolatile
memory. If this information is lost, the utility retains a backup copy
(the file with the .sci extension) on your hard disk. Run the EISA
utility the first time your computer is booted up and every time you add
or remove EISA, PCI or ISA Plug and Play peripheral cards.
What You Will Need
Prior to running the EISA utility, you will need to do the following:
❏ Install all peripheral cards.
❏ Locate and set aside the EISA Utility diskette and all diskettes that
came with your EISA peripherals. They contain the .cfg and .ovl
files necessary for configuration.
M54E2 System Board Manual
5-1
Section 5: EISA Utility
Starting the Utility
Perform the following steps to start the EISA utility:
1. Insert the System Configuration diskette into Drive A (or B).
2. At the A: prompt, type “cf” and press <Enter>. The Configuration
Introduction screen will appear (Figure 5-1).
5-2
.
Figure 5-1 EISA Configuration Introduction Screen
M54E2 System Board Manual
Section 5: EISA Utility
Main Menu
After pressing <Enter>, the main menu appears. The main menu lists five
steps for configuring the system board. To select a step, highlight the
appropriate selection, and press <Enter>. Figure 5-2 shows the main menu.
Figure 5-2 EISA Configuration Main Menu
Step 1: Important EISA Configuration Information
Step 1 provides seven pages of useful information on the configuration utility.
Read this prior to using the utility.
M54E2 System Board Manual
5-3
Section 5: EISA Utility
Step 2: Add or Remove Boards
When you select Step 2, the utility scans and locates the EISA boards
installed. This section allows you to add or remove any EISA, PCI, and ISA
Plug and Play peripherals. Beyond physically adding or removing the boards,
it is important that you run this utility in order for your system to run properly.
When you select “Step 2: Add or Remove Boards,” the following screen
(Figure 5-3) will appear.
Figure 5-3 Add or Remove Boards Screen

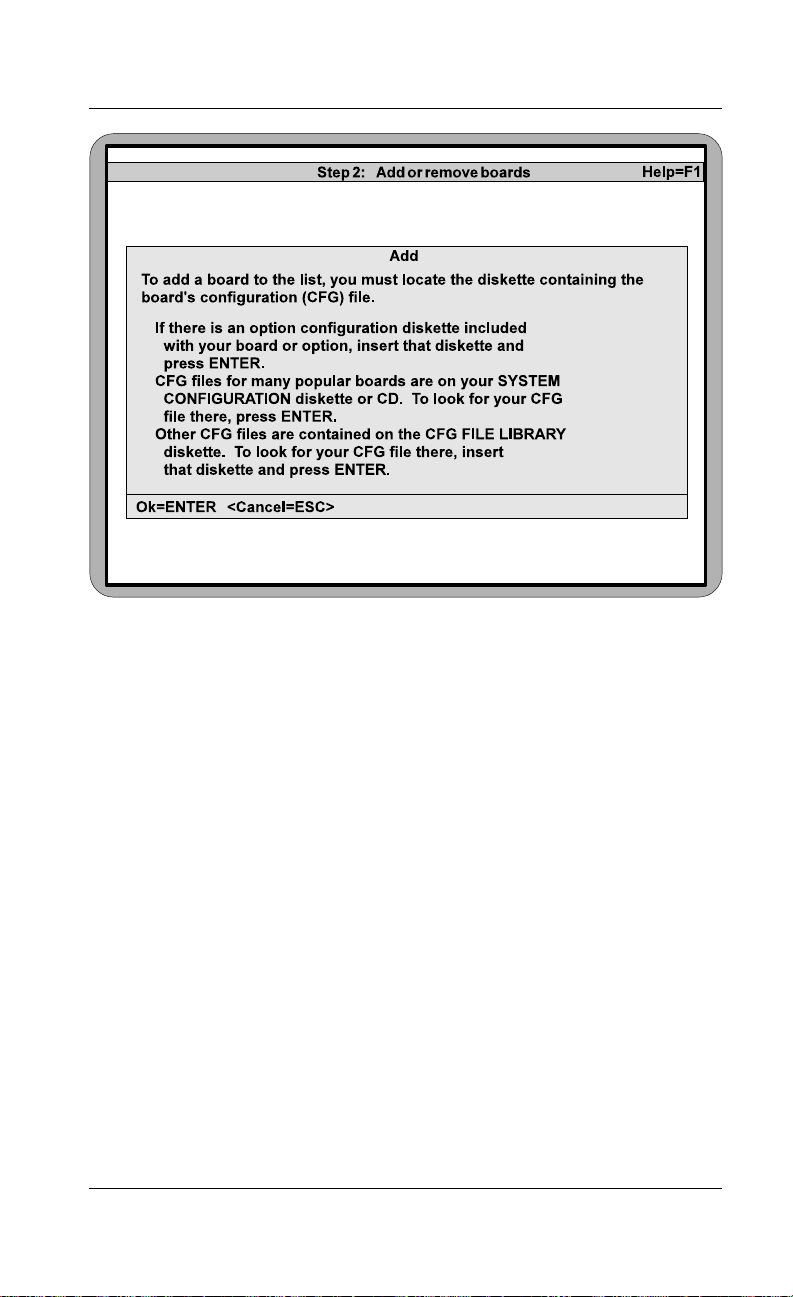

Press <Insert> to add the boards that could not be detected or boards you plan
to install. After you press the <Insert> key, the following screen (Figure 5-4)
will appear.
You will need to have the configuration disks that came with each of the addon cards you are installing. Insert the configuration disk for the peripheral
you are installing and press <Enter>.
5-4
M54E2 System Board Manual
Section 5: EISA Utility
Figure 5-4 Adding an EISA Configuration (CFG) File
When you are finished installing the EISA CFG files, press the <F10> key.
M54E2 System Board Manual
5-5
Section 5: EISA Utility
Step 3: View or Edit Details
When you select the “View or Edit Details” menu (Figure 5-5), a display of
your system resources appears. You may edit this menu to optimize the
system performance and allocation of resources.
If you need to change information on this menu, select the item you wish to
change and press <Enter>.

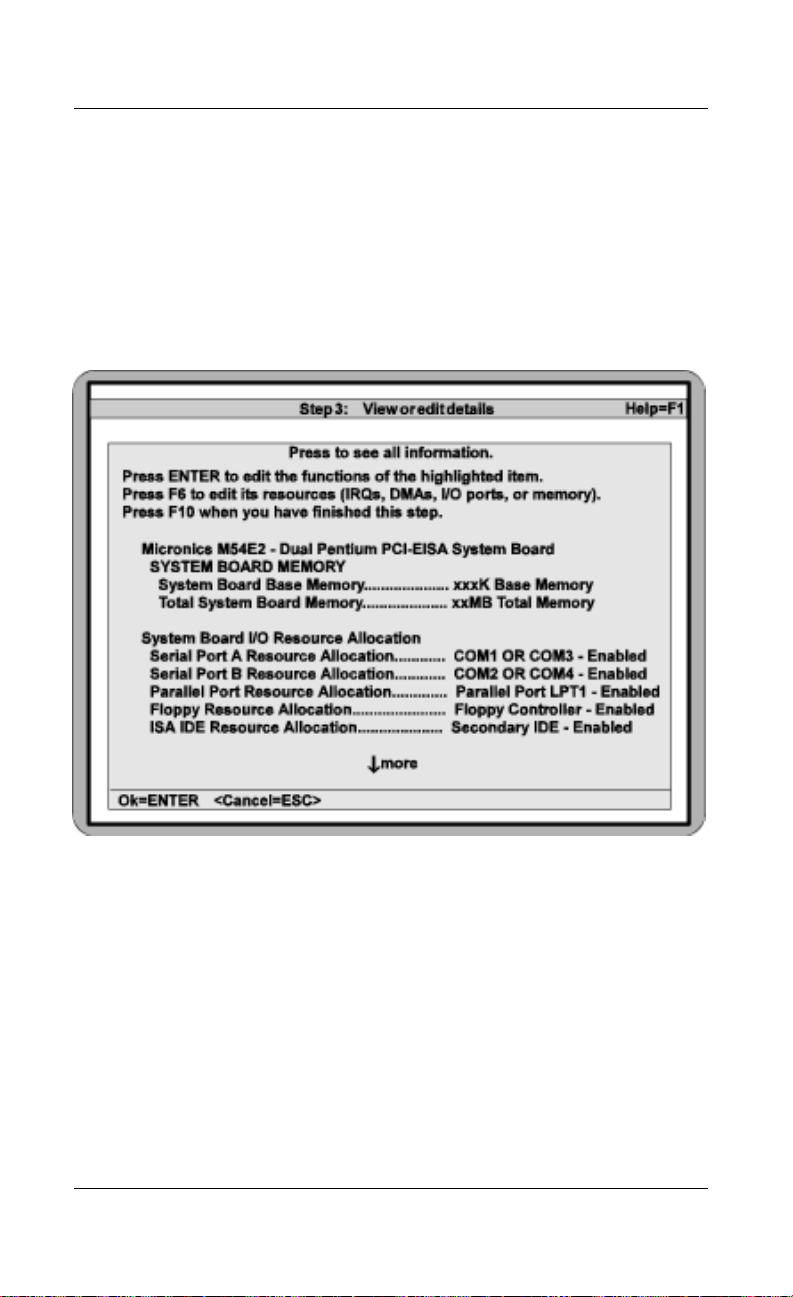

Figure 5-5 View or Edit Details Menu

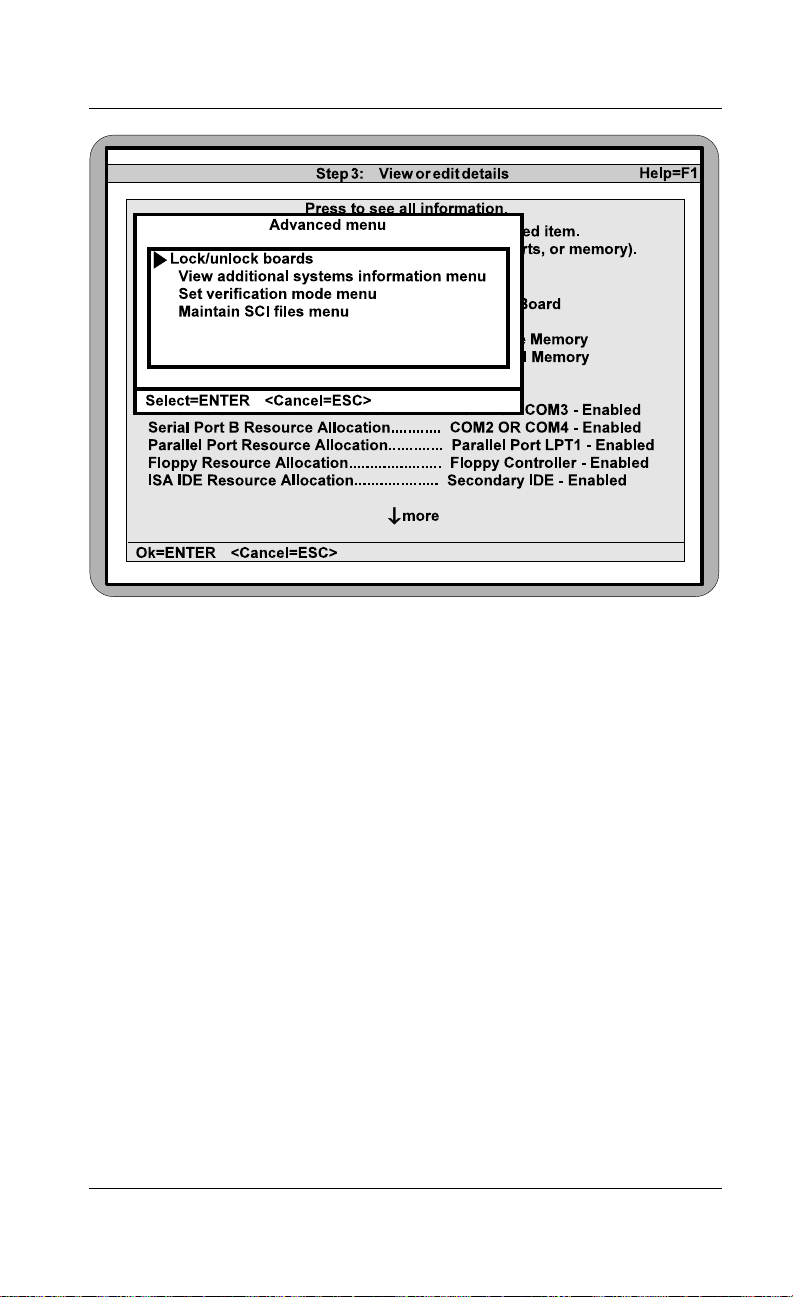

Advanced Submenu
The Advanced submenu (Figure 5-6) will allow you to make specialized
configuration adjustments. To select this menu, press the <F7> key.
5-6
M54E2 System Board Manual
Figure 5-6 Advanced Submenu
Section 5: EISA Utility
Lock/Unlock Boards
Locking a board will prevent changes from being made to a board’s settings.
You may lock or unlock each board individually.
View Additional Systems Information Menu
This is another submenu that will allow you to view board specifications,
system specifications, used resources and available resources.
Set Verification Mode Menu
You may set this for Automatic (default) or Manual. Automatic Verification
turns on automatic detection and resolution of resource conflicts caused by
configuration changes.
Maintain SCI Files Menu
‘Open’ will allow you to load a SCI file to replace your existing EISA
configuration.
When you have finished making changes to the Advanced Submenu, press
<F10> until you are back to the Main Menu.
M54E2 System Board Manual
5-7
Section 5: EISA Utility
Step 4: Examine Switches or Print Report
Examine Switches
This section displays a listing of the motherboard jumper settings.
Print Report
This feature is not currently supported.
Step 5: Save and Exit
Save the new configuration when you exit the utility. When you select Step 5,
the Save and Exit Screen appears. It will give you the option of saving the
new configuration or returning to the Main menu. If you have finished
configuring your EISA utility, select “Save the configuration and restart the
computer.”
The Reboot Screen will then appear. Press the <Enter> key and the computer
will reboot. Now the changes are complete and you are ready to use your
computer.
5-8
M54E2 System Board Manual
Appendix A: Post Messages
A
POST Messages
The following table lists the Power On Self Test (POST) messages,
possible causes and solutions.
Message Possible Cause Solution
DISKETTE DRIVE A
FAILURE
DISKETTE DRIVE B
FAILURE
EXTENDED RAM
FAILED AT
OFFSET: nnnn
FAILING BITS: nnnn
FIXED DISK X
FAILURE (where X
=0 or 1)
FIXED DISK
CONTROLLER
FAILURE
INCORRECT DRIVE
A TYPE
INCORRECT DRIVE
B TYPE
INVALID NVRAM
MED IA TYPE
KEYBOARD
ERROR, or
KEYBOARD
CONTROLLER
ERROR
KEYBOARD
ERROR nn
Drive A failed or is
missing.
Drive B failed or is
missing.
Extend ed memory not
working or configured
properly.
Memory failure in
System , E x t ended, or
Shadow m emory.
The hard disk is not
config ur ed or work ing
properly.
The cont r oller card has
failed.
Floppy drive A: n ot set
correct ly in Setup.
Floppy drive A: n ot set
correct ly in Setup.
NVRAM chip is bad. Requires repair of system
The keyboard or
keyboar d controll er
failed.
A key is jam m ed or was
held dow n during boot.
Check Setup and cable
connect ions.
Check Setup and cable
connect ions.
Replace defective
memory.
Replace defective
memory.
Rerun SETUP and check
connect ions, or replace
hard disk.
Check con figuration and
connect ions, or replace
controller card.
Run Setup.
Run Setup.
board.
Check connections. You
may hav e t o replace the
keyboar d or contro ll er.
Make sur e the keys are
not ja mm ed or dirty.
KEYBOARD
LOCKED
Keyswitch on the front of
the case is locked.
M54E2 System Board Manual
Unlock the keyswitch.
A-1
Appendix A: Post Messages
Message Possible Cause Solution
MONI T OR TYPE
DOES NOT MATCH
CMOS
Monitor type not
correctly identified in
Setup.
Run Setup and enter
correct monitor type.
OPERATING
SYSTEM NOT
FOUND
PARITY CHECK 1
nnnn
PARITY CHECK 2
nnnn
PREVIOUS BOOT
INCOMPLETE DEFAULT
CONFIGURATION
USED
REAL TIM E CLOCK
ERROR
SHADOW RAM
FAILED AT OFFSET
SYSTEM BATTERY
IS DEAD
Operating system
cannot be located on
Drive C: or Dri ve A:
Check Setup to see if
Drive A: and C: are
properly confi gured, or
put a bootable disk in
Drive A:
Parity error f ound in the
system bus.
Parity error f ound in the
I/O bus.
Previous POST did not
complete successfully.
Check Setup. Board
repair may be requi r ed.
Check Setup. Board
repair may be requi r ed.
Run Setup, load default
BIOS settings, make any
necessary adjustments,
and save the changes
Real-time clock failed
BIOS test.
May require batter y
replacement or board
repair.
Shadow RAM failed. May require repai r of
system board.
System battery died. R eplace the system
battery and run Setup to
reconfigure the system.
SYST EM CACHE
ERROR - CACHE
DISABLED
SYSTEM CMOS
CHECKSUM BAD RUN SET UP
SYSTEM RAM
FAIL ED AT
OFFSET: nnnn
SYSTEM TIMER
ERROR
A-2
External (L2) cache
failed BIOS test.
System will stil l run, but
slower. Replace cache
at convenience.
System CMOS has been
corrupted or mod if ied
Run Setup and
reconfigure the system.
incorrectly.
System RAM failed. Replace defective RAM.
Timer test fail ed. R equir es r epair of system
board.
M54E2 System Board Manual
Appendix B: Beep and POST Codes
B
Beep and POST Codes
Beep codes are a series of beeps sent through the speaker that indicate
a problem during the Power On Self Test (POST). If text appears on
the video screen, the M54E2 has completed POST; any other tone
from the speaker indicates something other than a POST error. These
tones are not described in Table B-1.
The beep error codes are a series of beeps. The duration of the beep
tones are constant, but the length of the pauses between the beeps
varies. For example: a 1-3-3 beep code will sound like one beep, a
pause; three beeps consecutively, another pause; and then three more
beeps.
One beep code is often misunderstood. If a video card is not installed
or is failing, the system board will generate a long-short-long-short
beep code. This is often interpreted as a 1-2-1 beep code. But POST
errors always vary in the length of the pause and not the duration of
the beep tone.
Another way of identifying a POST error is to use a device called a
POST card. This peripheral card is inserted into one of the ISA slots
and has an LED (or LCD) read out showing the contents of port 80h.
The tables on the following page provides a list of all beep codes and
POST routines.
M54E2 System Board Manual
B-1
Appendix B: Beep and POST Codes
Code Beeps PO ST Routine Description
02 Verify Real Mode.
04 Get CPU type.
06 Initialize system hardware.
08 Initialize chipset registers with initial POST values.
09 Get in POST Reg.
0A Initialize CPU registers.
0C Init ialize cache initial POST values.
OE Initialize I/O.
OF Initi a lize the lo calbus IDE.
10 Initialize Power Management.
11 Load alternate registers with initial POST values.
12 Jump to UserPatch0.
14 Initialize keyboard controller.
16 2-2-3 BIOS ROM checksum.
18 8254 timer initialization.
1A 8237 DMA controller initialization.
1C Reset Programmable Interrupt Controller.
20 3-1-1 Test DRAM refresh.
22 3-1-3 Test 8742 Keyboard Controller.
24 Set ES segment register to 4 GB.
28 Autosize DRAM.
2A Clear 512K base RAM.
2C 3-4-1 Test 512K base address lines.
2E 3-4 -3 Test 512K base memory.
32 Test CPU bus-clock frequency.
34 Test CMOS RAM.
35 Initialize alternate chipset registers.
37 Reinitialize the chipset (MB only).
38 Shadow system BIOS ROM.
39 Reinitialize the cache (MB only).
3A Autosize cache.
3C Configure advanced chipset registers.
3D Load alternate registers with CMOS values.
40 Set initial CPU speed.
42 Initialize interrupt vectors.
44 Initialize BIOS interrupts.
46 2-1-2-3 Check ROM copyright notice.
47 Initialize manager for PCI Option ROMs.
48 Check video configuration against CMOS.
49 Initialize PCI bus and devices.
B-2
M54E2 System Board Manual
Appendix B: Beep and POST Codes
Code Beeps PO ST Routine Description
4A Initialize all video adapters in system.
4C Shadow video BIOS ROM.
4E Display copyright notice.
50 Display CPU type and speed.
51 Initialize EISA board.
52 Test keyboard.
54 Set key click if enabled.
56 Enable keyboard.
58 2-2-3-1 Test for unexpected interrupts.
5A Display prompt “Press F2 to enter SETUP”.
5C Test RAM between 512 and 640k.
60 Test extended memory.
62 Test extended memory address lines.
64 Jump to UserPatch1.
66 Configure advanced cache registers.
68 Enable external and CPU caches.
6A Display external cache size.
6C Display shadow message.
6E Display non-disposable segments.
70 Display error messages.
72 Check for configuration errors.
74 Test real-time clock.
76 Check for keyboard errors.
7C S e t u p h a rd w a re in terrup t v e cto rs.
7E Test coprocessor if present.
80 Disable onboard I/O ports.
82 Detect and install external RS232 ports.
84 Detect and install external parallel ports.
86 Re-initialize on-board I/O ports.
88 Initialize BIOSData Area.
8A I nitialize Extended BIOS Data Area.
8C Initialize floppy controller.
90 Initialize hard-disk controller.
91 Initialize localbus hard-disk controller.
92 Jump to UserPatch2.
93 Build MPTABLE for multi-processor boards.
94 Disable A20 address line.
96 Clear huge ES segment register.
98 Search for option ROMs.
9A Shadow option ROMs.
M54E2 System Board Manual
B-3
Appendix B: Beep and POST Codes
Code Beeps PO ST Routine Description
9C Set up Power Management.
9E Enable hardware interrupts.
A0 Set time of day.
A2 Check key lock.
A4 Initialize typematic rate.
A8 Erase F2 prompt.
AA Scan for F2 keystroke.
AC Enter SETUP.
AE Clear in-POST flag.
B0 Check for errors.
B2 POST done - prepare to boot operating system.
B4 One beep.
B6 Check password (optional).
B8 Clear global descriptor table.
BC Clear parity checkers.
BE Clear screen (optional).
BF Check virus and backup reminders.
C0 Try to boot with INT 19.
D0 Interrupt handler error.
D2 Unknown interrupt error.
D4 Pending Interrupt.
D6 Initialize option ROM error.
D8 Shutdown error.
DA Extended Block Move.
DC Shutdown 10 error.
The following are for boot block in Flash ROM:
E2 Initialize the chipset.
E3 Initialize refresh counter.
E4 Check for Forced Flash.
E5 Check HW status of ROM.
E6 BIOS ROM is OK.
E7 Do a complete RAM test.
E8 Do OEM initialization.
E9 Initialize interrupt controller.
EA Read in the bootstrap code.
EB Initia lize all vectors.
EC Boot the Flash program.
ED Initialize the boot device.
EE Boot code was read OK.
B-4
M54E2 System Board Manual
Appendix C: Hard Disk Drive Types
C
Hard Disk Drive Types
The following table lists the hard disk types supported by M54E2.
Type Cylinders Heads Write
Precomp
1 306 4 128 17 10
2 615 4 300 17 21
3 615 6 300 17 32
4 940 8 512 17 65
5 940 6 512 17 99
6 615 4 none 17 21
7 462 8 256 17 32
8 733 5 none 17 31
9 900 15 none 17 117
10 820 3 none 17 21
11 855 5 none 17 37
12 855 7 none 17 52
13 306 8 128 17 21
14 733 7 none 17 44
15 N/A N/A N/A N/A N/A
16 612 4 0 17 21
17 977 5 300 17 42
18 977 7 none 17 59
19 1024 7 512 17 62
20 733 5 300 17 31
21 733 7 300 17 94
22 733 5 300 17 31
23 306 4 0 17 10
24 612 4 305 17 21
25 612 2 300 17 10
26 614 4 none 17 21
27 820 6 none 17 42
28 977 5 none 17 42
29 1218 15 none 36 336
30 1224 15 none 17 159
Sectors Size
M54E2 System Board Manual
C-1
Appendix C: Hard Disk Drive Types
Type Cylinders Heads Write
Sectors Size
Precomp
31 823 10 512 17 71
32 809 6 128 17 42
33 830 7 none 17 50
34 830 10 none 17 72
35 1024 5 none 17 44
36 1024 8 none 17 71
37 615 8 128 17 42
38 1024 8 none 26 109
39 925 9 none 17 72
C-2
M54E2 System Board Manual
Appendix D: Technical Information
D
Part Number: 09-00210-118 (256K Cache)
Main Processor: 75, 90 120, 133, 150, 166, 200MHz Pentium
Second Processor: 75, 90 120, 133, 150, 166, 200MHz Pentium
Chipset: Intel Neptune Chipset
CPU Clock Select: Frequency synthesizer chip. Jumper selectable
Form Factor: Full size (12" x 13.8"). 6 layer PCB
Expansion: Five 32-bit EISA slots
Specifications
09-00210-119 (512K Cache)
processor
processor
Intel PCEB/ESC EISA Bridge
SMC 665 Super I/O controller
CPU selection
Two 32-bit PCI slots
One shared EISA/PCI slot
BIOS: Phoenix 4.04 Plug and Play BIOS on 1MB Flash
EPROM
Auto-detection of memory size
Auto-configuration of IDE hard disk drives
RAM Capacity: 512MB
Keyboard: PS/2 (PS/2 version)
AT-Compatible (AT version)
Mouse: Built-in PS/2 support (PS/2 version only)
Internal Cache: 16K (per processor)
External Cache: 256K or 512K write-back
M54E2 System Board Manual
D-1
Appendix D: Technical Information
I/O Ports: Built in support
Two high speed serial ports (16550 compatible)
One bi-directional parallel port
- Enhanced Parallel Port (EPP) compatible
- Microsoft and Hewlett Packard Extended
- Capabilities Port (ECP) compatible
Floppy Port: Supports two floppy drives
(2.88, 1.44, 1.2, 720K, 360K)
IDE Support: Supports two IDE hard disks
LBA support
Clock: Benchmarq Real Time Clock
Environmental Specifications
The environment in which the M54E2 is located is critical. Micronics
recommends the following environmental specifications:
Temperature Range
Operating: 50 to 104 degrees Fahrenheit (10 to 50 degrees Celsius).
Non -Operating: 50 to 140 degrees Fahrenheit (10 to 60 degrees Celsius).
Shipping: -22 to 140 degrees Fahrenheit (-30 to 60 degrees Celsius).
Relative Humidity
Operating: 20% to 80%
Non-Operating: 5% to 90%
D-2
M54E2 System Board Manual
Battery Disposal
Appendix D: Technical Information
WARNING:
Please do not open battery, dispose of in fire, recharge, put in backwards or
mix with used or other battery types. The battery may explode or leak and
cause personal injury.
M54E2 System Board Manual
D-3
Appendix D: Technical Information
Technical Support
If you need technical assistance, our Technical Support staff will be glad to
assist you. You can contact us via telephone, fax or Bulletin Board System
(BBS). Before calling please have the following information ready:
❏ The model name and 09 part number of your Micronics product.
❏ Your computer information such as CPU type, operating system, amount
of installed memory and other peripherals installed in your computer.
❏ Try to call from the location of your computer.
NOTE: For Return Material Authorization (RMA) purposes, please keep a
copy of your product receipt.
In the United States:
Technical Support (510) 661-3000
Technical Support Fax (510) 651-6982
RMA Department (510) 683-0428
In Europe:
France Technical Support +33 (1) 45 16 33 96
France Technical Support Fax +33 (1) 45 16 31 10
United Kingdom Technical Support +44 1 256 844 899
United Kingdom Technical Support Fax +44 1 256 54476
Germany Technical Support +49 89 6881646
Germany Technical Support Fax +49 89 429517
Bulletin Board System (BBS)
In the United States:
Technical Support BBS - 14400 baud rate, Parity=N, Data Bits=8, Stop
Bits=1, YMODEM and ZMODEM (recommended file transfer protocols)
(510) 651-6837
In Europe:
France Technical Support BBS +33 14 784 7057
United Kingdom Technical Support BBS +44 1256 63373
Germany Technical Support BBS +49 89 6881686
D-4
M54E2 System Board Manual
Appendix D: Technical Information
Online Services
Bulletin Board (BBS)
In the United States:
Technical Support BBS - 14400 baud rate, Parity=N, Data Bits=8, Stop
Bits=1, YMODEM and ZMODEM (recommended file transfer protocols)
(510) 651-6837
In Europe:
United Kingdom Technical Support BBS (44) 1 256 63373
Germany Technical Support BBS 49-89-6881686
France Technical Support BBS +33 14 784 7057
World Wide Web
You will find information on product support, new product releases and other
categories of information. Access the Internet and type:
http://www.micronics.com
M54E2 System Board Manual
D-5
Appendix D: Technical Information
D-6
M54E2 System Board Manual
Appendix E: Updating the System BIOS
E
Updating the System BIOS
The Micronics motherboards are designed so that the BIOS can be
reprogrammed using a BIOS file. You can easily FLASH a BIOS by
following the steps below:
1) After downloading the appropriate BIOS file from our BBS,
extract it to a bootable MS-DOS 6.X diskette.
2) Reboot your system with the MS-DOS 6.X diskette in the A:
drive. To make sure a clean DOS environment is loaded, press
the F5 key while “Starting MS-DOS” is displayed. After the
system has rebooted, the cursor will appear at the A:> prompt.
3) Now you can run the FLASH utility. The filename will be either
“FSH” (or FSH20, FSH20G, etc.) or “PHLASH.” Type this
filename at the A:> prompt (but don’t include its extension),
followed by a space and the BIOS ROM image’s filename. This
file will be included in the download and has a file length of
about 131K. For example, to update the M54E2 to BIOS version
05, you would type:
PHLASH M54E2.05 [ENTER]
4) Once the FLASH process has begun, select [Y]es, if prompted, to
allow auto-sensing of the part (the FLASH chip itself).
5) After the update process has completed and the system reboots,
verify that the new BIOS version appears on-screen. If you have
problems during this process, or if you have questions about the
procedure, please call Technical Support.
NOTE: If the BIOS is somehow erased or doesn’t seem to accept the
upgrade, you can have your original BIOS chip reprogrammed
manually by Technical Support. There is a $29.95 fee for this
service, which includes shipping charges to send your FLASH
EPROM chip back to you. Also, a preprogrammed FLASH EPROM
chip can be purchased from Technical Support for $50.00. Overnight
shipping costs an additional $10.00. (Price and availability subject to
change.) If you prefer to send your system board in for the upgrade,
the RMA department offers this service free of charge if your system
board is under warranty.
M54E2 System Board Manual
E-1
Appendix E: Updating the System BIOS
E-2
M54E2 System Board Manual
FCC Statement
FCC Warning Statement
This equipment has been tested and found to comply within the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not used in accordance with the instructions, may
cause harmful interference to radio communications. Interference to radio or
television reception can be determined by turning the equipment off and on.
You are encouraged to try to correct the interference by one or more of the
following measures:
Reorient the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult your dealer or an experienced radio/TV technician for help.
To meet FCC requirements, shielded cables are required.
NOTE: Changes or modifications not expressly approved by Micronics could
void your authority to operate the equipment.
M54E2 System Board Manual
F-1
Declaration of Conformity
Declaration of Conformity
Application of Council Directives 89/336/EEC. Standards to which the
conformity is declared:
EN50082-1
Manufacturer's Name: Micronics Computers, Inc.
Manufacturers Address: 221 Warren Avenue
Fremont, California 94539
USA
Telephone: (510) 651-2300
Fax: (510) 651-9450
Type of Equipment: Motherboard (AT form factor)
Full Tower Computer
Model Name: M54E2
Tested by: Rockford Engineering Services, Inc.
9959 Calaveras Road
P.O. Box 543
Sunol, CA. 94586-0543
Telephone: (510) 862-2944
Fax: (510) 862-9013
Test Engineers John Y. Chan/Micronics (EN50082-1)
Paramjeet Singh/RES (EN50082-1)
I, the undersigned, hereby declare that the specified equipment conforms to
the directives and standards listed above.
Ming Ming Hsu
Vice President of Engineering
June 6, 1996
F-2
M54E2 System Board Manual
Glossary
Glossary
16550 UART - A high speed chip for
controlling serial ports. Although
unnecessary for a mouse, it is required
for modems that are 14,400 baud or
faster.
486DX - A type of 32-bit CPU with a
built-in math-coprocessor and internal
cache.
486DX2 - A 486DX CPU where the
internal speed of the CPU operates at
twice the external speed.
486DX4 - A 486DX CPU where the
internal speed of the CPU operates at
three times the external speed.
486SX - A 486DX CPU with no mathcoprocessor.
Asynchronous - Operations that do not
require the clocks of communicating
devices to be coordinated. See Synchronous.
Baby AT - A standard system board size
measuring approximately 13.25” x 8.5”.
Boot - To start up the computer and load
the operating system software. See cold
boot and warm boot.
Bus - A group of electronic paths used to
send data between parts of the system.
On a system board, the bus connects the
peripheral cards with the microprocessor
via the expansion slots.
Bus Mastering - The ability of an
peripheral card to control the bus without
requiring intervention of the CPU.
Byte - A group of adjacent bits treated as
a unit. Eight bits are typically considered
one byte. Also called a character.
Cache - A process where information is
copied from the slower memory (DRAM)
to the faster memory (SRAM). Information that is likely to be read or edited is
stored in the cache providing significant
performance increases.
Cache Hit - The percentage of request
for data from memory that can be served
from the cache.
Bidirectional Parallel Port - A type of
parallel port that can send and receive
information.
BIOS - An Acronym for Basic Input/
Output System. Configures the system
board and provides hardware information
to the operating system.
Bit - A contraction of Binary digit. The
smallest unit of information in a binary
number system. A bit represents a choice
between either zero or one.
M54E2 System Board Manual
Cache Miss - A memory access which
cannot be supplied from cache.
Cold Boot - Starting the computer by
turning on the power or pressing the
RESET button. A cold boot makes the
processor execute all of the diagnostics.
See boot and warm boot.
CPU - An acronym for Central Processing Unit. A CPU performs arithmetic
calculations, makes logical decisions,
and directs the operation of the computer
in conjunction with the operating system.
G-1
Glossary
Disk Drive - A hardware device which
provides for the storage of data on
diskettes or hard metal disks that have a
magnetic coating. A disk drive functions
by spinning at high speed while moving a
device called the read/write head across
the disk’s surface in order to read or
write data in magnetic code.
DRAM - An acronym for Dynamic
Random Access Memory. A type of
memory chip that only keeps its memory
if supplied with regular clock pulses and
a chance to regularly refresh its data. It
is slower and more cost effective than
SRAM. See SRAM.
ECP - An acronym for Expanded
Capabilities Port. A standard set by
Hewlett Packard and Microsoft Corporation to expand the capabilities of the
parallel port.
EDO Memory - An acronym for
Extended Data Output. A type of DRAM
with built-in cache.
EISA - An acronym for Extended
Industry Standard Architecture. EISA is a
bus design standard which is fully
backward compatible with the ISA bus.
Although it is a 32-bit bus, it only runs at
8MHz. See PCI, VESA, and ISA.
EPP - An acronym for Enhanced Parallel
Port. A standard which increases the
capabilities of the parallel port.
EPROM - Acronym for Erasable
Programmable Read Only Memory. A
type of ROM chip that can be programmed with relatively simple tools
that will retain its data until erased. It
can only be erased by exposing the
circuitry in the chip to ultraviolet light.
See also Flash ROM.
External Cache - Cache which is
external to the CPU. See Cache.
Fast SCSI - A SCSI data transfer
standard that allows a rate of up to
10MB/sec.
Fast Wide SCSI - A SCSI data transfer
that allows a rate of up to 20MB/sec.
Flash ROM - A type of ROM chip that
will retain its data until erased. It can be
erased or reprogrammed by supplying it
with +12V of voltage. See ROM and
EPROM.
Full Size - A standard system board size
measuring approximately 12" x 13.75".
Gigabyte - A disk storage capacity
measurement. Approximately one
thousand megabytes or 1,073,741,824
bytes.
IDE - An acronym for Integrated Device
Electronics. A standard for communicating between a hard drive and a computer.
Internal Cache - Cache which is built
into the CPU. See Cache.
ISA - An acronym for Industry Standard
Architecture. A well-established bus
standard that originated with the IBM
AT. See PCI, VESA, and EISA.
Jumper - a small plug that fits over and
shorts pins on a circuit board. Jumpers
allow the various functions of the board
to be enabled or disabled.
Kilobyte (KB) - 1,024 bytes.
L1 Cache - See Internal Cache.
L2 Cache - See External Cache.
G-2
M54E2 System Board Manual
Glossary
LBA - An acronym for Logical Block
Addressing. Any IDE hard drive that is
larger than 528MB.
Math Coprocessor - A microprocessor
designed specifically for performing
mathematical calculations. A math
coprocessor performs these calculations
faster than the CPU, and by doing so,
frees the CPU for other activities.
Megabyte (MB) - 1,024 Kilobytes or
1,048,576 bytes.
Mini AT - A standard system board size
measuring approximately 8.5" x 9.5".
Mode 1 - An IDE data transfer standard
that supports transfer rates of up to 5.22
Mbytes/sec.
Mode 2 - An IDE data transfer standard
that supports transfer rates of up to 8.33
Mbytes/sec.
Mode 3 - An IDE data transfer standard
that supports transfer rates of up to 11.1
Mbytes/sec.
Mode 4 - An IDE data transfer standard
that supports transfer rates of up to 15.5
Mbytes/sec.
Parallel - A form of data transmission in
which the data is sent one byte at a time
over several wires that each carry one
byte. In parallel transmission, all the
bytes arrive simultaneously, as opposed
to serial transmission in which bits arrive
one by one.
Parallel Port - A connection for a
printer or similar peripheral. Generally,
parallel ports are output only. See
Bidirectional Parallel Port and ECP.
PCI - An acronym for Peripheral
Component Interconnect. A high
performance 32-bit or 64-bit bus
developed by Intel Corporation. PCI is
designed to be independent of the
hardware architecture to ensure compatibility with future computer systems.
See VESA, EISA, and ISA.
Pentium - A high performance 64-bit
CISC processor designed and manufactured by Intel Corporation. As of this
writing, Pentium is the highest performing X86 processor available.
Plug and Play - A standard developed to
ensure easy installation of peripherals.
Theoretically, a newly installed card will
automatically configure itself and work
properly without requiring jumper
configuration or device drivers.
POST - An acronym for Power On Self
Test. A diagnostic program that is run
whenever the system is cold booted.
RAM - An acronym for Random Access
Memory. A type of memory that is used
as the “working memory” of a computer
system. See DRAM and SRAM.
ROM - An acronym for Read Only
Memory. A type of memory that retains
its data without requiring power. Once
written, it cannot be modified. See
EPROM and Flash ROM.
SCSI - An acronym for Small Computer
Systems Interface. An interface standard
used to interface hard disk drives,
removable cartridge drives, tape drives,
and CD-ROMs to the computer system.
SCSI allows multiple, high-performance
peripheral devices to be connected in a
chain. Each has its own address. Data
and control signals are sent along the
chain and only the specifically addressed
device responds.
M54E2 System Board Manual
G-3
Glossary
SCSI II - An interface standard that adds
features to the SCSI standard. These
include 32-bit data transfer, command
queuing, Fast SCSI, and support for a
wider variety of peripherals.
SCSI III - A proposed standard that will
support transfer rates of up to 40MB/sec.
Serial - A type of data transmission in
which the data is sent one bit at a time
over a single wire. See Parallel.
Serial Port - A communications port
used to connect peripherals such as
modems and mice.
Setup - A program that allows you to
make changes to the system configuration.
Shadow RAM - A technique used to
load a duplicate copy of BIOS from
slower ROM into faster RAM. This
enhances system performance because it
provides higher access speed to the
BIOS.
SIMM - An acronym for Standard Inline
Memory Module. A small printed circuit
board containing memory chips.
SRAM - An acronym for Static Random
Access Memory. A type of memory that
can retain data without requiring a
regular clock signal. Although they are
faster than DRAM, they hold less data
and are more expensive.
Synchronous - Protocols that require the
clocks of communicating machines or
devices to be coordinated.
two or three cycles while maintaining a
bandwidth of one access per cycle.
Improves performance by 5-10%.
Terabyte - A measurement for very, very
large storage capacity. One Terabyte is
equivalent one-thousand gigabytes, onemillion megabytes, or 1,099,511,627,766
bytes.
VESA - An acronym for Video Electronics and Standards Association.
VESA Localbus (VL-Bus) - A high
performance bus designed by VESA. A
32-bit version of the ISA bus which
operates at the speed of the computer’s
CPU. See PCI, EISA and ISA.
VGA - An acronym for Video Graphics
Array. A standard for monitor displays.
VR - Pentium CPU voltage ranging from
3.300 - 3.465 Volts.
VRE - Pentium CPU voltage ranging
from 3.400 - 3.600 Volts.
Warm Boot - Restarting the system by
simultaneously pressing the <Ctrl>,
<Alt> and <Delete> keys.
Write-Back Cache - Upon a cache hit,
the cache is updated and the main
memory is not affected. Upon a cache
miss, only the main memory is updated.
Write-Through Cache - Upon a cache
hit, the cache and the main memory are
updated. Upon a cache miss, only the
main memory is updated.
Synchronous Cache - A type of cache
that uses a clock signal to latch the
inputs and the data output. This
structure spreads the cache access across
G-4
M54E2 System Board Manual
Warranty
Limited Warranty
Except as described below, Micronics warrants the products to be free from
defects in material and workmanship in normal use for a period of one (1)
year from date of purchase. Should any product fail to perform according to
this warranty at any time during the warranty period, except as provided
below, Micronics or its authorized service centers will, at Micronics’ option,
repair or replace the product at no additional charge.
The warranty does not cover loss or damage which occurs in shipment or
which is due to: (1) improper installation or maintenance, misuse, neglect or
any cause other than ordinary commercial application, including without
limitation, accidents or acts of God; (2) adjustment, repair, or modification by
other than a Micronics authorized service center; (3) improper environment,
excessive or inadequate heating or air conditioning, or electrical power
failures, surges or other irregularities; (4) any statement about the product
other than those set forth in this warranty; or (5) nonconformity to models or
samples shown to the purchaser. Any models or samples were for the sole
purpose of suggesting the character of the product and are not intended to
form the basis of the bargain.
A receipt or copy of the invoice with the date of purchase from a Micronics
reseller is required before any warranty service can be rendered. Service can
be obtained by calling Micronics for a Return Merchandise Authorization
(RMA) Number.
The RMA Number should be prominently displayed on the outside of the
shipping carton of the returned product. Returned product should be shipped
prepaid or hand carried to Micronics. The purchaser assumes risk of loss or
damage in transit, and unless otherwise agreed to in writing by Micronics,
will pay inbound shipping charges.
The exclusive remedy of the purchaser under this warranty above will be
repair or replace at Micronics’ option, but if for any reason that remedy
should fail of its essential purpose, the exclusive remedy of the purchaser
shall then be actual damages up to amounts paid for the defective product by
the purchaser. This limited warranty shall be deemed to “fail of its essential
purpose” if, after repeated efforts, Micronics is unable to make the product
operate as warranted. Micronics’ liability for damages to the purchaser for
any cause whatsoever; regardless of the form of action and whether in
contract or in tort, shall be limited to the purchase price in effect when the
cause of action arose for the product that is the basis of the claim.
M54E2 System Board Manual
W-1
Warranty
Micronics will not be liable for any lost profits or any indirect, special
incidental or consequential damages in connection with the product, even if
Micronics has been advised of the possibility of such damages.
Micronics makes no warranties or representations as to performance of
products or as to service to distributor or to any person, except as set forth in
Micronics; limited warranty accompanying delivery of product.
Micronics disclaims all other warranties whether oral, written, expressed, or
implied, including without limitation, the warranties of design, merchantability, or fitness for a particular purpose, if applicable, or arising from a course
of dealing, usage or trade practice.
Non-Warranty Service
After the one year warranty service is no longer in effect, repair service is
still available for Micronics products. For more information, contact
Micronics’ RMA department at (510) 683-0428. The RMA department is
open between 8:30 A.M. and 5 P.M. Pacific Standard Time.
W-2
M54E2 System Board Manual
Index
Index
B
Battery Disposal - D-3
Beep and POST Codes - B-1
BIOS
Configuration - 4-1
Setup - 4-2, 4-3
Bulletin Board System (BBS) - D-5
C
Configuring the M54E2 - 2-1
CPU - 3-6
D
X-1
Diagram (M54E2) - 2-2
E
EISA
EISA Configuration - 5-1
Installing an EISA Peripheral Card - 3-9
Environmental Specifications - D-2
H
Hard Disk Drive Types - C-1
Help
Bulletin Board System (BBS) - D-5
Telephone Numbers - D-5
Troubleshooting - A-1
M54E2 System Board Manual
Index
I
Installation
Cache Memory - 3-7
CPU - 3-6
EISA Configuration - 5-1
Installing your M54E2 - 3-1
PCI Peripheral Card -3-8
Plug and Play Peripheral Card - 3-10
Quick Installation - 1-3
J
Jumper Settings - 2-3
M
M54E2 System Board Diagram - 2-2
Memory
Configurations - 3-4
Installing - 3-5
Removing - 3-6
Supported - 3-3
X-2
O
Online Services - D-5
P
Plug and Play Peripheral Card - 3-10
POST Messages - A-1
M54E2 System Board Manual
S
Specifications - D-1
System BIOS - 4-1
T
Technical Specifications - D-1
Technical Support - D-4
Troubleshooting - A-1
U
Updating the System BIOS - E-1
Utility Programs
Advanced Screen - 4-7
EISA - 5-1
Exit Screen - 4-13
IDE Device Submenu - 4-5
Main Screen - 4-3
Security Screen - 4-11
Index
W
World Wide Web - D-5
M54E2 System Board Manual
X-3
Document Number: 06-00210-06, Rev. 2C
June 1996
Printed in the USA
Loading...
