Installation Manual Before you begin
20001964 November 2019
1 Before you begin
1.1 About this document
Use this manual to ensure that any applicable Micro Motion flow meter installation
complies with Underwriter Laboratories (UL) safety standards.
The information in this document assumes that users understand basic transmitter and
sensor installation concepts and procedures.
This manual provides only information associated with installation of transmitters through
UL-D_IS, MVD instructions. For complete information on flow meter installation, see the
documentation provided with your sensor and transmitter.
1.2 Hazard messages
This document uses the following criteria for hazard messages based on ANSI standards
Z535.6-2011 (R2017).
DANGER
Serious injury or death will occur if a hazardous situation is not avoided.
WARNING
Serious injury or death could occur if a hazardous situation is not avoided.
CAUTION
Minor or moderate injury will or could occur if a hazardous situation is not avoided.
NOTICE
Data loss, property damage, hardware damage, or software damage can occur if a
situation is not avoided. There is no credible risk of physical injury.
Physical access
NOTICE
Unauthorized personnel can potentially cause significant damage and/or misconfiguration
of end users' equipment. Protect against all intentional or unintentional unauthorized use.
Physical security is an important part of any security program and fundamental to
protecting your system. Restrict physical access to protect users' assets. This is true for all
systems used within the facility.
Micro Motion Inc. 5
Page 6
Before you begin Installation Manual
November 2019 20001964
1.3 Hazardous area installations
If your cable will be installed in a hazardous area, ensure that it meets the hazardous area
requirements.
WARNING
Failure to maintain intrinsic safety in a hazardous area could cause an explosion
resulting in injury or death.
To keep sensor wiring intrinsically safe:
• Keep intrinsically safe (IS) sensor wiring separate from power supply wiring and output
wiring.
• Do not install power cable in the same conduit or cable tray as flow meter cable.
• Use this document with the appropriate approvals documentation. These manuals are
shipped with the flow meter or available at www.emerson.com.
• For hazardous area installations in Europe, refer to standard EN 60079-14 if national
standards do not apply.
6 UL-D-IS Installation Instructions
Page 7
Installation Manual 1700 and 2700 transmitters
20001964 November 2019
2 1700 and 2700 transmitters
2.1 1700 and 2700 transmitter outputs
List of drawings
Transmitter Drawing
1700/2700 mA Outputs EB-3600478, Revision DA
1700/2700 intrinsically safe outputs EB-3600630, Revision EA
2700 configurable inputs and outputs EB-3600666, Revision CA
1700/2700 FOUNDATION™ fieldbus outputs EB-3600475, Revision G
1700/2700 Profibus-PA outputs EB-3600472, Revision G
Micro Motion Inc. 7
Page 8
1700 and 2700 transmitters Installation Manual
November 2019 20001964

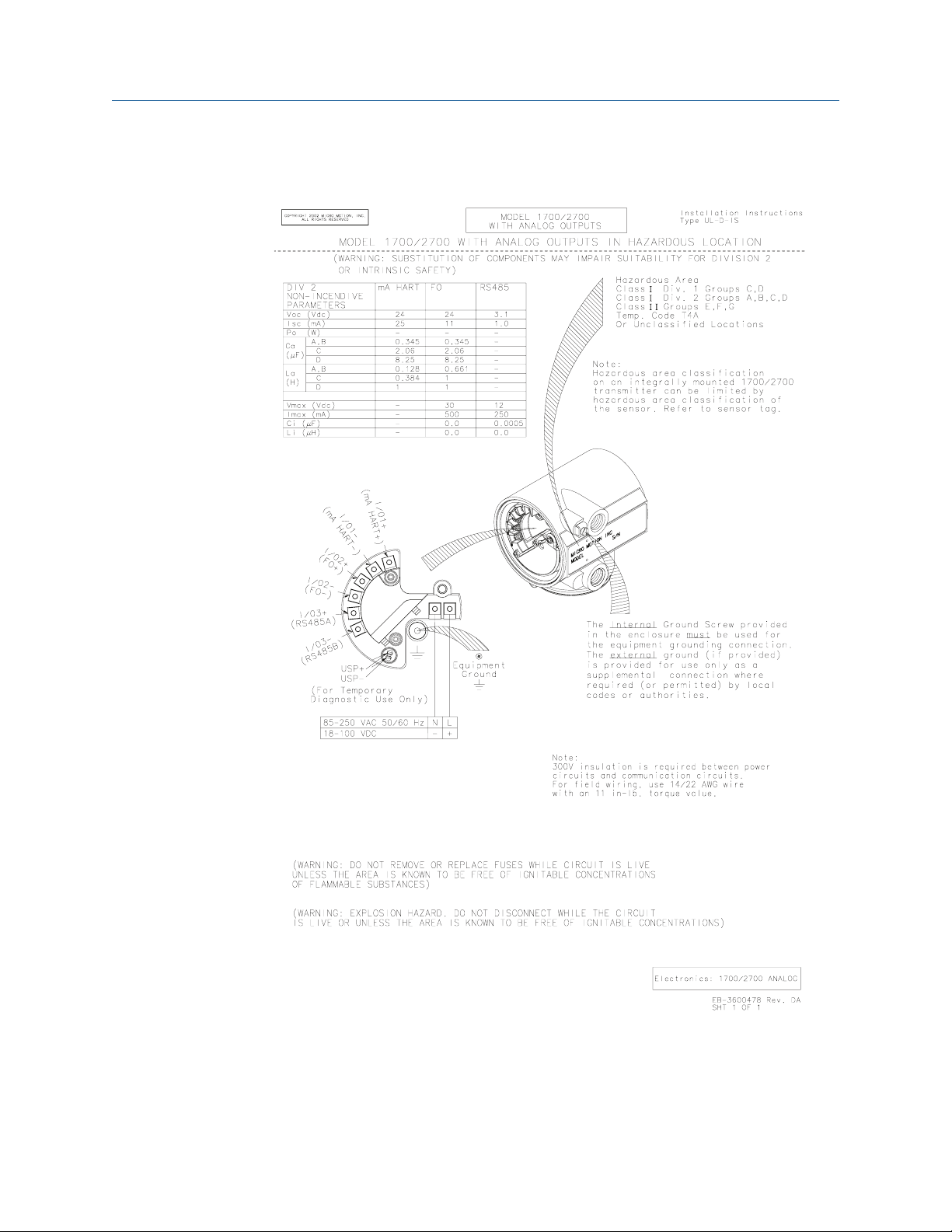

2.1.1 1700/2700 mA Outputs
8 UL-D-IS Installation Instructions
Page 9
Installation Manual 1700 and 2700 transmitters
20001964 November 2019

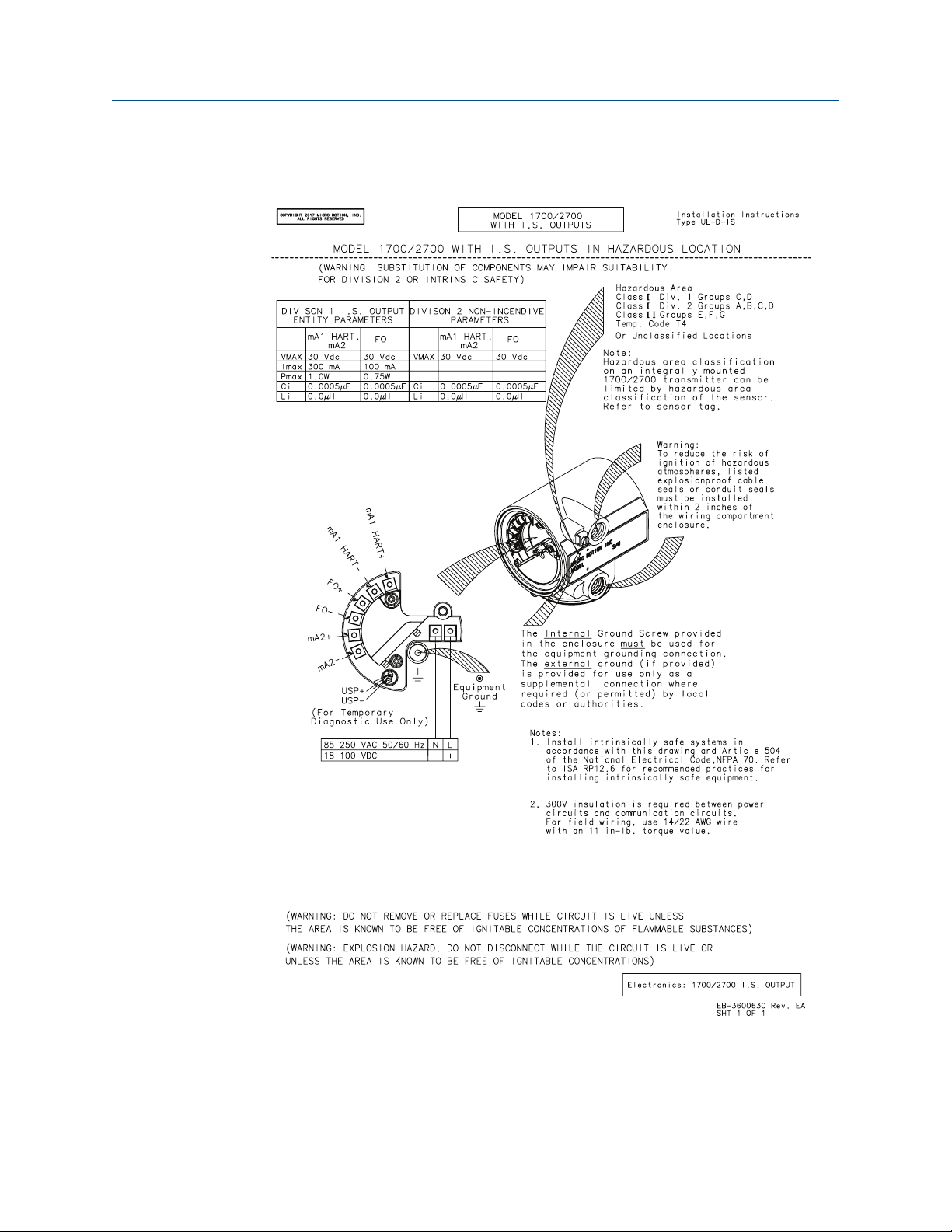

2.1.2 1700/2700 intrinsically safe outputs
Micro Motion Inc. 9
Page 10
1700 and 2700 transmitters Installation Manual
November 2019 20001964

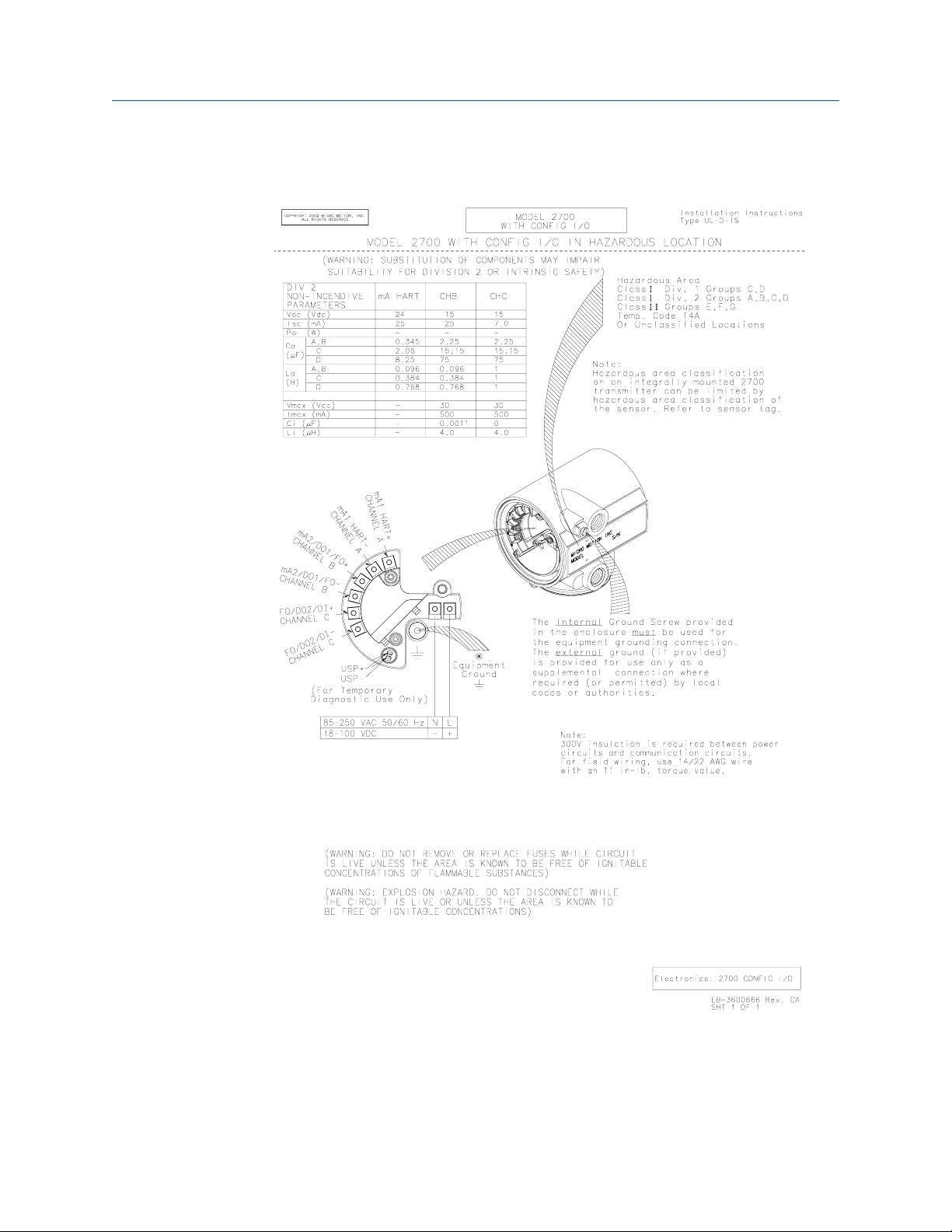

2.1.3 2700 configurable inputs and outputs
10 UL-D-IS Installation Instructions
Page 11
G
Installation Manual 1700 and 2700 transmitters
20001964 November 2019

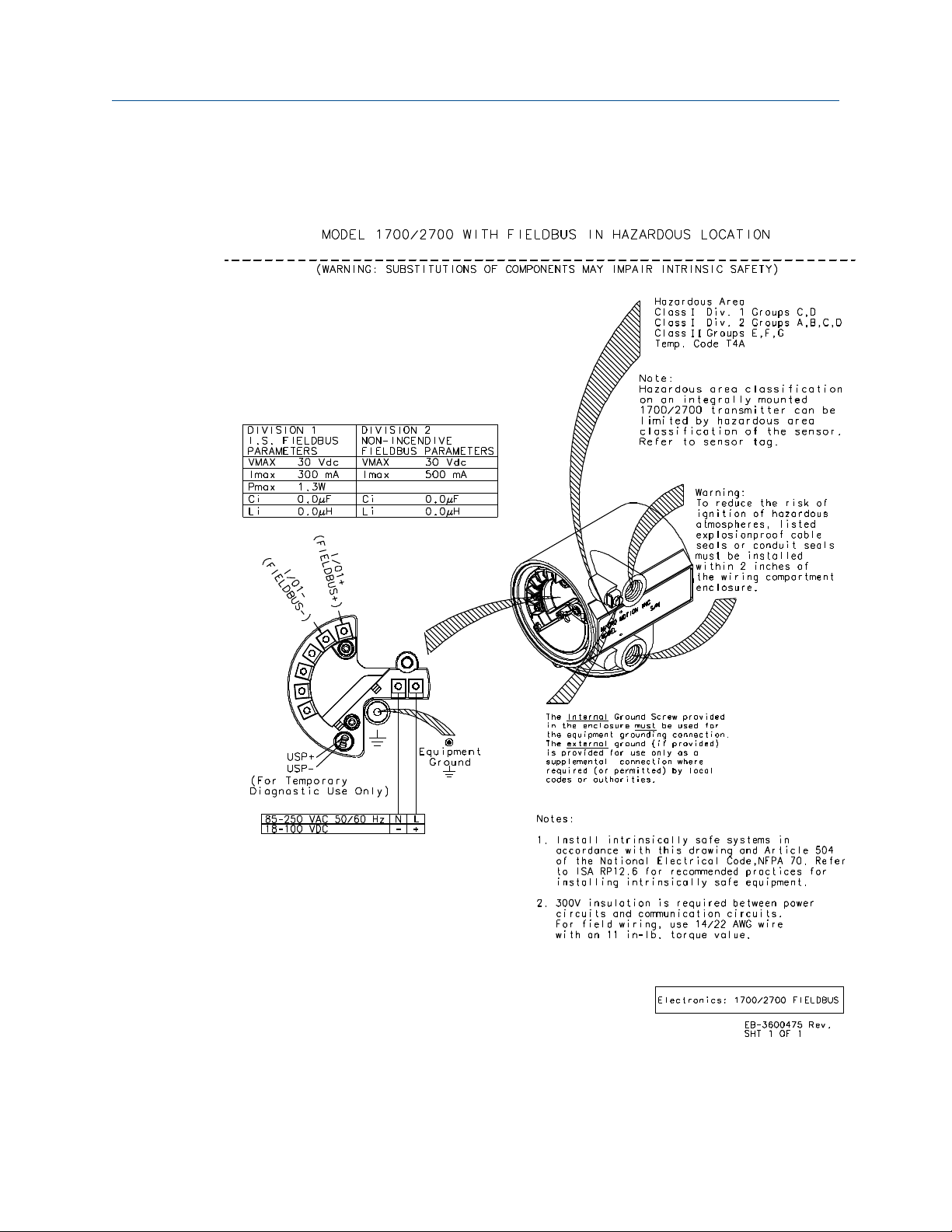

2.1.4 1700/2700 FOUNDATION™ fieldbus outputs
Micro Motion Inc. 11
Page 12
1700 and 2700 transmitters Installation Manual
November 2019 20001964

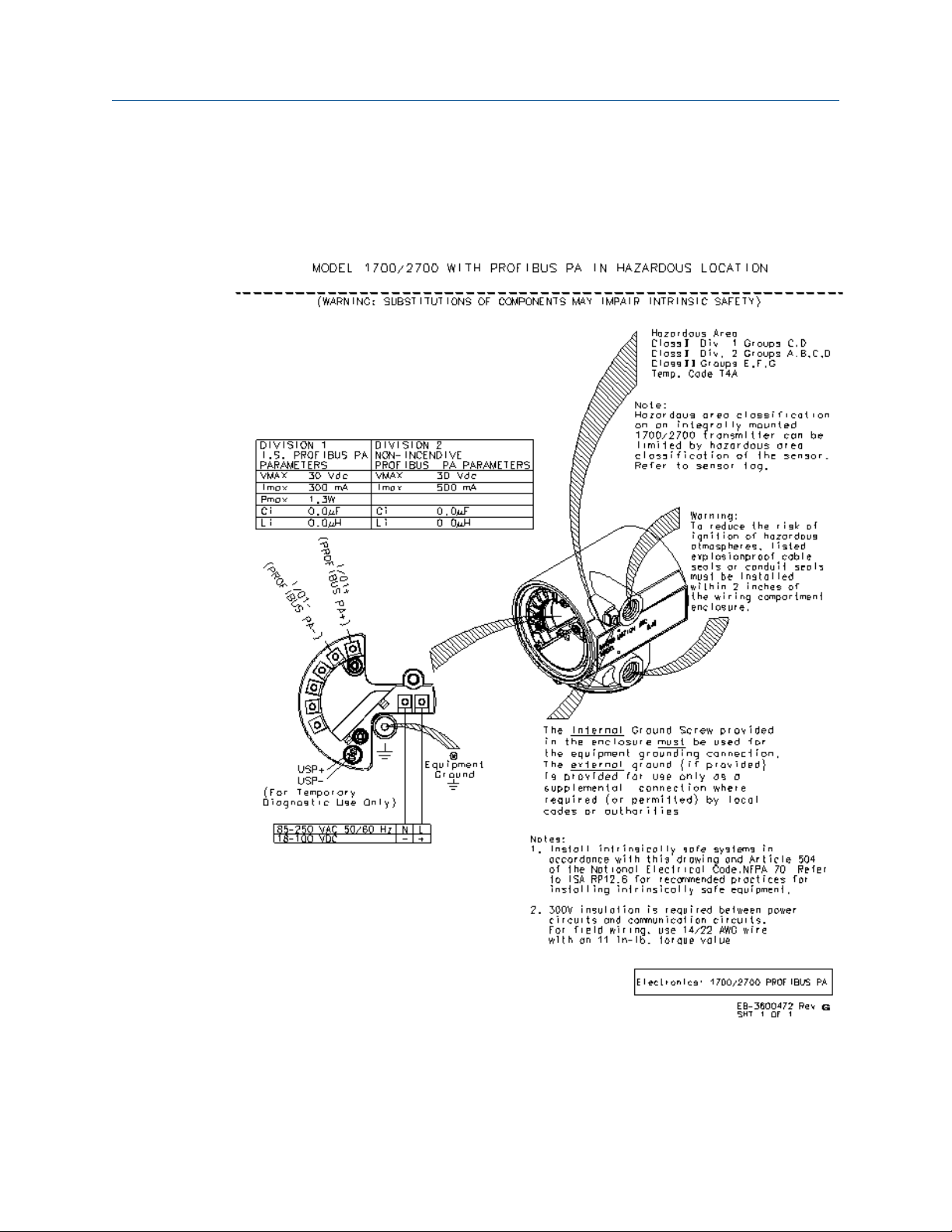

2.1.5 1700/2700 Profibus-PA outputs
12 UL-D-IS Installation Instructions
Page 13
Installation Manual 1700 and 2700 transmitters
20001964 November 2019
2.2 1700/2700 4-wire installations
List of drawings
Installation Drawing
1700/2700 4-wire with core processor and
sensor
1700/2700 4-wire with core processor and
CMF400 sensor with booster amplifier
1700/2700 4-wire with core processor and D600
sensor
EB-3600481, Revision DA
EB-3005809, Revision D
EB-1005075, Revision C
Micro Motion Inc. 13
Page 14
1700 and 2700 transmitters Installation Manual
November 2019 20001964

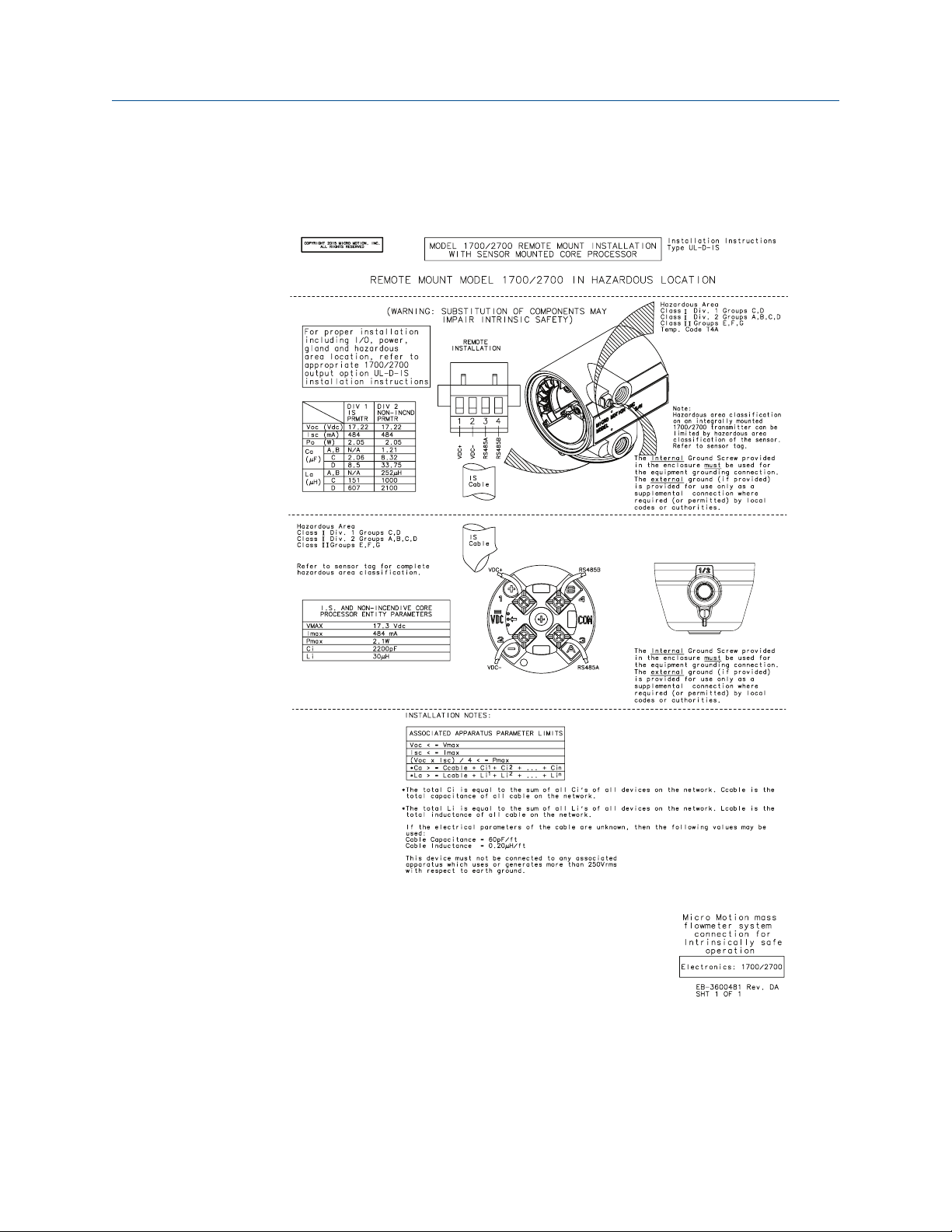

2.2.1 1700/2700 4-wire with core processor and sensor
This drawing does not apply to D600 sensors or CMF400 sensors with a booster amplifier.
14 UL-D-IS Installation Instructions
Page 15
Installation Manual 1700 and 2700 transmitters
20001964 November 2019

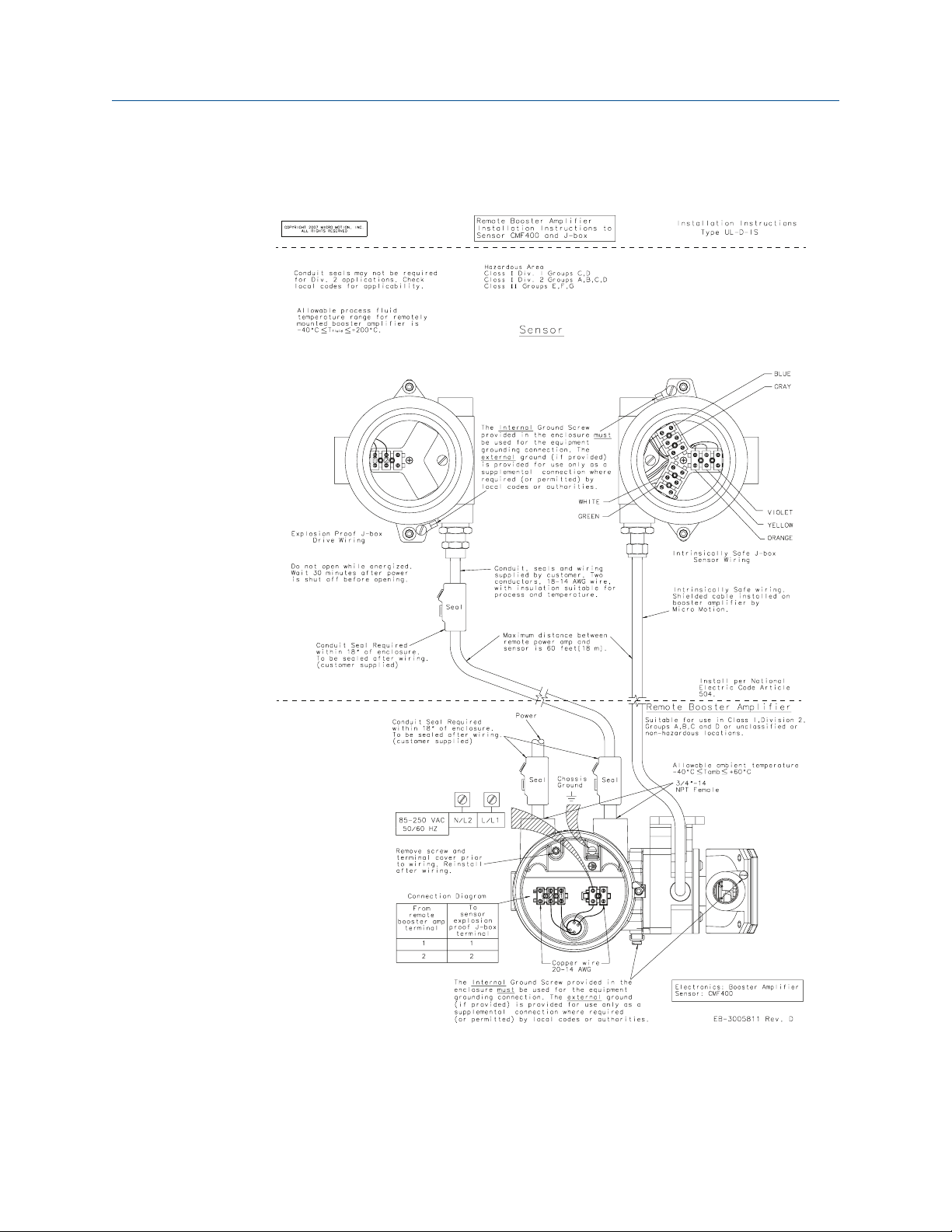

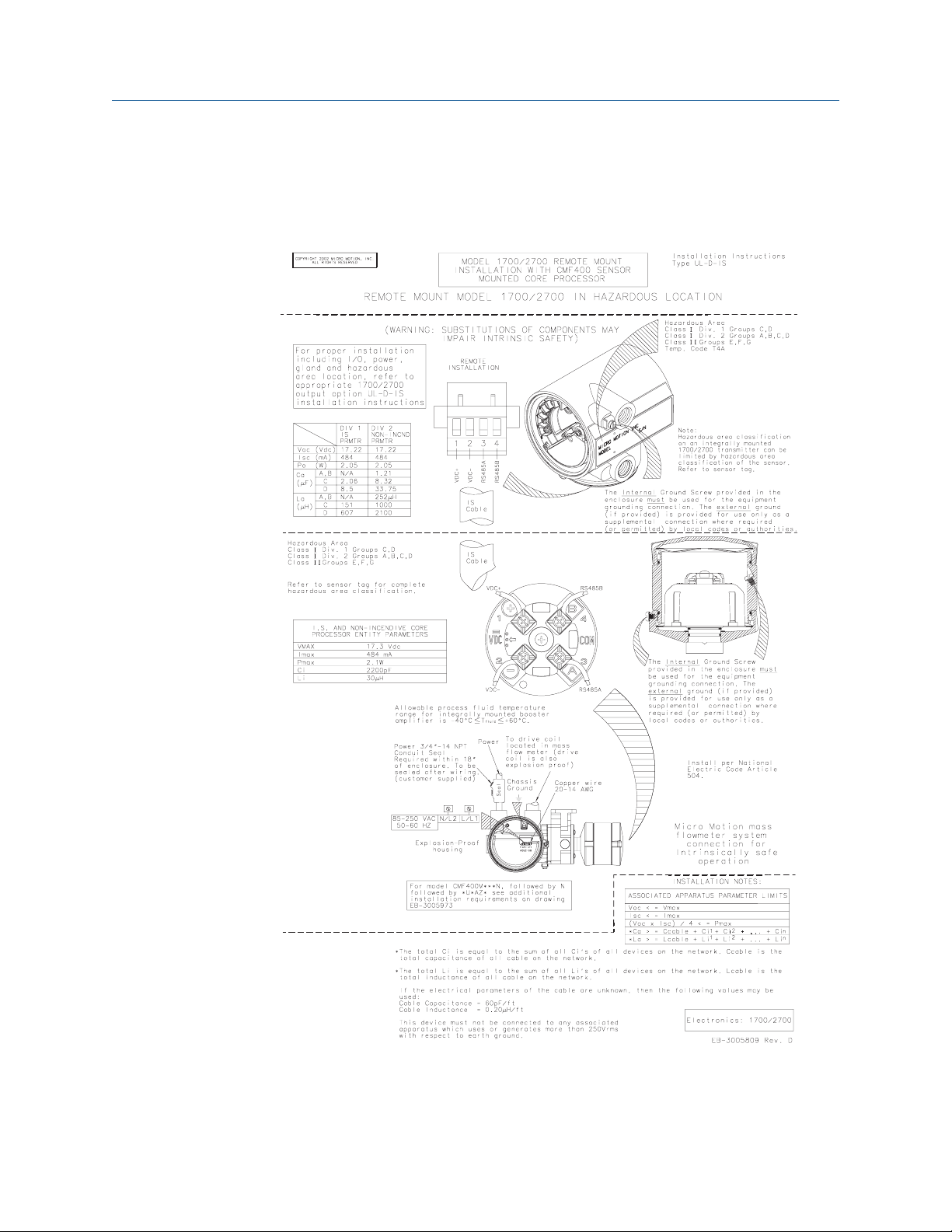

2.2.2 1700/2700 4-wire with core processor and CMF400 sensor with booster amplifier
Micro Motion Inc. 15
Page 16
1700 and 2700 transmitters Installation Manual
November 2019 20001964
2.2.3 1700/2700 4-wire with core processor and D600 sensor
16 UL-D-IS Installation Instructions
Page 17
Installation Manual 1700 and 2700 transmitters
20001964 November 2019
2.3 1700/2700 integral core processor installations
List of drawings
Installation Drawing
1700/2700 with integral core processor and
CMF, F, T, D, or DL sensors
1700/2700 with integral core processor and
CMF300A sensor
1700/2700 with integral core processor and
CMF400 sensor with booster amplifier
1700/2700 with integral core processor and
D600 sensor
1700/2700 with integral core processor and DT
sensor
EB-3600420, Rev EA
EB-3600533, Revision D
EB-3006198, Revision C
EB-1005116, Revision B
EB-3600532 Rev D
Micro Motion Inc. 17
Page 18
1700 and 2700 transmitters Installation Manual
November 2019 20001964

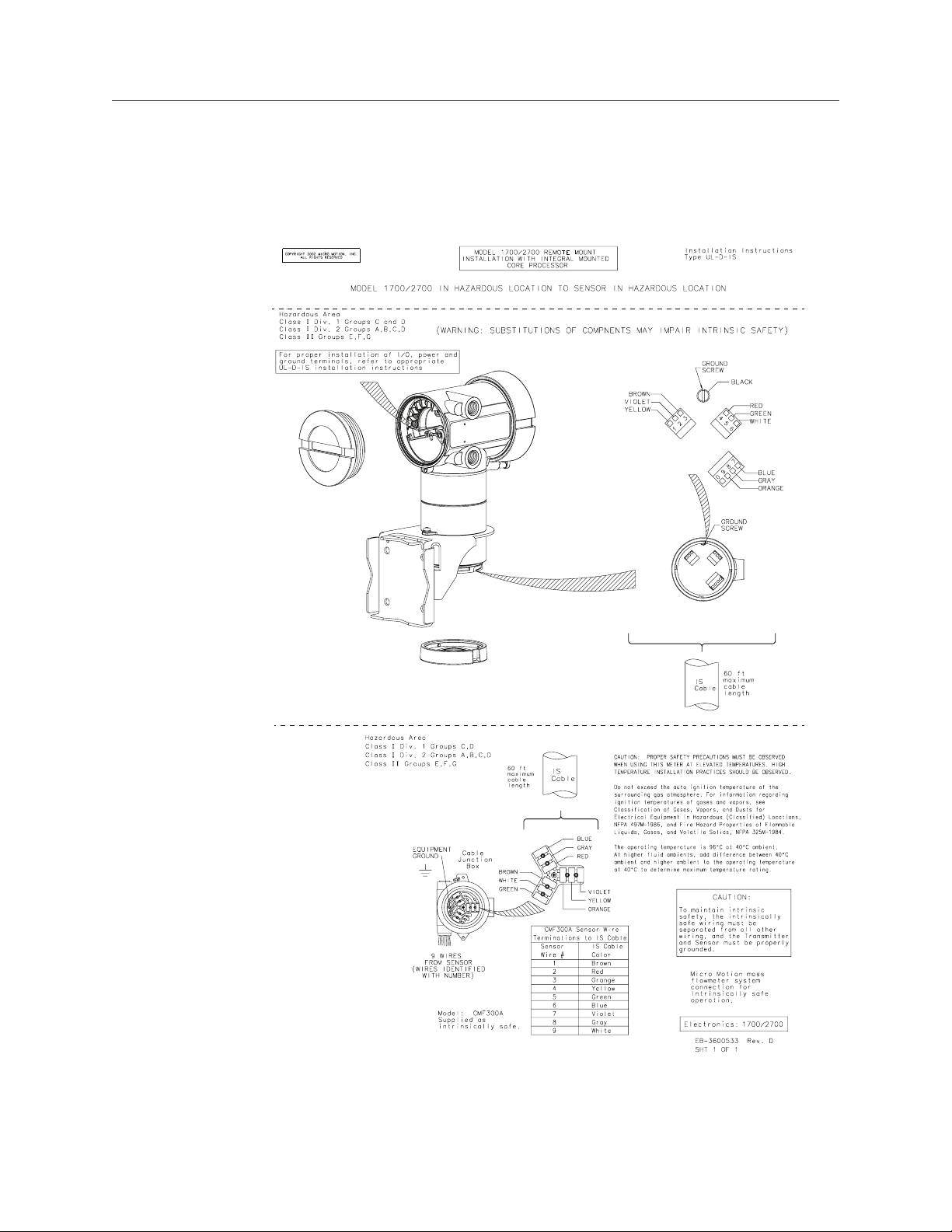

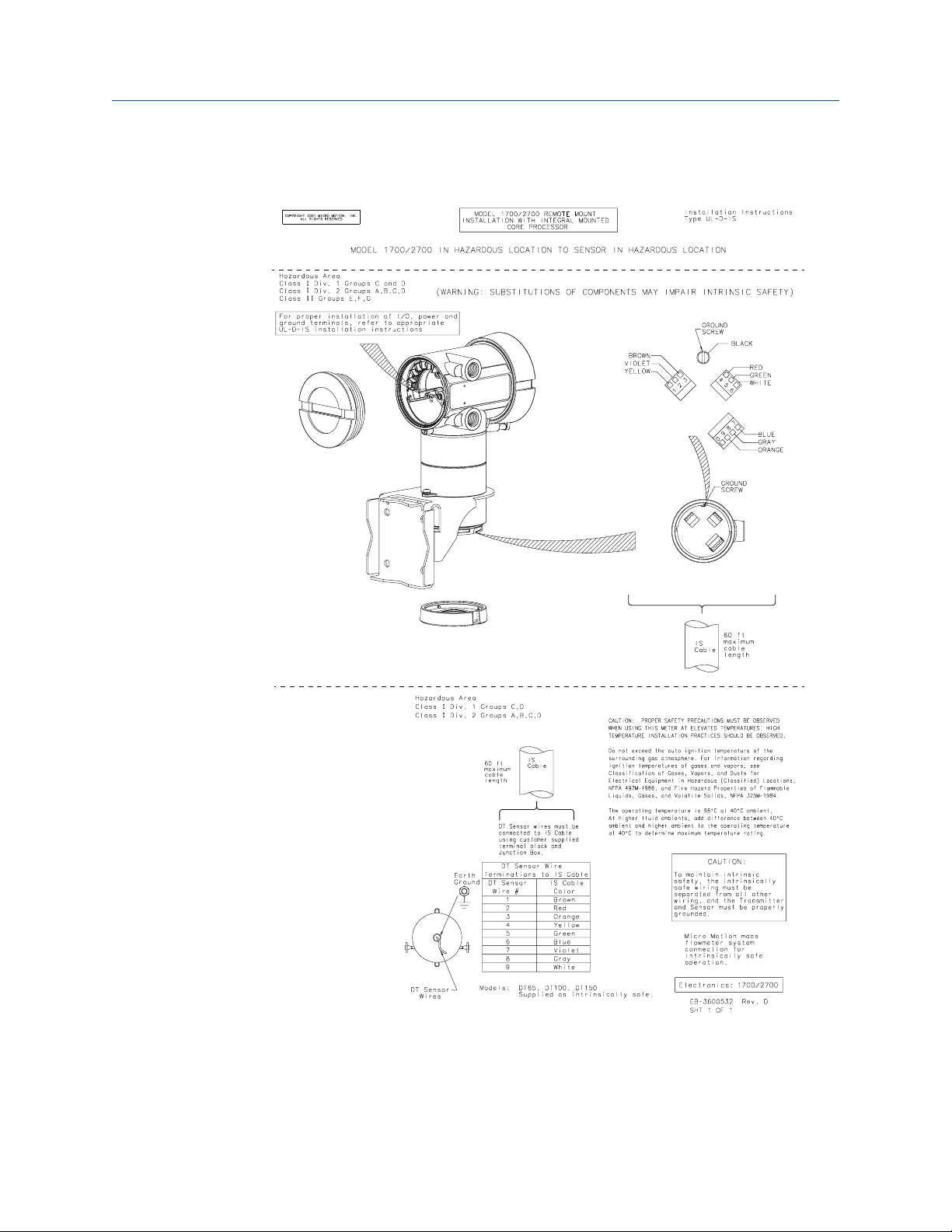

2.3.1 1700/2700 with integral core processor and CMF, F, T, D, or DL sensors
This drawing does not apply to the D600, DT, CMF300A, or CMF400 with booster amplifier
sensors.
18 UL-D-IS Installation Instructions
Page 19
Installation Manual 1700 and 2700 transmitters
20001964 November 2019
2.3.2 1700/2700 with integral core processor and CMF300A sensor
Micro Motion Inc. 19
Page 20
1700 and 2700 transmitters Installation Manual
November 2019 20001964
2.3.3 1700/2700 with integral core processor and CMF400 sensor with booster amplifier
20 UL-D-IS Installation Instructions
Page 21
Installation Manual 1700 and 2700 transmitters
20001964 November 2019
2.3.4 1700/2700 with integral core processor and D600 sensor
Micro Motion Inc. 21
Page 22
1700 and 2700 transmitters Installation Manual
November 2019 20001964

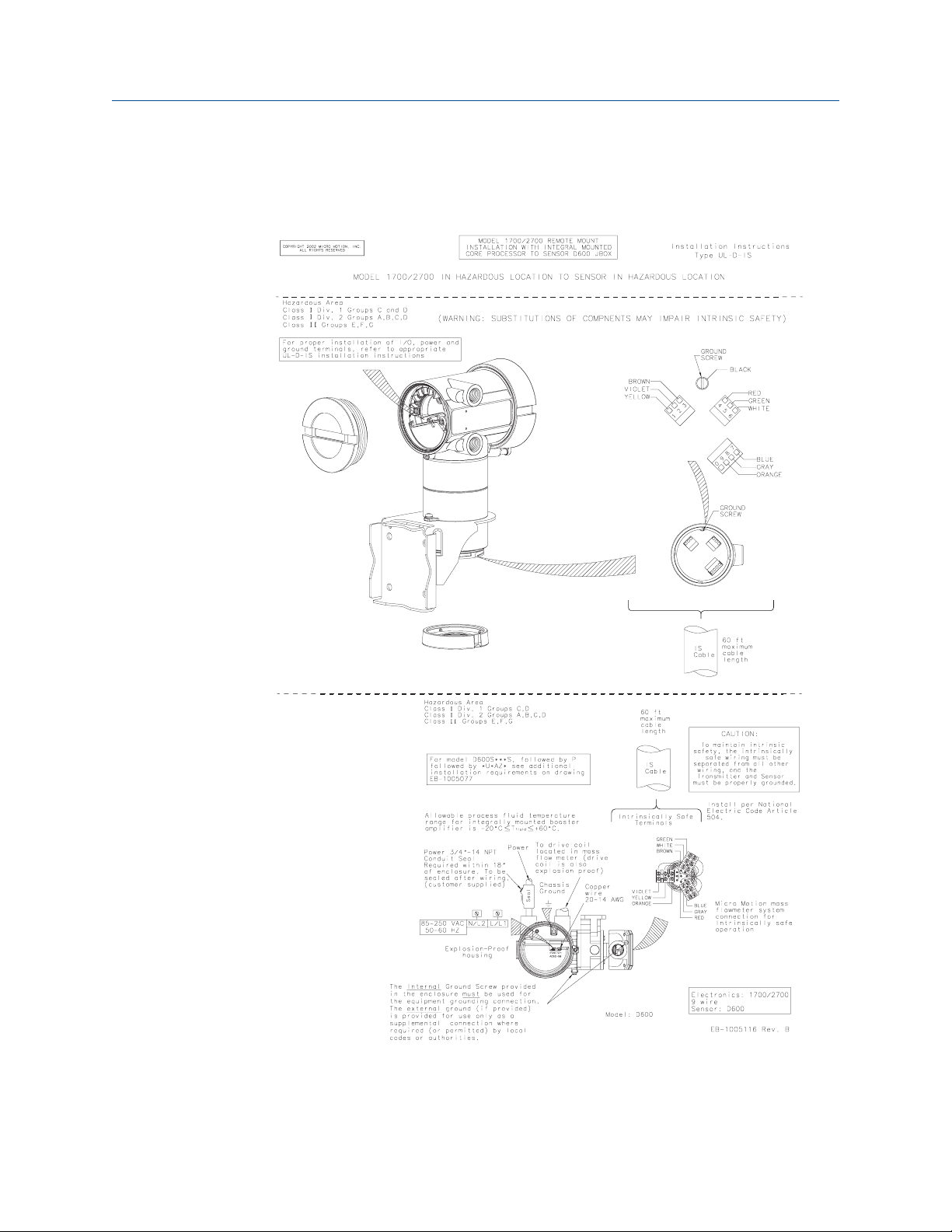

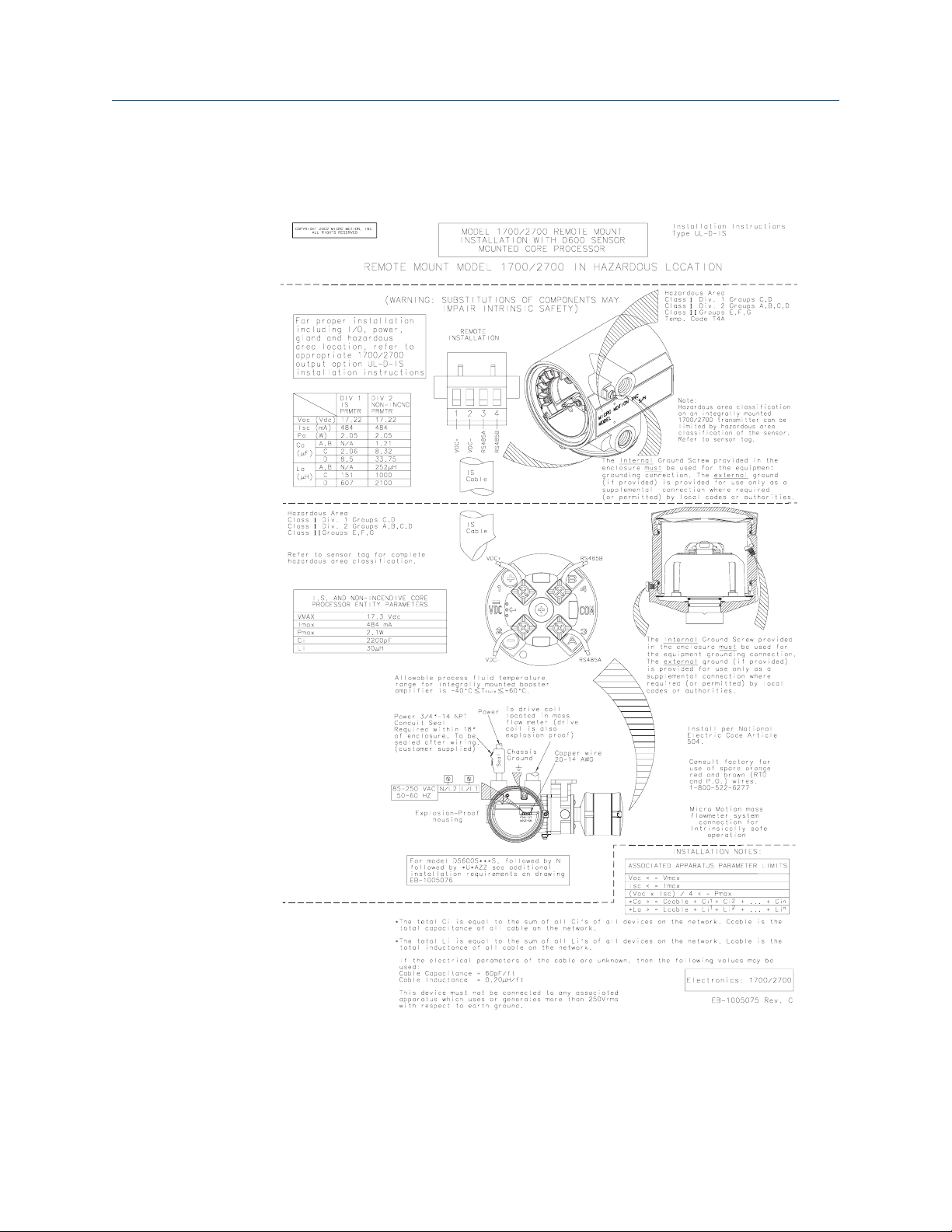

2.3.5 1700/2700 with integral core processor and DT sensor
22 UL-D-IS Installation Instructions
Page 23
Installation Manual 1700 and 2700 transmitters
20001964 November 2019
2.4 1700/2700 remote core processor installations
List of drawings
Installation Drawing
1700/2700 with remote core processor and
CMF, F, T, D, or DL sensors
1700/2700 with remote core processor and
CMF300A sensor
1700/2700 with remote core processor and
CMF400 sensor with booster amplifier
1700/2700 with remote core processor and
D600 sensor
1700/2700 with remote core processor and DT
sensor
EB-3600676 Revision DA
EB-3600678, Revision D
EB-3007060, Revision C
EB-1005118, Revision B
EB-3600677, Revision C
Micro Motion Inc. 23
Page 24
1700 and 2700 transmitters Installation Manual
November 2019 20001964

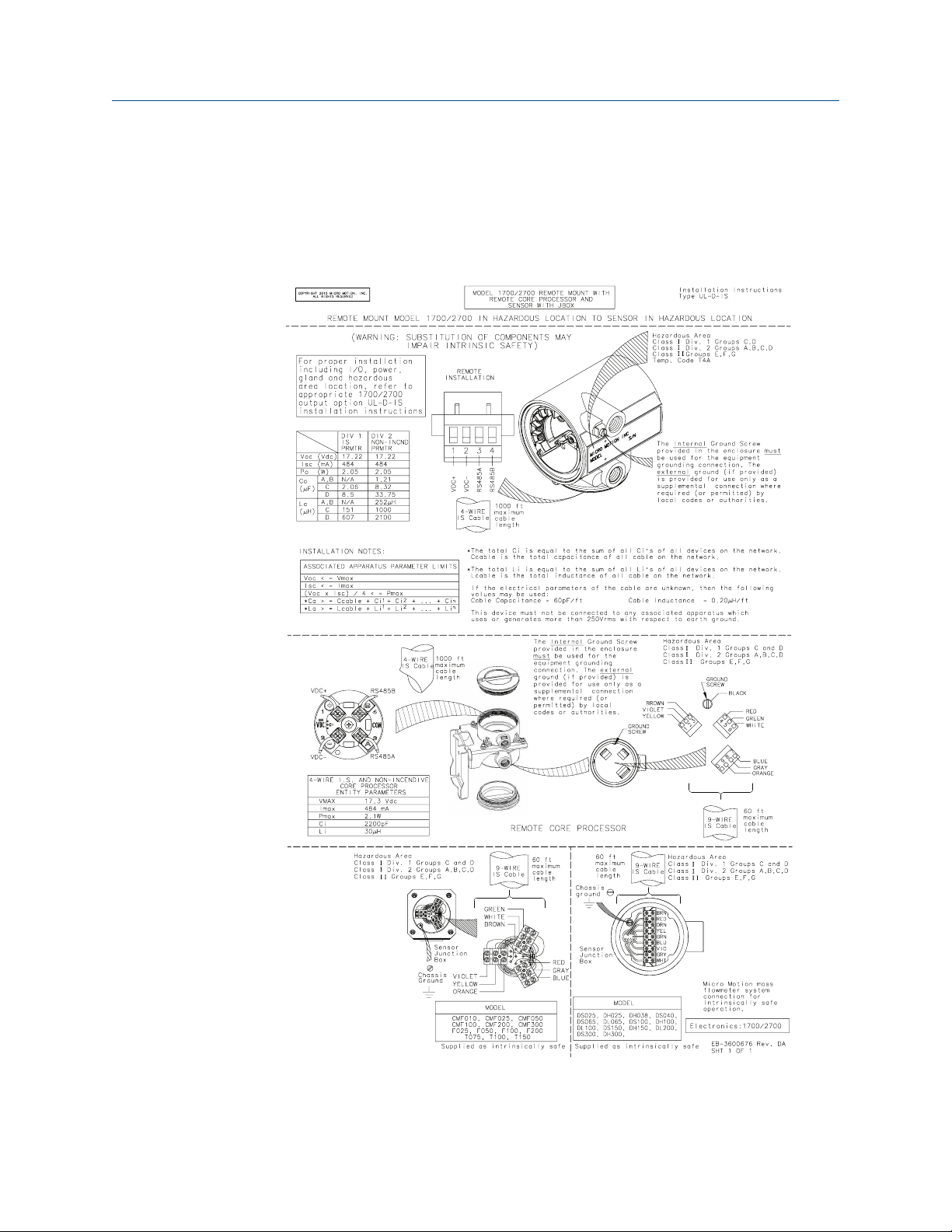

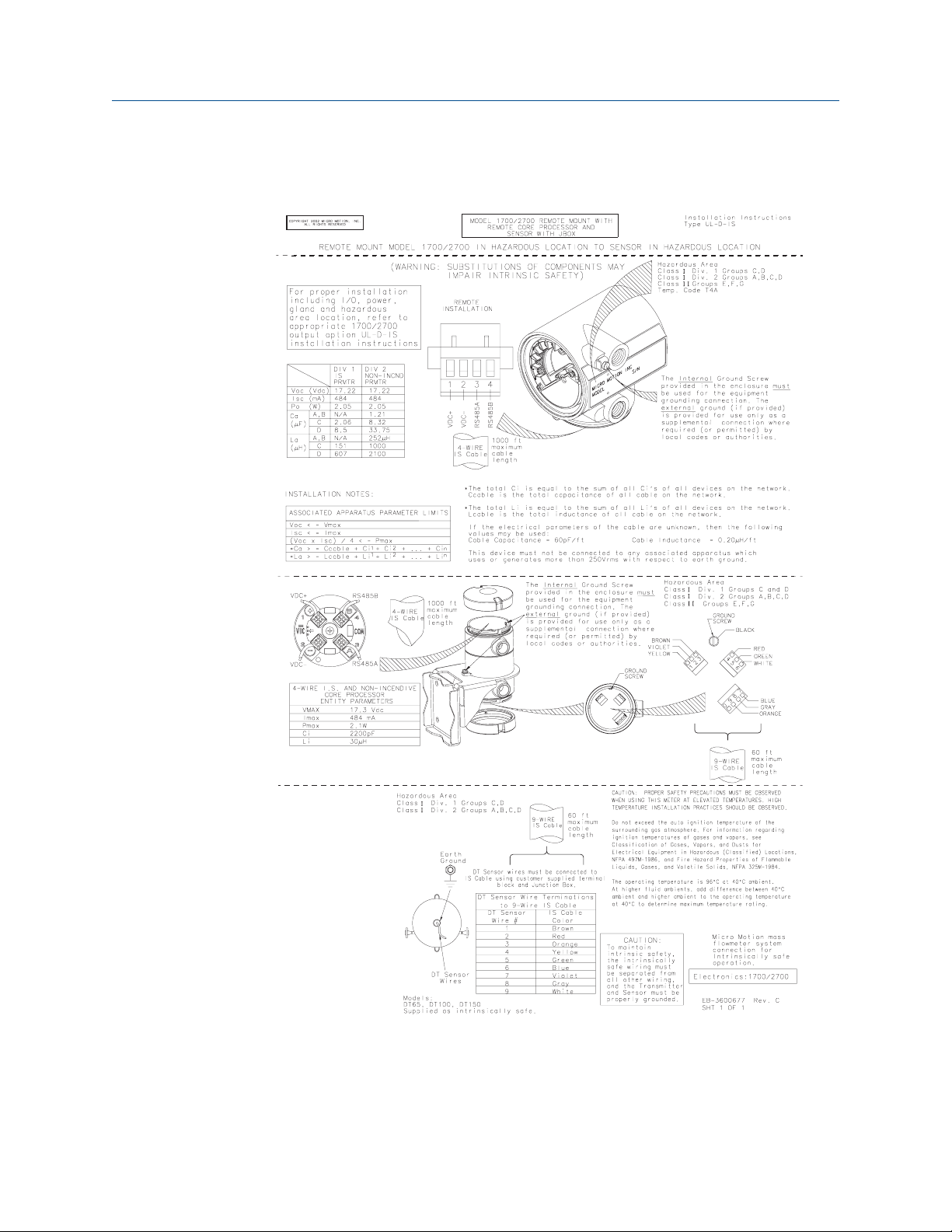

2.4.1 1700/2700 with remote core processor and CMF, F, T, D, or DL sensors
This drawing does not apply to the D600, DT, CMF300A, or CMF400 with booster amplifier
sensors.
24 UL-D-IS Installation Instructions
Page 25
Installation Manual 1700 and 2700 transmitters
20001964 November 2019

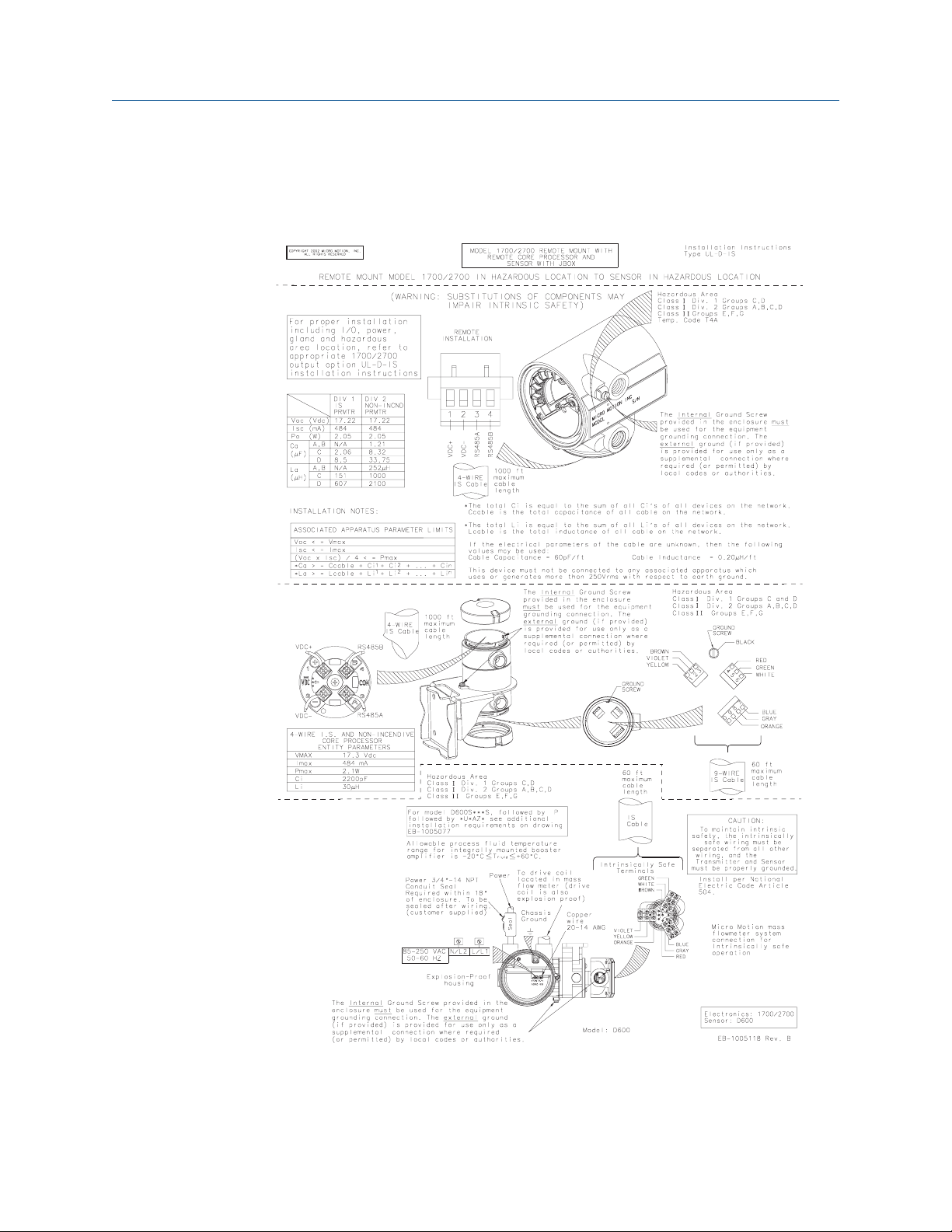

2.4.2 1700/2700 with remote core processor and CMF300A sensor
Micro Motion Inc. 25
Page 26
1700 and 2700 transmitters Installation Manual
November 2019 20001964
2.4.3 1700/2700 with remote core processor and CMF400 sensor with booster amplifier
26 UL-D-IS Installation Instructions
Page 27
Installation Manual 1700 and 2700 transmitters
20001964 November 2019

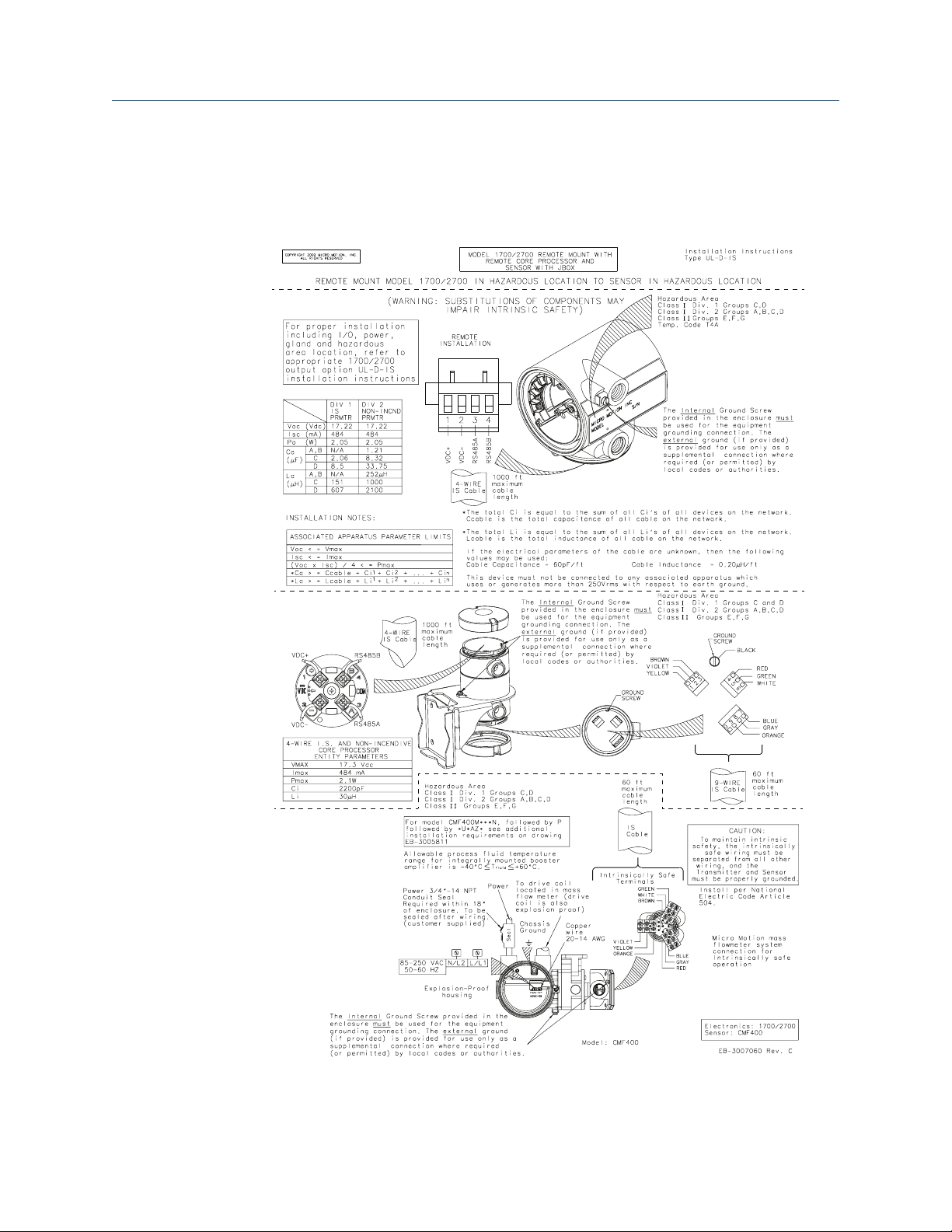

2.4.4 1700/2700 with remote core processor and D600 sensor
Micro Motion Inc. 27
Page 28
1700 and 2700 transmitters Installation Manual
November 2019 20001964

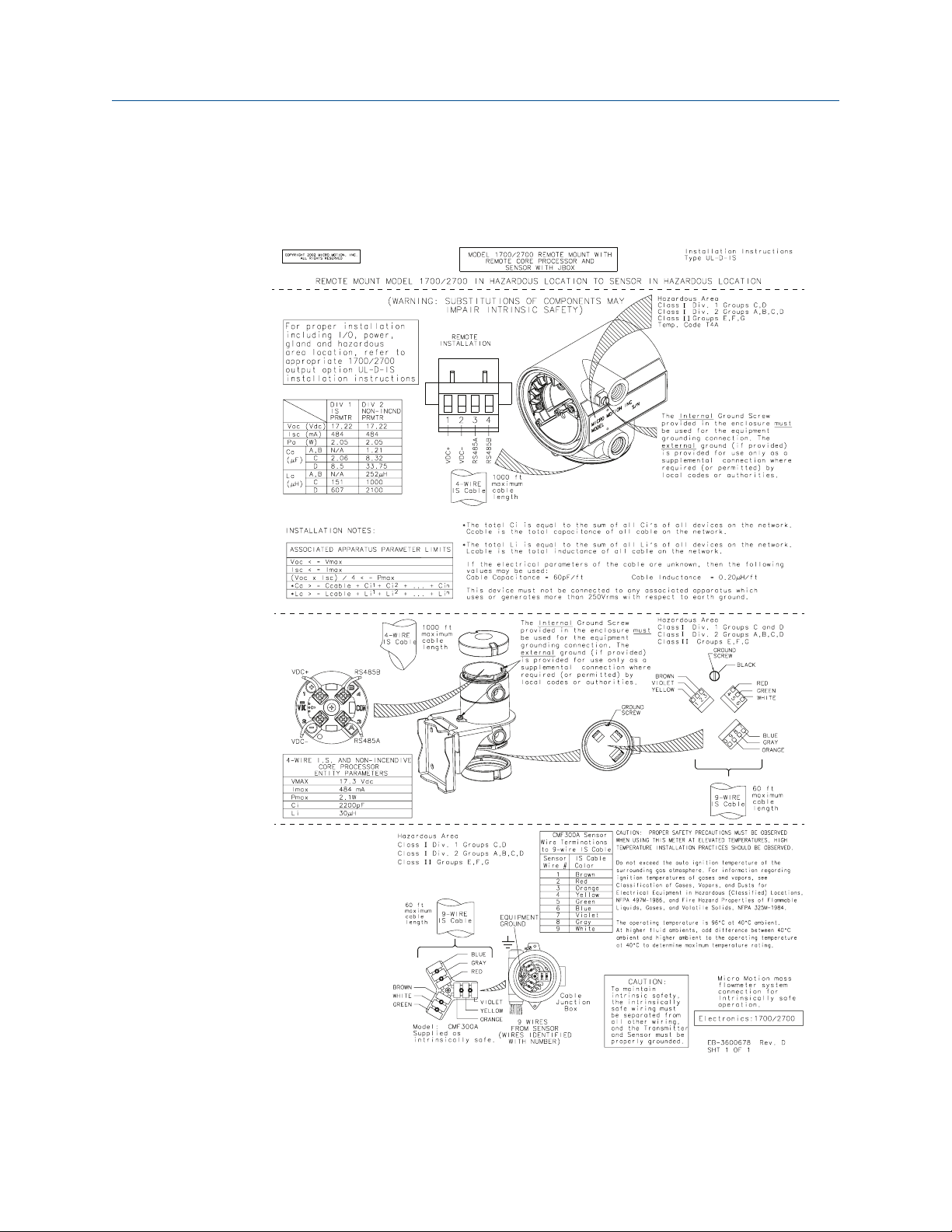

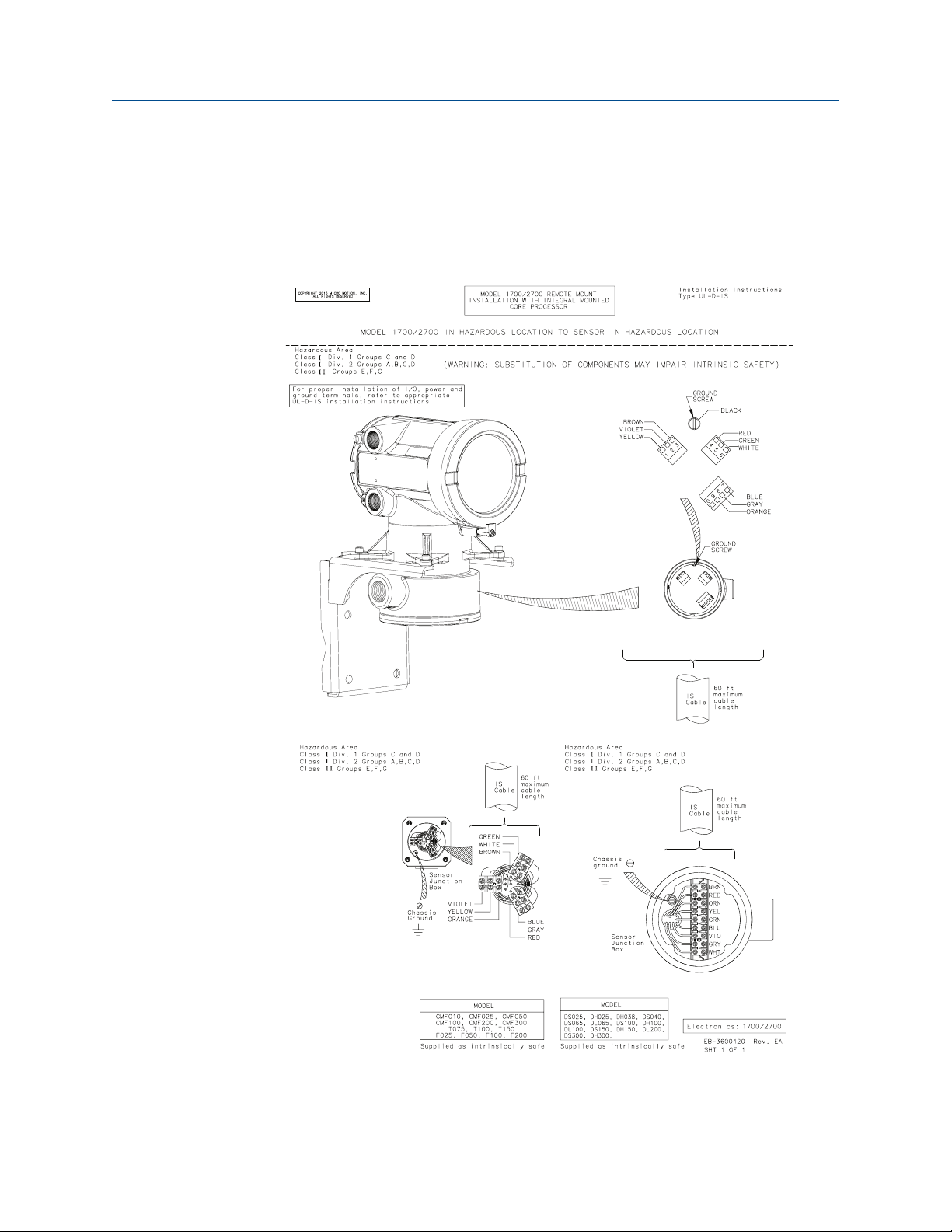

2.4.5 1700/2700 with remote core processor and DT sensor
28 UL-D-IS Installation Instructions
Page 29
Installation Manual 3500 transmitters
20001964 November 2019
3 3500 transmitters
3.1 3500 4-wire installations
List of drawings
Installation Drawing
3500 4-wire with core processor and sensor EB-20000249, Revision BA
3500 4-wire with core processor and CMF400
sensor with booster amplifier
3500 4-wire with core processor and D600
sensor
EB-20000243, Revision B
EB-20000246, Revision B
Micro Motion Inc. 29
Page 30
3500 transmitters Installation Manual
November 2019 20001964

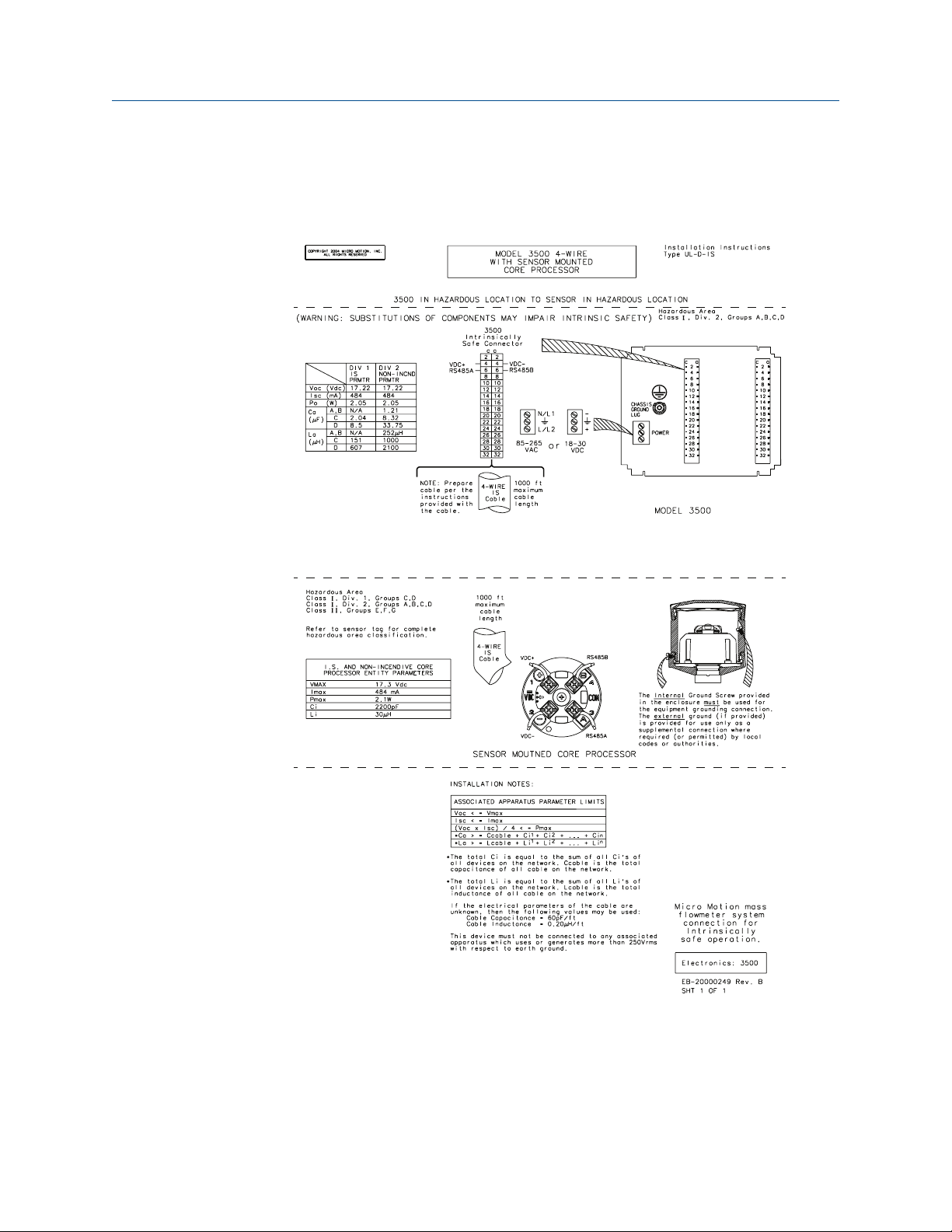

3.1.1 3500 4-wire with core processor and sensor
This drawing does not apply to D600 sensors or CMF400 sensors with a booster amplifier.
30 UL-D-IS Installation Instructions
Page 31
Installation Manual 3500 transmitters
20001964 November 2019
3.1.2 3500 4-wire with core processor and CMF400 sensor with booster amplifier
Micro Motion Inc. 31
Page 32
3500 transmitters Installation Manual
November 2019 20001964

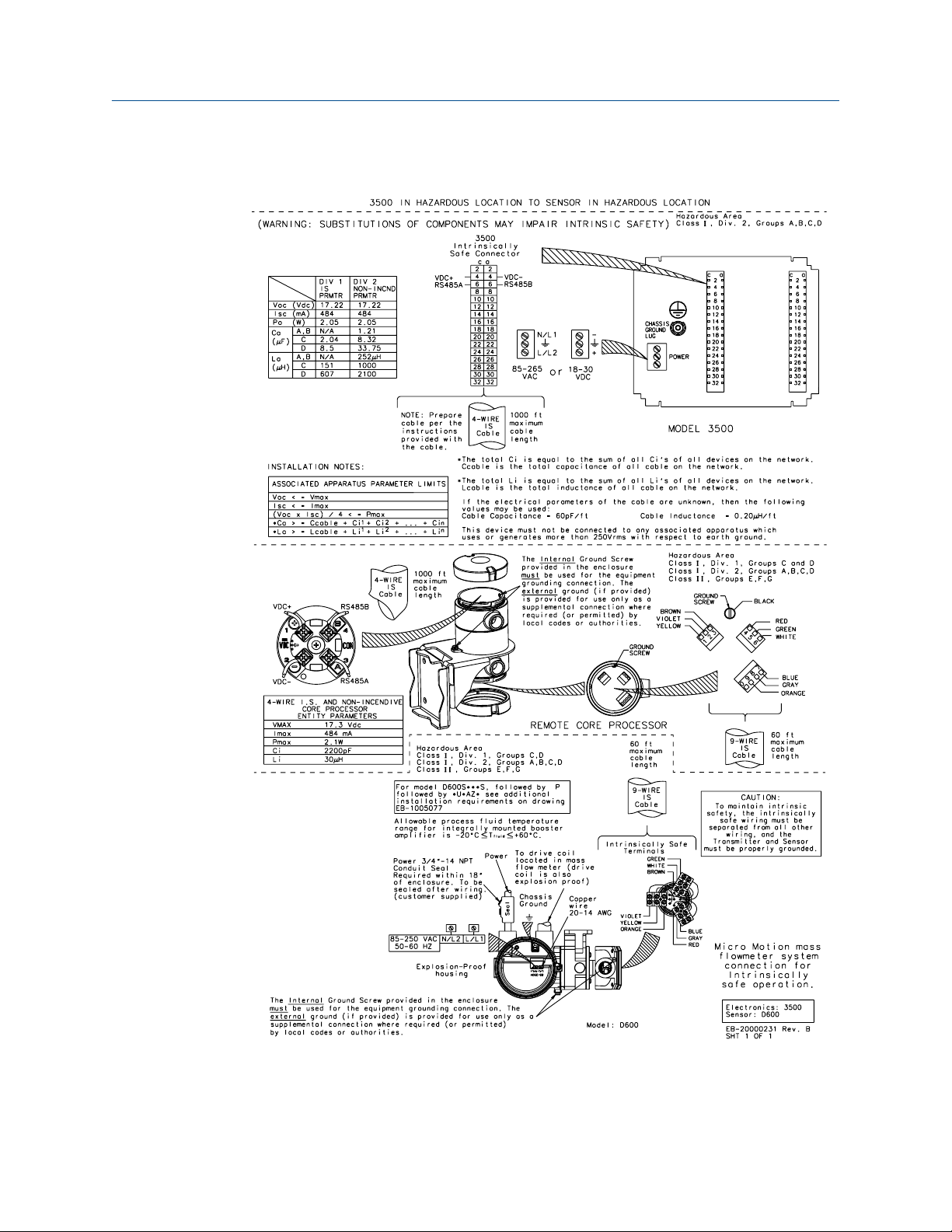

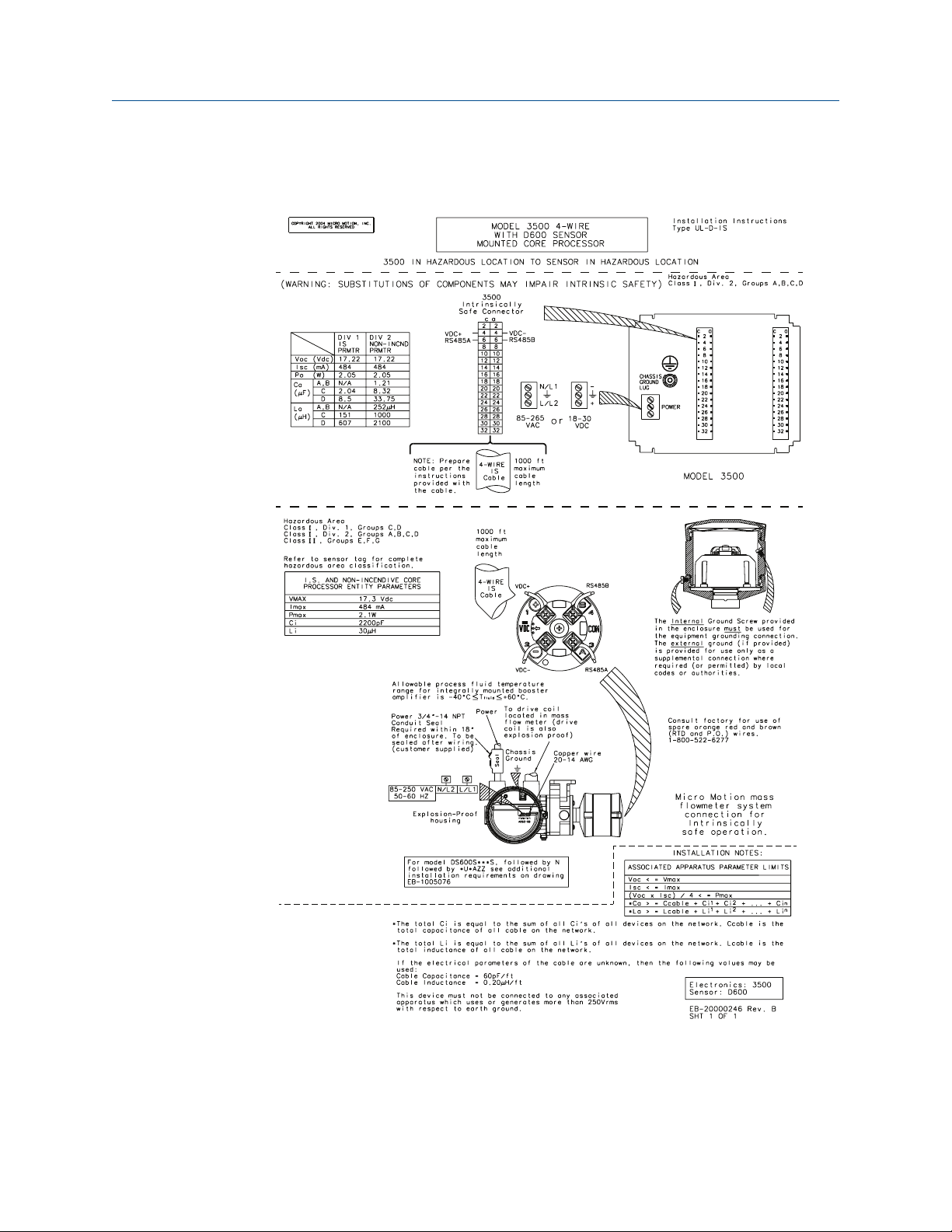

3.1.3 3500 4-wire with core processor and D600 sensor
32 UL-D-IS Installation Instructions
Page 33
Installation Manual 3500 transmitters
20001964 November 2019
3.2 3500 remote core processor installations
List of drawings
Installation Drawing
3500 with remote core processor and CMF, D,
DL, F, or T sensors
3500 with remote core processor and CMF300A
sensor
3500 with remote core processor and CMF400
sensor with booster amplifier
3500 with remote core processor and D600
sensor
3500 with remote core processor and DT sensor EB-20000240, Revision B
EB-20000234, Revision BA

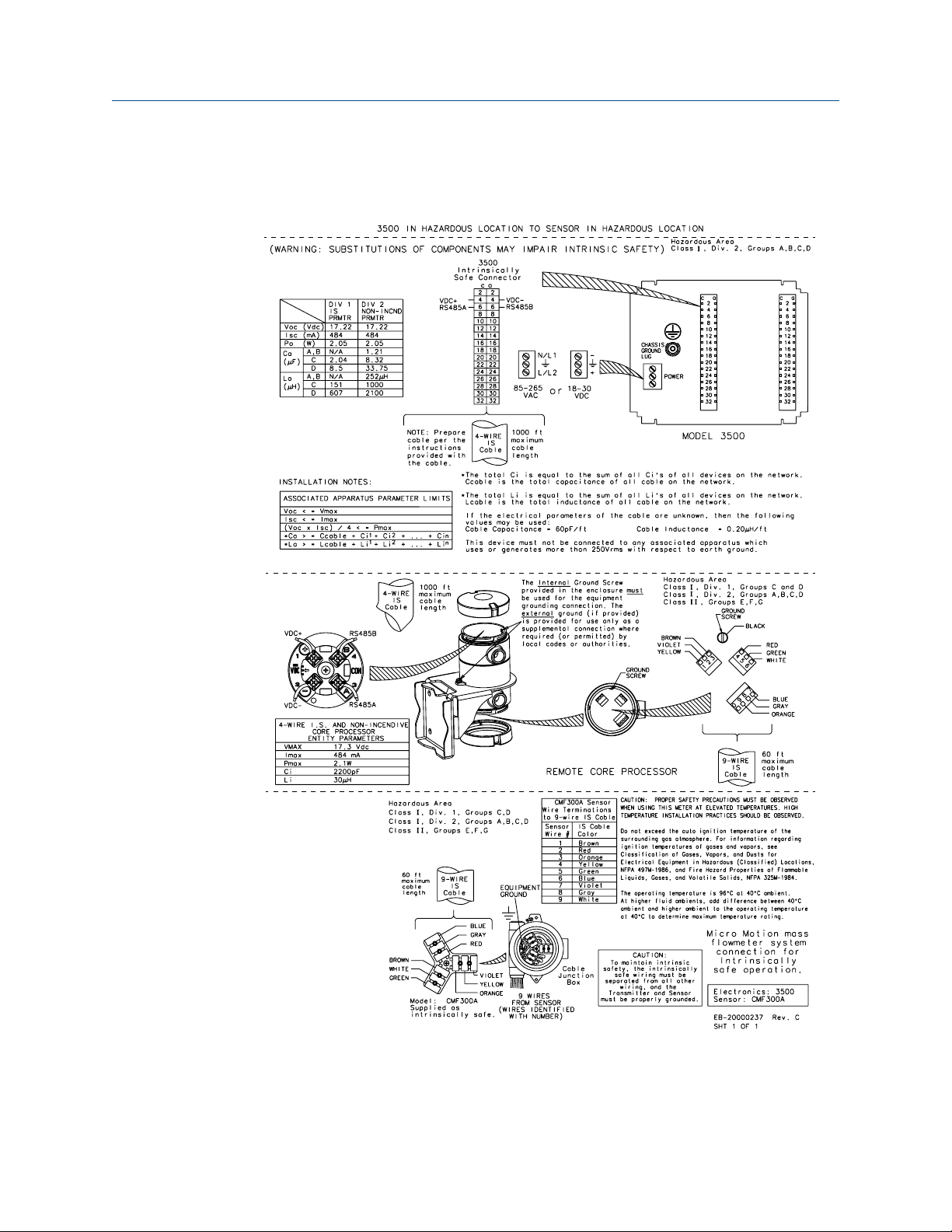

EB-20000237, Revision C
EB-20000228, Revision B
EB-20000231, Revision B
Micro Motion Inc. 33
Page 34
3500 transmitters Installation Manual
November 2019 20001964

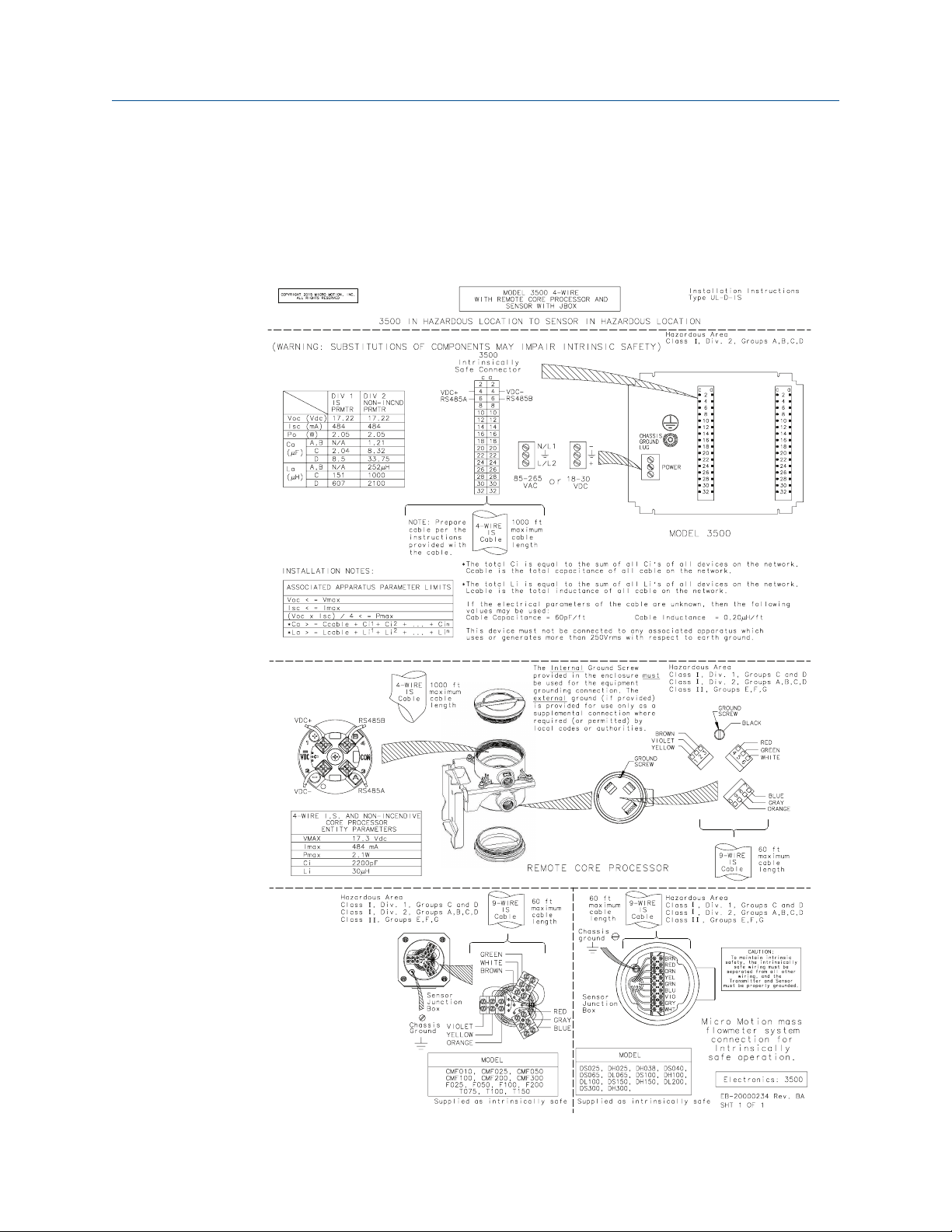

3.2.1 3500 with remote core processor and CMF, D, DL, F, or T sensors
This drawing does not apply to the D600, DT, CMF300A, or CMF400 with booster amplifier
sensors.
34 UL-D-IS Installation Instructions
Page 35
Installation Manual 3500 transmitters
20001964 November 2019
3.2.2 3500 with remote core processor and CMF300A sensor
Micro Motion Inc. 35
Page 36
3500 transmitters Installation Manual
November 2019 20001964

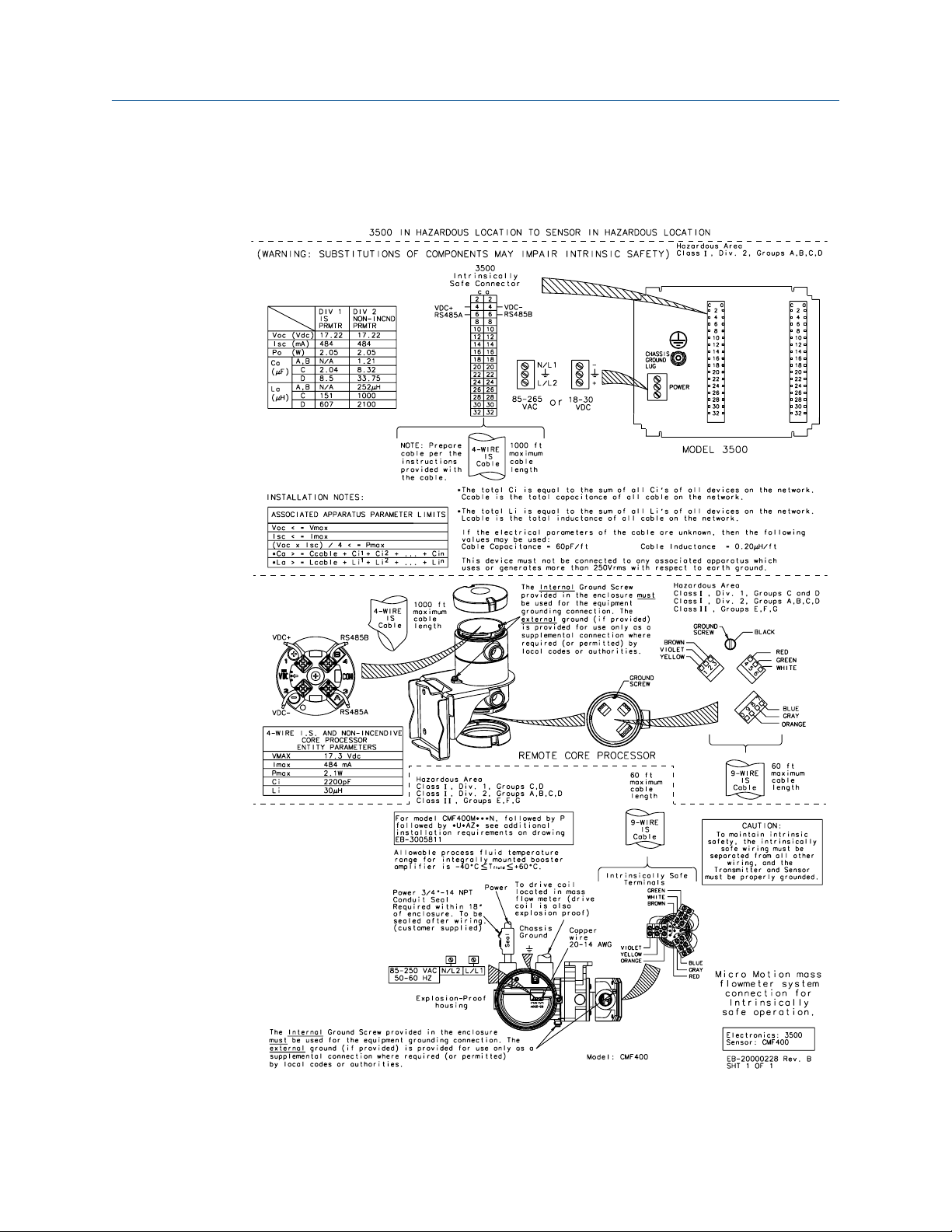

3.2.3 3500 with remote core processor and CMF400 sensor with booster amplifier
36 UL-D-IS Installation Instructions
Page 37
Installation Manual 3500 transmitters
20001964 November 2019
3.2.4 3500 with remote core processor and D600 sensor
Micro Motion Inc. 37
Page 38
3500 transmitters Installation Manual
November 2019 20001964

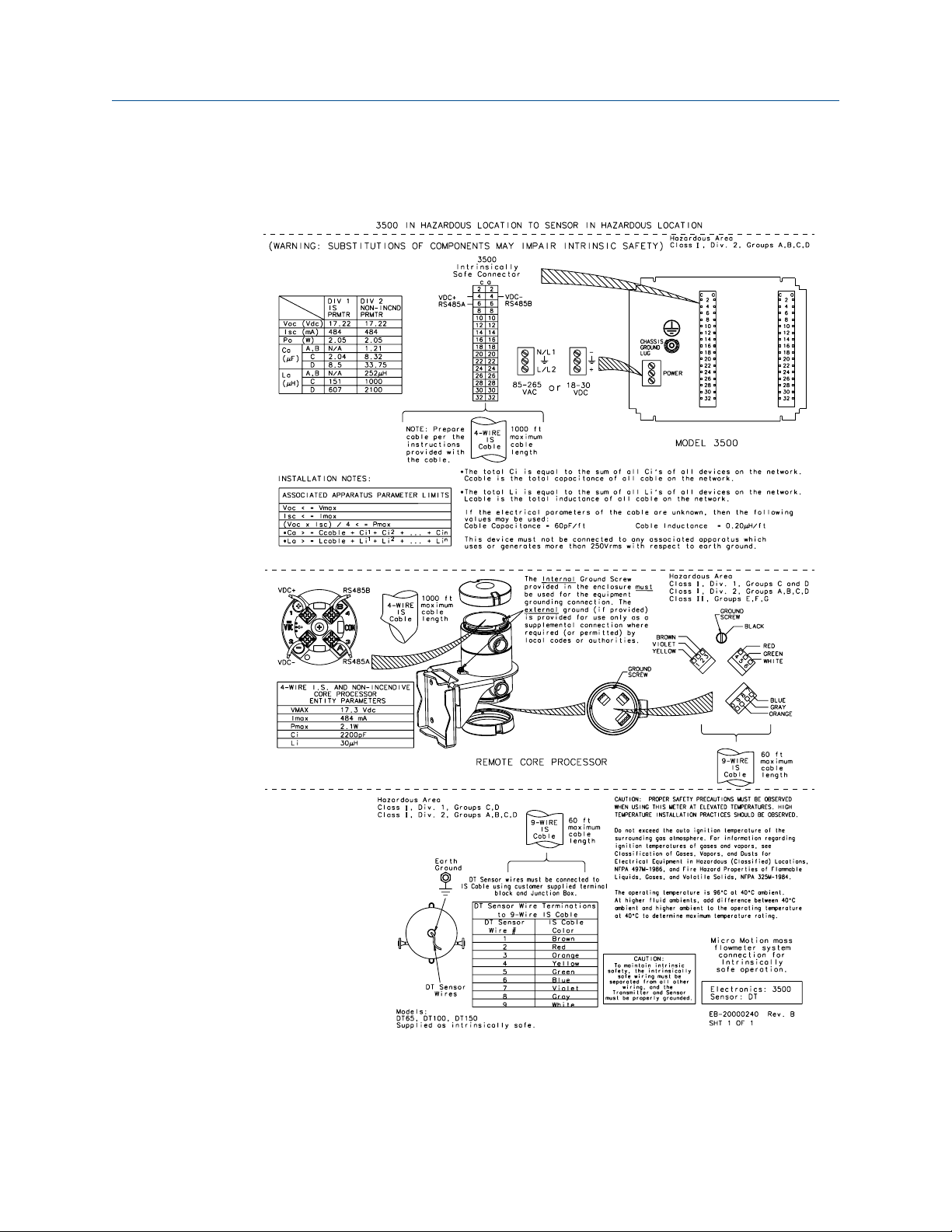

3.2.5 3500 with remote core processor and DT sensor
38 UL-D-IS Installation Instructions
Page 39
Installation Manual 3700 transmitters
20001964 November 2019
4 3700 transmitters
4.1 3700 4-wire installations
List of drawings
Installation Drawing
3700 4-wire with core processor and sensor EB-20000223 Rev BA
3700 4-wire with core processor and CMF400
sensor with booster amplifier
3700 4-wire with core processor and CMF, F, H,
R, CNF, or T sensors
3700 4-wire with core processor and D600
sensor
EB-20000217, Revision B
EB-20000208, Revision BA
EB-20000220, Revision B
Micro Motion Inc. 39
Page 40
3700 transmitters Installation Manual
November 2019 20001964

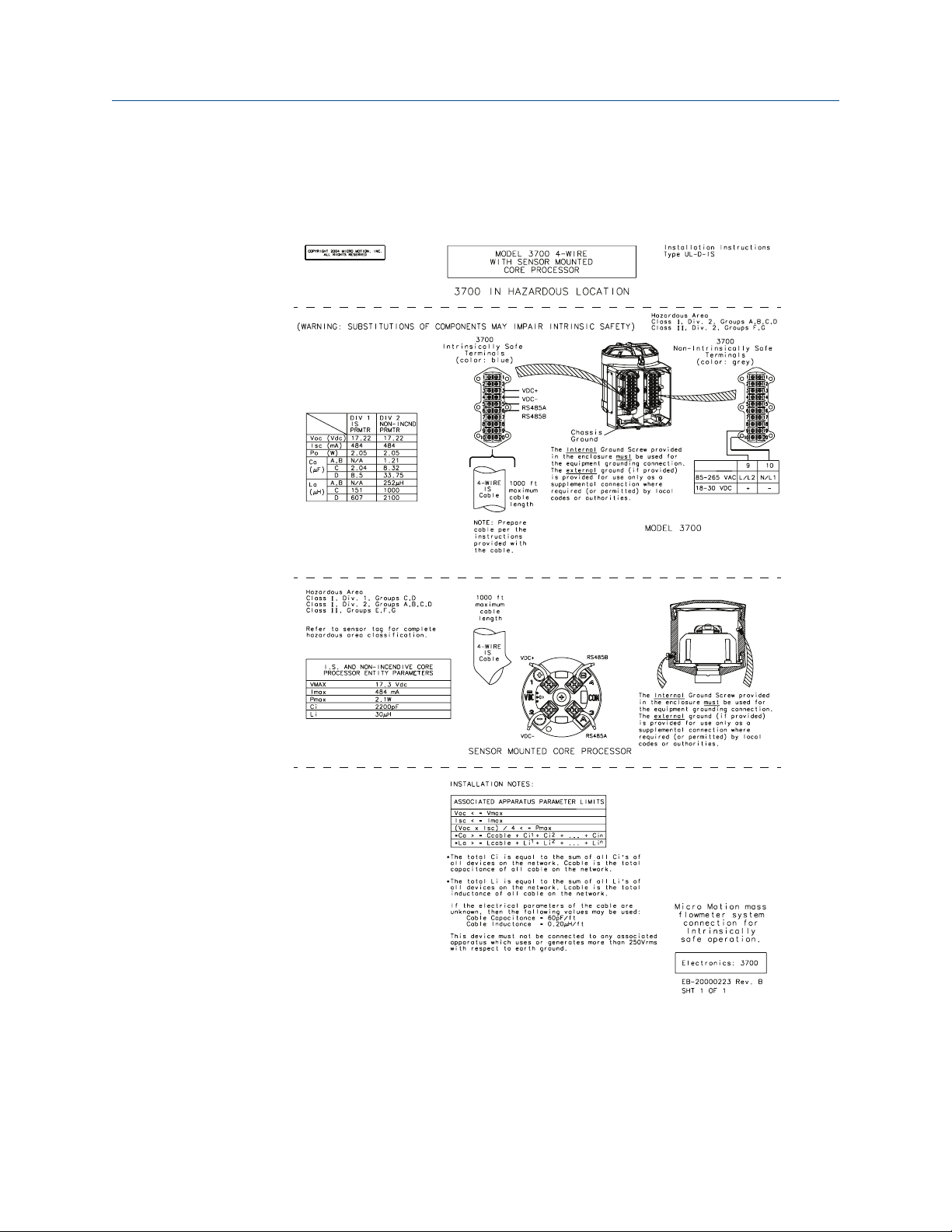

4.1.1 3700 4-wire with core processor and sensor
This drawing does not apply to D600 sensors or CMF400 sensors with a booster amplifier.
40 UL-D-IS Installation Instructions
Page 41
Installation Manual 3700 transmitters
20001964 November 2019

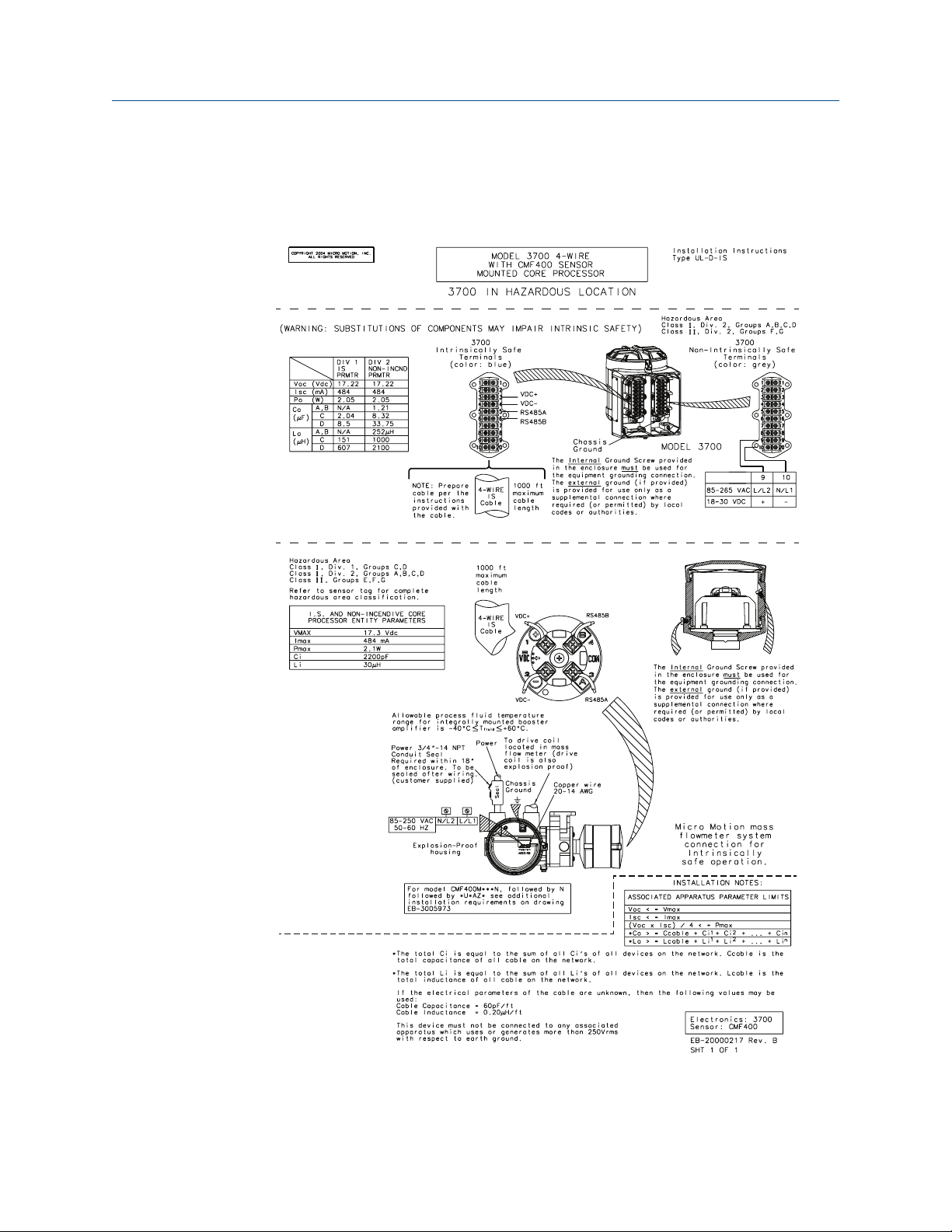

4.1.2 3700 4-wire with core processor and CMF400 sensor with booster amplifier
Micro Motion Inc. 41
Page 42
3700 transmitters Installation Manual
November 2019 20001964

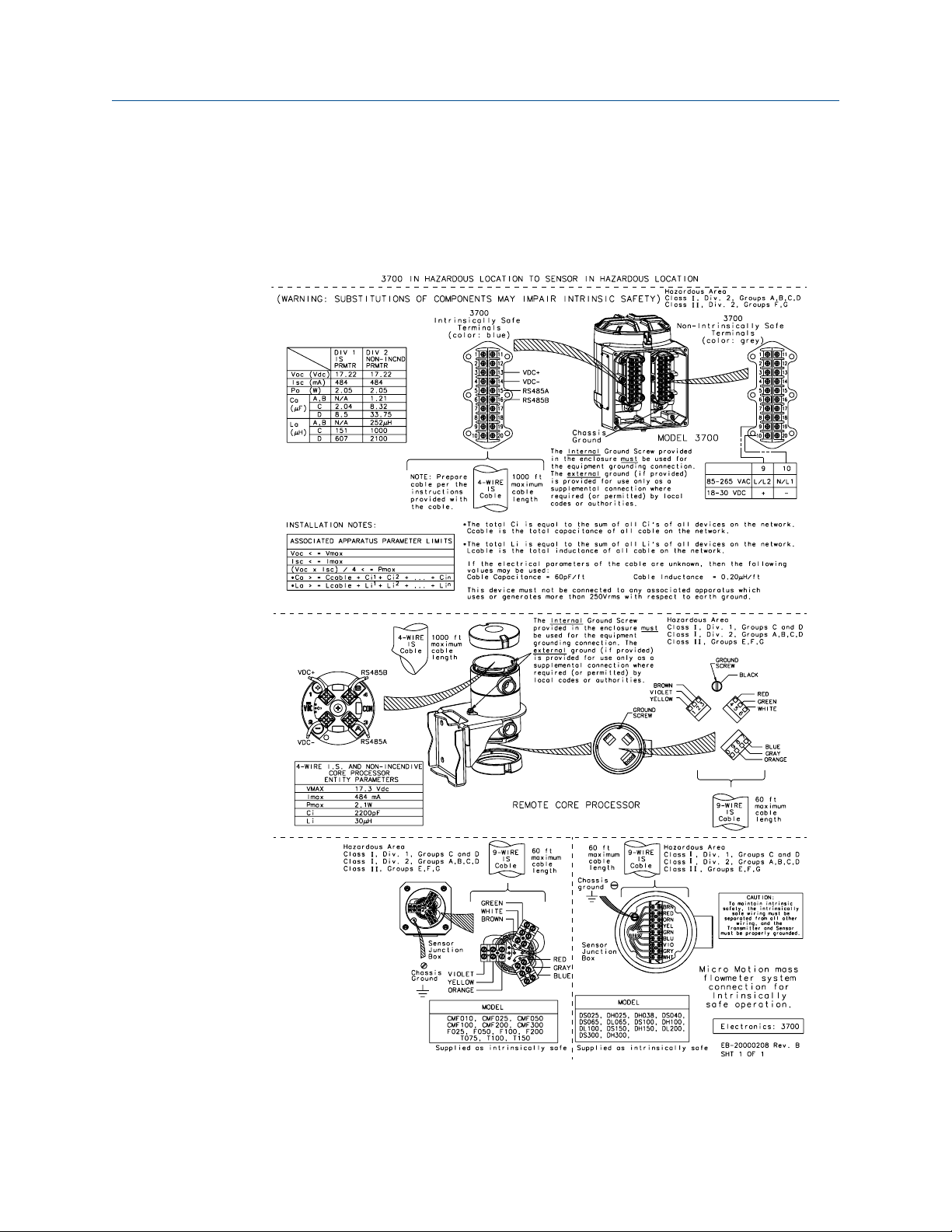

4.1.3 3700 4-wire with core processor and CMF, F, H, R, CNF, or T sensors
This drawing does not apply to the CMF300A sensor or to the CMF400 sensor with booster
amplifier.
42 UL-D-IS Installation Instructions
Page 43
Installation Manual 3700 transmitters
20001964 November 2019
4.1.4 3700 4-wire with core processor and D600 sensor
Micro Motion Inc. 43
Page 44
3700 transmitters Installation Manual
November 2019 20001964
4.2 3700 core processor installations
List of drawings
Installation Drawing
3700 with core processor and CMF, F, or T
sensors
3700 with core processor and CMF300A sensor EB-3002935, Revision F
3700 with core processor and CMF400 sensor
with booster amplifier
EB-3300564, Revision D
EB-3005808, Revision C
44 UL-D-IS Installation Instructions
Page 45
Installation Manual 3700 transmitters
20001964 November 2019

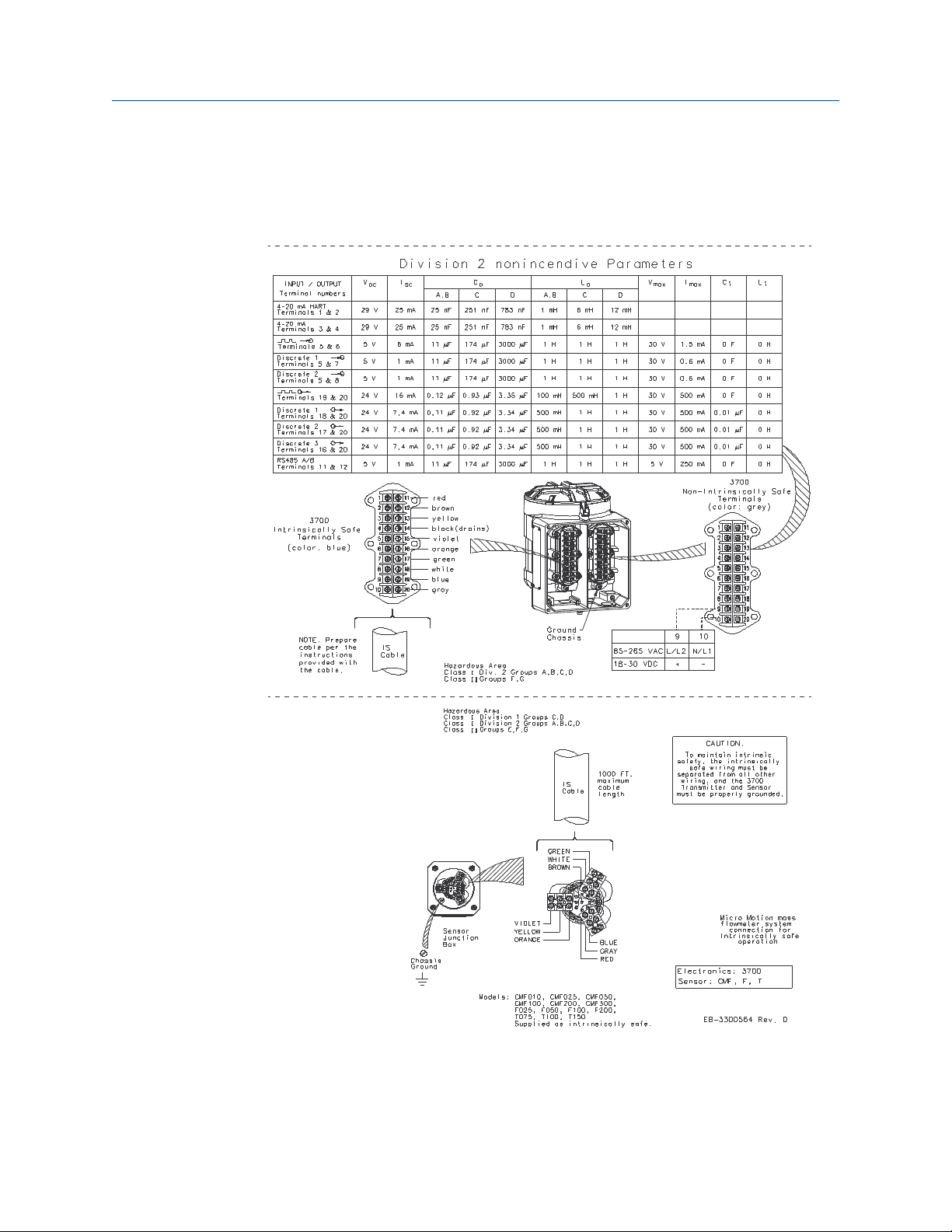

4.2.1 3700 with core processor and CMF, F, or T sensors
This drawing does not apply to the CMF300A sensor or to the CMF400 sensor with booster
amplifier.
Micro Motion Inc. 45
Page 46
3700 transmitters Installation Manual
November 2019 20001964

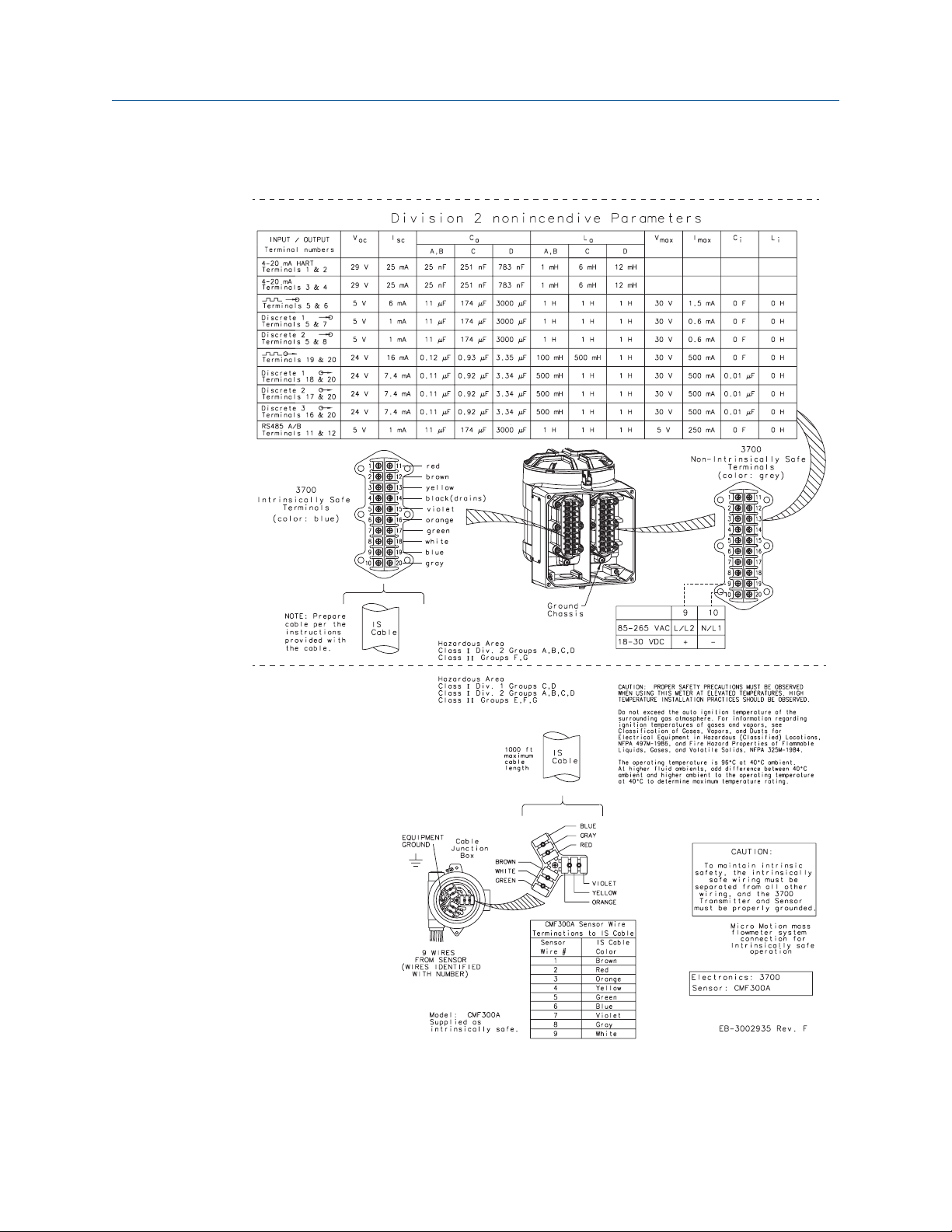

4.2.2 3700 with core processor and CMF300A sensor
46 UL-D-IS Installation Instructions
Page 47
Installation Manual 3700 transmitters
20001964 November 2019

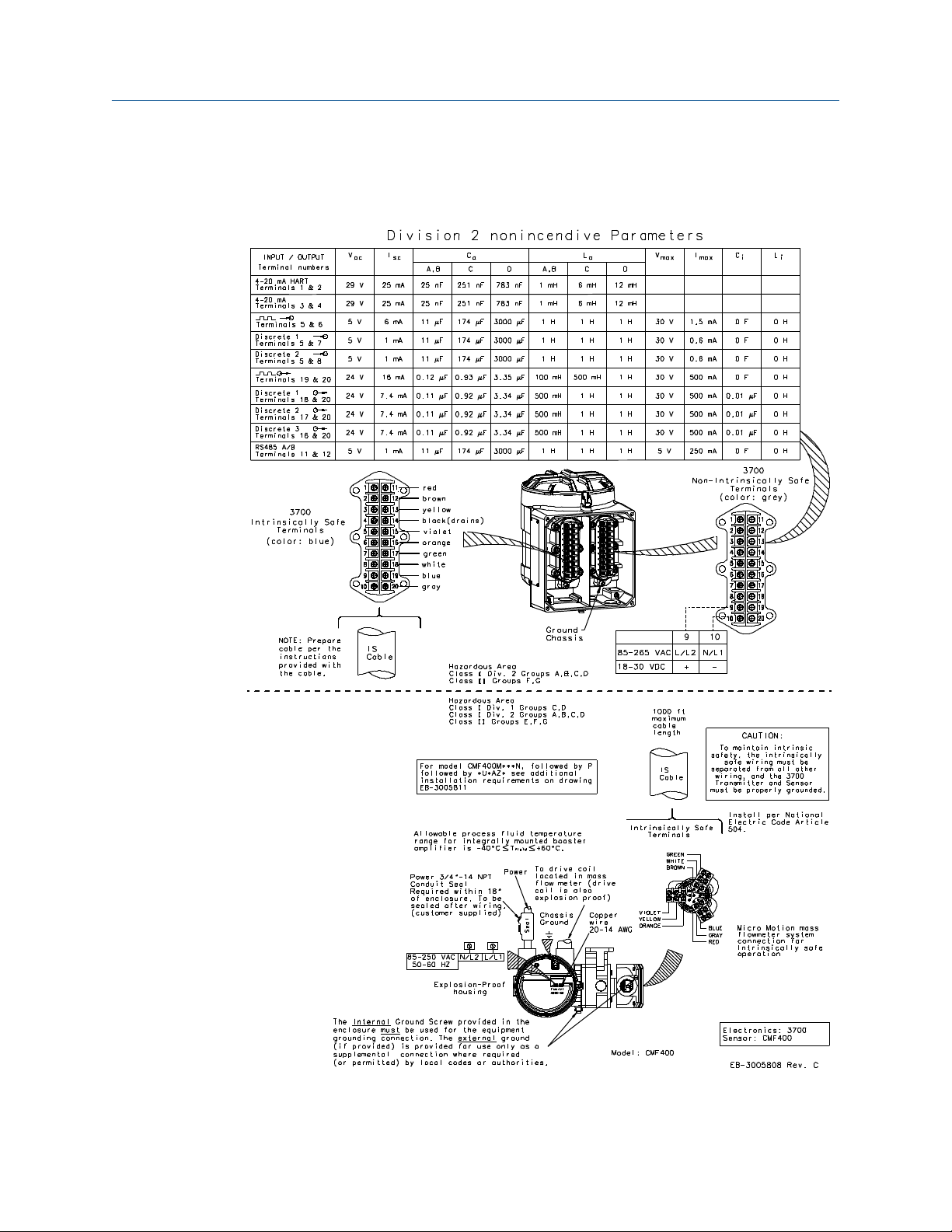

4.2.3 3700 with core processor and CMF400 sensor with booster amplifier
Micro Motion Inc. 47
Page 48
3700 transmitters Installation Manual
November 2019 20001964
4.3 3700 remote core processor installations
List of drawings
Installation Drawing
3700 with remote core processor and CMF, D,
DL, F, H, or T sensors
3700 with remote core processor and CMF300A
sensor
3700 with remote core processor and CMF400
sensor with booster amplifier
3700 with remote core processor and D600
sensor
3700 with remote core processor and DT sensor EB-20000214, Revision B
EB-20000208, Revision BA
EB-20000211, Revision C
EB-20000202, Revision B
EB-20000205, Revision B
48 UL-D-IS Installation Instructions
Page 49
Installation Manual 3700 transmitters
20001964 November 2019

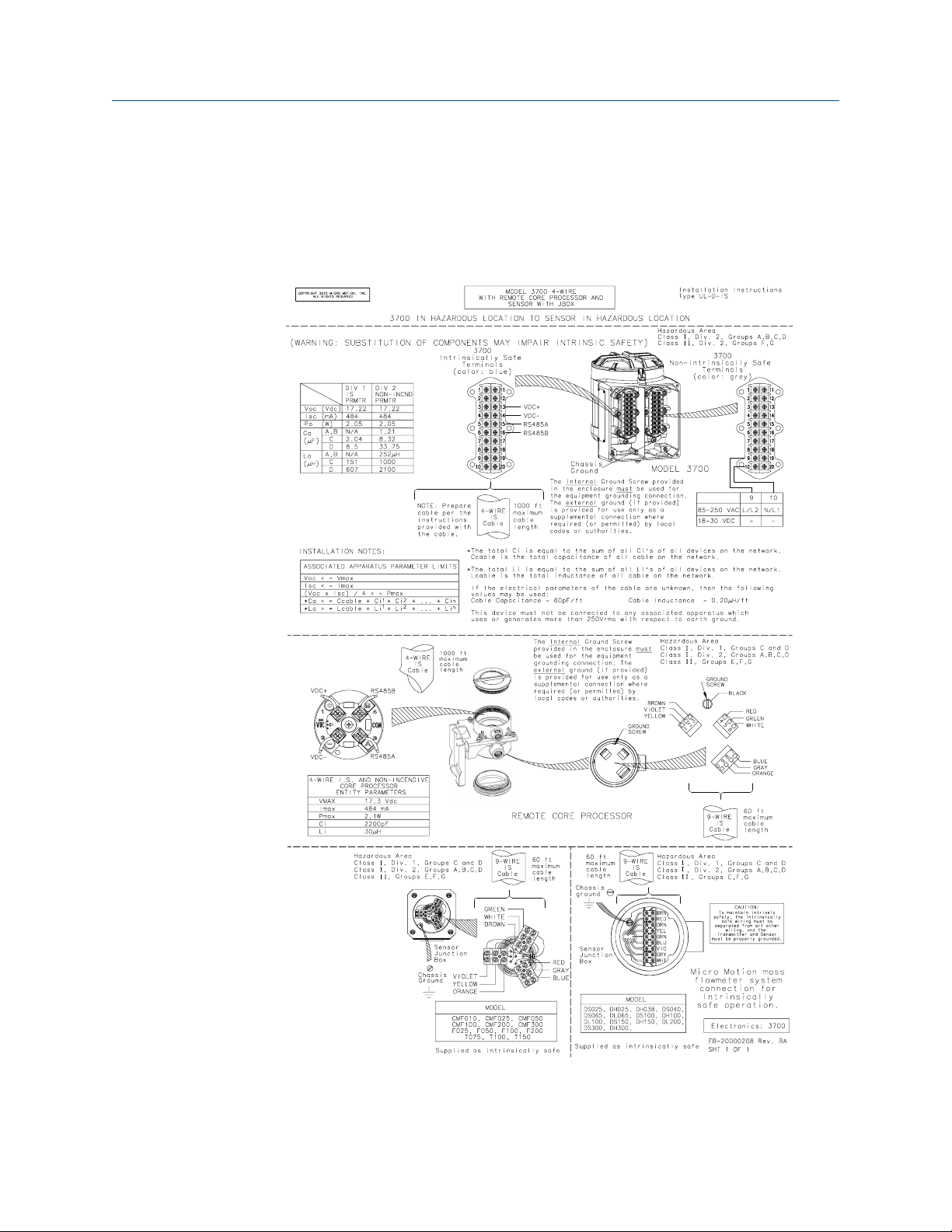

4.3.1 3700 with remote core processor and CMF, D, DL, F, H, or T sensors
This drawing does not apply to the D600, DT, CMF300A, or CMF400 with booster amplifier
sensors.
Micro Motion Inc. 49
Page 50
3700 transmitters Installation Manual
November 2019 20001964

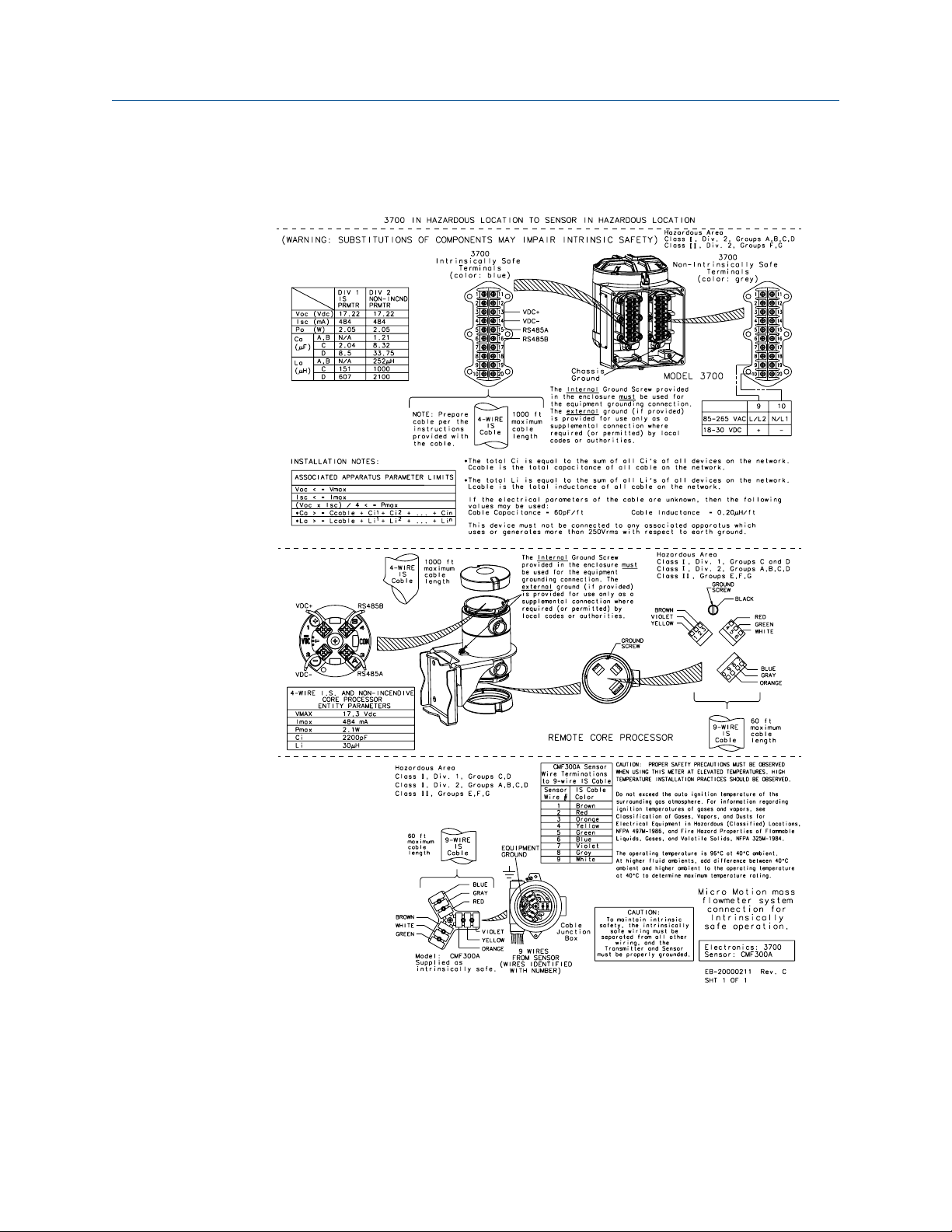

4.3.2 3700 with remote core processor and CMF300A sensor
50 UL-D-IS Installation Instructions
Page 51
Installation Manual 3700 transmitters
20001964 November 2019

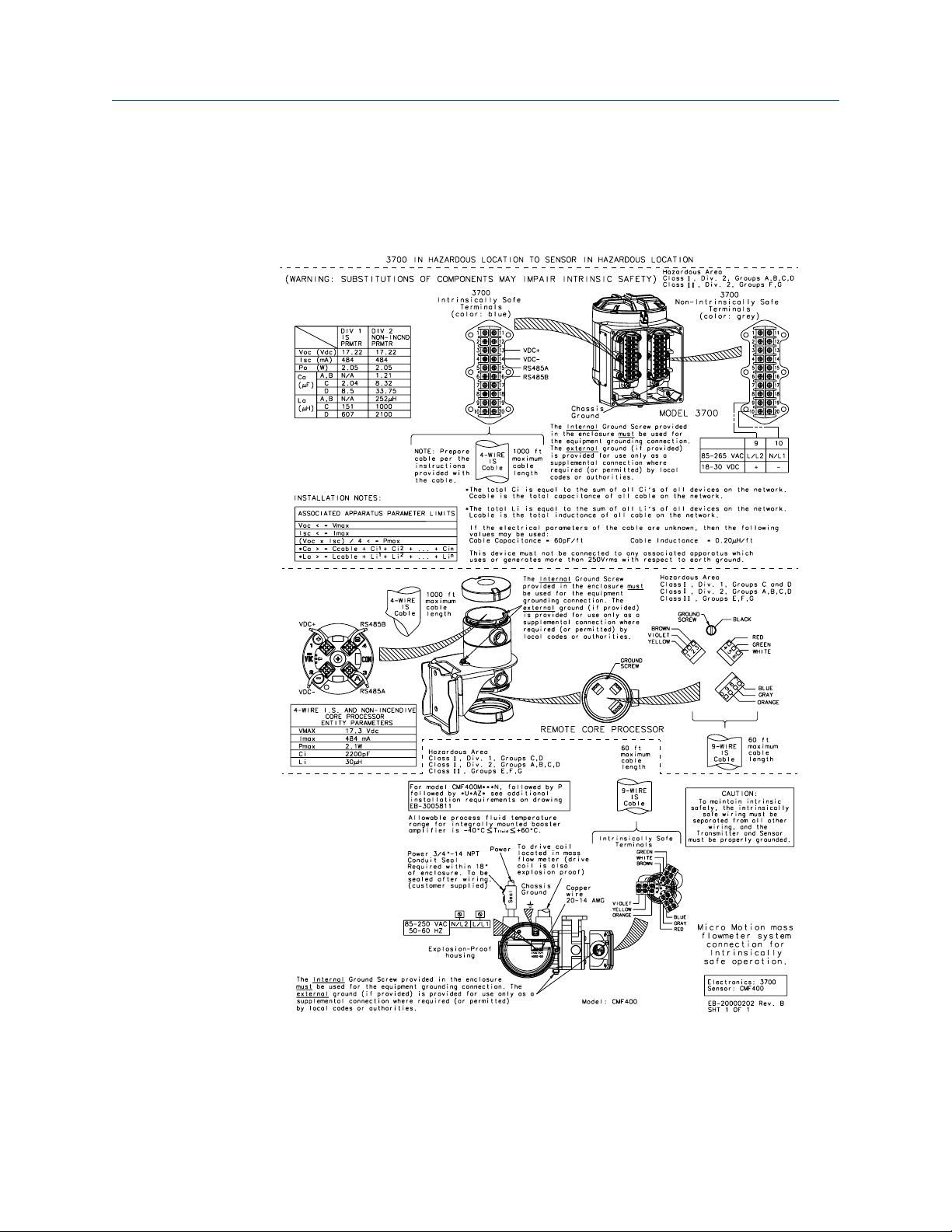

4.3.3 3700 with remote core processor and CMF400 sensor with booster amplifier
Micro Motion Inc. 51
Page 52
3700 transmitters Installation Manual
November 2019 20001964

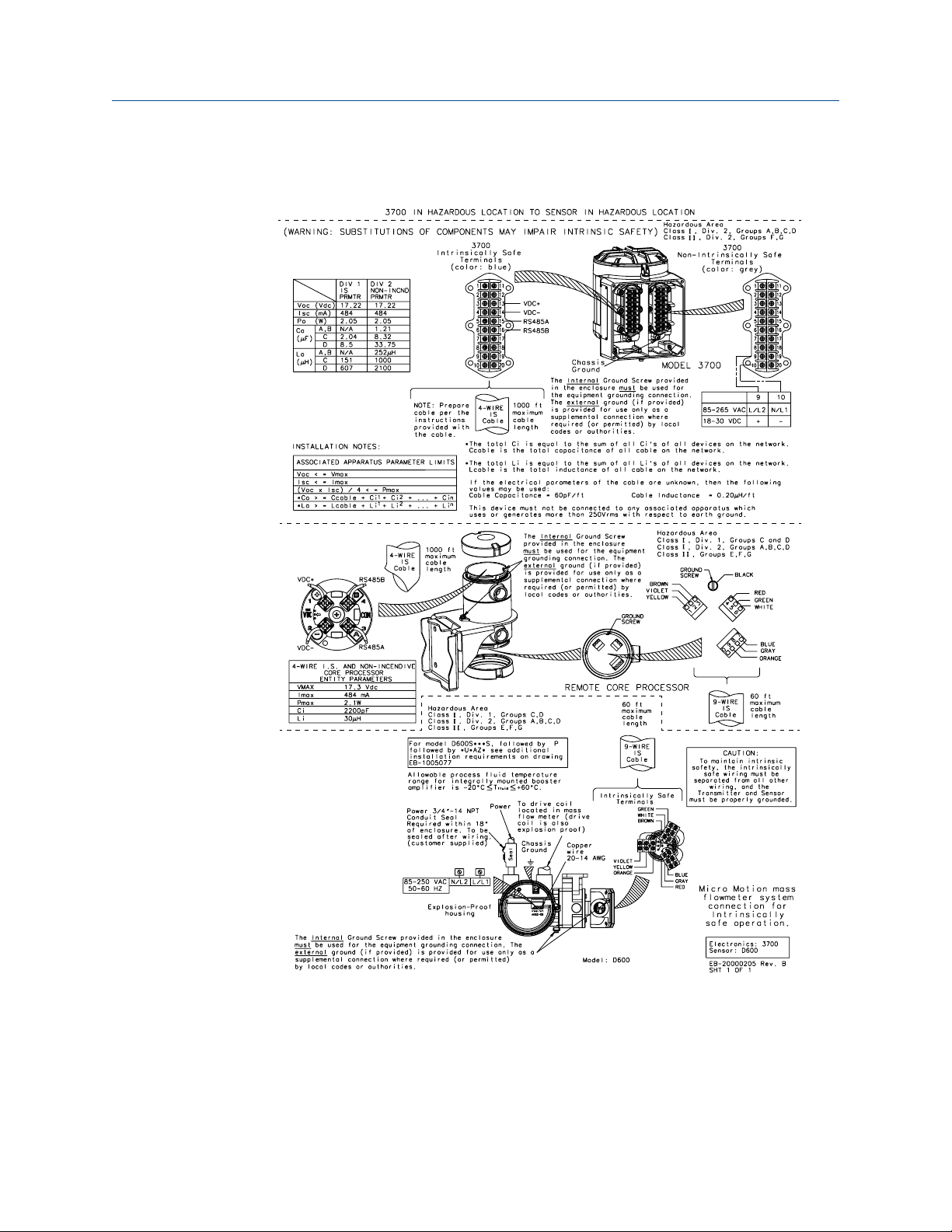

4.3.4 3700 with remote core processor and D600 sensor
52 UL-D-IS Installation Instructions
Page 53
Installation Manual 3700 transmitters
20001964 November 2019
4.3.5 3700 with remote core processor and DT sensor
Micro Motion Inc. 53
Page 54
3700 transmitters Installation Manual
November 2019 20001964
54 UL-D-IS Installation Instructions
Page 55
Installation Manual Booster amplifiers
20001964 November 2019
5 Booster amplifiers
5.1 Booster amplifiers with CMF400 sensors
List of drawings
Installation Drawing
Booster amplifier with core processor and
CMF400 sensor
Booster amplifier with junction box and CMF400
sensor
EB-3005973, Revision D
EB-3005811, Revision D
Micro Motion Inc. 55
Page 56
Booster amplifiers Installation Manual
November 2019 20001964
5.1.1 Booster amplifier with core processor and CMF400 sensor
56 UL-D-IS Installation Instructions
Page 57
Installation Manual Booster amplifiers
20001964 November 2019

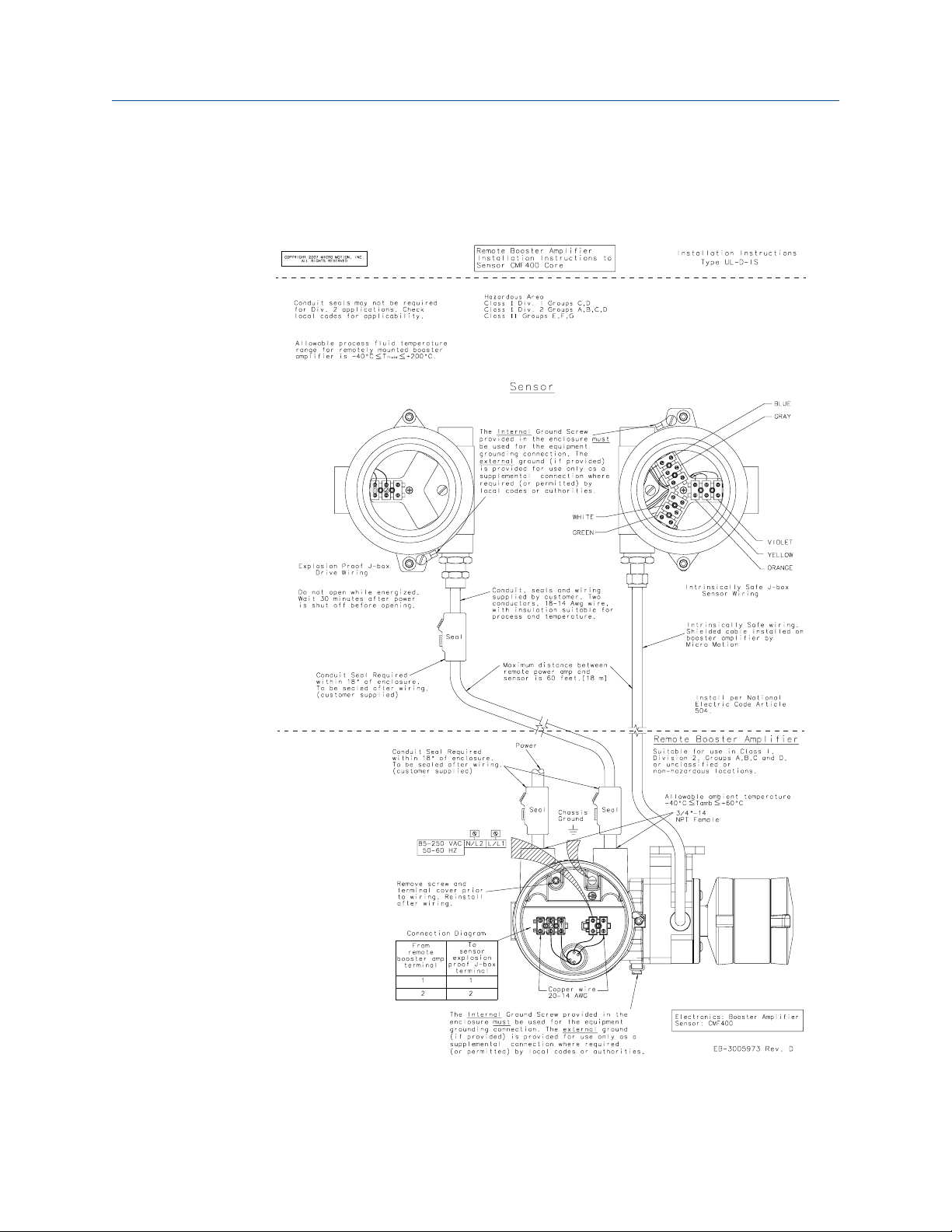

5.1.2 Booster amplifier with junction box and CMF400 sensor
Micro Motion Inc. 57
Page 58
Booster amplifiers Installation Manual
November 2019 20001964
5.2 Booster amplifiers with D600 sensors
List of drawings
Installation Drawing
Booster amplifier with core processor and D600
sensor
Booster amplifier with junction box and D600
sensor
EB-1005076, Revision C
EB-1005077, Revision C
58 UL-D-IS Installation Instructions
Page 59
Installation Manual Booster amplifiers
20001964 November 2019
5.2.1 Booster amplifier with core processor and D600 sensor
Micro Motion Inc. 59
Page 60
Booster amplifiers Installation Manual
November 2019 20001964

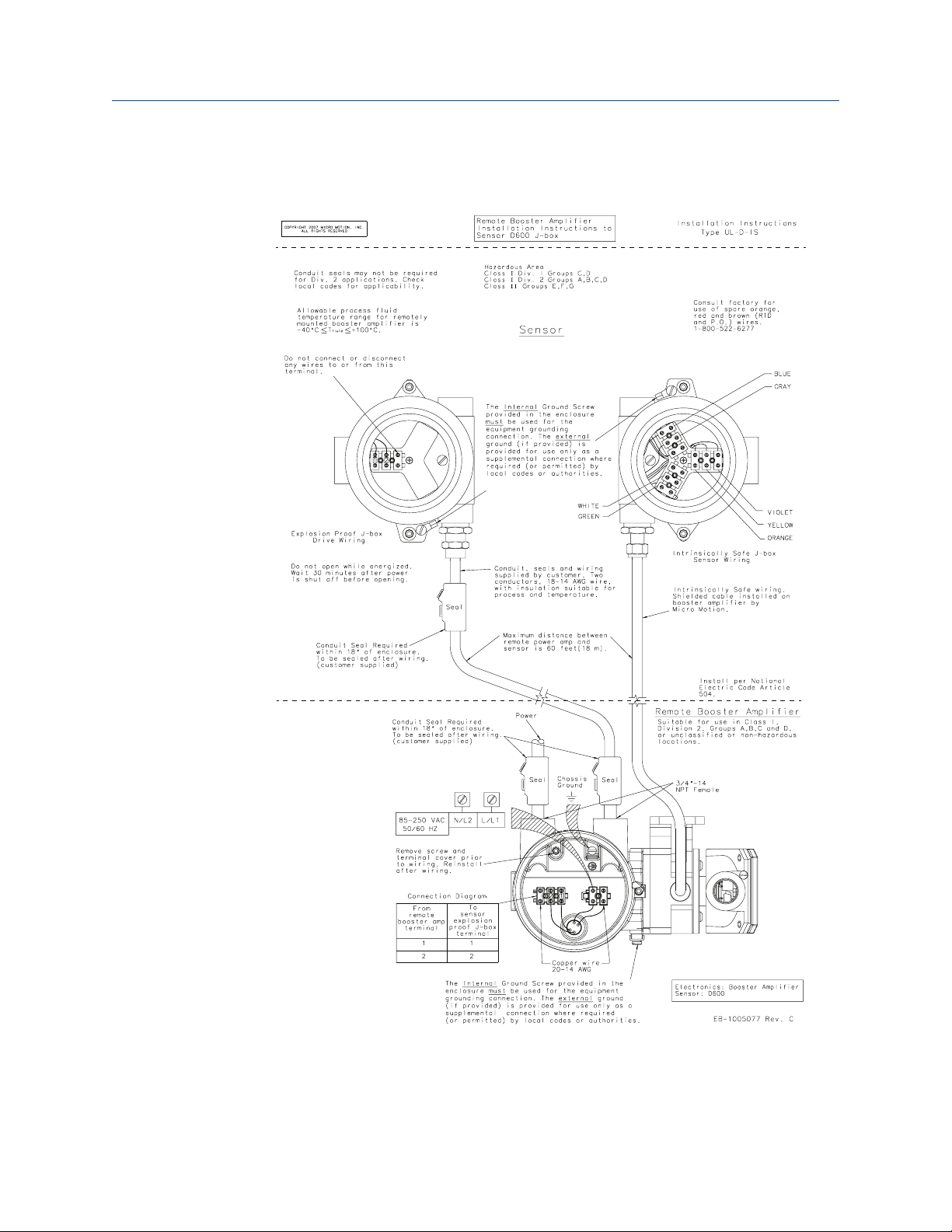

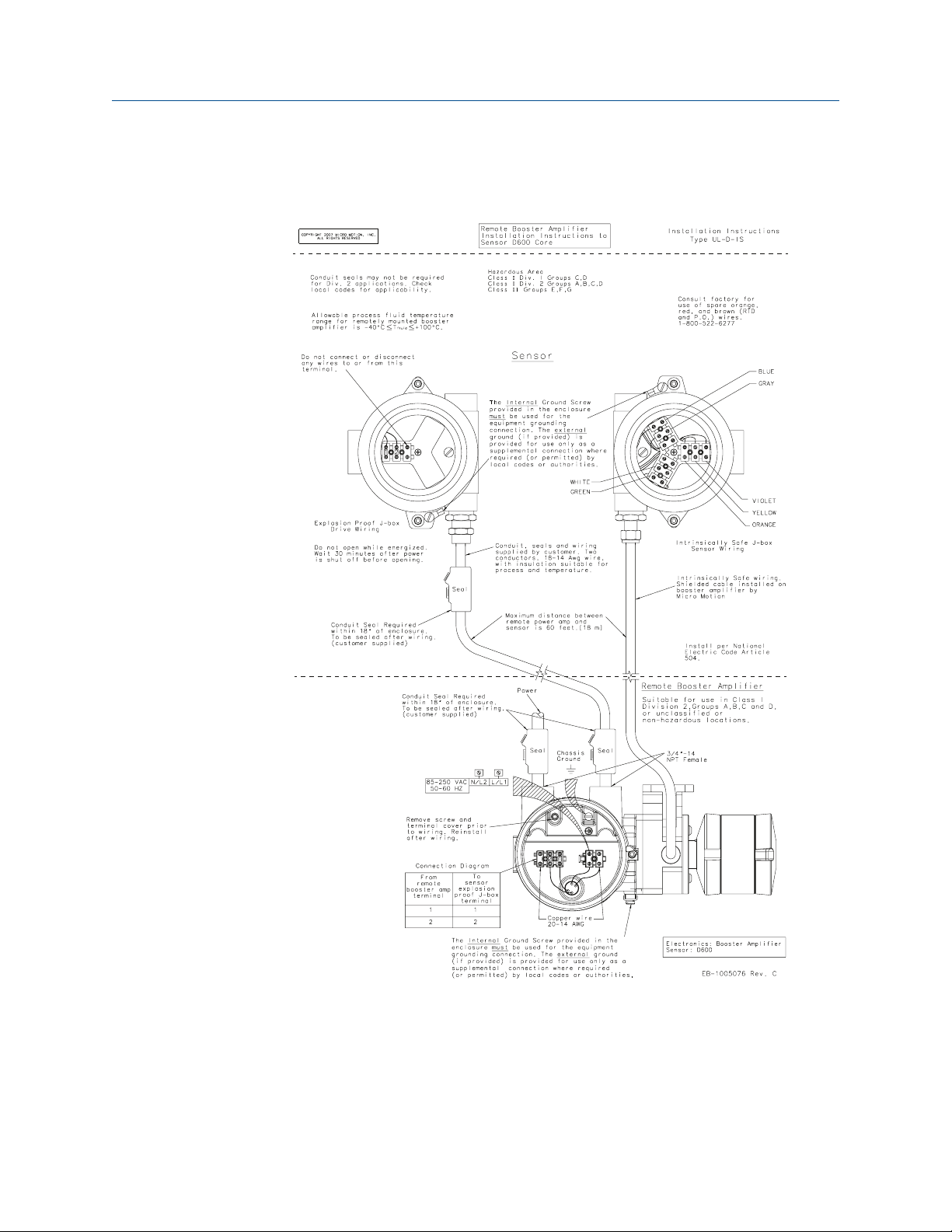

5.2.2 Booster amplifier with junction box and D600 sensor
60 UL-D-IS Installation Instructions
Page 61
Installation Manual Direct host 4-wire
20001964 November 2019
6 Direct host 4-wire
Core processor to direct host through a safety barrier
Micro Motion Inc. 61
Page 62
*20001964*
20001964
Rev. BC
2019
Micro Motion Inc. USA
Worldwide Headquarters
7070 Winchester Circle
Boulder, Colorado USA 80301
T +1 303-527-5200
T +1 800-522-6277
F +1 303-530-8459
www.emerson.com
Micro Motion Asia
Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461
Republic of Singapore
T +65 6363-7766
F +65 6770-8003
©
2019 Micro Motion, Inc. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE,
ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation
Solutions family of companies. All other marks are property of their respective owners.
Micro Motion Europe
Emerson Automation Solutions
Neonstraat 1
6718 WX Ede
The Netherlands
T +31 (0) 318 495 555
T +31 (0) 70 413 6666
F +31 (0) 318 495 556
www.emerson.com/nl-nl
Micro Motion United Kingdom
Emerson Automation Solutions
Emerson Process Management Limited
Horsfield Way
Bredbury Industrial Estate
Stockport SK6 2SU U.K.
T +44 0870 240 1978
F +44 0800 966 181
Loading...
