Micro Motion™ UL-D-IS Installation
Instructions, 9-wire
Preparation
Installation Manual
20001969, Rev BB
November 2019
Safety messages
Safety messages are provided throughout this manual to protect personnel and equipment. Read each safety message carefully
before proceeding to the next step.
Safety and approval information
This Micro Motion product complies with all applicable European directives when properly installed in accordance with the
instructions in this manual. Refer to the EU declaration of conformity for directives that apply to this product. The EU declaration
of conformity, with all applicable European directives, and the complete ATEX Installation Drawings and Instructions are available
on the internet at www.emerson.com or through your local Micro Motion support center.
Information affixed to equipment that complies with the Pressure Equipment Directive, can be found on the internet at
www.emerson.com.
For hazardous installations in Europe, refer to standard EN 60079-14 if national standards do not apply.
Other information
Full product specifications can be found in the product data sheet. Troubleshooting information can be found in the configuration
manual. Product data sheets and manuals are available from the Micro Motion web site at www.emerson.com.
Return policy
Follow Micro Motion procedures when returning equipment. These procedures ensure legal compliance with government
transportation agencies and help provide a safe working environment for Micro Motion employees. Micro Motion will not accept
your returned equipment if you fail to follow Micro Motion procedures.
Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion
Customer Service department.
Emerson Flow customer service
Email:
• Worldwide: flow.support@emerson.com
• Asia-Pacific: APflow.support@emerson.com
Telephone:
North and South America
United States 800-522-6277 U.K. 0870 240 1978 Australia 800 158 727
Canada +1 303-527-5200 The Netherlands +31 (0) 704 136
Mexico +41 (0) 41 7686
111
Argentina +54 11 4837 7000 Germany 0800 182 5347 Pakistan 888 550 2682
Brazil +55 15 3413 8000 Italy 8008 77334 China +86 21 2892 9000
Europe and Middle East Asia Pacific
666
France 0800 917 901 India 800 440 1468
Central & Eastern +41 (0) 41 7686
111
Russia/CIS +7 495 995 9559 South Korea +82 2 3438 4600
Egypt 0800 000 0015 Singapore +65 6 777 8211
Oman 800 70101 Thailand 001 800 441 6426
Qatar 431 0044 Malaysia 800 814 008
Kuwait 663 299 01
South Africa 800 991 390
Saudi Arabia 800 844 9564
UAE 800 0444 0684
New Zealand 099 128 804
Japan +81 3 5769 6803
2
Installation Manual Contents
20001969 November 2019
Contents
Chapter 1 Before you begin............................................................................................................5
1.1 About this document........................................................................................................................5
1.2 Hazard messages..............................................................................................................................5
1.3 Hazardous area installations............................................................................................................. 6
Chapter 2 1700 and 2700 transmitters........................................................................................... 7
2.1 1700 and 2700 transmitter outputs..................................................................................................7
2.2 1700/2700 integral core processor installations............................................................................. 13
2.3 1700/2700 remote core processor installations..............................................................................19
Chapter 3 3300 transmitters........................................................................................................ 25
Chapter 4 3350 transmitters........................................................................................................ 27
Chapter 5 3500 transmitters........................................................................................................ 28
5.1 3500 core processor installations................................................................................................... 28
5.2 3500 remote core processor installations....................................................................................... 35
Chapter 6 3700 transmitters........................................................................................................ 42
6.1 3700 core processor installations................................................................................................... 42
6.2 3700 remote core processor installations....................................................................................... 47
Chapter 7 9701 transmitters........................................................................................................ 54
7.1 9701 with CMF or F sensors............................................................................................................ 55
7.2 9701 with CMF300A sensor............................................................................................................ 56
7.3 9701 with CMF400 sensor with booster amplifier........................................................................... 57
7.4 9701 with D or DL sensors.............................................................................................................. 58
Chapter 8 9739 transmitters........................................................................................................ 60
8.1 9739 field mount installations........................................................................................................ 60
8.2 9739 rack mount installations........................................................................................................ 68
Chapter 9 Booster amplifiers........................................................................................................76
9.1 Booster amplifiers with CMF400 sensors.........................................................................................76
9.2 Booster amplifiers with D600 sensors............................................................................................. 78
Installation Instructions iii
Contents Installation Manual
November 2019 20001969
iv Micro Motion UL-D-IS 9-Wire
Installation Manual Before you begin
20001969 November 2019
1 Before you begin
1.1 About this document
Use this manual to ensure that any applicable Micro Motion flow meter installation
complies with Underwriter Laboratories (UL) safety standards.
The information in this document assumes that users understand basic transmitter and
sensor installation concepts and procedures.
This manual provides only information associated with installation of transmitters through
UL-D-IS, 9-wire instructions. For complete information on flow meter installation, see the
documentation provided with your sensor and transmitter.
1.2 Hazard messages
This document uses the following criteria for hazard messages based on ANSI standards
Z535.6-2011 (R2017).
DANGER
Serious injury or death will occur if a hazardous situation is not avoided.
WARNING
Serious injury or death could occur if a hazardous situation is not avoided.
CAUTION
Minor or moderate injury will or could occur if a hazardous situation is not avoided.
NOTICE
Data loss, property damage, hardware damage, or software damage can occur if a
situation is not avoided. There is no credible risk of physical injury.
Physical access
NOTICE
Unauthorized personnel can potentially cause significant damage and/or misconfiguration
of end users' equipment. Protect against all intentional or unintentional unauthorized use.
Physical security is an important part of any security program and fundamental to
protecting your system. Restrict physical access to protect users' assets. This is true for all
systems used within the facility.
Installation Instructions 5
Before you begin Installation Manual
November 2019 20001969
1.3 Hazardous area installations
If your cable will be installed in a hazardous area, ensure that it meets the hazardous area
requirements.
WARNING
Failure to maintain intrinsic safety in a hazardous area could cause an explosion
resulting in injury or death.
To keep sensor wiring intrinsically safe:
• Keep intrinsically safe (IS) sensor wiring separate from power supply wiring and output
wiring.
• Do not install power cable in the same conduit or cable tray as flow meter cable.
• Use this document with the appropriate approvals documentation. These manuals are
shipped with the flow meter or available at www.emerson.com.
• For hazardous area installations in Europe, refer to standard EN 60079-14 if national
standards do not apply.
6 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2 1700 and 2700 transmitters
2.1 1700 and 2700 transmitter outputs
List of drawings
Transmitter Drawing
1700/2700 mA Outputs EB-3600478, Revision DA
1700/2700 intrinsically safe outputs EB-3600630, Revision EA
2700 configurable inputs and outputs EB-3600666, Revision CA
1700/2700 FOUNDATION™ fieldbus outputs EB-3600475, Revision G
1700/2700 Profibus-PA outputs EB-3600472, Revision G
Installation Instructions 7
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.1.1 1700/2700 mA Outputs
8 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.1.2 1700/2700 intrinsically safe outputs
Installation Instructions 9
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.1.3 2700 configurable inputs and outputs
10 Micro Motion UL-D-IS 9-Wire
G
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.1.4 1700/2700 FOUNDATION™ fieldbus outputs
Installation Instructions 11
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.1.5 1700/2700 Profibus-PA outputs
12 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.2 1700/2700 integral core processor installations
List of drawings
Installation Drawing
1700/2700 with integral core processor and
CMF, F, T, D, or DL sensors
1700/2700 with integral core processor and
CMF300A sensor
1700/2700 with integral core processor and
CMF400 sensor with booster amplifier
1700/2700 with integral core processor and
D600 sensor
1700/2700 with integral core processor and DT
sensor
EB-3600420, Rev EA
EB-3600533, Revision D
EB-3006198, Revision C
EB-1005116, Revision B
EB-3600532 Rev D
Installation Instructions 13
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.2.1 1700/2700 with integral core processor and CMF, F, T, D, or DL sensors
This drawing does not apply to the D600, DT, CMF300A, or CMF400 with booster amplifier
sensors.
14 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.2.2 1700/2700 with integral core processor and CMF300A sensor
Installation Instructions 15
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.2.3 1700/2700 with integral core processor and CMF400 sensor with booster amplifier
16 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.2.4 1700/2700 with integral core processor and D600 sensor
Installation Instructions 17
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.2.5 1700/2700 with integral core processor and DT sensor
18 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.3 1700/2700 remote core processor installations
List of drawings
Installation Drawing
1700/2700 with remote core processor and
CMF, F, T, D, or DL sensors
1700/2700 with remote core processor and
CMF300A sensor
1700/2700 with remote core processor and
CMF400 sensor with booster amplifier
1700/2700 with remote core processor and
D600 sensor
1700/2700 with remote core processor and DT
sensor
EB-3600676 Revision DA
EB-3600678, Revision D
EB-3007060, Revision C
EB-1005118, Revision B
EB-3600677, Revision C
Installation Instructions 19
1700 and 2700 transmitters Installation Manual
November 2019 20001969

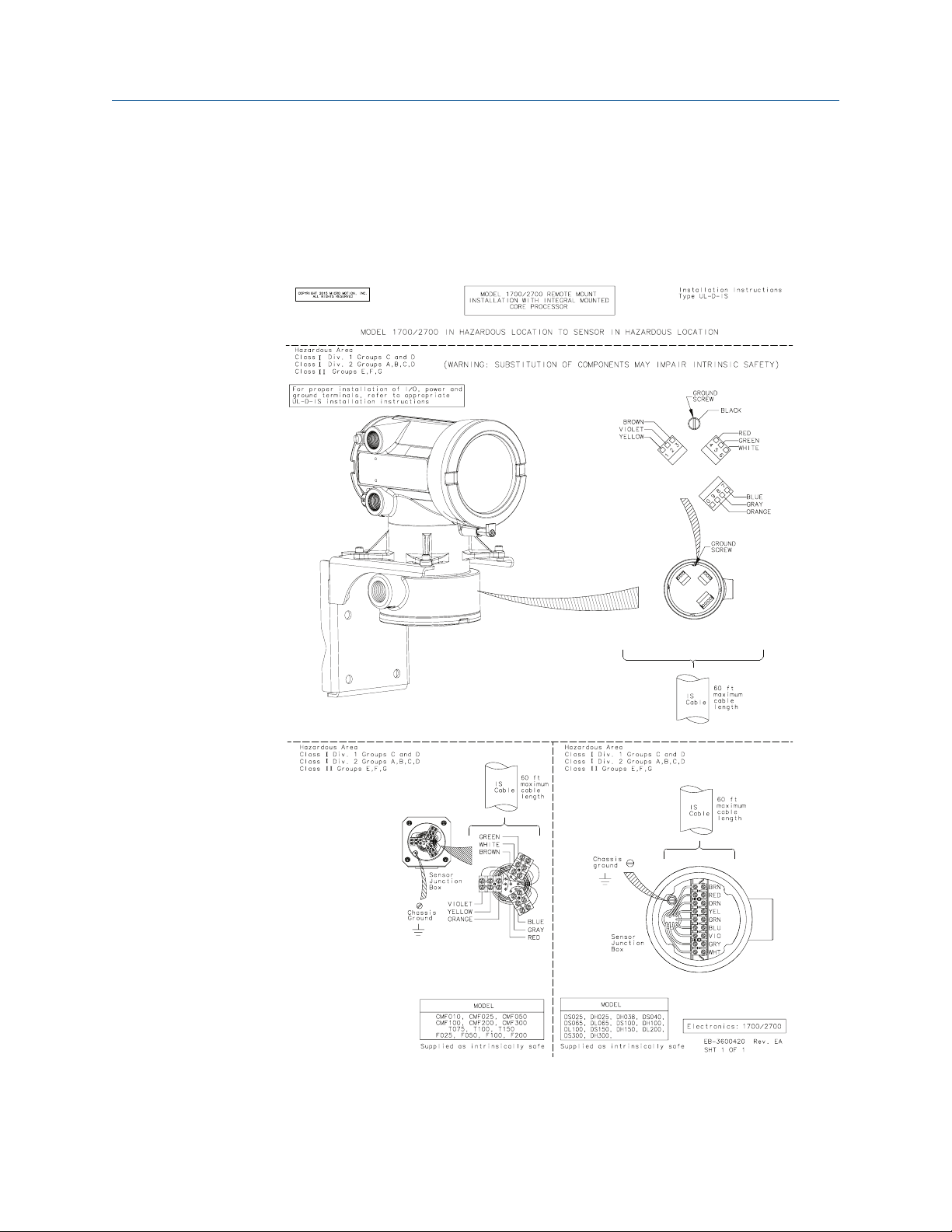

2.3.1 1700/2700 with remote core processor and CMF, F, T, D, or DL sensors
This drawing does not apply to the D600, DT, CMF300A, or CMF400 with booster amplifier
sensors.
20 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.3.2 1700/2700 with remote core processor and CMF300A sensor
Installation Instructions 21
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.3.3 1700/2700 with remote core processor and CMF400 sensor with booster amplifier
22 Micro Motion UL-D-IS 9-Wire
Installation Manual 1700 and 2700 transmitters
20001969 November 2019
2.3.4 1700/2700 with remote core processor and D600 sensor
Installation Instructions 23
1700 and 2700 transmitters Installation Manual
November 2019 20001969
2.3.5 1700/2700 with remote core processor and DT sensor
24 Micro Motion UL-D-IS 9-Wire
