1
TM
ACCOUNT .......................................................... 10!
TM
SEARCH ...................................................... 16!
2
TM
MAPS ............................................................... 33!
3
• Please read all safety precautions and this manual
carefully before using your device to ensure safe and
proper use.
• The descriptions in this manual are based on the default
settings of your device.
• Available features and additional services may vary by
device, software, or service provider.
• Applications and their functions may vary based on the
country, region, software or hardware specifications.
Micromax is not liable for performance issues caused by
third-party applications.
• The colors, specifications, functions and graphics
shown/mentioned in the user manual may differ from
the actual product. In such a case, the latter shall
govern. Images shown are for representation purpose
only. Specifications are subject to change without prior
4
notice. Micromax keeps the right to modify the content
in this user guide without prior notice.
• Upon first use of your device, your device will send
information related to your mobile, IMEI numbers,
location details and other software details through SMS*
automatically. This information may be used as further
specified in Micromax privacy policy**.
• Talk and standby times are affected by network
preferences, type of SIM cards, connected accessories
and individual usage patterns. Services and some
features may be dependent on the network,
service/content providers, SIM cards, compatibility of the
devices used and the content formats supported.
• Other product logos and company names mentioned
herein may be trademarks or trade names of their
respective owners.
5
1. Switch off your phone and remove the rear cover and
battery as illustrated in the following image:
6
2. Insert the SIM cards correctly in the card slot(s), as
illustrated in the following image:
3. Place back the battery and rear cover.
Please keep the SIM card out of the reach of children.
The card and the contacts are vulnerable to damage
due to scratching or bending. Therefore, be careful
when using, inserting or removing the cards.
7
1. Switch off the mobile phone, and then remove the rear
cover and battery.
2. Insert the memory card into the slot as illustrated in
the following image:
3. Place back the battery and rear cover of the mobile
phone.
Use only compatible memory cards approved by
Micromax with this device. Incompatible memory
cards may damage the card or the device and corrupt
the data stored in the card.
8
To restart your phone, long press the Power key and
select Reboot.
Keys
Functions
• Long press to switch on or
switch off the phone.
• Press once to turn off the
screen or to wake up the
screen.
• Press for 2 seconds to view
quick options to turn off the
phone, reboot the device,
switch to airplane mode, or
adjust the sound profiles.
9
• Adjust the phone volume from
the volume keys available on
the left side of the device.
• Opens a menu with items that
affect the current screen or
application.
• If tapped when on the home
screen, opens options to
personalize the home screen.
• On long tap, opens the most
recently used applications.
• Opens the Home screen.
• On long tap, opens GoogleTM
Now.
• Opens the previous screen you
were working on.
• If the onscreen keyboard is
open, closes the keyboard.
10
You can also use a compatible USB charger to charge
your battery.!
Use only Micromax approved chargers and cables.
Unapproved chargers or cables can cause battery to
explode or damage your device.!
We suggest you charge the battery for 4 hours
continuously for the first time.!
TM
Account
TM
Account lets you take full advantage of
TM
Android market.
TM
account on this handset to get access to
TM
mails, GoogleTM Play Store, GoogleTM Maps, and
TM
account setup will be prompted when you turn on your
11
Network connection will be required for the GoogleTM
account setup step to appear.
TM
account at any later
If you do not have an existing GoogleTM account, you
may create one from the account configuring step.
You may add various other accounts, depending on
your applications.
12 13

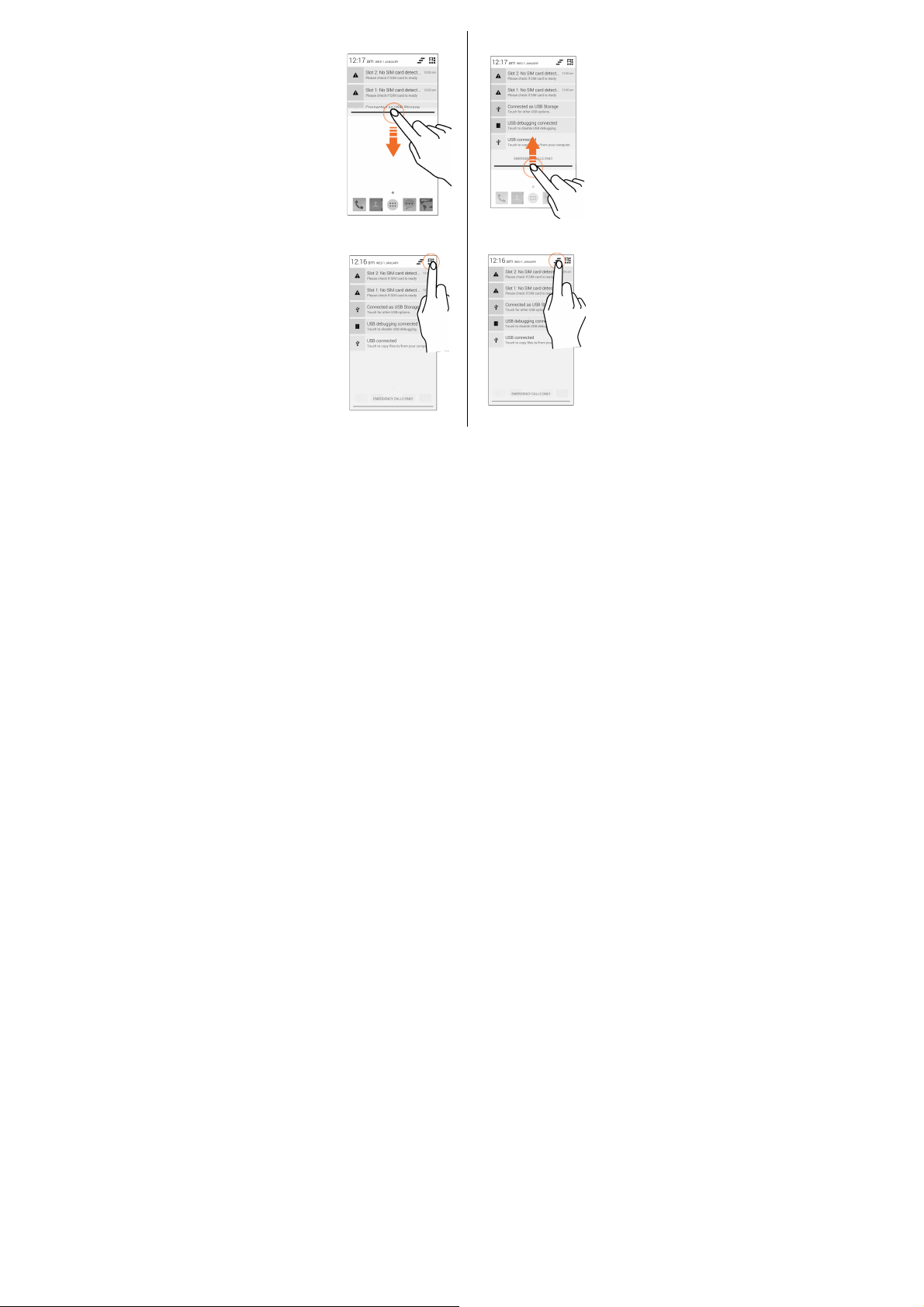

Open Notification Panel
Close Notification Panel
Open the Toolkit
Clear all Notifications
14 15
1. Press the power key to wake up the phone.
2. Hold and drag the lock icon towards the unlock icon.
Voice Recognition
Speak your password to unlock!
Allowing you to provide
your voice as the
screen unlocking
password. You need to
speak something for
the phone to recognize
your voice and unlock
the screen.
PIN
Enter your PIN to unlock your
phone!
You may enter a PIN
and set it as your
screen unlocking
password.
Pattern
You can set your own
pattern by connecting
the dots to prevent
your phone from
unauthorized access.
16
Set and draw your desired
pattern!
Password
Enter your password to unlock!
You may enter any
desired password and
set it as your screen
unlocking password.
Slide
Slide from lock icon to unlock
icon!
Just wake up the
screen and slide the
lock icon towards the
unlock icon to unlock
your phone.
TM
Search
TM
Search. You can type your search keywords or can
You may set any desired locking technique from !
→! !→!Security → Screen lock.
It is important to remember your screen lock
password/pattern/PIN.
17
TM
Search is available on the home screen and in the
18
Tap and hold an item to
view the list of actions based
on the selected item and
condition. Also, you can
move an item from the Apps
screen to the home screen
using this method.
To scroll a list, slide your finger across the
surface of the screen upwards or
downwards (without dragging an item).
19
You can open any image
or web page and then use
your thumb and index
finger to zoom the display
through the pinch gesture.
20
After typing, tap key to close the keyboard.
Tap and hold the text field to open a menu and to
cut/copy/paste text.
Tap to change
the sentence
casing.
QWERTY touch
pad
Backspace to
erase the
entered text.
Tap to switch to
numerical
keyboard.
21
Drag an item towards left or
right.
Tap and hold an item
and then select
“Remove from list”.
22
View list of favorite
View list of
contact groups
View list of
contacts
View list of
favorite c ontacts
23
1. Tap the button from the contacts screen and then
tap Accounts.
2. Select the account(s) with which contacts list is to be
synchronized. You can auto-sync contacts by selecting
the Auto-sync app data option.
• You need to enable 3G on your SIM card. Please contact
your service provider to enable 3G on your SIM card.
Search for your desired contacts under any of the
three tabs by tapping icon.
Add a new contact in the contacts list by tapping .
To synchronize contacts, you need to have Internet
connectivity via your SIM or Wi-Fi. If your Sync does
not proceed as expected, check whether data option
is set to ON.
24
• The video call recipient also needs to have a 3G enabled
SIM card.
1. Press and hold the Power button and then select
Airplane mode.
Or
Drag notification panel down, tap , and then select
AIRPLANE MODE.
1. Tap on the menu screen or the home screen to go
to the messaging section and then tap to
compose a message.
2. Tap the icon to view the types of files that can be
25
attached and select the desired type of multimedia file.
3. Tap to select the composition text box and enter your
message body in it.
4. Enter the contact name (if it exists) or enter the phone
number. You can also tap the icon to view and
select contact(s) from the contact list.
5. Tap to send the multimedia message.
26
You can share/copy/move/delete images and videos
from the gallery.
Capturing
modes
Start/Stop
Video
Recording
Capture
Camera settings
Swap between
front a nd back
camera
Open picture
gallery
Manage
camera
flash lig ht
HDR
mode
27
Press the phone’s volume up/down keys on the left
side of the mobile phone to adjust the volume.
You can use an SD card to enhance the storage
capacity for your multimedia files such as music,
photos, emails, and so on.
Opens the playlist
Turn on/o ff repeat
songs
Play next song in the
playlist
Play
previously
played song
Play/Pause song
Turn on/o ff songs
shuffle
Music volume
Opens the
Music
Library
Track
options
Search music
28
Press the phone’s volume up/down keys on the left
side of the mobile phone to adjust the volume.
29
`
Stop/Loop
the video
Play/Pause video
Change
the video
screen
size
Change
the video
screen
size
Stop/Loop
/ Trim the
video
30
1. Go to → → More Mobile networks
Access Point Names and select the SIM for which
access point name is to be configured. Select the
access point name or change the access point name
for your Internet connectivity as provided by the
service provider of your SIM card.
2. After you have selected or configured the access point
name, go to → → Dual SIM Settings
Data connection and select the SIM on which data
connection is to be enabled.
1. Connect your phone with your PC/Laptop via USB
By default, your network provider sends the access
point name settings via SMS, or it comes with your
SIM card. You may need to install these settings.
After this, you can choose from the listed access
point names. If the access point names are not listed
by default, please contact your network provider for
the same.
31
cable.
2. Select the USB tethering option.
3. Select your phone network as the network connection
in your PC/laptop and get access to the Internet.
1. Pair your phone with the BT enabled PC/laptop via BT
pairing option.
2. Select the BT tethering option in your phone.
3. On the paired PC/laptop, select the BT device (your
phone) and choose to connect to the Internet.
1. Turn on the Wi-Fi hotspot option in your phone.
2. On the other Wi-Fi enabled PC/laptop/handset, choose
your phone as a Wi-Fi network to connect with it.
3. View and configure Wi-Fi hotspot settings by tapping
the Wi-Fi hotspot option.
1. If BT is off, turn it on and then tap BT. Your phone
scans and displays the BT devices in range.
Your mobile operator will charge you based on your
GPRS data usage.
32
2. Tap the ID of the other device in the list to pair with it.
3. You will be prompted to confirm passkey on both
devices. Tap Pair to confirm the passkey and pair the
devices. On successful pairing, your phone connects to
the device.
1. Go to → → Add account Corporate.
2. Type the email address and password in the respective
fields and tap Next.
3. Set account settings, as required and tap Next.
4. Provide your account name and your name and then
tap Next to successfully finish account configuration.
If the device you want to pair with is not in the list,
make it discoverable and then search. If your phone
stops scanning before you make the other device
discoverable, tap SEARCH FOR DEVICES.
Tap Micromax A109 at the top of the scanned
device list to make your A109 visible on other
devices.
33
TM
Maps
TM
Maps is a web-based service offered by Google Inc.
TM
Maps. It comes with a navigation
TM
Maps access include:
TM
Maps.
Tap the !button of the phone and then tap
Refresh to refresh your e-mails manually.
Internet connection is required for using GoogleTM
Maps. When you use the map, you use your Internet
connection to transfer data to and from your phone.
The Google
TM
!Maps application may not be available
in every street, country or region.
Micromax does not guarantee the accuracy of any
directional services.
34
TM
Android
Not all items are free of cost in the Android Market.
You need to enable Internet connection and
configure Google
TM
!account on your device to get
access to the Android Market.
35
Remember to comply with legal requirements and local
restrictions when using the phone.
Your Phone’s radio waves may in terfere with inadequately
shielded medical devices. Consult a physician or
manufacturer of the medical device to know whether they are
adequately shielded from external Radio Frequency. Switch
off your device when regulations require you to do so.
Always keep the phone and accessories out of reach of small
children. Small parts such as the SIM card, dust cap, lens ring
and lens cap as well as the micro SD card can be dismantled
and swallowed by small children.
Do not place the phone near electromagnetic data carriers
such as credit/Debit c ards. Information stored on them could
be lost.
Permanent hearing loss may occur if you use earphones at
high volume for prolonged periods. Set your volume to a safe
level. If you experience discomfort in your ears, redu ce the
volume or discontinue the use of your earphones.
Ring tones, info tones and hands-free talking are reproduce d
through the loudspe aker. Do not hold the phone to the ear
when it rings or when you have switched on the hands-free
function.
The mains voltage (V) specified on the power supply unit
must not be exceeded to prevent damage to the charging
device. The pow er supply must be plugged into an easily
accessible AC power socket when charging the battery.
You may only open the phone to replace the battery, SIM
and micro SD card. You must not open the battery under any
circumstances. All other changes to this device are strictly
36
prohibited and will invalidate the warranty.
The phone may cause interference in the vicinity of TV se ts,
radios and PCs.
Only use Micromax specified batteries and charging devices.
All batteries can cause property damage, injury or burns if a
conductive material taps the expose d terminals. Exercise care
in h andling any charged ba ttery, particula rly when placing it
inside y our pocket, purse or other containe r with m etal
objects. Do not dispose of batteries in fire as they may
explode.
Do not use the phone while driving. When you have to use
the phone, please use the personal hands-free kit.
Please put the phone safely in the phone stand. Do not put it
onto any passenger seat or any place from which it may fall
down in case of vehicular collision or emergency braking.
Flight is influenced by interference caused by the phone. It is
illegal to use a pho ne on the airplane. Please turn off your
phone during a flight.
Professional service: The phone must be installed or repaired
by Micromax authorized personnel. You are likely to suffer a
huge risk when you install or repair this phone by yourself,
which also goes against the warranty rules.
• Keep the device dry. Precipitation, humidity, and all types of liquids
or moisture can rust the electronic circuits. If your device gets wet,
remove the battery, wipe it with a dry cloth and take it to an
authorized service center.
37
• Do not store the device in high or cold temperature. High
temperatures can shorten the life of electronic devices and damage
batteries.
• Do not use or store the device in dusty, dirty areas. Its moving parts
and electronic components can get damaged.
• Do not attempt to open the device other than as instructed in this
guide. Repairing this phone by yourself other than our authorized
service agents/centers goes against the warranty rules.
• Do not drop, knock, or shake the device. Rough handling can break
internal circuit bo ards and fine mechanic s.
• Do not use harsh chemicals, cleaning solvents, or strong detergents
to clean the device. On ly use a soft, clean, dry cloth to clean the
surface of the device.
• Do not store your device near m agnetic fields or allow your device
to come in contact with magn etic fields for extended period of time.
• Please put the battery in a cool and well-ventilated place out of
direct sunlight. We recommend you to charge the battery at room
temperature range.
• Batteries have life cycles. If the time that the battery powers
equipment becomes much shorter than usual, the battery life is at
an end. Replace the battery with a new battery of the same make
and specification.
• Use manufacturer approved batteries, chargers, accessories and
supplies. Micromax will not be held responsible for user’s safety
when using unapproved accessories or supplies.
• Do not discard the battery with household trash. Please dispose of
used battery according to your local environmental laws and
guidelines.
38
The WEEE logo (shown at the left) appears on the product
(battery, handset, and charger) to indicate that this product
must not be disposed off or dumped with your other
household wastes. You are liable to dispose of all your
electronic or electrical waste equipment by relocating over to
Loading...
