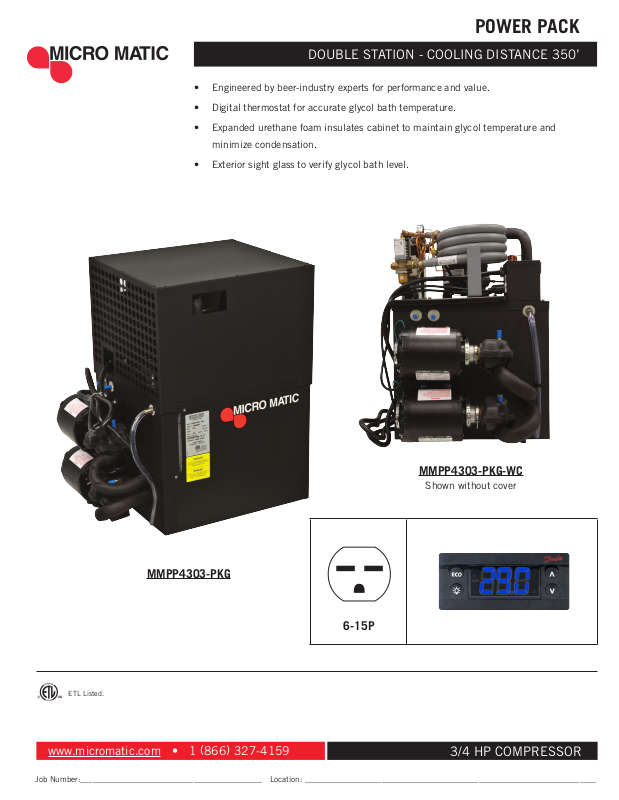

Micro Matic MMPP4303-PKG User Manual

POWER PACK

DOUBLE STATION - COOLING DISTANCE 350’

• Engineered by beer-industry experts for performance and value.

• Digital thermostat for accurate glycol bath temperature.

• Expanded urethane foam insulates cabinet to maintain glycol temperature and

minimize condensation.

• Exterior sight glass to verify glycol bath level.

MMPP4303-PKG

ETL Listed.

www.micromatic.com • 1 [phone]

MMPP4303-PKG-WC

Shown without cover

6-15P

3/4 HP COMPRESSOR

Job Number:_____________________________________________ Location: ________________________________________________________________________

Specifications

Micro Matic reserves the right to change specifications without notice.

Part No. Description Shipping Weight Box Dimensions

MMPP4303-PKG

MMPP4303-PKG-WC

Air Cooled

Water Cooled

80 kg 787mm L x 533mm W x 813mm H

175 lbs 31”L x 21”W x 32”H

80 kg 787mm L x 533mm W x 813mm H

175 lbs 31”L x 21”W x 32”H

Operating Performance

Compressor 3/4 HP

BTU per hour 5,100

Plug Type (NEMA #) 6-15P

Voltage 208/230

Running 10.6A

Refrigerant R-134a

Charge 0.45 kg (16 oz)

Bath Capacity 43.5 litre (11.5 Gallons)

Pump Type Vane

Inlet Barb 9.52mm (3/8”)

Outlet Barb 9.52mm (3/8”)

Dimensions

TOP FRONT BACK

Water Cooled Model

Water Inlet & Outlet Fitting Female 3/8” NPT

Minimum Water Pipe Size 3/8”

Inlet Water Pressure Less than 80 PSIG

Water Usage .3 GPM. Water is only used when the temperature

of the condenser rises high enough to open the
cooling inlet valve. This is approximately 40% of the
operating time depending on ambient temperature
and usage.

Condenser Inlet Water
Temperature

Maximum Oulet Water
Temperature

75˚F

95˚F to minimize water scaling with the condenser.

Toll-Free: 1-866-327-4159

www.micromatic.com

West

19791 Bahama St.
Northridge, CA 91324
Tel. [phone]
Fax. [phone]

737mm

29"

Central

10726 North Second St.
Machesney Park, IL 61115
Tel. [phone]
Fax. [phone]

762mm

30”

Southeast

2364 Simon Ct.
Brooksville, FL 34604
Tel. [phone]
Fax. [phone]

01514-D0315

©2014 Micro Matic USA, Inc. All Rights Reserved.

457mm

18"
