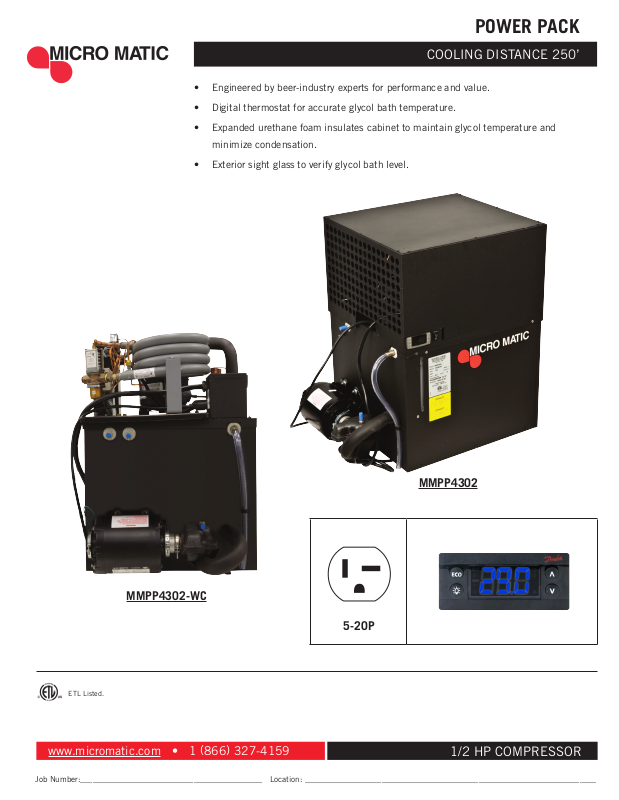

Micro Matic MMPP4302 User Manual
POWER PACK
COOLING DISTANCE 250’
• Engineered by beer-industry experts for performance and value.
• Digital thermostat for accurate glycol bath temperature.
• Expanded urethane foam insulates cabinet to maintain glycol temperature and
minimize condensation.
• Exterior sight glass to verify glycol bath level.
MMPP4302-WC
ETL Listed.
www.micromatic.com • 1 (866) 327-4159
MMPP4302
5-20P
1/2 HP COMPRESSOR
Job Number:_____________________________________________ Location: ________________________________________________________________________
Specifications
Micro Matic reserves the right to change specifications without notice.
Part No. Description Shipping Weight Box Dimensions
MMPP4302
MMPP4302-WC
Air Cooled
Water Cooled
71 kg 787mm L x 533mm W x 813mm H
157 lbs 31”L x 21”W x 32”H
71 kg 787mm L x 533mm W x 813mm H
157 lbs 31”L x 21”W x 32”H
Operating Performance
Compressor 1/2 HP
BTU per hour 3,600
Plug Type (NEMA #) 5-20P
Voltage 115
Running 15.3A
Refrigerant R-134a
Charge 0.45 kg (16oz)
Bath Capacity 43.5 litre (11.5 Gallons)
Pump Type Vane
Inlet Barb 9.52mm (3/8”)
Outlet Barb 9.52mm (3/8”)
Dimensions
TOP FRONT BACK
Water Cooled Model
Water Inlet & Outlet Fitting Female 3/8” NPT
Minimum Water Pipe Size 3/8”
Inlet Water Pressure Less than 80 PSIG
Water Usage .3 GPM. Water is only used when the temperature
of the condenser rises high enough to open the
cooling inlet valve. This is approximately 40% of the
operating time depending on ambient temperature
and usage.
Condenser Inlet Water
Temperature
Maximum Oulet Water
Temperature
75˚F
95˚F to minimize water scaling with the condenser.
Toll-Free: 1-866-327-4159
www.micromatic.com
West
19791 Bahama St.
Northridge, CA 91324
Tel. (818) 701-9765
Fax. (818) 701-9844
737mm
29"
Central
10726 North Second St.
Machesney Park, IL 61115
Tel. (815) 968-7557
Fax. (815) 968-0363
762mm
30"
Southeast
2364 Simon Ct.
Brooksville, FL 34604
Tel. (352) 799-6331
Fax. (352) 796-2429
01648-D0315
©2015 Micro Matic USA, Inc. All Rights Reserved.
457mm
18"
Northeast
4601 Saucon Creek Rd.
Center Valley, PA 18034
Tel. (610) 625-4464
Fax. (610) 625-4466
