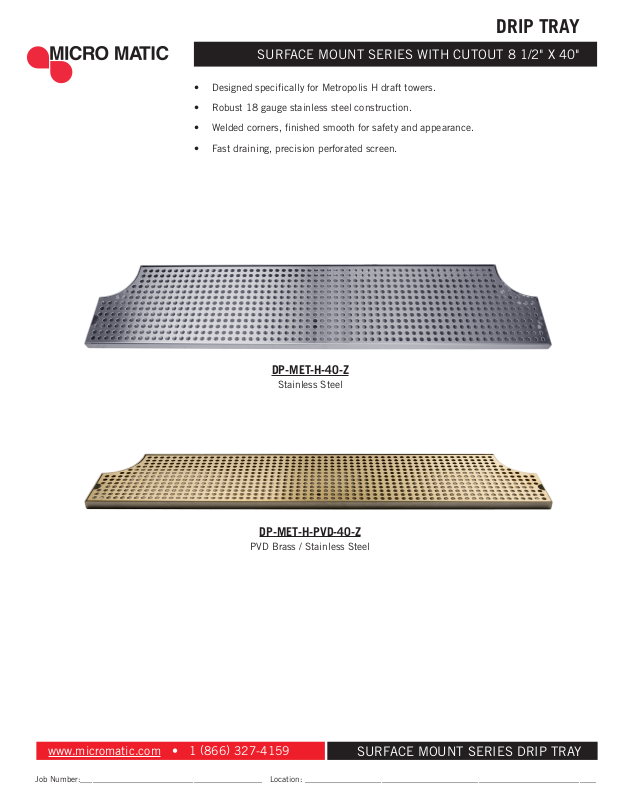

Micro Matic DP-MET-H-40-Z User Manual

SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 40"

• Designed specically for Metropolis H draft towers.

• Robust 18 gauge stainless steel construction.

• Welded corners, nished smooth for safety and appearance.

• Fast draining, precision perforated screen.

DRIP TRAY

DP-MET-H-40-Z

Stainless Steel

DP-MET-H-PVD-40-Z

PVD Brass / Stainless Steel

www.micromatic.com • 1 (866) 327-4159

Job Number:_____________________________________________ Location: ________________________________________________________________________

SURFACE MOUNT SERIES DRIP TRAY

Specifications

Micro Matic reserves the right to change specifications without notice.

Part No. Faucets Description Shipping Weight Box Dimensions

DP-MET-H-40-Z

DP-MET-H-PVD-40-Z

12 Stainless Steel

12 PVD Brass / Stainless Steel

TBD TBD

Dimensions

1014mm

40"

Radius:

78mm

508mm

20"

Drain: Threaded Brass 3 1/2” x 5/8” x 18

216mm

8 1/2"

19mm

3/4"

64mm 2 1/2"
