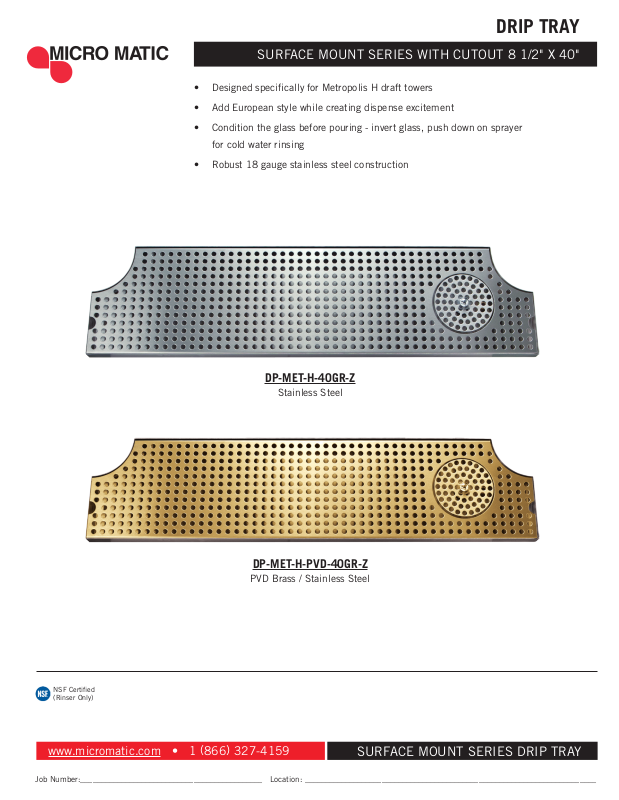

DRIP TRAY
SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 40"
• Designed specically for Metropolis H draft towers
• Add European style while creating dispense excitement
• Condition the glass before pouring - invert glass, push down on sprayer
for cold water rinsing
• Robust 18 gauge stainless steel construction
DP-MET-H-40GR-Z
Stainless Steel
DP-MET-H-PVD-40GR-Z
PVD Brass / Stainless Steel
NSF Certied
(Rinser Only)
www.micromatic.com • 1 (866) 327-4159
Job Number:_____________________________________________ Location: ________________________________________________________________________
SURFACE MOUNT SERIES DRIP TRAY
Page 2
Specifications
Micro Matic reserves the right to change specifications without notice.
Part No. Faucets Description Shipping Weight Box Dimensions
DP-MET-H-40GR-Z
DP-MET-H-PVD-40GR-Z
12 Stainless Steel
12 PVD Brass / Stainless Steel
TBD TBD
TBD TBD
TBD TBD
TBD TBD
Rinser Water Inlet Installation
• Always check local plumbing codes first.
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure).
• Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking).
• Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly).
• If teed into soda system make sure system can handle the increased water demand. Have plumber install a
45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system.
• Install a shut-off for the rinser water supply if line is not hard plumbed into the system.
Dimensions
Radius:
78mm
3"
508mm
20"
Drain:
Threaded Brass
3 1/2” x 5/8” x 18
1014mm
40"
1/2" O.D.
7/8" - 14
1/2" BSP
216mm
8 1/2"
64mm
2 1/2"
19mm
3/4"
140mm
6"
Toll-Free: 1-866-327-4159
www.micromatic.com
