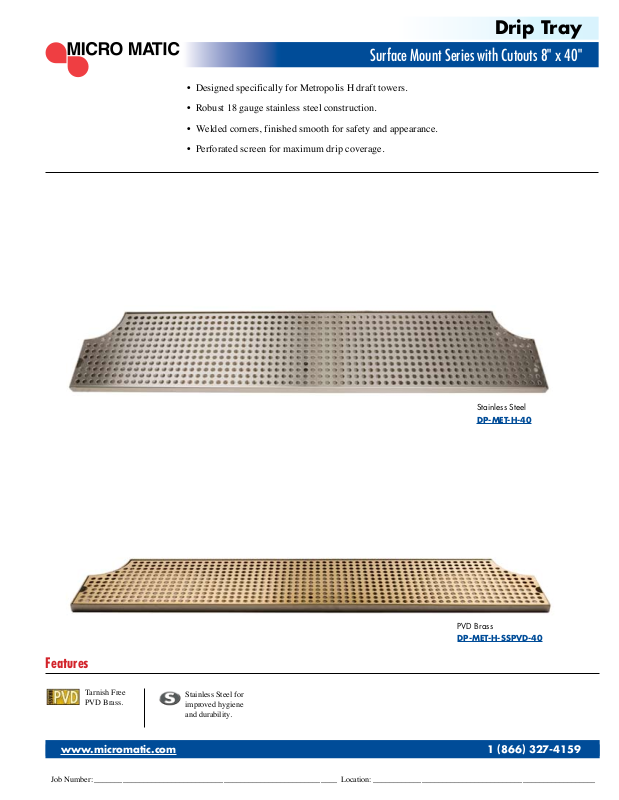

Surface Mount Series with Cutouts 8" x 40"
• Designed specifically for Metropolis H draft towers.
• Robust 18 gauge stainless steel construction.
• Welded corners, finished smooth for safety and appearance.
• Perforated screen for maximum drip coverage.
Drip Tray
Features
Tarnish Free
PVD Brass.
Stainless Steel
DP-MET-H-40
PVD Brass
DP-MET-H-SSPVD-40
Stainless Steel for
improved hygiene
and durability.
www.micromatic.com 1 (866) 327-4159
Job Number: ____________________________________________________________ Location: _______________________________________________________
Page 2
www.micromatic.com
Specifications
Part No. Description Shipping Weight Box Dimensions
DP-MET-H-40 Stainless Steel 5 kg 1041mm L x 210mm W x 51mm H
11 lbs 41"L x 8 1/4"W x 2"H
DP-MET-H-SSPVD-40
11 lbs 41"L x 8 1/4"W x 2"H
PVD Brass 5 kg 1041mm L x 210mm W x 51mm H
Micro Matic reserves the right to change specifications without notice.
Dimensions
Radius: 78mm
3"
508mm
20"
Drain: Threaded Brass
3 1/2" x 1/2" I.D.
1016mm
40"
203mm
8"
19mm
3/4"
63.5mm
2 1/2"
