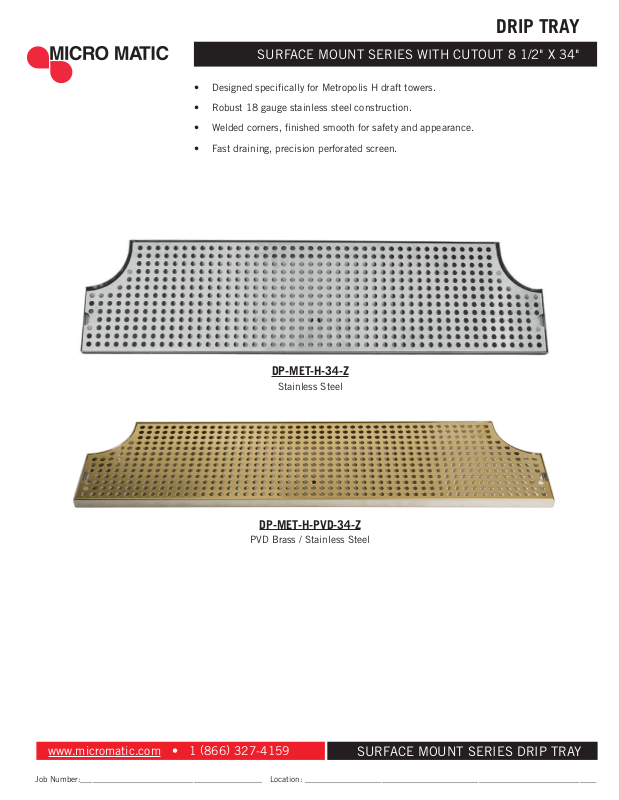

SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 34"

• Designed specically for Metropolis H draft towers.

• Robust 18 gauge stainless steel construction.

• Welded corners, nished smooth for safety and appearance.

• Fast draining, precision perforated screen.

DRIP TRAY

DP-MET-H-34-Z

Stainless Steel

DP-MET-H-PVD-34-Z

PVD Brass / Stainless Steel

www.micromatic.com • 1 [phone]

Job Number:_____________________________________________ Location: ________________________________________________________________________

SURFACE MOUNT SERIES DRIP TRAY

Specifications

Micro Matic reserves the right to change specifications without notice.

Part No. Description Shipping Weight Box Dimensions

DP-MET-H-34-Z

DP-MET-H-PVD-34-Z

Stainless Steel

PVD Brass / Stainless Steel

5 kg 876mm L x 210mm W x 51mm H

10 lbs 34 1/2”L x 8 1/4”W x 2”H

5 kg 876mm L x 210mm W x 51mm H

10 lbs 34 1/2”L x 8 1/4”W x 2”H

Dimensions

Radius:

78mm

3"

216mm

8 1/2"

19mm

3/4"

432mm

17"

864mm

34"

216mm

8 1/2"

64mm
2 1/2"

Drain: Threaded Brass
3 1/2" x 1/2" I.D.
