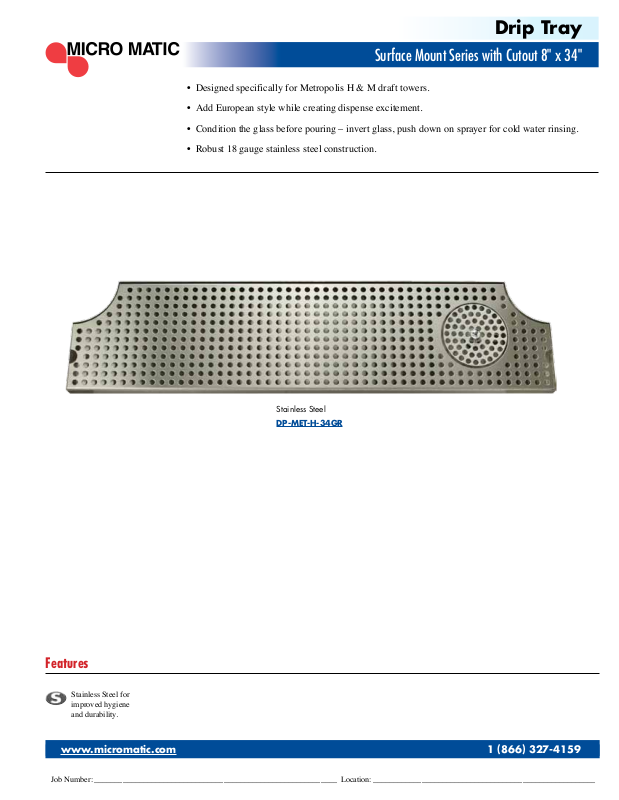

Micro Matic DP-MET-H-34GR User Manual

Drip Tray

Surface Mount Series with Cutout 8" x 34"

• Designed specifically for Metropolis H & M draft towers.

• Add European style while creating dispense excitement.

• Condition the glass before pouring – invert glass, push down on sprayer for cold water rinsing.

• Robust 18 gauge stainless steel construction.

Features

Stainless Steel for
improved hygiene
and durability.

Stainless Steel

DP-MET-H-34GR

www.micromatic.com 1

Job Number: ____________________________________________________________ Location: _______________________________________________________

(

866) 327-4159

www.micromatic.com

Specifications

Part No. Description Faucets Shipping Weight Box Dimensions

DP-MET-H-34GR

Stainless Steel 8 – 10 TBD TBD

Micro Matic reserves the right to change specifications without notice.

TBD

TBD

QUOTESAU T O

Rinser Water Inlet Installation

Always check local plumbing codes first.

Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure).

Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking).

Install in-line shut-off for the rinser system from the street water supply (this must be turned off nightly).

If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2” O.D. barb for the drains if line is not hard
plumbed into the system.

Install a shut-off for the rinser water supply if line is not hard plumbed into the system.

Dimensions

Drain: Threaded Brass
3 1/2" x 1/2" I.D.

432mm

17"

864mm

34"

292mm

11 1/2"

7/8" – 14

1/2" BSP

Radius: 78mm (3")

125mm (5")

203mm

8"

25mm

1"

64mm

2 1/2"

102mm

4"
