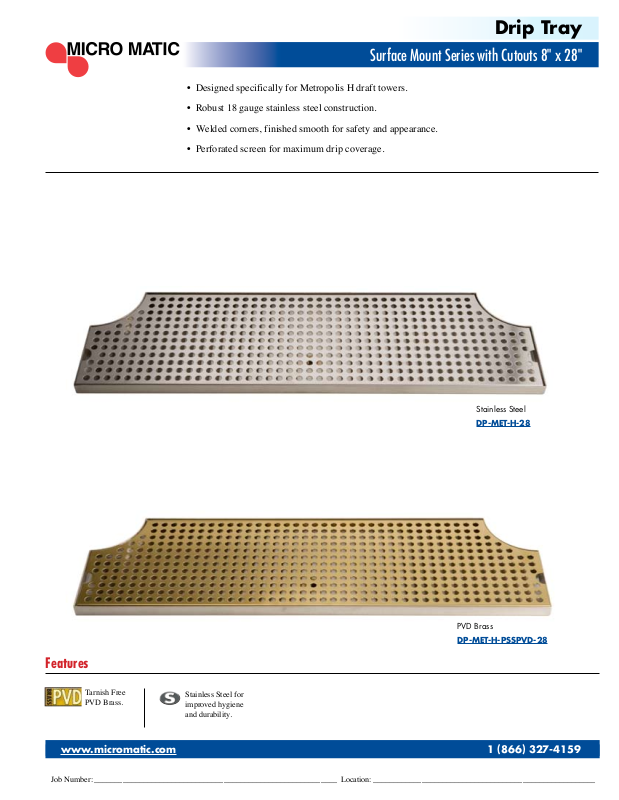

Micro Matic DP-MET-H-28 User Manual

Surface Mount Series with Cutouts 8" x 28"

• Designed specifically for Metropolis H draft towers.

• Robust 18 gauge stainless steel construction.

• Welded corners, finished smooth for safety and appearance.

• Perforated screen for maximum drip coverage.

Drip Tray

Features

Tarnish Free
PVD Brass.

Stainless Steel

DP-MET-H-28

PVD Brass

DP-MET-H-PSSPVD-28

Stainless Steel for
improved hygiene
and durability.

www.micromatic.com 1 [phone]

Job Number: ____________________________________________________________ Location: _______________________________________________________

www.micromatic.com

Specifications

Part No. Description Shipping Weight Box Dimensions

DP-MET-H-28

8 lbs 28 3/4"L x 8 1/4"W x 2"H

DP-MET-H-SSPVD-28

8 lbs

Stainless Steel 4 kg 730mm L x 210mm W x 51mm H

PVD Brass 4 kg

Micro Matic reserves the right to change specifications without notice.

730mm L x 210mm W x 51mm H

28 3/4"L x 8 1/4"W x 2"H

Dimensions

Radius: 78mm
3"

356mm

14"

Drain: Threaded Brass
3 1/2" x 1/2" I.D.

711mm

28"

203mm

8"

19mm

3/4"

63.5mm
2 1/2"
