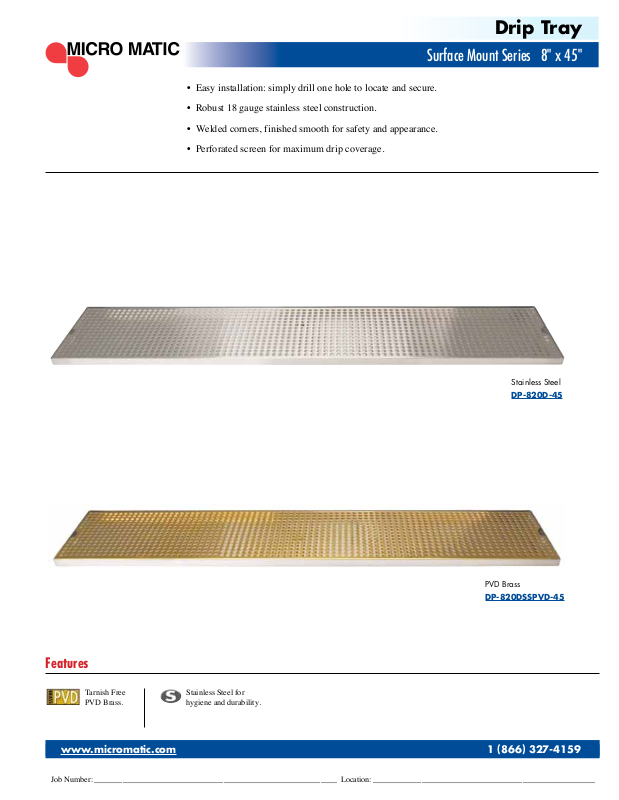

Page 1
Surface Mount Series 8" x 45"
• Easy installation: simply drill one hole to locate and secure.
• Robust 18 gauge stainless steel construction.
• Welded corners, finished smooth for safety and appearance.
• Perforated screen for maximum drip coverage.
Drip Tray
Features
Stainless Steel
DP-820D-45
PVD Brass
DP-820DSSPVD-45
Tarnish Free
PVD Brass.
www.micromatic.com 1 (866) 327-4159
Job Number: ____________________________________________________________ Location: _______________________________________________________
Stainless Steel for
hygiene and durability.
Page 2
www.micromatic.com
Specifications
Part No. Description Shipping Weight Box Dimensions
DP-820D-45 Stainless Steel 5 kg 1168mm L x 203mm W x 51mm H
10 lbs 46"L x 8"W x 2"H
DP-820DSSPVD-45 PVD Brass 5 kg 1168mm L x 203mm W x 51mm H
10 lbs 46"L x 8"W x 2"H
Micro Matic reserves the right to change specifications without notice.
Dimensions
1143mm
45"
571.5mm
22 1/2"
Drain: Threaded Brass
3 1/2" x 1/2" I.D.
203.2mm
8"
203.2mm
8"
19mm
3/4"
63.5mm
2 1/2"
