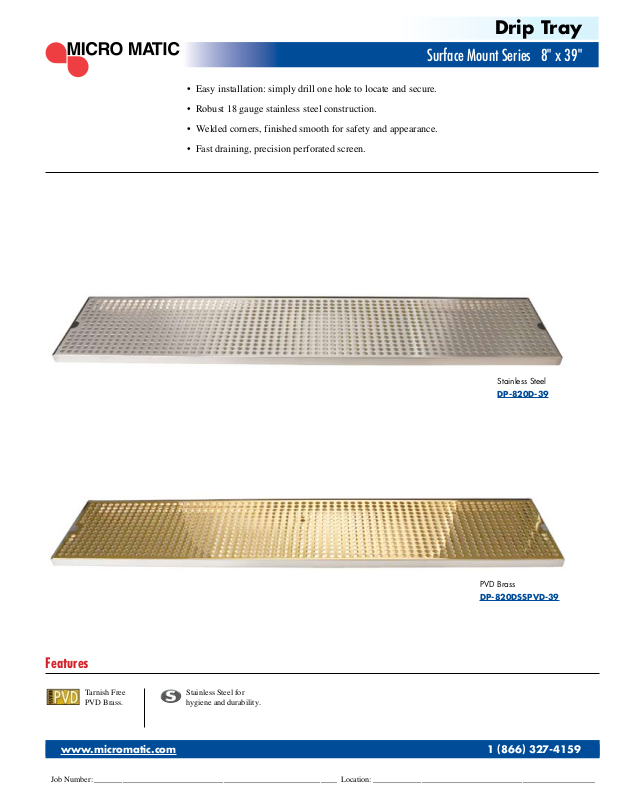

Micro Matic DP-820D-39 User Manual

Surface Mount Series 8" x 39"

• Easy installation: simply drill one hole to locate and secure.

• Robust 18 gauge stainless steel construction.

• Welded corners, finished smooth for safety and appearance.

• Fast draining, precision perforated screen.

Drip Tray

Features

Stainless Steel

DP-820D-39

PVD Brass

DP-820DSSPVD-39

Tarnish Free
PVD Brass.

www.micromatic.com 1 [phone]

Job Number: ____________________________________________________________ Location: _______________________________________________________

Stainless Steel for
hygiene and durability.

www.micromatic.com

Specifications

Part No. Description Shipping Weight Box Dimensions

DP-820D-39 Stainless Steel 5 kg 1016mm L x 229mm W x 51mm H

10 lbs 40"L x 9"W x 2"H

DP-820DSSPVD-39 PVD Brass 5 kg 1016mm L x 229mm W x 51mm H

10 lbs 40"L x 9"W x 2"H

Micro Matic reserves the right to change specifications without notice.

Dimensions

990.6mm
39"

495.3mm
19 1/2"

Drain: Threaded Brass
3 1/2" x 1/2" I.D.

203.2mm
8"

203.2mm
8"

19mm

3/4"

63.5mm
2 1/2"
