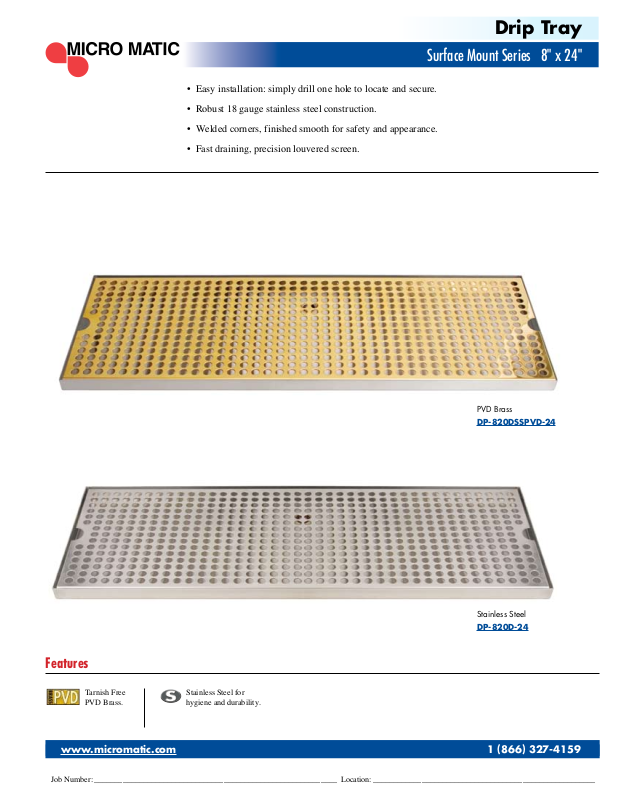

Page 1
Surface Mount Series 8" x 24"
• Easy installation: simply drill one hole to locate and secure.
• Robust 18 gauge stainless steel construction.
• Welded corners, finished smooth for safety and appearance.
• Fast draining, precision louvered screen.
Drip Tray
Features
Tarnish Free
PVD Brass.
PVD Brass
DP-820DSSPVD-24
Stainless Steel
DP-820D-24
Stainless Steel for
hygiene and durability.
www.micromatic.com 1 (866) 327-4159
Job Number: ____________________________________________________________ Location: _______________________________________________________
Page 2
www.micromatic.com
Specifications
Part No. Description Shipping Weight Box Dimensions
DP-820D-24 Stainless Steel 3 kg 635mm L x 229mm W x 51mm H
7 lbs 25"L x 9"W x 2"H
DP-820DSSPVD-24 PVD Brass 3 kg 635mm L x 229mm W x 51mm H
7 lbs 25"L x 9"W x 2"H
Micro Matic reserves the right to change specifications without notice.
Dimensions
609.6mm
24"
304.8mm
12"
Drain: Threaded Brass
3 1/2" x 1/2" I.D.
203.2mm
8"
203.2mm
8"
19mm
3/4"
63.5mm
2 1/2"
