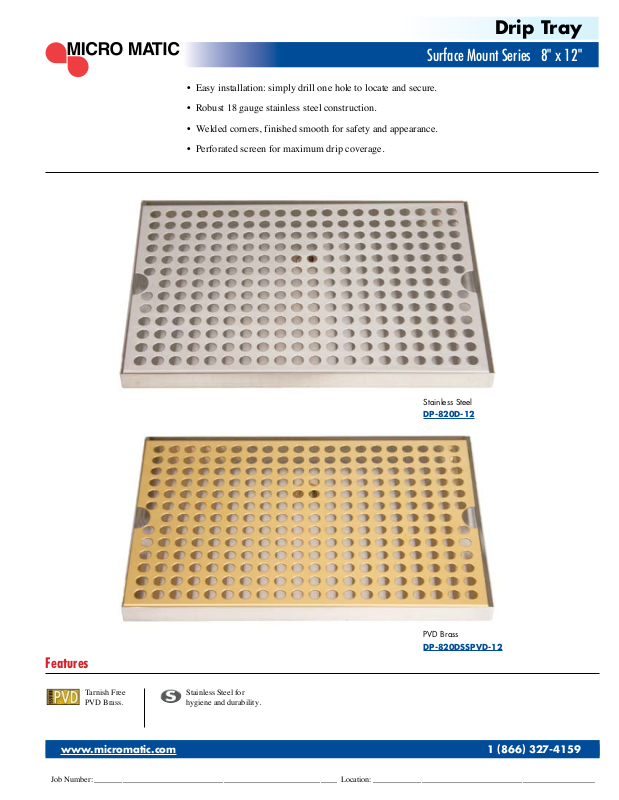

Micro Matic DP-820D-12 User Manual

Surface Mount Series 8" x 12"

• Easy installation: simply drill one hole to locate and secure.

• Robust 18 gauge stainless steel construction.

• Welded corners, finished smooth for safety and appearance.

• Perforated screen for maximum drip coverage.

Drip Tray

Features

Tarnish Free
PVD Brass.

Stainless Steel

DP-820D-12

PVD Brass

DP-820DSSPVD-12

Stainless Steel for
hygiene and durability.

www.micromatic.com 1 [phone]

Job Number: ____________________________________________________________ Location: _______________________________________________________

www.micromatic.com

Specifications

Part No. Description Shipping Weight Box Dimensions

DP-820D-12 Stainless Steel 2 kg 356mm L x 229mm W x 51mm H

4 lbs 14"L x 9"W x 2"H

DP-820DSSPVD-12

4 lbs 14"L x 9"W x 2"H

PVD Brass 2 kg 356mm L x 229mm W x 51mm H

Micro Matic reserves the right to change specifications without notice.

Dimensions

304.8mm
12"

152.4mm
6"

203.2mm
8"

203.2mm
8"

19mm

3/4"

Drain: Threaded Brass
3 1/2" x 1/2" I.D.

63.5mm
2 1/2"
