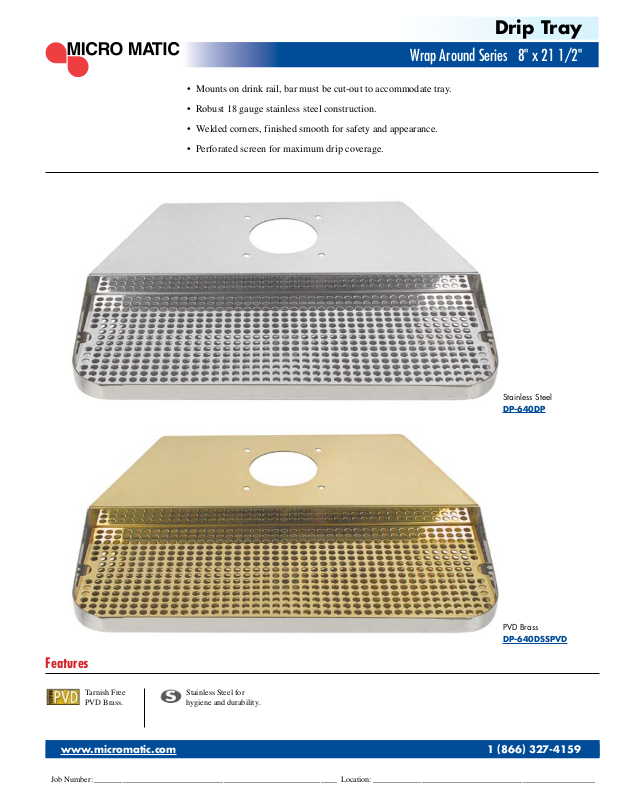

Micro Matic DP-640DP User Manual

Wrap Around Series 8" x 21 1/2"

• Mounts on drink rail, bar must be cut-out to accommodate tray.

• Robust 18 gauge stainless steel construction.

• Welded corners, finished smooth for safety and appearance.

• Perforated screen for maximum drip coverage.

Drip Tray

Features

Stainless Steel

DP-640DP

PVD Brass

DP-640DSSPVD

Tarnish Free
PVD Brass.

www.micromatic.com 1 [phone]

Job Number: ____________________________________________________________ Location: _______________________________________________________

Stainless Steel for
hygiene and durability.

www.micromatic.com

Specifications

Part No. Description Shipping Weight Box Dimensions

DP-640DP Stainless Steel 5 kg 584mm L x 483mm W x 51mm H

10 lbs 23"L x 19"W x 2"H

DP-640DSSPVD

10 lbs 23"L x 19"W x 2"H

PVD Brass 5 kg 584mm L x 483mm W x 51mm H

Micro Matic reserves the right to change specifications without notice.

Dimensions

Diameter: 102mm, (4")

102mm

4"

210mm

8 1/4"

38mm

1 1/2"

546mm

21 1/2"

Drain: Threaded Brass
1/2" N.P.T.

203mm

25mm

1"

8"

19mm

3/4"

51mm

2"
