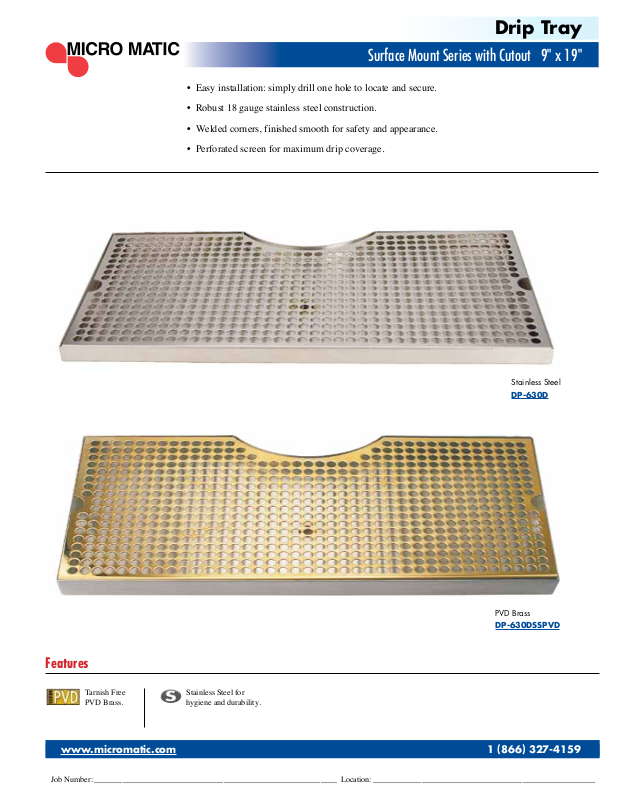

Micro Matic DP-630D User Manual

Surface Mount Series with Cutout 9" x 19"

• Easy installation: simply drill one hole to locate and secure.

• Robust 18 gauge stainless steel construction.

• Welded corners, finished smooth for safety and appearance.

• Perforated screen for maximum drip coverage.

Drip Tray

Features

Stainless Steel

DP-630D

PVD Brass

DP-630DSSPVD

Tarnish Free
PVD Brass.

www.micromatic.com 1

Job Number: ____________________________________________________________ Location: _______________________________________________________

Stainless Steel for
hygiene and durability.

(

866) 327-4159

www.micromatic.com

Specifications

Part No. Description Shipping Weight Box Dimensions

DP-630D Stainless Steel 3 kg 508mm L x 254mm W x 51mm H

7 lbs 20"L x 10"W x 2"H

DP-630DSSPVD PVD Brass 3 kg 508mm L x 254mm W x 51mm H

7 lbs 20"L x 10"W x 2"H

Micro Matic reserves the right to change specifications without notice.

QUOTESAU T O

Dimensions

Cutout Diameter: 203mm, (8")

241mm

9 1/2"

Depth: 38mm, (1 1/2")

483mm

19"

Drain: Threaded Brass
3 1/2" x 1/2" I.D.

229mm

9"

95mm

3 3/4"

229mm

9"

19mm

3/4"
