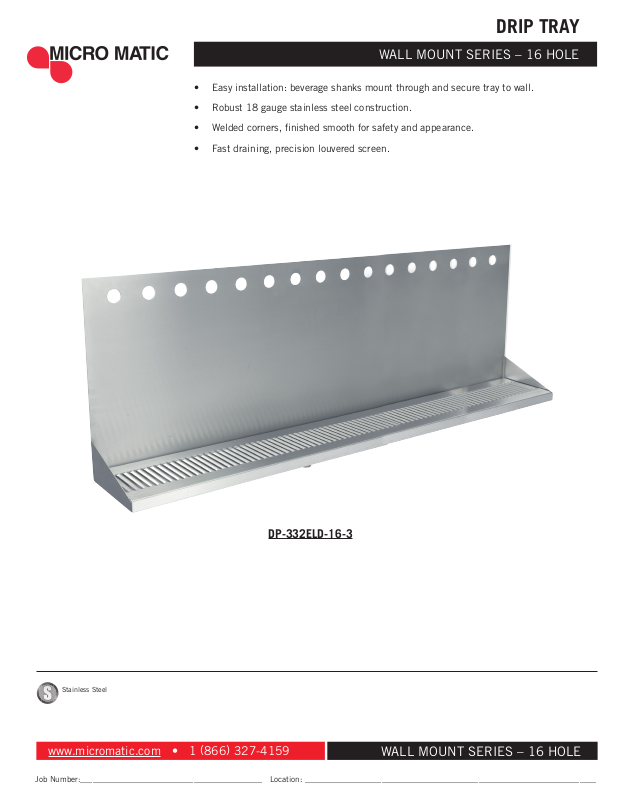

Micro Matic DP-332ELD-16-3 User Manual
DRIP TRAY
WALL MOUNT SERIES – 16 HOLE
• Easy installation: beverage shanks mount through and secure tray to wall.
• Robust 18 gauge stainless steel construction.
• Welded corners, finished smooth for safety and appearance.
• Fast draining, precision louvered screen.
DP-332ELD-16-3
Stainless Steel
www.micromatic.com • 1 (866) 327-4159
Job Number:_____________________________________________ Location: ________________________________________________________________________
WALL MOUNT SERIES – 16 HOLE
Specifications
Micro Matic reserves the right to change specifications without notice.
Part No. Faucets Finish Shipping Weight Box Dimensions
DP-332ELD-16-3
16 Brushed Stainless Steel TBD TBD
Dimensions
1219mm
48"
76mm
3"
162mm
6 3/8"
38mm
1 1/2"
19mm
3/4"
81mm
3 3/16"
76mm
3"
1143mm
45"
35mm
1 3/8"
356mm
14"
GRAIN DIRECTION
610mm
24"
DETAIL DRAIN
38mm
1 1/2"
Toll-Free: 1-866-327-4159
www.micromatic.com
West
19791 Bahama St.
Northridge, CA 91324
Tel. (818) 701-9765
Fax. (818) 701-9844
1/2”-14 NPT Threaded 1/2” Deep
