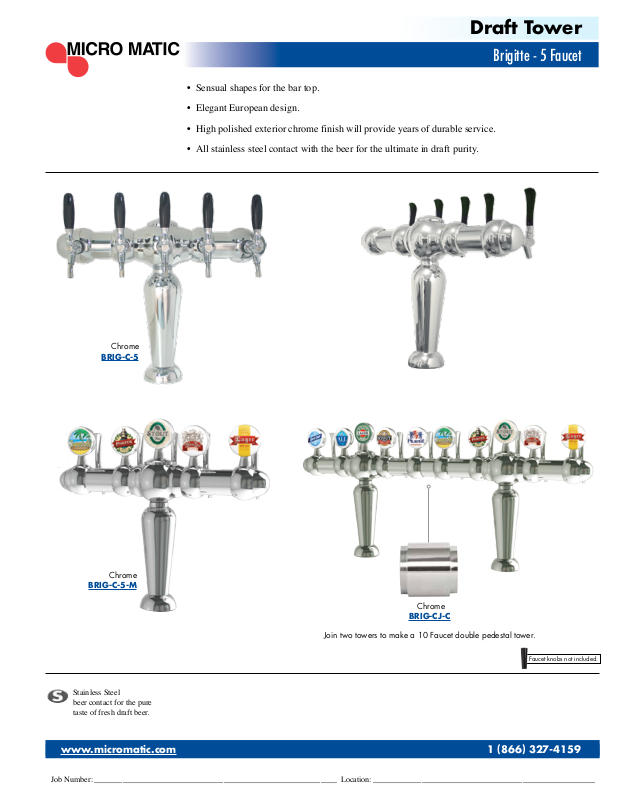

Micro Matic BRIG-C-5 User Manual
Draft Tower
• Sensual shapes for the bar top.
• Elegant European design.
• High polished exterior chrome finish will provide years of durable service.
• All stainless steel contact with the beer for the ultimate in draft purity.
Brigitte - 5 Faucet
Chrome
BRIG-C-5
Chrome
BRIG-C-5-M
Chrome
BRIG-CJ-C
Join two towers to make a 10 Faucet double pedestal tower.
Stainless Steel
beer contact for the pure
taste of fresh draft beer.
www.micromatic.com 1
Job Number: ____________________________________________________________ Location: _______________________________________________________
Faucet knobs not included.
(
866) 327-4159
www.micromatic.com
Specifications
Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions
BRIG-C-5
BRIG-C-5-M
Dimensions
Dimensions
5 Chrome Glycol
5
Chrome with
Medallions
590mm
23 1/4"
Glycol
Micro Matic reserves the right to change specifications without notice.
TBD TBD
TBD TBD
TBD TBD
TBD TBD
QUOTESAU T O
11 1/2"
451mm
17 3/4"
121mm
4 3/4"
293mm
117mm
4 5/8"
102mm
4"
105mm
4 1/8"
GLYCOL: 9.5mm (3/8") O.D.
Stainless Steel with Barb Fittings
BEER: 6.4mm (1/4") O.D.
Stainless Steel with Barb Fittings
76mm
3"
311mm
12 1/4"
149mm
5 7/8"
419mm
16 1/2"
