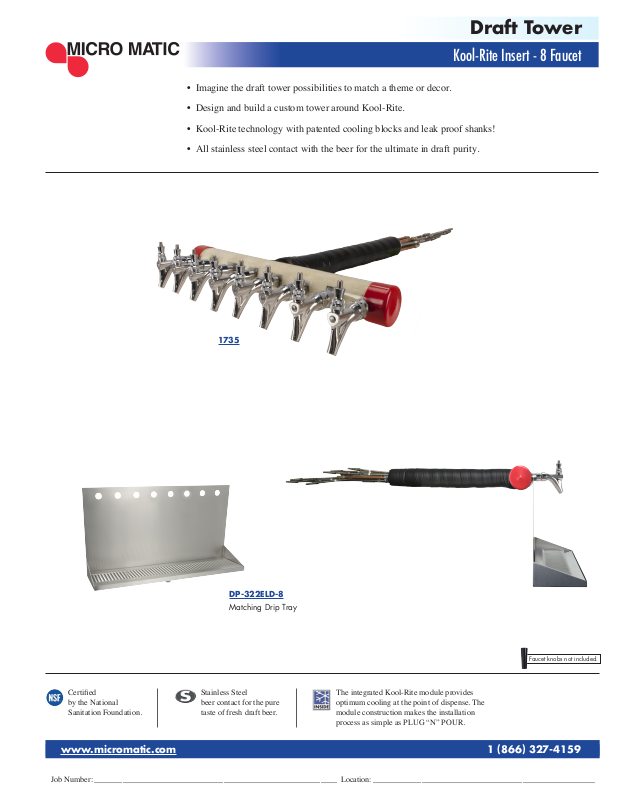

Micro Matic 1735 User Manual

Draft Tower

Kool-Rite Insert - 8 Faucet

• Imagine the draft tower possibilities to match a theme or decor.

• Design and build a custom tower around Kool-Rite.

• Kool-Rite technology with patented cooling blocks and leak proof shanks!

• All stainless steel contact with the beer for the ultimate in draft purity.

1735

DP-322ELD-8

Matching Drip Tray

Certied

by the National
Sanitation Foundation.

www.micromatic.com 1

Job Number: ____________________________________________________________ Location: _______________________________________________________

Stainless Steel
beer contact for the pure
taste of fresh draft beer.

The integrated Kool-Rite module provides
optimum cooling at the point of dispense. The
module construction makes the installation
process as simple as PLUG “N” POUR.

Faucet knobs not included.

(

866) 327-4159

www.micromatic.com

Specifications

QUOTESAU TO

Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions

1735

Dimensions

Dimensions

8 Not Applicable Kool-Rite (Glycol)

FRONT VIEW

Micro Matic reserves the right to change specifications without notice.

16kg 1143mm L x915mm W x381mm H

35lbs 45"L x36"W x15"H

610mm

24"

64mm

2 1/2"

149mm

5 7/8"

559mm

22" Reference

SIDE VIEW

64mm

2 1/2"

76mm

3"

GLYCOL: 9.5mm (3/8") O.D. Copper with

9.5mm (3/8") O.D. Barb Fittings

BEER: 6.4mm (1/4") O.D. Stainless Steel with

8mm – 9.5 (5/16" – 3/8") Barb Fittings

001071-D0713 Copyright ©2013 Micro Matic USA, Inc. All Rights Reserved.
