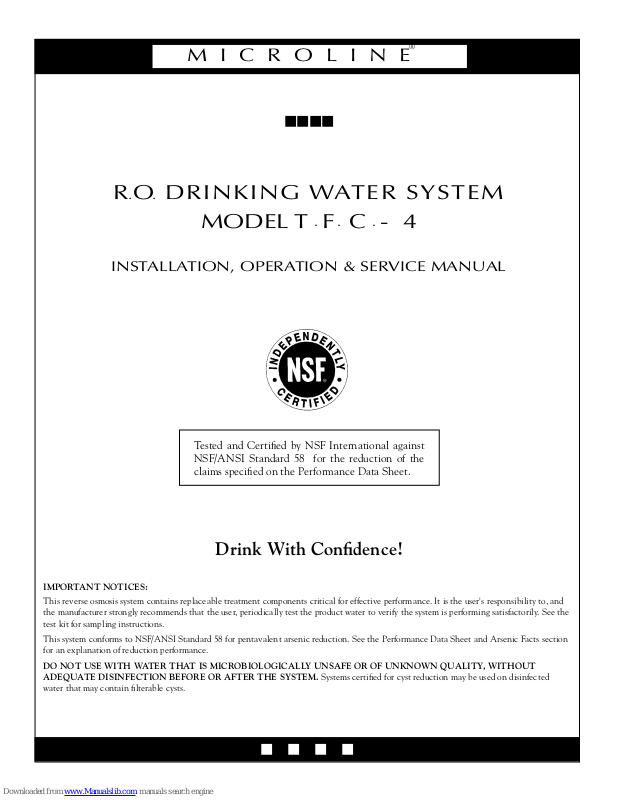

Microline T.F.C.-4 Installation Manual

®

MICROLINE

■■■■

R.O. DRINKING WATER SYSTEM

MODEL T FC-4

. . .

INSTALLATION, OPERATION & SERVICE MANUAL

Tested and Certiﬁ ed by NSF International against NSF/ANSI Standard 58 for the reduction of the claims speciﬁ ed on the Performance Data Sheet.

IMPORTANT NOTICES:

This reverse osmosis system contains replaceable treatment components critical for effective performance. It is the user's responsibility to, and the manufacturer strongly recommends that the user, periodically test the product water to verify the system is performing satisfactorily. See the test kit for sampling instructions.

This system conforms to NSF/ANSI Standard 58 for pentavalent arsenic reduction. See the Performance Data Sheet and Arsenic Facts section for an explanation of reduction performance.

DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UNSAFE OR OF UNKNOWN QUALITY, WITHOUT ADEQUATE DISINFECTION BEFORE OR AFTER THE SYSTEM. Systems certiﬁ ed for cyst reduction may be used on disinfected

water that may contain ﬁ lterable cysts.

Drink With Conﬁ dence!

■■■■

TABLE OF CONTENTS

Page

SECTION I. INTRODUCTION ...........................................................................................3

SECTION II. SPECIFICATIONS ..........................................................................................5

SECTION III. PREPARATION ...............................................................................................6

A. Major System Components .......................................................................6

B. Tools Recommended for Installation......................................................... 6

C. Site Selection For Major System Components .........................................6

SECTION IV. INSTALLATION STEPS................................................................................. 7

A. Faucet Installation .....................................................................................7

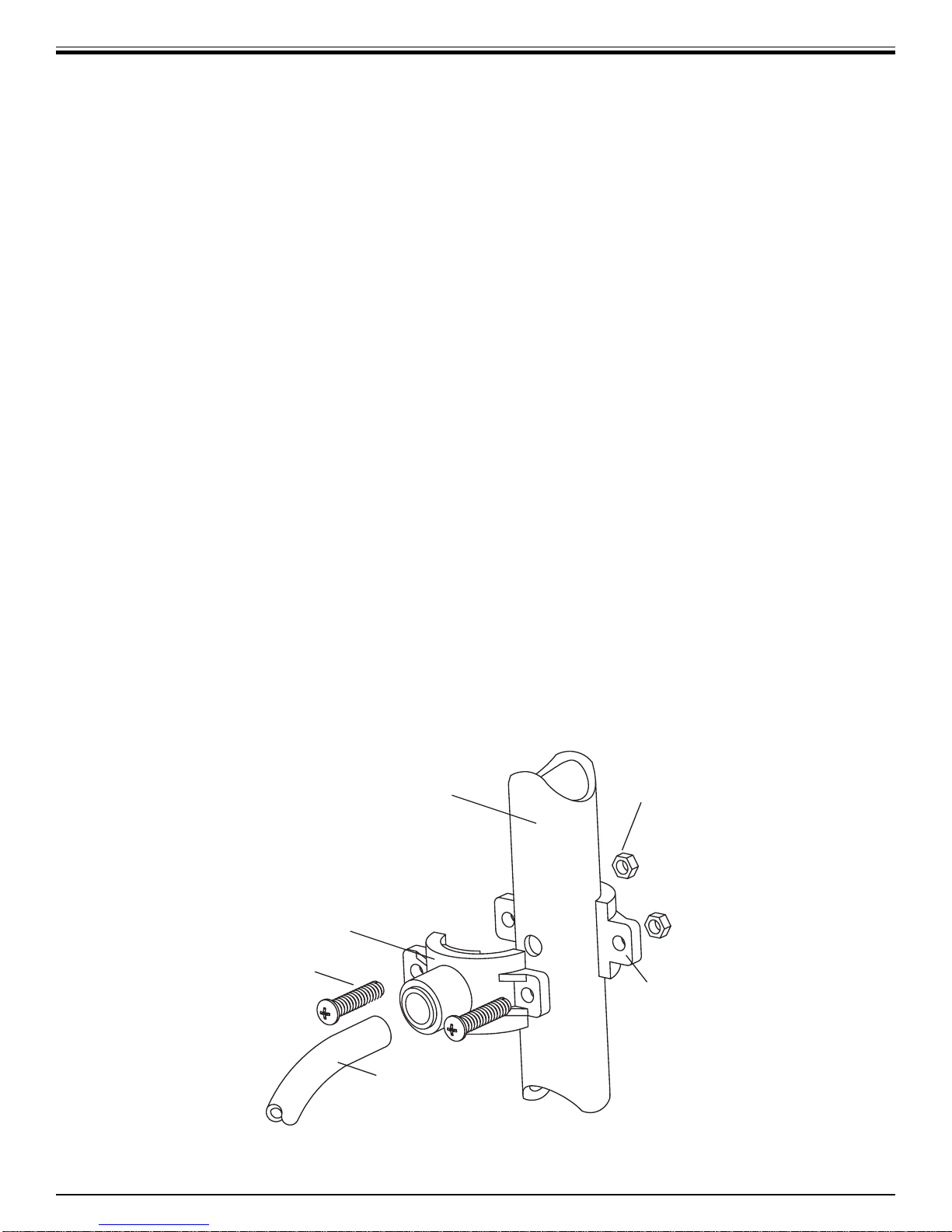

B. Feed Water Saddle Valve Installation .......................................................8

C. Drain Clamp Installation........................................................................... 9

D. R.O. Manifold Assembly Installation...................................................... 10

E. Position the Drinking Water Holding Tank

and Make the Final Hose Connections...................................................10

F. Start Up ...................................................................................................11

SECTION V. OPERATION AND MAINTENTANCE......................................................11

A. Normal Operation ...................................................................................11

B. Changing Filters....................................................................................... 12

C. Changing the In–Line Activated Carbon Post Filter .............................13

SECTION VI. TECHNICAL DATA ..................................................................................... 13

A. Water Quality .......................................................................................... 13

B. Water Quantity........................................................................................13

C. Net Pressure Differential..........................................................................14

D. Water Production Rate Chart .................................................................15

SECTION VII. TROUBLE SHOOTING GUIDE.................................................................. 16

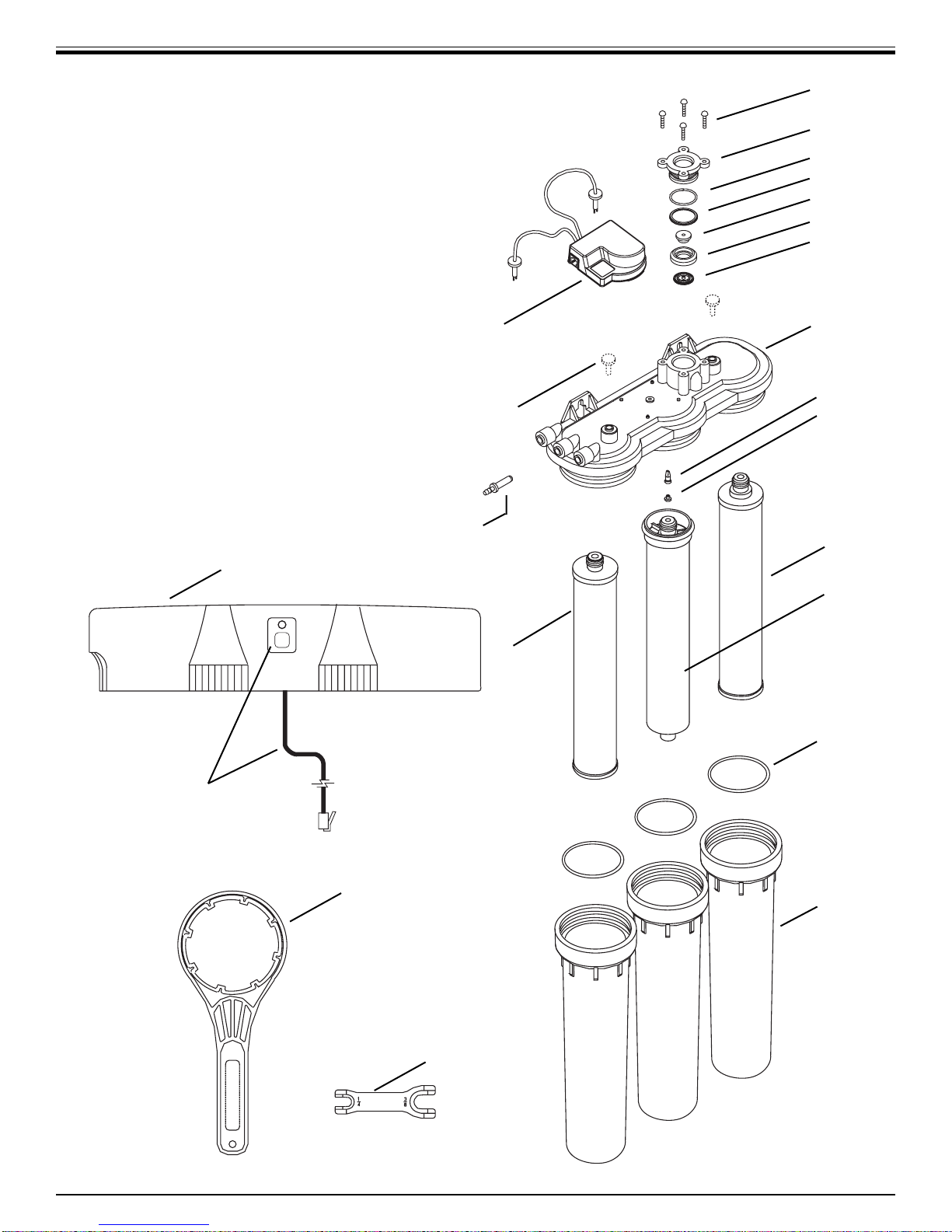

EXPLODED VIEW AND PARTS LIST.............................................................................................. 18

CAUTION:

The Centers for Disease Control and Prevention (CDC) and the Environmental Protection Agency (EPA) have issued guidance to people with severely weakened immune systems who may want to take extra precautions to reduce the risk of infection with Cryptosporidium from drinking water. This guidance pertains to people with HIV/AIDS, patients receiving treatment for cancer, recipients of organ or bone marrow transplants, transplant patients taking immunosuppressive drugs, and persons who have congenital immunodeﬁ ciencies.

The EPA has stated that they do not know the signiﬁ cance of drinking water compared to other possible sources of Cryptosporidium to determine how most people become infected. The CDC-EPA guidance suggests that immunosuppressed individuals discuss their risks with their health care provider.

This drinking water system is tested and Certiﬁ ed by NSF International to NSF/ANSI Standard 58 for cyst reduction. It meets the NSF/ANSI standard of reducing at least 99.95%* of cysts (including Cryptosporidium), however, because this is not 100%, immunosuppressed individuals should take the extra precaution of boiling their drinking water. According to the CDC-EPA, bringing water to a rolling boil for one minute is the most certain approach for killing Cryptosporidium.

All individuals should take adequate precautions when changing the ﬁ lter cartridges, including wearing protective gloves, to avoid direct contact with the exhausted cartridges.

*For complete speciﬁ cations, refer to the Performance Data Sheet.

SECTION I. INTRODUCTION

Your new Reverse Osmosis (R.O.) Drinking Water

System uses a combination of ﬁ ltration tech nol o gies to reduce unwanted contaminants in a water supply. The following steps combine to give you the best in clear sparkling drinking water:

MECHANICAL FILTRATION/ACTIVATED

CARBON–The sediment preﬁ lter will remove the larger particles such as silt, rust and scale. Its 5 micron (equal to 0.0002 inch) nominal rating helps to give maximum life to the R.O. Membrane. The activated carbon in the Preﬁ lter will remove any chlo rine that may be present in the feed water. This pre treat ment is also necessary for membrane pro tec tion.

REVERSE OSMOSIS MEMBRANE–The R.O.

Membrane is the heart of the ﬁ l tra tion system. It is designed to reduce the dis solved min er al content of the water. Minerals picked up in the environment by the water are measured as Total Dissolved Solids (TDS). In the Reverse Os mo sis process, dissolved minerals are sep a rat ed from the incoming water (Feed Water) to produce the product wa ter (the Permeate). The excess minerals are rinsed to drain (the Reject Water).

The membrane is a specially con struct ed, fully

aromatic polyamide ﬁ lm and is classiﬁ ed as a Thin Film Composite (T.F.C.).

The spiral wound construction of the R.O.

Mem brane provides maximum surface area for water production and is less susceptible to fouling by par tic u late matter, turbidity and colloidal ma te ri als.

ACTIVATED CARBON–The Ac ti vat ed Carbon

Post Filter contains carbon particles with a vast network of pores. The tremendous surface area of these pores (typically 800–1200 square meters per gram of carbon) gives the carbon very good adsorptive sites for sub stanc es that contribute to tastes and odors.

IN–LINE ACTIVATED CARBON POST

FILTER–The In–Line Activated Carbon Post Filter is located after the Holding Tank and reduces the tastes and odors that may pass through the system. It adds a ﬁ nal polish to the water.

AUTOMATIC SHUTOFF VALVE–The

ASO Valve senses when the product water tank is full and closes the feed water supply to prevent excess reject water from going to drain when the unit is not producing water.

WATER QUALITY MONITOR–The optional

Water Quality Monitor has been integrated into

9

HOLDING TANK SHUTOFF VALVE

(Open Position)

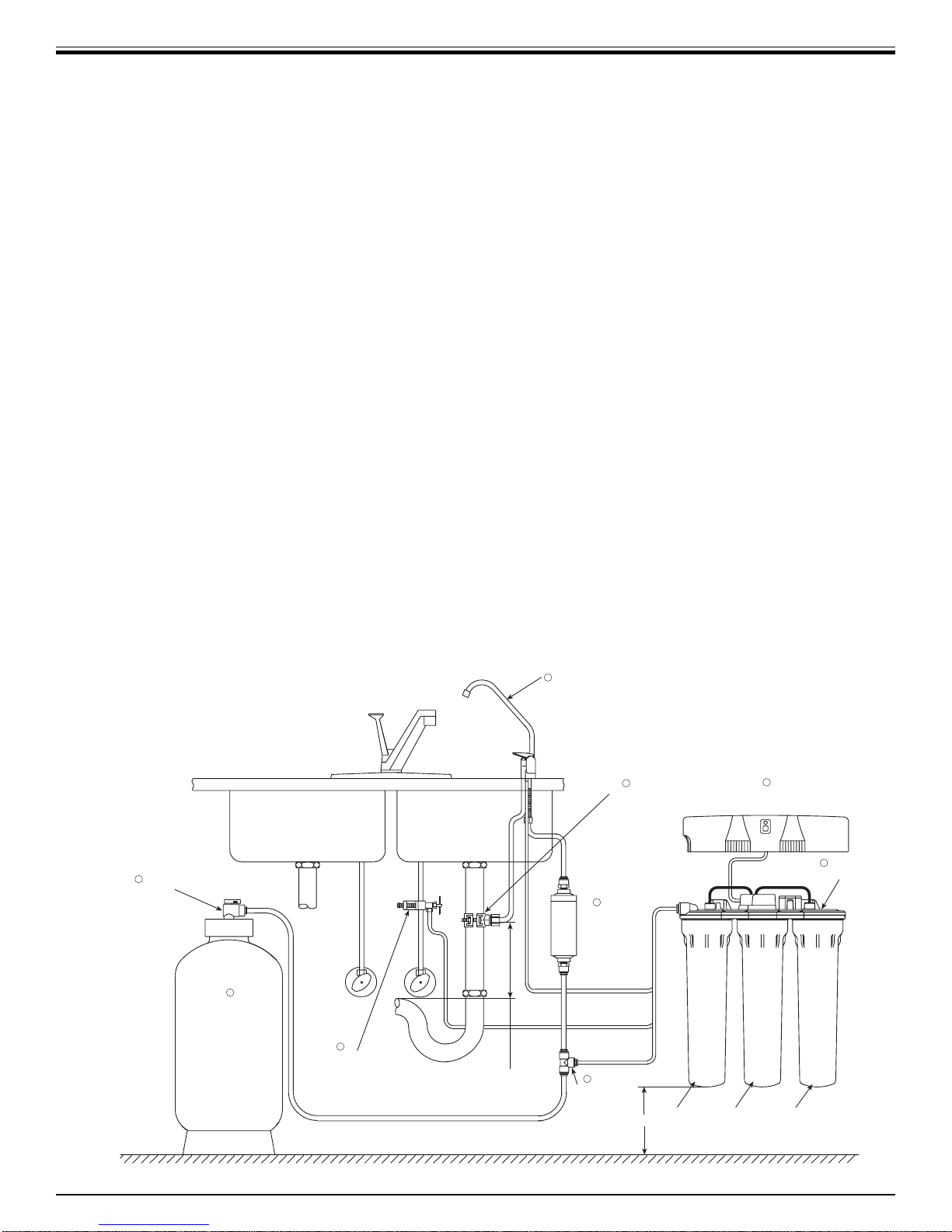

TYPICAL T.F.C.–4 UNDER SINK INSTALLATION DIAGRAM

1

DISPENSING FAUCET WITH AIR GAP

2

PRODUCT

(3/8" Blue)

5

IN-LINE ACTIVATED CARBON POST FILTER

(1/4" Black)

(1/4" Red)

(1/4" Yellow)

6

POLYTUBE TEE

DRAIN CLAMP

DRAIN

INLET

4" MIN.

ACTIVATED CARBON POST FILTER HOUSING

8

DRINKING

WATER

HOLDING

TANK

7

FEED WATER SADDLE VALVE (COLD WATER LINE ONLY)

(3/8" Yellow)

LOCATE DRAIN CLAMP

TANK

DRAIN

(3/8" Black)

ABOVE "P" TRAP

3

COVER WITH OPTIONAL

WATER QUALITY MONITOR

RO MANIFOLD

REVERSE OSMOSIS MEMBRANE HOUSING

SEDIMENT/ CARBON PREFILTER HOUSING

4

Figure 1

3

FLOOR

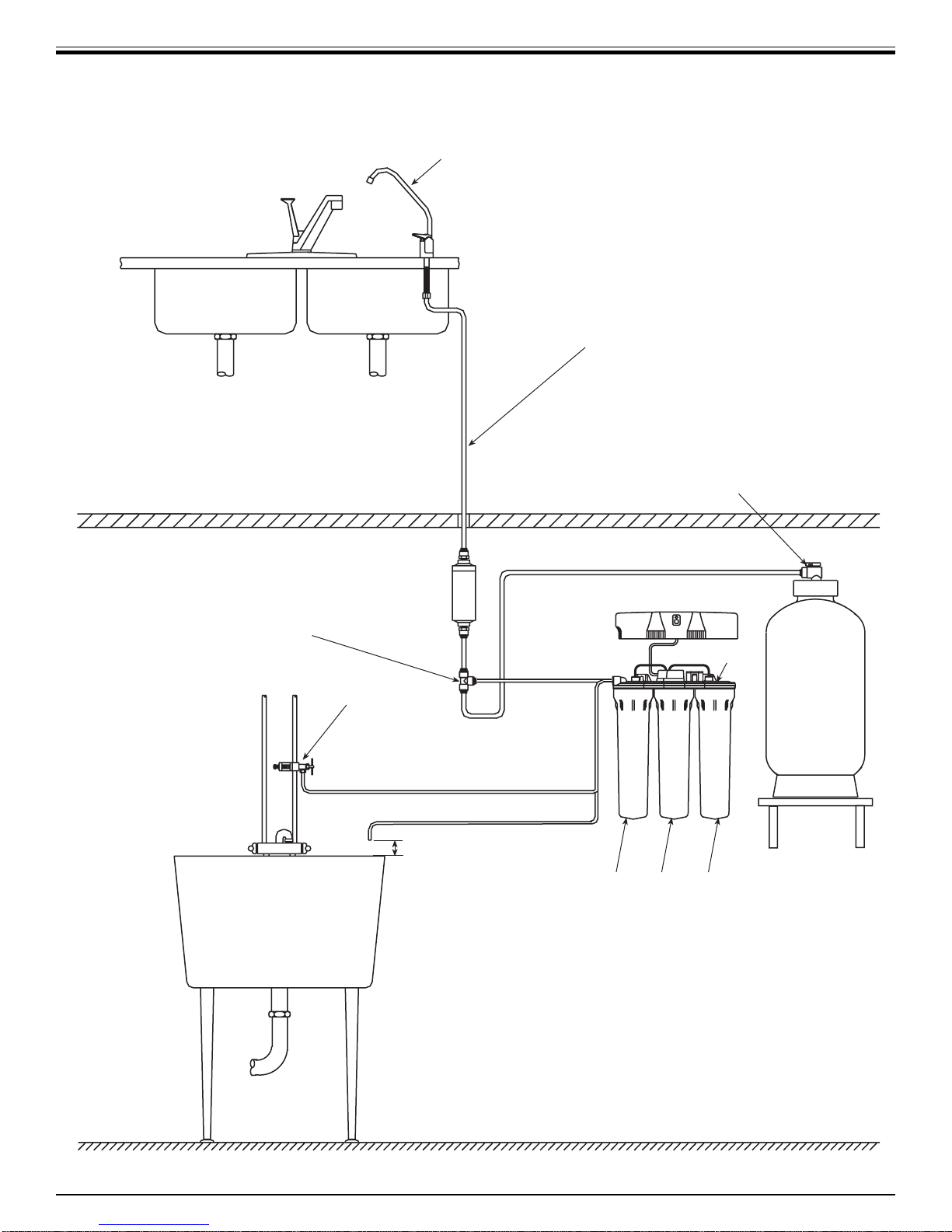

OPTIONAL T.F.C.–4 BASEMENT INSTALLATION DIAGRAM

DISPENSING FAUCET

NOTE: FOR REFRIDGERATOR WATER DISPENSER OR ICE MAKER HOOKUP, TEE INTO

PRODUCT

(3/8" Blue)

3/8" BLUE TUBING TO DISPENSING FAUCET

HOLDING TANK SHUTOFF VALVE

(Open Position)

POLYTUBE

TEE

IN-LINE

ACTIVATED

CARBON

POST FILTER

FEED WATER

SADDLE VALVE

(COLD WATER

LINE ONLY)

1" AIR GAP REQUIRED

INLET

(1/4" Red)

DRAIN

(1/4" Black)

(1/4" Yellow)

TANK

(3/8" Yellow)

COVER WITH OPTIONAL

WATER QUALITY MONITOR

ACTIVATED

CARBON

POST FILTER

HOUSING

REVERSE OSMOSIS

MEMBRANE

HOUSING

RO MANIFOLD

SEDIMENT/

CARBON PREFILTER HOUSING

DRINKING

WATER

HOLDING

TANK

MOUNT HOLDING TANK ON SHELF OR STRAP BETWEEN FLOOR JOISTS (Shelf Or Straps Not Included)

BASEMENT FLOOR

PLEASE NOTE: IF AIR GAP ON FAUCET IS NOT USED IN BASEMENT INSTALLATIONS, A PROPER AIR GAP MUST BE CREATED. PLEASE CHECK WITH LOCAL PLUMBING CODES. SEE EXAMPLE ABOVE.

4

the system cover for instant monitoring at the touch of a button. The monitor compares the level of the total dissolved solids in the incoming (feed) water versus the product water and calculates the percent rejection. The monitor is preset to indicate a level of 75% rejection. NSF/ANSI Standard 58 requires a 75% total dissolved solids rejection to pass the requirement of the standard.

A green light indicates that the percent rejection

is at or above the set (desired) value and that the system is producing quality water.

the Water Quality Monitor was designed to operate best while the system is making water, a false reading may occur if tested when your R.O. drinking water system is not

making water. Please empty the storage tank, wait 15 minutes for the system to begin making water, and test your water quality again. If the Water Quality Monitor light is still amber, please contact a water treatment professional for service. The Water Quality Monitor requires a 9 volt battery, which is included. Systems not equipped with a Water Quality Monitor contain a water quality test kit.

An amber light indicates that the product

water quality is less than acceptable. Because

SECTION II. SPECIFICATIONS

TABLE A – QUALIFIED SYSTEM PER FOR MANCE

Because the performance of an R.O. Mem brane is highly dependent upon pressure, temperature and TDS, the

following should be used for com par i son purposes only.

U.S. Metric

Membrane Production1 25 ± 5 gpd 76–114 lpd Membrane TDS Reduction1 95% minimum 95% minimum System Production² 8 gpd 30 lpd TDS Reduction² 90%+ typical 90%+ typical Drain (reject water) Flow 3–5 x product ﬂ ow 3–5 x product ﬂ ow Empty Storage Tank Precharge 5–7 psig air 35–48 kPa air Storage Tank Capacity

1

Industry standards measure R.O. Mem branes performance with no backpressure on the product water, at 60 psig (414kPa) and 77°F (25°C). Further conditions on the above are 250 ppm TDS and a 15% recovery rate. Production rate and TDS reduction ﬁ gures are for a new Membrane that has been rinsed for 24 hours. The production rate of a new Membrane can decrease by 10% per year or more, depending upon the scaling and fouling ten den cies of the Feed Water.

2

Measured at 50 psig, 77°±2° F, 717 mg/l TDS per NSF/ANSI Standard 58.

2

1.8 gallons 6.8 liters

TABLE B – RECOMMENDED OPERATING LIMITS FOR FEED WATER

Speciﬁ cations T.F.C. Membrane

Water Pressure 40–100 psig (280–690 kPa) TDS 2000 ppm (also mg/l) max. Temperature 40–100°F (4–38°C) pH 3–11 Hardness Less than 10 gpg (170 mg/l) or soften Iron Less than 0.1 ppm (also mg/l) Manganese Less than 0.05 ppm (also mg/l) Hydrogen Sulﬁ de None Chlorine See note Bacteria Must be potable**

NOTE: Chlorine will damage a T.F.C. Membrane. The Sediment/Carbon Preﬁ lter will remove chlorine from the incoming water. Change ﬁ lter every 6 months, more often if the water contains more than 1 ppm chlorine.

**DO NOT USE WITH WATER THAT IS MICROBIOLOGICALLY UN SAFE OR OF UNKNOWN QUALITY, WITHOUT AD E QUATE DIS IN FEC TION BEFORE OR AFTER THE SYSTEM.

5

SECTION III. PREPARATION

A. Major System Components

The following components comprise the R.O.

Drinking Water System. (Refer to Fig. 1, page 3 for general system layout.)

1. An R.O. Manifold assembly.

2. Housings and Housing O–rings.

3. A Drinking Water Holding Tank.

4. A Dispensing Faucet.

5. A Feed Water Saddle Valve.

6. A Drain Clamp.

7. Plastic Tubing and tube connectors.

8. A Reverse Osmosis Mem brane sealed in a plastic bag.

9. A Sediment/Carbon Preﬁ lter, shrink wrapped.

10. An Activated Carbon Post Filter, shrink wrapped.

9. Assorted wood and metal drill bits in clud ing

7

/32" metal drill bit.

10. Phillips head and ﬂ at blade screwdriv ers.

11. ½", 9/16" and 5/8" open end wrenches.

12. 10" Crescent wrench with jaws taped to hold faucet.

13. Basin wrench or 10" pipe wrench.

14. Teﬂ on tape.

15. Wide masking tape or duct tape.

16. Plastic tubing cutter.

17. Extra plastic tubing.

18. Low range air pressure gauge.

19. Bicycle hand air pump.

20. Small bottle of liquid chlo rine bleach.

21. Graduated measuring cyl in der.

22. Paper towels, wisk broom and assorted clean up materials.

11. An In–Line Activated Carbon Post Filter, shrink wrapped.

12. R.O. System Cover with or without optional Water Quality Monitor.*

13. Water Quality Test Kit for systems without the Water Quality Monitor.

14. Other items necessary for installation may include wood screws or machine screws and nuts for mounting the manifold, or concrete anchors for hanging on basement wall. Additional tubing or tube connectors. Plastic wire ties for organizing tubing.

* The Water Quality Monitor may be necessary to conform

to state or local codes, check with the local plumbing authority.

B. Tools Recommended for Installation

The following tools will cover most of the

in stal la tion sites encountered:

3

1.

/8" variable speed electric drill.

2. Extension work light with outlet.

3. Safety glasses.

4. 1¼" porcelain hole cutter kit.

1

5. 1¼" Greenlee hole punch and

/8" and ½"

metal drill bits for pilot hole.

6. Center punch and hammer.

7. 1¼" wood bit.

8. Concrete drill bits.

C. Site Selection for Major System Components

The R.O. System was designed to ﬁ t under a sink,

however, because of space limitations or other reasons, the system’s ﬂ exible design allows for other lo ca tions. When determining the location re mem ber that access to a cold water tap line, the household drain, and ease of ﬁ lter re place ment are important considerations.

All components and tubing should be located

in an area which is not exposed to freezing temperatures. If winter temperatures are severe, the area should be above the minimum temperature listed in Table B, page 5 for proper performance. Do not expose unit or tubing to direct sunlight.

1. Dispensing Faucet–The faucet should be placed near the sink where drinking water is normally obtained. Convenience of use (ﬁ lling of water pitchers and glasses), and an open area beneath the faucet under the sink for attaching product and drain tubing are considerations. A 2" diameter ﬂ at surface is required above and below the installation site. The thickness of the mount ing surface should not exceed 1¼". Watch for strengthening web bing on the underside of cast iron sinks.

2. Drinking Water Holding Tank–The Holding Tank may be placed where it is convenient within 10 feet of the faucet; under the sink or in an ad ja cent cabinet are the best choices. If a long er run of tubing is required, the tubing

6

should be the 3/8" diameter OD size to prevent a high pres sure drop. Re mem ber, these tanks can weigh up to 30 pounds when full of water; a ﬁ rm, level area is required.

Faucet has a critical level line “CL” marked on its body and should be mounted so that the “CL” line is at least one (1) inch (26mm) above the ﬂ ood level rim of the sink.

3. R.O. Manifold Assembly–The manifold can be installed on either the right or left side of the under–sink area or a cabinet. The right side is recommended because all the tubing will be to the back of the cabinet and out of the way. Installation in the basement is also an option, one location is near the laundry/ utility sink where cold potable water and drain access is handy. The mounting location should allow adequate clear ance and accessibility for cartridge chang es.

4. Feed Water Connection–The Feed Water Saddle Valve should be located as close to the manifold assembly as possible. USE A POTABLE COLD WATER SUPPLY ONLY. Softened water is preferred as it will extend the life of the R.O. Membrane.

5. Drain Connection–The waste water must go to drain through an anti–siphon air gap. The air gap is pro vid ed for in the base of the faucet. If discharging into a utility sink or standpipe, an air gap of greater than 1" above the ﬂ ood rim must be provided.

Do NOT connect the system drain line to the

dishwasher drain or near the garbage dis pos al. Backpressure from these units may cause the air gap to overﬂ ow.

SECTION IV. INSTALLATION STEPS

All plumbing should be done in accordance with state

and local plumbing codes.

NOTE: Some codes may require installation by a

licensed plumber; check with the local plumbing authority prior to installation.

The easiest installation is to use an existing

spray attachment hole. If the spray faucet hole is not available, then the sink top must be drilled. Choose a convenient location as described in Sec. III, C.1, page 6.

1. Mark the location of the center of the faucet base.

2a. Drilling a stainless steel sink:

•Center punch the hole to provide a starting

point for the drill.

•Start with a smaller drill as a pilot, and then

drill a ½" diameter hole to accept the bolt of a 1¼" Greenlee Hole Punch (1¼" chassis punch).

•Clean away any chips.

•Install the punch and tighten the nut to cut

the hole.

•Deburr any sharp edges.

2b. Drilling a porcelain sink: It is best to use a special 1¼" diameter cutter

designed for porcelain. A carbide tipped masonry bit is a second choice.

•Place a piece of tape over the area to be

drilled to help prevent chip ping.

•Drill a pilot hole for the porcelain cutter.

Use the pilot drill supplied with the kit or a car bide tipped drill.

•When drilling the 1¼" hole, drill slowly and

carefully; the porcelain chips easily.

•After drilling, clean the area well. Iron ﬁ lings,

if left in place, can cause rust stains.

2c. Drilling a counter top:

In restricted under–sink areas, it may be easier to

install the faucet ﬁ rst. Allow ad e quate tubing lengths for any ﬁ nal component position.

A. Faucet Installation–The faucet contains an

anti–siphon air gap. While the system is producing water, the drain water ﬂ ows from the R.O., through the air gap and then to the household drain. The purpose of the air gap is to prevent water in the drain from backing up into the R.O. Drinking Water System.

NOTE: For proper installation the Air Gap

NOTE: The counter top must be less than 1¼"

thick. Treat ceramic tile as por ce lain until the tile is pen e trat ed, then use the carbide tipped metal cutter.

Formica counter tops may be drilled with a

good 1¼" wood bit; drilling a

3

/32" pilot hole

will help keep the bit going straight.

7

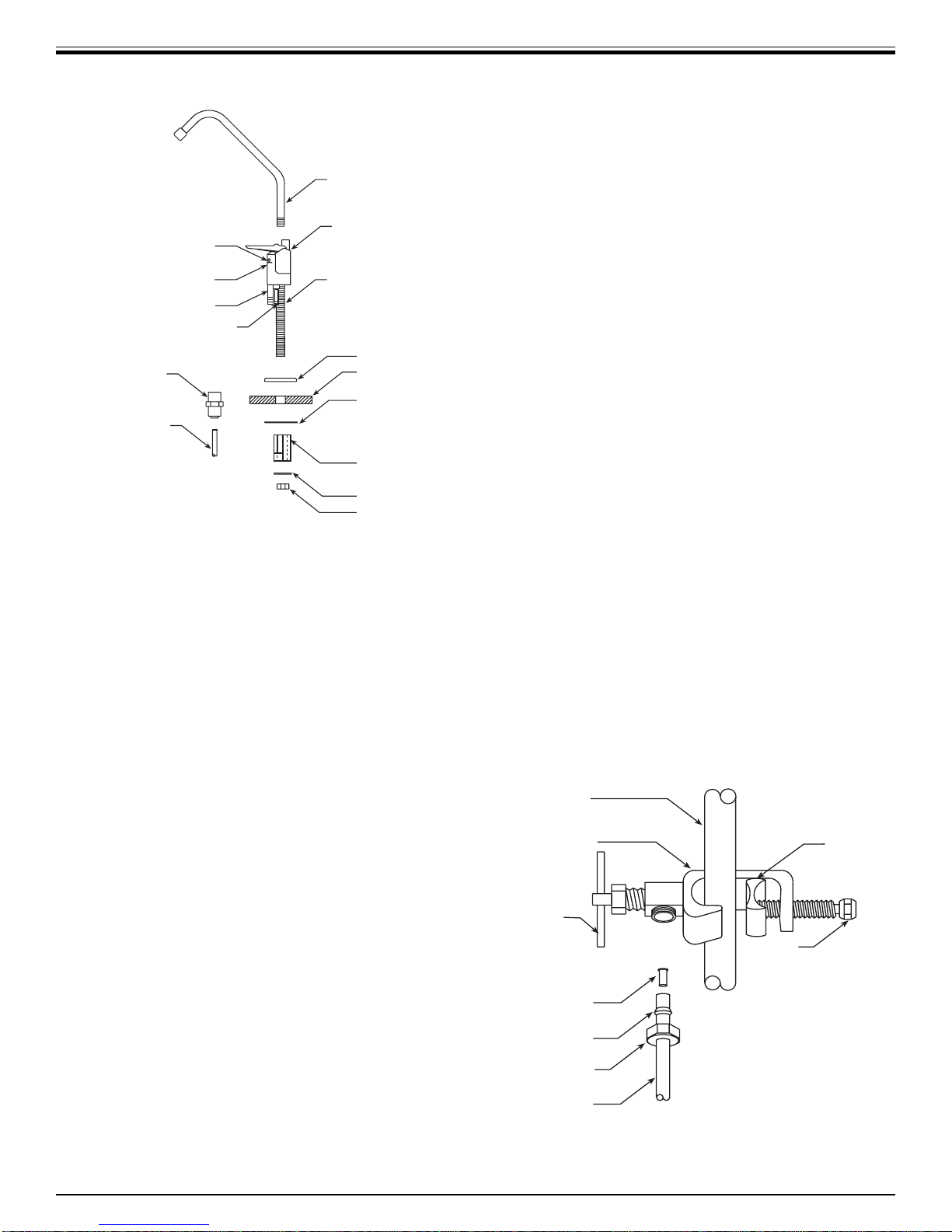

LONG REACH AIR GAP FAUCET

WITH 3/8" CONNECTOR

Spout

Plastic Shipping

Air Gap Window

Reject Outlet For

Drain Clamp Line

3/8" Polytube

Quick Connect

Fitting

3/8" Blue Polytube

Critical Level

Line

Reject Inlet For

Manifold Drain Line

CL

Plug (Remove)

7/16" Stud

Face Plate (Escutcheon)

Mounting Surface

Slotted Washer

Plastic Spacer

7/16" Washer

7/16" Hex Nut

Figure 2

3. Assemble and attach the Faucet (refer to Fig. 2 above).

•Assemble the Body and Spout by removing

the plastic ship ping plug from the Body and then ﬁ rmly pressing in the Spout.

•In the fol low ing order, place the Face Plate

7

(Es cutch eon) on the

/16" stud.

•From the top of the counter place the stud

through the mounting hole.

•From the bottom of the counter top, in the

fol low ing order, assemble the Slotted Washer, the Plastic Spacer (with open end up wards),

7

/16" Washer and the 7/16" Hex Nut.

the

7

•To the end of the

/16" stud screw on the 3/8" Polytube Quick Connect Fitting. Once snug by hand take a pair of pliers and tighten the ﬁ tting an additional half turn. Don’t over tighten.

•Rotate the Spout and Body into position. Align the Slotted Washer and the Spacer to allow access to the Hose Barbs, and tighten the Hex Nut while holding the faucet in alignment with a padded Crescent wrench. Do not over tighten.

B. Feed Water Saddle Valve Installation

Decide on location. Do NOT connect to a hot

water feed line. If you are not sure of the supply, run the hot water and feel the supply piping.

Wa ter over 100°F may cause permanent dam age to the R.O. Membrane. (Refer to Fig. 3 below.)

1. Shut off the water supply and drain the line. 2a. To install on (soft) Copper Tubing supply

line:

•Turn the Handle of the Feed Water Saddle Valve counter clockwise (outward) until the lance does not protrude from the gasket. It may have to be pushed in.

•Assemble the Feed Water Saddle Valve on the tubing.

3

/8" OD tubing use the back plate side

–for

with the small groove to prevent dis tor tion of the tub ing.

5

–for larger tubing (up to

/8" OD) use the large

groove of the back plate.

•Assemble and tighten the brass screw.

• To pierce the tubing, turn the Valve Handle

fully clock wise (inward). A small amount of water may escape from the outlet until it is fully pierced.

•When you feel the Valve Handle ﬁ rmly seated in the clockwise direction, the copper tube is pierced and the valve is closed.

2b. To install on (hard) Steel or Brass Tubing

supply line.

•The supply line should now be drained. Use a battery powered or properly ground ed drill to avoid shock hazard.

FEED WATER SADDLE VALVE

Cold Water

Line

Saddle

Valve

Handle

Plastic

Ferrule

Compression

Tubing To

Manifold

Insert

Nut

Inlet

Tightening

Screw

Reversible Back Plate

Figure 3

8

•Drill a 3/16" hole in the supply line; (do not drill through the opposite wall).

•Turn the handle to expose the lance no more

3

/16" beyond the rubber gasket.

than

•Place the body of the valve over the hole so that the lance ﬁ ts into the hole.

•Assemble and tighten the brass screw.

•Turn the Valve Handle clockwise (inward)

until ﬁ rmly seated. The valve is closed.

3. With the Feed Water Saddle Valve closed, open the sink faucet and the water supply and allow the water to run for a few minutes to ﬂ ush any debris caused by the in stal la tion.

•Close the faucet and check the Feed Water

Saddle Valve for leaks.

C. Drain Clamp Installation

Choose the drain outlet location per Sec. III, C.5,

page 7.

The following are instructions for discharging into

the sink drain pipe. (Refer to Fig. 1, page 3.)

1. Position the Drain Clamp on the sink drain pipe above the drain trap. Allow room for drilling. Tighten securely.

2. Use a battery pow ered or properly grounded drill. Using the Clamp port as a drill guide,

7

drill a

/32" hole through the wall of the drain pipe. Do NOT penetrate the opposite side of the pipe.

3

3. Locate the

/8" Black Drain Tubing which is

shipped loose in the box.

NOTE: When cutting the polytubing make

clean, square cuts, failing to do so could result in poor con nec tions and possible leaks.

CAUTION: The lowest point of the line

should be the point of connection to the Drain Clamp. There should be no sag in the line as this may cause ex ces sive noise as the reject water is ﬂ owing to drain.

Firmly press one end of the tubing over the

3

/8" drain outlet hose barb on the Dispensing Faucet. Allow the tubing to relax, then press ﬁ rmly again to insure proper seating. No connectors are re quired when attaching hose to Hose Barbs. Route the tubing to the Drain Clamp and trim to length.

•Refer to Fig. 4, below. Insert the tubing into

the Drain Clamp. Make sure the tubing is pressed all the way in to create a pressure tight connection.

NOTE: If you want to pull the tubing out for

Drain Clamp Front Plate

1/4" Screw

3/8" DRAIN CLAMP ASSEMBLY

Drain Pipe

Black Drain Tubing

Figure 4

1/4" Nut

Drain Clamp Back Plate

9

some reason, push the ring around the tubing in and pull the tubing out.

D. R.O. Manifold Assembly Installation

Locate the site per Sec. III, C.3, page 7. Various

in stal la tion sites will require different types of mount ing fasteners; be sure the fastener selected will provide a ﬁ rm, solid mounting. A support panel may be necessary on thin cabinet walls or to span between wall studs on par ti cle board or drywall.

Do not drill through exterior cabinet walls or

leave sharp wood screw points exposed in readily accessible cabinet interiors.

The close proximity of a dishwasher or a trash

compactor may require spe cial fabrication of a mounting plate.

1. The mounting bracket will accept either #10 or #12 (5mm) mounting screws spaced on 6" (15 cm) centers. Allow at least 4" (10 cm) of clearance beneath the ﬁ lter housings to accommodate ﬁ lter changes. Mark the two locations (the bracket can be used as a template). Install the screws and tighten them until the heads are about

5

/8" from the wall.

2. Locate the ¼" Red Feed Water Tubing. Remove the red plug from the ﬁ tting labelled “In” on the manifold and insert the tubing. Reference the special supplement sheet in the carton for proper connection of all tubing and removal of plugs. Run the tubing along its course to the Feed Water Saddle Valve, trim to length. (Refer to Fig. 1, page 3.)

Refer to Fig. 3, page 8. To the end of the red

polytube install the Compression Nut, the Plastic Ferrule, and the Insert. Connect to the Feed Water Saddle Valve.

3. Locate the ¼" Black Drain Tubing. Remove the black plug from the ﬁ tting labelled “Drain” on the manifold and insert the tubing. The end of the Black Drain Tubing that should be inserted into the “Drain” port will have a yellow drain restrictor in it. Run the tubing along its course to the ¼" Hose Barb on the Dispensing Faucet, trim to length and connect by ﬁ rmly pressing over the barb. Allow the tubing to relax, then press ﬁ rmly again to insure proper seating.

4. Locate the ¼" yellow tubing with the tee attached to one end. Remove the yellow plug from the ﬁ tting labelled "Out" on the manifold and insert the tubing.

5. Locate the

3

/8" Blue Product Water Tubing. Firmly press one end into the tee and the other end into the faucet connector. (Refer to Fig. 1, page 3.) The ﬁ ttings will grab the tubing and seal it in place. Make sure the tub ing is pressed all the way in to create a pressure tight connection.

NOTE: If you want to pull the tubing out for

some reason, push the ring around the tubing in and pull the tubing out.

6. Hang the Manifold Assembly on the mounting screws and tighten. DO NOT OVERTIGHTEN.

7. Remove the wrap ping from the In–Line Activated Carbon Post Filter. Slice

3

the

/8" Blue Polytube where it would be convenient to install and change the In–Line Fil ter. Make a clean straight cut to insure proper connections. The “Out” port on the In–Line Filter should be toward the faucet. Firmly press in the tubing. The ﬁ ttings will grab the tubing and seal it in place. Make sure the tubing is pressed all the way in to create a pressure tight connection.

E. Position the Drinking Water Hold ing Tank and

Make the Final Hose Connections.

1. Check the tank precharge pressure. Make sure it is between 5 to 7 psig. If not, use a bicycle hand pump or other pump to bring the pressure up to the 5 to 7 psig range.

2. Pull the cap/plug off the top of the tank where the Tank Shut–Off should go. (Refer to Fig. 1, page 3.)

3. Wrap the white teﬂ on tape, included in the box, three times around the ¼" male outlet thread. Wrap in the direction of the threads (clockwise when looking down on the Holding Tank). The tape will act as a thread sealant. Screw on the Holding Tank Shut–Off Valve.

4. Locate the

3

/8" Yellow Tubing. Firmly press one end into the Holding Tank Shut–Off Valve and the other end into the tee. (Refer to Fig. 1, page 3.) The ﬁ ttings will grab the tubing and seal it in place. Make sure the tubing is

10

pressed all the way in to create a pressure tight connection.

F. Start Up

At time of start up and each time the ﬁ lters are

changed the system should be sanitized (also see Operation and Maintenance Sec. V, B.1–4, page

12).

1. Sanitizing the system. Use a drip pan to aid clean–up.

NOTE: The system should be sanitized

BEFORE installing the Sediment/Carbon Preﬁ lter, the Activated Carbon Post Filter or the R.O. Membrane.

Housing hand tight only.

•Remove the Activated Carbon Filter Housing (the closest of the three to the In–Out ports), empty, and install the Activated Carbon Post Filter. Firmly tighten the Housing hand tight only.

2. Installing the R.O. Membrane:

•Remove the R.O. Membrane Housing, (the middle one), and empty.

•Insert the Membrane up into the manifold. (The O–rings should be up toward the manifold.) Check the Housing O–ring for proper position in its groove, engage and ﬁ rmly tighten the Housing hand tight only.

•Use a good quality unscented 5¼% liquid chlorine household bleach.

•Open the Dispensing Faucet by lifting the black handle and open the Holding Tank Shut–Off Valve (the handle should be parallel with the valve body).

•Remove the plug on the underside of the manifold labelled “SEDIMENT/ CARBON”. Pour one capful of bleach (this is approximately 2 tsp. or 10 ml) into one of the white Housings. Insert a Housing O–ring into the Housing groove, (press ﬁ rmly in place). Engage and ﬁ rmly tighten the Housing hand tight only.

•Remove the plugs labelled “MEMBRANE” and “ACTIVATED CARBON” from the underside of the manifold. To each of the remaining white Housings, add one capful of bleach. Insert a Housing O–ring, engage and ﬁ rmly tighten the Housings hand tight only.

•Slowly open the Feed Water Saddle Valve (turning counter clockwise).

•As soon as the water begins to come out of the Dispensing Faucet, close the Faucet.

•Let stand for 15 minutes.

NOTE: During this time, check the system

carefully for leaks.

•At the end of 15 minutes, CLOSE the Feed Water Saddle Valve and open the Dispensing Faucet.

•Allow the Holding Tank to completely drain, then remove the Sediment/Carbon Filter Housing (the farthest of the three from the In–Out ports), empty, and install the Sediment/Carbon Preﬁ lter. Firmly tighten the

3. Rinsing the system:

•Slowly open the Feed Water Saddle Valve fully counter clockwise.

•The Holding Tank Valve should be open.

•Check the Air Gap Window on the

Dispensing Faucet to be sure that the drain water is ﬂ owing. (Refer to Figure 2, page 8.) The R.O. System is now making water.

•Do not open the Faucet for at least 8 hours.

•Do not use the ﬁ rst three full tanks of water.

CAUTION: The R.O. Membrane is shipped

with a preservative in it. To ensure proper rinsing of the R.O. Membrane it is important to wait at least 8 hours before emptying each tank.

When the Faucet is ﬁ rst opened, expect air

and carbon ﬁ nes (very ﬁ ne black powder) from the In–Line and Activated Carbon Post Filters to be rinsed out. This is normal for the ﬁ rst tank of water or after the Activated Carbon Post Filters are changed.

SECTION V. OPERATION & MAINTENANCE

A. Normal Operation

1. It is normal for the Total Dissolved Solids (TDS) of the water to be higher than normal during the ﬁ rst 5 gallons of operation; this is due to the sanitizing solution and the new Post Filters. After this water is rinsed to drain, the removal rate should stabilize at a value of greater than 75%. The optional Water Quality Monitor measures the TDS reduction and gives an indication of proper per for mance. Water pressure affects the production rate and quality.

11

2. R.O. systems produce drinking water at relatively slow rates; it can take up to 6 hours or more to ﬁ ll the Holding Tank. Normal operation is to let the Holding Tank ﬁ ll with water and then draw water as needed. When the pressure in the Holding Tank falls to a given pressure (as the water is being used) the Automatic Shut–Off Valve (ASO Valve) will start water production and the system will reﬁ ll the Holding Tank. When the Hold ing Tank is full and no water is being used, the ASO Valve will automatically shut off the feed water to conserve water. The more water that is used (up to the capacity of the system) the better the R.O. system will function. Other uses for the water are ﬂ owers, pets and rinsing glassware.

With each use it is recommended that you run

the tap for at least 10 seconds prior to using water. This is especially important if the water tap has not been used daily.

After periods of non–use, such as a week of va ca tion, it is better to empty the Holding Tank and allow the system to produce fresh wa ter for use. If the system is not used for 3–4 weeks or longer, it is a good idea to resanitize the system and to change the preﬁ lter and post ﬁ lters.

B. Changing Filters

THIS R.O. SYSTEM CONTAINS FILTERS

WHICH MUST BE REPLACED AT REGULAR INTERVALS TO MAINTAIN PROPER PERFORMANCE. USE ONLY FACTORY APPROVED FILTERS.

All individuals should take adequate precautions

when changing the ﬁ lters, including wearing protective gloves, to avoid direct contact with the exhausted ﬁ lters.

The recommended interval for changing the ﬁ lters (not the R.O. Membrane) is every six (6) months. Typical T.F.C. Membrane life expectancy is three years. Local con di tions may dictate more frequent changes.

NOTE: If the R.O. Membrane is to be replaced,

see Sec. IV, F.1–3, page 11, for the proper pro ce dure.

Use a drip pan to catch any water that may spill

when the Filter Housings are removed. Refer to Fig. 1 page 3 for component location.

1. Close the Feed Water Saddle Valve by turning fully clockwise and open the Dispensing Faucet by lifting the handle. Allow the Holding Tank to empty.

2. Loosen and remove the Sediment/Carbon Filter and the Activated Carbon Filter Housings. Discard the ﬁ lters.

3. Wash the inside of the Housings using a mild detergent and a soft cloth. Do not use abra sive cleaners or pads. Thoroughly rinse all soap from the Housings before reassembly.

4. To sanitize the system and replace the ﬁ lters:

NOTE: The system should be sanitized before

installing the Sediment/Carbon Preﬁ lter and Activated Carbon Post Filter.

•Use a good quality unscented 5¼% liquid

chlorine household bleach.

•Add one capful of bleach (this is 2 tsp. or

10 ml) to the Sediment/Carbon Filter Housing and tem po rari ly install the Housing without the Sediment/Carbon Preﬁ lter. Check the Housing O–ring for proper position in its groove, engage and ﬁ rmly tighten the Housing hand tight only.

•Add one capful of bleach to the Activated

Carbon Filter Housing. Carefully ﬁ ll the Housing with tap water and temporarily install the Housing without the Activated Carbon Post Filter.

•The Dispensing Faucet should be open, slowly

open the Feed Water Saddle Valve.

•As soon as water begins to drip out of the

Dis pens ing Faucet, close the Faucet.

•Let the system stand for 15 minutes.

•At the end of 15 minutes, in the following

order, close the Feed Water Saddle Valve, close the Holding Tank Valve and open the Dispensing Faucet to release the pressure.

•Remove the Sediment/Carbon Filter Housing

and empty. Remove the wrapping and install the Sediment/Carbon Preﬁ lter. Firmly tighten the Housing hand tight only.

•Remove the Activated Carbon Filter Housing

and empty. Remove the wrapping and install the Activated Carbon Post Filter. Firmly tighten the Housing hand tight only.

•Disconnect the yellow product water tubing

that runs from the Holding Tank to the Tee (see Fig. 1, page 3). Put 50 drops of bleach (this is ½ tsp. or 3 ml) into the tubing and reconnect it to the Tee.

NOTE: Now is the convenient time to

change the In–Line Activated Carbon Post Filter, see Sec. V, C.1–6, page 13.

12

OUT

v

ated

C

er

3/8

e

T

o

g

aucet

3/8

e

Dispensin

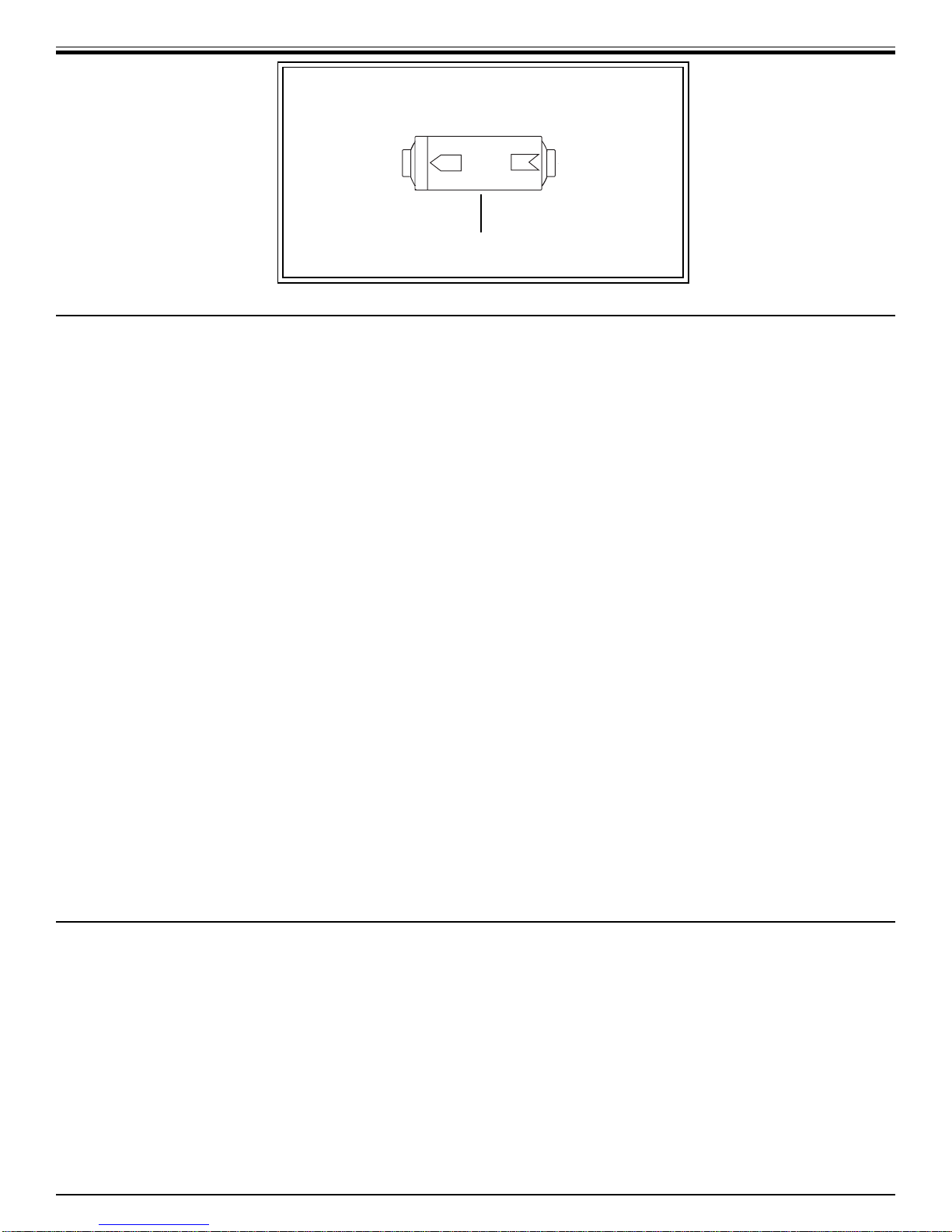

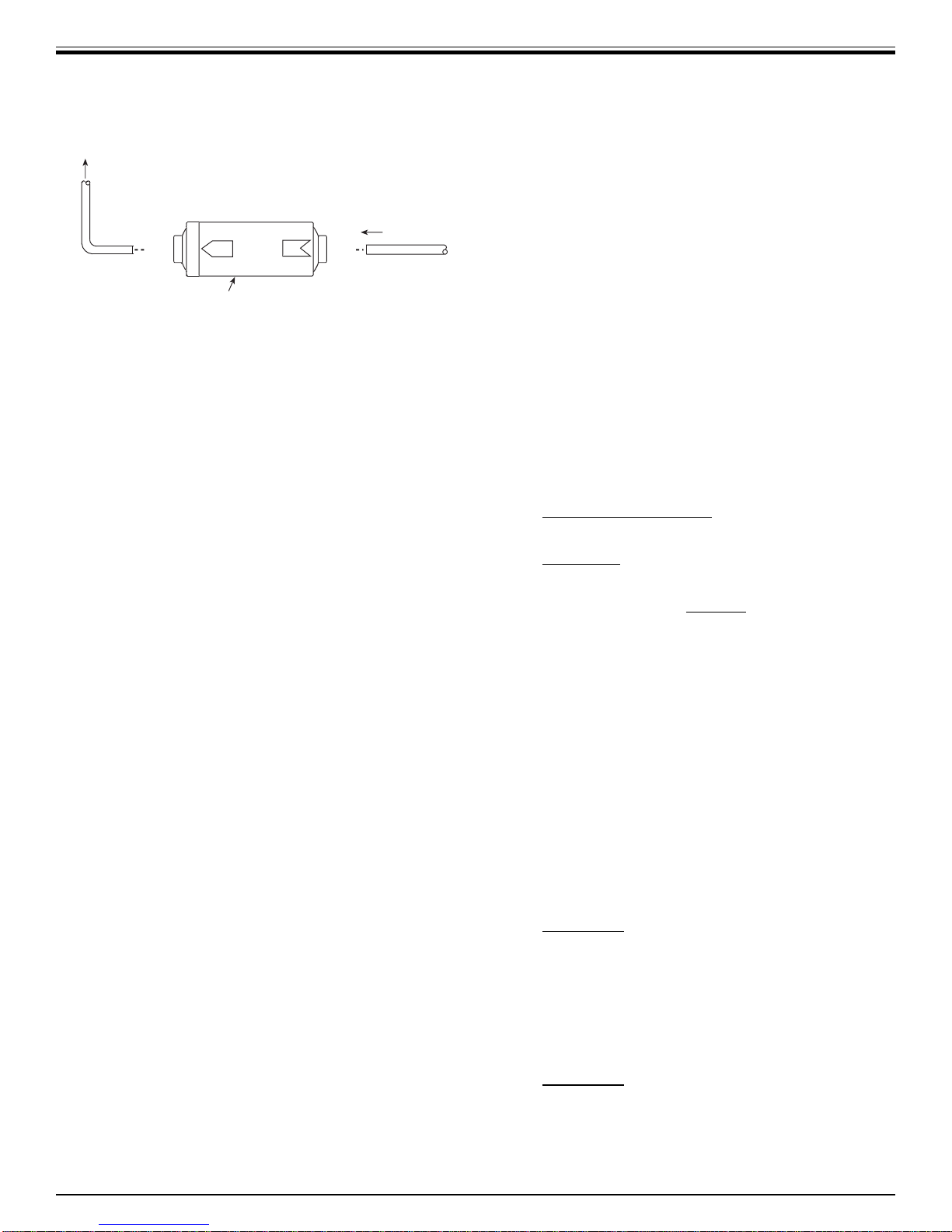

IN–LINE ACTIVATED CARBON

POST FILTER ASSEMBLY

" Blu

In-Line Acti

arbon Post Filt

Figure 5

•Slowly open the Feed Water Saddle Valve. When water begins dripping out of the Dispensing Faucet, in the following order, close the Faucet and then open the Holding Tank Valve.

•Do not open the Faucet for at least 8 hours.

•Discard the ﬁ rst three full tanks of water

pro duced, they will contain chlorine.

" Blu

SECTION VI. TECHNICAL DATA

A. Water Quality

Water quality is normally measured with a special

meter that measures the water’s ability to conduct electricity. The more dissolved solids in the water, the higher the conductivity. The results are usu al ly reported in Parts per Mil lion (ppm) or Milligrams per Liter (mg/l) of Total Dissolved Solids (TDS). (Al though technically they are not exactly equal,

in most dis cus sions ppm = mg/l.)

R.O. Membranes are rated by the amount of

dissolved solids that are rejected. This rating is a ratio of the TDS in the feed water to the TDS in the product water and is reported as Percent Rejection. If the feed water contained 100 ppm of TDS and the product water contained 10 ppm of TDS, 90 ppm have been rejected and the reject

ratio is 90%.

Percent Rejection =

Feed TDS–Product TDS

x 100%

Feed TDS

C. Changing the In–Line Activated Carbon Post

Filter

1. Close the Feed Water Saddle Valve by turning fully clockwise.

2. Close the Holding Tank Valve and then open the Dispensing Faucet to release the pressure.

3. Remove the In–Line Activated Carbon Post Filter. Disconnect the used Post Filter by pressing in the connector’s collar and at the same time pulling the tube out of the ﬁ tting. Firmly reconnect the polytubes to the new Post Filter. (Refer to Fig. 5 above.)

5. Slowly open the Feed Water Saddle Valve.

6. When water begins dripping out of the Faucet, in the following order, close the Faucet and open the Holding Tank Valve. When the Faucet is ﬁ rst opened, expect air and carbon ﬁ nes (very ﬁ ne black powder), from the new Post Filter to be rinsed out. This is normal for

the ﬁ rst tank of water.

EXAMPLE: Feed water is 500 ppm TDS and the product water is 75 ppm TDS.

Percent Rejection = 500 – 75

x 100%

500 Percent Rejection = 0.85 x 100% or 85%

B. Water Quantity

Water quantity is termed Flux or Product Water

Rate and is measured as the amount of water pro duced in one day. It is reported as Gallons per

Day (gpd) or Liters per Day (lpd).

The ﬂ ow of water to drain is the Reject Water

Rate and is measured as Gallons per Day (gpd) or

as Milliliters per Minute (ml/min).

Milliliters per minute x 0.38 = gallons per day

EXAMPLE: The drain ﬂ ow will ﬁ ll a graduated

cylinder to the 150 ml mark in one minute. 150 ml/min. x 0.38 = 57 gpd If the container available measures ounces, use

the following conversion:

Ounces per minute x 11.2 = gallons per day

EXAMPLE: The product ﬂ ow will ﬁ ll 2½ ounces

in two min utes.

13

2.5 oz. ÷ 2 min. = 1.25 oz./min.

1.25 oz./min. x 11.2 = 14 gpd The Reject Ratio is the amount of water pro duced

compared to the amount of water ﬂ owing to drain. Reject Ratio = Reject Rate_

Product Rate

EXAMPLE: The product rate is 14 gpd and the

reject rate is 56 gpd. Reject Ratio = 56 ÷ 14

Reject Ratio = 4 or 4–to–1

The Percent Recovery is another way to measure

the amount of water produced as compared to the amount actually used.

Net Pressure Differential = Feed Water Pressure – Holding Tank Pressure – Osmotic Pressure

The higher the net pressure differential, the higher

the quantity and quality of water produced. Some loss of production is normal when using a pressurized Holding Tank.

% Recovery = Product Rate

x 100%

Feed Rate

NOTE: The total ﬂ ow or feed water rate into the

system is the sum of the product ﬂ ow and the drain ﬂ ow.

EXAMPLE: The product water rate is 14 gpd and

the drain water rate is 56 gpd. Feed Rate = 14 gpd + 56 gpd = 70 gpd % Recovery = 14 gpd

x 100%

70 gpd % Recovery = 0.20 x 100% or 20%

C. Net Pressure Differential

Most R.O. Membranes are rated at a standardized

condition of 77°F (25°C) and 65 psig (450kPa) discharging to atmospheric pressure.

Product water quality and quantity greatly depend

upon the Net Pressure Differential ( p) across the R.O. Membrane. This pressure dif fer en tial is a summation of the feed water pressure at the Membrane, which tries to push the water through, the pressure in the Holding Tank, which tries to push the water backwards and the osmotic pressure, which also tries to push the water backwards.

The Osmotic Pressure is in proportion to the

dissolved minerals in the water and can be ap prox i mat ed by 1 psig for each 100 ppm of TDS

EXAMPLE: A feed water with 1500 ppm of TDS would exert a backward pressure of about 15 psig on the membrane.

14

D. WATER PRODUCTION RATE CHART

Estimated Water Production Rate Feed Water in Gallons Per Day (GPD) and Liters Per Day (lpd) for Line Pressure of:

40 psig 50 psig 60 psig 70 psig 80 psig 90 psig 100 psig Temp TDS* (280 kPa) (340 kPa) (410 kPa) (480 kPa) (550 kPa) (620 kPa) (690 kPa)

°F °C mg/l gpd lpd gpd lpd gpd lpd gpd lpd gpd lpd gpd lpd gpd lpd

40 4 50 4.6 17.4 6.1 23.1 7.5 28.4 8.9 33.7 10.3 39.0 11.8 44.7 13.2 50.0

500 4.0 15.1 5.4 20.4 6.8 25.7 8.3 31.4 9.7 36.7 11.1 42.0 12.5 47.3

1000 3.3 12.5 4.7 17.8 6.1 23.1 7.6 28.8 9.0 34.1 10.4 39.4 11.8 44.7

1500 2.6 9.8 4.0 15.1 5.4 20.4 6.8 25.7 8.3 31.4 9.7 36.7 11.1 42.0

50 10 50 7.0 26.5 9.2 34.8 11.4 43.1 13.5 51.1 15.9 60.2 17.9 67.8 20.0 75.7

500 6.1 23.1 8.2 31.0 10.4 39.4 12.6 47.7 14.7 55.6 16.9 64.0 19.1 72.3

1000 5.0 18.9 7.2 27.3 9.3 35.2 11.5 43.5 13.7 51.9 15.8 59.8 18.0 68.1

1500 3.9 14.8 6.1 23.1 8.2 31.0 10.4 39.4 12.6 47.7 14.7 55.6 16.9 64.0

60 16 50 9.4 35.6 12.4 46.9 15.3 57.9 18.2 68.9 21.1 79.9 24.0 90.8 26.9 101.8

500 8.1 30.7 11.0 41.6 14.0 53.0 16.9 64.0 19.8 75.0 22.7 85.9 25.6 96.9

1000 6.7 25.4 9.6 36.3 12.5 47.3 15.4 58.3 18.3 69.3 21.2 80.3 24.1 91.2

1500 5.2 19.7 8.1 30.7 11.0 41.6 14.0 52.6 16.9 64.0 19.8 75.0 22.7 85.9

70 21 50 11.9 45.0 15.5 58.7 19.2 72.7 22.8 86.3 26.4 99.9 30.1 113.9 33.7 127.6

500 10.2 38.6 13.9 52.6 17.5 66.2 21.2 80.2 24.8 93.9 28.5 107.9 32.1 121.5

1000 8.4 31.8 12.0 45.4 15.7 59.4 19.3 73.1 23.0 87.1 26.6 100.7 30.3 114.7

1500 6.6 25.0 10.2 38.6 13.9 52.6 17.5 66.2 21.2 80.2 24.8 93.9 28.5 107.9

80 27 50 14.3 54.1 18.7 70.8 23.0 87.1 27.4 103.7 31.8 120.4 36.2 137.0 40.6 153.7

500 12.3 46.6 16.7 63.2 21.1 79.9 25.5 96.5 29.8 112.8 34.2 129.4 38.6 146.1

1000 10.1 38.2 14.5 54.9 18.9 71.5 23.3 88.2 27.7 104.8 32.0 121.1 36.4 137.8

1500 7.9 29.9 12.3 46.6 16.7 63.2 21.1 79.9 25.5 96.5 29.8 112.8 34.2 129.4

90 32 50 16.7 63.2 21.8 82.5 26.9 101.8 32.1 121.5 37.2 140.8 42.3 160.1 47.4 151.4

500 14.4 54.5 19.5 73.8 24.6 93.1 29.8 112.8 34.9 132.1 40.0 151.4 45.1 161.2

1000 11.8 44.7 16.9 64.0 22.1 83.6 27.2 103.0 32.3 122.3 37.4 141.6 42.6 170.7

1500 9.2 34.8 14.4 54.5 19.5 73.8 24.6 93.1 29.8 112.8 34.9 132.1 40.0 179.4

*

Total Dissolved Solids (TDS) measured in Parts Per Million (ppm)/Milligrams Per Liter (mg/l). Please Note: This chart is based upon a start–up of a system when the storage tank is empty, (7 psig/48 kPa precharge). As the tank ﬁ lls, and backpressure from the tank increases, the GPD rating will decrease.

IMPORTANT! If the water production rate is within the highlighted area (marked with dotted lines), change the drain restrictor to a 100 gpd (380 lpd) drain restrictor, color-coded black.

15

SECTION VII. TROUBLE SHOOTING GUIDE

Problem Possible Cause So lu tion

Low quantity of Product Water from Holding Tank

Low pressure at the Dispensing Faucet

High Total Dissolved Solids (TDS) in the Product Water

Feed Water Saddle Valve is plugged or closed. Clogged Sediment/Carbon Preﬁ lter or Activated Carbon Post Filter. Low water pressure.

R.O. Membrane is fouled.

Plugged In–Line Activated Carbon Post Filter. Air precharge pressure in Holding Tank is too high. Air precharge is too low Air bladder in the Holding Tank is ruptured.

Holding Tank Valve is closed. No drain ﬂ ow, the Drain Restrictor is plugged. No drain ﬂ ow, the drain oriﬁ ce in the Air Gap Faucet is plugged. The Check Valve is stuck. The ASO Valve is malfunctioning. In–Line Activated Carbon Post Filter is plugged. Air precharge in the Holding Tank is too low.

Holding Tank Valve is partially closed. The dispensing Faucet is out of adjustment or faulty. Heavy water use, Holding Tank is depleted.

Low Water Production.

Clogged Sediment/Carbon Preﬁ lter or Activated Carbon Post Filter. Low Water Pressure.

R.O. Membrane O–ring is crimped. R.O. Membrane brine seal is not sealing up into the manifold head. R.O. Membrane is expended.

Open Valve or unclog.

Replace ﬁ lters.

Feed Water pressure must be above 40 psig. See Feed Water operating limits. Correct cause of fouling, replace Membrane. Replace Post Filter.

Empty water from Holding Tank, and with the faucet open, adjust air pressure to 5–7 psig (35–48 kPa) range. Replace tank.

Open Valve. Clear or replace Drain Restrictor.

Clear or replace the Air Gap Faucet.

Free check. Replace ASO Valve components. Replace Post Filter.

Empty water from Holding Tank and with the faucet open, adjust the air pressure to 5–7 psig (35–48 kPa) range. Check for leakage at the Air Valve Stem. Open Valve.

Repair or replace Dispensing Faucet.

Allow Holding Tank to reﬁ ll (adding a second Holding Tank will increase storage capacity). See Low Quantity of Product Water from Holding Tank section above. Replace Filters.

Feed Water Pressure must be above 40 psig. Check Feed Water Saddle Valve. Check O–ring. Check the brine seal.

If Membrane life is unusually short, ﬁ nd and correct the problem. Replace Membrane.

16

Problem Possible Cause So lu tion

High Total Dissolved Solids (TDS) in the Product Water (continued)

Tastes and odors in the Product Water

Amber light on optional water quality monitor

Drain Water overﬂ ows at the Air Gap Faucet

Faucet leaks or drips

Fitting leaks in general

The Product Water and Drain Water lines are reversed. No drain ﬂ ow, Drain Restrictor is clogged. No drain ﬂ ow, the drain oriﬁ ce in the Air Gap Faucet is plugged. The ASO Valve is not closing.

New Activated Carbon Post Filter not rinsed com plete ly. The Feed Water TDS has increased.

The Activated Carbon Post Filter is exhausted. There is foreign matter in the Hold ing Tank. The Product Water and Drain Water lines are reversed. Dissolved gasses in the Feed Water.

Increase in Product Water TDS.

System not being used for extended period of time.

Filters are plugged or membrane is fouled or exhaused. Air Gap is blocked.

Drain tubing is clogged. Drain Clamp hole is misaligned. Excessive drain ﬂ ow rate. Leaks from spout.

Leaks from base of the delivery tube. Leaks from beneath the handle.

Close the Feed Water Saddle Valve and relieve pressure before dis con nect ing any tubing or re plac ing any ﬁ tting. Before replacing a ﬁ tting, re–cut the tubing and re–insert into the ﬁ tting to see if that solves the leak. If pipe threads are leaking, remove and retape with Teﬂ on tape.

Correct plumbing.

Clear or replace Drain Restrictor.

Clear or replace Air Gap Faucet..

Repair or replace the ASO Valve Components. Flush with several full tanks of Product Water. An increase in Feed Water TDS will give a corresponding increase in Product Water TDS. Replace Filter.

Clean, ﬂ ush and sanitize the system. Replace the ﬁ lters. Correct plumbing.

Pretreat Feed Water to remove dissolved gasses. See high TDS in the Product Water section. Empty storage tank. Wait 15 minutes for the system to begin making water and test water quality again. Replace ﬁ lters and/or membrane.

Clear Air Gap. Rinse with vinegar for removal of calcium buildup. Clear tubing. Align with hole in the drain pipe. Replace Drain Restrictor. Adjust Faucet by turning the tee bar just below the handle to provide a small amount of free play in handle when shut off. O–rings are bad, repair or replace faucet. O–ring is bad, replace O–ring.

O–rings are bad. Repair or replace the faucet.

17

EXPLODED VIEW & PARTS LIST

1

2 3

4 5 6 7

19A .....Water Quality Test Kit

17

PUSH

TO

TEST

16

15

15A

8

9 10

11

12

18

13

19

20

14

21

MADE IN USA

18

IN–LINE ACTIVATED CARBON

POST FILTER ASSEMBLY

OUT

IN

22

DRAWING NO. PART NO. DESCRIPTION

1...................... S2009..................................... Self Tapping Screw

2...................... S2005..................................... ASO Cap

3...................... S2013..................................... ASO Cap O–Ring

4...................... S2011..................................... ASO Diaphragm – Large

5...................... S2007..................................... ASO Piston

6...................... S2006..................................... ASO Piston Ring

7...................... S2010..................................... ASO Diaphragm – Small

8...................... S2128–M ............................... Manifold Plate

9...................... S1276..................................... Check Valve

10...................... S1277..................................... Check Valve Retainer

11...................... S7028..................................... Sediment/Carbon Preﬁ lter

12...................... S1227RS................................ T.F.C. R.O. Membrane 25 gpd (95 lpd)

13...................... S3069..................................... Housing O–Ring

14...................... S7029–09............................... Housing

15 or ................. R7078..................................... Optional Water Quality Monitor Board w/Probes

15A .................. PK–A4TPL ............................ 1/4" Plug

16...................... S2116–6................................. Drain Restrictor 60 GPD (227 lpd) Yellow

17...................... S2119–01NN......................... Cover

18...................... S7025..................................... Activated Carbon Post Filter

19 or ................. R2112..................................... Optional Water Quality Monitor Indicator and Cord

19A .................. S1580 ..................................... Water Quality Test Kit

20...................... S3072..................................... Wrench for Housing

21...................... S1405..................................... 1/4"–3/8" Fitting Wrench

22...................... S7206W-JG............................ In–Line Activated Carbon Post Filter

OTHER COMPONENTS AS SHOWN IN FIGURE 1, PAGE 3.

DRAWING NO. PART NO. DESCRIPTION

1...................... S1089–08............................... Long Reach Air Gap Faucet w/ 3/8" Connector

2...................... S1117–01............................... 3/8" Drain Clamp Assembly

6...................... JG–PI301208S....................... 3/8" x 3/8" x 1/4" Union Tee

7...................... S1118–01............................... Feed Water Saddle Valve

8 or ................. C2233–03 .............................. RO Mate 4E Plastic Holding Tank

8A .................. C2000 .................................... Steel Holding Tank

9...................... S1037..................................... Holding Tank Shut–Off Valve

19

R.O. DRINKING WATER SYSTEM

FIVE/ONE YEAR LIMITED WARRANTY

What Does This Warranty Cover?

This warranty covers any defects in materials and workmanship of the Microline® R.O. Drinking Water System when installed and operated within recommended parameters, with the exceptions stated below.

How Long Does The Coverage Last?

Microline® will warrant its R.O. Drinking Water System (except for the reverse osmosis membrane), for a period of ﬁ ve years from the date of purchase. The reverse osmosis membrane is warranted for one year from date of purchase. All implied warranties including merchantability and ﬁ tness for a particular purpose are limited to ﬁ ve years from the date of purchase for the R.O. Drinking Water System, except for the reverse osmosis membrane which is limited to one year from date of purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

What Will Microline® Do?

Microline® will repair or replace at its discretion any defective component. You must pay any labor charges. You must also pay for shipping or travel charges to return the defective part(s).

What Does This Warranty Not Cover?

This warranty does not cover the disposable sediment and carbon ﬁ lters whose service life depends on feed water conditions. In addition, the membrane is only warranted if the required feed water conditions are met.

The above warranty will also not apply to any part of the Microline® R.O. Drinking Water System that is damaged because of neglect, misuse, alterations, accident, misapplication, physical damage, or damage caused by ﬁ re, acts of God, freezing or hot waters or similar causes. Consequential and incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

We recommend that you use only authorized Microline® replacement parts since improper parts or incorrectly performed maintenance or repair voids this warranty. In addition, if non Microline® parts are used, contaminant reduction claims, certiﬁ cations to/from NSF/ANSI Standard 58, and/or state approvals are no longer valid.

How Do You Get Service?

In order to be eligible for service under this warranty you must (a) contact your local dealer who supplied the unit or (b) contact the factory for the dealer nearest you.

How Does State Law Apply?

This warranty gives you speciﬁ c legal rights and you may also have other rights which vary from state to state.

4462 Duraform Lane • Windsor • WI 53598-9716

Phone (608) 846-3010

Form No. S1299–02T 09/03
