microlife NEB200 Instruction Manual
NEB200
Compressor Nebulizer
Please read this instruction manual completely before operating this unit.
Caution– Federal (U.S.A.) law restricts this device to sale by, or on the order of a physician.
Important Product and Safety Information
Read all instructions carefully before use.
Improper care or use of the nebulizer may result in injury, damage to the unit or ineffective
treatment. Following these instructions will ensure the nebulizer’s efficacy and long life.
Nebulizer is non-sterile. Clean before use. The device is suitable for both adult and pediatric
as prescribed by a physician.
When using an electrical product, especially when children are present, basic safety precautions should always be followed
DANGER:Urgent safety information for hazards that will cause serious injury or death.
WARNING:Important safety information for hazards that might cause serious injury.
CAUTION: Information for preventing damage to the product.
NOTE: Information to which you should pay special attention.
CAUTION Failure to read and observe all precautions could result in personal injury or
equipment damage.
DANGER To reduce the risk of electrocution
1. Always unplug this product immediately after using.
2. Do not use while bathing.
3. Do not place or store product where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. Do not reach for a product that has fallen into water. Unplug immediately.
1
WARNING: To reduce the risk of burns, electrocution, fire or injury to persons:
1. The product should never be left unattended when plugged in.
2. Close supervision is necessary when this product is used by, on, or near children or disabled
individuals.
3. Use this product only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this product if:
a. It has a damaged power cord or plug.
b. It has been dropped or damaged.
c. It is not working properly.
d. It has been dropped into water.
5. Keep the power cord away from heated surfaces.
6. Never block the air openings of the product or place it on a soft surface, such as bed or
couch, where the air openings may be blocked.
7. Never use while drowsy or asleep.
8. Never drop or insert any object into any opening or hose.
9. Do not use outdoors. This product is for household use only.
10. Do not use this product with a DC to AC converter, or with any AC voltage and/or frequency
other than specified. SEE PRODUCT SPECIFICATION on this manual
11. Unplug the unit before filling the nebulizer.
12. DO NOT use this product in or near explosive environments, or where aerosol (spray)
products are being used.
2
13. DO NOT pump combustible liquids or vapors with the product or use in or near an area
where flammable or explosive liquids or vapors may exist.
14. DO NOT operate this product in an oxygen enriched environment, i.e. oxygen tent or oxygen
hood.
15. Use only in well ventilated areas. Do not expose and store the unit to direct sunlight or at
high temperature and humidity
16. Do not operate unit in a backpack or carrying bag.
17. Care should be taken when this product is used near other electronic equipment concern-
ing the possible interference between them. They may need to be moved apart.
18.
Use caution when plugging in and unplugging device. Do not allow jewelry
or other metal
items to contact plug.
19. Warning: This product contains small parts that may represent a choking hazard.
20. Do not position the equipment so that it is difficult to operate.
21. To avoid strangulation and entanglement, keep power cord and air tubes out of reach of
young children.
22. The air filter shall not be serviced or maintained while the compressor is in use.
23. Do not unplug the air tube during the treatment, otherwise may get injured because of the
effect of pressure.
24. Do not bend the air tubing of the unit where the air tube may be obstructed.
25. No modification of this equipment is allowed.
26. The device does not need to be calibrated
3
CLEANING WARNING
1. Clean all necessary parts before first use and after each treatment as instructed in this manual;
if the unit has not been used for an extended period, all parts should be cleaned prior to use
2. Disconnect the unit from the electrical outlet before cleaning
3. Never immerse the unit in water to clean as it may damage the unit
4. Do not use abrasive cleaners
5. All accessories must be cleaned and not exchanged with other patient before use to avoid
cross infect.
6. The mouthpiece should be replaced at least once per year
4
Compressor Nebulizer
Instruction Manual
Table of Contents
1. Introduction
2. Components of your compressor nebulizer
3. Using your nebulizer
3.1. Preparation
3.2. Use
4. Care and maintenance
4.1. Cleaning the nebulizer accessories
4.2. Cleaning the compressor
4.3. Changing the air filter
5. Troubleshooting
6. Limited warranty
7. Technical specifications
7.1. Warning and cautions: device symbols
7.2. Electromagnetic compatibility
7.3. Product specifications
8. How to contact us
5
1. Introduction
Please read this instruction manual completely before using your unit to ensure safe and
effective use, as well as long life of the product.
Statement of Intended Use
The aerosol generator is for the production of compressed air to operate a nebulizer for the
production of medical aerosol for respiratory disorders. The aerosol generator is used in conjunction with a pneumatic nebulizer which nebulizes specific drugs for inhalation by a patient
and requires the order of a physician for medical use.
Compressor nebulizers are used to efficiently deliver medication in the form of a mist to the
lungs. Prescribed medicine is placed in the nebulizer and the compressor blasts air through the
liquid medication, converting it to an aerosol mist which is then inhaled. This method of delivery is beneficial in the treatment of asthma and other respiratory ailments, as the medicine
is administered directly to the bronchial passages of the lungs to provide quick and effective
relief. With proper use and care, your new nebulizer will provide you with many years of safe,
effective breathing therapy treatments.
CAUTION: Federal law restricts this device to sale by or on the order of a physician. Operate
this unit only as instructed by your physician and/or respiratory therapist.
Thoroughly read and understand the information contained in these instructions on the use
and care of this unit before operating. Save these instructions for future reference. Any use of
this product other than the purpose or which it is intended shall void the warranty.
6
2. Components of your compressor nebulizer
Compressor (piston compressor):
1. Compressor (piston compressor)
2. Power cord
3. ON/OFF switch
4. Air filter compartment
5. Air filter cap
6. Air filter
Nebulizer accessories:
7. Nebulizer
a. Nebulizer top
b. Nebulizer nozzle
c. Nebulizer cup
8. Air tubing
9. Mouthpiece
13
10. Adult face mask
11. Child face mask
12. Nose piece
Nebulizer assembly:
13. Nebulizer accessories,
assembled
Note: All items, other than the Piston Compressor, are accessories.
7
8
9
7a
7b
10
7c
11
12
5
6
7
3. Using your nebulizer
3.1. Preparation
NOTES:
• This unit is intended for single patient use and should not be shared with other people.
• Before the first use of the nebulizer or if the unit has not been used for an extended period
of time, it should be cleaned thoroughly as described in the Cleaning section of this manual.
WARNING: Before connecting the power cord, make sure the I/O (ON/OFF) switch is in the O
(OFF) position. The plug is also served to disconnect the device.
CAUTION: The Compressor is designed for intermittent use only. Do not operate it continuously for more than 30 minutes for a single use without turning it off and following a cooling
period for least 30 minutes.
NOTE: the compressor pump motor has a thermal protector, which will turn the power off before the unit overheats. If the thermal protector shuts the power off, contact Customer Service
for assistance: 1-800-568-4147.
8

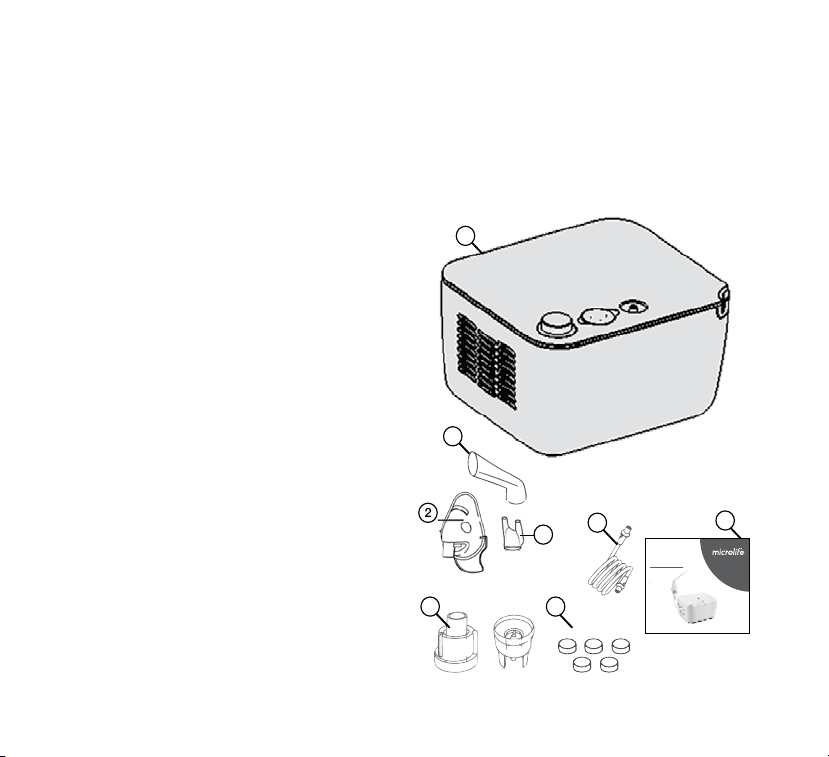

Please ensure you have all of the following components before using your Nebulizer:
1. Compressor (piston compressor)
2. Angled mouthpiece,
nosepiece, or mask (adult/child)
3. Air tubing
4. Instruction Manual
5. Nebulizer top, cup, and nozzle
1
6. Air filters (5)
2
2
5 6
3
2
NEB200
Compressor Nebulizer
Please read this instruction manual completely before operating this unit.
Caution– Federal (U.S.A.) law restricts this device to sale by, or on the order of a physician.
4
9
3.2. Use
The patient receiving treatment should be seated or slightly reclined
in a comfortable position as treatments take several minutes. Keep in
mind that the nebulizer cup must remain vertical during treatment.
1. Place the compressor unit on a flat, stable surface within operating
range of the patient and an electrical outlet. Ensure that the air
vents on the side of the unit housing are not blocked or obstructed
and that the power is off (O)
2. Plug the power cord into the electrical outlet.
3. Attach one end of the air tube to the tube connector at the back
of the unit. Turn on (I) the power briefly to ensure that the unit is
functioning properly and test that air is coming through the tubing,
and then turn the power off (O)

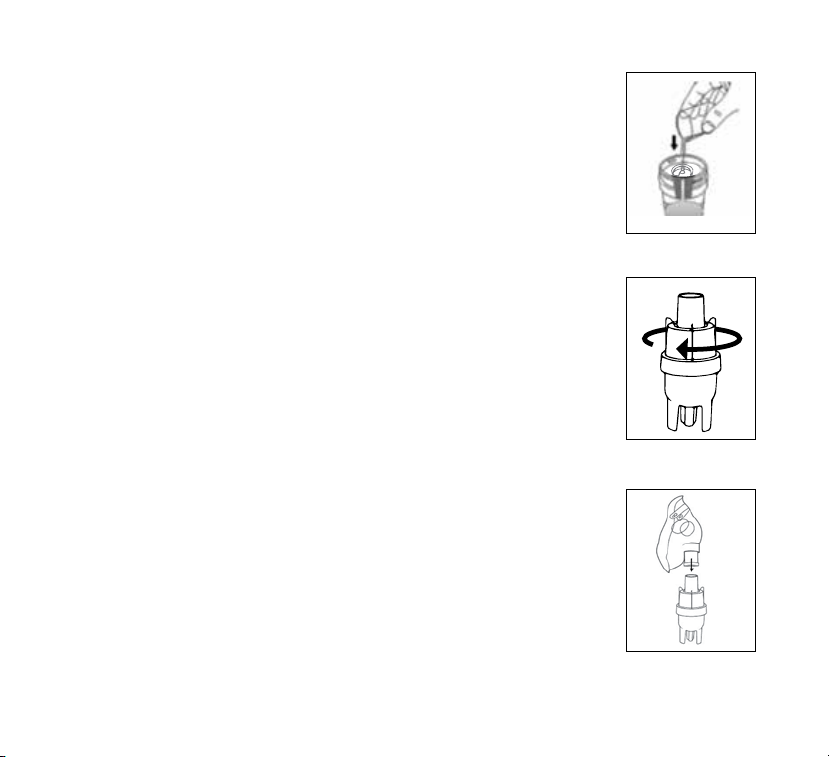

4. Fill and assemble the nebulizer.
a.
Make sure the blue nozzle is in place in the bottom half of the
nebulizer.
b.
Pour the medication into the nebulizer cup following the physician
prescribed dosage, Fig 1.
c. Replace the top of the nebulizer and twist to close; gently pull
the top to ensure the top is secure, Fig 2.
d. Attach the selected inhalation device: angled mouthpiece,
nosepiece or mask (adult/child) to the top of the nebulizer, taking
care not to spill the medication in the cup, Fig 3.
e. Attach the nebulizer to the air tubing, Fig 4.
10
Fig.1
Fig.2
Fig.3
5. Position the mouthpiece, nosepiece or mask at/on the patient’s mouth/nose, Fig 5.
6. Turn the power switch to the on (I) position to begin treatment. Inhale deeply and exhale normally. Ensure the nebulizer
is vertical during treatment for proper nebulization of the
medication and to prevent spilling of the liquid.
7. If the vapor output becomes sporadic or if the noise the unit
makes changes during use, turn off (O) the unit and consult
the TROUBLESHOOTING section of this instruction manual.
8. When the treatment is complete, turn the unit off (O) and
unplug it from the outlet.
Disassemble, clean and store your nebulizer.
9.
Be certain that
the nebulizer pieces are completely dry before storage.
NOTE: Treatment time varies depending on the
and volume of medication
the entire
prescribed dose of medication for maximum
being used. It is important to complete
type of medication
effectiveness. Consult with your prescribing
physician or healthcare professional for information on your
specific medication therapy treatment plan.
Fig.4
Fig.5
11
4. Care and maintenance
4.1. Cleaning the nebulizer accessories
All parts of the nebulizer, except tubing, should be cleaned according
to the following instructions. Your physician and/or drug provider may
specify a certain
cleaning procedure. If so, follow their recommendations.
WARNING: Clean nebulizer after each use. Risk of bacteria growth,
infection, illness from contamination due to dirty nebulizer.
1. Ensure that the power cord is disconnected from the power outlet.
2. Disassemble nebulizer from tubing and compressor. Do not wash or
submerge the air tubing.
3. Disassemble all parts of nebulizer and rinse in running water.
4. Clean nebulizer in warm soap water. Rinse.
5. Allow the nebulizer and all parts to air dry completely.
4.2. Cleaning the compressor
1. With power switch in the “Off” position, unplug power cord from
wall outlet.
2. Wipe outside of the compressor cabinet with a clean damp cloth
every few days to keep dust-free.
CAUTION: do not use any powdered cleaners or soap pads which
may damage the finish.
WARNING: Do not submerge in water; doing so will result in compressor damage.
12
4.3. Changing the air filter
Change filter every 30 days or when filter turns gray.
CAUTION:
• Never operate the unit without a filter.
• Do not substitute cotton or any other materials for the filters.
• Do not attempt to clean the filters or reuse a filter.
To replace the filter, follow these steps:
1. Change the filter only when the unit is off, unplugged and completely cool.
2. Gently pull the filter cap out of the compressor.
3. Remove the filter from the filter cap.
4. Place a new filter in the filter cap.
5. Return the filter cap to its place, ensuring that it is firmly in place.
DANGER: Electrical shock hazard. Do not disassemble unit housing. Pump maintenance must
be performed by qualified service technician.
13
5. Troubleshooting
The nebulizer produces no aerosol, or a small amount of aerosol.
• There may be too much or too little medicine in the nebulizer. The amount of liquid should
be between 2 ml and 8 ml.
• The hose connectors may be blocked and need to be cleaned
• The nebulizer may not be held upright. Always hold the nebulizer vertically during use.
• The medication may not be suitable for nebulization. Check with your doctor.
• The filter may be in need of replacement
• The air hose may be kinked
Some medicine remains in the nebulizer at the end of my treatment.
• This is normal. Once you hear a significant difference in the sound of the nebulizer, you may
stop inhaling.
What medications can be used in the nebulizer?
• Only medications prescribed by your doctor should be used in the nebulizer.
Can I share the nebulizer with another person?
• No. Each user must have their own nebulizer to ensure proper hygiene. The compressor unit
may be shared but not all the accessories.
14
6. Limited warranty
Limited 5 Year Warranty - Compressor
Limited 1 Year Warranty – Accessories
The limited 5 year warranty applies to the compressor itself, and the limited 1 year warranty
applies to the following accessories: face masks, nose pieces, mouth pieces, nebulizer/vaporizer head, and air hose. Filters are not covered by this warranty. Microlife USA, Inc. provides
both warranties against manufacturer defects for the original purchaser only, from date of
purchase.
The warranties do not apply to consequential and incidental damages, or damage caused by
improper handling and accidents. Professional use, not following the operating instructions,
and alterations made to the monitor or accessory by third parties, are not included in this
warranty. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Microlife USA, Inc. will investigate your concern. A compressor and/or accessory as defined
by this warranty, determined to be out of specification, will be replaced and shipped to you at
no cost. A compressor and/or accessory as defined by this warranty, determined to be within
specification, will be returned to you with a report of findings, at no cost.
Please use the customer service contact information within this manual to reach Microlife
USA, Inc. regarding any warranty concerns. We ask that you please contact us before sending
any product back in order to better identify, and more quickly process, your concern.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
15
7. Technical specifications
7.1. Warning and cautions: device symbols
These symbols may appear on your device, instructions or packaging and may vary by make
and model.
Symbol Definition
Read This Manual: all included manuals should be read prior to first use
Warning: symbol indicates a warning, prohibition or mandatory action that mitigates a risk that is not necessarily obvious to the device operator.
Type BF Applied Parts: indicates that a part of this unit comes in contact with the
patient in order to carry out its intended function.
Environment Protection: disposes of this product properly; consult with your local
recycling ordinances for proper recycling and disposal.
Protection against solid objects and harmful effects due to ingress of water.
Double Insulation—this unit is double-protected and thus corresponds to protection class 2
Off
On
Serial number
16
Symbol Definition
Alternating current
˜
Caution: Federal (U.S.) law restricts this device to sale by or on the order of a
physician.
17
7.2. Electromagnetic Compatibility
Table 1
Guidance and manufacturer’s declaration - electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below. The customer or
the user of the device should assure that it is used in such an environment
Emissions Test Compliance
Electromagnetic environment -
guidance
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
18
Group 1 The device uses RF energy only for its internal
function. Therefore, its RF emissions are very low
and are not likely to cause any interference in nearby
electronic equipment.
Class [B] The device is suitable for use in all establishments
Including domestic and those directly connected to the
public low-voltage power supply network that supplies
buildings used for domestic purposes.
Class A
Complies
Table 2
Guidance and manufacturer’s declaration - electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The customer or
the user of the device should assure that it is used in such an environment
Immunity Test IEC 60601 Test
level
Compliance level Electromagnetic environment - guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
Electrical fast
transient/burst
IEC 61000-4-4
Surge IEC 610004-5
±8 kV contact
±15 kV air
Power supply
lines: ±2 kV
input/output
lines: ±1 kV
line(s) to line(s):
±1 kV.
line(s) to earth:
±2 kV.
100 kHz repetition frequency
±8 kV contact ±15
kV air
Power supply
lines: ±2 kV
line(s) to line(s):
±1 kV.
100 kHz repetition frequency
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30 %
Mains power quality should be that of a
typical commercial or hospital environment.
Mains power quality should be that of a
typical commercial or hospital environment.
19
Guidance and manufacturer’s declaration - electromagnetic immunity
Voltage dips, short
interruptions and
voltage variations
on power supply
input linesIEC
61000-4-11
5% UT
(>95% dip in
UT) for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycle
70% UT
(30% dip in UT)
for 25 cycle
<5% UT
(>95% dip in
UT)
5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycle
70% UT
(30% dip in UT)
for 25 cycle
<5% UT
(>95% dip in UT)
for 5s
Mains power quality should be that of a
typical commercial or hospital environment.
for 5s
Power frequency (50/60Hz)
magnetic field IEC
61000-4-8
30 A/m
50Hz/60Hz
30 A/m
50Hz/60Hz
Power frequency magnetic fields should
be at levels characteristic of a typical location in a typical commercial or hospital
environment.
NOTE UT is the A.C. mains voltage prior to application of the test level.
20
Loading...
