microlife BP3GX1-5A User Manual

Important Product and Safety Information

Follow Instructions for Use. This document provides important
product operation and safety information regarding this Blood
Pressure Monitor. Please read this document thoroughly before
using the device and keep for future reference.

This blood pressure monitor is an automatic digital blood pressure measur­ing device for use by adults on the upper arm at home or in the doctor’s
office. It enables a very fast and reliable measurement of the systolic and
diastolic blood pressure, as well as the pulse rate, by way of the oscillo­metric method. This device detects the appearance of irregular heartbeats
during measurement and provides a warning signal when the irregular
heartbeat is detected. The device can be used in connection with your
personal computer (PC) running the Microlife Blood Pressure Analyzer (BPA)
software; the memory data can be transferred to the PC by connecting the
monitor via cable with the PC.

This blood pressure monitor IS intended to be used:

• For self-measurement/monitoring of blood pressure and pulse in adults;
whereas the person being measured may be the user/operator of the
device.

• Within a home healthcare environment.

• With a cuff located upon the user’s upper arm; ½ inch above the elbow
over the artery as indicated on the cuff.

This blood pressure monitor IS NOT intended for use with:

• Pregnancy

•Preeclampsia

• Children under 12

• Neonatal patients

WARNING – Potentially hazardous situation that if not avoided
may result in serious injury or death.

• Self-measuring means monitoring, not diagnosis or treatment. Unusual
values must always be discussed with your doctor. Under no circum­stances should you independently alter the dosages of any drugs
prescribed by your physician.

• Consult your physician before using this device if any of the following or
similar conditions are present: arrhythmias such as atrial or ventricular
premature beats or atrial fibrillation, arterial sclerosis, poor perfusion,

1

diabetes, age, pregnancy, preeclampsia, renal diseases. Motion during
measurement, including trembling or shivering may affect the measurement.

• Though not for use with children under 12, ensure that any children
around this device are supervised; some parts are small enough to be
swallowed and any present tubes or cables may provide a risk of
strangulation.

• Ensure the cuff tubing is not kinked during use as harmful injury may occur due
to the effect of blood flow interference caused by high pressure in the cuff not
releasing.

DO NOT:

 Use this device if you think it is damaged or anything appears unusual

(e.g. sporadic operation, open packaging upon purchase).

 Use the displayed pulse for checking the frequency of heart pacemakers

as this device is not suitable for this action.

 Open/modify this device; inaccuracy and/or harmful injury may result.
 Conduct many frequent measurements as this may result in harmful

injury due to blood flow interference.

 Place the Cuff over a wound as this may cause further injury.
 Place and pressurize the Cuff over/near any present intravascular access

or therapy, or arteriovenous shunt, as this may cause blood flow interfer­ence and result in harmful injury.

 Place and pressurize the Cuff over a limb near the side of a mastectomy

as this may cause harmful injury.



Use the Blood Pressure Monitor on a limb simultaneously with other medical
equipment

on the same limb due to possible interference with such

medical equipment.

 Maintain pressure in the Cuff applied to the limb for a prolonged amount

of time. Ensure that circulation in the limb is not impaired by checking
circulation if prolonged/repeated exposure to pressure occurs.

 Service the device when being used or when power is supplied. When

the device is not in use and power is removed, cuff assembly, batteries
and ac adapter (if applicable) may be replaced by the user with Microlife
supplied replacements. No other parts/components are accessible.

CAUTION – Potentially hazardous situation that if not avoided
may result in minor/moderate injury, property damage, and/or
damage to the device

2

•

This device contains sensitive electronics components. Avoid strong
electrical or electromagnetic fields in the direct vicinity of the device (e.g.,
mobile telephones, microwave ovens). These can lead to temporary impair­ment of the measuring accuracy. Move the device to another location if
interference is determined.

• When not using the Blood Pressure Monitor for extended lengths of time,
remove the batteries to avoid potential battery leakage and damage to the
monitor.

• When replacing the batteries, ensure all the batteries are replaced
simultaneously to avoid battery damage and potential damage to the
monitor. Microlife USA does not recommend using rechargeable batteries.

• To avoid inaccurate measurements and to lessen any discomfort from
Cuff pressure, ensure the Cuff is placed correctly on the limb and fits
correctly when snug (not tight), as indicated by markings with the Cuff.

• Consult your physician in cases of frequent irregular heartbeat
detections.

• This Risk Indicator feature is provided in order to help you understand
your potential blood pressure risk. However, this feature is neither a
diagnosis nor a substitute for a medical examination. It is important to
consult with your physician to determine your risk.

DO NOT:

 Drop this device or expose it to strong vibrations; sensitive components

may be affected resulting in inaccuracies and/or operational issues.

 Use the Blood Pressure Monitor outside of its specified operation

temperature and humidity rating, or if stored outside of its specified
storage temperature and humidity rating. Avoid storage in direct sunlight.

 Use this device in a moving vehicle; inaccurate measurements may result.
 Use third party accessories. Only use Microlife authorized accessories,

such as cuffs or AC adapters, as those not approved for use with the
device may provide inaccurate measurements, injury, and/or damage the
device.

STANDARDS:

This medical device is compliant with:

• Medical device and non-invasive blood pressure monitor standards IEC
60601-1, IEC 60601-1-2, IEC 60601-1-11, and AAMI/ANSI/IEC 80601-2­30, and

3

• Electromagnetic standards IEC 60601—1-2 along with FCC Part 15, and

• Clinical Testing per standard ISO 81060-2:2013 was conducted on blood
pressure device using the same measurement technology.

Please note:According to international standards, your monitor should be
checked for accuracy every 2 years.

TYPE:

IP20:Protected against solid foreign particles with a diameter of more than

12.5 mm, no protection against water. Keep Dry.

Type BF Applied Part
Batteries and electronic instruments must be disposed of in accordance

with the locally applicable regulations, not with domestic waste.

Expected Life

Monitor: 5 Years
Cuff: 2 Years

FCC:

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or
modifications to the product are not approved by Microlife USA and could
void the user's authority to operate the equipment under FCC jurisdiction.

This equipment has been verified to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and off,
the user is encouraged to try to correct the interference by increasing the
distance between the product and the affected device; or if applicable,
reorientation the receiving antenna, or moving the product’s power plug to
another receptacle.

4

ressure Monitor

remium Automatic

P

Instruction M

Introduction

1.

1.1. Y

1.2. G

How

2.

anual Table of Contents

our autom
entle+ m

is blood pressure measured?

2.1. What is blood pressure, and w
easurem

2.2. M

2.3. What can I do to change m

omponents of your blood pressure monitor

3. C

do I get started?

4. How

Blood P

atic blood pressure m

ent system

easurem

uidelines

ent G

y blood pressure?

onitor

hy does it fluctuate?

4.1. Inserting the batteries

4.2. Setting the date and tim

4.3. U

sing the A

C pow

4.4. Connecting the cuff and m

e

er adapter

onitor

4.5. Select the user

4.6. Select the measuring mode: standard or
aging Mode

er

e Av

rolif

4.7. Mic

?

t

n

me

re

su

a

me

a

ke

a

t

I

o

ow d

H

5.

eadings

r

ement

ement

eparing to t

Pr

5.1.

ommon error

C

5.2.

ing t

Us

5.3.

ing a

Tak

5.4.

Memory

5.5.

opping a

St

5.6.

Hyper

5.7.

egular heart

Irr

5.8.

Battery change

5.9.

Software

6.

Installation and data transmission

6.1.

Error messages/troubleshooting

7.

Care and maintenance

8.

Limited warranty

9.

ake a measur

uff

c

he

measur

iewing

ev

: R

meas

tension ris

s

ement

ur

k indicator

beat detector

indicator

10. Technical specifications

11. How to contact us

Microlife Averaging Mode

5

1. Introduction

1.1. Your Automatic Blood Pressure Monitor

Your blood pressure monitor is a fully automatic digital blood pressure
measuring device for use by adults on the upper arm at home or in your
doctor’s office. It enables very fast and reliable measurement of the
systolic and diastolic blood pressure as well as the pulse by way of the
oscillometric method. This device offers clinically proven accuracy and has
been designed to be user friendly.

Before using your blood pressure monitor, please read this instruction
manual carefully and then keep it in a safe place for future reference. If
you have additional questions regarding blood pressure measurements
please contact your doctor.

1.2. Gentle+ Measurement System

Gentle+, our most advanced system to date, combines clinical accuracy
and premium features including:

• A quieter, more comfortable measurement experience that reduces the
amount of time your arm is under pressure. Less pressure = more comfort!

• An ergonomic cuff design that is easier to use and fits a wider range of
arm sizes (for arms 8.7”-16.5”).

6

2. How is blood pressure measured?

2.1. What is blood pressure, and why does it fluctuate?

Your level of blood pressure is determined in the circulatory center of the
brain and adjusts to a variety of situations through feedback from the
nervous system. To adjust blood pressure, the strength and frequency of
the heart (pulse), as well as the width of circulatory blood vessels is altered.
Blood vessel width is affected by fine muscles in the blood vessel walls.

Your level of arterial blood pressure changes periodically during heart
activity. During the "blood ejection" (Systole), the value is highest (systolic
blood pressure value). At the end of the heart’s "rest period" (Diastole),
pressure is lowest (diastolic blood pressure value).

Blood pressure values must lie within certain normal ranges in order to
prevent particular diseases.

--Blood pressure is too high if your systolic blood pressure is over 160
mmHg and/or your diastolic pressure is above 100 mmHg, while at rest.
In this case, please consult your physician immediately. Long-term values
at this level endanger your health due to continual damage to the blood
vessels in your body.

If your systolic blood pressure values are between 140 mmHg and 159
mmHg and/or the diastolic blood pressure values are between 90 mmHg
and 99 mmHg, consult your physician. Regular self-checks are necessary.

If you have blood pressure values that are too low (i.e., systolic values
under 105 mmHg and/or diastolic values under 60 mmHg), consult your
physician.

Even with normal blood pressure values, a regular self-check with your
blood pressure monitor is recommended. You can detect possible changes
in your values early and react appropriately.

If you are undergoing medical treatment to control your blood pressure,
keep a record of values along with time of day and date. Show these
values to your physician. Never use the results of your measurements

to independently alter the drug doses prescribed by your
physician.

7

2.2. Measurement Guidelines

The following standards for assessing high blood pressure (in adults) have
been established by the National Institutes of Health JNC7, 2003.

Category Systolic Diastolic

(mmHg) (mmHg)

Normal <120 and <80
Pre-Hypertension 120-139 or 80-89

Hypertension

Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension

≥160 or ≥100

Additional information

• If your values are mostly normal under resting conditions but exception­ally high under conditions of physical or psychological stress, it is
possible that you are suffering from so-called "labile hypertension."
Consult your doctor.

• Correctly measured diastolic blood pressure values above 120 mmHg
require immediate medical treatment.

2.3. What can I do to change my blood pressure?

a) Consult your doctor.
b) Increased blood pressure values (various forms of hypertension) are

associated with considerable health risks over time. Arterial blood
vessels in your body are endangered due to constriction caused by
deposits in the vessel walls (arteriosclerosis). A deficient supply of
blood to important organs (heart, brain, muscles) can result from
arteriosclerosis. Furthermore, the heart will become structurally
damaged with increased blood pressure values.

c) There are many different causes of high blood pressure. We differenti-

ate between the common primary (essential) hypertension and second­ary hypertension. The latter group can be ascribed to specific organ
malfunctions. Please consult your doctor for information about the
possible origins of your own increased blood pressure values.

8

d)

There are measures which you can take to reduce and even prevent high
blood pressure. These measures must be permanent lifestyle changes.

1) Eating habits

• Strive for a normal weight corresponding to your age. See your doctor for your
ideal weight.

• Avoid excessive consumption of common salt.

• Avoid fatty foods.

2) Previous illnesses

• Consistently follow all medical instructions for treating illness such as:

• Diabetes (diabetes mellitus)

• Fat metabolism disorder

• Gout

3) Habits

• Give up smoking completely.

• Drink only moderate amounts of alcohol.

• Restrict your caffeine consumption (e.g., coffee).

4) Physical constitution

• After a preliminary medical examination, do regular exercise.

• Choose sports which require stamina and avoid those which require
strength.

• Avoid reaching the limit of your performance.

• With previous illnesses and/or an age of over 40 years, please consult
your doctor before beginning your exercise routine. You must receive
advice regarding the type and extent of exercise that is appropriate for
you.

9

3. Components of your blood pressure monitor
a) Measuring unit

Cuff Socket

(blue)

Hypertension
Risk Indicator

User Switch

Time/Date
Button

Mode Switch

Select 1 or 3
Measurements
(MAM)

Memory
Recall Button

POWER
Button

AC Adapter Port

USB Port

Date/Time

Systolic

Diastolic

Pulse

10

User 1 & 2
Battery Indicator

Pause
Heartbeat

Error 3
Error 2

Memory
Irregular Heartbeat

MAM

b) Wide Range Cuff:

For arm circumference 22 cm - 42 cm (8.7” - 16.5 ”)
If you ever need to buy a replacement cuff, call

us toll-free at 1-800-568-4147.

Please Note:

Arm circumference should be measured with a measuring tape in the
middle of the relaxed upper arm. Do not force cuff connection into the
opening. Make sure the cuff connection is not pushed into the AC adapter
port. If the cuff is too small, call 1-800-568-4147 for additional information.

4. How do I get started?

4.1. Inserting the batteries

After you have unpacked your device, insert
the batteries. The battery compartment is
located on the bottom of the device.

a) Remove the battery cover.
b) Insert the batteries (4 x size AA 1.5 V),

observing the indicated polarity.

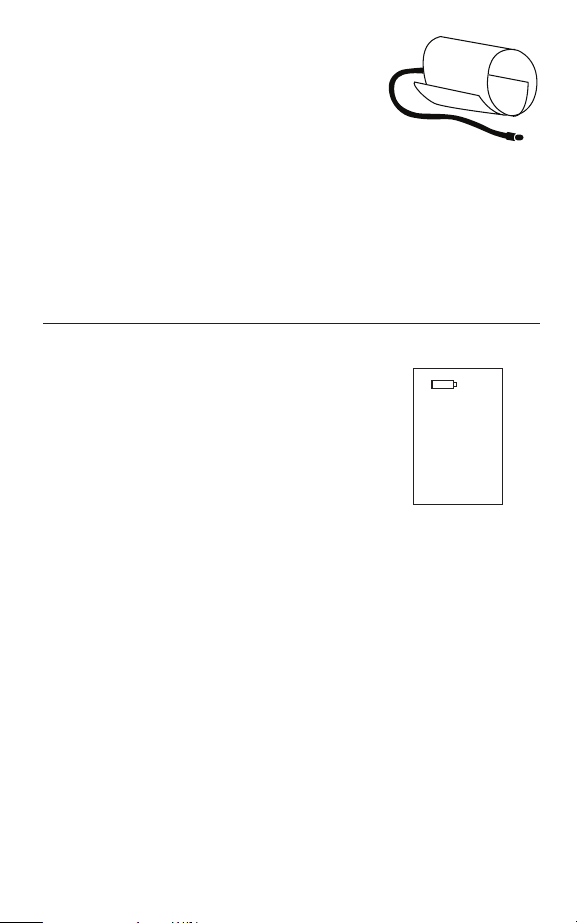

c) If a battery warning appears in the

Low Battery Indicator

display, the batteries are discharged and
must be replaced.

Attention!

• After the low battery indicator appears,
the device won’t function until the batter­ies have been replaced.

Please use "AA" Long-Life or Alkaline

•

1.5 V

batteries and replace them all at

the same time.

• If the blood pressure monitor is not used
for long periods, remove the batteries
from the device.

11

4.2. Setting the date and time

T

I

M

E

PM

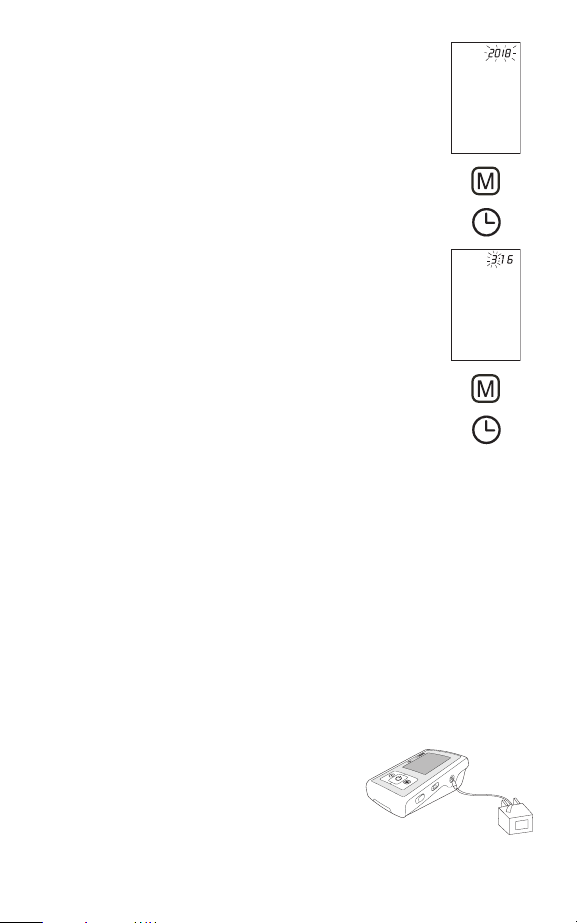

1. After the new batteries are activated, the
year number flashes in the display. You
can advance the year by pressing the "M"
button. To confirm and then set the
month, press the TIME button.

2. You can now set the month using the "M"
button. To confirm and then set the day,
press the TIME button.

3. Please follow the instructions above to
set the day, hour and minutes.

4. Once you have set the last minute and
pressed the TIME button, the date and
time are set and the time is displayed.

5. If you want to change the date and time,
press and hold the TIME button down for
approximately 3 seconds until the year
number starts to flash. Now you can enter
the new values as described above.

4.3. Using the AC power adapter

You may also operate this monitor using the
included AC adapter.

Use only the included

AC adapter to avoid damaging the unit.
a) Ensure that the AC adapter and cable are

not damaged.

b) Plug the adapter cable into the AC

adapter port on the right side of monitor.

c) Plug the AC adapter into a 110 V power

socket (U.S. or Canada).

d) Test that power is available by pressing

the POWER button.

Note:

• No power is taken from the batteries
while the AC adapter is connected to the
instrument.

12

y

or

em

M

on

t

But

e

at

D

e/

m

i

T

on

t

But

• If the power is interrupted during a
measurement (e.g., by removal of the
adapter from the wall socket), the instru­ment must be reset by removing the plug
from the instrument.

If you have any questions regarding the AC
adapter, call us at 1-800-568-4147.

4.4. Connecting the cuff and monitor

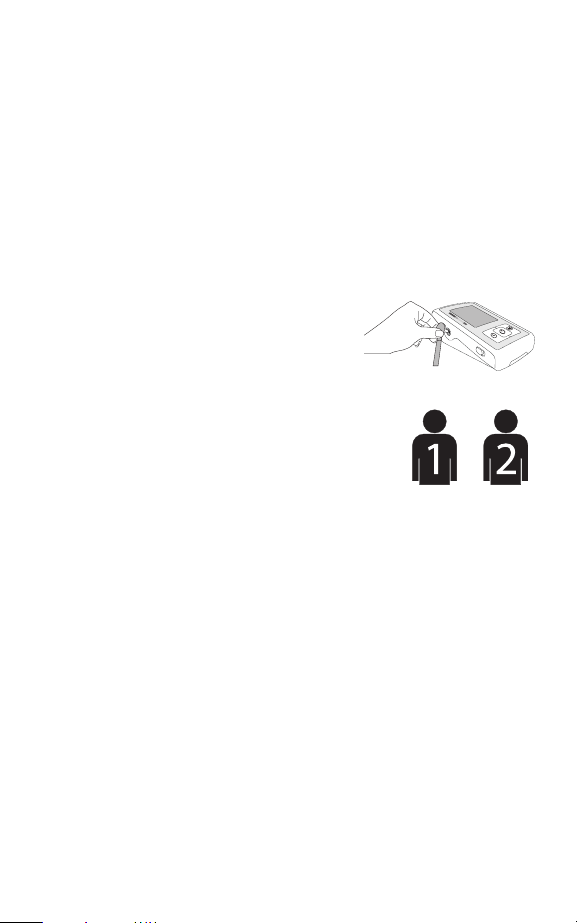

Insert the blue cuff tube connector into the
blue socket on the left side of the instrument.

If your cuff connector is another color, please
contact customer service as additional steps
are needed to obtain an accurate reading.

4.5. Select the user

This blood pressure monitor is designed to
store 99 measurements for each of two
users.

Before taking a measurement, be
certain that the correct user has been
selected.

• User 1: slide the user switch upwards to
the User 1 icon

• User 2: slide the user switch downwards
to the User 2 icon

13

4.6. Select measuring mode: standard or

1 3

Microlife Averaging Mode (MAM)

This instrument enables you to select either standard
(single measurement) or measurement a

veraging

mode (automatic triple measurement).
a) To select Standard mode, push the switch on the

side of the instrument upward to Position "1."

b) To select Averaging mode, push the switch

downward to Position "3." Note the "MAM" icon
will illuminate on the display.

If you select 1, then only one measurement will be
taken. If you select 3, the unit will inflate and deflate
three times resulting in one final average.

4.7. Microlife Averaging Mode (MAM)

• In Microlife Averaging Mode (MAM), three
measurements are automatically taken in succes­sion and the result is then automatically analyzed
and displayed. Because your blood pressure
constantly fluctuates, a result determined in this
way is more reliable than one produced by a
single measurement.

• After pressing the POWER button the selected
Microlife Averaging Mode appears in the display
as the MAM symbol.

• The bottom, right-hand section of the display
shows a 1, 2 or 3 to indicate which of the 3
measurements is currently being taken.

14

5. How do I take a measurement?
Please note: You should always be seated before and during
measurement.

5.1. Preparing to take a measurement

• Avoid eating and smoking as well as all forms of exertion directly
before measurement. These factors influence the measurement result.
Find time to relax by sitting in an armchair in a quiet atmosphere for
about 5 minutes before your measurement.

• Remove any garment that fits closely to your upper arm.

• Always measure on the same arm (normally left).

• Compare measurements at the same time of day, since blood pressure
changes during the course of the day (as much as 20–40 mmHg).

5.2. Common errors

Note: Comparable blood pressure measurements always require
the same conditions. Conditions should always be quiet.

• All efforts by the user to support the arm can increase blood pressure.
Make sure you are in a comfortable, relaxed position and do not flex
any of the muscles in the measurement arm during the measurement.
Use a cushion for support if necessary.

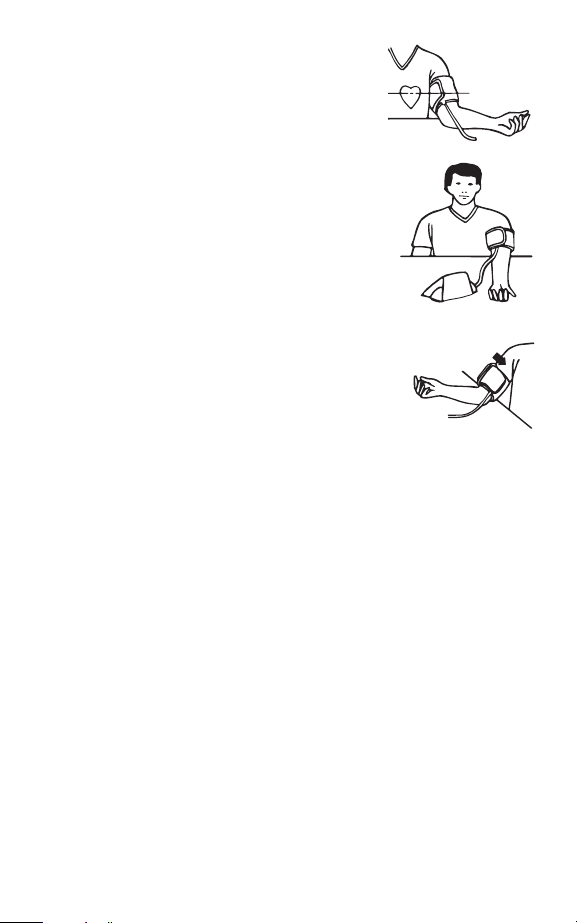

• If the arm artery lies considerably lower or higher than the heart, an
erroneously high or low blood pressure will be measured. Each 15 cm
(6”) difference in height between your heart and the cuff results in a
measurement error of 10 mmHg.

• Cuffs that are too narrow or too short result in false measurement
values. Selecting the correct cuff is extremely important. Cuff size is
dependent upon the circumference of the arm (measured in the center).
The permissible range is printed on the cuff. If this is not suitable for
your use, please call 1-800-568-4147.

• A loose cuff or a sideways protruding air pocket causes false measure­ment values.

• With repeated measurements, blood accumulates in the arm, which can
lead to false results. Consecutive blood pressure measurements should
be repeated after a 1 minute pause or after your arm has been held up
in order to allow the accumulated blood to flow away.

15

5.3. Using the cuff

a) Pass the end of the cuff through the flat

metal ring so that a loop is formed. The
hook and loop material must be facing
outward. (Ignore this step if the cuff has
already been prepared.)

Slide the cuff onto your upper left arm. The

b)

rubber tube should be on the inside of your
arm extending downward to your hand.
Make certain the cuff lies approximately
1/2” (1 to 2 cm) above the elbow.

IMPORTANT: The red strip on the edge
the cuff (Artery Mark) must lie over the artery
which runs down the inner side of the arm.

TIP: Align red artery mark to pinky finger.

c) To secure the cuff, wrap it around your

arm and press the hook and loop material
together. Check the position of the green
SIZING SEAM on the cuff. Ensure green
sizing seam overlaps green size range bar.

8.7” - 16.5”

½

”

of

d) There should be little free space between

the arm and the cuff. You should be able
to fit 2 fingers between your arm and the
cuff. Clothing must not restrict the arm.
Any piece of clothing which does must be
removed. Cuffs that don’t fit properly
result in false measurement values.
Measure your arm circumference if you
are not sure of proper fit.

16

e) Lay your arm on a table so the cuff is at

the same height as your heart. Make sure
the tube is not kinked.

Remain seated quietly for 5 minutes before

f)

you begin the measurement.

Comment
If it is not possible to fit the cuff to your left arm, it

can also be placed on your right arm. However, all
measurements should be made using the same arm.
Comparable blood pressure measurements always
require the same conditions (relax for several
minutes before a reading).

Cuff on

right arm

17

5.4. Taking a measurement

After the cuff has been appropriately positioned the
measurement can begin. Remain still during your
measurement, do not flex muscles.

a) Remain seated quietly for 5 minutes before you

begin the measurement.

b) Press the POWER button. After the system check,

the monitor displays OK and the pump begins to
inflate the cuff. On the display, the increasing cuff
pressure is continually shown.

c) After automatically reaching an individual

pressure, the pump stops and the pressure will
release. The cuff pressure is displayed during the
measurement.

d) When the device has detected your pulse, the

heart symbol in the display begins to blink.

e) When the measurement has been concluded, the

air will automatically release from the cuff. The
measured systolic and diastolic blood pressure
values, as well as the pulse, are now displayed.

f) The measurement results are displayed until you

switch the device off. If no button is pressed for 1
minute, the device switches off automatically.

g) When the unit is set to the MAM (Microlife

Averaging Mode) setting, 3 separate measure­ments will take place in succession, after which
your result is calculated and displayed as a single,
averaged measurement (individual results are not
displayed). There is a 15 second resting time
between each measurement. A count-down
indicates the remaining time between measurements.

If one of the measurements causes an error
message, it will be repeated one more time. If any
additional error occurs, the measurement will be
discontinued and error code displayed.

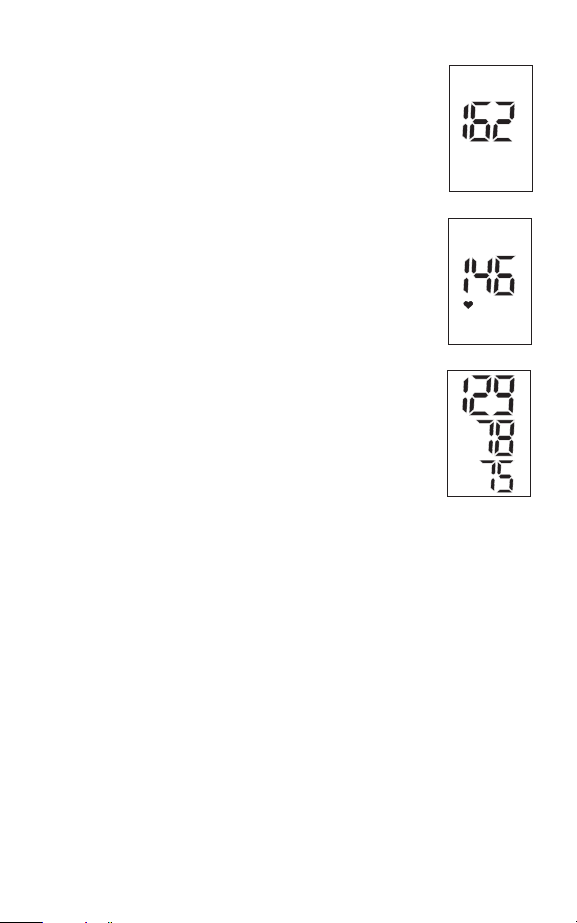

Pumping
Pressure

Measuring

Systolic

Diastolic

Pulse

Measurement

Complete

18
