REC-14 Microlatch™ 4-Channel RF Receiver Controller
English
Technical Specifications
~Your Finger is the Key!
™
Version:
v1.0-1506
Page 2
- 1 -
MICROLATCH™ REC-14 4-Channel RF CONTROLLER
1. Overview
This product is a general purpose UHF receiver operating on 434mhz. 4 Single Pole Double
Throw (SPDT) outputs are available to control external devices. The receiver is designed for
use with Microlatch™ Biometric products but can also be used with the Microlatch keyfobs.
This system uses code hopping technology for secure RF transmissions.

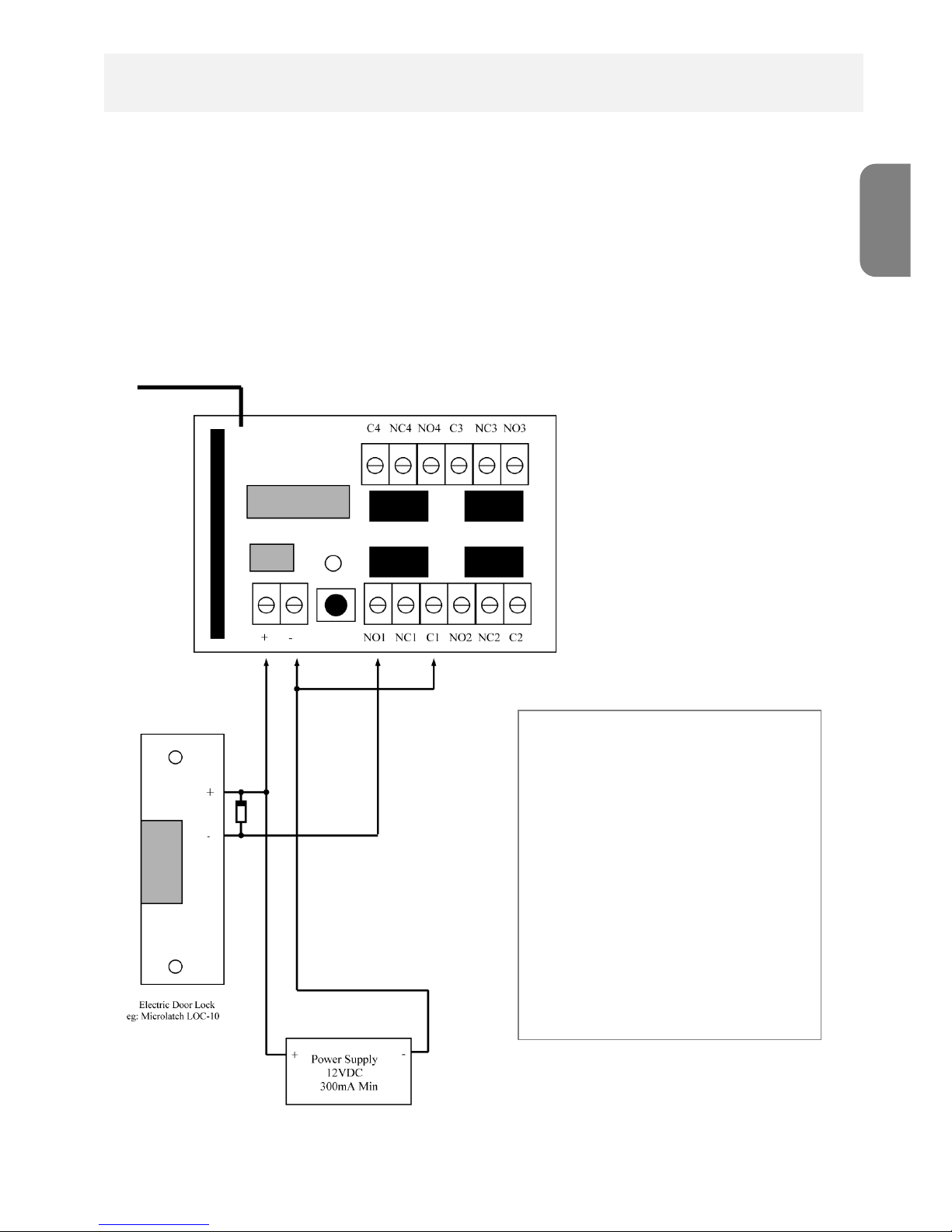

2. Connection Diagram
English
NOTES –
1. This configuration is applicable where
a door remains unlocked until the next
activation of the fingerprint reader or
keyfob.
2. Relay 1 MUST be programmed as
latching. ie: You must learn the BIO-13
reader to the REC-14 using a finger
unknown to the reader or by pressing
button "B" (2) on a keyfob.
3. Relay 2 will activate for 1 second on an
unknown finger.
4. A diode MUST be installed across ALL
electric locks except the Microlatch
LOC-10. Failure to fit the diode WILL
damage the REC-14. This will not be
covered by warranty.
Page 3
- 2 -
INSTALLATION AND SETUP
1. Learning Microlatch Biometric Fingerprint Wireless Readers –
This receiver is code learning therefore making the addition of extra transmitters an easy
task.
1. If the receiver is being set up for the first time it is advisable to clear the EEPROM
memory. To do this hold down the LEARN/DELETE switch on the PCB. The LED will
light and then extinguish after 4 seconds. The EEPROM is now empty.
2. Press the LEARN/DELETE switch briefly. The LED will flash rapidly.
3. LEARN any BIO-13/BIO-14/BIO-15 readers to the receiver by causing the unit to transmit
either with a known finger (timed operation) or an unknown finger (latching operation).
4. Learn additional transmitters or exit by pressing the LEARN/DELETE switch once. LED
will extinguish. If you forget to exit learn mode (flashing LED) the REC-14 will do so
automatically after 20 seconds of no activity.
2. Setting operation modes on Channel 1 (Relay Output 1)
The first transmitting device learnt to the REC-14 will dictate how relay 1 operates. Additional
devices learnt to the REC-14 will operate the relays as per the first device regardless of
which finger or button is pressed on a transmitter:
Mode 1 – Timed Operation of Relay 1
Learning with known finger (Microlatch fingerprint devices) or Button 1 on Microlatch button
keyfobs.
Mode 2 – Latching Operation of Relay 2
Learning with an unknown finger (Microlatch fingerprint devices) or Button 2 on Microlatch
button keyfobs.
Note - Relays 2, 3 & 4 are all timed outputs. Relay 2 is activated by an unknown finger or
button 2 on a keyfob. Relay 3 is activated by User group 2 from the BIO-13 or button 3 on
a keyfob. Relay 4 is activated by a LOW BATTERY signal from the BIO-13 or button 4 on a
keyfob.
3. Deleting BIO-13
This may be done either by the erase feature on the Microlatch Fingerprint devices (BIO13/BIO-14/BIO-15) or any learned transmitters (BIO readers and keyfobs) can be erased
altogether by following step 1 in the LEARN procedure above.
English
Page 4
- 3 -
ADDITIONAL INFORMATION
1. Install the receiver as high as possible for best signal reception and clear of metallic
surfaces.
2. Keep the aerial wire vertical
3. Power the receiver from a regulated DC power supply
PRODUCT SPECIFICATIONS
Microlatch™ REC-14 RF 4-Channel Receiver Controller V1.0
Operating Voltage
9 - 14VDC regulated 1.5A minimum battery backed
supply recommended.
Current consumption @12VDC
5.5mA minimum ( No relays ON)
72mA maximum ( All relays ON)
Physical Dimensions
Case material
85mm (L) x 65mm (W) x 32mm (H)
ABS plastic
Output Channels 4
Output Ratings
SPDT relay 1 Amp switching maximum @ 24VDC
Contacts are voltage free
RF Operating Frequency 434MHz
RF Signal Type (Data Transfer)
On Off Keying (OOK)
Keeloq™ AM ASK Code Hopping
Coding combinations 4.2 billion
Learning capacity 21 devices
Country of Manufacture Australia
Safety
EMC Tested and Approved. CE and C-Tick
Compliance
Complies with AS/NZS 4268:2003, AS/NZS
4251.1:1999
* All specifications subject to change without notice in the interest of ongoing product development
Microlatch™ is a registered trademark of Microlatch Pty Ltd
© 2006 Microlatch™ All rights reserved.
Microlatch Limited
ABN 52 059 640 747
Product Support
[email protected]
Sales
[email protected]
General Enquires
[email protected]
Website
www.microlatch.com
~
Your Finger is the Key!
™
