Microlab Slate Bluetooth Speaker System
Slate
User Manual
ETL certification declaration
15. The highest environmental temperature suitable for this product is 0℃ to 35℃ for indoor use only .
16. Appliable to altitude below 2000 meters
DU Wh en appa ratus o perat ion and i nstal latio n instr uctio ns cont ain inst ructi ons con tain in struc tions f or use by s ervic e perso nnel, s uch
ins truct ions sh all be se parat e in form at from o ther in struc tions a nd prec eded by t he word “ CAUTI ON” and th e follo wing or t he equi valen t.
“Th ese ser vicin g instr uctio ns are fo r use by qu alifi ed serv ice per sonnel o nly. To r educe t he risk o f elect ric sho ck do not p erfor m any
ser vicin g other t han tha t conta ined is t he oper ating i nstru ction s unless y ou are qu alifi ed to do so ”
FCC and Canada EMC Compliance Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF. L'appareil peut
être utilisé dans une condition d'exposition portable sans restriction.
Introduction
Beautifully designed 2.1 speaker system with powerful sound. Power your multimedia player with this
system and listen to clear sound. Comes with two stereo satellites for highs and mids sound
reproduction. Ultra-low frequency subwoofer with bass reflex tunnel for deeper sound and bass
effects.
This platinum version features a beautifully crafted subwoofer cabinet and acrylic satellite speakers.
ideal for music appreciation and entertainment. Connects easily to your media player via universal 3.5
mm stereo plug.
Features wired remote control for quick master volume control, and interfaces for audio input and
headphones connections.
Features
Powerful 2.1 speaker system
Perfect for multimedia player and PC
High quality speaker drivers used for quality sound characteristics
Full audio spectrum performances, ideal for your favourite entertainment from Mp3, Mp4, CD/DVD
movies and digital playbacks
Bass reflex tunnel built-in subwoofer for deep bass and vocals
Wired remote control with rotary volume dial
Audio input jack - 3.5 mm stereo
Headphones jack for private listening
Package contents
Slate subwoofer 1 pc
Slate satellites 2 pcs
Slate wired control 1 pc
User manual 1 pc

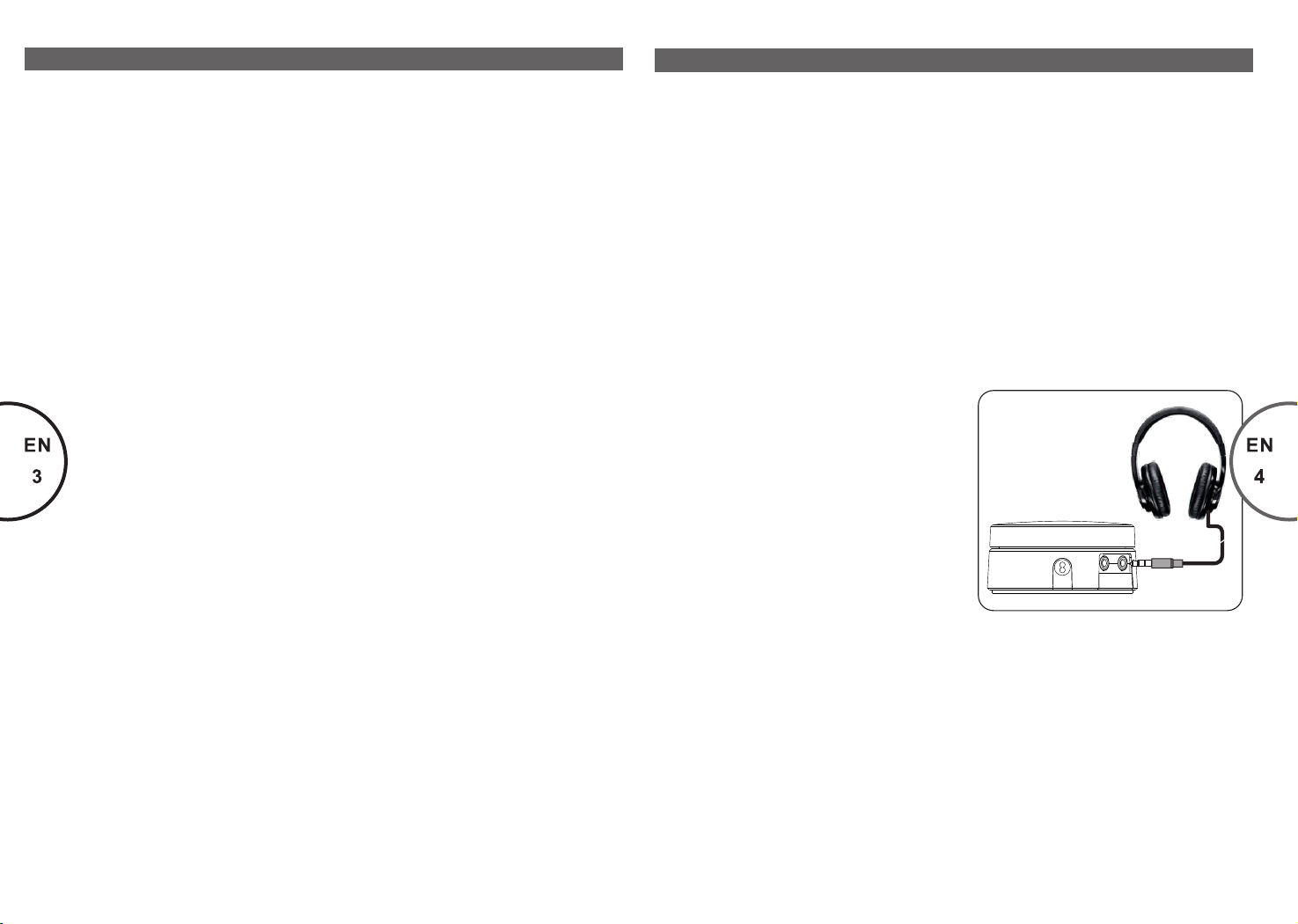

Alternative
listening mode:
plug to headphones,
main speaker system
mute.
3.5 mm stereo
jack: headphones

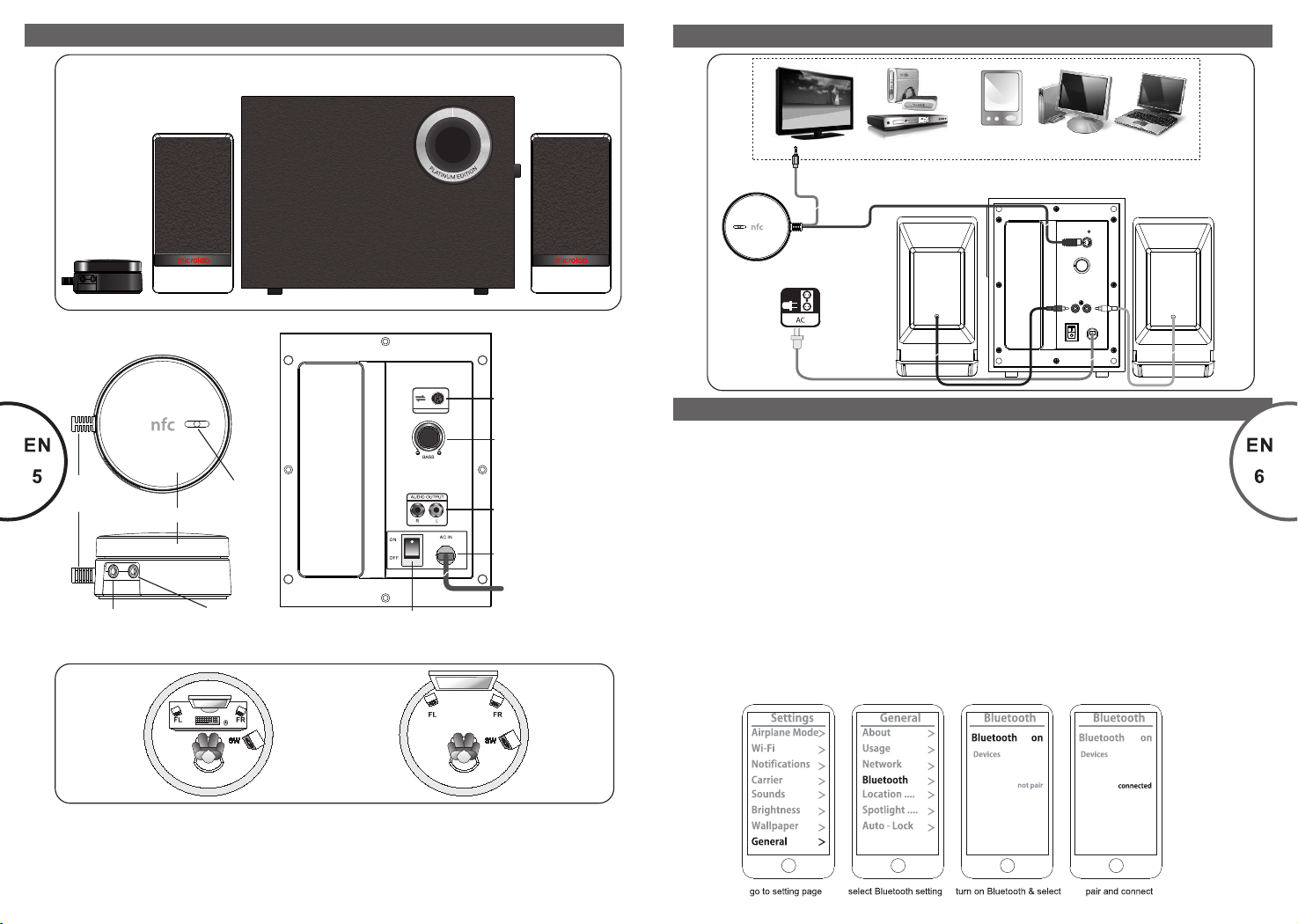

Illustrations
Connections
Front view
Wired
remote
control
Left
Satellite
Subwoofer
S
Y
S
S
S
T
A
E
B
M
-
X
Remote control Subwoofer
REMOTE CONTROL
Wired
cable
junction
Rotary volume
Audio input 3.5 mm / Headphones 3.5 mm
Power
LED
Power switch
Ideal listening position
and placement
Right
Satellite
side panel
Remote control
DIN jack
BASS volume
knob
Audio output:
to satellites
AC input junction
Med ia
Pla yer
Mp3 / M p4 /
Med ia Play er
Subwoofer side panel
PC or N otebo ok
Left
satellite
Remote control
Pri or to ini tial
use :
Ple ase ens ure
AC ra tings
mat ched th at
of co untry i n
use .
TV
To 3.5 mm
stereo jack
Right
satellite
AC Power
Supply
ACIN:100240V-
~50/60Hz500mA
CD / VC D / DVD
Blu -ray Pl ayer
Connections and Operation
Connections
Prior to connecting the speakers, ensure the AC power plug is unplugged from the AC source.
Secondly ensure the volume knob is set to minimum.
1. Connect the satellites to the left and right RCA outputs at the side panel of the subwoofer.
2. Place both satellites on extreme sides of the listening position. Place the subwoofer on the
floor and with its back near the wall for more bass.
3. Connect the AC power cord to the power supply source.
4. Please ensure the AC power supply match the power requirement printed at the side panel.
Wireless (Bluetooth®)
1. Please turn on the speaker system with the power switch situated at the side panel of the subwoofer.
2. The system will commence the Bluetooth® pairing process immediately. Please note that the system will
always default to this process everytime it is turned on.
3. Have your Bluetooth® enabled device activated for Bluetooth broadcast. For connection to the speaker
system, please ensure the Bluetooth® device supports A2DP profile.
4. Once your device detects the system, it should display the “Slate” name on its display screen.
5. Select pairing, and then connect functions to commence the A2DP audio streaming mode. The blue LED
will illuminate steadily.
FL - fro nt left s atell ite
FR - fr ont rig ht sate llite
SW - su bwoof er
Slate
Sla te
Slate
Sla te
6. To disable the mode, simply disconnect the Bluetooth® connection in your device.
Continued
Analog
1. Connect the 3.5 mm plug end from the wired remote control to your media device, such as Mp3/Mp4,
CD/DVD player, LCD TV, smartphone, tablet, or notebook.
2. Please ensure any connected Bluetooth® device is turned off, else the signal will continue to stream via
Bluetooth® mode.
3. Alternatively, you can connect a 3.5 mm plug from the media player to the side of the wired remote
control.
Operations
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch on the speaker system from the rear power switch.
3. Start the media player and song. For Bluetooth® enabled device, please start the music playback apps. For
Analog connection, start the playback from the Mp3/Mp4 player or notebook, etc.
4. Adjust the volume on the media player, and speaker’s master volume to your preferred listening level. The
master volume is located at the side panel of the right speaker.
5. For added sound effects, you can adjust the bass levels on the side panel.
6. Note: it is advisable not to turn the volume too loud or to its extreme volume limit to avoid damage to the
speaker driver material and impair your hearing. Always adjust in slow increment.
7. The system will conserve energy if there are no audio signal detected after 20 minutes. It will enter sleep
mode till it detects audio signal again. The LED will blink slowly in red colour if it is in AUX mode, and in
blue colour if it is in Bluetooth® mode.
Technical Information
Tweeter driver type:
Tweeter impedance:
Woofer driver type:
Woofer impedance:
Wireless
Troubleshooting
50 Watt RMS
12 Watt x 2+ 26 Watt RMS
< 0.5% 1 W 1 kHz
35 Hz - 20 kHz
> 75 dB
> 40 dB
2.5"
4 Ohm
5.25"
8 Ohm
2RCA, Output 2 - remote control: 3.5 mm Headphones
DIN jack, Input 2 - remote control: 3.5 mm stereo
NFC supported

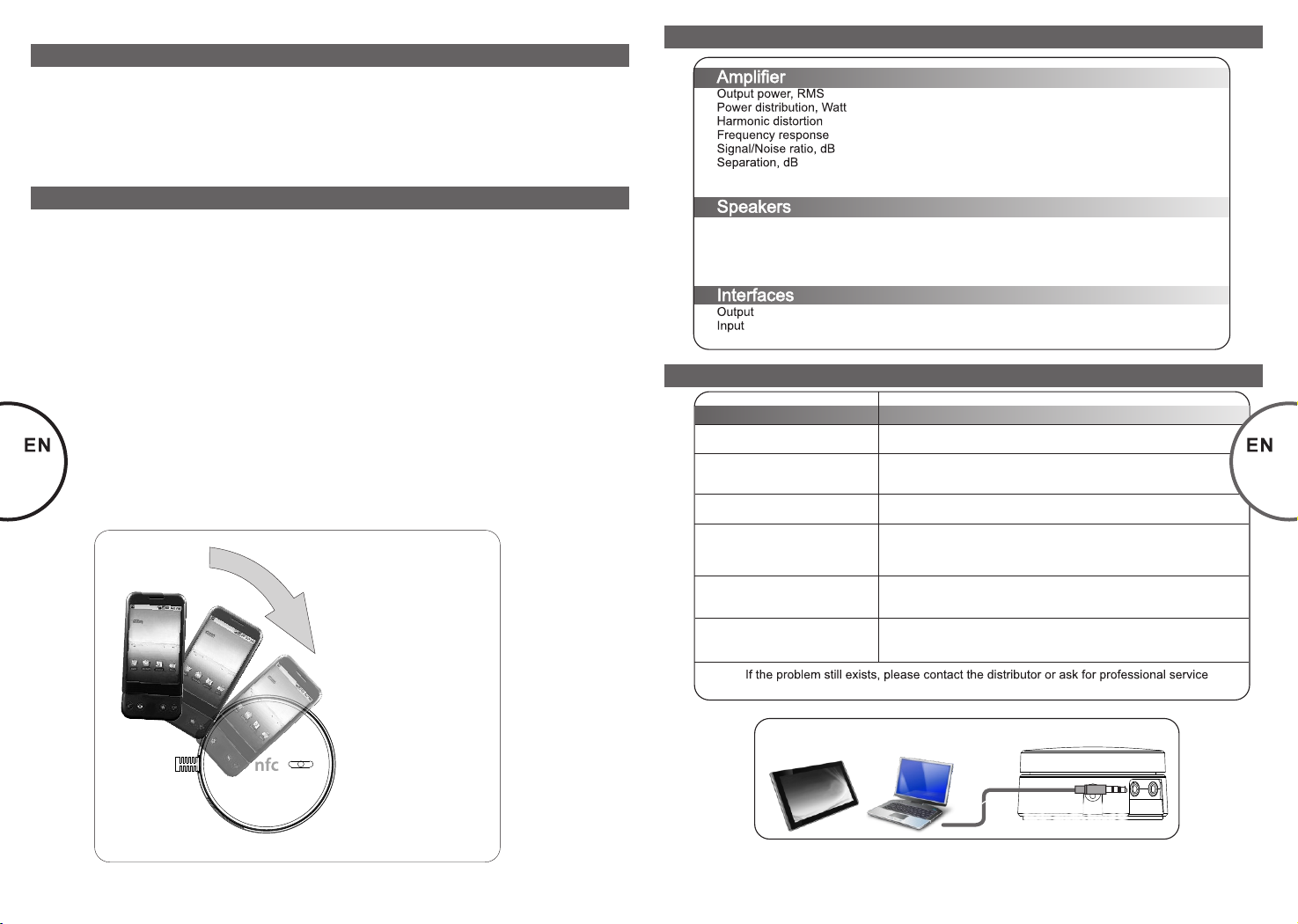

NFC (Nearfield communication)
This function allows any NFC enabled device to easily connect to the speaker system by placing near the NFC
logo.
1. To use the NFC function, just tap the NFC enabled device on the NFC logo at the top of the remote
7
control.
2. This will connect the system to this device, and disconnect any previous connected device.
3. Once connected, you can commence the music playback as mentioned above.
Tap once on the NFC logo
(top of right speaker), or
place near the logo
Spe aker co nnect s
imm ediat ely to
NFC e nable d devic e,
pre vious d evice is
dis conne cted.
QuestionsSolutions
Power LED won’t light up
No sound heard
One or more satellite no sound
Sound is distorted or unclear
What are the products
supported?
What the perfect location to
place the subwoofer?
Alternative input connection:
via 3.5 mm stereo jack on remote control
Check if the main power is turned on
Check if all connectors are properly inserted
Check if the audio source is working well
Check if the media player is playing the audio source
Check if the volume level is turned up
Check if the satellite cables are not kinked and properly connected.
Check source cable is correctly inserted to the correct jack.
Ensure the media file or format is of the supported type.
Ensure the bit rate recorded on the digital file is above 192 Kbps,
for clearer reproduction.
Check all cables for damaged or failed copper wire.
Any media player with 3.5 mm stereo jack such as smartphones,
tablets, Mp3/Mp4 players, CD/DVD players, LCD TV, PC or
notebooks. For NFC, the media device must be NFC enabled.
Subwoofer is non-directional, so it can be placed anywhere. But
for deeper bass, it is preferably to place it on the floor and with its
back to the wall.
3.5 mm stereo
jack: audio input 2
