wwwmicrolab com www microlab cn
Microlab Electronics Company Limited
Made in China
All symbols and logo belong to the respective brand holder or registered holder All specifications and information are subject to changes without further notice Slight variations and differences might appear between the printed photos and actual product due to product enhancement
M-1113 5.1
User Manual
Multimedia Speaker System
Before using, please read the manual carefully
English |
2 |
Deutsch |
6 |
Русский |
10 |
Polska |
14 |
1
Important Safety Instructions
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.
Explanation of Graphical Symbols:
The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
Warnings:
1.Read Instructions - All the safety and operating instructions must be read before the product is operated.
2.Retain Instructions - The safety and operating instructions should be kept for future reference.
3.Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and use instructions should be followed.5. Installation Install in accordance with the manufacturer's instructions.
6.Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7.Grounding or polarization - the product is not required to be grounded. Ensure the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wide than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8.Power cord protection - Power supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the appliance.
9.Overloading - Do not overload wall outlets, extension cords or multiple sockets, as this can result in a risk of fire or electric shock.
10.Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11.Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products) including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12.Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and the like.
13.Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
14.Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer may be cleaned by dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
15.Attachments - Do not use attachments not recommended by the product manufactures, as they may
EN
2
15.Attachments - Do not use attachments not recommended by the product manufactures, as they may cause hazards.
16.Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
17.Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
18.Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
19.Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20.Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21.Replacement parts - When replacement parts are required, ensure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
22.Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
23.Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24.The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
25.Try to install the product near a wall socket or extension cord and shall be easily accessible.
26.The highest environmental temperature suitable for this product is 40°C.
EN
3
Introduction
High quality 5.1 surround speaker system for movies, multimedia and personal computer uses. Designed for 5 point positioning in a room thus creating dynamic sound effects. Using 5 satellites and an amplified subwoofer for full range sound performances. Bass reflex technology within the subwoofer enhances deeper bass than regular speakers.
Ideal for home theater setup and connects to any 5.1 channel media player or computer with 3.5mm stereo jack. Includes a wired remote control for easy volume control and standby mode activation.
Features
1.Beautiful 5.1 surround speakers with dynamic sounds for movie effects
2.Enjoy clear sound and true audio effects
3.Ideal companion for your 5.1 channel CD/DVD, media player or personal computer and notebook
4.Deeper bass and excellent mid to high range audio production
5.Wired remote control with unique rotary volume knob
Packing list
You should find following |
items while unpacking: |
|
|
M-1113 subwoofer |
1 pc |
Wired remote control |
1 pc |
M-1113 satellites |
5 pcs |
User manual |
1 pc |
2RCA - 2RCA audio cable |
3 pcs |
|
|

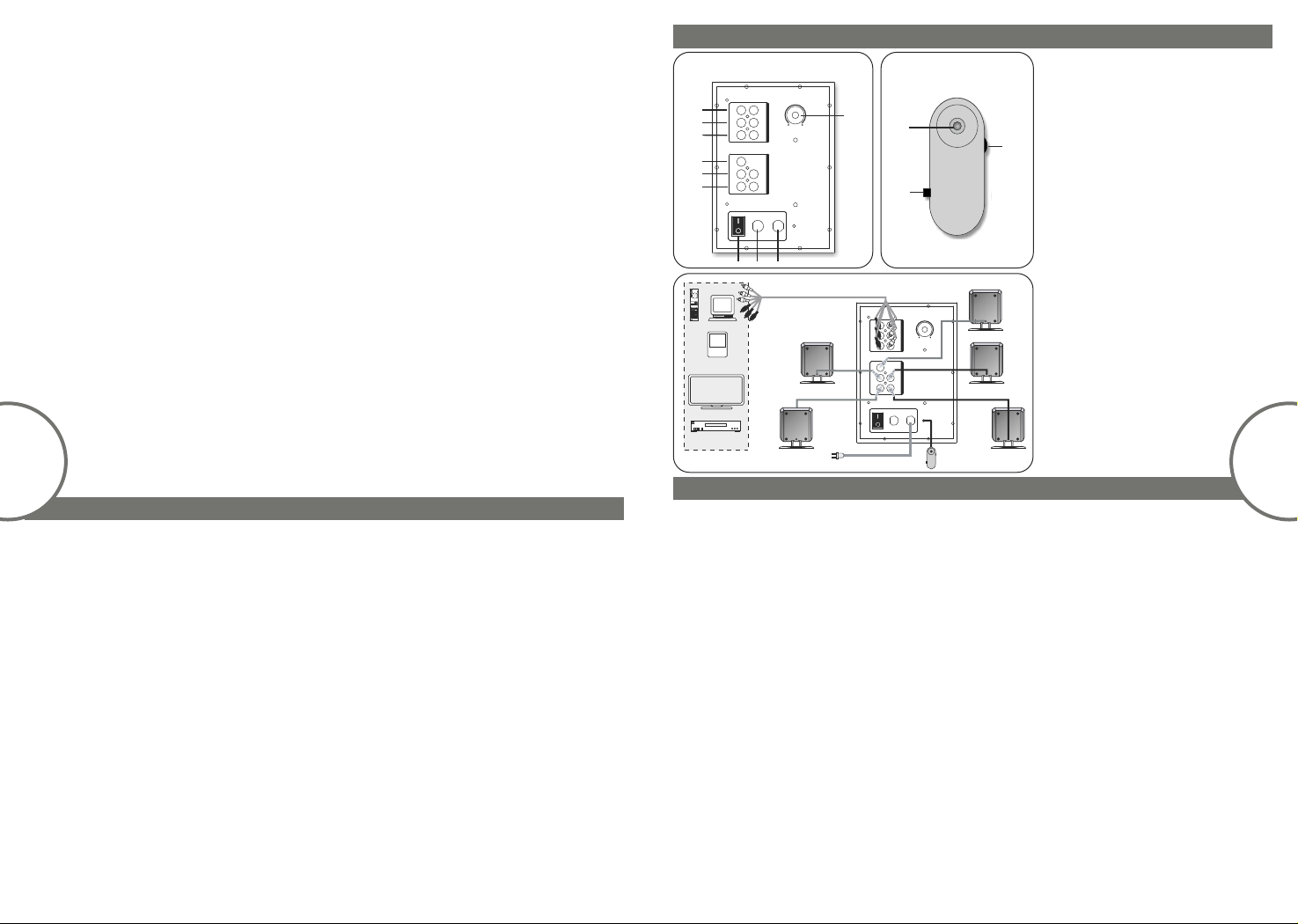

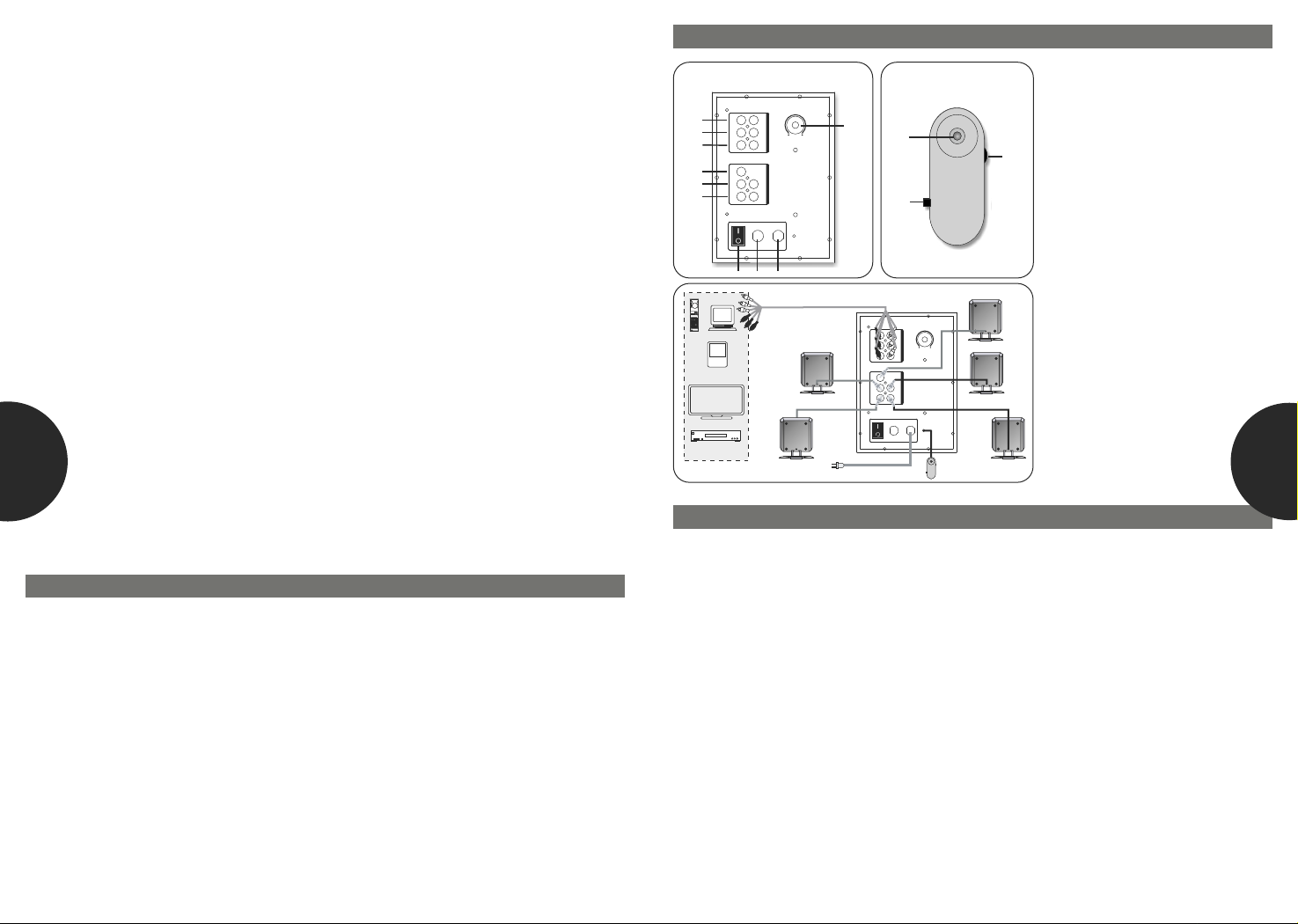

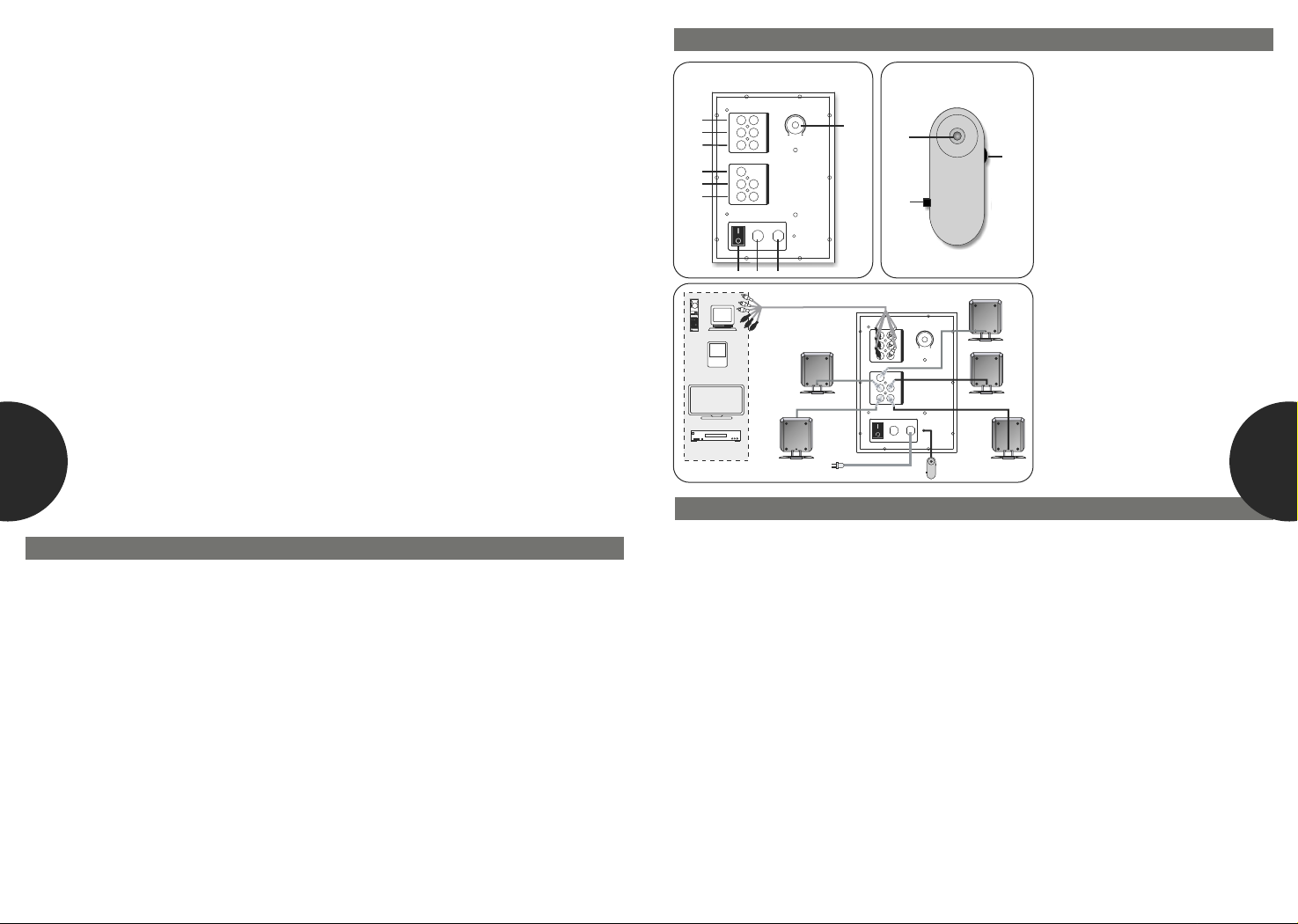

Illustrations
|
Back view |
Remote control |
Back view |
|||||
|
Audio input |
|||||||
|
|
|
|
|
|
|
1. |
Front stereo |
1 |
FL |
FR |
|
BASS |
|
|
2. |
Center / Subwoofer |
|
|
|
10 |
|
1 |
3. |
Surround Left / Right |
|
2 |
CEN |
S.W. |
INPUTAUDIO |
|
||||
|
|
?? + |
1 |
2 |
Audio output |
|||
3 |
SL |
SR |
|
|
||||
|
|
|
|
|
3 |
4. |
Center |
|
|
|
|
|
|
|
|||
4 |
CEN |
|
|
|
|
3 |
5. |
Front stereo |
5 |
FL |
FR |
AUDIO |
|
|
6. |
Surround Left / Right |
|
|
|
OUTPUT |
|
2 |
|
|||
6 |
SL |
SR |
|
|
|
7. |
Power switch |
|
|
|
|
|
|
|
4 |
8. |
Fuse |
|
ON |
T400mAL250V |
|
AC IN |
|
9. |
Power supply cord |
|
|
|
FUSE |
|
|
|
|
|
|
|
OFF |
|
|
|
|
|
10. Bass volume knob |
|
|
7 |
8 |
9 |
|
|
|
|
|
|
|
|
|
|
|
CENTER |
|
|
|
Subwoofer |
|
||
PC or Notebook |
FL |
FR |
|
|
|
|
FR |
CEN |
S.W. |
AUDIO |
?? |
+ |
FL |
|
SL |
SR |
INPUT |
|
|
|
Mp3 / Mp4 |
|
|
|
|
|
|
Media player |
CEN |
|
|
|
|
|
|
FL |
FR |
AUDIO |
|
|
|
|
|
|
|
|
|
|
|
SL |
SR |
OUTPUT |
|
|
|
SR |
|
|
|
|
|
SL |
TV |
FUSE |
|
|
AC IN |
|
|
|
ON |
|
|
|
|
|
|
OFF |
|
|
|
|
|
CD / VCD / DVD |
|
|
|
|
|
|
player |
|
|
|
|
|
|
To AC power supply |
|
|
|
|
|
Wired remote control |
AC 220 V - 240 V, 50 Hz 260 mA |
|
|
|
|
|
|
Product connection and operation
Connections
Remote control
1.Power LED
2.Standby switch
3.Volume knob
EN
4
1.Connect all satellites speakers RCA plugs into the subwoofer corresponding audio output jacks.
2.Connect the 3 sets of 2RCA cables to the media player’s 5.1 channel audio outputs or PC’s 5.1 channel sound card. Some DVD players also features 5.1 channel RCA jacks which you can connect directly to.
3.Next, connect the other end of the cables to the corresponding audio input jacks of the subwoofer back panel.
4.For alternative listening, you can connect any stereo media player into the FL and FR audio input jacks for stereo effect.
5.Turn on the AC power supply.
Operation
1.Turn the power on by depressing the power switch at the back of the subwoofer. Next push the standby switch to active on the wired remote control. The power LED on the wired remote control will illuminate.
2.Ensure the volume level is set to lowest first on the wired remote control.
3.Start the playback device and song.
4.Slowly adjust the volume to your preferred volume level and enjoy.
5.For effects, adjust the bass volume at the side of the subwoofer to your preferred level.
6.When not in use, switch the level on the wired remote control to standby.
7.To turn off the system, please use the power switch at the back of the subwoofer. For prolong un-use period, please use this to turn off the system safely.
Note: it is advisable not to turn the volume too loud or to its extreme volume limit to avoid damage to the speaker driver material. Always adjust in slow increment.
