Introduction
Thank you for purchasing the MICROH DJ MONSOON FX PRO. For your own
safety and knowledge, please read this manual before installing or operating
this device. This manual covers the important information on installation and
applications. Please install and operate the xture according to instructions.
Meanwhile, please keep this manual for future reference.
Please carefully unpack the xture and check all ares to see if it was damaged
during transportation. Please check whether the following items are included in
the package:
Item Quantity
MONSOON FX PRO xture 1
Power cord 1
User manual 1
Notify the shipper immediately and retain packing material for inspection if any parts
appear damaged from shipping or the carton itself shows signs of mishandling.
Save the carton and all packing materials. In the event that a xture must be
returned to the factory, it is important that the xture be returned in the original
factory box and packing.
Page 4
Safety Instructions
CAUTION!
ELECTRIC SHOCK WARNING!
USE EXTREME CAUTION WHEN HANDLING WIRES.
This device has been delivered in safe working condition. In order to maintain this
condition and to ensure safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
Important:
Damage caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes, do not switch it on
immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature, and is dry.
This device falls under protection-class I, therefore it is essential that the device be
grounded. The electrical connection must be carried out by a qualied technician.
The device should only be used with rated voltage and frequency. Make sure that
the available voltage is not higher than 120V as stated at the end of this manual.
Make sure the power cord is never crimped or damaged in any way, as this could
cause shock and damage. If your power cord is damaged in any way, please
purchase a new cable from your local MICROH dealer. Always disconnect power,
when the device is not in use or before cleaning it. Never pull out the plug by
tugging the power cord.
During initial start-up, some smoke or smell may arise. This is a normal process,
and does not necessarily mean that the device is defective. It should decrease
gradually. Please do not project the beam onto combustible substances.
Fixtures cannot be installed on or near combustible substances. Keep more than
50cm distance from wall for proper ventilation and air ow. If your xture is or has
become damaged in any way, it shall be exclusively replaced or repaired by the
manufacturer to avoid any hazard.
CAUTION!
Never touch the device during operation!
The housing may heat up!
CAUTION!
Never look directly into light source,
as sensitive persons may suffer from an epileptic shock.
CAUTION!
The electric connection must only be carried out by a qualied electrician
Page 5
Display
Item Number Display Function
Button
1 Menu Enter/ Check the menu function
2 Down Check the next menu
3 Up Check the previous menu
4 Enter Enter the selected menu/ Enter
Page 6
Main Function
When choosing a function, press MENU button, select menu options you want.
Press ENTER button to the selected function, the display will be strobe, then press
UP/DOWN button to select the required function, press ENTER button, or wait for
10 seconds or press MENU button for long time, then enter the menu mode.
Page 7

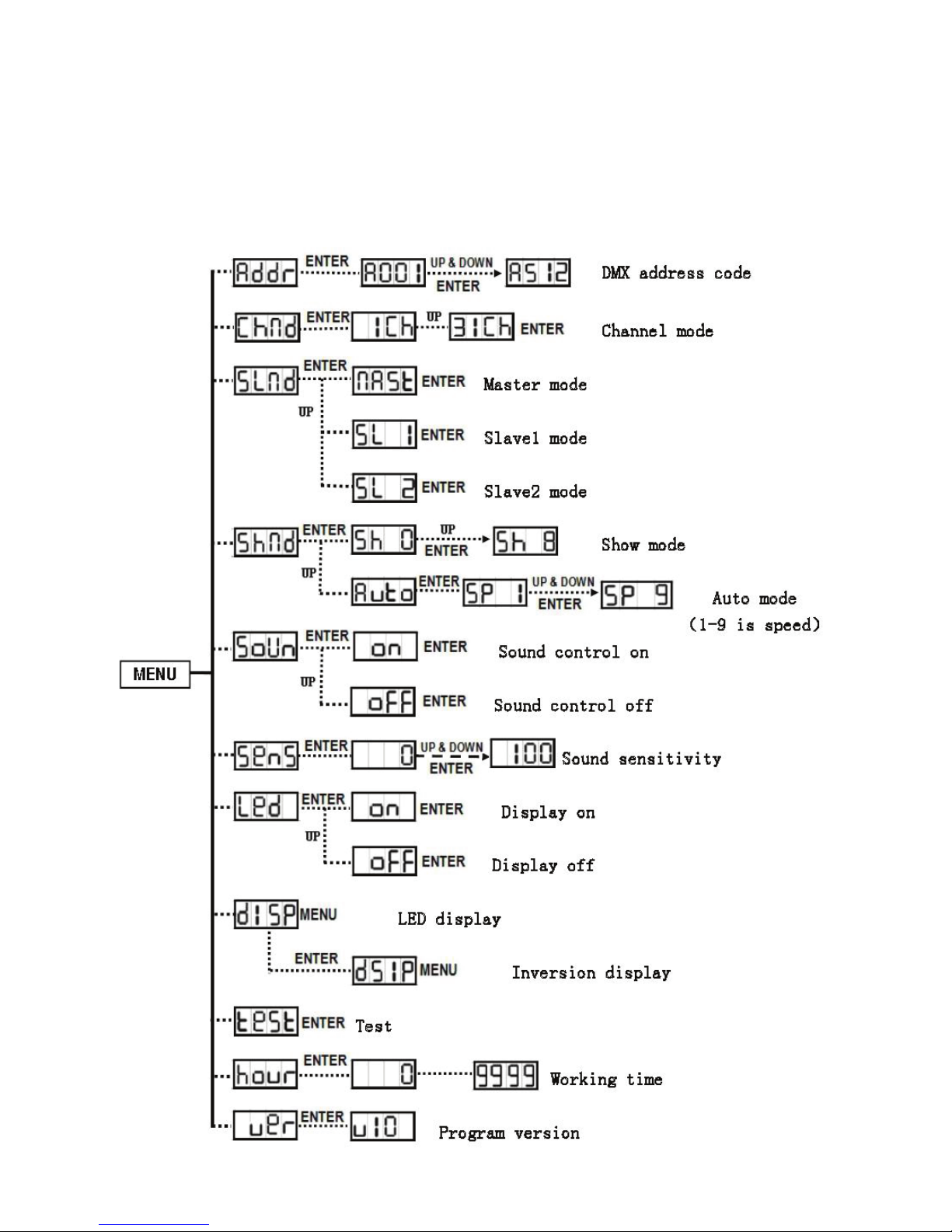

Display Program Instruction
1. DMX512 Address Setting
Choose , press ENTER button to conrm. Press UP/DOWN button to nd
initial address, then press ENTER button to save it. After 10 seconds or press
MENU for long time to return to main menu.
2.
Channel Mode
Choose
, press ENTER button to conrm. Press UP/DOWN button to select
the channel, like
(1CH) or
(31CH) mode, etc. Press ENTER button
to save it. After 10 seconds or press MENU for long time to return to main menu.
3.
Slave Mode
Choose
, press ENTER button to enter, (Master) or
(Slave 1) or
(Slave 2) mode, press ENTER button to save it. After 10 seconds or press
MENU for long time to return to main menu.
4.
Show Mode
Choose , press ENTER button to conrm, enter (Random show) or
(show 1) or (show 2) or... (show 8),then press ENTER button
to save it. After 10 seconds or press MENU for long time to return to main menu.
Choose , press ENTER button to conrm, press UP button to enter ,
then press ENTER to enter , use UP button to increase conversion speed,
the maximums speed is .
5. Sound Control
Choose , press ENTER button to conrm. Use UP/DOWN button to select
(Sound control on) or (Sound control off), then press ENTER button
to save it. After 10 seconds or press MENU for long time to return to main menu.
6. Sound Sensitivity
Choose , press ENTER button to conrm. Use UP/DOWN button to adjust
the sensitivity value from no sound control to the max , after selection,
then press ENTER button to save it. After 10 seconds or press MENU for long time
to return to main menu.
7. LED Display
Choose , press ENTER button to conrm. Use UP/DOWN button to select
(display on) or (display off) mode, after selection, then press ENTER
button to save it. After 10 seconds or press MENU for long time to return to main
menu.
Page 8
8. Display Nixie Tube The Normal And Inversion Show
Choose (Normal), press ENTER button to conrm, then enter
(Inversion), after selection, press MENU button to enter the mode that has been
selected. After 10 seconds or press MENU for long time to return to main menu.
9. Test
Press MENU button to , press ENTER button, the led display will strobe, the
light will run built-in program to test, press MENU to back to main menu.
10. Working Time
Press MENU button to , press ENTER button, it will show the working time
on the display. Press MENU to back to main menu.
11. Program Version
Press MENU button to , press ENTER button, it will show the Program
version on the display. Press MENU to back to main menu.
Page 9
Mounting And Installing
Caution: for added protection, mount the xture in areas outside walking paths,
seating areas, or in areas were the xture might be reached by unauthorized
personnel. Before mounting the xture to any surface, make sure that the
installation area can hold a minimum point load of 10 times the devices weight.
Fixture installation must always be secured with a secondary safety attachment,
such as an appropriate safety cable. Never stand directly below the device when
mounting, removing, or servicing the xture.
Whether installing inverted on a truss or ceiling, or set on a at level surface be
sure this xture is kept at least 0.5m (1.5ft) away from any ammable materials
(decorations, etc.). Always use and install the supplied safety cable as a safety
measure to prevent accidental damage and/or injury in the event the clamp fails.
Mounting Points: Overhead mounting requires extensive experience, including
calculating working load limits. A knowledge of the installation material being
used, and periodic safety inspection of all installation material and the xture are
all imperative and should only be performed by a qualied technician. Improper
installation can result in bodily injury or damage.

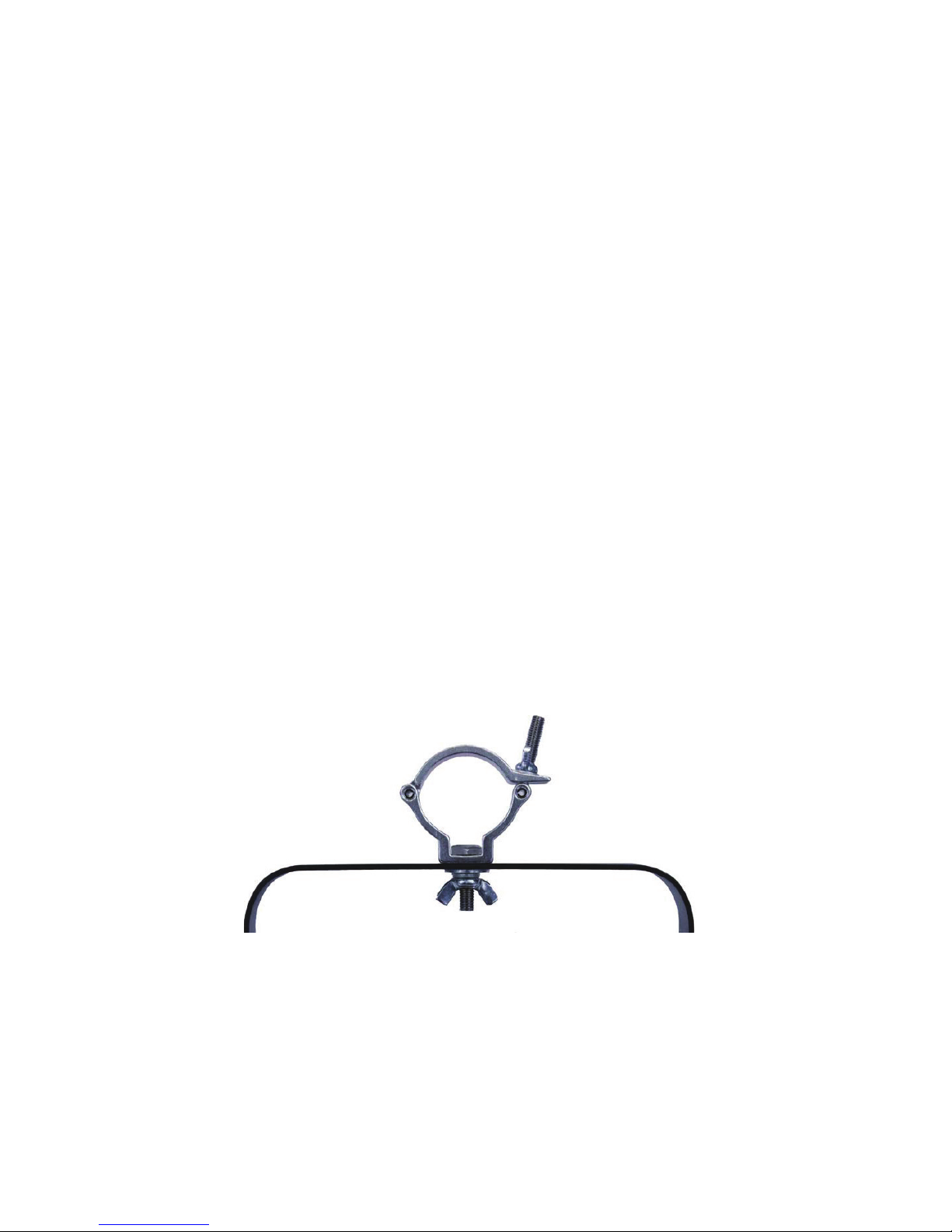

Clamp Mounting: The MICROH MONSOON FX PRO provides a unique mounting
bracket assembly that integrates 2 brackets to be used to mount on a truss or the
oor. When mounting this xture to truss, be sure to secure an appropriately rated
clamp to the included bracket tted through the center hole. As an added safety
measure, be sure to attach at least one properly rated safety cable to the xture.
Page 10
Regardless of the rigging option you choose for your MICROH LEDBARQX185
xture, always be sure to secure your xture with a safety cable. The xture
provides a built-in rigging point for a safety cable hanging bracket. Be sure to only
use the designated rigging point for the safety cable and never secure a safety
cable to a carrying handle.
Proper Usage: This product is for overhead mounting only. For safety purposes,
MICROH DJ recommends mounting lighting effect products on steady elevated
platforms or sturdy overhead supports using suitable hanging clamps. In all cases,
use safety cables. Obtain appropriate mounting hardware from your lighting vendor.
International laser safety regulations require that laser products must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical
separation between the oor and the lowest laser light. Additionally, 3 meters of
horizontal separation is required between laser light and audience or other public
spaces.
CAUTION!
Use of controls, adjustments, or procedures other than those specied in this
user manual may result in hazardous radiation exposure.
Page 11

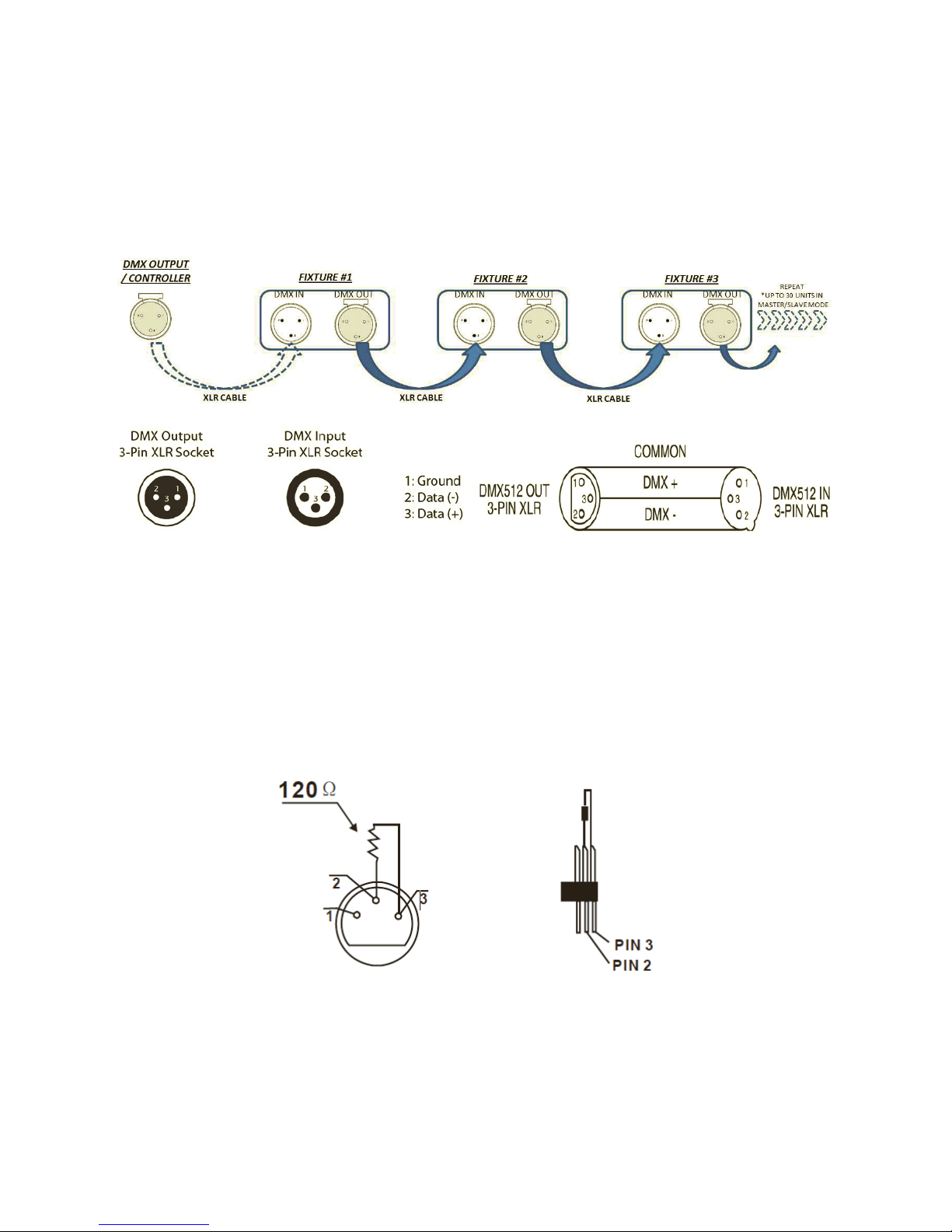

DMX512 Control Data Connection:
This xture complies with international USITT DMX standards and can be used
with a 3 pin DMX connector. Plug in the provided 3 pin XLR cable to the female
3-pin XLR output of your controller and the other side to the male 3-pin XLR input
of the LED battery par light. To connect the units to DMX, you must daisy chain
the xtures together as referred in the diagram below. Always end your DMX-512
connection with a DMX terminator
For installations where the DMX cable has to run a long distance, or is in an
electrically noisy environment, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR with a 120 Ω resistor connected between pins
2 and 3, which is then plugged into the output XLR socket of the last xture in the
chain. Please see illustrations below:
Page 12
Operation
Master/Slave Build-In Function
Connect the lights in series, the rst light control the other light to auto
show, sound control show and so on. It’s very good for the instant show mod. Must set
the rst light to be master light same time to choose (Random show),
(show 1) or... (show 8). If there are no DMX signals, the master mode
LED will light up, the sound control LED will strobe according to the music, the other
lights will not work in slave mode. Choose (Normal) or (two light
show) mode, when connect the DMX cable, the slave LED will light up.
Two light show
For the slave light, slave 1( )running same as the master light, slave 2 ( )
running against the master light. If there are just two light, could set the second
light as slave light ( ) for better show.
DMX Controller
If controlled by DMX controller, you need to set the DMX address code to control
the light, the address code value is between 1-512, then the light will receive the
signal accordingly.
Press MENU button, choose , press ENTER button, address code will strobe.
Use UP /DOWN to select DMX512 address code. After address code settled, press
ENTER button until the address code stops strobing, it will automatically return to
the menu after 8 seconds. If you want to go back to the previous status and without
any changes, you could press MENU button.
DMX 512 (Choose default address code)
Channel Value Function
CH1
(008-255 all under
sound control)
000-007 No Function
008-037 Show Mode 1
038-067 Show Mode 2
068-097 Show Mode 3
098-127 Show Mode 4
128-157 Show Mode 5
158-187 Show Mode 6
188-217 Show Mode 7
218-247 Show Mode 8
248-255 Random Show 1-8
Page 13
31CH
Channel Value Function
CH1 000-255 Full dimmer 1, 0 - 100%
CH2 000-255 Strobe 1, slow to fast
CH3 000-255 R dimmer, 0 - 100%
CH4 000-255 G dimmer, 0 - 100%
CH5 000-255 B dimmer, 0 - 100%
CH6 000-255 W dimmer, 0 - 100%
CH7 000-255 A dimmer, 0 - 100%
CH8 000-255 R2 dimmer, 0 - 100%
CH9 000-255 G2 dimmer, 0 - 100%
CH10 000-255 B2 dimmer, 0 - 100%
CH11 000-255 W2 dimmer, 0 - 100%
CH12 000-255 A2 dimmer, 0 - 100%
CH13 000-255 R3 dimmer, 0 - 100%
CH14 000-255 G3 dimmer, 0 - 100%
CH15 000-255 B3 dimmer, 0 - 100%
CH16 000-255 W3 dimmer, 0 - 100%
CH17 000-255 A3 dimmer, 0 - 100%
CH18 000-255 R4 dimmer, 0 - 100%
CH19 000-255 G4 dimmer, 0 - 100%
CH20 000-255 B4 dimmer, 0 - 100%
CH21 000-255 W4 dimmer, 0 - 100%
CH22 000-255 A4 dimmer, 0 - 100%
CH23 000-255 Full dimmer 2, 0 - 100%
CH24 000-255 Strobe 2, Slow to Fast
CH25 000-255 2pcs White LED dimmer, 0 - 100%
CH26 000-255 2pcs White LED dimmer, 0 - 100%
CH27 000-255 2pcs White LED dimmer, 0 - 100%
CH28 000-255 2pcs White LED dimmer, 0 - 100%
CH29 000-255 Green laser, dimmer 0 - 127, 128 - 255 strobe
CH30 000-255 Red laser, dimmer 0 - 127, 128 - 255 strobe
CH31 000-255 Laser rotate
Page 14
Features
• LED display, easy to control
• Red and Green rotating lasers
• Four control modes: Sound active, LED auto run, DMX and master/slave
Specications
Power AC100-240V, 50/60Hz
Power consumption 90W
Power Connection AC In & Out
Data Connection 3 Pin XLR
LED 8 x 1W White LEDs + 28 x 3W 5 in 1 RGBWA LEDs
Red Diode 150MW
Green Diode 50MW
Dimensions (mm) 457 x 433 x 286
Weight 7Kg
Page 15
PLEASE NOTE:
All information for this product is subject to change without notice!
Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the device, or parts of the device must be tightly
connected, and must not be corroded.
2. There must not be any deformations on the housing, colour lenses, xations or
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4. The electric power supply cables must not show any damage, material fatigue
or sediments.
Further instructions depending on the installation spot and usage must be handled
by a skilled installer or technician. Any safety issues must be resolved.
CAUTION!
Disconnect xture before servicing.
In order to keep the xture in good condition and extend the life, we suggest regular
cleaning to the xture.
1. Clean the inside and outside lens each week to avoid the light output from
darkening due to accumulation of dust, dirt, etc.
2. Clean the fan each week.
3. A detailed electrical check by an approved technician every three months is
advised. Ensure the circuit contacts are in good condition, and prevent from
overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free
cloth. Never use alcohol solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under “Installation Instructions.”
Should you need any spare parts, please order genuine MICROH parts from your
local dealer.
CAUTION!
Take care using this equipment! High voltage risk of electric shock!
Page 16
Loading...
