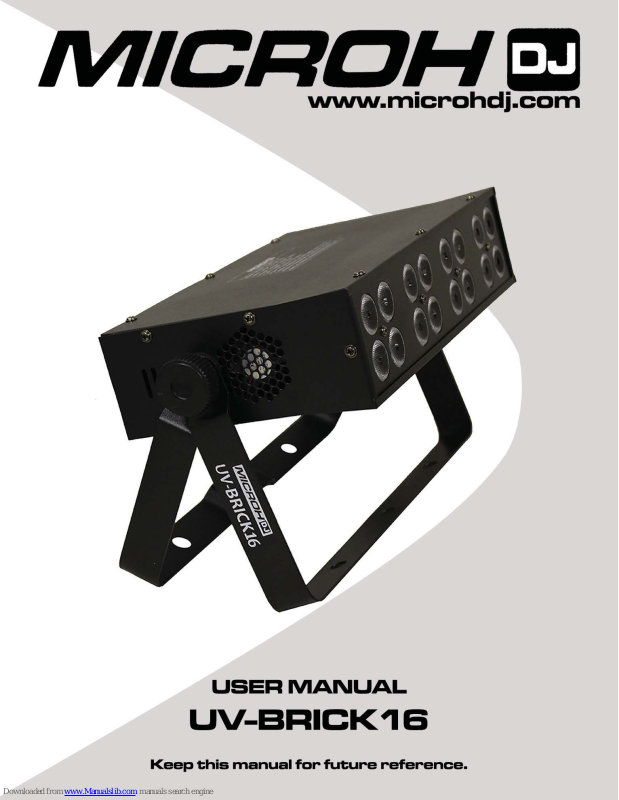

Microh UV BRICK16 User Manual

. INTRODUCTION AND UNPACKING

Thank you for purchasing the MICROH UV BRICK16 wash fixture. For your own safety and knowledge, please read
this manual before installing or operating the device. This manual covers the important information on installat ion and
applications. Please install and operate the f ixture according to instructions. Meanwhile, please keep this manual for
future reference.

The MICROH UV BRICK16 wash fixture is made of a new type of high t emperature cast aluminum casing. The fixture
is designed and manufactured strictly following CE st andards, complying with international stand ard DMX512 protocol.
This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos.

The MICROH UV BRICK16 wash fixture uses 16 x 3W UV LED’s which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check if it was damaged during the transportation. Please
check whether the following items are included inside the box:

Fixture – One Power Cord – One User Manual - One

2. SAFTEY INSTRUCTIONS

This device has left the factory in perfect condition. In order to maintain this condition and to ensure safe operation, it is
absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

If the device has been exposed to temperature chan ges, do not switch it on immediately. The aris ing condensation
could damage the device. Leave the device switched off until it has reached room temperature, and is dry.

This device falls under protection-class I, therefore it is essential that the device be grounded. The electrical
connection must be carried out by a qualified technician.

The device should only be used with rated voltage and frequency. Make sure that the available voltage is not higher
than 120V as stated at the end of this manual.

Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your
power cord is damaged in any way, please purchase a ne w cable from your local MICROH dealer. Always disconnect
power, when the device is not in use or before cleaning it. Never pull out the plug by tugging the power cord.

During initial start-up, some smoke or smell may arise. This is a normal process, and does not necessarily mean that
the device is defective. It should decrease gradually. Please do not project the beam onto combustible substances.

Fixtures cannot be installed on or near combustibl e substances. Keep more than 50cm distance from wall for proper
ventilation and air flow. If your fixture is or has become damaged in any way, it shall be exclusively replaced or
repaired by the manufacturer to avoid any hazard.

1

2. MOUNTING AND INSTALLATION

Caution: For added protection, mount the fixtures in areas outside walking paths, seating areas, or in a r eas were the

fixture might be reached by unauthorized personnel. Before mounting the fixture to any surface, make sure that the
installation area can hold a minimum point load of 10 times the device’s weight. Fixture installation must always be
secured with a secondary safety attachment, such as an app ropriate safety cable. Never stand directly below the
device when mounting, removing, or servicing the fixture.

Whether installing inverted on a truss / ceiling or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5 ft.) away from any flammable materials (decoration etc.). Always use and install the supplied
safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.

Mounting Points: Overhead mounting requires extensive experi ence, including calculating working load limits. A
knowledge of the installation material being used and periodic safety inspection of all installation material and the
fixture are all imperative and should only be performed by a qualified technician. Impro per installation can result in
bodily injury and damage.

Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate
wall outlet.

Floor Mounting: Set the 2 brackets at your desired angle and aim your fixture accordin gly. Please see diagram below.

2

Clamp Mounting: The MICROH UV BRICK16 provides a unique mounting bracket assembly that integrates 2
brackets to be used to mount on a truss or the floor. When mounting this fixture to truss, be sure to secure an
appropriately rated clamp to the included bracket fitted through the center hole. As an added safety measure, be sure
to attach at least one properly rated safety cable to the fixture.

Regardless of the rigging option you choose f or your MICROH UV BRICK16 wash fixture, always be sure to secure
your fixture with a safety cable. The f ixture provides a built-in rigging poi nt for a safety cable on the hanging bracket as
illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable
to a carrying handle.

5. DMX-512 CONTROL CONNECTIONS

This fixture complies with international USITT DMX standards and can b e used with either a 3 pin or 5 pin DMX
connector. Plug in the provided 3 pin XLR cable to the female 3-pin XLR output of your controller and t he other side to
the male 3-pin XLR input of the LED COB100 PAR/RGBWA. To connect the units to DMX, you must daisy chain the
fixtures together as referred in the diagram below. Al ways end your DMX-512 connection with a DMX te rminator.

For installations where the DMX cable has to run a long dist ance, or is in an electrically noisy environment, it is
recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electr ical
noise. The DMX terminatRULVVLPSO\DQ;/5SOXJZLWKDȍUHVLVWRUFRQQHFWHGEHWZHHQSLQVDQGZKLFKLVWKHQ
plugged into the output XLR socket of the last fixture in the chain. Please see illustrat ions below.

120¡

2

1

3

PIN 3

PIN 2

3

6. SETUP MENU

Display

D001
SOUN

FUON
AUTO

CF**
CC**

CS**

SLAV

NOTE: To adjust the brightness of the “full on”, press and hold the "MODE" button
for more than 5 seconds. The display will show "u255", use the "UP" or "DOWN"
buttons to adjust the brightness. Press “ENTER” to confirm.

Function

DMX SETTING

SOUND ACTIVE

FULL ON

MACROS

COLOUR FADE

COLOUR CHASE

COLOUR SELECTION

SLAVE MODE

7. DMX CHANNEL MODES

4 Channel Mode

Channel

Function

Value Description

CH1 DIMMER 0 - 255 INCREASE / DECREASE BRIGHTNESS
CH2
CH3

STROBE

FADE

0 - 255 SLOW - FAST
0 - 255 RANDOM FADE
0 - 127 RANDOM FADE

CH4 MACRO

128 - 255 RANDOM CHASE

4

9. TECHNICAL SPECIFICATIONS

MODEL: UV BRICK16
LAMP:
OPERATING TEMPERATURE: -25°C to 45°C
VOLTAGE: 90-240VAC 50/60Hz 50W

FUSE: 2A
DIMENSIONS: 320(H) x60(W) x180(L) mm
NET WEIGHT: 3kg
WARRANTY: 2 Year Limited Warranty

16 x 3W UV LED’s

10. MAINTENANCE AND CLEANING

The following points have to be considered d uring the inspection:

1) All screws for installing the device or parts of the device must be tightly connected, and must not be corroded.

2) There must not be any deformations on the housing, col our lenses, fixations or installation spots (ceiling,
suspension, trussing).

3Mechanically moved parts must not show any traces of wearing and must not rotate with unbalances.

4㸧The electric power supply cables must not show any damage, material fatigue or sediments.

Further instructions depending on the installation spot and usage must be handled by a skilled installer or technician.
Any safety issues must be resolved.

In order to keep the fixture in good condition and extend the life, we suggest regular cleanin g to the fixture.

1) Clean the inside and outside lens each week to avoid th e light output from darkening due to accumulation of dust,

dirt, etc.

2) Clean the fan each week.

3) A detailed electrical check by approved technician every three months is advised. Ensure the circuit contacts are in

good condition.

We recommend a frequent cleaning of the device. Please us e a moist, lint- free cloth. Never use alcoh ol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine MICROH parts from your local dealer.

5

IF YOU SHOULD EXPERIENCE ANY PROBLEMS OR ISSUES PLEASE CONTACT MICROH PROFESSIONAL
PRODUCTS BY EMAIL AT [e-mail]

In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for
service repair.

DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However,
Microh is not responsible for any error or addendums to this manual. If you have any comments or general
suggestions on how this manual can be improved please contact [e-mail]

. Thank you.
