MicroFridge 48MF47D1 Specifications

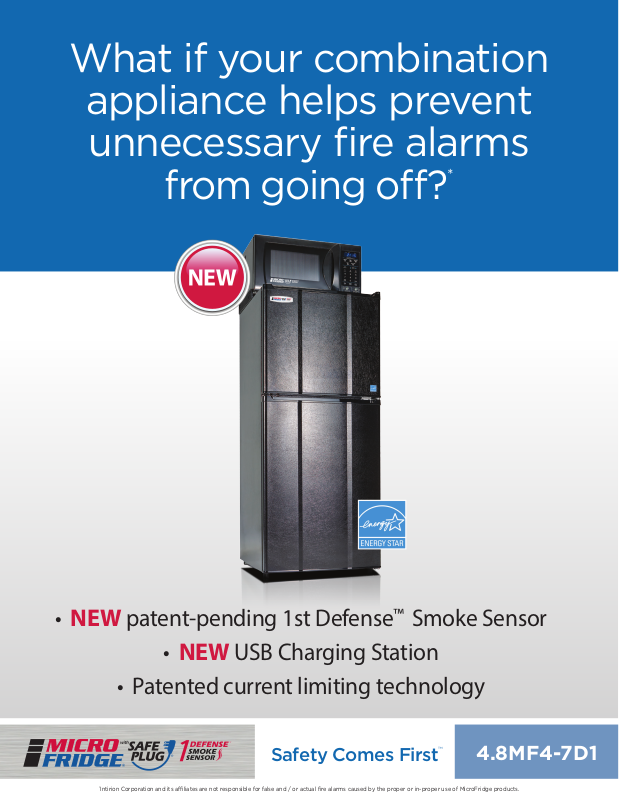

What if your combination
appliance helps prevent
unnecessary fire alarms
*
from going o?
•
NEW
patent-pending 1st Defense
•
NEW
USB Charging Station
™
Smoke Sensor
• Patented current limiting technology
TM
Safety Comes First
*
Intirion Corporation and its aliates are not responsible for false and / or actual fire alarms caused by the proper or in-proper use of MicroFridge products.
4.8MF4-7D1
4.8MF4-7D1
NEW 1st DefenseTM Smoke Sensor
The patent-pending internal smoke sensor automatically
shuts microwave operation and alerts user of smoke before
any damage is done.
Refrigerator Specications
Annual energy consumption 346 kWh based on standard DOE test.
Electrical Requirements
Power .......................................................................................... 115 V/85.5 W
Start-up amps ............................................................................................ 5.5A
Run/normal operating amps ............................................................ 0.74A
Exterior Dimensions
Height* ............................................................................... 47 ⁄” (120.6 cm)
Width .................................................................................... 18 ⁄” (47.3 cm)
Width with door open 180
Depth .................................................................................... 22 ⁄” (57.1 cm)
Depth with door open 90
Weight ............................................................................... 82.0 lbs (37.1 kg)
Shipping Weight ............................................................ 93.0 lbs (42.1 kg)
*
Height measurement is with bracket.
Interior Dimensions
Total volume ........................................................ 4.8 cu. ft. (134.50 liters)
Refrigerator Features
• 2 full and 1 half-width
wire shelves
• 3 full-width door shelves
• 2-liter bottle storage
• Transparent crisper
• Temperature control
• Transparent crisper
• Auto-defrost
• White interior
• Estar rated
Freezer Features
• Frost-free
• 1 full-width wire shelf
• 2 full-width door shelves
• Automatic defrost
• 1 ice cube tray
o
........................................... 36 ⁄” (92.0 cm)
o
................................................ 40” (101.6 cm)
Cabinet Features
• Bevel-edge, Tri-Panel door design
• Integrated door handle
• Cord management hinge clip
system
• Reversible door hinge
• Leveling legs
• 5.5 ft (1.68 meters) cord
• Available in clasic black and
classic white
NEW USB Charging Station
Next generation charging station oers two USB ports
and one traditional outlet to conveniently charge small
electric devices.
Microwave Oven Specications
Electrical Requirements
Power ............................................................................................ 120 V/60 Hz
Power output, defrost .................................................................. 280 watts
Power output, cook ..................................................................... 700 watts
Start up amps ............................................................................................ 10.9
Total amps for plugs front/rear ............................................................. 4/9
Exterior Dimensions
Height ................................................................................... 10 ⁄” (27.0 cm)
Width ..................................................................................... 18 ⁄” (46.0 cm)
Depth without handle ..................................................... 14 ⁄” (36.6 cm)
Weight ................................................................................ 26.5 Ibs (12.0 kg)
Shipping Weight ............................................................. 28.2 Ibs (12.8 kg)
Interior Dimensions
Oven capacity ........................................................... 0.7 cu. ft. (19.8 liters)
Microwave Features
• NEW internal smoke sensor
• NEW USB charging station with 4 amps max for the
2 USB ports and one charging station
• Easy-grip pull door
• Express cook settings
• Programmed cooking options
• LED display and clock
• Signal beeper with adjustable volume
• Removable 10 ⁄” (27.1 cm) glass carousel
• 5.0 ft (1.5 meters) cord
• Available in classic black and classic white
Safe Plug™ Technology
Provides protection against circuit overloads for user
safety and convenience. Blue plug on refrigerator
plugs into back of microwave for energy ecient
one-plug to the wall operation.
Combination Unit Specications
Electrical Requirements
120 Volt, 60Hz, 15 amp electrical supply
Combination Unit Dimensions
56 ⁄” (142.72 cm) H x 18 ⁄” (47.3 cm) W x 22 ⁄” (57.1 cm) D
Minimum Clearances
1” (2.54 cm) on each side, 2” (5.1 cm) in back, 1” (2.54 cm) on top
Warranty information
Strongest 7-Year Industry Warranty with on-site service
“MicroFridge” and the MicroFridge logo and “Safe Plug” and the Safe
Plug logo, “1st Defense Smoke Sensor” and 1st Defense Smoke Sensor
logo are registered trademarks of Intirion Corporation.
© Intirion Corporation 2015
Available on GSA contract: GS-21F-0091H
®
Available on AFNAF contract: F41999-95-D-6071
Specifications are subject to change. Please contact your sales
representative for further details.
Intirion Corporation, 2 Annette Road, Suite 3, Foxboro MA 02035
www.microfridge.com phone 800.637.7567 fax 800.231.2182
