Page 1

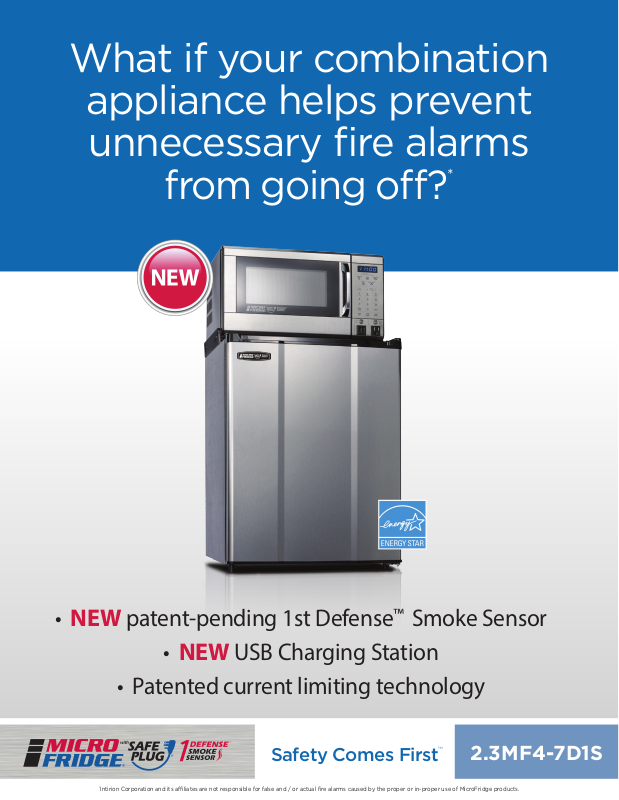

What if your combination
appliance helps prevent
unnecessary fire alarms
*
from going o?
•
NEW
patent-pending 1st Defense
•
NEW
USB Charging Station
™
Smoke Sensor
• Patented current limiting technology
TM
Safety Comes First
*
Intirion Corporation and its aliates are not responsible for false and / or actual fire alarms caused by the proper or in-proper use of MicroFridge products.
2.3MF4-7D1S
Page 2
2.3MF4-7D1S
NEW 1st DefenseTM Smoke Sensor
The patent-pending internal smoke sensor automatically
shuts microwave operation and alerts user of smoke before
any damage is done.
Refrigerator Specications
Annual energy consumption 223 kWh based on standard DOE test.
Electrical Requirements
Power ............................................................................................ 115 V/64 Hz
Start-up amps ......................................................................................... 6.25A
Run/normal operating amps ............................................................ 0.58A
Exterior Dimensions
Height* ....................................................................................... 25” (63.5 cm)
Width .................................................................................... 18 ⁄” (47.3 cm)
Width with door open 180
Depth ................................................................................... 19 ⁄” (50.3 cm)
Depth with door open 90
Weight ................................................................................... 44 lbs (20.0 kg)
Shipping Weight ................................................................ 49 lbs (22.2 kg)
*
Height measurement is without bracket.
Interior Dimensions
Total volume .......................................................... 2.28 cu. ft. (64.6 liters)
Refrigerator Features
• 2 full-width wire shelves
• 2 half-width door shelves
• 2-liter bottle storage
• CanStor®
• Temperature control
• Auto-defrost
• Black interior
• Estar rated
o
........................................... 36 ⁄” (92.7 cm)
o
...................................................... 37” (94 cm)
Cabinet Features
• Bevel-edge, Tri-Panel door design
• Integrated door handle
• Cord management hinge clip
system
• Reversible door hinge
• Leveling legs
• Flush back design
• 5.5 ft (1.69 meters) cord
• Available in classic black, classic
white and true stainless steel
NEW USB Charging Station
Next generation charging station oers two USB ports
and one traditional outlet to conveniently charge small
electric devices.
Microwave Oven Specications
Electrical Requirements
Power ............................................................................................ 120 V/60 Hz
Power output, defrost .................................................................. 280 watts
Power output, cook ..................................................................... 700 watts
Start up amps ............................................................................................ 10.9
Total amps for plugs front/rear ............................................................. 4/9
Exterior Dimensions
Height .................................................................................. 10 ⁄” (26.8 cm)
Width ......................................................................................18 ⁄” (46.0 cm)
Depth without handle ..................................................... 14 ⁄” (36.6 cm)
Weight ................................................................................ 26.5 Ibs (12.0 kg)
Shipping Weight ............................................................. 28.2 Ibs (12.8 kg)
Interior Dimensions
Oven capacity ........................................................... 0.7 cu. ft. (19.8 liters)
Microwave Features
• NEW internal smoke sensor
• NEW USB charging station with 4 amps max
for the 2 USB ports and one charging station
• Easy-grip pull door
• Express cook settings
• Programmed cooking options
• LED display and clock
• Signal beeper with adjustable volume
• Removable 10 11/16” (27.1 cm) glass carousel
• 5.0 ft (1.5 meters) cord
• Available in classic black, classic white
and true stainless steel
Safe Plug™ Technology
Provides protection against circuit overloads for user
safety and convenience. Blue plug on refrigerator
plugs into back of microwave for energy ecient
one-plug to the wall operation.
Combination Unit Specications
Electrical Requirements
120 Volt, 60Hz, 15 amp electrical supply
Combination Unit Dimensions
35 ⁄” (90.3 cm) H x 18 ⁄” (47.3 cm) W x 19 ⁄” (50.3 cm) D
Minimum Clearances
1” (2.54 cm) on each side, 2” (5.1 cm) in back, 1” (2.54 cm) on top
Warranty information
Strongest 7-Year Industry Warranty with on-site service
“MicroFridge” and the MicroFridge logo and “Safe Plug” and the Safe
Plug logo, “1st Defense Smoke Sensor” and 1st Defense Smoke Sensor
logo are registered trademarks of Intirion Corporation.
© Intirion Corporation 2015
Specifications are subject to change. Please contact your sales
®
representative for further details.
Intirion Corporation, 2 Annette Road, Suite 3, Foxboro MA 02035
www.microfridge.com phone 800.637.7567 fax 800.231.2182
