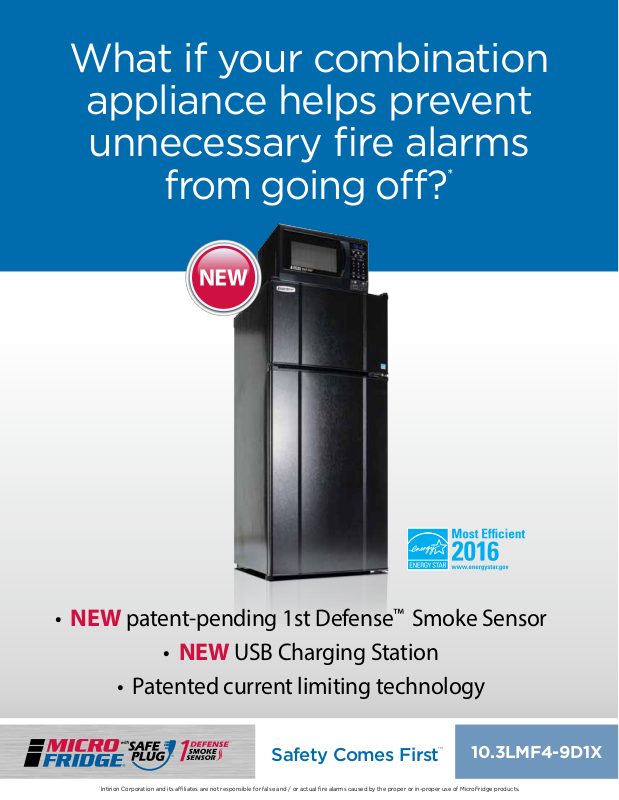

MicroFridge 103LMF49D1X Specifications
What if your combination
appliance helps prevent
unnecessary fire alarms
*
from going o?
•
NEW
patent-pending 1st Defense
•
NEW
USB Charging Station
™
Smoke Sensor
• Patented current limiting technology
TM
Safety Comes First
*
Intirion Corporation and its aliates are not responsible for false and / or actual fire alarms caused by the proper or in-proper use of MicroFridge products.
10.3LMF4-9D1X
10.3LMF4-9D1X
NEW 1st DefenseTM Smoke Sensor
The patent-pending internal smoke sensor automatically
shuts microwave operation and alerts user of smoke before
any damage is done.
Refrigerator Specications
Annual energy consumption 297 kWh based on standard DOE test.
Electrical Requirements
Power .......................................................................................... 115 V/99.5 W
Start-up amps ......................................................................................... 10.5A
Run/normal operating amps ............................................................ 0.89A
Exterior Dimensions
Height* .............................................................................. 58 ⁄” (149.1 cm)
Width .................................................................................... 23 ⁄” (60.3 cm)
Width with door open 180
Depth ................................................................................... 26 ⁄” (67.9 cm)
Depth with door open 90
Weight ............................................................................. 135.0 lbs (61.2 kg)
Shipping Weight .......................................................... 144.0 lbs (65.3 kg)
*
Height measurement is without brackets.
Interior Dimensions
Total volume ..................................................... 10.30 cu. ft. (291.5 liters)
Refrigerator volume .................................................. 7.9 cu. ft. (224 liters)
Freezer volume ............................................................. 2.4 cu. ft. (68 liters)
Refrigerator Features
• 2 full wire shelves
• 4 full-width door shelves
• 2 liter bottle storage
• Temperature control
• Clear glass crisper
• Auto-defrost
• White interior
• Estar rated
o
........................................ 46 ⁄” (117.5 cm)
o
................................................ 49” (124.5 cm)
ADA Compliant
• 100% of fresh food space is
below 54”
• At least 50% of freezer space is
below 54”
• Controls are below 48”, operational
with one hand, and do not require
tight grasping
• Frost free
NEW USB Charging Station
Next generation charging station oers two USB ports
and one traditional outlet to conveniently charge small
electric devices.
Microwave Oven Specications
Electrical Requirements
Power ............................................................................................ 120 V/60 Hz
Power output, defrost .................................................................. 280 watts
Power output, cook ..................................................................... 850 watts
Start up amps ............................................................................................ 10.9
Total amps for plugs front/rear ............................................................. 4/9
Exterior Dimensions
Height ................................................................................... 12 ⁄” (31.9 cm)
Width ..................................................................................... 18 ⁄” (46.9 cm)
Depth without handle ..................................................... 15 ⁄” (38.6 cm)
Weight ................................................................................ 34.0 Ibs (15.4 kg)
Shipping Weight ............................................................. 39.2 Ibs (17.8 kg)
Interior Dimensions
Oven capacity ........................................................... 0.9 cu. ft. (25.5 liters)
Microwave Features
• NEW internal smoke sensor
• NEW USB charging station with 4 amps max for the
2 USB ports and one charging station
• Easy-grip pull door
• Express cook settings
• Programmed cooking options
• LED display and clock
• Signal beeper with adjustable volume
• Removable 10 ⁄” (27.1 cm) glass carousel
• 5.0 ft (1.5 meters) cord
Safe Plug™ Technology
Provides protection against circuit overloads for user
safety and convenience. Blue plug on refrigerator
plugs into back of microwave for energy ecient
one-plug to the wall operation.
Combination Unit Specications
Electrical Requirements
120 Volt, 60Hz, 15 amp electrical supply
Combination Unit Dimensions
71 ⁄” (180.82 cm) H x 23 ⁄” (60.3 cm) W x 26 ⁄” (67.9 cm) D
Minimum Clearances
1” (2.54 cm) on each side, 2” (5.1 cm) in back, 1” (2.54 cm) on top
Warranty information
Strongest 7-Year Industry Warranty with on-site service
7-Year Industry Warranty may be extended for select projects.
Additional Options:
Classic Black with Right Hinge (10.3RMF4-9D1X)
Classic White with Right Hinge: (10.3RMF4-9D1WX)
Classic White with Left Hinge (10.3LMF4-9D1WX)
Freezer Features
• Frost free
• Automatic defrost
• 1 full-width wire shelf
• 2 full-width door shelves
Cabinet Features
• Bevel-edge, Tri-Panel
door design
• Door cap handle
• Cord management hinge
clip system
• Leveling legs
• 7.5 ft (2.28 meters) cord
Recognized as the Most Efficient of ENERGY STAR 2016
“MicroFridge” and the MicroFridge logo and “Safe Plug” and the Safe
Plug logo, “1st Defense Smoke Sensor” and 1st Defense Smoke Sensor
logo are registered trademarks of Intirion Corporation.
© Intirion Corporation 2015
Available on GSA contract: GS-21F-0091H
Available on AFNAF contract: F41999-95-D-6071
Specifications are subject to change. Please contact your sales
representative for further details.
Intirion Corporation, 2 Annette Road, Suite 3, Foxboro MA 02035
www.microfridge.com phone 800.637.7567 fax 800.231.2182
