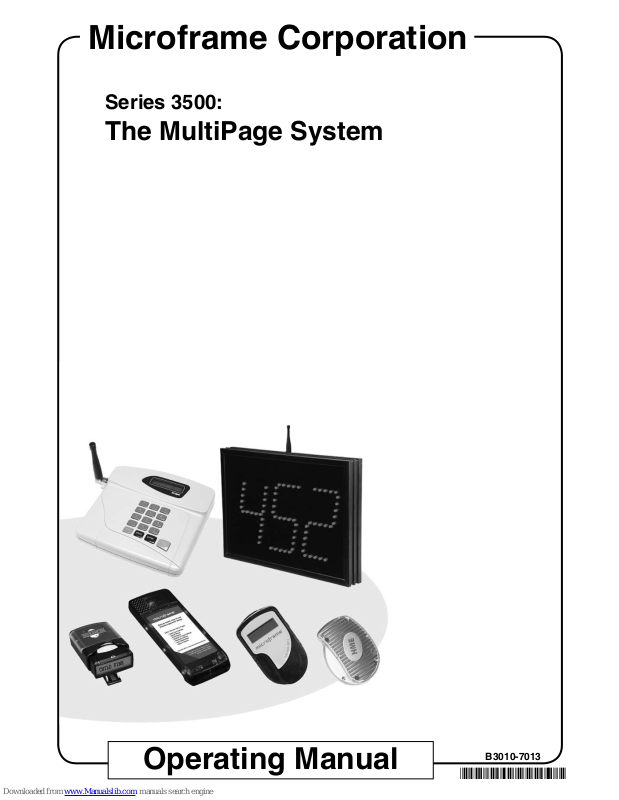

The MultiPage System
Operating Manual
B3010-7013
*B3010-7013*
SERIES 3500
INSTALLATION & SPECIFICATION GUIDE
ITEM NO: B3010-7013
REVISION DATE: 06/09
Microframe Corporation
604 S. 12th Street
Broken Arrow, OK 74012
Tel: (918) 258-4839
Toll Free: 1-800-635-3811
Website: www.microframecorp.com
E-mail: support@microframecorp.com
Limited Warranty Agreement
Your Microframe System is warranted against failure due to defects in workmanship or material for a period of one (1) year from the date of purchase. Microframe Corporation will repair or replace any defective unit. Obvi­ous abuse or mishandling of the unit is NOT covered by this warranty.
Merchandise Return
If your Unit does not work satisfactorily, please give us a call. We may be able to solve the problem by phone. If it becomes necessary to return your Unit to the factory, please observe the following:
1. Place Unit in a sturdy box with suffi cient
packing material.
2. If requested, include the power adapter.
3. Return the system insured and prepaid since we are not responsible for shipping dam­ages and losses on returned Units.
Warranty Service
For warranty service, please contact Mi­croframe at 1-800-635-3811. A tech will gladly assist you.
Assistance
For any product assistance or maintenance help, contact Microframe by either calling 1-800-635-3811 or emailing us at: support@ microframecorp.com.
Warranty Exclusion
Do not install substitute parts or perform any modifi cation to the product without fi rst contacting Microframe.
Warning
All power adapters, line cords, and electrical equipment should be kept out of the reach of children and away from water.
Life Support Policy
Microframe's products are not authorized for use as components in life support devices or systems without the express written ap­proval of the president of Microframe Corpo­ration. As used herein:
1. Life support d e vices or systems are defi ned as systems which support or sustain life, and whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a signifi cant injury to the user or anyone depending on the system.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
Disclaimer
We are constantly striving to improve our products. Due to this, specifi cations are subject to change without notice.
Nomenclature
In this manual, use this nomenclature to distinguish between buttons, functions, mes­sages, and things:
"SEND" = is a button that is pressed
"ENTER" = is a button that is pressed
"CANCEL" = is a button that is pressed
send = a verb used in text
enter = a verb used in text
"ON" = turn something "ON" or
"OFF" = turn something "OFF"
Pager(s) = noun or object
Display(s) = noun or object
Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 1-800-635-3811
TABLE OF CONTENTS
1 MULTIPAGE SYSTEM OVERVIEW . .. . ..... . .. . ..... . .. . ..... . .. . 6
1.1 MultiPage Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Wireless UHF Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Paging Vibrating Pagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MULTIPAGE SPECIFICATIONS . . .... . .. . ..... . ..... . ..... . ..... . ..... . 7
2 MULTIPAGE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Confi guration ...................................................................9
2.4 Hymn board setup ..........................................................10
UHF DISPLAY SPECIFICATIONS .. ......... ......... ......... ....... 11
3 WIRELESS UHF DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Confi guration ..................................................................12
POCKET PAGER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 POCKET PAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
NEXUS PAGER SPECIFICATIONS . .. . . ..... . . ..... . . ..... . . ..... . . . 16
6 NEXUS PAGER .. .. .. ........... .. ........... .. .. ........... .. ......... .. .. .. 17
SLIMLINE PAGER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7 SLIMLINE PAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AFFINITY PAGER SPECIFICATIONS .. ......... ....... .. ....... ... 20
8 AFFINITY PAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Microframe Corporation
1 MULTIPAGE SYSTEM OVERVIEW
With the MultiPage Transmitter, you can
send numbers to UHF Displays and page Vibrating Pagers. A MultiPage system is de­fi n ed as one MultiPage Transmitter and any combination of these receiver types.
1.1 MULTIPAGE TRANSMITTER

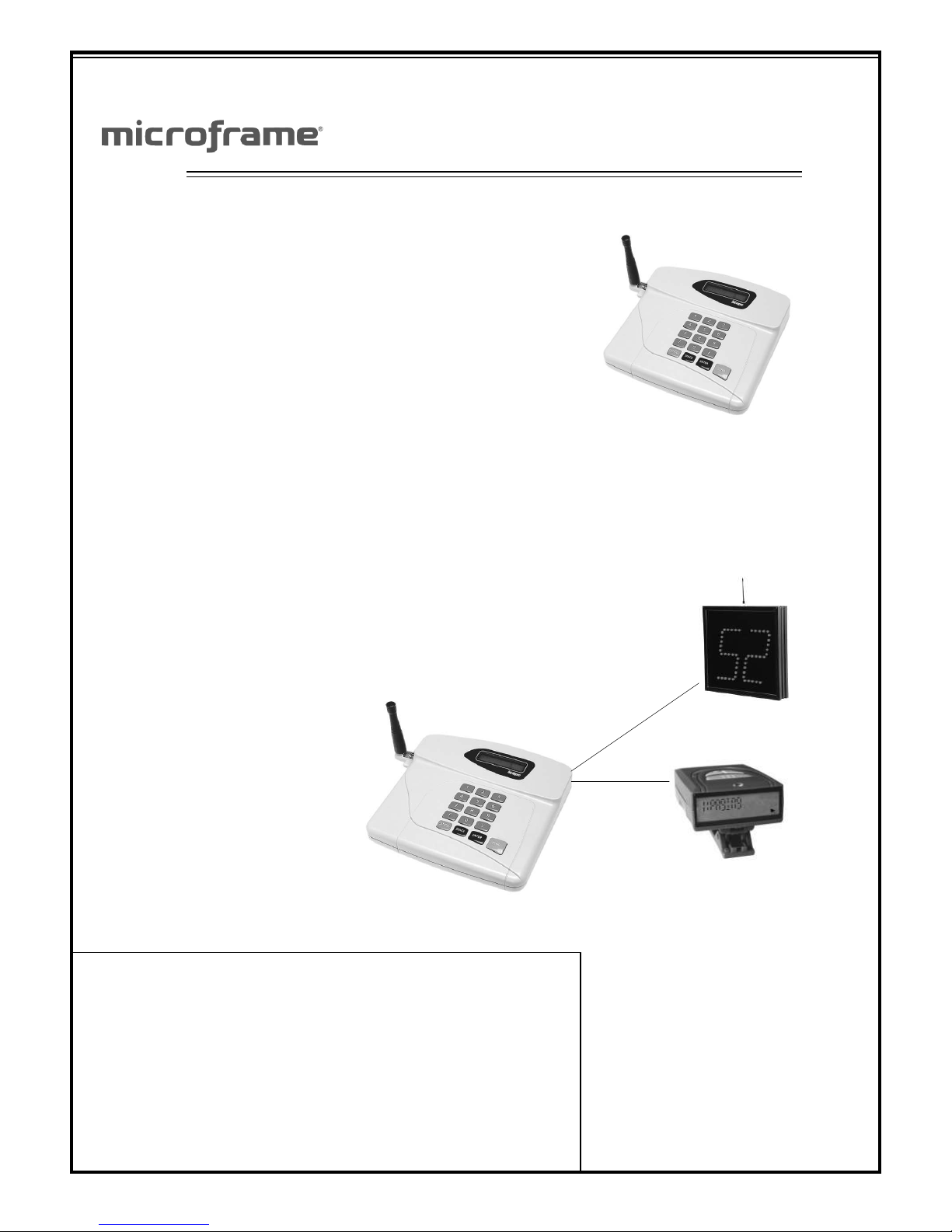

The MultiPage Transmitter is a unique
Tra nsmitter that facilitates the use of UHF Displays and Pagers. Based on the superb hardware platform of the Scope DataPage Lite, the MultiPage is a Microframe software upgrade designed as the ultimate paging solution.
1.2 WIRELESS UHF DISPLAYS
The new 3500 Series Wireless UHF Displays have been specifi cally designed to receive sig­nals from the MultiPage Transmitter. These Displays come in 2-, 3-, 4- and 6-digit models with 5.5-inch numbers. They contain the same high quality construction and components expected from Microframe's products and Displays.
Numbers sent to the UHF Display will be saved and displayed on both the MultiPage and the UHF Display until deleted. These numbers can be deleted manually or programmed by the user to automatically delete, depending on the user's preference.
Series 3500 - MultiPage System
1.3 PAGING VIBRATING PAGERS
The MultiPage can be used to send mes­sages to Pagers or to trigger the internal “beep type”messages of Pocket Pagers. In addition, the MultiPage Transmitter can re-page Pagers at user-defi ned intervals. The list of Pagers to be re-paged is displayed on the MultiPage Tra nsmitter screen.
6
Microframe Corporation
Features
The MultiPage Transmitter can be used to transmit to the following receivers: The Wireless UHF Display a n d Vibrating Pagers. The MultiPage LCD screen displays two lists: The fi rst list consists of the numbers being shown on the UHF Wireless Display. The second list shows the Pagers waiting to be re-paged.
Operation
Simply plug the power adapter into the back of the MultiPage and it is ready to use.To enter a number on the Wireless UHF Display, type the number and press "ENTER." To send a page to a Vibrating Pager, type the number of the Pager you wish to page and press "SEND," then follow the on-screen prompts. To remove numbers from the Wireless UHF Display, press "CANCEL," then type the number you want to remove and then press "ENTER." To remove numbers from the vibrating re-paging queue, press "CANCEL," then type the Pager number followed by "SEND."
Series 3500 - MultiPage System
MULTIPAGE SPECIFICATIONS
On-Premise Paging
MultiPage Transmitter
MultiPage Specifi cations
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frequency..................................................
TX Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC Approval No.......................................
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Numbers shown on Display . .. . ..
Maximum Pagers in Re-Page Queue . . . . . . . .
Auto Delete Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roll Over Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9" x 7.25" x 1.75"
457.575 MHz 512 or 1200 1/4 to 1/2 Mile Indoors JRNUSASERILINK Flat surface 20 30 0-25 minutes(user-selectable) 0-9 seconds (user-selectable)
Support and Sales
800-635-3811
Microframe® Corporation
www.microframecorp.com
PO Box 1700
Broken Arrow, OK 74013
7
Microframe Corporation
Series 3500 - MultiPage System
8
Microframe Corporation
2 MULTIPAGE OPERATION
Series 3500 - MultiPage System
2.1 INSTALLATION
The MultiPage Transmitter is designed to set on a fl at su rface or table top or installed on a mounting wedge for an angle or wall mount. To use the Trans­mitter, simply plug the 12-volt DC power adapter into the back of the MultiPage and then plug the adapter into the wall. The MultiPage Transmitter is now ready for use.
2.2 OPERATION
The MultiPage has two primary operations: One is to send numbers t o W i reless UHF Displays, to page Vibrating Pagers. The "ENTER" key is associated with Wireless UHF Display functions. The "SEND" key is associated with Vibrating Pagers. The follow­ing examples explain each of these functions.
2.2.1 Transmitting to UHF Wireless Dis­plays

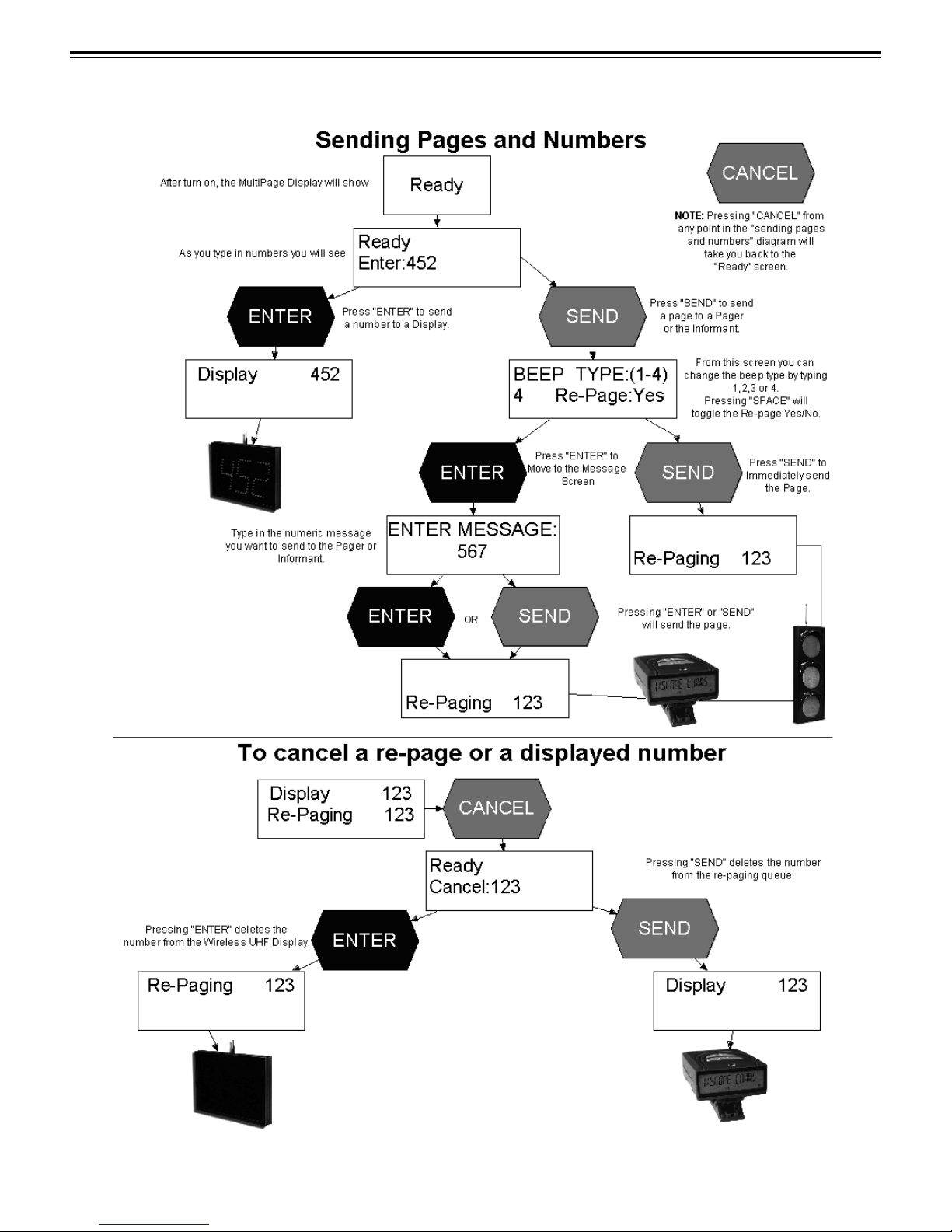

To send a number to a Display, simply type the number that you want to display, i.e. “1234” and then press “ENTER.” To delete a number from the Display, press “CANCEL,” then type the number, i.e. “1234” then press “ENTER.
2.2.2 Transmitting to Vibrating Pagers
To send a page to a Vibrating Pager (i.e. pager #4), type the pager number “4” then press “SEND." You will then be prompted for the beep type. Dif­ferent beep types can display up to three different factory programmed text messages on the Vibrating Pager such as:
"COME NOW"
"NEED HELP"
"CHILD FINE"
Ty pe in the desired beep type, or press "ENTER" to accept the default. Pressing "SEND" f r om the beep type screen will page the Pager with a blank mes­sage. From the message screen you can type in the numeric message, i.e. “911” and then press “ENTER” or “SEND” to send the page to the Vibrating Pager. If re-page is "ON," you will see the message re-pag­ing on the bottom line of the Transmitters display, followed by the number of the Vibrating Pager that you just paged. To stop the re-page of a Vibrating Pager, press “CANCEL” then type the number of the Vib rating Pager, i.e. “4” and then press “SEND.
2.3 CONFIGURATION
The MultiPage Transmitter has several pro-
grammable options. To access these options, simply press the “(“ from the main screen. Then press the “(“ or “)” brackets to move up or down the list of op­tions. When you come to an option you would like to change, press “ENTER.” Depending on the option, you can either press the “(“ and “)” keys to change the value of the option, or you can use the numbers to type in the desired value. To return to the main options menu press “ENTER.” When fi nished mak­ing changes, simply press the "SEND" key to save the changes or the "CANCEL" key to discard your changes. Each of the nine option areas are described in detail below.
Option 1 Transmitter Roll-Over Time
The “Roll-Over” time is the time that each number in the Transmitter memory shows on the LCD screen before rotating to the next number. For example, with the Transmitter Roll-Over Time set to three seconds, and the Transmitter with “123” and “456” in its memory, the Transmitter will show “123” for three seconds and then show “456” for three seconds and then back to “123.” To change the Transmitter Roll-Over Time, simply use the “(“ and “)” keys to select a time from 1 to 16 seconds. When the desired time is reached press “ENTER.” To place into Hymn Mode, set the roll-over time to zero (0). See Section
2.4 Hymn Board Setup.
NOTE: The Transmitter Roll-Over Time is com­pletely independent of the UHF Display Roll-Over Time.
Option 2 Auto Delete Time
The Auto Delete Time is the time that a number remains on the Display before it is automatically deleted.This time can be set using the “(“ and “)” keys to select the desired value from 1 to 25 minutes. Once the desired value is reached, press “ENTER” t o return to the main systems options menu.
NOTE: The Wireless UHF Display has an inde­pendent Auto Delete Time which is set following the instructions in the UHF Display Section.
The factory default for the UHF Display delete time is 45 minutes. The reason for having an auto delete time in the Display, as well as the MultiPage Tra nsmitter, is best understood by the following example: At the end of the day, a user may unplug the Transmitter to turn it off. If there were numbers being shown on the Display before the power was unplugged from the Transmitter, the numbers would remain on the UHF Display until the Display's auto delete removed them.
9
Microframe Corporation
Series 3500 - MultiPage System
Option 3 Re-Page Time for Vibrating Pagers
This is the time between re-pages for Vibrating Pagers. For example, if the re-page time is set to one minute, then the Vibrating Pagers will be re­paged every minute. Using the “(“ and “)” keys you can choose between 0 and 25 minutes for the re­page time. A re-page time of 0 disables re-paging. When the desired value is selected, press “ENTER” to return to the main options menu.
Option 4 Set Display ID Address
The options area is used to tell the MultiPage Tra nsmitter the address of the UHF Display. The factory default is 1500. If you change this address, you will also have to set up the UHF Display to respond to your new address. (See Display Options.)
Option 5 Base ID
The Base ID is the digital identifi cation in which all components of a system run. The factory default for this number is 0500000. This number may be changed to avoid “cross talk” with other nearby systems. If you change this ID number, then the UHF Display a n d Vibrating Pager s e ttings will have to be changed accordingly. It is recommended that users do not change this setting.
NOTE: Pager Base ID can only be changed at the factory.
to the DataPage Lite operation.
2.4 HYMN BOARD SETUP
To place the MultiPage transmitter into Hymn
Mode, set the roll-over time to zero (0). Note: this will disable the auto delete and repage functions. This mode also changes the behavior of the "ENTER" and "SPACE" buttons when on the main screen. It is recommended that the roll-over time on the UHF display also be set to zero (0).
Hymn Mode displays a list of numbers in the order they are entered. Enter in a list of numbers to be stored by typing the number and pressing "ENTER". The fi rst number in the list will show on the MultiPage screen; the UHF Display will be unaffected. When ready to show the fi rst number on the UHF display, press the "ENTER" key. The MultiPage will send the current number. To delete the current number and s h ow the next number listed, simply press the space key. Repeat until all listed numbers have been displayed.
Option 6 Baud Rate
This is the rate at which the digital communica-
tions takes place in your system. It is recommended that users do not change this setting. If you change this number, the Display and Vibrating Pager set­tings will have to be changed accordingly.
NOTE: Pager Baud Rate can only be changed
at the factory.
Option 7 Out-of-Range
This feature is available only with coaster sys­tems. When the out-of-range option is activated, the transmitter will periodically send a page telling everyone that they still are in range. If a coaster also has its out-of-range feature activated, it will sound an alert within 1 minute of leaving the transmitter’s coverage area.
Option 8 Behavior
The behavior option exists to accommodate those users who are more familiar with the DataPage Lite standard interface and do not need the display or re-paging capabilities of the MultiPage. The be­havior setting can be toggled between “MultiPage” and “DataPage Lite." In DataPage Lite mode, the re-page feature is disabled and the Transmitter will simply wait for a Pager number and then page a Pager. The screen and button behavior will revert

10
Microframe Corporation
1.5" (3.8 cm)
9.1"
(23.1 cm)
9.8" 2-DIGIT
(24.9 cm)
13.2" 3-DIGIT (33.5 cm)
16.8" 4-DIGIT (42.7 cm)
P.O. Box 1700, Broken Arrow, OK 74013
Model 3500
Wireless
Remote Display
24Volt AC
115 TO 24 VAC WALL MOUNTED (WIRE-IN) TRANSFORMER
115 VAC
3010\ax\9700.ai
DATA RECEIVE LED
PROGRAM
Features
The UHF Displays are designed to work best with the Microframe MultiPage System. The Displays have two modes:
1) As a "Visual-Pager," the Display will store and rotate up to 20 numbers at a time. Numbers can be entered and deleted from the Display using the MultiPage Transmitter.
2) The Display can also be used as a "Pager Con­fi r mation System." In this mode, the Display shows the number of every Vibrating Pager that has been paged.
Series 3500 - MultiPage System
UHF DISPLAY SPECIFICATIONS
On-Premise Paging
Operation
Mode 1) Using the MultiPage Transmitter, simply type in a number and press "ENTER" to send that number to the Display. To delete a number from the Display, simply press "CANCEL" then type the number fol­lowed by "ENTER." Mode 2) The number of any Pager that is paged shows on the Display. No operator intervention is required.
UHF Display
UHF Display Specifi cations
Frequency .................................................
TX Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Character Height .......................................
Viewing Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply ............................................
Weight ......................................................
457.575 MHz 512 or 1200 auto learning 1/4 to 1/2 Miles Wall Mount or Ceiling Mount
5.5" 125 feet indoors 16 to 24 VAC 2-Digit, 2.5 Lbs (1.1 kg) 3-Digit, 3 Lbs (1.4 kg) 4-Digit, 3.5 Lbs (1.6 kg) 6-Digit, 5.25 Lbs (2.4 kg)
Support and Sales
800-635-3811
Microframe® Corporation
www.microframecorp.com
PO Box 1700
Broken Arrow, OK 74013
11
Microframe Corporation
3 WIRELESS UHF DISPLAY
Series 3500 - MultiPage System
3.1 INSTALLATION
Step 1:
Wire in the power adapter. To do this, simply place one wire from the adapter under one of the screwdown terminals and the other wire under the other screwdown terminal as shown on page 11. At this point, plug in the power adapter and check the Display f o r proper operation.
Step 2:
Hang the Display. The Display is hung on the wall like a picture frame on a nail or screw. Simply secure a nail or screw into the wall and line up the “key hole” in the back of the Display to hang the Display.
Optional Installation
For aesthetic reasons, you may wish to run the wire from the power adapter to the Display concealed in the wall. A person skilled in wiring should complete this task. The Display uses low voltage (24-volt) wiring and generally does not require conduit.
3.2 OPERATION
If you purchased this Display for use with a MultiPage Transmitter, you should be able to simply plug in the Display and then enter and delete numbers as specifi ed in the “Mul­tiPage Operation” section. If you are using this Display with another transmitter, please read "Using the Display with the DataPage Lite or the DataPage II” that's located on the following page.
Press the button on the back of the UHF Display one time. The Display will show vertical bars. Next, page Pager number 1 with a beep type of 2 and message 00. The Display should change to horizontal bars to signify that it has learned the Transmitter identity (Base ID and Baud Rate). If the Display does not receive a valid transmission within 90 seconds, it will show an EE.
3.32 Display Behavior Settings
The UHF Display's b e havior can be changed by sending special codes to Pager 9999. All codes are indicated by the form XX_XX or XX_XXXX where "_" is a space. There are basically fi ve settings that can be changed using the 9999 command as seen below.
3.33 Mode Settings
The UHF Display has two possible Modes: Mode 1 displays the messages sent to a specifi c Vibrating Pager, and Mode 2 displays all Pager numbers paged by the Transmitter.
Mode 1) To program the UHF Display to show all messages sent to Pager 300. Send a page to Pager 9999 with the message “00_0300.”
NOTE: You must use the “SPACE” key to insert the space in the message between 00 and the Pager number. The Display will now show all messages sent to Pager 300.
Mode 2) To program the Display to show all
pages sent by the Transmitter, send a page to Pager 9999 with the message “00_0000.”
3.3 CONFIGURATION
Under normal circumstances, you will not need to change the Display confi guration. The Display confi gurations fall into two basic cat­egories. The fi rst is "Display Communication Settings," and the second is "Display Behavior Settings."
3.31 Display Communications Set­tings
The Display comes from the factory ready to communicate with a MultiPage Transmit­ter (Base ID 0500000, Baud Rate 512). The Display will intelligently communicate with other settings by doing the following:
12
3.331 Roll-Over Time Setting
The Roll-Over Time is the time each number in the Display memory is shown before changing to the next number. This time can be set from 1 to 9 seconds. To set this time, send a page to Pager 9999 with the message “01_0X” where X is a number 1-9 representing the number of seconds.
Microframe Corporation
3 WIRELESS UHF DISPLAY
3.332 Auto Delete Setting
The Display can be set to automatically
delete a number from its memory after a preset time. NOTE: If you have a MultiPage
Transmitter, use the Transmitter's auto delete rather than the Display's auto delete time. To
set the auto delete time send a page to Pager 9999 with the message “02_XX” where XX is a number from 1 to 42 representing the number of minutes to wait before auto deleting.
3.333 Chime Setting
If you have purchased an optional triac circuit, it can be activated every time a new number is sent to the Display. The duration of the triac output can be controlled by changing this option. To change this option, send a page to 9999 with the message “03_XX” where XX is a number from 00 to 99 representing the number of 0.1 second intervals that you want the output to be on (i.e. 99=9.9 seconds). Sending a 00 will cause the triac circuit to be disabled.
Series 3500 - MultiPage System
3.334 Clear All Numbers Command
There are occasions where you may want to clear all numbers from all Displays. To clear all numbers, send a page to Pager 9999 with the message “99_98.”
3.335 Reset Factory Defaults
To change the Display settings back to fac­tory defaults send a page to Pager 9999 with the message “99_99.”
3.336 Using the UHF Display With A DataPage Lite or DataPage II
The Wireless UHF Display has been de­signed to work optimally with the MultiPage software developed by Microframe Corporation. However, in rare cases you may want to use the Display with a Transmitter other than the MultiPage. If so, you can control the Display's basic functions by sending pages to the Display’s address with beep types and messages to control the function. Beep type “4” enters the number contained in the message into the Display. B e ep Type “3” removes the number contained in the message from the Display.
13
Microframe Corporation
POCKET PAGER SPECIFICATIONS
Features
The Scope Pocket Pager is designed to work with the MultiPage or DataPage family of on-premise transmitters.
The pager can show unlimited numeric messages sent by the transmitter. Optionally, the pager can show up to three factory pre-programmed text mes­sages corresponding to the beep type specifi ed.
Series 3500 - MultiPage System
On-Premise Paging
Pocket Pager
Pocket Pager Specifi cations
Distance Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power ........................................................
Size............................................................
14
1/4 to 1/2 mile Requires one AAA battery (included)
2.5 x 1.5 (1.75 with holster)
Support and Sales
800-635-3811
Microframe® Corporation www.microframecorp.com
PO Box 1700
Broken Arrow, OK 74013
Microframe Corporation
5 POCKET PAGER
Series 3500 - MultiPage System
5.1 TURNING ON THE PAGER
Hold down the LARGE GRAY BUTTON until the Pager comes on.
5.2 SENDING A PAGE
Please see the diagram in the MultiPage section of this manual for detailed instructions on sending pages.
5.3 ACTIVATING AN ALPHA MES­SAGE
To activate a pre-defi ned message to a Vibrat­ing Pager, type in the Pager number followed by the "SEND" key. You will be prompted for a “BEEP TYPE (1-4).” Select 1-3 here and press the “SEND” key. This will display on the Pager one of the three pre-programmed text messages stored in the Pager. If no number is chosen, the Pager will default to Beep Type 4 (“PAGING”).
5.4 SENDING A NUMERIC MESSAGE
To send a numeric message to a Pager, simply type in the Pager number followed by the “SEND” key. The Transmitter screen will display “BEEP T YPE.” Simply press “ENTER” to bypass this. The Transmitter screen will then display “ENTER MESSAGE.” Using the number keys, type in a numeric message up to 16 digits followed by the “SEND” key. Note: If the message portion of a page is not blank the “BEEP TY PE” alpha message selected will be ignored.
5.5 RECEIVING A PAGE
The Pocket Pager will start to vibrate when it is paged. No action is necessary on the receiving end. The Pager will stop vibrat­ing after approximately eight seconds. If the user would like to stop the vibration before the eight seconds, simply press the LARGE GRAY BUTTON. If a numeric message is sent to the Pager, the message will be visible on the Pager's LCD screen until the Pager stops vibrating. To view the message after the Pager has stopped vibrating, press the LARGE GRAY BUTTON once.
5.6 SENDING A GROUP CALL PAGE
All Pagers respond to call number “900” (unless another group call number has been
chosen by the customer and programmed at the factory). To page all Pagers at once, simply enter “900” and "SEND." Then press "SEND" again at the beep type prompt.
5.7 MANUAL PAGER TURN-OFF
Press the DOWN ARROW BUTTON four times. The words “PGR OFF” will appear on the LCD screen. Press the LARGE GRAY BUTTON once to confi rm. NOTE: If you have chosen to order the Pagers with the on/off but­ton disabled, then Pagers can only be turned off from the Transmitter.
5.8 PAGER TURN-OFF FROM BASE
Enter the pager number followed by the “SEND” key.
Press “ENTER” to bypass “BEEP TYPE” screen. When screen reads “ENTER MES­SAGE,” enter the message code (0091)(0) fol­lowed by “SEND.” NOTE: In order for the code to work, the parentheses must be entered.
Since all Pagers respond to call number “900,” paging “900” with the message code “(0091)(0)” will turn all Pagers off.
5.9 POWER CHECKING
When the battery level is low, a low-battery symbol will appear at the bottom of the Pager screen.
5.10 LIGHTING FUNCTION
Pressing the UP ARROW BUTTON for two seconds will turn on the backlight on the LCD screen. The light will shut off automatically after approximately 10 seconds, or the user may turn the light off manually by pressing the UP ARROW BUTTON once.
5.11 CAUTION
a) The Pager is made up of LCD and
precision elements. Avoid water and
high temperature.
b) Remove the battery if the Pager will not
be in use for a long period of time.
c) If the Pager is not working properly, do not dismantle or repair it yourself. Call Microframe for technical service.
15
Microframe Corporation
NEXUS PAGER SPECIFICATIONS
Features
The Nexus Pager is designed to work with the MultiPage or DataPage family of on-premise trans­mitters.
The rechargeable pager can show unlimited numer­ic messages sent by the transmitter. Optionally, the pager can show up to three factory pre-programmed text messages corresponding to the beep type specifi ed.
Series 3500 - MultiPage System
On-Premise Paging
Nexus Pager
Nexus Pager Specifi cations
Distance Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power ........................................................
Size............................................................
16
1/4 to 1/2 mile Rechargeable
3.5" x 2.25" x .6875"
Support and Sales
800-635-3811
Microframe® Corporation www.microframecorp.com
PO Box 1700
Broken Arrow, OK 74013
Microframe Corporation
6 NEXUS PAGER
Series 3500 - MultiPage System
6.1 TURNING ON THE PAGER
Hold down the RED BUTTON on the side
until the pager comes on.
6.2 SENDING A PAGE
Please see the diagram in the MultiPage section of this manual for detailed instructions on sending pages.
6.3 ACTIVATING AN ALPHA MES­SAGE
To activate a pre-defi ned message to a Vibrat­ing Pager, type in the Pager number followed by the "SEND" key. You will be prompted for a “BEEP TYPE (1-4).” Select 1-3 here and press the “SEND” key. This will display on the Pager one of the three pre-programmed text messages stored in the Pager. If no number is chosen, the Pager will default to Beep Type 4 (“PAGING”).
6.4 SENDING A NUMERIC MESSAGE
To send a numeric message to a Pager, simply type in the Pager number followed by the “SEND” key. The Transmitter screen will display “BEEP T YPE.” Simply press “ENTER” to bypass this. The Transmitter screen will then display “ENTER MESSAGE.” Using the number keys, type in a numeric message up to 16 digits followed by the “SEND” key. Note: If the message portion of a page is not blank the “BEEP TY PE” alpha message selected will be ignored.
6.5 RECEIVING A PAGE
The Pager will start to vibrate when it is paged. No action is necessary on the receiving end. The Pager will stop vibrating after approxi­mately eight seconds. If the user would like to stop the vibration before the eight seconds, simply press the RED BUTTON on the side of the pager. If a numeric message is sent to the Pager, the message will be visible on the Pager's LCD screen until the pager stops vibrating. To view the message and turn off fl ashing lights, press the RED BUTTON three times.
6.6 SENDING A GROUP CALL PAGE
All pagers respond to call number “900” (unless another group call number has been chosen by the customer and programmed at
the factory). To page all pagers at once, simply enter “900” and "SEND." Then press "SEND" again at the beep type prompt.
6.7 MANUAL PAGER TURN-OFF
Press the RED BUTTON on the side of the pager for 5 seconds or place pager on the charging base.
6.8 LIGHTING FUNCTION
Press the RED BUTTON on the side of pager.
6.9 CHANGING THE ALERT MODE
Pagers may be programmed to respond to a page by fl ashing lights, fl ashing and beeping, fl a shing and vibrating, or fl ashing, vibrating and beeping. By default, the pagers are pro­grammed to fl ash and vibrate for 8 seconds.
To change the alert mode, follow these instructions: Remove all the pagers from the charging unit or unplug the power supply that is connected to the charging base. Wait for the demo page to stop (about 7 seconds). Press "1248" followed by "SEND" and "ENTER." For the message, enter the code that corresponds to the alert that you want. (See below.) For example, if you want the pagers to Flash only, press "1248-SEND-ENTER-9797-SEND." After sending the code, the lights on all the pagers will fl ash to indicate the programming was received. Return all the pagers to the charg­ing base or plug the power supply back in. The pagers are ready to receive the page with the new alert.
Flash & Beep "9595"
Flash & Vibrate "9696"
Flash Only "9797"
Flash, Vibrate & Beep "9898"
6.10 CAUTION
a) The pager is made up of LCD and
precision elements. Avoid water and
high temperature.
b) If the pager is not working properly, do not dismantle or repair it yourself. Call Microframe for technical service.
17
Microframe Corporation
SLIMLINE PAGER SPECIFICATIONS
Features
The SlimLine Pager is designed to work with the MultiPage or DataPage family of on-premise trans­mitters.
The rechargeable pager has vibrate only and LED alert capability.
Series 3500 - MultiPage System
On-Premise Paging
SlimLine Pager
Support and Sales
SlimLine Pager Specifi cations
Distance Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power ........................................................
Size............................................................
18
1/4 to 1/2 mile Rechargeable 5" x 2.125" x .625"
800-635-3811
Microframe® Corporation www.microframecorp.com
PO Box 1700
Broken Arrow, OK 74013
Microframe Corporation
7 SLIMLINE PAGER
7.1 SENDING A PAGE
Please see the diagram in the MultiPage section of this manual for detailed instructions on sending pages.
7.2 SENDING A GROUP CALL PAGE
All pagers respond to call number “900” (unless another group call number has been chosen by the customer and programmed at the factory). To page all pagers at once, simply enter “900” and "SEND." Then press "SEND" again at the beep type prompt.
7.3 CHANGING THE ALERT MODE
Pagers may be programmed to respond to a page by vibrating, fl ashing lights, fl ashing and vibrating. By default, the pagers are pro­grammed to fl ash and vibrate for 3 minutes.
To change the alert mode, follow these instructions: Remove all the pagers from the charging unit or unplug the power supply that is connected to the charging base. Wait for the demo page to stop (about 7 seconds). Press "1248" followed by "SEND" and "ENTER." For the message, enter the code that corresponds to the alert that you want. (See below.) For example, if you want the pagers to Flash only, press "1248-SEND-ENTER-9797-SEND." After sending the code, the lights on all the pagers will fl ash to indicate the programming was received. Return all the pagers to the charg­ing base or plug the power supply back in. The pagers are ready to receive the page with the new alert.
Series 3500 - MultiPage System
Vibrate Only "9292"
Flash & Vibrate "9696"
Flash Only "9797"
19
Microframe Corporation
AFFINITY PAGER SPECIFICATIONS
Features
The Affi nity Pager is designed to work with the Mul­tiPage or DataPage family of on-premise transmit­ters.
The rechargeable vibrating pager has illuminating lights, vibrate and tone alert options for personaliza­tion.
Series 3500 - MultiPage System
On-Premise Paging
Affi nity Pager
Affi nity Pager Specifi cations
Distance Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power ........................................................
Size............................................................
20
1/4 to 1/2 mile Rechargeable 3" x 2.25" x .6875"
Support and Sales
800-635-3811
Microframe® Corporation www.microframecorp.com
PO Box 1700
Broken Arrow, OK 74013
Microframe Corporation
8 AFFINITY PAGER
8.1 SENDING A PAGE
Please see the diagram in the MultiPage section of this manual for detailed instructions on sending pages.
8.2 SENDING A GROUP CALL PAGE
All pagers respond to call number “900” (unless another group call number has been chosen by the customer and programmed at the factory). To page all pagers at once, simply enter “900” and "SEND." Then press "SEND" again at the beep type prompt.
8.4 CHANGING THE ALERT MODE
Pagers may be programmed to respond to a page by vibrating, fl ashing lights, fl ashing and beeping, fl ashing and vibrating, or fl ash­ing, vibrating and beeping. By default, the pagers are programmed to fl ash and vibrate for 8 seconds.
To change the alert mode, follow these instructions: Remove all the pagers from the charging unit or unplug the power supply that is connected to the charging base. Wait for the demo page to stop (about 7 seconds). Press "1248" followed by "SEND" and "ENTER." For the message, enter the code that corresponds to the alert that you want. (See below.) For example, if you want the pagers to Flash only, press "1248-SEND-ENTER-9797-SEND." After sending the code, the lights on all the pagers will fl ash to indicate the programming was received. Return all the pagers to the charg­ing base or plug the power supply back in. The pagers are ready to receive the page with the new alert.
Series 3500 - MultiPage System
Vibrate Only "9292"
Flash & Beep "9595"
Flash & Vibrate "9696"
Flash Only "9797"
Flash, Vibrate & Beep "9898"
