Electrical Measurement Supervisor
FDE 13JMC3520859 rev A2
EMS-96
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
MANAGEMENT OF MODIFICATIONS
FDE N°
13JMC3520859
Rév. A2
Page 2 / 51
Rev. Description Date
Z First issue 2013/18/12 JMC DB LA
A Diffusion 2013/18/12 JMC DB LA
A2 Add picture in p6 2016/19/01 LA
Created
by
Checked
by
Approved
by
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
FDE N°
13JMC3520859
Rév. A2
Page 3 / 51
SOMMAIRE
GENERALITY .................................................................................................................................... 4
Terms of warranty ............................................................................................................................ 4
Description ....................................................................................................................................... 5
Configuration Models......................................................................................................................... 5
Software Options .............................................................................................................................. 5
Measures Table ................................................................................................................................ 6
Installation....................................................................................................................................... 7
Warning for the user ......................................................................................................................... 7
Safety ............................................................................................................................................. 7
Connections ..................................................................................................................................... 8
Auxiliary power supply....................................................................................................................... 8
Voltage Inputs .................................................................................................................................. 9
Current Inputs ................................................................................................................................ 10
Serial ports (option) ........................................................................................................................ 11
Digital Outputs ............................................................................................................................... 12
Digital Inputs (option) ..................................................................................................................... 13
Digital I/O options .......................................................................................................................... 13
4 digital inputs and 2 digital outputs (option) ..................................................................................... 13
6 digital outputs (option) ................................................................................................................. 14
2 digital inputs, 4 digital outputs (option) .......................................................................................... 15
Wiring diagrams ............................................................................................................................. 16
Function keys ................................................................................................................................. 21
Frontal led ...................................................................................................................................... 21

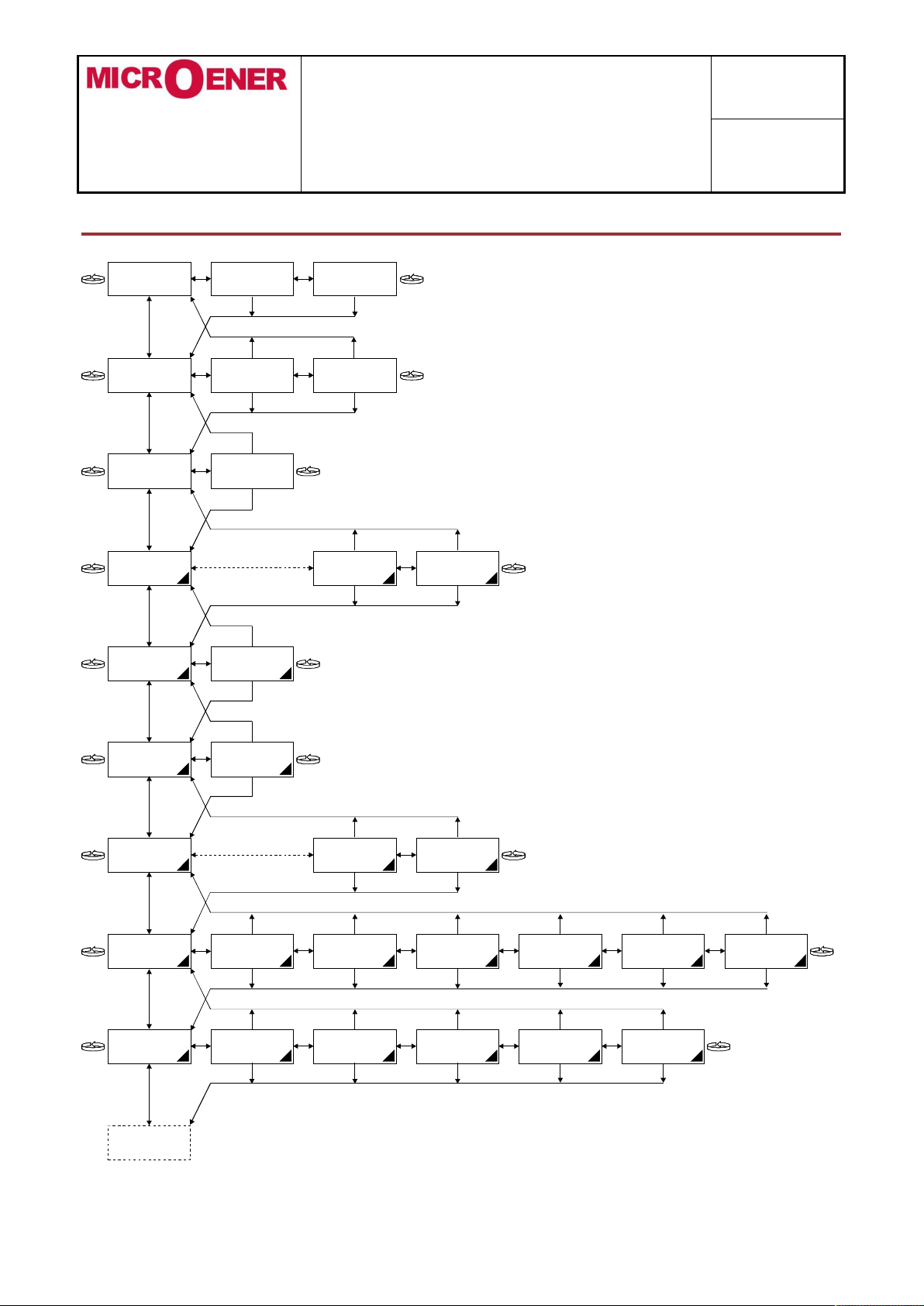

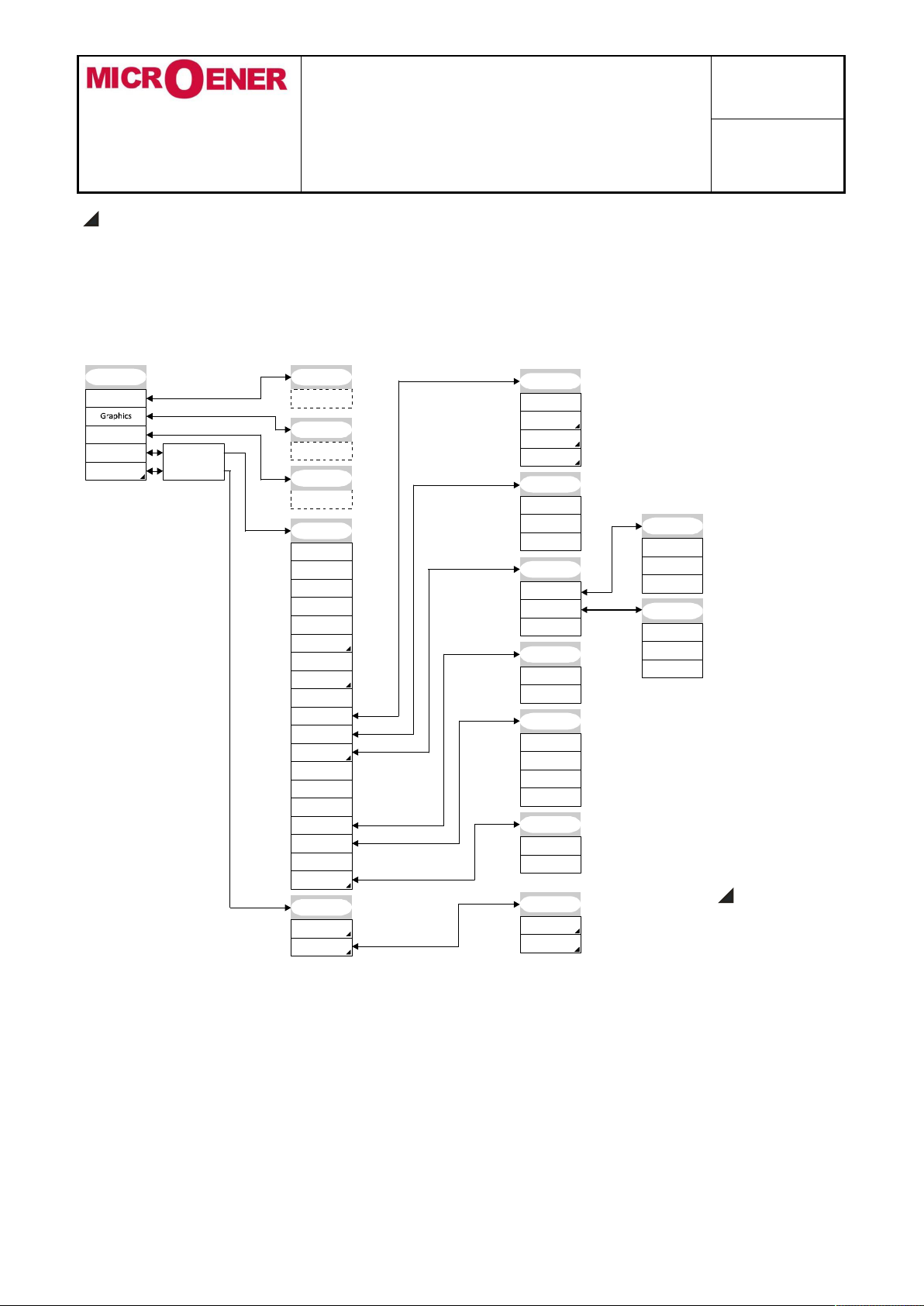

Menu map ...................................................................................................................................... 22

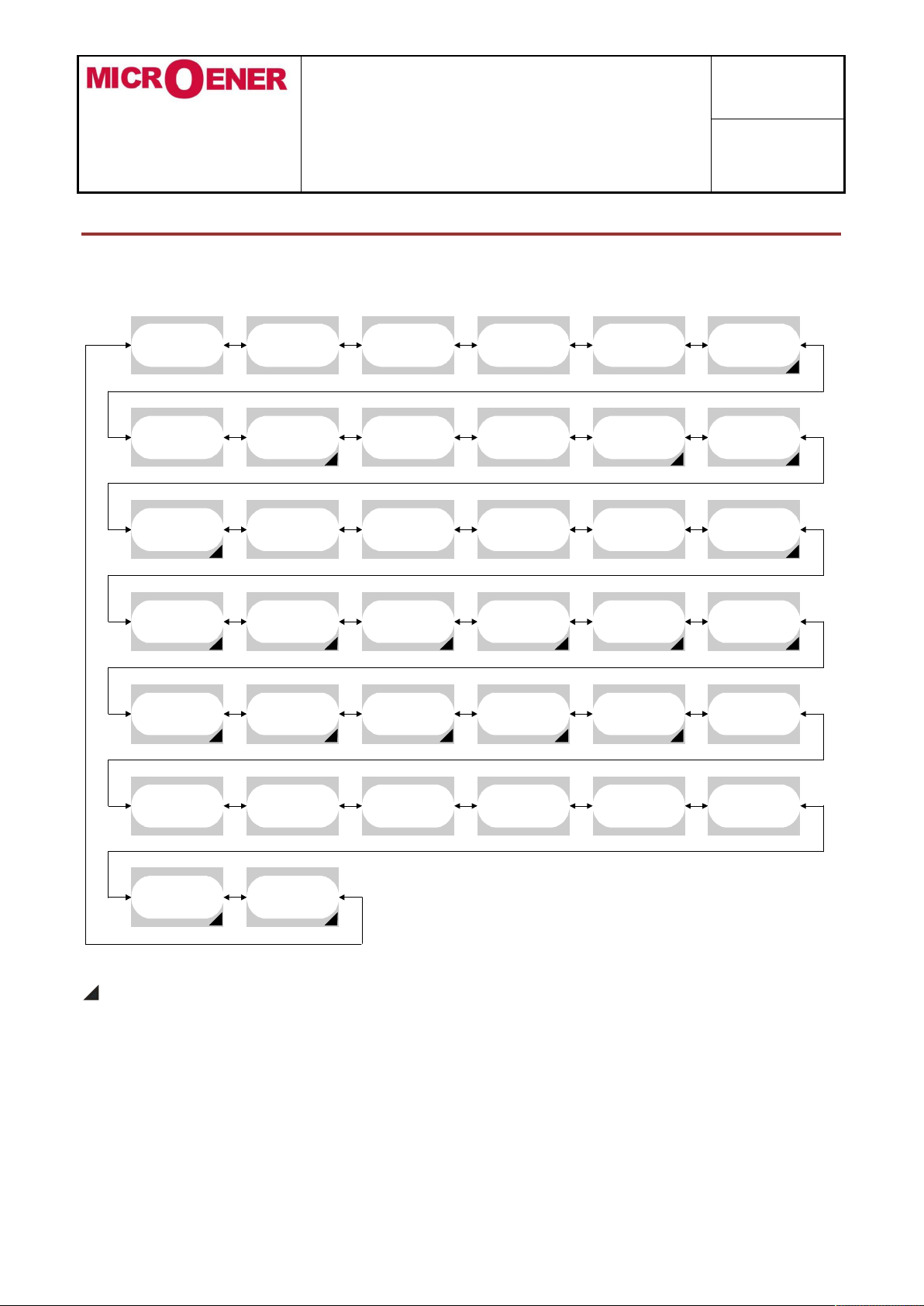

Measures pages map...................................................................................................................... 24
Graphics map ................................................................................................................................. 26
Device map..................................................................................................................................... 27
Setup pages map............................................................................................................................ 28
Setup Items ................................................................................................................................... 29
Wiring Parameters ......................................................................................................................... 32
Acronym tables .............................................................................................................................. 48
Acronyms group table ..................................................................................................................... 48
Acronyms table of Instantaneous group ............................................................................................ 48
Acronyms table of Energies and TB (from 1 to 16) groups ................................................................... 48
Acronyms table of Average group ..................................................................................................... 49
Dimensions..................................................................................................................................... 49
Technical features .......................................................................................................................... 50
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
GENERALITY
Information in this document is subject to change without notice and does not represent a commitment on
the part of Contrel Elettronica Srl.
This documentation is consigned to the customer to enable the correct and safe operation of the instrument;
any other use of documentation is strictly prohibited.
The information contained herein is the property of Contrel Elettronica Srl, and by law, no part of it may be
reproduced, transcribed, stored in any retrieval system, or translated into any language by means (even for
internal purposes by the customer) without the express written permission of Contrel Elettronica Srl.
In addition, no part of this manual may be transmitted in any form by any means, including photocopying and
recording, for any purposes, without the express written permission of Contrel Elettronica Srl.
In case of Copyright violation the customer is directly responsible.
Terms of warranty
FDE N°
13JMC3520859
Rév. A2
Page 4 / 51
The warranty is valid for the period of twelve months after material receipt.
The warranty covers free repair or replacement of equipment parts, which are recognized as faulty due to
manufacturing defects.
Warranty does not cover those parts which results defective due to misuse or improper use, incorrect
installation or maintenance, operation by unauthorized personnel, damage during transportation, or which in
any case do not show manufacturing defects of the equipment.
Not included in the warranty terms are technical interventions regarding equipment installation to electrical
systems.
The manufacturer declines any responsibility for eventual injury or damage to persons, animals or things as
result of failure to follow the instructions in the user manual or caused by improper use of equipment.
The expenses of transport as well as the relative risks of same both to and from the place of repair will be the
sole responsibility of the user.
This warranty expires after the date of purchase and any assistance required after said date including spare
parts, labour, transport of personnel and material will be charged to the user following the tariffs in force for
Technical Assistance Service at the time of such requested service.
In any case the replacement of the equipment as well as the extension of warranty after such breakdown is
excluded.
FDE N°
13JMC3520859
Rév. A2
Page 5 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
DESCRIPTION
The EMS (Electrical Measurement Supervisor) has advanced analysis functions that allow the measurement of
the main electrical parameters: voltage, current, frequency, power factor, active and reactive power, active
and reactive energy.
The instrument allows the measurement and analysis in real time of electrical parameters, also verifying the
quality of the energy thanks to THD measurement.
Bidirectional metering of energy allows both production and consumption of energy to be monitored with a
single device.
All information monitored by the analyzer can be transmitted to remote locations through communication
interfaces RS485, Ethernet with the support of numerous protocols including Modbus RTU, Modbus TCP/IP
and Profibus DP.
Interaction with the control and supervision systems is possible using inputs and outputs, all programmable.
EMS reads and displays the energy values measured in other energy meters connected to the network. This is
achieved thanks to digital inputs, which are able to acquire the impulses generated by the counters. In this
case, EMS acts as a data concentrator. It not only collects information from the electricity meters but also
from the water, gas meters or other.
EMS allows a complete, in-depth analysis of the network quality thanks to the measurement of the harmonic
distortion r(20th order) of the voltage and current signals.
Configuration Models
Type Class CT Neut. CT Supply Dig. I/O Dig. In type COM1 COM2 Exp. Mem.
EMS-96 1
EMS-96H
0.5S
0.2S
2DO
1A
1
5A
None
Present
90÷250
Vac/dc
24÷48
Vac/dc
4DO+4DI
6DO+2DI
8DO
24Vac/dc
48Vac/dc
115 Vac/dc
230 Vac/dc
None
RS485
RS485
None
RS485
Profibus
Ethernet*
Ethernet**
Ethernet**+ WiFi
None
None
Present EMS-96-ETH RS485
* Modbus TCP/IP
** Modbus TCP/IP and Web server
Software Options
Model Timeband & Preset Harmonics & SAG Energy Graphics & Log
EMS-96 to enable to enable to enable
EMS-96H enabled enabled enabled
EMS-96-ETH enabled enabled enabled
To enable one or more options it’s necessary to input a code (Enable option item) in the instrument setup. If
the options are requested at the moment of the order the code is already loaded and showed on the
instrument report.
After the installation, to enable one or more options it is necessary to request the code to the seller, sending
the serial number. The seller will deliver the new code to load in the instrument setup.
FDE N°
13JMC3520859
Rév. A2
Page 6 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Measures Table
Parameters System L1 L2 L3
Voltage L-N X X X X X X X X
Voltage L-L X X X X X X
Current X X X X X X X X
Power Factor X X X X X X X X
Cos X X X X X X X X
Tan X X X X X X X X
Active Power X X X X X X X X
Reactive Power X X X X X X X X
Apparent Power X X X X X X X X
Frequency X X X X X X X X
THD Voltage X X X X X X
THD Current X X X X X X
Harmonics X* X* X*
Active Energy OUT X X X X
Reactive Energy IN X X X X
Reactive Energy OUT X X X X
Apparent Energy X X X X
Expected Power X X X X

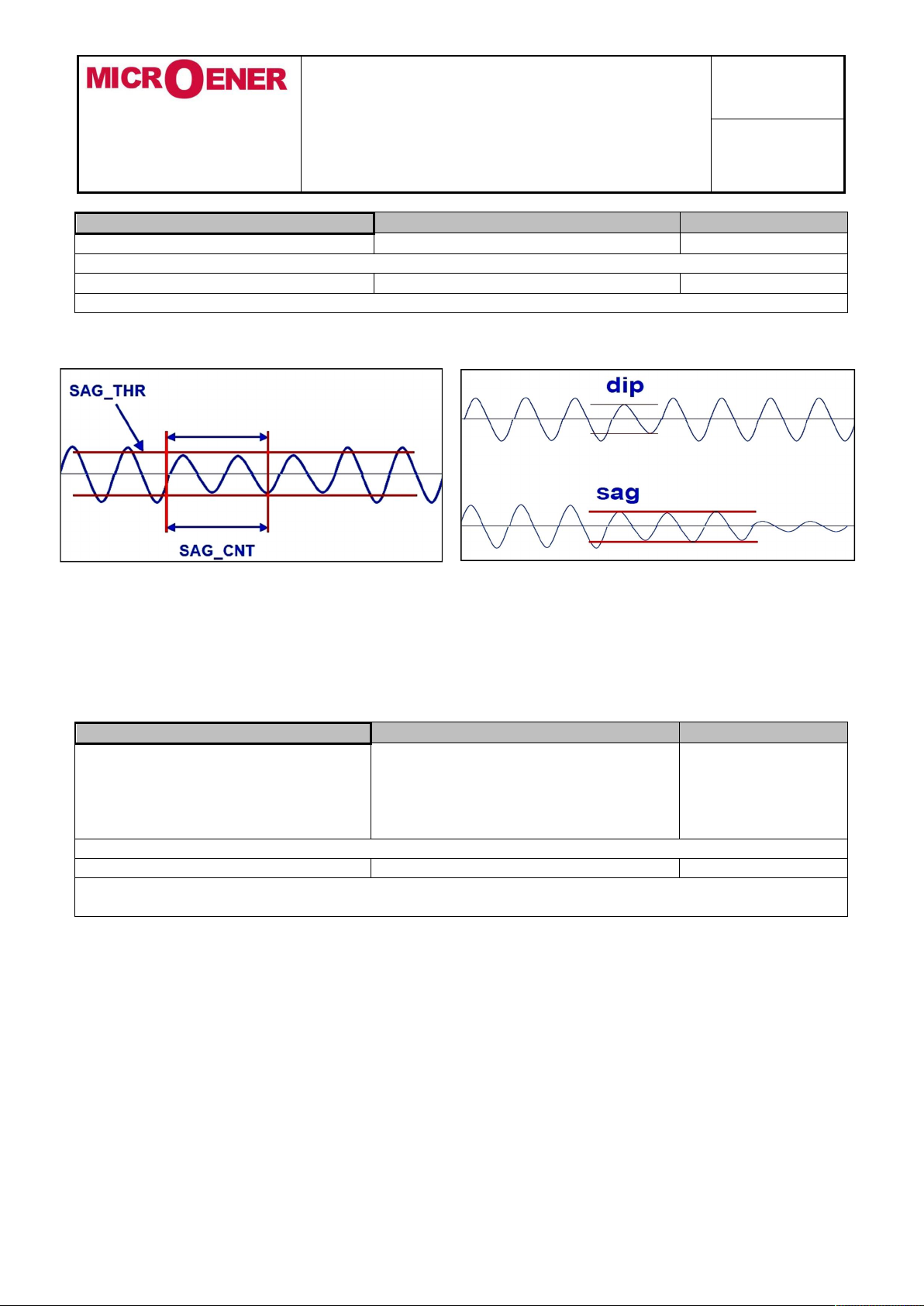

SAG (X)* (X)* (X)*
Min-Max
Relative
Min-Max
Absolute
Average
Max
Demand
(X): only the selected electric line
*: option
FDE N°
13JMC3520859
Rév. A2
Page 7 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
INSTALLATION
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Warning for the user
Read carefully the instructions/indications contained in this manual before installing and using the instrument.
The instrument described in this manual is intended for use by properly trained staff only.
Safety
This device has been manufactured and tested in compliance with EN 61010-2 standards. In order to
maintain these conditions and to ensure safe operation, the person must comply with the indications and
markings contained in the manual.
When the device is received, before beginning installation, check that it's O.K. And it has not suffered any
damage during transport.
When starting installation, make sure that the operating voltage and mains voltage are compatible with the
device instructions. The device power supply must not be earthed.
Maintenance and/or repair must be carried out only by qualified and authorized personnel. If there is ever the
suspicious that, that there is a lack of safety, during operation, the device must be disconnected and cautions
taken against accidental use.
Operation is no longer safe when:
The instrument doesn't work.
The measured values are obviously wrong or unreasonable.
There is visible damage.
After serious damage incurred during transport.
After a storage under unfavourable conditions.
During normal operation of the devices, hazardous voltages at its terminals and in particular on the terminals
of voltage and current transformers connected and on the terminals of the digital input and outputs.
The secondary circuits of the voltage and current transformers are capable of generating hazardous voltages
and currents when their primary circuit is powered.
Follow the standard safety precautions when performing any installation or service (such as making sure that
the power supply is disconnected, disconnecting the fuses of the transformer voltage, short-circuiting the
secondary of current transformer etc.).
Do not use the instrument in situations where failure may cause injury or death, or generate sufficient energy
to cause a fire.
The instrument is equipped with a fuse on the power supply type: 5x20mm 1A 250V time lag.
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24

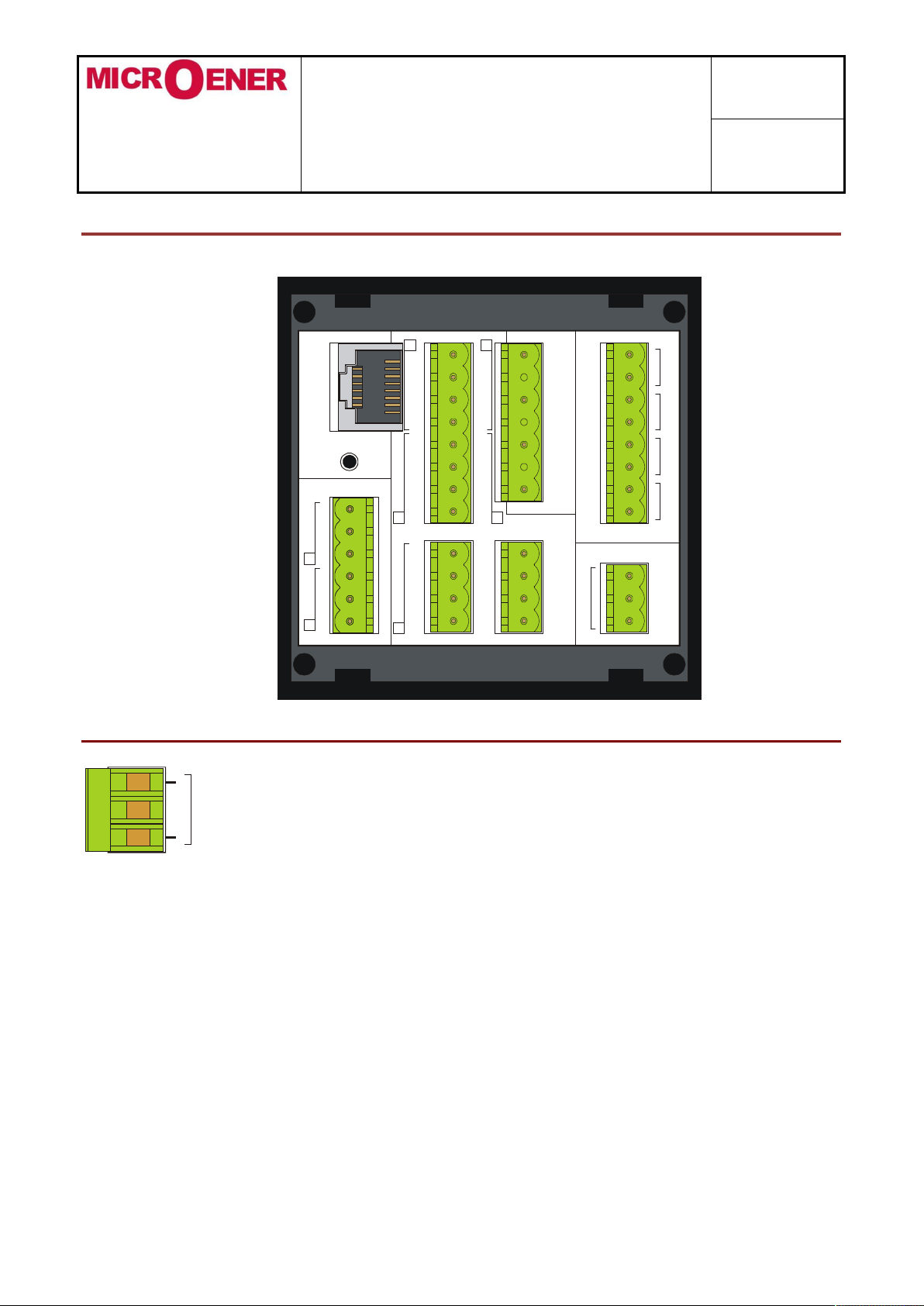

CONNECTIONS
User Manual
E
LECTRICAL MEASUREMENT
FDE N°
13JMC3520859
Rév. A2
S
UPERVISOR
EMS-96
Page 8 / 51
S2
In
S1
S2
I3
S1
S2
I2
S1
CURRENT INPUTS
S2
I1
S1
POWER SUPP LY
ETHERNET PORT
SERVICE
SERIAL PORTS
A2
B2
C2
A1
B1
COM1-RS485 COM2-RS485
C1
Do8-
Do8+
Do7-
Do7+
Do6-
Do6+
Do5-
Do5+
Do3-
Do3+
Do4-
Do4+
Di1-
Di1+
Di2-
Di2+
Di3-
Di3+
Di4-
Di4+
DIGITAL I/O
N
VL3
VL2
VL1
Do1-
Do1+
Do2-
Do2+
VOLTAGE INPUTS
2
AUX
1
Auxiliary power supply
2
AUX
1
The instrument has an auxiliary supply for the logic and interfaces. This is useful to maintain active the logic
also in absence of power of monitored lines.
In alternative, it is possible to take the power from the network under test, using the phase and neutral for a 4wire network, phase to phase in a 3-wire system without neutral or from a VT in a MT application. In this case
the instrument will be switched off in absence of power of monitored lines.
The instrument can be supplied in two different configurations of power supply:
Standard Version
90÷250 Vac/dc
Option Version
24÷48 Vac/dc
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
N
VL3
VL2
VL1
4 terminals are available for direct connection to 3 phase network with neutral. In case of a 3 phase
balanced system without neutral, or non distributed neutral to leave terminal N free.
3 inputs, range 30 ÷ 400Vac phase to neutral - 52 to 693Vac phase to phase (see Technical Features
table for details); over these values must used the external voltage transformers.
Frequency range: 50/60Hz.
Permanent overvoltage allowed: 480Vac phase to neutral - 830VAC phase-phase.
Overvoltage category: II (permanent installations).
Pollution degree: 2 (normally non-conductive, conductive condensation temporary).
Input resistance: > 1.8MΩ.
Load (Burden) for each voltage input: 0.09VA.
Note: To detect the frequency of the network the terminal VL1 must be always connected.
FDE N°
13JMC3520859
Rév. A2
Page 9 / 51
Voltage Inputs
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
In
I3
I2
I1
S2
S1
S2
S1
S2
S1
S2
S1
Current measurements can be performed by connecting the terminals of Current inputs.
All current inputs are isolated by current transformers with different ranges depending on the model of the
instrument.
They can be interfaced directly to the line to be monitored or to be connected to the output of external CT
with higher range.
The connections to the lines to be monitored are described in chapter “Wiring diagrams”.
With neutral current input option installed, the instrument allows the direct measurement of neutral current in
the same way described for the line inputs.
FDE N°
13JMC3520859
Rév. A2
Page 10 / 51
Current Inputs
NOTE:
It is essential to observe the correct phase sequence, not invert the connections between the
phases of the current inputs and voltage (i.e. the CT placed on L1 phase must absolutely match
at I1 Current and VL1 voltage). Do not invert the terminals S1 and S2 of the CT because the
measurement of power factors, and the powers would no longer be trusted.
Version 5A
Three-phase current inputs isolated by 3 internal current transformers.
Nominal current range 50mA÷5A; over these values must be used the external current transformers.
Load (Burden) for each current input: 0.0009VA max.
Version 1A
Three-phase current inputs isolated by 3 internal current transformers.
Nominal current range 10mA÷1A; over these values must be used the external current transformers.
Load (Burden) for each current input: 0.0009VA max.
Neutral Current: the nominal current range according with CT version (5A or 1A).
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Serial ports (option)
A2
B2
C2
COM2-RS485COM1-RS485
A1
B1
C1
Depending on the version, the instrument can be equipped with one or two isolated half duplex RS485 serial
interface.
Two options are available:
1 serial port RS485
2 serial ports RS485
With these options the instrument can communicate with the external with the Modbus protocol.
ports are independent and they can perform the same operations
allows the software update.
COM1
A1: +data
B1: -data
C1: common
COM2
A2: +data
B2: -data
C2: common
. The presence of the serial port RS485
FDE N°
13JMC3520859
Rév. A2
Page 11 / 51
The two
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Do1-
Do1+
Do2-
Do2+
2 pulse / state digital outputs are available on the device.
In option it is possible to have others pulse / state digital outputs or simply others state digital outputs.
The configuration available will be shown in the following pages.
The technical features are:
Compliance with CEI EN62053-31 (Class A devices).
Maximum of digital output available: 8
Isolation level: 4KV
Output type: Photo-MOS (solid state); a
Output voltage/current: 10÷300VDC 150mA
RON = 8Ωtyp. (12Ω
“Pulse”
Output protections: varistor for transients;
output mode:
T
ON_min
Pulse output period adjustable from 60ms to 1000ms.
Pulse polarity programmable (active closed or active open).
Programmable pulse “weight”.
30ms; T
OFF_min
for 60 sec.
RMS
).
MAX
30ms.
“non-closed Output”
; 12÷250VAC 150mA
max
is comparable to an open contact.
max
current limiting to be provided externally.
FDE N°
13JMC3520859
Rév. A2
Page 12 / 51
Digital Outputs
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96

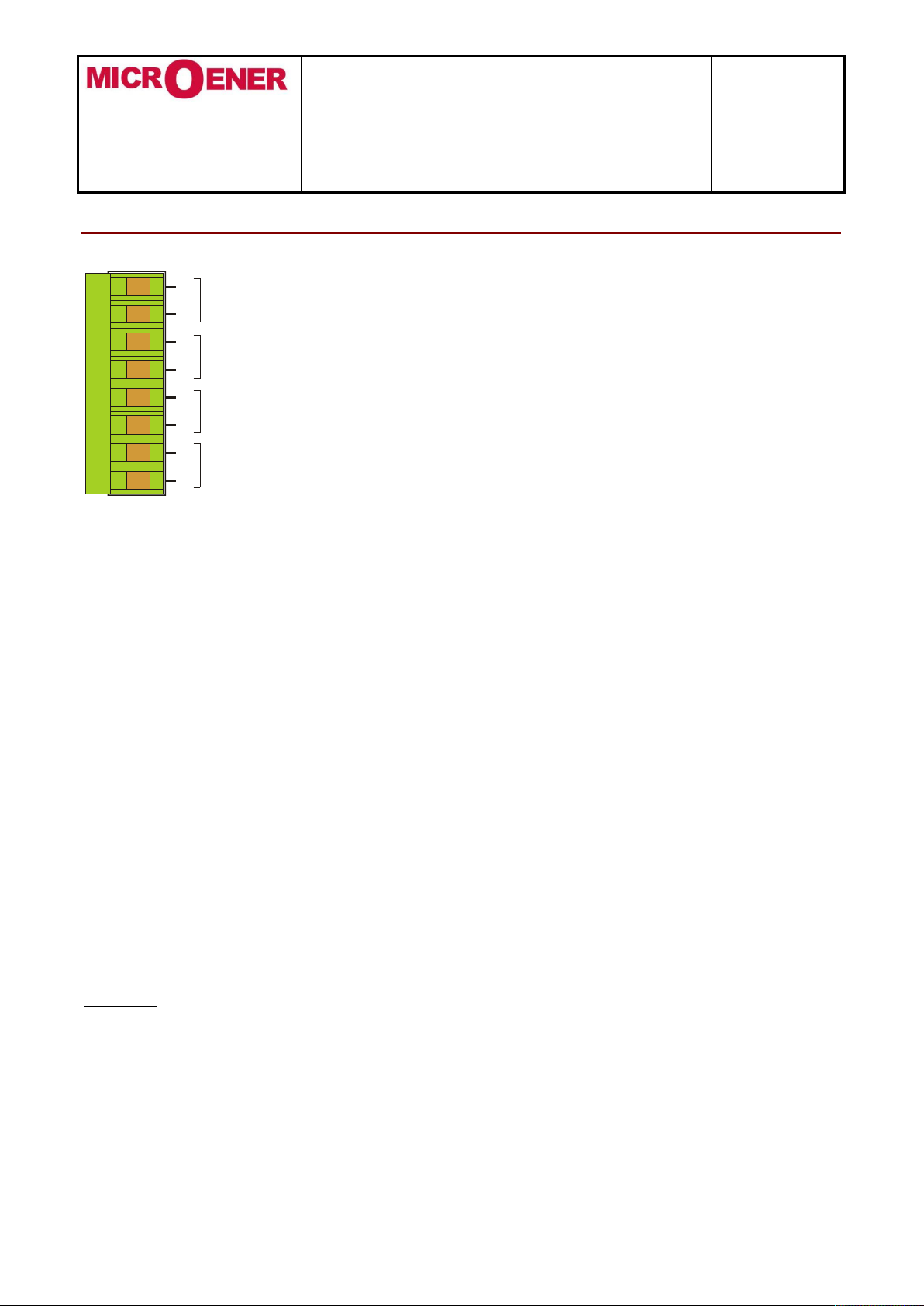

Digital Inputs (option)
The EMS can be equipped with isolated Digital Inputs.
The Digital Inputs are available only with the relative option.
The technical feature are:
number of Digital Input: 2 or 4 depending on the option version;
Input Configuration: independent inputs (no common pins);
isolation level 3.5KV
Voltage Input Range: 24, 48, 115, 230Vac/dc (only one of the available options to choose in the
order);
Nominal Input Current: max 5mA each @ all nominal voltages;
Input Filter: Digital;
Basic Operation Mode: pulse counter, status, change of time-band;
T
The Voltage input must be defined before to order the instrument.
ON_min
30ms; T
OFF_min
for 60 sec;
RMS
30ms;
Digital I/O options
FDE N°
13JMC3520859
Rév. A2
Page 13 / 51
It’s possible to add 3 optional configurations of digital I/O at the standard configuration:
4 digital inputs and 2 digital outputs
6 digital outputs
2 digital inputs, 4 digital outputs
4 digital inputs and 2 digital outputs (option)
Di1-
Di1+
Di2-
Di2+
Di3-
Di3+
Di4-
Di4+
Do3-
Do3+
Do4-
Do4+
With this option the instrument will be equipped with:
4 digital inputs
4 pulse / state digital outputs.
Do1-
Do1+
Do2-
Do2+
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
6 digital outputs (option)
FDE N°
13JMC3520859
Rév. A2
Page 14 / 51
Do8-
Do8+
Do7-
Do7+
Do6-
Do6+
Do5-
Do5+
Do3-
Do3+
Do4-
Do4+
With this option the instrument will be equipped with 8 digital outputs divided in the following way:
4 digital outputs.
4 pulse / state digital outputs.
Do1-
Do1+
Do2-
Do2+
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
2 digital inputs, 4 digital outputs (option)
FDE N°
13JMC3520859
Rév. A2
Page 15 / 51
Di1-
Di1+
Di2-
Di2+
Do6-
Do6+
Do5-
Do5+
Do3-
Do3+
Do4-
Do4+
With this option the instrument will be equipped with:
2 digital inputs.
2 digital outputs
4 pulse / state digital outputs.
Do1-
Do1+
Do2-
Do2+
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
WIRING DIAGRAMS
EMS
VL1
LOAD
EMS
VL1
VL2
Three-Phase, 3-W ires Configuration. ARON insertion (2CT)
VL2
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Three-Phase, 4-W ires Y Configuration
VL3
N
VL3
N
I1
S2
S2
P2
I1
S2
I2
S2
S1
S1
P1
S1
S1
P1
I2
S2
S1
S1
FDE N°
13JMC3520859
Rév. A2
Page 16 / 51
I3
S2
In
S2
S1
S1
In case of connection in a 3
phase network (without
neutral or with neutral not
distributed) don’t connect
the N terminal.
L1
S1
P1
L2
L3
N
S1
P1
I3
S2
In
S2
S1
S1
This connection with only 2
CT allows to measure
accurately the three-phase
currents.
LOAD
S2
P2
S1
P1
S1
P1
L1
L2
L3
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
EMS
LOAD
EMS
LOAD
LOAD
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Three-Phase, balanced loads, 4-W ires Configuration
VL1
VL2
VL3
N
Three-Phase, multiple balanced loads, 4-W ires Configuration
VL1
VL2
VL3
N
I1
S2
S2
P2
I1
S2
S2
P2
I2
S2
S1
S1
P1
I2
S2
S1
S1
P1
S2
P2
I3
S2
S1
I3
S2
S1
S1
P1
FDE N°
13JMC3520859
Rév. A2
Page 17 / 51
This connection can be used
with distributed and equal
In
S2
S1
S1
loads.
It is possible to measure the
current on one phase (using
only one CT). The
unmonitored phase currents
are mathematically
calculated.
The measurement of neutral
current is optional.
L1
L2
L3
N
In
S2
S1
S1
In presence of multiple
balanced loads in a threephase network, the
instrument calculates the
electrical parameters
L1
checking a single phase
L2
current for each load,
L3
allowing to limit the number
N
of CT used.
L1
L2
L3
N
LOAD
S2
P2
S1
P1
L1
L2
L3
N
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
EMS
LOAD
Single-Phase, 3 multiple loads in the same network, 2-W ires Configuration
EMS
LOAD
User Manual
E
LECTRICAL MEASUREMENT
S
Single-Phase, 2-W ires Configuration
UPERVISOR
EMS-96
FDE N°
13JMC3520859
Rév. A2
Page 18 / 51
VL1
VL2
VL3
N
I1
S2
I2
S2
S1
I3
S2
S1
In
S2
S1
S1
It is mandatory to connect
the current input I1 and
voltage input VL1.
S2
P2
S1
P1
L1
N
VL1
VL2
VL3
N
I1
S2
I2
S2
S1
I3
S2
S1
In
S2
S1
S1
The electrical parameters are
measured for individual
loads.
For correct calculation of
S1
P2S2P1
power and energy, is
mandatory to connect the
L1
voltage inputs related to the
used current inputs.
N
LOAD
LOAD
S2
P2
S1
P1
S2
P2
S1
P1
L1
N
L1
N
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Multiple Single-Phase, 3 m ultiple loads in 3 different networks, 6-W ires Configuration
EMS
I3
S1
S2
LOAD
VL1
VL2
VL3
N
I1
S2
S2
P2
I2
S1
S2
S1
P1
FDE N°
13JMC3520859
Rév. A2
Page 19 / 51
In
S1
S2
S1
If necessary to apply a
multiplier factor “K” to
adapt the measure
read, please consider
that only one K for
voltages and only one
K for currents can be
L1
set.
N1
LOAD
LOAD
EMS
S2
S1
P2
P1
S2
S1
P2
P1
Two-Phase, 3-Wires Configuration
VL1
VL2
VL3
N
I1
S2
I2
S1
S2
I3
S1
S2
In
S1
S1
S2
L2
N2
L3
N3
LOAD
S2
P2
S1
P1
S2
P2
S1
P1
L1
N
L2
FDE N°
13JMC3520859
Rév. A2
Page 20 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Digital I/O and Serial communication
EMS
Do1+
C2
B2
A1A2B1
C1
Do2+
Do1-
Do2-
Di2+
Di1+
Di2-
Di1-
COMA+ B-
Master Controller
or
Concentrator
or
Other instrument
fuse
LOAD
V
12÷230
Vac/dc
150mA max
150mA max
12÷230
Vac/dc
fuse
LOAD
V VV
24, 48,
115, 230 Vac/dc
depending on the version
Digital Input
The AC/DC digital input are independent (no common pin) and can be wired without polarity care.
Digital Output
The PhotoMOS have behaviour identical to a mechanical contact which closes. Therefore, there are not
problems with the polarity.
Serial Port
The instrument communicates via a asynchronous isolated serial interface in the standard RS485 Half-duplex
that allows a connection in a network up to 247 nodes. This allows to implement a communication network
between different instruments and a master unit (data concentrator) for a detailed control of an electrical
installation.
The maximum length of the line depends on variables such as the transmission rate and characteristics of the
cables used. It’s recommend to use a shielded twisted pair cable with low attenuation, with a minimum
section of 0.36mm2 (22AWG) and capacity of less than 60pF / m.
The maximum length is about 1200m. For longer distances it’s need to use signal amplifiers (repeaters). High
networking length and/or where environments are electrically "noisy", it requires the use of two termination
resistors (at the beginning and end of the line) of 100-120Ω. The use of repeaters is also necessary in the
case of networks with more than 32 nodes.
At each repeater can be connected 32 units.
Please note that complex networks with large number of nodes cause a slower speed of response by the
instruments.
Connection type: half-duplex (2 wires + common).
Isolation: opto-couples (3750 Vrms min.).
In the figure is showed a connection with a not shielded cable. In the shielded cable connection it’s necessary
to connect the shield to COM terminal.
FDE N°
13JMC3520859
Rév. A2
Page 21 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
FUNCTION KEYS
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Directional keys (Up/Down/Left/Right)
The directional keys are used to change the pages in Measures, Graphics, Info Device e
Setup. In the next chapters the maps show how to move between pages. At the same
time the directional keys allow to move and select items inside the Menu.
The Up and Down keys are used to increases and decrease or simply to change the set
values in the Setup pages.
Pressing at the same time the Left and the Right keys it’s possible to define the
default page. The title page will change the colour and the “home icon” will appear near the text to confirm
the new default.
Pressing at the same Up and Down keys to return to default from the actual page.
Enter key
The Enter key when pressed in Measures, Graphics, Info Device and Setup pages allows to enter in
the Menu and it is used to confirm the item selected. In the Setup it allows to modify and to confirm
the set value.
Esc key
This key is used:
‐ to skip without to confirm the modify
‐
when a page of Measures, Graphics, Info Device and Setup is displayed, pressing Esc the display will
show all levels path to reach the last page opened by using the menu from the turning on of the instrument.
FRONTAL LED
On the frontal panel there are two led that blink proportionally to the energy read.
For default the right red led shows the “System Active Energy IN” and the left red led shows the “System
Reactive Energy IN”.
In the setup is possible to modify the default set with the following parameters:
System Active Energy IN
System Active Energy OUT
System Reactive Energy IN
System Reactive Energy OUT
System Apparent Energy
The weight of the pulses of these led is 0.1 Wh, VArh, VAh for each pulse. This value is not modifiable.
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
MENU MAP
Menu
Measures
Graphics
Info Device
Setup
Communication
(Password)
Measures
Instantaneous
Relative Min
Relative Max
Absolute Min
Absolute Max
Average
Max Demand
Energies
Counters
Exp. Power
SAG
Graphics
Voltages trend
Currents trend
Load Bars
Powers
Energies
Harmonics
Info Device
Device Info
Digital I/O Status
Setpoint Status
Date / Time
Com.Monitor
SW/HW Version
Options
Log Info
Setpoint Log
Generic Log
Smart Log
On/Off Events
Setup
‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐
Commun ication
‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Instantaneous
Voltages
Currents
Power Factor
Cos
Powers
Frequency
THDs
Harmonics
Phase angles
Relative M in
Relative M ax
Absolute Min
Absolute Ma x
Voltages
Currents
Power Factor
Cos
Tan
Power
Frequency
THDs
Average
Max D emand
Voltages
Currents
Power Factor
Cos
Tan
Power
Frequency
Energies
I/O
Active IN
DPO
Active OUT
DO
Reactive IN
DI
Reactive OUT
AO
Apparent
AO
Voltages trend
I/O
Complete
DPO
Zoom
DO
Current tren d
I/O
Complete
DPO
Zoom
DO
Energies
I/O
Daily
DPO
Weekly
DO
Monthly
DO
Yearly
DO
Voltages
Phase‐Neutral
Phase‐Phase
Powers
Active
Reactive
Apparent
THDs
Voltage
Current
Harmonics
Voltage
Current
Voltages
Phase‐Neutral
Phase‐Phase
Power
Active
Reactive
Apparent
THDs
Voltage
Current
Power
Active
Reactive
Apparent
FDE N°
13JMC3520859
Rév. A2
Page 22 / 51
FDE N°
13JMC3520859
Rév. A2
Page 23 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
: This item is selectable only with the presence of relative option.
To move inside the menu it’s necessary to use the directional keys.
The arrow near the items indicates the presence of submenu (with right or enter key it’s possible to enter).
Pressing Enter key to go to show the page or the item selected.
The cursor position is showed with different color text.
Menu
Measure
Info Device
Setup
Communication
(Password)
Measure
‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐
Graphics
‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐
Info Dev ice
‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐
Setup
Password
Reset
Date/Time
Trasform. Ratio
Time window
Timeban d
Frequency
SAG
Wiring
I/O
Setpoint
Preset TB
Utility
Display
Preset Energies
Editing Texts
User Page
Graphics
Log
Commu nication
COM1*
COM2**
MBUS only
I/O
I/O
DO 1, 2, 3, 4
DPO
DO 5, 6, 7, 8
DO
DI 1, 2, 3, 4
DI
AO
AO 1, 2, 3, 4
Setpoint
Setpoint 01
..................
Setpoint 16
PresetTB
Daily
Period
Holiday
Editing Texts
Titles
Rows
User Page
User Page 1
User Page 2
User Page 3
User Page 4
Log
Generic Log
Smart Log
MBUS
Parameters
Readout Data
Daily
Daily Plan 01
..................
Daily Plan 16
Period
Period Plan 01
..................
Period Plan 16
: This item is
selectable only
with the presence
of relative option.
* options:
No COM1
COM1 RS485
** options:
No COM2
COM2 RS485
Profibus
Ethernet
Ethernet wifi
MBUS
FDE N°
13JMC3520859
Rév. A2
Page 24 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
MEASURES PAGES MAP
The default page showed at the power on is “Phase Voltage”. It’s possible to change it using the keys (left
and right pressed at the same time).
Instantaneous Relative MaximumRelative Minimum Absolute Maximum
Min
Voltages
Relative Max
Volt ages
Relative Min Absolute
Voltages
Absolute Minimum Average
Max
Voltages
Absolute
Voltages
Average Voltages
Max Demand
Max Demand
Volt ages
Phase‐Phase
Voltages
Currents
Power Factor
Cos
Tangent
Active Power
Reactive Power
Apparent Powe r
Frequency
THD Voltages
Min Relative
Phase‐Phase
Min Relative
Currents
Min Relative
Power Factor
Min Relative
Cos
Min Relative
Tan
Min Relative
Active Power
Min Relative
Reactive Powe r
Min Relative
Apparent Power
Min Relative
Frequency
Min Relative
THD Voltages
Max Relative
Phase‐Phase
Max Relative
Currents
Max Relative
Power Factor
Max Relative
Cos
Max Relative
Tan
Max Relative
Active Power
Max Relative
Reactive Powe r
Max Relative
Apparent Powe r
Max Relative
Frequency
Max Relative
THD Voltages
Min Absolute
Phase‐Phase
Min Abs olute
Currents
Min Absolute
Power Factor
Min Absolute
Cos
Min Abs olute
Tan
Min Absolute
Active Power
Min Absolute
Reactive Power
Min Absolute
Apparent Powe r
Min Absolute
Frequency
Min Absolute
THD Voltages
Max Absolute
Phase‐Phase
Max Absolute
Currents
Max Absolute
Power Factor
Max Absolute
Cos
Max Absolute
Tangent
Max Absolute
Active Power
Max Absolute
Reactive Powe r
Max Absolute
Apparent Power
Max Absolute
Frequency
Max Absolute
THD Voltages
Average Currents
Average
Power Factor
Average
Cos
Average
Tan
Average
Active Power
Average
Reactive Power
Average
Apparent Powe r
Average
Frequency
Max Demand
Currents
Max Demand
Power Factor
Max Demand
Cos
Max Demand
Tan
Max Demand
Active Power
Max Demand
Reactive Power
Max Demand
PowerApparent
Max Demand
Frequency
THD Currents
VoltageHarmonics
(1‐5)
CurrentHarmonics
(1‐5)
SAG (1‐5)
Active Power
Max Demand
Min Relative
THD Currents
Volt age Harmonics
(6‐10)
CurrentHarmonics
(6‐10)
SAG (5‐10)
Max Relative
THD Currents
Voltage Harmonics
(11‐15)
CurrentHarmonics
(11‐15)
Min Abs olute
THD Currents
VoltageHarmonics
(16‐20)
CurrentHarmonics
(16‐20)
Max Absolute
THD Currents
HARMONICS
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
SAG (1‐5)
User Manual
E
LECTRICAL MEASUREMENT
FDE N°
13JMC3520859
Rév. A2
S
UPERVISOR
EMS-96
Page 25 / 51
Active Power
Max Demand
Reactive Power
Max Demand
Total Active
Energy IN
Total Active
Energy OUT
Total Reactive
Energy IN
Total Reactive
Energy OUT
Total Apparent
Energy
Total Counters
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
Timeband 1 Timeband 2 Timeba nd 16
MAX DEMAND
ENERGIES
Expected Power
Phase Angles
User Page (1/4)
Phase Voltage
User Page (2/4) User Page (3/4) User Page (4/4)
: this item is selectable only with the presence of relative option.
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
GRAPHICS MAP
User Manual
E
LECTRICAL MEASUREMENT
FDE N°
13JMC3520859
Rév. A2
S
UPERVISOR
EMS-96
Page 26 / 51
Voltages Trend
Currents Trend
Monday Power
Daily Energy
(Active‐Reac tive)
Voltages Trend
Zoom
Currents Trend
Zoom
HelpLoad Bars
Help
Help
Help
Sunday Power Help
Weekly Energy
(Active‐Reac tive)
Jan Energy
(Active‐Reac tive)
Energy
Year YYYY
Voltage
Harmonics L1
Voltages Trends
Help
Energy
Year YYYY‐1
Voltage
Harmonics L2
Dec Energy
(Active‐Reactive)
Energy
Year YYYY‐2
Voltage
Harmonics L3
Help
Energy
Year YYYY‐3
Current
Harmonics L1
Energy
Year YYYY‐4
Current
Harmonics L2
Energy
Year YYYY‐5
Current
Harmonics L3
Help
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
DEVICE MAP
Info Dev ice
User Manual
E
LECTRICAL MEASUREMENT
FDE N°
13JMC3520859
Rév. A2
S
UPERVISOR
EMS-96
Page 27 / 51
Digital I/O Statu s
Setpoint
Status
Date / T ime
COM1 Monito r
Device Version
Options 1/4
Help
Setpoint 1 Setpoi nt 2 Setpoint 16
COM2 Monitor
Options 2/4
Options 3/4 Options 4/4
Info Setpoint Log
Setpoint Log
page 1
Generic Log
page 1
Smart Log
page 1
Events 1/4 Events 2/4 Events 3/4 Events 4/4
Info Device
Info Generic Lo g
Setpoint Log
page 2
Generic Log
page 2
Smart Log
page 2
Info Smart Log
Setpoint Log
page 32
Generic Log
page XXXX
Smart Log
page XXXX
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
SETUP PAGES MAP
To move inside the Setup pages it’s necessary to use left and the right keys.
Press the Enter key to go to see the item to set.
FDE N°
13JMC3520859
Rév. A2
Page 28 / 51
Password Timeband
Frequency
AO 1, 2, 3
analog outputs
Modbus
COM2
................
Reset
SAG
Setpoint 01
Ethernet
Daily Plan 16
Date/T ime
Wiring
................
Profibus
Period Plan 01
Transform
Ratio
DO 1, 2, 3, 4
digital outputs
Setpoint 16
Mbus
................
Time
window
DO 5, 6, 7, 8
digital outputs
Setpoint log
Mbus readout
data
Period Plan 16
DI 1, 2, 3, 4
digital inputs
Modbus
COM1
Daily Plan 01
Holiday
Utility
Generic Log
User Page 1
Smart L og
User Page 2 User Page3 User Page 4
: This item is selectable only with the presence of relative option.
Graphics
FDE N°
13JMC3520859
Rév. A2
Page 29 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
SETUP ITEMS
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Password Range Default
Access key 0 ÷ 999999999 0
The code to enter to modify the setup.
Validity key [minutes] 1 ÷ 60 5
Time of free use of the setup after one access with password.
Keys protect Yes or No No
If is enabled, to modify the setup (from keys) it’s necessary insert the password.
Communication protect Yes or No No
If is enabled, to modify the setup (from communication interface) it’s necessary to send the password
command before to send another setup command.
Enable options 0 ÷ 999999999 0
After the insertion of the code, switch off/on the instrument to enable software options.
Reset Range Default
Global Yes or No No
Reset to factory settings.
Default setup Yes or No No
Reset all settings in setup.
All energies Yes or No No
Reset all energies counted.
TB energies Yes or No No
Reset all energies timebands (not total energies).
Counters Yes or No No
Reset all counters.
TB counters Yes or No No
Reset all counters timebands. (not total counters).
Min-Max Yes or No No
Reset all min and max values.
Max demand Yes or No No
Reset max demand values.
Energies log Yes or No No
Reset energies log.
Setpoint log Yes or No No
Reset setpoint log.
Gener./Smart log Yes or No No
Reset generic and smart log.
Events log Yes or No No
Reset events log.
FDE N°
13JMC3520859
Rév. A2
Page 30 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Date / Time Range Default
Hour 0 ÷ 23 0
Actual hour.
Minute 0 ÷ 59 0
Actual minutes.
Second 0 ÷ 59 0
Actual seconds.
Day of Week Monday ÷ Sunday - - Actual day of week.
Day 1 ÷ 31 1
Actual day.
Month 1 ÷ 12 1
Actual month.
Year 2000 ÷ 2099 2000
Actual year.
Transform Ratio Range Default
CT ratio 1 ÷ 10000 1
It’s the ratio between the primary and the secondary circuit of the external current transformers.
CT-N ratio 1 ÷ 10000 1
It’s the ratio between the primary and the secondary circuit of the external neutral current transformers.
VT ratio 1 ÷ 5000 1
It’s the ratio between the primary and the secondary circuit of the voltage transformers.
Time window Range Default
Upgrade time [minutes] 1-2-3-5-6-10-12-15-20-30-60 15
The time used to calculate the average, maximum, minimum values and the expected power.
Type Shifting or Fixed Shifting
The type of the window to calculate the average values and expected power.
Timeband (option) Range Default
Energy changing Manual - From DI - Preset Manual
It’s possible to select the modality to change the timeband:
‐ Manual.
‐ From DI: the combination of digital inputs select the actual timeband used.
‐ Preset (see timeband Daily and Period plan for more information).
Counter changing Manual - From DI - Preset Manual
It’s possible to select the modality for change the timeband:
‐ Manual.
‐ From DI: the combination of digital input select the actual timeband used.
‐ Preset (see timeband Daily and Period plan for more information).
Frequency Range Default
Fundamental [Hz] 50 or 60 50
Select the base frequency of the inputs (voltages and currents).
Phase monitored Phase L1 –Phase L2 – Phase L3 Phase L1
It’s the phase that will be monitored to detect of SAG and to read the actual frequency.
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
SAG (option) Range Default
Threshold [RMS voltage] 30 ÷ 400 200
If the voltage value drops below the setting, the software considers the event as SAG.
Time [milliseconds] 1 ÷ 1000 32
If the voltage value drops below for a time greater than the setting, the software considers the event as SAG.
FDE N°
13JMC3520859
Rév. A2
Page 31 / 51
Fig.1: Sag parameters Fig.2: Sag Explanation
A sag is defined as an under voltage condition that persists for more than one period of base frequency. A
shorter under voltage condition is called a dip (see Fig. 2). The occurrence of sag could announce an
impending loss of power.
To set the sag register the voltage must be under the Threshold value for a minimum time defined in Time.
Wiring Range Default
Type of wiring Three phase - Aron - Three phase
balanced - Three phase multi load
balanced - Single phase - Single phase
multi load - Multi single phase - Two
phase 3 wires
See table below.
Neutral current Measured or Computed See below
On this item appears Measured if the CT is present or Computed if the CT is not present. The user can
change the set showed.
Three phase
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
WIRING PARAMETERS
User Manual
E
LECTRICAL MEASUREMENT
FDE N°
13JMC3520859
Rév. A2
S
UPERVISOR
EMS-96
Page 32 / 51
Description Wiring
Three Phase
SYSTEM VOLTAGE X X X
PHASE VOLTAGE L
PHASE VOLTAGE L
PHASE VOLTAGE L
LINE TO LINE VOLTAGE L
LINE TO LINE VOLTAGE L
LINE TO LINE VOLTAGE L
SYSTEM CURRENT
LINE CURRENT L1
LINE CURRENT L2
LINE CURRENT L3
SYSTEM POWER FACTOR
POWER FACTOR L1
POWER FACTOR L2
POWER FACTOR L3
SYSTEM COS φ
PHASE COS φ1
PHASE COS φ2
PHASE COS φ3
SYSTEM APPARENT POWER
APPARENT POWER L1
APPARENT POWER L2
APPARENT POWER L3
SYSTEM ACTIVE POWER
ACTIVE POWER L1
ACTIVE POWER L2
ACTIVE POWER L3
SYSTEM REACTIVE POWER
REACTIVE POWER L1
REACTIVE POWER L2
REACTIVE POWER L3
NEUTRAL CURRENT
version)
THD VOLTAGE L1
THD VOLTAGE L2
THD VOLTAGE L3
THD CURRENT L1
THD CURRENT L2
THD CURRENT L3
ANGLE
ANGLE
ANGLE
SYSTEM TANGENT φ
PHASE TANGENT φ1
PHASE TANGENT φ2
PHASE TANGENT φ3
SAG
SYSTEM ACTIVE ENERGY IN
SYSTEM ACTIVE ENERGY OUT
1-2
2-3
3-1
1-N
2-N
3-N
1-2
2-3
3-1
(according with
X X X X
X X X X
X X X X
X X X X
X X X X
X X X X
X X
X X
X X calculated x3
X X calculated x3
X X calculated X
X X
X X calculated X
X X calculated X
X X calculated X
X X
X X calculated X
X X calculated X
X X calculated X
X X
X X calculated x3
X X calculated x3
X X calculated X
X X
X X calculated x3
X X calculated x3
X X calculated X
X X
X X calculated x3
X X calculated x3
X X X X
X X
X X
X X
X X
X X calculated X X X X
X X calculated X X X
X X X X X X X X
X X X X X X X X
X X X X X X X X
X X calculated X
X X
X X calculated X
X X calculated X
X X
X X calculated x3 X X X X
X X calculated x3 X X X X
Aron
calculated
X
X
X
X
X
X
X
X
X
X
X
X
Three Phase
Load
Balanced
Balanced
Multi Load
Three Phase
X
X
x3
X
X
x3
x3
x3
X X X X X
X X X X
X X X
X X X X X
X
X X X X X
Single Phase
X
X
X
X
X
X
X
X
X
Single
Phase Multi
X X X
X X X
X X
X X X
X X X
X X
X X X
X X X
X X
X X X
X X X
X X
X X X
X X X
X X
X X X
X X X
X X
X X X
X X X
X X
X X X
X X X
X X X
X X
Multi
Single Phase
3 Wires
Two Phase
FDE N°
13JMC3520859
Rév. A2
Page 33 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
SYSTEM REACTIVE ENERGY IN
SYSTEM REACTIVE ENERGY OUT
SYSTEM APPARENT ENERGY
ACTIVE ENERGY IN L1
ACTIVE ENERGY OUT L1
REACTIVE ENERGY IN L1
REACTIVE ENERGY OUT L1
APPARENT ENERGY L1
ACTIVE ENERGY IN L2
ACTIVE ENERGY OUT L2
REACTIVE ENERGY IN L2
REACTIVE ENERGY OUT L2
REACTIVE ENERGY OUT L2
APPARENT ENERGY L2
ACTIVE ENERGY IN L3
ACTIVE ENERGY OUT L3
REACTIVE ENERGY IN L3
REACTIVE ENERGY OUT L3
APPARENT ENERGY L3
X X calculated x3 X X X X
X X calculated x3 X X X X
X X calculated x3 X X X X
X X X x3 X X X X
X X X x3 X X X X
X X X x3 X X X X
X X X x3 X X X X
X X X x3 X X X X
X X calculated x3 X X X
X X calculated x3 X X X
X X calculated x3 X X X
X X calculated x3 X X X
X X calculated x3 X X X
X X calculated x3 X X X
X X calculated x3 X X
X X calculated x3 X X
X X calculated x3 X X
X X calculated x3 X X
X X calculated x3 X X
: the values read in this configuration aren’t significant.
In the WIRING setup page it’s possible to modify the wiring type and in the DEVICE STATUS page it’s
showed the voltage and current wiring state.
For the voltage wiring item it is possible to have the following option:
Correct.
Not Correct.
The order of voltage connections is not correct (the angles between phases is different by 120°) in
the following insertion: Three phase, Three phase balanced, Three phase multi load balanced, Single
phase multi load and Multi single phase.
Not applied.
All voltage inputs must be apply.
For the current wiring item it possible to have the following option:
Correct.
Not correct: the order of current connections not be correct in the following insertion: Three phase,
Three phase balanced, Three phase multi load balanced, Single phase multi load and Multi single
phase.
L1 reverse: the current of the L1 phase has the opposite sign respect others two phases.
L2 reverse: the current of the L2 phase has the opposite sign respect others two phases.
L3 reverse: the current of the L3 phase has the opposite sign respect others two phases.
Not applied.
All current must be apply and the loads must be balanced.
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
DO-1, 2, 3, 4 (pulse/state outputs) Range Default
Status On or Off Off
DO-1, DO-2, DO-3, DO-4: select ON to close the output, OFF to open it.
Level Active low or Active high Active high
Active Low: initial state high level.
Active High: initial state low level.
Mode Status - Pulse - Setpoint Status
Status: see the Status item set.
Pulse: see the measure associated (Associated DO-1).
Setpoint: the digital output to be controlled by setpoint functionality.
Pulse weight [Wh] 1 ÷ 10000 100
The pulse is generated every time that the energy selected is increased of the selected value.
Duration [milliseconds] 60 ÷ 1000 500
The pulse has a duty cycle of 50% (Ton equal Toff) and the duration selected.
Associated DO-1 See Acronym table of Energy Wh IN
Associated measure to the digital output DO-1.
Associated DO-2 See Acronym table of Energy Wh OUT
Associated measure to the digital output DO-2.
Associated DO-3 (option) See Acronym table of Energy VArh IN
Associated measure to the digital output DO-3.
Associated with DO-4 (option) See Acronym table of Energy VArh OUT
Associated measure to the digital output DO-4.
FDE N°
13JMC3520859
Rév. A2
Page 34 / 51
DO-5, 6, 7, 8 (digital outputs
option)
Status On o Off Off
DO-5, DO-6, DO-7, DO-8: select ON to close the output, OFF to open it.
Level Active low or Active high Active high
Active Low: initial state high level.
Active High: initial state low level.
Mode Status - Setpoint Status
Status: see the Status item set.
Setpoint: the digital output to be controlled by setpoint functionality.
Range Default
DI 1, 2, 3, 4 (digital inputs option) Range Default
Mode See below Status
- Status
- Counter
- Change energy timeband actually used (see example)
- Change counter timeband actually used (see example)
- Change energy and counter timeband actually used (see example)
Example:
DI‐4 = 1, DI‐3, = 0 DI‐2 = 0, DI‐1 = 1
The timeband selected is 1001bin -> TB 9
DI‐4 = 0, DI‐3, = 0 DI‐2 = 1, DI‐1 = 1
The timeband selected is 0011bin -> TB 3
Multiplier 1 ÷ 1000 1
If the digital inputs mode is counter this parameter multiply the input pulse for the coefficient set.
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Setpoint XX (from 1 to 16) Range Default
Enable Yes or No No
Enable or disable the setpoint function.
Measure group See Acronyms Group table --Selection of the group for the actual setpoint.
Measure controlled See acronym in the table of the group
selected
Selection of the measure in the selected Measure Group of the actual setpoint.
High threshold ± 9999 0
The Action is executed if the measure exceed the set value.
High threshold unit See below See below underlined
Unit measure of threshold.
Voltage: mV - V - kV - MV
Current: mA - A - kA - MA
Apparent power: VA - kVA - MVA - GVA
Active power: W - kW - MW - GW
Reactive power: VAr - kVAr - MVAr - GVAr
Frequency: mHz
Low threshold ± 9999 0
The Action is executed if the measure is lower than the set value.
Low threshold unit See below See below underlined
Unit measure of threshold.
Voltage: mV - V - kV - MV
Current: mA - A - kA - MA
Apparent power: VA - kVA - MVA - GVA
Active power: W - kW - MW - GW
Reactive power: VAr - kVAr - MVAr - GVAr
Frequency: mHz
Over debounce [seconds] 0 ÷10000 0
0: instantaneous execution of the Action
1÷10000: execution of the Action if the condition is kept for the time set
Entry debounce [seconds] 0 ÷10000 0
0: instantaneous execution of the Action
1÷10000: execution of the Action if the condition is kept for the time set
Hysteresis (for high & low
threshold)
No 50,000% 25,000% 12,500% 6,250% 3,125%
Logic operation over See below Disabled
- No logic: the Action is executed without to verify the status of others setpoint [Default].
- OR logic: the Action is execute after the check of result of the OR logic operation with the setpoint
selected in operands.
- AND logic: the Action is execute after the check of result of the AND logic operation with the setpoint
selected in operands.
WARNING:
time.
it’s not possible to set OR logic for logic operation over and logic operation entry at the same
Temperature: °C
THD and harmonics: %*100
Angle: degree*10
Apparent energy: VAh*100 - kVAh - MVAh - GVAh
Active energy: Wh*100 - kWh - MWh - GWh
Reactive energy: VArh*100 - kVArh - MVArh - GVArh
Temperature: °C
THD and harmonics: %*100
Angle: degree*10
Apparent energy: VAh*100 - kVAh - MVAh - GVAh
Active energy: Wh*100 - kWh - MWh - GWh
Reactive energy: VArh*100 - kVArh - MVArh - GVArh
See below
FDE N°
13JMC3520859
Rév. A2
Page 35 / 51
---
No
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Logic operation entry See below Disabled
- No logic: the Action is executed without to verify the status of others setpoint [Default].
- OR logic: the Action is execute after the check of result of the OR logic operation with the setpoint
selected in operands.
- AND logic: the Action is execute after the check of result of the AND logic operation with the setpoint
selected in operands.
WARNING:
time.
Operands See below No Operands
Setpoint 1: select Yes to include the setpoint 01 in the logic.
- - - - - - - - - - - - - - - - - - Setpoint 16: select Yes to include the setpoint 16 in the logic.
Action over See below None
It possible to select one, more or anything action:
- Display and save the event.
- Change the DO-X state.
- Increase a variable that indicates the number of events.
- Increase a variable that indicates the duration time of the event.
Action entry See below None
It possible to select one, more or anything action:
- Display and save the event.
- Change the DO-X state
DO used See below None
It possible to select (with Yes) one or more DO: DO-1, DO-2, DO-3, DO-4, DO-5, DO-6, DO-7, DO-8.
it’s not possible to set OR logic for logic operation over and logic operation entry at the same
FDE N°
13JMC3520859
Rév. A2
Page 36 / 51
WARNING: for a correct functioning before to select the output it’s necessary to set the SETPOINT mode
under the item MODE in the setup page of the DO group (DO-1, 2, 3, 4 o DO-5, 6, 7, 8).
Setpoint Log Range Default
Log to read 1 ÷ 256 1
Input the number of the log to read via communication interface.
The Log storing is done with FIFO logic.
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
Setpoint explanation:
Thrend
Measure
High
Threshold
Hysteresis
User Manual
E
LECTRICAL MEASUREMENT
FDE N°
13JMC3520859
Rév. A2
S
UPERVISOR
EMS-96
Page 37 / 51
Debounce
High (Sec)
DO ACTION
RECOVERY
ACTION
Hysteresis
Low
Threshold
RECOVERY
ACTION
Debounce
Low (Sec)
DO ACTION
Sec
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24

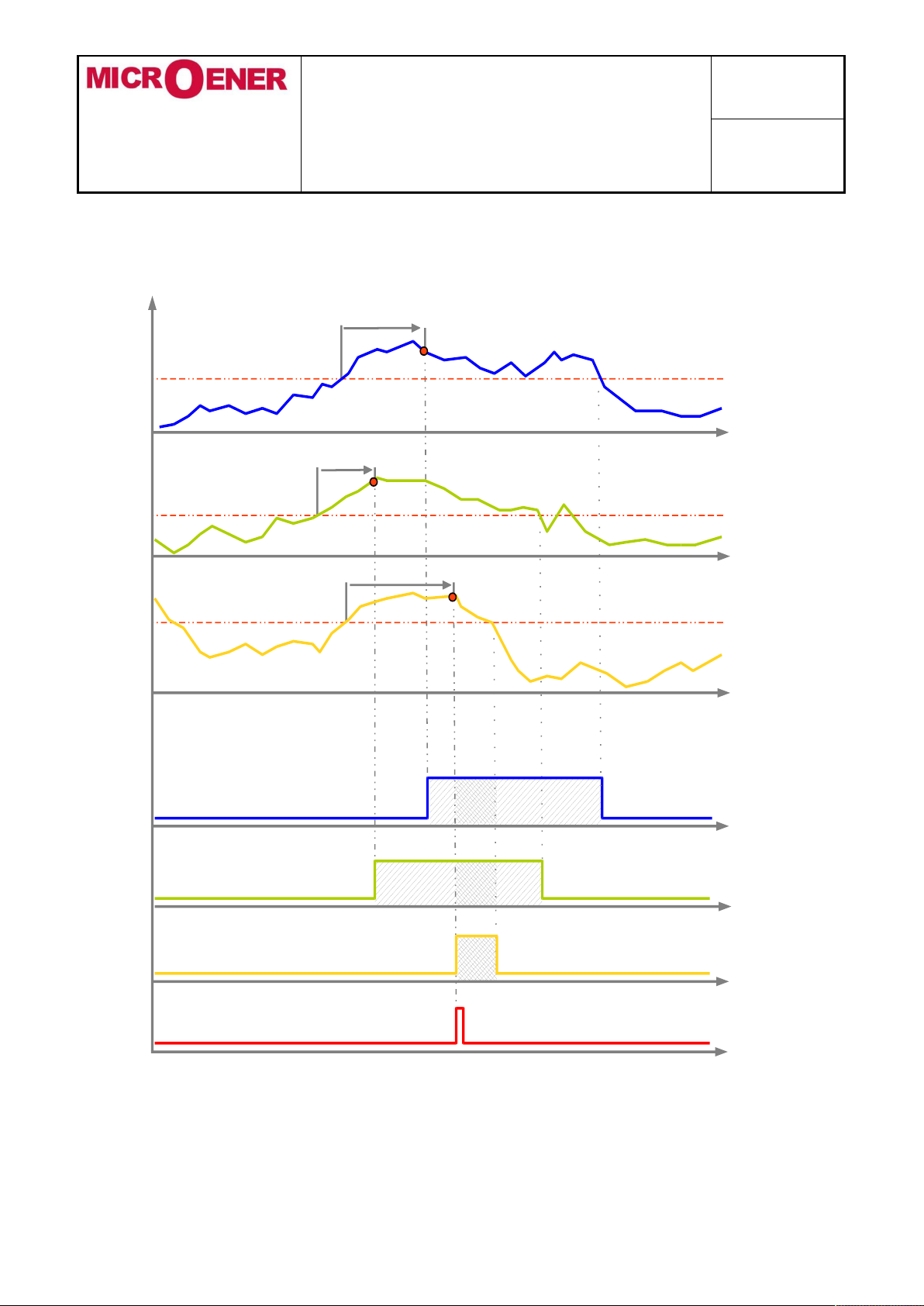

Setpoint logic explanation:
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
FDE N°
13JMC3520859
Rév. A2
Page 38 / 51
Thrend
Measure
Threeshold
Threeshold
Threeshold
Debounce
Debounce
Debounce
V1
Sec
V2
Sec
V3
Sec
Operands:
- Setpoint 1 (with parameter Line Voltage 1)
- Setpoint 2 (with parameter Line Voltage 2)
- Setpoint 3 (with parameter Line Voltage 3)
Logic Set: V1 AND V2 AND V3
State Set Point 1
State Set Point 2
State Set Point 3
DO ACTION
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
COM1 and COM2 (option) Range Default
Mode Slave or Master Slave
Slave connected 1 ÷247 1
Number of slave connected in master mode.
Timeout [milliseconds]
Time after than it will be set the no slave response flag and increase the NO RESPONSE COUNTER if the
answer isn’t received (Master Mode).
Scan rate [milliseconds]
Delay between two master request (Master mode).
Note: this value must be greater than TIMEOUT.
Node ID 1 ÷247 1
Instrument identifier on the modbus network.
Note: valid only in Slave Mode.
Baud rate [kbit/s] 4800-9600-19200-38400-57600-115200 38400
The communication speed.
Stop bits 1 or 2 stop bits 1 stop
Communication parameters.
Parity None - Parity Odd - Parity Even None
Communication parameters.
Response delay [milliseconds] 0 ÷100 10
If set 0 the instrument responds as soon as possible.
Modify this value if use a slow external converter.
Ethernet (option) Range Default
ID Modbus TCP 1 ÷ 247 1
DHCP 0 or 1 0
IP Address 0.0.0.0 ÷ 255.255.255.255 10.0.0.100
Subnet Mask 0.0.0.0 ÷ 255.255.255.255 255.0.0.0
IP Gateway 0.0.0.0 ÷ 255.255.255.255 10.0.0.254
IP Port 0 ÷ 65535 502
Profibus (option) Range Default
Node ID 1 ÷ 126 1
Instrument identifier on the profibus network.
FDE N°
13JMC3520859
Rév. A2
Page 39 / 51
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
M-Bus (option) Range Default
Address [node] 0 ÷ 250 1
Instrument identifier on the M-BUS network.
Baud rate [kbit/s]
Communication speed.
Stop bits 1 or 2 stop bits 1 stop
Communication parameters.
Parity None - Odd – Even Even
Communication parameters.
Min Response delay [milliseconds] 0 ÷100 10
If set 0 the instrument responds as soon as possible.
M-Bus Readout Data (option) Range Default (*)
Group 1 See Acronym Group table Instantaneous
Group of the 1st measure read.
Measure 1
1st measure read.
………………..
………………..
Group 20 See Acronym Group table Energies
Group of the 20st measure read.
Measure 20
20th measure read.
(*) Default Table Group / Measure of M-BUS Readout Data
Number of Group and Measure Group Measure
1 Instantaneous V
2 Instantaneous V L1
3 Instantaneous V L2
4 Instantaneous V L3
5 Instantaneous A
6 Instantaneous A L1
7 Instantaneous A L2
8 Instantaneous A L3
9 Instantaneous PF
10 Instantaneous PF L1
11 Instantaneous PF L2
12 Instantaneous PF L3
13 Instantaneous W
14 Instantaneous VAR
15 Instantaneous N
16 Instantaneous Hz
17 Energies Wh IN
18 Energies Wh OUT
19 Energies VArh IN
20 Energies VArh OUT
300 – 600 – 1200 – 2400 - 4800 – 9600 –
19200 – 38400
See acronym in the table of the group
selected
See acronym in the table of the group
selected
FDE N°
13JMC3520859
Rév. A2
Page 40 / 51
2400
V
VArh OUT
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Daily Plan XX (from 1 to 16)
(option)
Start Hour 1 00 ÷ 23 0
Hour at which the timeband will be changed.
Start Minute 1 00 ÷ 59 0
Minute at which the timeband will be changed.
Timeband Used 1 Not used ÷ Timeband 16 Not used
New Timeband set.
………………..
………………..
Start Hour 16 00 ÷ 23 0
Hour at which the timeband will be changed.
Start Minute 16 00 ÷ 59 0
Minute at which the timeband will be changed.
Timeband Used 16 Not used ÷ Timeband 16 Not used
New Timeband set.
Period Plan XX (from 01 to 16)
(option)
Enable Disabled or Enabled Disabled
Enable or disable the plan.
WARNING
Start Month January ÷ December January
Month at which the period start.
Start Day 1 ÷ 31 1
Day at which the period start.
End Month January ÷ December December
Month at which the period finish.
End Day 1 ÷ 31 31
Day at which the period finish.
Monday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
Tuesday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
Wednesday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
Thursday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
Friday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
Saturday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
Sunday Plan No Plan ÷ Plan 16 No Plan
Plan used for this day.
: Set all the following parameters before to enable it.
Range Default
Range Default
FDE N°
13JMC3520859
Rév. A2
Page 41 / 51
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Holiday (option) Range Default
Month Holiday 1 January ÷ December January
Month in which the holiday is present.
Day Holiday 1 1 ÷ 31 1
Day in which the holiday is present.
Plan Holiday 1 Not Used ÷ Plan 16 --Plan used for this holiday. When the plane setting is different from --- the Holiday Plan is enabled.
………………..
………………..
Month Holiday 48 January ÷ December January
Month in which the holiday is present.
Day Holiday 48 1 ÷ 31 1
Day in which the holiday is present.
Plan Holiday 48 Not Used ÷ Plan 16 --Plan used for this holiday. When the plane setting is different from --- the Holiday Plan is enabled.
Utility Range Default
Language English - Italiano - Deutsch English
Language used for the display text.
Theme Winter - Winter night - Autumn - Autumn
night - Summer - Summer night
Theme is a different combination of colour.
Text dimension Normal – Big Normal
Set the dimension of the char of the instantaneous values showed in the display.
Led left 0.1 Wh/VArh/VAh See Acronym table of Energy Varh IN
Measured associated at the left frontal led.
Led right 0.1 Wh/VArh/VAh See Acronym table of Energy Wh IN
Measured associated at the right frontal led.
LED min period [ms] 60 - 1000 100
Pulse period associated at frontal led.
FDE N°
13JMC3520859
Rév. A2
Page 42 / 51
Winter
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Display Range Default
Return default page [min] 1 ÷ 30 5
After this time the instrument comes back to default page.
Standby No - Yes - Short bright - Change page Yes
Set the type of the standby mode.
Standby entry [min] 1 ÷ 60 10
After this time the instrument goes in the standby mode, as selected in the previous item.
Short bright on period [s] 1 ÷ 600 5
In Short bright mode the display will stay on for this time.
Short bright off period [s] 1 ÷ 600 55
In Short bright mode the display will stay off for this time.
Change page [s] 1 ÷ 600 10
In Change page mode the instrument will change the page after this time.
Category page 1 Measure – Graphics Graphics
Category of the 1st page showed in Change page mode.
Page 1 See the table of displayable pages Voltages zoom
1st page showed in Change page mode.
Category page 2 Measure – Graphics Graphics
Category of the 2nd page showed in Change page mode.
Page 2 See the table of displayable pages Currents zoom
2nd page showed in Change page mode.
Category page 3 Measure – Graphics Graphics
Category of the 3rd page showed in Change page mode.
Page 3 See the table of displayable pages Daily energy
3rd page showed in Change page mode.
Category page 4 Measure – Graphics Graphics
Category of the 4th page showed in Change page mode.
Page 4 See the table of displayable pages Weekly energy
4th page showed in Change page mode.
FDE N°
13JMC3520859
Rév. A2
Page 43 / 51
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Table of the displayable pages in the Change page mode
Measure Graphics
voltages frequency user page 1 voltages trend Friday power May energy
phase-phase
voltages
currents thd currents user page 3 currents trend Sunday power July energy
power factor Wh in user page 4 currents zoom daily energy August energy
cos-phi Wh out load bars weekly energy
tan-phi VArh in Monday power January energy October energy
active power VArh out Tuesday power
reactive power Vah
apparent power
thd voltages user page 2 voltages zoom Saturday power June energy
February
energy
expected
power
Wednesday
power
Thursday power April energy yearly energy
March energy
FDE N°
13JMC3520859
Rév. A2
Page 44 / 51
September
energy
November
energy
December
energy
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Preset Total Energies Range Default
Wh IN [0.1kWh] 0÷1000000000 0
Value to add at the actual system active energy IN counter.
Wh OUT [0.1kWh] 0÷1000000000 0
Value to add at the actual system active energy OUT counter.
VArh IN [0.1kVArh] 0÷1000000000 0
Value to add at the actual system reactive energy IN counter.
VArh OUT [0.1kVArh] 0÷1000000000 0
Value to add at the actual system reactive energy OUT counter.
VAh [0.1kAh] 0÷1000000000 0
Value to add at the actual system apparent energy counter.
Wh IN L1 0÷1000000000 0
Value to add at the actual L1 active energy IN counter.
Wh OUT L1 0÷1000000000 0
Value to add at the actual L1 active energy OUT counter.
VArh IN L1 0÷1000000000 0
Value to add at the actual L1 reactive energy IN counter.
VArh OUT L1 0÷1000000000 0
Value to add at the actual L1 reactive energy OUT counter.
VAh L1 0÷1000000000 0
Value to add at the actual L1 apparent energy counter.
Wh IN L2 0÷1000000000 0
Value to add at the actual L2 active energy IN counter.
Wh OUT L2 0÷1000000000 0
Value to add at the actual L2 active energy OUT counter.
VArh IN L2 0÷1000000000 0
Value to add at the actual L2 reactive energy IN counter.
VArh OUT L2 0÷1000000000 0
Value to add at the actual L2 reactive energy OUT counter.
VAh L2 0÷1000000000 0
Value to add at the actual L2 apparent energy counter.
Wh IN L3 0÷1000000000 0
Value to add at the actual L3 active energy IN counter.
Wh OUT L3 0÷1000000000 0
Value to add at the actual L3 active energy OUT counter.
VArh IN L3 0÷1000000000 0
Value to add at the actual L3 reactive energy IN counter.
VArh OUT L3 0÷1000000000 0
Value to add at the actual L3 reactive energy OUT counter.
VAh L3 0÷1000000000 0
Value to add at the actual L3 apparent energy counter.
Editing Titles
Title showed in the User Page X.
Editing Rows Texts
Text showed in the User Page Row.
FDE N°
13JMC3520859
Rév. A2
Page 45 / 51
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
User Page XX (from 01 to 04) Range Default
Row 1 – Group See Acronym Group table Instantaneous
Selection of the group for the 1st measure on the User Page XX.
Row 1 – Measure See acronym in the table of the group
selected
Selection of the measure showed on the 1st row of the User Page XX in the Row 1 - Group.
Row 2 – Group See Acronym Group table Instantaneous
Selection of the group for the 2nd measure on the User Page XX.
Row 2 – Measure See acronym in the table of the group
selected
Selection of the measure showed on the 2nd row of the User Page XX in the Row 2 - Group.
Row 3 – Group See Acronym Group table Instantaneous
Selection of the group for the 3rd measure on the User Page XX.
Row 3 – Measure See acronym in the table of the group
selected
Selection of the measure showed on the 3rd row of the User Page XX in the Row 3 - Group.
Row 4 – Group See Acronym Group table Instantaneous
Selection of the group for the 4th measure on the User Page XX.
Row 4 – Measure See acronym in the table of the group
selected
Selection of the measure showed on the 4th row of the User Page XX in the Row 4 - Group.
Row 5 – Group See Acronym Group table Energies
Selection of the group for the 5th measure on the User Page XX.
Row 5 – Measure See acronym in the table of the group
selected
Selection of the measure showed on the 5th row of the User Page XX in the Row 5 - Group.
Row 6 – Group See Acronym Group table Energies
Selection of the group for the 6th measure on the User Page XX.
Row 6 – Measure See acronym in the table of the group
selected
Selection of the measure showed on the 6th row of the User Page XX in the Row 6 - Group.
Graphics Range Default
V/A sampling [Seconds] 1 ÷ 60 5
Sampling time for the voltage and current graphic trend.
Max bar value 0 ÷ 999999 6000
Set the high limit value of the graphic bars.
Max bar unit mA - A - kA - MA mA
Set the high limit unit of the graphic bars.
Limit bar value 0 ÷ 999999 5000
Set the limit above which the bars change color from green to red.
Limit bar unit mA - A - kA - MA mA
Set the limit unit.
Clear max bar Yes or No No
Reset the maximum signal on the graphic bars.
V, V L1, V L2, V L3
A, A L1, A L2, A L3
W, W L1, W L2, W L3
VAr, VAr L1, VAr L2,
Wh IN, Wh L1 IN,
Wh L2 IN, Wh L3 IN
VArh IN, VArh L1 IN,
VArh L2 IN, VArh L3
FDE N°
13JMC3520859
Rév. A2
Page 46 / 51
VAr L3
IN
User Manual
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Generic Log (option) Range Default
Log read 1 ÷ X 1
The value set is the number of the log that is read.
X: depend from the number of the log stored.
Enable Yes or No No
Enable or disable the generic log.
Sampling [seconds] 1 ÷ 3600 15
Acquisition timing.
Storage Type FIFO or End memory End memory
Type of storage.
Note: FIFO after 10 consecutive cycles is automatically disabled.
1st Measure Group See Acronym Group table --Selection of the group for the 1st measure sampled for the generic log.
1st Measure See acronym in the table of the group
selected
Selection of the 1st measure sampled for the generic log.
………………..
………………..
30th Measure Group See Acronym Group table ---
Selection of the group for the 30st measure sampled for the generic log.
30th Measure See acronym in the table of the group
selected
Selection of the 30st measure sampled for the generic log.
Smart Log (option) Range Default
Log read 1 ÷ X 1
The value set is the number of the log that is read.
X: depend from the number of the log stored.
Enable Yes or No No
Enable or disable the smart log.
Analyse window 1 min - 2 min - 3 min - 5 min - 6 min - 10
min - 12 min - 15 min - 20 min - 30 min 60 min - end of day - end of week - end
of month or end of year
Acquisition timing
Storage Type FIFO or End memory End memory
Type of storage.
Note: FIFO after 10 consecutive cycles is automatically disabled.
1st Measure Group See Acronym Group table --Selection of the group for the 1st measure sampled for the smart log.
1st Measure See acronym in the table of the group
selected
Selection of the 1st measure sampled for the smart log.
………………..
………………..
30th Measure Group See Acronym Group table ---
Selection of the group for the 30st measure sampled for the smart log.
30th Measure See acronym in the table of the group
selected
Selection of the 30st measure sampled for the smart log.
FDE N°
13JMC3520859
Rév. A2
Page 47 / 51
---
---
15 min
---
---
FDE N°
13JMC3520859
Rév. A2
Page 48 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
ACRONYM TABLES
Acronyms group table
Acronym
Instantaneous
Energies
Energies TB‐1
Energies TB‐2
Energies TB‐3
Energies TB‐4
Energies TB‐5
Acronym Acronym
Energies TB‐6
Energies TB‐7
Energies TB‐8
Energies TB‐9
Energies TB‐10
Energies TB‐12
Energies TB‐11
Energies TB‐13
Energies TB‐14
Energies TB‐15
Energies TB‐16
Average
Acronyms table of Instantaneous group
Acronym Explanation Acronym Explanation Acronym Explanation
V
V L1
V L2
V L3
V L1-L2 L1-L2 Voltage
V L2-L3 L2-L3 Voltage
V L3-L1 L3-L1 Voltage
A
A L1
A L2
A L3
PF
PF L1
PF L2
PF L3
COS
COS L1
System Voltage
Voltage L1
Voltage L2
Voltage L3
System Current
Current L1
Current L2
Current L3
System Power Factor
Power Factor L1
Power Factor L2
Power Factor L3
System COS
COS L1
COS L2
COS L3
VA
VA L1
VA L2
VA L3
W
W L1
W L2
W L3
VAR
VAR L1
VAR L2
VAR L3
N
Hz
TEMP
COS L2
COS L3
System Apparent Power THD V L3 THD Voltage L3
Apparent Power L1 THD A L1 THD Current L1
Apparent Power L2 THD A L2 THD Current L2
Apparent Power L3 THD A L3 THD Current L3
System Active Power DEG L1‐L2 Phase Angle L1‐L2
Active Power L1 DEG L2‐L3 Phase Angle L2‐L3
Active Power L2 DEG L3‐L1 Phase Angle L3‐L1
Active Power L3
System Reactive Power
Reactive Power L1
Reactive Power L2
Reactive Power L3 EXP W System Expected Power
Neutral Current EXP W L1 Expected Power L1
Frequency
Temperature
THD V L1
THD V L2
TAN
TAN L1
TAN L2
TAN L3
EXP W L2
EXP W L3
THD Voltage L1
THD Voltage L2
System Tan
Tan L1
Tan L2
Tan L3
Expected Power L2
Expected Power L3
Acronyms table of Energies and TB (from 1 to 16) groups
Acronym Explanation Acronym Explanation Acronym Explanation
Wh IN System Active Energy IN
Wh OUT System Active Energy OUT
VArh IN System Reactive Energy IN
VArh OUT System Reactive Energy OUT
VAh System Apparent Energy
Wh L1 IN Active Energy L1 IN
Wh L1 OUT
Active Energy L1 OUT
VArh L1 IN Reactive Energy L1 IN
VArh L1 OUT Reactive Energy L1 OUT Wh L3 IN Active Energy L3 IN
VAh L1 Apparent Energy L1
Wh L2 IN Active Energy L2 IN
Wh L2 OUT Active Energy L2 OUT
VArh L2 IN Reactive Energy L2 IN
VArh L2 OUT
Reactive Energy L2 OUT
VAh L2 Apparent Energy L2
Wh L3 OUT Active Energy L3 OUT
VArh L3 IN Reactive Energy L3 IN
VArh L3 OUT Reactive Energy L3 OUT
VAh L3 Apparent Energy L3
FDE N°
13JMC3520859
Rév. A2
Page 49 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Acronyms table of Average group
Acronym Explanation Acronym Explanation Acronym Explanation
AVG V
AVG V L1
AVG V L2
AVG V L3
AVG A
AVG A L1
AVG A L2
AVG A L3
AVG PF
AVG PF L1
AVG PF L2
AVG PF L3
AVG COS
System Average Voltage
Average Voltage Phase 1
Average Voltage Phase 2
Average Voltage Phase 3
System Average Current
Average Current L1
Average Current L2
Average Current L3
System Average Power
Factor
Average Power Factor L1
Average Power Factor L2
Average Power Factor L3
System Average COS
AVG COS L1
AVG COS L2
AVG-COS-3
AVG VA
AVG VA L1
AVG VA L2
AVG VA L3
AVG W
AVG W L1
AVG W L2
AVG W L3
AVG VAR
AVG VAR L1
Average COS L1
Average COS L2
Average COS L3
System Average Apparent
Power
Average Apparent Power L1
Average Apparent Power L2
Average Apparent Power L3
System Average Active Power
Average Active Power L1
Average Active Power L2
Average Active Power L3
System Average Reactive
Power
Average Reactive Power L1
AVG VAR L2
AVG VAR L3
AVG TAN
AVG TAN L1
AVG TAN L2
AVG TAN L3
EXP W L1
EXP W L2
EXP W L3
AVG N
AVG Hz
EXP W
Average Reactive Power
L2
Average Reactive Power
L3
Average Neutral Current
Average Frequency
Average System Tan
Average Tan L1
Average Tan L2
Average Tan L3
System Expected Active
Power
Expected Active Power L1
Expected Active Power L2
Expected Active Power L3
DIMENSIONS
EMS‐96
96
Default Menu S etEsc
Electric al Measurement Su pervisor
96
9.8 100
10 12
89.5
For fixing the flush mount version instrument to the panel, use the fixing devices supplied, by inserting them
in the side groves of the enclosure and tighten the screws.
For safety reasons, place an external fuse protection at the input voltages, and use adequate cables for the
working voltages and currents, with a cross sections from 0,5 to 2,5 mm2.
FDE N°
13JMC3520859
Rév. A2
Page 50 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
TECHNICAL FEATURES
Auxiliary power supply
Voltage range 90÷250 Vac/dc
24÷48 Vac/dc
Frequency range 50/60 Hz
Protection fuse 1A Time Lag
Power consumption 8VA max – 1VA min (depending on the options and activities)
Measures / precision
Energy Factory Default: CEI EN 62053-21 compliant – Class 1 (1%)
CEI EN 62053-22 compliant – Class 0.5 S (0.5%)
CEI EN 62053-22 compliant – Class 0.2 S (0.2%)
Frequency 40÷70 Hz
Power factor ± 1.000
Cos ± 1.000
Tan ± tan 89.9°
THD IEC62053-22 Compliant
Harmonics Up to 20th Harmonics – IEC62053-22
Measurement range
Voltage 30÷400VAc phase to neutral (52÷693 Vac phase to phase)
Current 1A 10mA÷1A (for 1, 0.5S or 0.2S Class accuracy, depending on the option)
Current 5A 50mA÷5A (for 1, 0.5S or 0.2S Class accuracy, depending on the option)
Installation
Distribution networks low and medium voltage
single-phase connection
three-phase with neutral
three-phase without neutral
Voltage inputs
Inputs type 3 phase inputs + Neutral
Permitted over voltage 480 Vac phase to neutral (830Vac continuous phase to phase)
Over-voltage category: III (permanent installations)
Input resistance >1.8MΩ
Frequency range 50/60 Hz
Note: V1 terminal must be connected
Load (Burden) for each input 0.09 VA
Current inputs
Inputs type 3 inputs isolated by internal current transformers
additional input for neutral current with the same characteristics to the phase
inputs
Maximum continuous overload 1A 1.3A
Maximum continuous overload 5A 6.5A
Load (Burden) for each input 0.00055 VA
Mechanical
Overall dimension 96x96x130 mm
Weight 450 gr
Communication RS485
Protocol Modbus RTU
Standard RS485 half-duplex with optical isolation
Baud rate 4.8 – 9.6 – 19.2 – 38.4 – 57.6 – 115.2 kbps
Node ID 1÷247
Parity Even – Odd – None
Stop bit 1, 2
Communication Profibus
Protocol Profibus with slave DP-V0
Baud rate 9.6Kbits/s – 3Mbits/s
Address 0-126
MAX
FDE N°
13JMC3520859
Rév. A2
Page 51 / 51
Tél : 01 48 15 09 09
Fax : 01 43 05 08 24
User Manual
E
LECTRICAL MEASUREMENT
S
UPERVISOR
EMS-96
Connector DB 9 female connector
Communication Ethernet
Protocol ModbusTCP, SNMP
Connector RJ45, WiFi
Digital Inputs
Number of digital inputs 2, 4
Input voltage range Input rated voltage V
order)
Input current Rated input current I
Inputs configuration 2 terminals (A-K) for each input: NPN, PNP
Isolation voltage 3.5KV for 60 sec.
Input filter Digital
Pulse duration T
Digital Outputs
Number of digital outputs 2, 4, 6, 8
Type Photo-MOS (solid state); RON= 8Ω typ. (12Ω MAX)
Voltage/Current range 10÷300Vdc 150mA
Voltage isolation 4KV for 60 sec.
Output functionality Digital Output programmed as alarm
Pulse duration T
Clock calendar
Data Hours, minutes, seconds, day of week, date, month, year
Update Through modbus command and synchronization from digital inputs
Data retention in absence of voltage 1 week backup guaranteed
Storage
Type of memory Internal memory (factory default) – MicroSD card (option)
30ms, T
ON_min
Selectable pulse period 60ms÷1000ms
Programmable pulse polarity (active close or active open)
Programmable pulse “weight”
30ms, T
ON_min
OFF_min
OFF_min
24, 48, 115, 230 Vac/dc (only one defined in the
INPUT
@ V
INPUT
30ms
; 12÷250Vac 150mA
MAX
30ms
INPUT
: 5mA
MAX
@ V
MAX
INPUT
=all voltages
CE COMPLIANCE AND STANDARDS
The instrument was tested in compliance with EMC 89/336/EEC and complies with the following standards:
EMISSIONS = EN 50081-2, 1992 - EN 55022-CLASS B CISPR 22
IMMUNITY = EN 50082-1, 1992 - EN 61000-6-2
SAFETY = EN 61010-2
Les performances et les caractéristiques indiquées dans ce document peuvent être modifiées à tout moment et
n’engagent MicroEner qu’après confirmation.
http://www.microener.com
Loading...
