Compact multimedia development system rich with on-board peripherals for
all-round development on LM3S9B95 device
for Stellaris® M3
mikromedia
™
Page 2
I want to express my thanks to you for being interested in our products and for having
condence in MikroElektronika.
The primary aim of our company is to design and produce high quality electronic products
and to constantly improve the performance thereof in order to better suit your needs.
The Stellaris®, ARM® and Windows® logos and product names are trademarks of Texas Instruments®, ARM® Holdings and Microsoft® in the U.S.A. and other countries.
TO OUR VALUED CUSTOMERS
Nebojsa Matic
General Manager
Introduction to mikromedia for Stellaris® M3 4
Package Contains 5
Key Features 6
System Specication 7
1. Power supply 8
USB power supply 8
Battery power supply 8
2. LM3S9B95 microcontroller 10
Key microcontroller features 10
3. Programming the microcontroller 11
Programming with mikroBootloader 12
step 1 – Connecting mikromedia 12
step 2 – Browsing for .HEX le 13
step 3 – Selecting .HEX le 13
step 4 – Uploading .HEX le 14
step 5 – Finish upload 15
Programming with mikroProg™ programmer 16
4. Reset Button 18

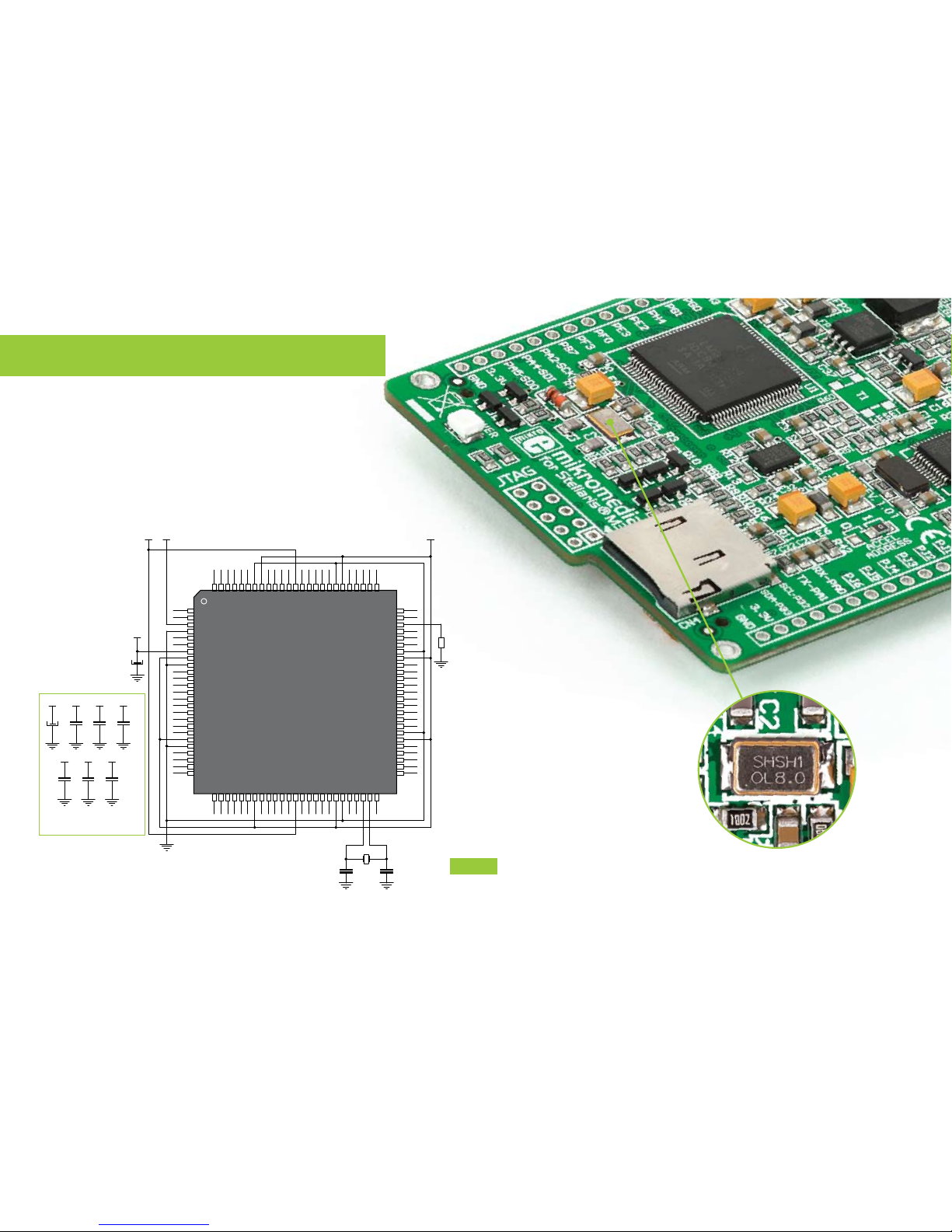

5. Crystal Oscillator 20

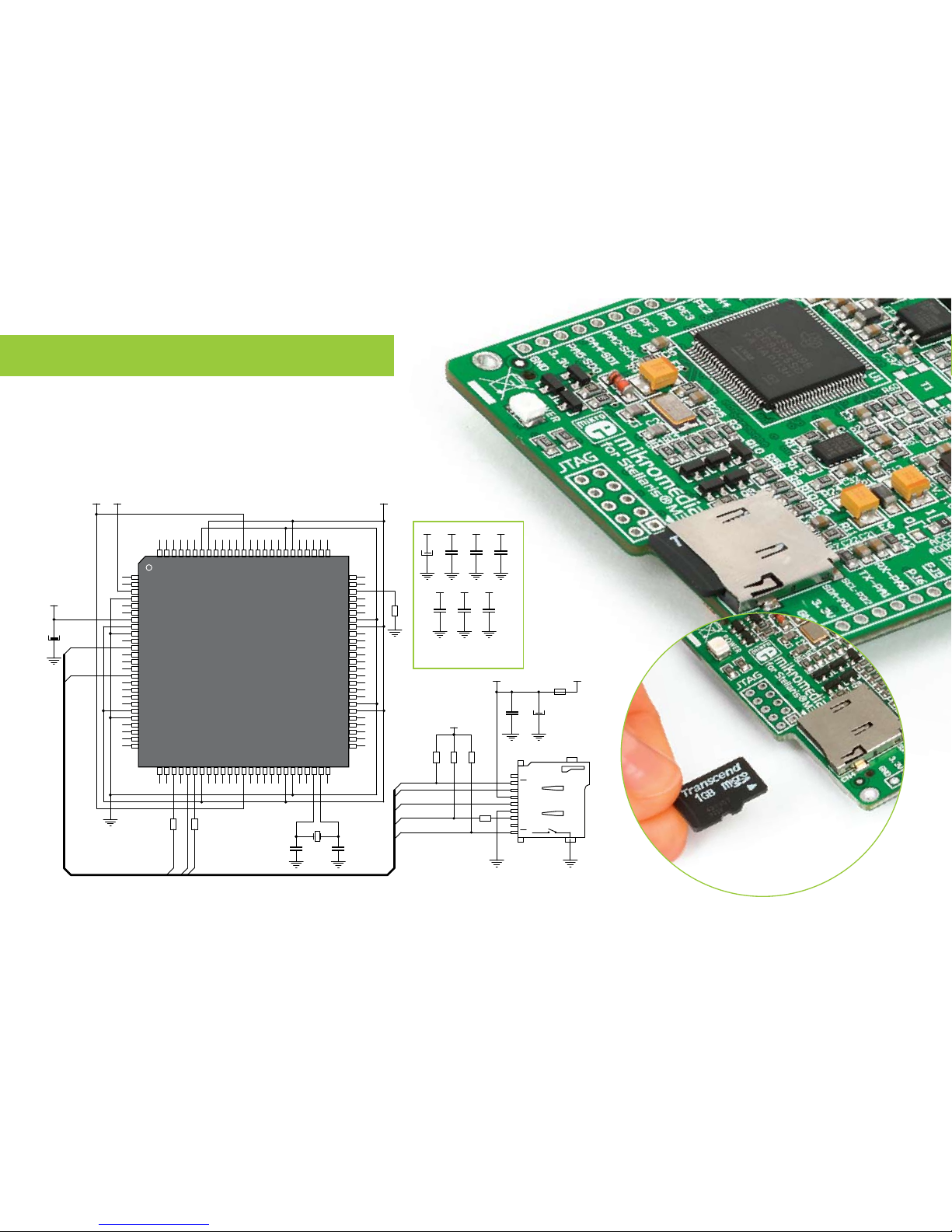

6. MicroSD Card Slot 21
7. Touch Screen 22
8. Audio Module 24
9. USB connection 26
10. Accelerometer 28
11. Flash Memory 29
12. Pads 30
13. Pinout 31
14. Dimensions 32

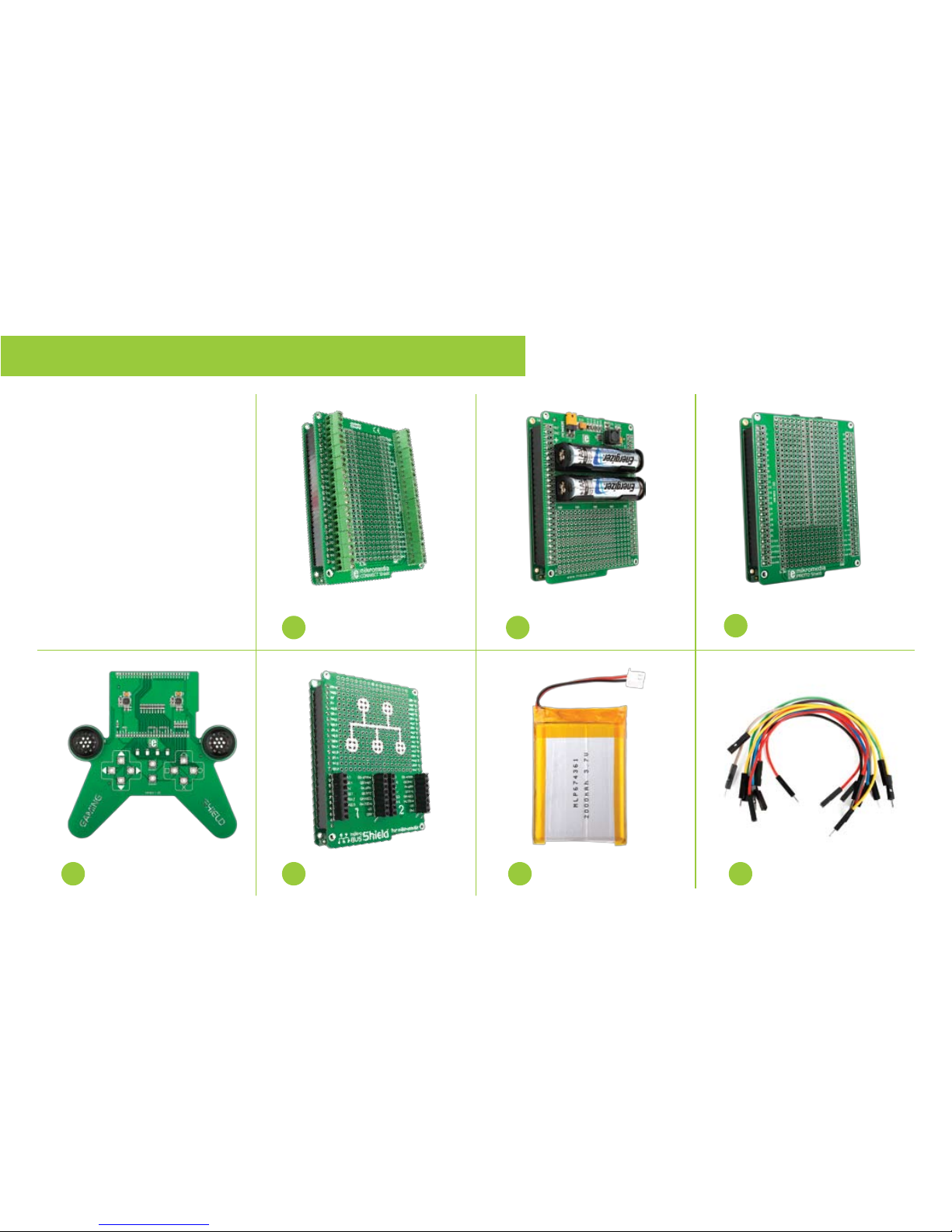

15. Mikromedia Accessories 33
16. What’s Next? 34
Page 3
Table of Contents
Page 4
The mikromedia for Stellaris® M3 is a compact
development system with lots of on-board peripherals
which allow development of devices with multimedia
contents. The central part of the system is a 32-bit
ARM® Cortex™-M3 LM3S9B95 microcontroller. The
mikromedia for Stellaris® M3 features integrated
modules such as stereo MP3 codec, TFT 320x240
touch screen display, accelerometer, MMC/SD card
slot, 8 Mbit ash memory, battery charger. The
board also contains MINI-B USB connector, two 1x26
connection pads and other. It comes pre-programmed
with USB HID bootloader, but can also be programmed
with external programmers, such as mikroProg™ for
Stellaris® or JTAG programmer. Mikromedia is compact
and slim, and perfectly ts in the palm of your hand,
which makes it a convenient platform for mobile
devices.
Introduction to mikromedia for Stellaris® M3
Page 5
01
02
04 05
03
06
Damage resistant
protective box
mikromedia for Stellaris
® M3
development system
mikromedia for Stellaris
®
M3
user’s guide
mikromedia for Stellaris® M3
schematic
DVD with documentation
and examples
USB cable
Package Contains
Copyright ©2011 Mikroelektronika.
All rights reserved. Mikroelektronika, Mikroelektronika logo and other
Mikroelektronika trademarks are the property of Mikroelektronika.
All other trademarks are the property of their respective owners.
Unauthorized copying, hiring, renting, public performance and
broadcasting of this DVD prohibited.
20122011
www.mikroe.com
Page 6
Page 7
01
02
10

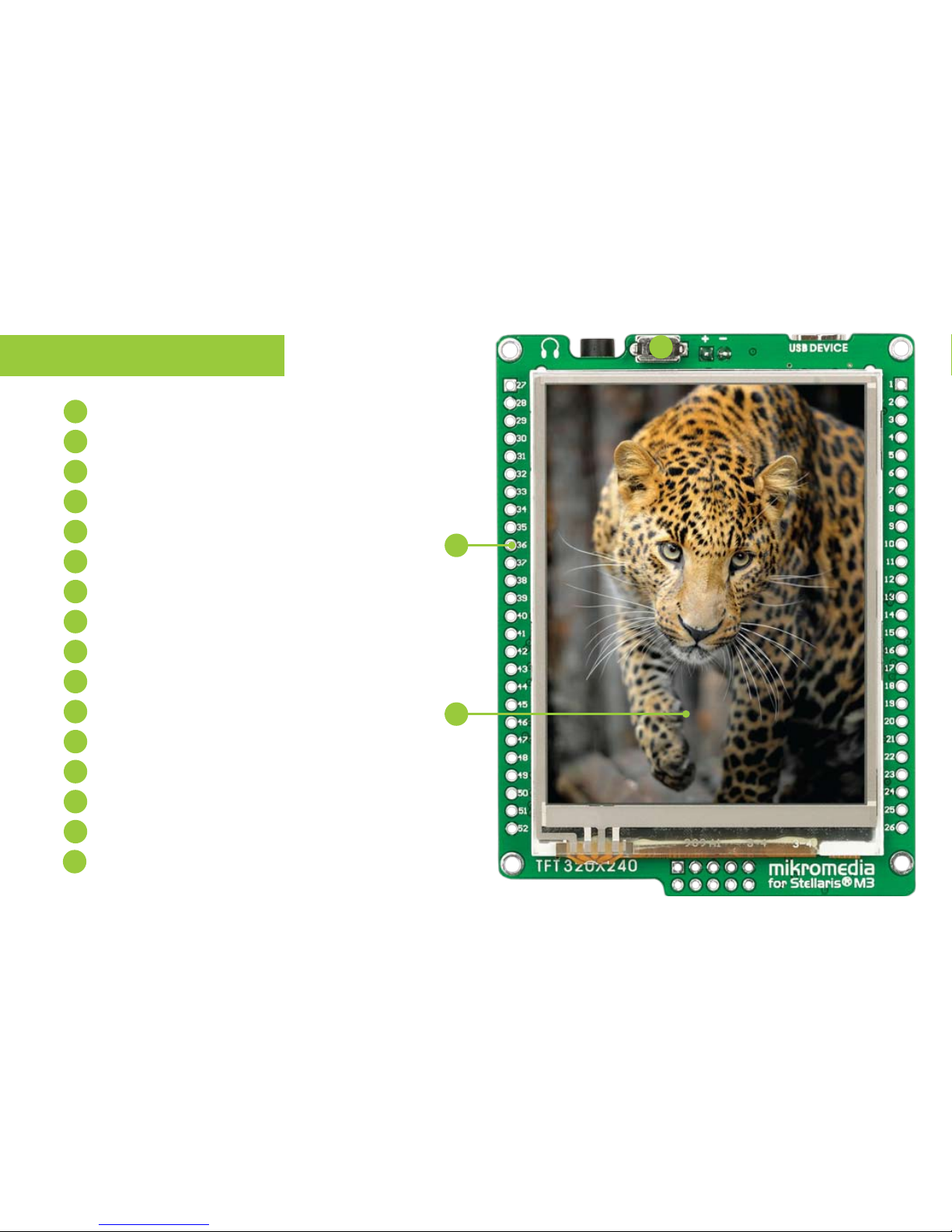

Key Features
16
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Connection Pads
TFT 320x240 display
USB MINI-B connector
Charge indication LED
LI-Polymer battery connector
3.5mm headphone connector
Power supply regulator
Serial Flash memory
VS1053 Stereo mp3 coder/decoder
RESET button
Stellaris
®
ARM® Cortex™-M3 LM3S9B95
Accelerometer
Crystal oscillator
microSD Card Slot
Power indication LED
JTAG/SWD programmer connector
Page 7
System Specication
power supply
Via USB cable (5V DC)
board dimensions
81.2 x 60.5 mm (3.19 x 2.38 inch)
weight
~45 g (0.10 lbs)
power consumption
77 mA with erased MCU
(when on-board modules are inactive)
03
06
07
08
09
11
12
13
14
15
04
05
16
Page 8
Page 9
1. Power supply
You can apply power supply to the board
using MINI-B USB cable provided with
the board. On-board voltage regulators
provide the appropriate voltage levels
to each component on the board. Power
LED (GREEN) will indicate the presence of
power supply.
You can also power the board using Li-Polymer battery,
via on-board battery connector. On-board battery charger
circuit MCP73832 enables you to charge the battery
over USB connection. LED diode (RED) will indicate
when battery is charging. Charging current is ~250mA
and charging voltage is 4.2V DC.
Battery power supply
USB power supply
Figure 1-1: Connecting
USB power supply
Figure 1-2: Connecting Li-Polymer battery
Page 9
VCC-1.8VREF-1.8
E11
10uF
FP3
FERRITE
VCC-3.3
AVCC
FP4
FERRITE
C25
100nF
VCC-SYS
VCC-3.3
E3
10uF
E4
10uF
R26
2K2
VCC-BAT
R44
3K9
Charging Current approx. 250mA
R39
4K7
VCC-3.3
E7 10uF C40
2.2uF
R34
4K7
R6
4K7
VCC-BAT
VSENSE
VCC-SYS
R37
10K
R36
10K
VCC-3.3
STAT
R38
10K
R45
1K
VCC-3.3
E5
10uF
R35
10K
VCC-3.3
C29
2.2uF
VCC-3.3
R46
22K
E10
10uF
R47
120K
VCC-1.8
VCC-1.8
R50
12K1
1
2
3
5
4
Vin
GND
EN ADJ
Vout
U3
AP7331-ADJ
R49
4K7
3
1
2
GND
Vin
Vout
REG1
LD29080DT33
VCC-BAT
LD1
GREEN
LD2
RED
1
2
CN1
BATT CONN
2
3
5
4
1
STAT
VSS
VBAT VDD
PROG
U5
MCP73832
Q4
BC846
Q5
BC846
D1
PMEG3010ER
VCC-SYSVCC-BAT
VCC-USB
R43
10K
M1
DMP2160UW
DATA BUS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
HDR1
M1X26
HDR2
M1X26
VCC-3.3 VCC-3.3
VCC-SYS
VCC-USB
C28
10nF
FP2
FERRITE
1
2
3
4
5
GND
ID
D+
D-
VBUS
CN3
USB MINIB
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

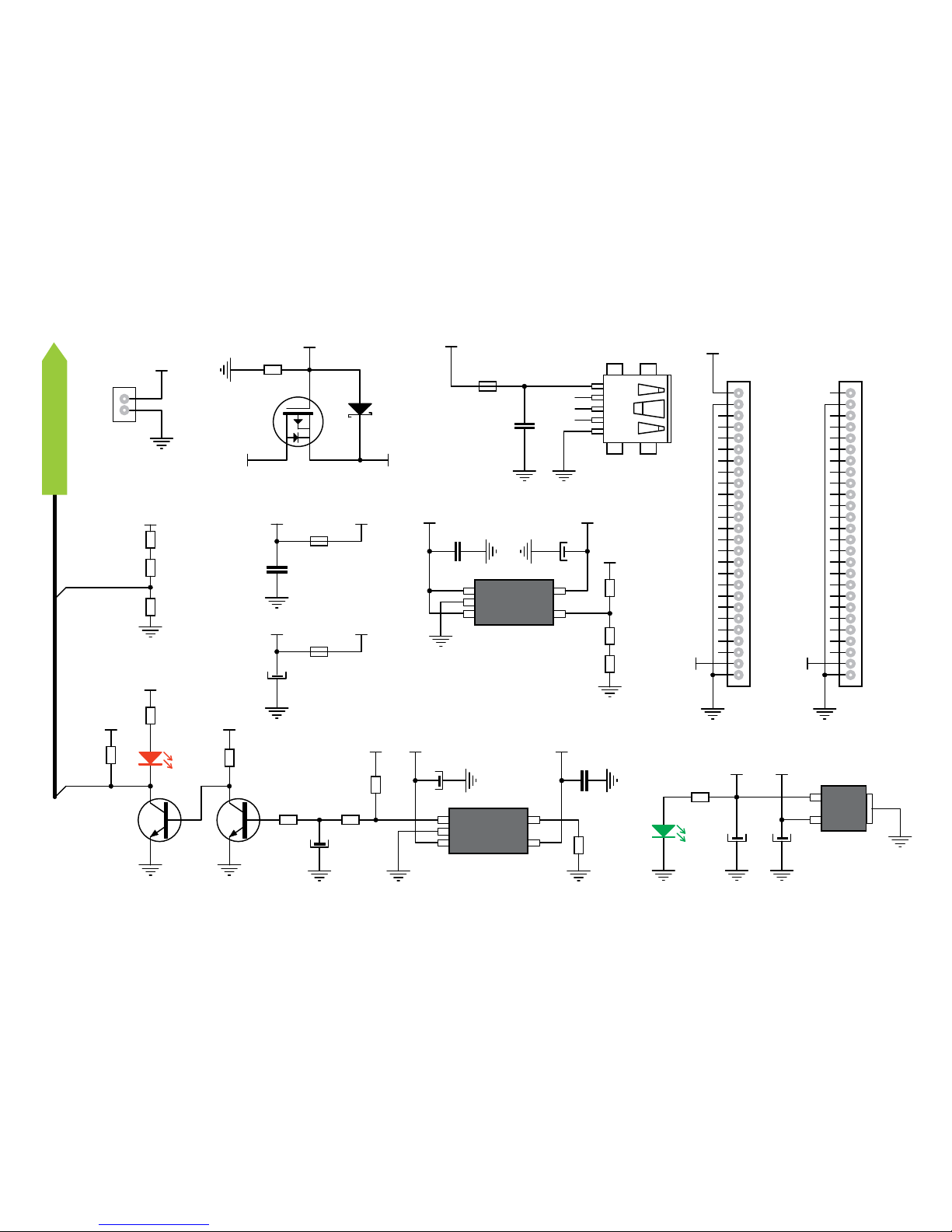

Figure 1-3: Power supply schematics
Page 10
Page 11
The mikromedia for Stellaris® M3 development board comes
with the ARM® Cortex™-M3 LM3S9B95 microcontroller. This
high-performance 32-bit microcontroller with its integrated
modules and in combination with other on-board modules is
ideal for multimedia applications.
Key microcontroller features
- Up to 100 DMIPS Operation;
- 32-bit architecture;
- 256KB of Flash memory;
- 96KB of SRAM memory;
- 65 I/O pins;
- 32kHz RTCC;
- IEEE 1588
- Ethernet, UART, SPI, I2C, CAN, ADC etc.
ROM
JTAG
DMA
GPIOs
USB OTG
SSI
CAN
PWM
QEI
ADC
FLASH
SRAM
UART
I2S
I2C
ETHERNET
MAC/PHY
SYSTEM
CONTROL
AND
CLOCKS
WATCHDOG
TIMERS
GENERAL
PURPOSE
TIMERS
EXTERNAL
PERIPHERIAL
INTERFACE
ANALOG
COMPARATORS
ADVANCED PERFORMANCE BUS
ADVANCED HIGH PERFORMANCE BUS
APB
AHB
2. LM3S9BB95 microcontroller
Page 11
01
02
Over USB mikroBootloader
Using external mikroProg
™
or JTAG programmer
Figure 3-1:
LM3S9B95
ARM® Cortex™-M3
Microcontroller
The microcontroller can be programmed in two ways:
3. Programming the microcontroller
Page 12
Page 13
You can program the microcontroller with bootloader which is pre
programmed into the device by default. To transfer .HEX le from
a PC to MCU you need bootloader software (mikroBootloader
USB HID) which can be downloaded from:
After software is downloaded unzip it to desired location and
start mikroBootloader USB HID software.
http://www.mikroe.com/eng/downloads/get/1752/
mikrobootloader_lm3s9b95_v200.zip
01
02
Programming with mikroBootloader
Figure 3-2: USB HID mikroBootloader window
step 1 – Connecting mikromedia
01
To start, connect the USB cable, or if already connected
press the Reset button on your mikromedia board. Click the
”Connect” button within 5s to enter the bootloader mode,
otherwise existing microcontroller program will execute.
Page 13
01
01
02
step 3 – Selecting .HEX le step 2 – Browsing for .HEX le
Figure 3-3: Browse for HEX Figure 3-4: Selecting HEX
01 01
02
Click the ”Browse for HEX” button and from a
pop-up window (Figure 3.4) choose the .HEX le
which will be uploaded to MCU memory.
Select .HEX le using open dialog window.
Click the ”Open” button.
01
Page 14
Page 15
01
01
step 4 – Uploading .HEX le
Figure 3-5: Begin uploading Figure 3-6: Progress bar
01 01
To start .HEX le bootloading click the
”Begin uploading” button.
You can monitor .HEX le uploading via progress bar
Page 15
01
step 5 – Finish upload
Figure 3-7: Restarting MCU Figure 3-8: mikroBootloader ready for next job
01
Click the ”OK” button after uploading is nished and
wait for 5 seconds. Board will automatically reset
and your new program will execute.
01
Page 16
Page 17

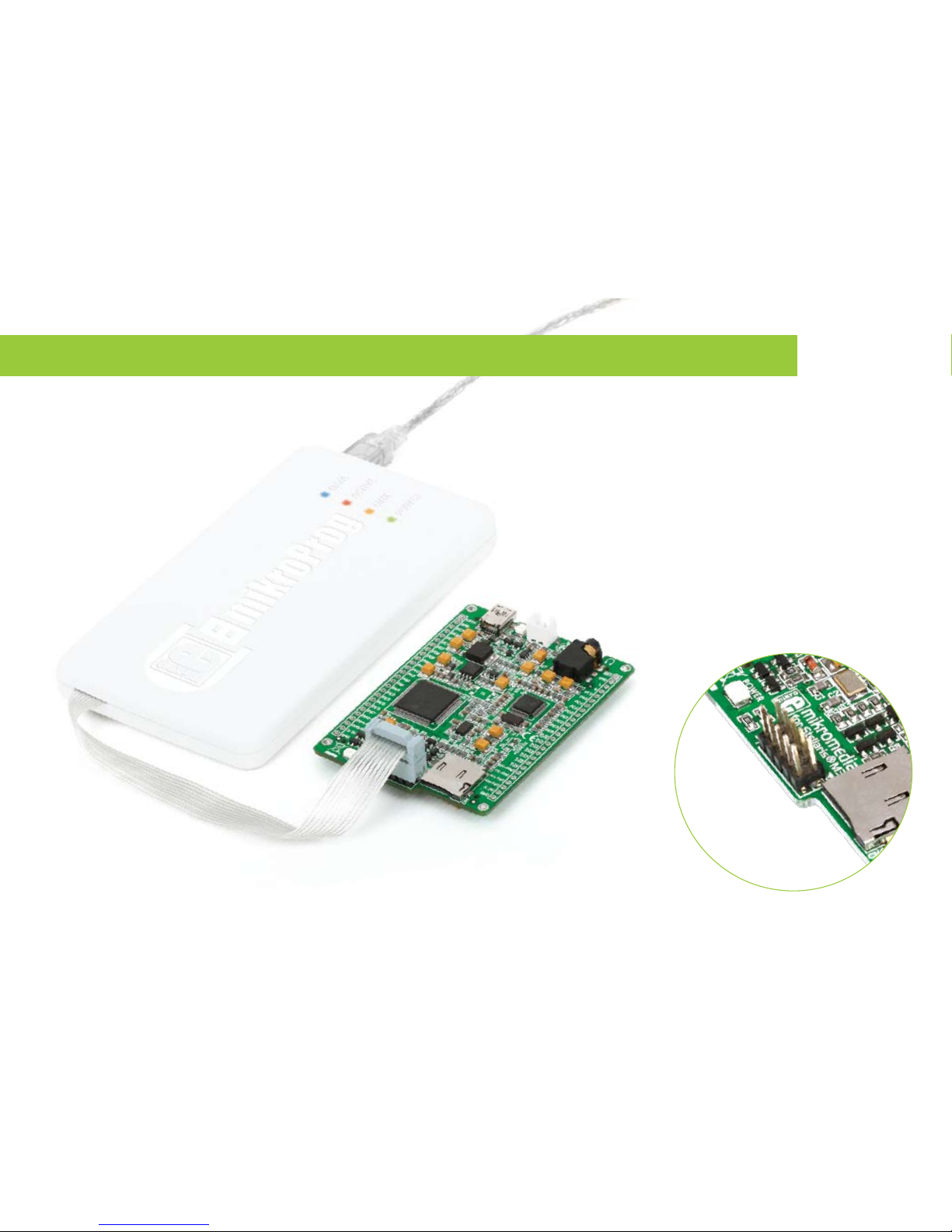

The microcontroller can be programmed
with external mikroProg™ programmer
and mikroProg™ for Stellaris® software.
The external programmer is connected to
the development system via JTAG connector,
Figure 3-9. mikroProg™ is a fast USB 2.0
programmer with hardware Debugger
support. It supports ARM® Cortex™-M3 and
Cortex™-M4 microcontrollers from Stellaris®.
Outstanding performance, easy operation
and elegant design are it’s key features.
Figure 3-9:
mikroProg™ JTAG
connector
Programming with mikroProg™ programmer
Page 17

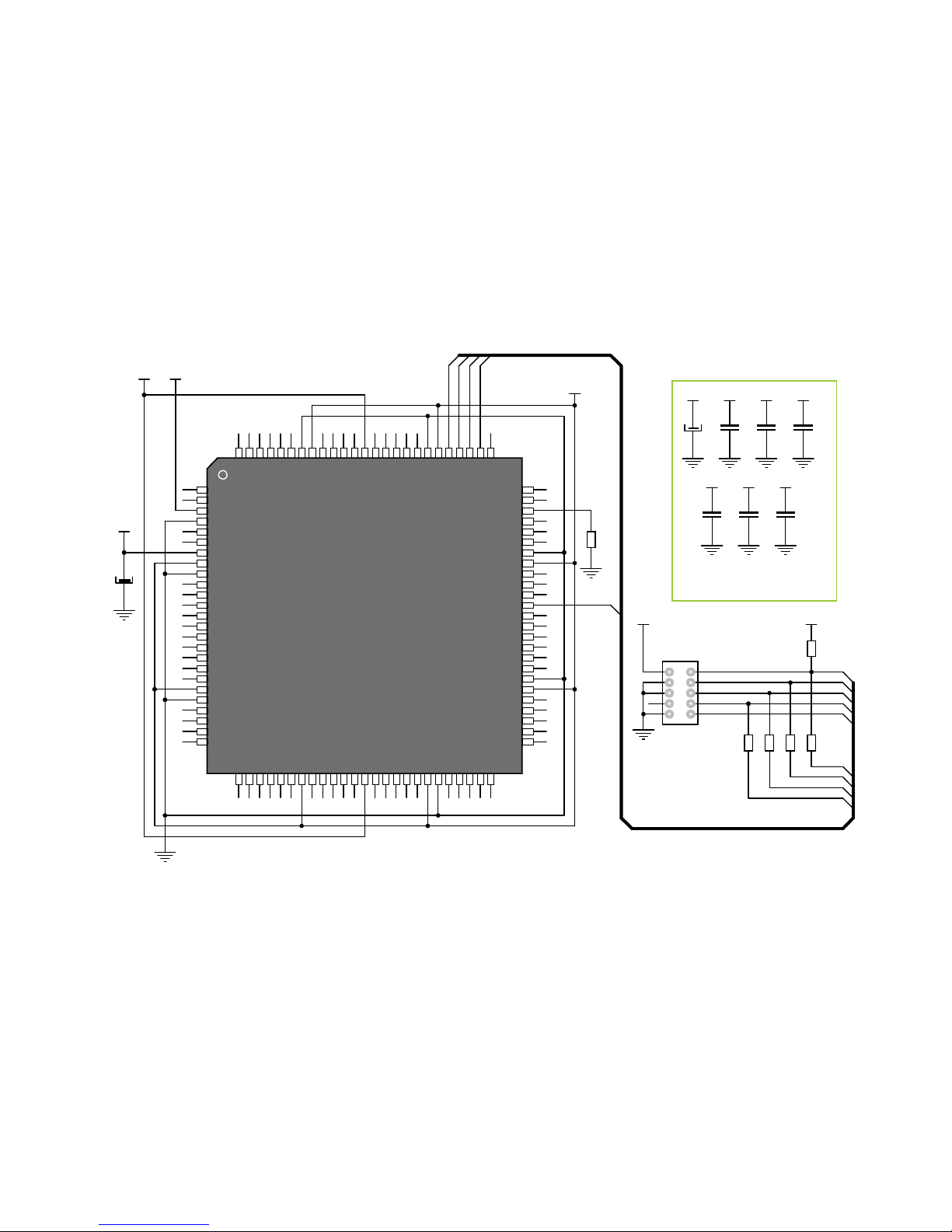

Figure 3-10: mikroProg™ programmer connection schematic
VCC-3.3
TDO-PC3
TCK-PC0
TMS-PC1
TDI-PC2
RESET#
1
3
5 6
4
2
7 8
9 10
CN5
M2X5
R51 100
R52 100
R60 100
001 35R
PC0
PC1
PC2
PC3
R63
10K
VCC-3.3
VCC-3.3
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
45
37
50948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
RESET#
R61
9K1
TCK-PC0
TMS-PC1
TDI-PC2
TDO-PC3
E9
10uF
VCORE
VCORE
C5
100nF
C6
100nFC7100nF
C8
100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling
capacitors
Page 18
Page 19
Board is equipped with reset button, which is located
at the top of the front side (Figure 4-2). If you want
to reset the circuit, press the reset button. It will
generate low voltage level on microcontroller reset pin
(input). In addition, a reset can be externally provided
through pin 27 on side headers (Figure 4-3).
4. Reset Button

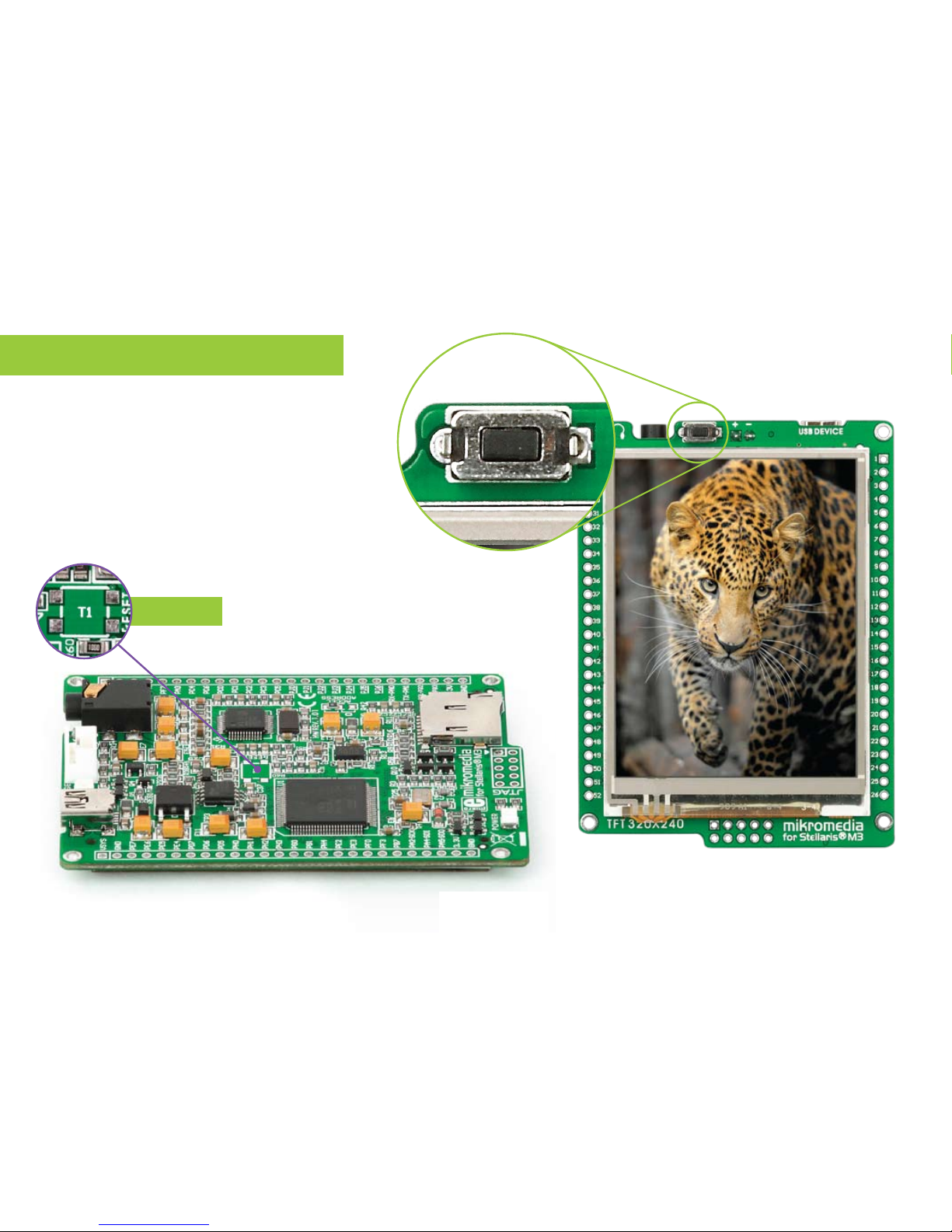

Figure 4-2: Frontal reset button
Figure 4-1: Location of additional reset button
You can also solder additional reset button
on the appropriate place at the back side
of the board, Figure 4-1.
NOTE
Page 19
C5
100nF
C6
100nFC7100nF
C8
100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling
capacitors
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
HDR2
M1X26
VCC-3.3
R8
10K
VCC-3.3
C3
100nF
T1
R7
100
T2
RST
VCC-3.3
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
45
37
50
9
48
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
818283
84
85
86
878889
90
91
92
939495
969798
99
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
R61
9K1
E9
10uF
VCORE
VCORE
Figure 4-3: Reset circuit schematic
Page 20
Page 21
Board is equipped with 8MHz crystal oscillator
(X1) circuit that provides external clock waveform
to the microcontroller OSC0 and OSC1 pins. This base
frequency is suitable for further clock multipliers and ideal
for generation of necessary USB clock, which ensures proper
operation of bootloader and your custom USB-based applications.
Figure 5-1:
8MHz crystal oscillator
VCC-3.3
C2
22pF
C1
22pF
X1
8MHz
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
453750948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
OSC0
OSC1
R61
9K1
E9
10uF
VCORE
VCORE
C5
100nF
C6
100nFC7100nF
C8
100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling
capacitors
Figure 5-2:
Crystal oscillator schematic
5. Crystal oscillator
The use of crystal in all other schematics is implied even if it is
purposely left out, because of the schematics clarity.
NOTE:
Page 21
SD-CS#
R11
10K
R10
10K
VCC-MMC
R9
10K
SD-CD#
VCC-MMC
R16
27
VCC-3.3
E6
10uF
C38
100nF
FP1
FERRITE
1
2
4
5
6
7
CD
CS
Din
+3.3V
SCK
GND
Dout
CD
GND
CN4
MMC CARD MICRO
SCK0-PA2
MOSI0-PA5
MISO0-PA4
VCC-3.3
C2
22pF
C1
22pF
X1
8MHz
R5
27
R4
27
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
453750948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
SD-CD#
SD-CS#
OSC0
OSC1
MISO0-PA4
SCK0-PA2
MOSI0-PA5
R61
9K1
E9
10uF
VCORE
VCORE
C5
100nF
C6
100nFC7100nF
C8
100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling
capacitors
Board contains microSD card slot for using microSD cards in your
projects. It enables you to store large amounts of data externally,
thus saving microcontroller memory. microSD cards use Serial
Peripheral Interface (SPI) for communication with the microcontroller.
Figure 6-3:
Inserting microSD card
Figure 6-1:
microSD card
slot
Figure 6-2: microSD Card Slot module connection schematic
6. MicroSD Card Slot
The development system features a TFT 320x240
display covered with a resistive touch panel.
Together they form a functional unit called a touch
screen. It enables data to be entered and displayed
at the same time. The TFT display is capable of
showing graphics in 262.144 die rent colors.

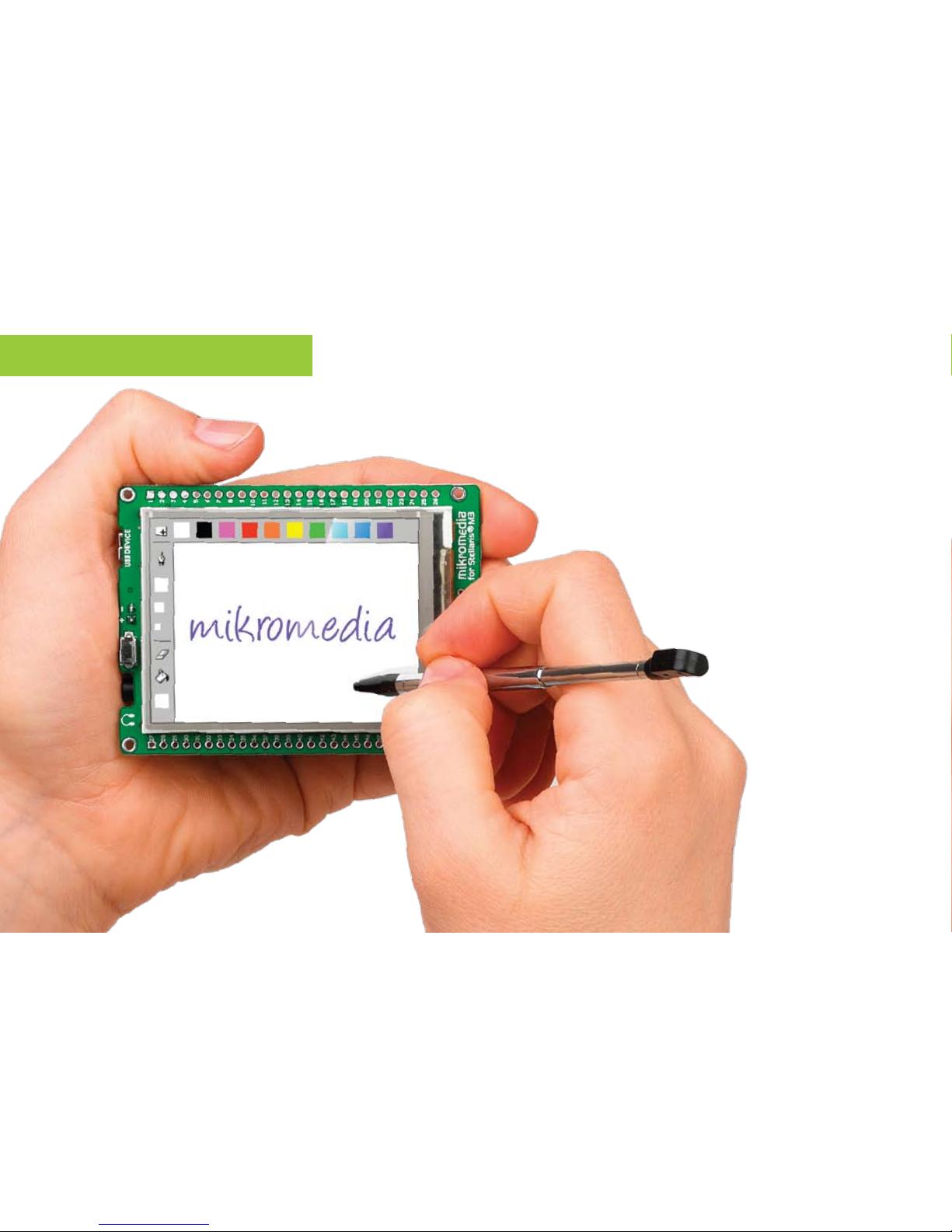

Figure 7-1: Touch Screen
7. Touch Screen
Page 22
Page 23
VCC-3.3AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
45
37
50948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
T-D0-PJ0
LCD-BLED
PMWR
PMRD
LCD-RS
T-D2-PJ2
T-D3-PJ3
T-D6-PJ6
DRIVEA
DRIVEB
LCD-CS#
LCD-RST
T-D4-PJ4
T-D7
T-D5-PJ5
R61
9K1
LCD-XL
LCD-YD
T-D1-PJ1
VCORE
E9
10uF
VCORE
R23
4K7
VCC-SYS
LCD-RST
LCD-RS
LCD-CS#
LCD-YU
LCD-XL
LCD-YD
LCD-XR
VCC-3.3
E13
10uF
R25
10K
VCC-3.3
R24
10K
LCD-RST
LCD-CS#
VCC-3.3
LCD-BLED
R40
12
VCC-SYS
PMRD
PMWR
D2
BAT43
LED-A1
2
DB17
15
HSYNC
12
RD
35
VSYNC
11
WR/SCL
36
LED-A2
3
LED-A3
4
LED-A4
5
IM0
6
ENABLE
14
IM1
7
IM2
8
IM3
9
DOTCLK
13
GND
43
SDO
33
RESET
10
RS
37
CS
38
FMARK
39
VCC-IO
40
XR
44
YD
45
XL
46
SDI
34
LED-K
1
YU
47
DB16
16
DB15
17
DB14
18
DB13
19
DB12
20
DB11
21
DB10
22
DB9
23
DB8
24
DB7
25
DB6
26
DB5
27
DB4
28
DB3
29
DB2
30
DB1
31
DB0
32
VCC
41
VCC-I
42
TFT1
MI0283QT2
VCC-3.3
Q9
BC856
Q10
BC846
R58
10K
R41
1K
VCC-1.8
R15
10K
R3
4K7
VCC-3.3
Q8
BC856
VCC-1.8
R55
10K
Q6
BC846
R14
10K
C21
100nF
R42
100K
Q7
BC846
R56
10K
C22
100nF
R57
100K
R54
4K7
VCC-3.3
LCD-XR
LCD-YU
LCD-XL
LCD-YD
DRIVEA
DRIVEB
Q3
BC846
Q2
BC846
Q1
BC846
T-D5-PJ5
T-D7
T-D4-PJ4
T-D3-PJ3
T-D2-PJ2
T-D1-PJ1
T-D0-PJ0
T-D6-PJ6
C5
100nF
C6
100nFC7100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
C8
100nF
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling capacitors

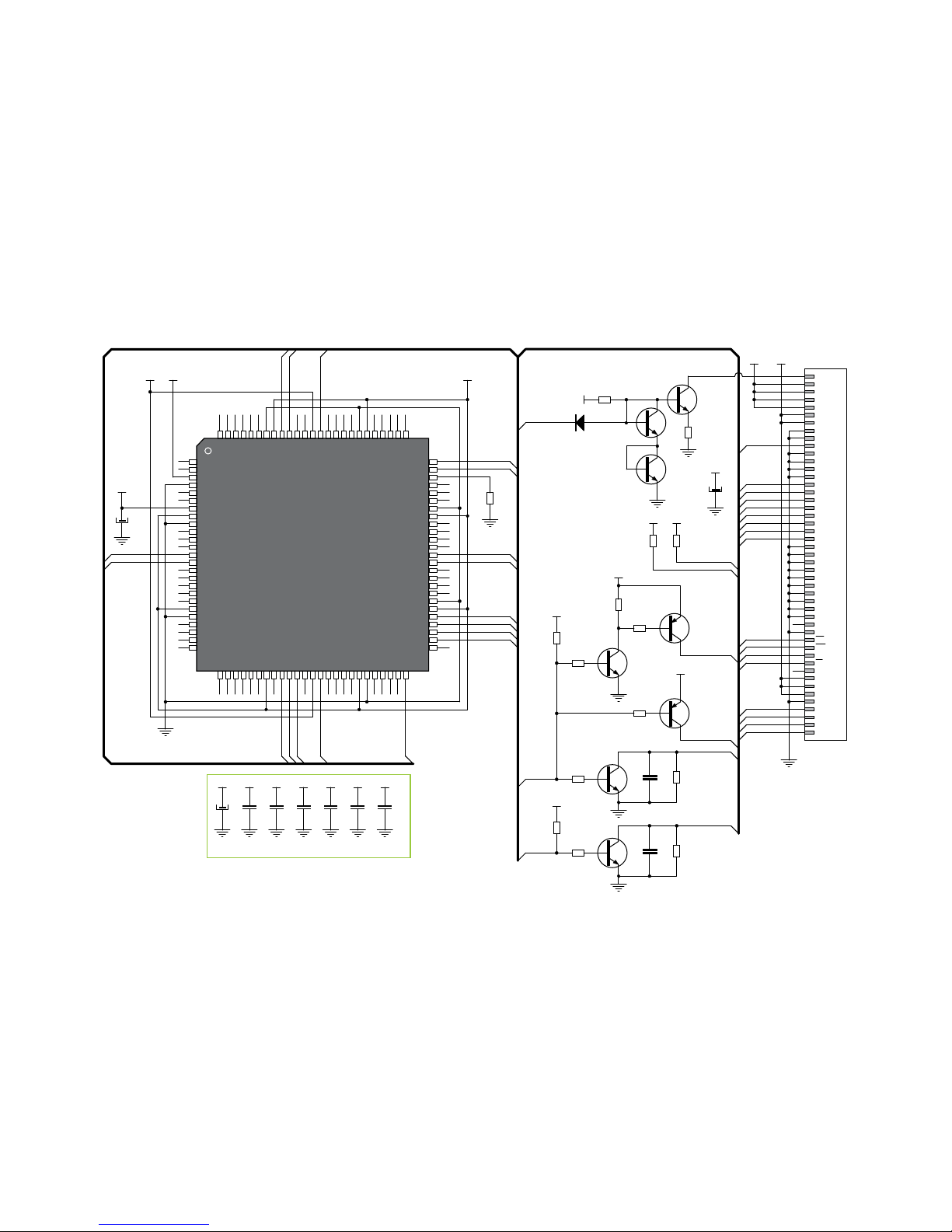

Figure 7-2: Touch Screen connection schematic
Page 24
Page 25
Figure 8-2:
Inserting 3.5mm
headphones jack
mikromedia for Stellaris
®
M3 features stereo audio codec VS1053. This module
enables audio reproduction by using stereo headphones connected to the system
via a 3.5mm connector CN2. All functions of this module are controlled by the
microcontroller over Serial Peripheral Interface (SPI).
Figure 8-1:
On-board VS1053
MP3 codec
8. Audio Module
Page 25

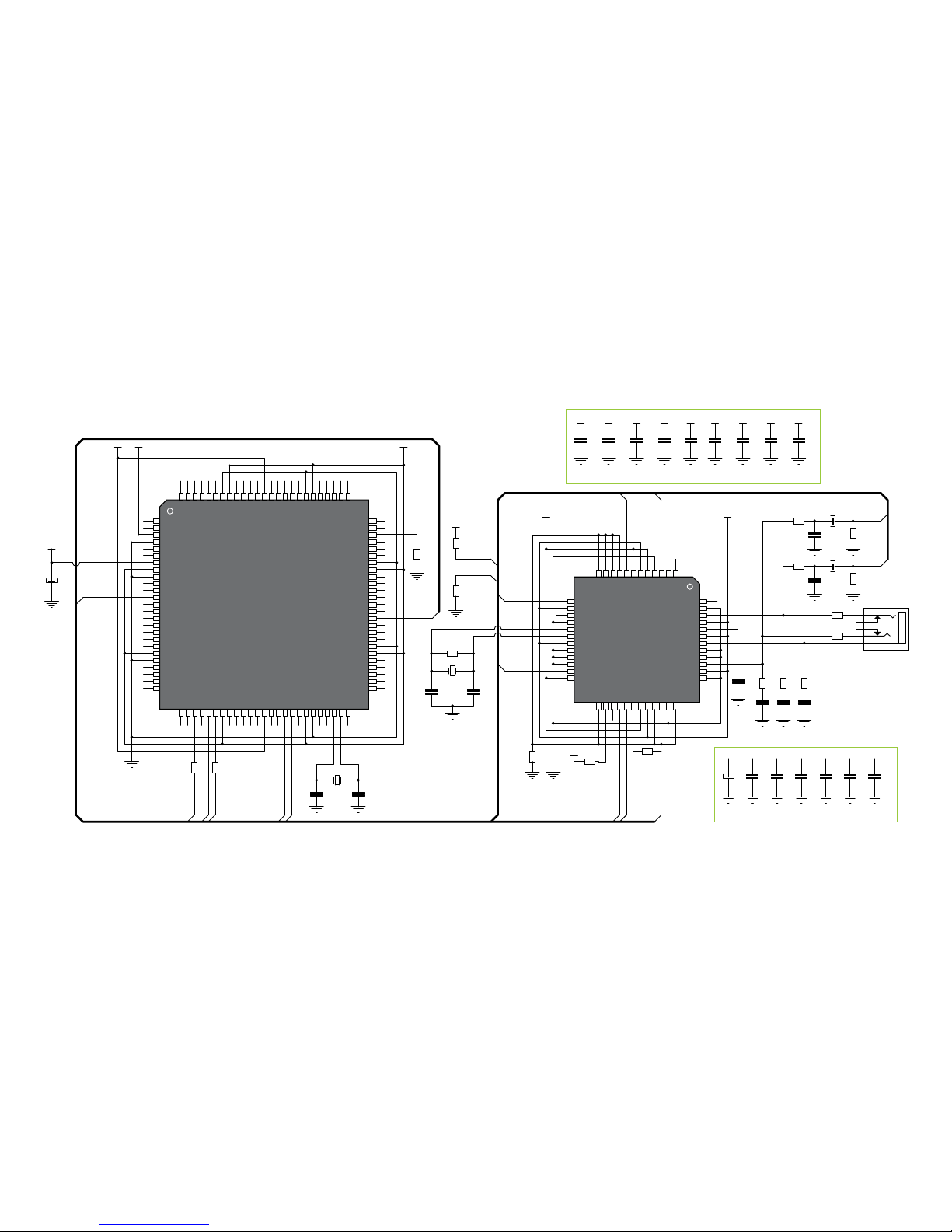

Figure 8-3: Audio module connection schematic
MP3-CS#
C20
22pF
C19
22pF
R1 1M
R20
10K
R21 10K
MP3-DREQ
X2
12.288MHz
C13
1uF
GPIO
VCC-3.3
LEFT
RIGHT
GBUF
E1 10uF
E2 10uF
CN2
PHONEJACK
LEFT
RIGHT
C16
10nF
C14
47nF
C15
10nF
R27
10
R3020R31
20
R28 10
R29 10
R32
470
C17
3.3nF
R17
100K
R33
470
C18
3.3nF
R18
100K
L
R
R22
27
23456
7
11
12
13
14
25
24
23
22
21
18
17
16
15
8
1
19
9
1027
2620282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
MCP/LN1
MICN
XRESET
DGND0
CVDD0
IOVDD0
CVDD1
DREQ
GPIO2
GPIO3
GPIO6
GPIO7
XDCS/BSYNC
IOVDD1
VC0
DGND1
XTAL0
XTAL1
IOVDD2
DGND2
DGND3
DGND4
XCS
CVDD2
GPIO5RXTX
SCLKSISO
CVDD3
XTEST
GPIO0
GPIO1
GND
GPIO4
AGND0
AVDD0
AVDD2
AGND1
AGND2
AGND3
LN2
LEFT
RCAP
AVDD1
GBUF
RIGHT
VS1053
U2
VCC-1.8
VCC-3.3
MP3-RST#
MP3-RST#
R2
10K
R19
10K
VCC-3.3
MP3-CS#
MP3-DCS
MISO0-PA4
SCK0-PA2
MOSI0-PA5
VCC-3.3
C2
22pF
C1
22pF
X1
8MHz
R5
27
R4
27
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
453750948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
MP3-DCS
MP3-RST#
MP3-DREQ
OSC0
OSC1
MISO0-PA4
SCK0-PA2
MOSI0-PA5
MP3-CS#
R61
9K1
E9
10uF
VCORE
VCORE
C5
100nF
C6
100nFC7100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
C8
100nF
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling capacitors
decoupling capacitors
C11
100nF
C10
100nF
C4
100nFC9100nF
VCC-1.8 VCC-1.8
VCC-1.8 VCC-1.8
C12
100nF
C23
100nF
VCC-3.3
C24
100nF
VCC-3.3
C26
100nF
VCC-3.3 VCC-3.3
C27
100nF
VCC-3.3
Page 26
Page 27
ARM® Cortex™-M3 LM3S9B95 microcontroller has
integrated USB module, which enables you to implement
USB communication functionality to your mikromedia board.
Connection with target USB host is done over MINI-B USB connector
which is positioned next to the battery connector.
Figure 9-1: Connecting
USB cable to MINI-B
USB connector
9. USB connection
Page 27
USBDP
USBDM
VCC-USB
C28
10nF
FP2
FERRITE
R62 100
1
2
3
4
5
GND
ID
D+
D-
VBUS
CN3
USB MINIB
USB-DET
USB-ID
VCC-3.3AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
45
37
50948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
USB-DET
USB-ID
USBDM
USBDP
R61
9K1
E9
10uF
VCORE
VCORE
C5
100nF
C6
100nFC7100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
C8
100nF
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling capacitors
Figure 9-2: USB module connection schematic
Page 28
Page 29
VCC-3.3AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
453750948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
SDA0-PB3
SCL0-PB2
R61
9K1
E9
10uF
VCORE
VCORE
C32
100nF
C33
100nF
VCC-3.3
R12
10K
R13
10K
VCC-3.3
ACC ADDRESS
1
2
3
VCC
GND
Res
4
GND
5
GND
6
VCC
7
CS
8
INT1
9
INT2
10
NC
11
Res
12
ADD
13
SDA
14
SCL
U9
ADXL345
VCC-3.3
VCC-3.3
VCC-3.3
SDA0-PB3
SCL0-PB2
1
2
3
J1
SMD JUMPER
C5
100nF
C6
100nFC7100nF
C8
100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling
capacitors
On board ADXL345 accelerometer is used to
measure acceleration in three axis: x, y and z. The
accelerometer function is dened by the user in the
program loaded into the microcontroller. Communication
between the accelerometer and the microcontroller is performed
via the I2C interface.
You can set the accelerometer
address to 0 or 1 by re-soldering the
SMD jumper (zero-ohm resistor) to the
appropriate position. Jumper is placed
in address 1 position by default.
Figure 10-2: Accelerometer connection schematic
Figure 10-1:
Accelerometer
module
10. Accelerometer
Page 29
C37
100nF
R48
10K
VCC-3.3
VCC-3.3
VCC-3.3
1
2
3
5
4
6
7
8
CS
SDO
WP
GND
SCK
SDI
HOLD
VCC
U10
M25P80
R59 27
FLASH-CS#
MISO0-FLASHMISO0-PA4
SCK0-PA2
MOSI0-PA5
VCC-3.3
C2
22pF
C1
22pF
X1
8MHz
R5
27
R4
27
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
453750948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
FLASH-CS#
OSC0
OSC1
MISO0-PA4
SCK0-PA2
MOSI0-PA5
R61
9K1
E9
10uF
VCORE
VCORE
C5
100nF
C6
100nFC7100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
C8
100nF
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling capacitors
Figure 11-2: Flash memory module
connection schematic
Since multimedia applications are
getting increasingly demanding, it is
necessary to provide additional memory
space to be used for storing more data.
The ash memory module enables the
microcontroller to use additional 8Mbit
ash memory. It is connected to the
microcontroller via the Serial Peripheral
Interface (SPI).
Figure 11-1:
Flash memory module
11. Flash Memory
Page 30
Page 31
VCC-3.3
R5
27
R4
27
AVCC
302928
27
34
33
58
57
56
55
54
53
52
46
36
35
424344
453750948
49
11
12
32
72
69
68
67
66
65
64
63
4
3
78
77
24
23
18
17
16
15
14
13
5
6
7
8
10
79
80
1
2
22
21
20
19
62
61
60
59
383940
41
47
71
31
51
70
26
25
76
75
74
73
LM3S9B95
81828384858687888990919293949596979899
100
PA7
PA6
ERBIAS
VDD
PF4
PF5
PE5
PE4
LDO
VDD
GND
VDD
PB1/USB0VBUS
VDD
VDD
TXOP
PJ4
PJ5
PJ6
PJ7
GND
TXON
PB5
PB6
PB7
VDD
VDDC
PJ1
PH2
PH3
GNDA
VDDA
PD5
PD4
PE3
PE2
GND
PB4
PD2
PA2
PC6
PC7
GND
VDD
PG0
PG1
USB0DP
USB0DM
NC
PB3/I2C0SDA
PJ0
PD1
PD0
VDDC
PD6
PD7
PE7
PE6
PA1
PA0
PC4
PC5
OSC1
PJ3
PB0/USB0ID
PF2
PF0
OSC0
GND
PJ2
RXIN
MDIO
PF1
PH0
XTALNPHY
XTALPPHY
PH7
PG7
RXIP
PF3
RST
PH1
PA5
PA4
PA3
PD3
GND
PH6
PH5
PB2/I2C0SCL
PC2
PH4
USB0BIAS
PE0
PE1
PC3
PC1
PC0
VDD
GND
U1
PC5
SDA1-PG1
SCL1-PG0
T-D0-PJ0
PC6
PC4
PE4
PE5
PE6
PE7
PA3
PF0
U0Rx-PA0
U0Tx-PA1
MISO0-PA4
T-D2-PJ2
T-D3-PJ3
SCK0-PA2
MOSI0-PA5
T-D6-PJ6
T-D4-PJ4
T-D5-PJ5
SDA0-PB3
PF2
PF3
SCL0-PB2
R61
9K1
PB7
PH1
PH0
PH3
PH2
T-D1-PJ1
MISO1-PE2
MOSI1-PE3
SCK1-PH4
TDI-PC2
TDO-PC3
TMS-PC1
TCK-PC0
PD6
PD5
PD7
E9
10uF
VCORE
VCORE
5AP-0ISOM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
HDR1
M1X26
VCC-3.3
VCC-SYS
PF3
MISO0-PA4
SCK0-PA2
PE4
PE5
PE6
PE7
PD7
PD5
PD6
SCL1-PG0
SDA1-PG1
MISO1-PE2
MOSI1-PE3
SCK1-PH4
PH2
PH3
PH0
PH1
PF0
PB7
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
HDR2
M1X26
VCC-3.3
RST
L
R
PC4
PC6
U0Rx-PA0
U0Tx-PA1
3BP-0ADS
SCL0-PB2
PC0
PC1
PC2
PC3
PC5
PF2
PA3
T-D5-PJ5
T-D4-PJ4
T-D3-PJ3
T-D2-PJ2
T-D1-PJ1
T-D0-PJ0
T-D6-PJ6
R7 100
RST
C5
100nF
C6
100nFC7100nF
E8
10uF
VCC-3.3
VCC-3.3 VCC-3.3
VCC-3.3
C8
100nF
VCC-3.3
C31
100nF
VCC-3.3
C35
100nF
VCC-3.3
decoupling capacitors
Most microcontroller pins are available for further connectivity via two 1x26 rows of connection
pads on both sides of the mikromedia board. They are designed to match additional shields, such
as Battery Boost shield, Gaming, PROTO shield and others.
Pads HDR2 Pads HDR1
Figure 12-1: Connecting pads schematics
12. Pads
Page 31
SPI LinesInterrupt LinesAnalog Lines
Digital lines
I2C Lines
UART lines
PWM lines
VSYS
RST Reset pin
System power supply
GND
GND Reference Ground
Reference Ground
PE7
L
PE6
R
left ch.
right ch.
PWM lines
Digital I/O lines
Digital I/O lines
SPI Lines
Interrupt Lines
Analog Lines
PE5
PF2
PE4
PA3
PD7
PC4
PD6
PC6
PD5
PC0
PH0
PC1
PH1
PC2
PH2
PC3
PH3
PC5
PG0
PJ0
PG1
PJ1
PH4
PJ2
PE2
PJ3
PE3
PJ4
PF0
PJ5
PF3
PJ6
PB7
PA0 RX
PA2
PA1 TX
SCK
PA4
PB2 SCL2
SDI
PA5
PB3 SDA2
SDO
3.3V
3.3V 3.3V power supply
3.3V power supply
GND
GND Reference Ground
Reference Ground
Pin functions
Pin functions
audio out
UART Lines
I
2
C Lines
13. Pinout
Page 32
Page 33
73.66 mm
81.15 mm
63.5 mm
2.67 mm2.54 mm
36.58 mm
55.88 mm
60.45 mm
2.03 mm
(3195 mils)
(2900 mils)
(2380 mils)
(2200 mils)
(2500 mils)
(1440 mils)
(105 mils)(100 mils)
(80 mils)
8.89 mm
(350 mils)
7.62 mm
(300 mils)
14. Dimensions
Page 33
15. Mikromedia accessories
We have prepared a set of
extension boards pin-compatible
with your mikromedia, which
enable you to easily expand
your board basic functionality.
We call them mikromedia
shields. But we also oer other
accessories, such as Li-polymer
battery, stacking headers, wire
jumpers and more.
04
01 02
03
Gaming shield
Connect shield BatteryBoost shield PROTO shield
06 07
Li-Polymer battery Wire Jumpers
05
mikroBUS shield
Page 34
Page 35
You still don’t have an appropriate compiler? Locate ARM® compiler that suits you best on
the Product DVD provided with the package:
Choose between mikroC™, mikroBasic™ and mikroPascal™ and download fully functional
demo version, so you can begin building your rst applications.
Once you have chosen your compiler, and since you already got the board, you are ready to start writing your rst
projects. Visual TFT software for rapid development of graphical user interfaces enables you to quickly create your
GUI. It will automatically create necessary code which is compatible with mikroElektronika compilers. Visual TFT is
rich with examples, which are an excellent starting point for your future projects. Just load the example, read well
commented code, and see how it works on hardware. Visual TFT is also available on the Product DVD.
You have now completed the journey through each and every feature of mikromedia for Stellaris® M3 board. You got to know it’s modules and
organization. Now you are ready to start using your new board. We are suggesting several steps which are probably the best way to begin.
We invite you to join the users of mikromedia™ brand. You will nd very useful projects and tutorials and can get help from a large ecosystem
of users. Welcome!
Compiler
Projects
DVD://download/eng/software/compilers/
What’s next?
Page 35
DISCLAIMER
All the products owned by MikroElektronika are protected by copyright law and international copyright treaty. Therefore, this manual is to be treated as any
other copyright material. No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or
transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use,
but not for distribution. Any modication of this manual is prohibited.
MikroElektronika provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties or
conditions of merchantability or tness for a particular purpose.
MikroElektronika shall assume no responsibility or liability for any errors, omissions and inaccuracies that may appear in this manual. In no event shall MikroElektronika,
its directors, ocers, employees or distributors be liable for any indirect, specic, incidental or consequential damages (including damages for loss of business
prots and business information, business interruption or any other pecuniary loss) arising out of the use of this manual or product, even if MikroElektronika has
been advised of the possibility of such damages. MikroElektronika reserves the right to change information contained in this manual at any time without prior
notice, if necessary.
TRADEMARKS
The MikroElektronika name and logo, the MikroElektronika logo, mikroC™, mikroBasic™, mikroPascal™, mikroProg™, mikroBUS™, Click Boards™, EasyMx PRO™ and
mikromedia™ are trademarks of MikroElektronika. All other trademarks mentioned herein are property of their respective companies.
All other product and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are only
used for identication or explanation and to the owners’ benet, with no intent to infringe.
Copyright © MikroElektronika, 2012, All Rights Reserved.
HIGH RISK ACTIVITIES
The products of MikroElektronika are not fault – tolerant nor designed, manufactured or intended for use or resale as on – line control equipment in hazard-
ous environments requiring fail – safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air trac
control, direct life support machines or weapons systems in which the failure of Software could lead directly to death, personal injury or severe physical or
environmental damage (‘High Risk Activities’). MikroElektronika and its suppliers specically disclaim any expressed or implied warranty of tness for High
Risk Activities.
If you want to learn more about our products, please visit our website at www.mikroe.com
If you are experiencing some problems with any of our products or just need additional
information, please place your ticket at www.mikroe.com/esupport
If you have any questions, comments or business proposals,
do not hesitate to contact us at oce@mikroe.com
mikromedia for Stellaris® M3 Manual
ver. 1.01b
0 100000 020371
Loading...
