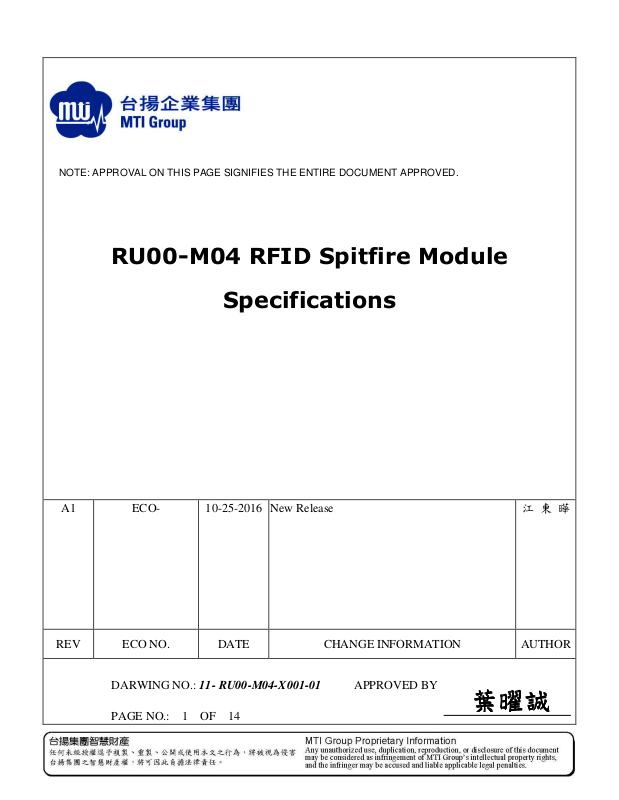

NOTE: APPROVAL ON THIS PAGE SIGNIFIES THE ENTIRE DOCUMENT APPROVED.
RU00-M04 RFID Spitfire Module
Specifications
A1
REV ECO NO. DATE CHANGE INFORMATION AUTHOR
ECO- 10-25-2016 New Release
江 東 曄
DARWING NO.: 11- RU00-M04-X001-01 APPROVED BY
PAGE NO.: 1 OF 14
RU00-M04 RFID Spitfire Module Specifications
PAGE: 2
11- RU00-M04-X001-01
DATE: 10-25-2016
REVISION HISTORY
DARWING NO.: 11- RU00-M04-X001-01 TITLE: RU00-M04 RFID Spitfire Module Specification
RU00-M04 RFID Spitfire Module Specifications
PAGE: 3
11- RU00-M04-X001-01
DATE: 10-25-2016
RU00-M04-X001 / X011
Spitfire Module
Datasheet
Version 1.0.0
MTI Group Proprietary Information
Any unauthorized use, duplication, reproduction, reverse engineering,
decompilation, or disclosure of this document may be considered as
infringement of MTI Group’s intellectual property rights, the infringer may
be accused and liable applicable legal penalties.
Copyright, Microelectronics Technology Inc.. All rights reserved.
RU00-M04 RFID Spitfire Module Specifications
PAGE: 4
11- RU00-M04-X001-01
DATE: 10-25-2016
Table of Contents
1 Introduction ................................................................................................................................ 5
2 Regulatory Statement................................................................................................................... 6
Federal Communication Commission Interference Statement ............................................................ 6
3 Specifications ............................................................................................................................... 8
4 Set up .......................................................................................................................................... 9
5 Pin Configurations and Descriptions ............................................................................................ 10
6 Mechanical Information ............................................................................................................. 12
Mechanical Outline (Draft) ........................................................................................................ 12
8 Revision History ......................................................................................................................... 15
Figures
Figure 1: I/O Configurations ............................................................................................................................ 10
Figure 2: Package Mechanical Outline ............................................................................................................ 12
Tables
Table 1: Band configurations ............................................................................................................................ 5
Table 2: Specifications ...................................................................................................................................... 8
Table 3: Pin Configurations of FPC connector ................................................................................................ 11
Table 4: Revision history ................................................................................................................................. 15
RU00-M04 RFID Spitfire Module Specifications
PAGE: 5
11- RU00-M04-X001-01
DATE: 10-25-2016
1 Introduction
The RU00-M04 is a FPC I/O connector, USB/UART interface that comprises a completely in integrated
solution for EPC Gen 2 / ISO18000-63 (formerly 18000-6C) application.
This document provides instructions to the end-user to ensure optimal performance in their OEM hardware.
Model Number Supported Regions Operating Frequency
RU00-M04-X001
RU00-M04-X011
Table 1: Band configurations
Regions configuration in different end-use products is limited by an original equipment manufacturer
(OEM)
US 902.75MHz~927.25MHz
EU 865.7MHz~867.5MHz
CN 920.625MHz~924.375MHz
JP 916.8MHz~920.4MHz
RU00-M04 RFID Spitfire Module Specifications
PAGE: 6
11- RU00-M04-X001-01
2 Regulatory Statement
Federal Communication Commission Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (if EUT is portable device, please
delete this item) (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
DATE: 10-25-2016
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 21cm between
the radiator & your body.
RU00-M04 RFID Spitfire Module Specifications
PAGE: 7
11- RU00-M04-X001-01
DATE: 10-25-2016
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
FOR MOBILE DEVICE USAGE (>20cm/low power)
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users. The final end product must be labeled
in a visible area with the following: “Contains FCC ID:MAD-RU00-M03”. The grantee's FCC ID can
be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
RU00-M04 RFID Spitfire Module Specifications
PAGE: 8
3 Specifications
Item Description Specifications
1 Air Interface Protocol
2 Tx Output Power Range: +10 to +31.5 dBm
3 RF Connectors UF.L*4
4 Dimensions Spitfire Module + Back Plate : 75 mm by 44 mm by 9 mm
5 I/O Connector FPC 20Pin
6 Rx Sensitivity
11- RU00-M04-X001-01
EPCglobal UHF Class 1 Gen2 / ISO 18000-63 (formerly 18000-6C)
Supports dense reader mode (DRM)
-74dBm. Assumes operation in profle 1, and a 15 dB antenna return
loss at 31.5 dBm output power.
DATE: 10-25-2016
7 DC Power Supply 3.3 to 5.25 Volts (The min. voltage 3.3V is limited by USB interface)
8 Supported Regions Worldwide regional support via FW configuration in different SKUs
9 Control Interface UART or USB
Table 2: Specifications
RU00-M04 RFID Spitfire Module Specifications
PAGE: 9
11- RU00-M04-X001-01
DATE: 10-25-2016
4 Set up
HOST can control the ru00-m04 module through the USB or UART on the test board. The
RU00-M04 can be easily powered by DC 5V. Set up refer to below figure.
RU00-M04 RFID Spitfire Module Specifications
PAGE: 10
11- RU00-M04-X001-01
DATE: 10-25-2016
5 Pin Configurations and Descriptions
The module is controlled via 20-pin FPC I/O connector. The pin configurations are shown in Figure 2 and
Table 3.
Figure 1: I/O Configurations
RU00-M04 RFID Spitfire Module Specifications
PAGE: 11
11- RU00-M04-X001-01
Pin
Number
Pin Name Type Description
DATE: 10-25-2016
1,2,3 VDC Power Power Supply
4 GND Ground Ground
Active low pulse for USB enumeration
5 USB_nSENSE Input
process. The low pulse need be more than
1ms.
6 USB_D+ I/O USB Data Signal Plus
7 USB_D- I/O USB Data Signal Minus
8 GND Ground Ground
9 UART1_TX Output UART Console Transmit Data
10 UART1_RX Input UART Console Receive Data
11 GND Ground Ground
12 ENABLE Input Active High Enable Device
13 WAKEUP Input Active High Wake up Device
14 GND Ground Ground
15 GPIO1 I/O General Purpose Input/Output
16 GPIO2 I/O General Purpose Input/Output
17 GPIO3 I/O General Purpose Input/Output
18 GPIO4 I/O General Purpose Input/Output
19 STATUS Output Status Indication
20 HEALTH Output Status Indication
Table 3: Pin Configurations of FPC connector
RU00-M04 RFID Spitfire Module Specifications
PAGE: 12
11- RU00-M04-X001-01
6 Mechanical Information
Mechanical Outline (Draft)
Spitfire Module + Back Plate：75 x 44 x 9mm
DATE: 10-25-2016
Figure 2: Package Mechanical Outline
RU00-M04 RFID Spitfire Module Specifications
PAGE: 13
11- RU00-M04-X001-01
DATE: 10-25-2016
7 Interfacing to the RU00-M04
Power and Ground
All circuits on the RU00-M04 are powered from inputs at pin 1, 2, 3. The RU00-M04 operates with any
supply voltage between 3.3 and 5.25V. Because the individual supplies within the part are regulated on the
RU00-M04, a large amount of supply filtering is not required. A high value, low ESR tantalum capacitor
(150uF or greater) is recommended and should be accompanied by a 0.1uF ceramic chip capacitor close to
the pin.
All 4 available ground pins (pin4, 8, 11, 14) of the RU00-M04 must be connected to the user PCB via 20 pin
FPC cable.
Communication
The RU00-M04 has one UART ports, which utilizes 3.3V CMOS I/O over a pair of pins. The UART is
compatible with a standard RS-232C serial port through an appropriate level translator IC. The user’s host
processor issues LLCS commands to the HOST UART (RX pin 10, TX pin 9), which can be configured for
any standard UART data rate for 115.2k, 230.4k, 460.8k and 921.6 kbaud. The default rate is set to 115.2
kbaud. Please see the RU00-M04 data sheet for detailed I/O specifications.
RF
The RU00-M04 is configured for monostatic operation, which requires only a single RF I/O pin for full
duplex communication. There are four antenna port, they are required to be connected with 50ohm RF cable.
GPIO
There are four user-configurable digital GPIOs on the RU00-M04. The signals are number GPIO1 – GPIO4
and occupy pins 15 – 18 respectively. Each GPIO operates at standard 3.3V CMOS logic levels with a
minimum output current capability of 4 mA per pin while maintaining guaranteed noise margins. Appropriate
interface circuitry and layout as well as handling of the OEM hardware should be applied. Please see the
RU00-M04 data sheet for detailed I/O specifications.
RU00-M04 RFID Spitfire Module Specifications
PAGE: 14
11- RU00-M04-X001-01
DATE: 10-25-2016
Enable
Pin 12 of the RU00-M04 comprises the ENABLE signal. The RU00-M04 is held in reset if the signal is held
low. The ENABLE signal is bidirectional and is pulled down to 3.3V by ~10kΩ resistance internal to the
RU00-M04. Any external connection to this pin must maintain a low impedance (<<10kΩ) other than when
an external reset signal is applied. This allows the RU00-M04 to exert control of the reset line during power
up and other situations that require it.
Health and Status
RU00-M04 pin 20 is a dedicated digital output that indicates the HEALTH of the RU00-M04. After the
RU00-M04 is successfully booted and in its operational state, the health output switches to low. Otherwise,
the output is high. The OEM can digitally monitor this signal or use it to drive an LED for visual indication
of the RU00-M04 health.
Pin 19 is a dedicated digital output that indicates the tag inventory STATUS of the RU00-M04. When the
RU00-M04 is successfully inventorying one or more tags, it will generate 0.5ms minimum high pulse. The
output remains low when no tags are being inventoried. Like the health signal, the OEM can monitor it via
firmware or use it to drive an LED for visual indication to the device user.
RU00-M04 RFID Spitfire Module Specifications
PAGE: 15
8 Revision History
Version
Number
1.0.0 Initial release 25-Oct-16
Table 4: Revision history
11- RU00-M04-X001-01
Description Revision Date
DATE: 10-25-2016
