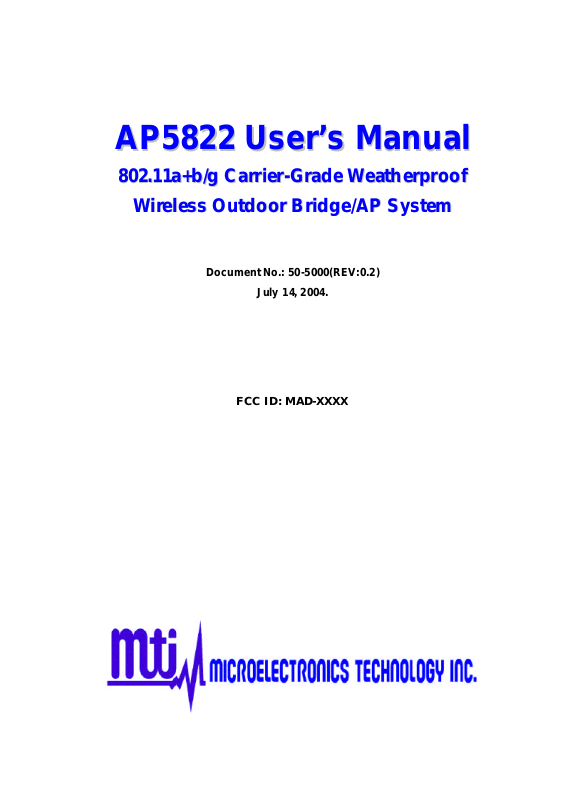

Microelectronics Technology AP5822 User Manual

A

P55882222

A

P

Usseerr’’ss

U

Maa

M

n

uaall

n

u

880022..1111aa++bb//gg CCaarrrriieerr--GGrraaddee WWeeaatthheerrpprrooooff
WW iirreelleessss OOuutt ddoooorr BB rriiddggee//AAPP SSyysstteemm

Document No.: 50-5000(REV:0.2)

July 14, 2004.

FCC ID: MAD -XXXX

Revision History

Revision Date of Issue Scope Author

0.1 June 30, 2004 First draft Carl Yang

0.2 July 14, 2004 Carl Yang

FCC Notice:

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.
n Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance

could void the user‘s authority to operate the equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter.
The equipment version marketed in US is restricted to usage of the channels 1- 11 in 2.4GHz

band only.

802.11a Bridge AP5822 MTI Proprietary Page 2

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.

Because standard antenna -connectors are used, this device is for professional installation
only.

For the safety reason, people should not work in a location where the RF Exposure
exceeds the limits. To get this, people who work with the antennas should be aware of the
following rules:

1). When using the 2.4GHz 8dbi or the 5GHz 8dbi or the 5GHz 17dbi antenna, the user

should keep at least 20 cm or more separation distance with the antenna.

2). When using the 5GHz 23dbi antenna, the user should keep at least 30 cm or more

separation distance with the antenna.

802.11a Bridge AP5822 MTI Proprietary Page 3

Disclaimer

MTI AP5822 Weatherproof Wire less Outdoor Bridge System User’s Manual
Document No.: 50-5000(REV:0.35), November 13, 2003.
COPYRIGHT © 2003 by Microelectronics Technology INC.
ALL RIGHTS RESERVED

No part of the publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or any means,
electronic, magnetic, chemical, manual or otherwise, without the prior written permission of
Microelectronics Technology Inc. (MTI). No.1, Innovation RD II, Hsinchu Science-Based
Industrial Park, Hsinchu 300, Taiwan, R.O.C.

MTI AP5822 is a registered trademark of Microelectronics Technology Inc.
Printed in the Taiwan, R.O.C.
The instructions in this manual have been carefully checked for accuracy and are presumed to

be reliable. The accuracy and adequacy of this document are the responsibilities of
Microelectronics Technology Inc. Please address any comments or corrections to

Microelectronics Technology Inc.

802.11a Bridge AP5822 MTI Proprietary Page 4

Warranty

This Microelectronics Technology Inc. product is warranted against defects in materials and
workmanship for a period of one year from date of shipment. During the warranty period,
Microelectronics Technology Inc. will, at its option, either repair or replace products which to be
defective.

For warranty s ervice or repair, this product must be returned to a service facility designated by
MTI. Buyer shall prepay shipping charges to MTI and MTI shall pay shipping charges to
return the product to Buyer. However, Buyer shall pay all shipping charges, duties, and taxes
for products returned to MTI from another country.

MTI warranty that its software and firmware designated by MTI for use with our product will
execute its programming instructions when properly installed on this product. MTI does not

warrant that the operation of the product, or software, or firmware will be uninterrupted or
error free.

Limitation of Warranty

The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance by Buyer, Buyer-supplied software or interfacing, unauthorized modification or
misuse, operation outside of the environment specifications for this product, or improper site
preparation or maintenance.

No other warranty is expressed or implied. MTI specifically disclaims the implied warranties of
merchantability and fitness for a particular purpose.

Trademark Disclosures

MTI has made every effort to provide disclosures when using trademarks owned by other
companies. Trademarked designations appear throughout this publication. The publisher
states that it is using the designations only for editorial purposes, and to the benefit of the
trademark owner with no intent to infringe upon that trademark. The following trademarks are
found in this manual:

ATHEROSTM is a registered trademark of Atheros Communications Inc.

802.11a Bridge AP5822 MTI Proprietary Page 5

Manual Conventions

Bold type within paragraph text indicates commands, file names, directory

Within commands, items enclosed in square brackets are optional parameters

Within commands, item enclosed in braces are options from which the user

NOTE: This message denotes neutral or positive information that calls out

important points to the text. A note provides information that applies only in

The following conventions are followed in this manual:

Bold

names, paths, output, or returned values.

Italic Within commands, italics indicate a variable that the user must specify.

Titles of manuals or other published documents are also set in italics.

Courier

[]

{}

| Within commands, the vertical bar separates options.

… An ellipsis indicates a repetition of preceding parameter.

> Th e right angle bracket separates successive menu selection.

Notices

The courier font indicates output or display.

or values th at the user can choose to specify or omit.

must choose.

special cases.

Caution: Cautions call special attention to hazards that can cause system damage or data
corruption, to a lesser degree than warnings.

Warnings: Warnings call special attention to hazards that can cause system damage, data
corruption, personal injury, or death.

802.11a Bridge AP5822 MTI Proprietary Page 6

Preface

Microelectronics Technology Inc. (MTI) is very pleased for you purchase in this product. MTI
AP5822 is a cost-effective way to expand or replace your local, wired networks (LANs). With this
system, your wired networks can communicate with one another wired networks.

Building to Building Connection

MTI 802.11a wireless outdoor turbo bridge AP5822 is a wireless building-to-building bridge
solution. AP5822 provides data rate up to 108 Mbps and is best suited for enterprises,
campus or off-site locations that require LAN or Internet access without the availability of
wired networks to extend network coverage.

AP5822 provides point-to-point and point-to-multi-point connection capabilities. The
wireless building-to- building bridging solution contains a state-of-the-art wireless Bridge, high
gain performance 17dBi flat patch antenna and power-over-Ethernet technology. For further
protection, the bridge and power-over-Ethernet adapter have built in lightning protector.

Last Mile Solution

MTI’s AP5822 provides the alternative solution for last-mile connection. By leveraging the

802.11’s volume power and low cost, AP5822 Link provides very cost effective solution to
carriers. With the cost effective wireless last mile solution, service provider can have fast
deployment (time-to- market) and successful business models.

This document was written for user of the MTI AP5822 Weatherproof Wireless Outdoor
Bridge System. First, we will introduction our system, help you to connect it and install the

software, and describe the entire feature about the system.
This manual contains information on installing, operating, and maintaining the MTI AP5822.

Installation tasks include mechanical installation of the MTI AP5822, connecting external
equipment to the MTI AP5822, and configuring the system. Operation tasks include modify
operating parameters, monitoring status, and maintaining the system through troubleshooting
and system repair procedures. This manual is intended for those people who install and
operate the MTI AP5822 system.

Documentation

The accompanying documentation comprises:
Manual - Hardware installation, description of the functions, operating modes and sample

configurations
CD containing electronic documentation - Complete set of manuals for the product family,

technical basics (such as information on wireless networks, general network technology,
TCP/IP etc.), a workshop with detailed descriptions of sample applications, and a reference
section including comprehensive description of the menus.

802.11a Bridge AP5822 MTI Proprietary Page 7

Table of Contents

Revision History......................................................................................................................................2

Disclaimer.................................................................................................................................................4

Warranty...................................................................................................................................................5

Limitation of Warranty ............................................................................................................................5

Trademark Disclosures..........................................................................................................................5

Manual Conventions................................ ................................................................ ...............................6

PREFACE................................................................................................................................................7

Building to Building Connection............................................................................................................7

Last Mile Solution....................................................................................................................................7

Documentation........................................................................................................................................7

TABLE OF CONTENTS.........................................................................................................................8

CHAPTER 1 INTRODUCTI ON.......................................................................................................... 10

1-1 System Requirements..................................................................................................................10

1-2 Product Configurations .................................................................................................................10

1-3 Specification................................................................................................................................... 11

1-4 Hardware Architecture..................................................................................................................11

CHAPTER 2 HARDWARE INSTALLATION...................................................................................13

2-1 Unpacking the Equipment ................................................................ ............................................13

2-2 Verifying the System Configuration................................ ............................................................13

2-3 Installation Kit................................................................................................................................. 13

2-4 Grounding.......................................................................................................................................14

2-5 ESD Protection..............................................................................................................................14

2-6 Outline of MTI AP5822.................................................................................................................15

2-7 Installing the ODU ......................................................................................................................... 16

2-8 Connecting the cable................................ ................................................................ ....................16

802.11a Bridge AP5822 MTI Proprietary Page 8

2- 9 Align the Antenna (TBD)...............................................................................................................17

CHAPTER 3 BRIDGE NETWORK CONFIGURATION .................................................................18

3- 1 Bridge Network Connections .......................................................................................................18

3- 2 Network Configuration..................................................................................................................19

3- 3 Bridge Initial Configurations .........................................................................................................20

3- 4 Web Browser..................................................................................................................................21

3- 5 Bridge Web Server........................................................................................................................22

3- 6 Configuration Windows.................................................................................................................24

3- 7 Working with Configuration Windows.........................................................................................24

3- 8 System Basic Configuration Window.........................................................................................25

3- 9 System Advanced Configuration Window.................................................................................26

3- 10 Advanced Setup Window...........................................................................................................27

3- 11 Firmware Update Configuration Window.................................................................................27

3- 12 Statistics Windows................................................................................................ ......................28

3- 13 Bridge Statistics...........................................................................................................................28

3- 14 Station Statistics..........................................................................................................................30

3- 15 Bridge setup window...................................................................................................................32

APPENDIX A ACRONYMS & ABBREVIATIONS...........................................................................33

802.11a Bridge AP5822 MTI Proprietary Page 9

MTI 802.11a wireless outdoor
turbo bridge, AP5822 is a
wireless building-to-building
bridge solution, AP5822 provide
the data rate up to 108 Mbps that
is best suited for enterprises,
campus or off-site locations that
require LAN or Internet access
without the availability of wired
networks to extend the network
coverage. AP5822 provides the
point to point and point to
multi-point connection.

The wireless building-to-building
bridging solution contains a state
of the art wireless Bridge, high
gain performance 17dBi flat panel
antenna and Power over Ethernet.
For further protection, the bridge
and Power over Ethernet adapter
have build in lightning protector.

Chapter 1 Introduction

Rates of 6 to 54 Mbps are
supported in standard IEEE 802.11a modes, and up to 108 Mbps in Atheros Turbo Mode . All

802.11a transmission rates are supported across the 5.15 to 5.85 GHz spectrum.

1-1 System Requirements

The Bridge contains a small boot executive that allows the main operating system software to
be downloaded using the Ethernet port over an FTP connection. The Operating system
software can also reside in the Flash memory of the Bridge, which allows booting without the
need to download the operating system from the host PC over an FTP connection. A
configuration file is created in Flash memory to store user-configurable parameters. A
terminal or PC with an Ethernet connection is required to perform the initial Bridge
configuration. An FTP server is required for firmware update to the Bridge.

1-2 Product Configurations

The base hardware is an outdoor mountable metal enclosure. The AP5822 can be managed
via the network station remotely. The following are available product configurations:

n Fast Ethernet managed 802.11a wireless outdoor turbo bridge
n Outdoor Mounting Kit
n One POE Power Injector

802.11a Bridge AP5822 MTI Proprietary Page 10
