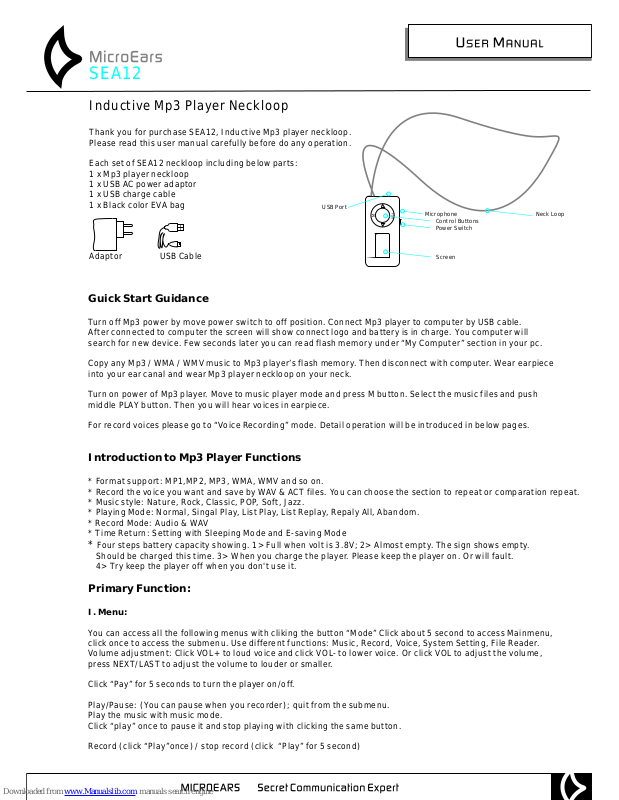

SEA12
Inductive Mp3 Player Neckloop
Thank you for purchase SEA12, Inductive Mp3 player neckloop.
Please read this user manual carefully before do any operation.
Each set of SEA12 neckloop including below parts:
1 x Mp3 player neckloop
1 x USB AC power adaptor
1 x USB charge cable
1 x Black color EVA bag
Adaptor USB Cable
M
VOL
Control Buttons
Power Switch
Screen
Neck Loop
Microphone
USB Port
Guick Start Guidance
Turn off Mp3 power by move power switch to off position. Connect Mp3 player to computer by USB cable.
After connected to computer the screen will show connect logo and battery is in charge. You computer will
search for new device. Few seconds later you can read flash memory under “My Computer” section in your pc.
Copy any Mp3 / WMA / WMV music to Mp3 player’s flash memory. Then disconnect with computer. Wear earpiece
into your ear canal and wear Mp3 player neckloop on your neck.
Turn on power of Mp3 player. Move to music player mode and press M button. Select the music files and push
middle PLAY button. Then you will hear voices in earpiece.
For record voices please go to “Voice Recording” mode. Detail operation will be introduced in below pages.
Introduction to Mp3 Player Functions
* Format support: MP1,MP2, MP3, WMA, WMV and so on.
* Record the voice you want and save by WAV & ACT files. You can choose the section to repeat or comparation repeat.
* Music style: Nature, Rock, Classic, POP, Soft, Jazz.
* Playing Mode: Normal, Singal Play, List Play, List Replay, Repaly All, Abandom.
* Record Mode: Audio & WAV
* Time Return: Setting with Sleeping Mode and E-saving Mode
* Four steps battery capacity showing. 1> Full when volt is 3.8V; 2> Almost empty. The sign shows empty.
Should be charged this time. 3> When you charge the player. Please keep the player on. Or will fault.
4> Try keep the player off when you don't use it.
Primary Function:
I. Menu:
You can access all the following menus with cliking the button “Mode” Click about 5 second to access Mainmenu,
click once to access the submenu. Use different functions: Music, Record, Voice, System Setting, File Reader.
Volume adjustment: Click VOL+ to loud voice and click VOL- to lower voice. Or click VOL to adjust the volume,
press NEXT/LAST to adjust the volume to louder or smaller.
Click “Pay” for 5 seconds to turn the player on/off.
Play/Pause: (You can pause when you recorder); quit from the submenu.
Play the music with music mode.
Click “play” once to pause it and stop playing with clicking the same button.
Record (click “Play”once) / stop record (click “Play” for 5 second)
SEA12
(Page 2)
II. Button function:
1> ON/OFF/Play/Stop please use the button “play”
2> “MENU” access or quit last menu.
3> “VOL+/VOL-”, add or minus the volume.
4> “Vol” access to adjust the volume.
5> “NEXT” forward and Next file to play.
6> “LAST” go to last file or minus the volume.
7> “USB” USB2.0 infterface.
8> “ON/OFF”, click to keep the player to be off and on.
III. EQ Mode:
In playing, click “Mode” go to playing submenu. Choose “EQ Mode” with clicking the button ”Next”
Click Mode into EQ Mode. And then choose the one you would like. Confirm with clicking “Mode”
IV. Voice Record:
Please make sure the battery is full when you start to record. 99 files to be saved for every catalog.
Get into the main menu, press “Next” to choose “Record Mode”, and then click “play” to start record.
Records saved in Record/Stop Mail Disk Catalog.
If the screen shows “Full Files” Please delete the other files to make sure there is enough space.
If the screen show ”Full List” it means you have record 99 files to this catalog. Please choose the other catalog.
Only “Play” work when you record.
Record type choosing:
1> At record stop
2> Click “Mode” access the record submenu.
3> Click “Next” chose “Record Type” Click “Mode” to access.
High quality record: WAV format, with high quality volume.
Long time record: Normal quality volume.
High quality voice control: WAV format, stop record automatically when there is no voice.
Long time voice control record: stop record automatically when there is no voice.
4> Click “Next” to confirm the record mode you would like.
5> Start to record with clicking “Play”
V. Record file playing:
1> Access the main menu.
2> Click “Next” and choose “Voice Mode”
3> Click “Mode” access the interface of record playing.
4> Start to play the record file with clicking “Play”
5> Choose the record files. “Last” & “Next” to choose the one file before or next.
(to be continued)
SEA12
(Page 3)
VI. Language:
25 Languages including for choosing: Chinese, English, Japanese, Korea, French, German, Italian, Spanish,
Portuguese, Dutch, Swedish, Czech, Danish, Thai, Russia, Slovak, Volim te, Hungarain, Romanian and so on.
1> Click “Mode” and choose language.
2> Click “Next” confirm your lanuage.
3> Click “Mode” to confirm and quit.
VII. Battery saving:
Electroni Saving Mode: setting a time, it will be off automatic after the time you have set without any operation.
Sleeping Mode: setting a time, no matter in which status, the player will be off automatic when the setting time
is end without any operation in the period.
VIII. Files reading:
1> Access the main menu. Click Next/Last to “Files Reading”
2> Click “Mode” to access the files submenu.
3> Choose the file you want to read and press “Mode” to read.
IX. Playing speed:
1> In playing status.
2> Click “Mode” access the submenu of Play.
3> Click “Next” to “Playing Speed”
4> Click “Mode” to choose the speed of playing.
5> Speeder with “Next” and “Last” slow the speed.
This setting is for every files in your player until you set it again.
Again, thank you for choose MicroEars products.
Wish you enjoy our Mp3 player neckloop and have fun.
