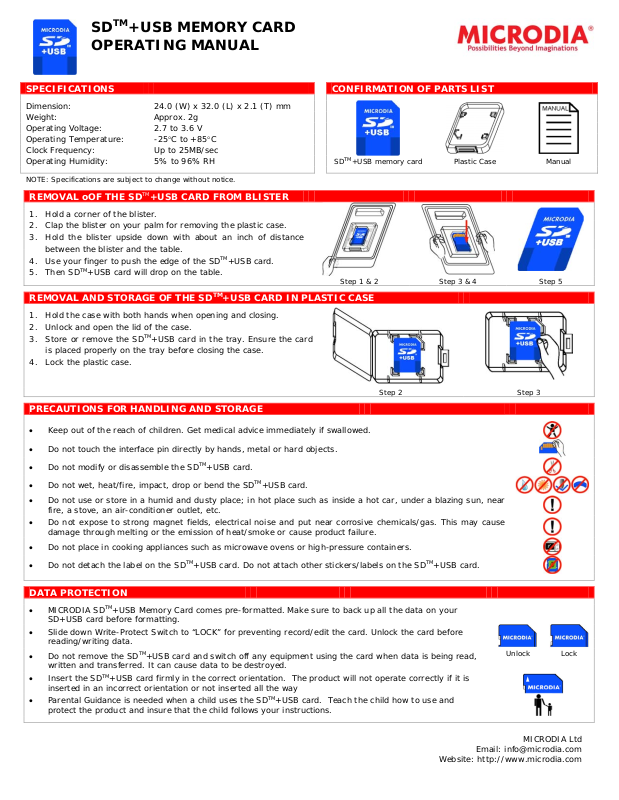

Microdia SD+USB 82 XTRA Plus User Manual

SD

TM

+USB MEMORY CARD

OPERATING MANUAL

SPECIFICATIONS CONFIRMATION OF PARTS LIST

Dimension: 24.0 (W) x 32.0 (L) x 2.1 (T) mm
Weight: Approx. 2g
Operating Voltage: 2.7 to 3.6 V
Operating Temperature:
Clock Frequency: Up to 25MB/sec
Operating Humidity: 5% to 96% RH

NOTE: Specifications are subject to change without notice.

REMOVAL oOF THE SDTM+USB CARD FROM BLISTER

1. Hold a corner of the blister.

2. Clap the blister on your palm for removing the plastic case.

3. Hold the blister upside down with about an inch of distance
between the blister and the table.

4. Use your finger to push the edge of the SD

5. Then SD

REMOVAL AND STORAGE OF THE SDTM+USB CARD IN PLASTIC CASE

1. Hold the case with both hands when opening and closing.

2. Unlock and open the lid of the case.

3. Store or remove the SD
is placed properly on the tray before closing the case.

4. Lock the plastic case.

PRECAUTIONS FOR HANDLING AND STORAGE

• Keep out of the reach of children. Get medical advice immediately if swallowed.

• Do not touch the interface pin directly by hands, metal or hard objects.

• Do not modify or disassemble the SDTM+USB card.

• Do not wet, heat/fire, impact, drop or bend the SDTM+USB card.

• Do not use or store in a humid and dusty place; in hot place such as inside a hot car, under a blazing sun, near

• Do not expose to strong magnet fields, electrical noise and put near corrosive chemicals/gas. This may cause

• Do not place in cooking appliances such as microwave ovens or high-pressure containers.

• Do not detach the label on the SDTM+USB card. Do not attach other stickers/labels on the SDTM+USB card.

DATA PROTECTION

• MICRODIA SDTM+USB Memory Card comes pre-formatted. Make sure to back up all the data on your

• Slide down Write-Protect Switch to “LOCK” for preventing record/edit the card. Unlock the card before

• Do not remove the SDTM+USB card and switch off any equipment using the card when data is being read,

• Insert the SDTM+USB card firmly in the correct orientation. The product will not operate correctly if it is

• Parental Guidance is needed when a child uses the SDTM+USB card. Teach the child how to use and

-25°C to +85°C

TM

TM

+USB card will drop on the table.

TM

+USB card in the tray. Ensure the card

fire, a stove, an air-conditioner outlet, etc.

damage through melting or the emission of heat/smoke or cause product failure.

SD+USB card before formatting.

reading/writing data.

written and transferred. It can cause data to be destroyed.

inserted in an incorrect orientation or not inserted all the way

protect the product and insure that the child follows your instructions.

+USB card.

SDTM+USB memory card

Plastic Case Manual

Step 1 & 2 Step 3 & 4 Step 5

Step 2 Step 3

Unlock Lock

Website: http://www.microdia.com

Email: [e-mail]

MICRODIA Ltd
