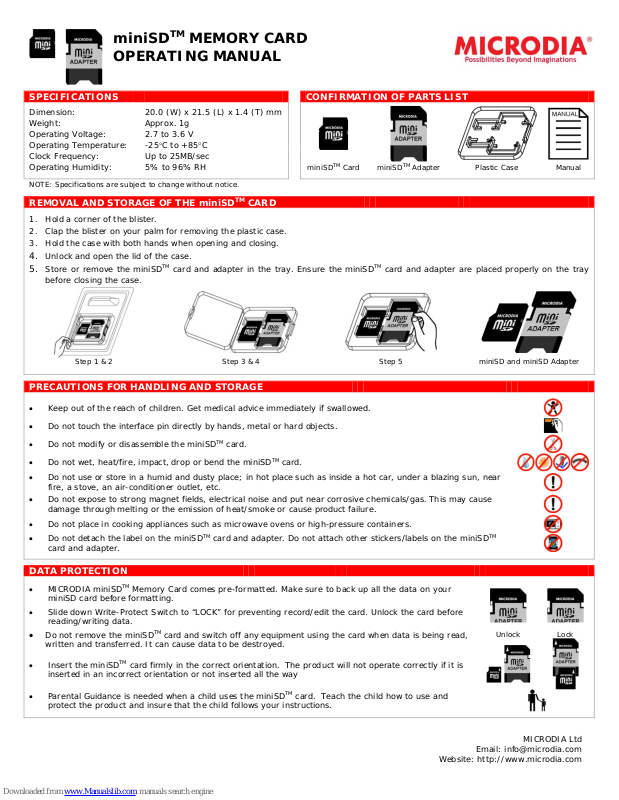

Microdia miniSD Operating Manual
TM
miniSD
OPERATING MANUAL
MEMORY CARD
SPECIFICATIONS CONFIRMATION OF PARTS LIST
Dimension: 20.0 (W) x 21.5 (L) x 1.4 (T) mm
Weight: Approx. 1g
Operating Voltage: 2.7 to 3.6 V
Operating Temperature:
Clock Frequency: Up to 25MB/sec
Operating Humidity: 5% to 96% RH
NOTE: Specifications are subject to change without notice.
REMOVAL AND STORAGE OF THE miniSDTM CARD
1. Hold a corner of the blister.
2. Clap the blister on your palm for removing the plastic case.
3. Hold the case with both hands when opening and closing.
-25°C to +85°C
miniSDTM Card miniSDTM Adapter
Plastic Case Manual
4. Unlock and open the lid of the case.
Store or remove the miniSDTM card and adapter in the tray. Ensure the miniSDTM card and adapter are placed properly on the tray
5.
before closing the case.
Step 1 & 2 Step 3 & 4 Step 5 miniSD and miniSD Adapter
PRECAUTIONS FOR HANDLING AND STORAGE
• Keep out of the reach of children. Get medical advice immediately if swallowed.
• Do not touch the interface pin directly by hands, metal or hard objects.
• Do not modify or disassemble the miniSDTM card.
• Do not wet, heat/fire, impact, drop or bend the miniSDTM card.
• Do not use or store in a humid and dusty place; in hot place such as inside a hot car, under a blazing sun, near
fire, a stove, an air-conditioner outlet, etc.
• Do not expose to strong magnet fields, electrical noise and put near corrosive chemicals/gas. This may cause
damage through melting or the emission of heat/smoke or cause product failure.
• Do not place in cooking appliances such as microwave ovens or high-pressure containers.
• Do not detach the label on the miniSDTM card and adapter. Do not attach other stickers/labels on the miniSDTM
card and adapter.
DATA PROTECTION
• MICRODIA miniSDTM Memory Card comes pre-formatted. Make sure to back up all the data on your
miniSD card before formatting.
• Slide down Write-Protect Switch to “LOCK” for preventing record/edit the card. Unlock the card before
reading/writing data.
• Do not remove the miniSD
written and transferred. It can cause data to be destroyed.
TM
card and switch off any equipment using the card when data is being read,
Unlock Lock
• Insert the miniSDTM card firmly in the correct orientation. The product will not operate correctly if it is
inserted in an incorrect orientation or not inserted all the way
• Parental Guidance is needed when a child uses the miniSDTM card. Teach the child how to use and
protect the product and insure that the child follows your instructions.
Website: http://www.microdia.com
Email: info@microdia.com
MICRODIA Ltd
